AZ-400 Microsoft Azure DevOps Solutions Questions and Answers

Woodgrove Bank identifies the following technical requirements:

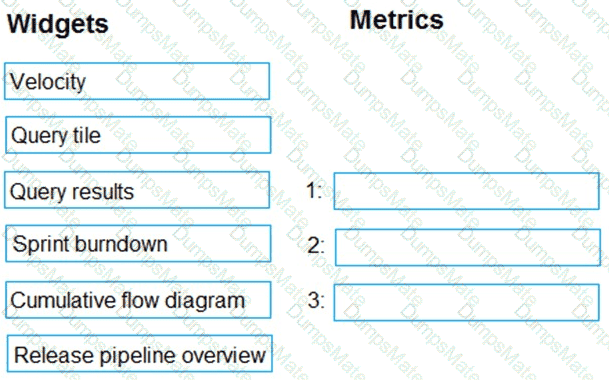

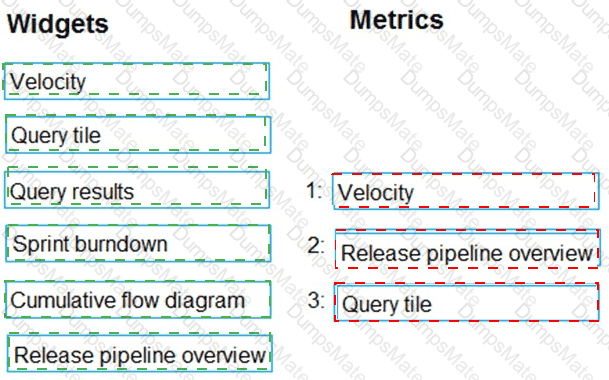

The Azure DevOps dashboard must display the metrics shown in the following table:

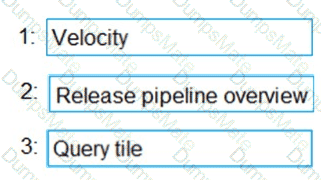

Box 1: Velocity

Velocity displays your team velocity. It shows what your team delivered as compared to plan.

Box 2: Release pipeline overview

Release pipeline overview shows the status of environments in a release definition.

Box 3: Query tile

Query tile displays the total number of results from a query.

Scenario: Access to Azure DevOps mustbe restricted to specific IP addresses.

Azure DevOps is authenticated through Azure Active Directory. You can use Azure AD's conditional access to prevent logins from certain geographies and address ranges.

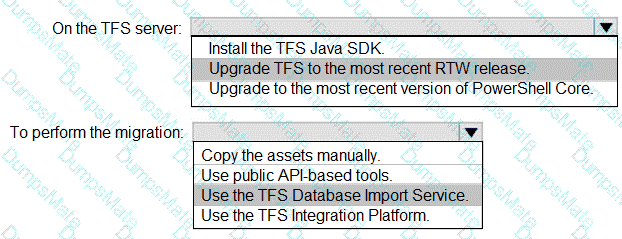

Woodgrove Bank plans to implement the following changes to the DevOps environment:

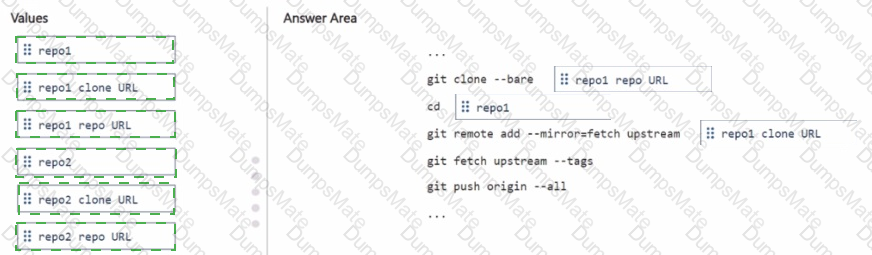

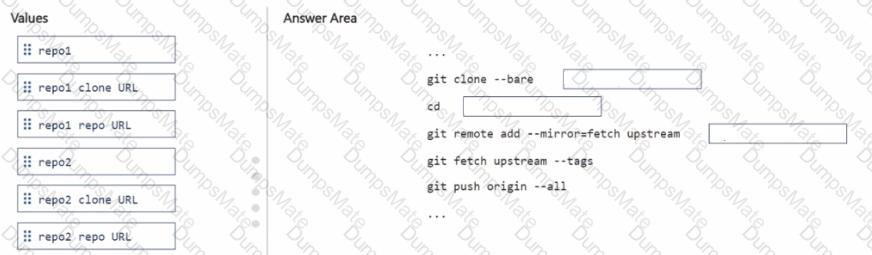

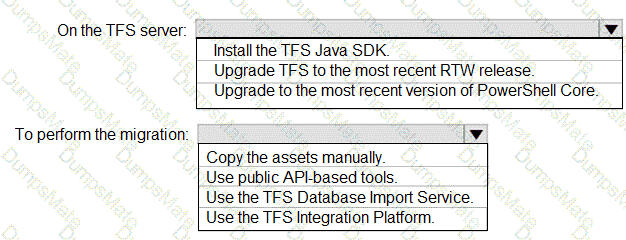

Migrate all the source code from TFS1 to GitHub.

The Git-TFS tool is a two-way bridge between Team Foundation Version Control and Git, and can be used to perform a migration.

Scenario: Deploy App2 to an Azure virtual machine named VM1.

A personal access token (PAT) is used as an alternatepassword to authenticate into Azure DevOps.

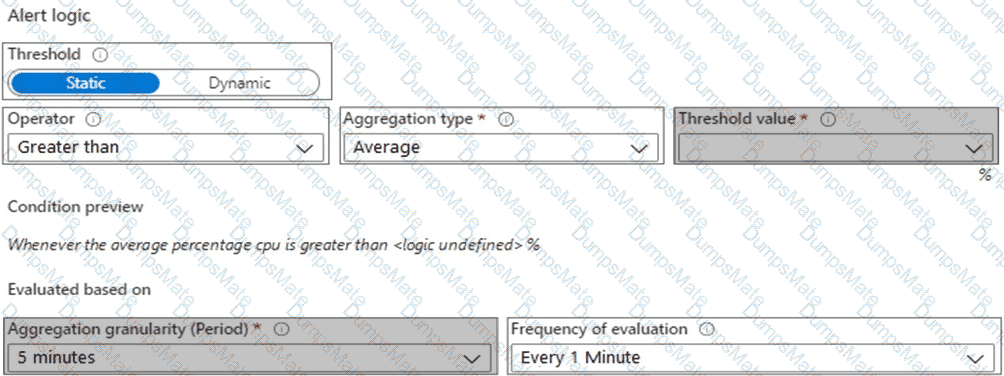

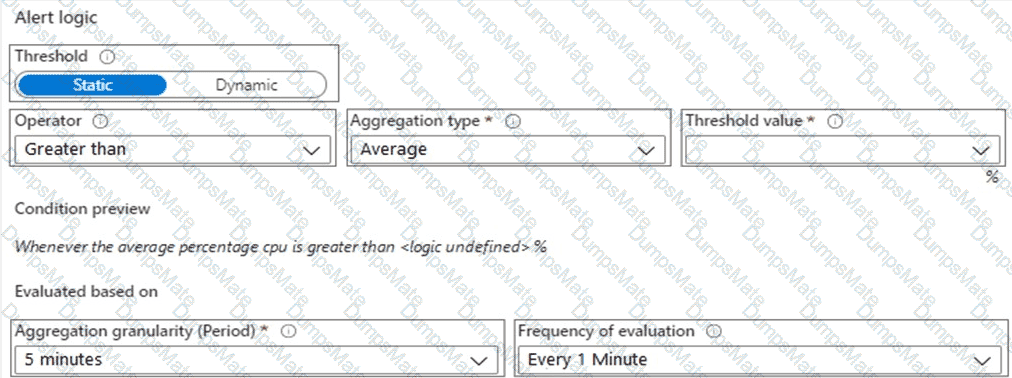

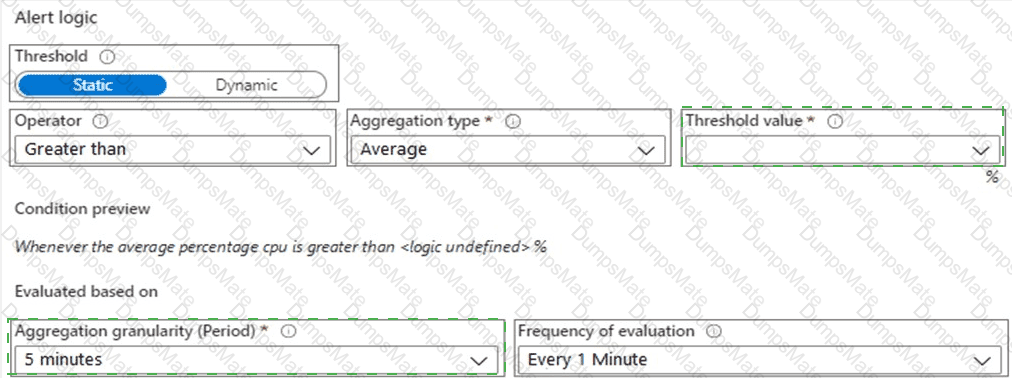

Setting 1: Threshold value

Set to 80 %

Scenario: An Azure Monitor alert for VM1 must be configured to meet the following requirements:

Be triggered whenaverage CPU usage exceeds 80 percent for 15 minutes.

Calculate CPU usage averages once every minute.

Setting 2: Aggregation granularity

Set to 15 minutes.

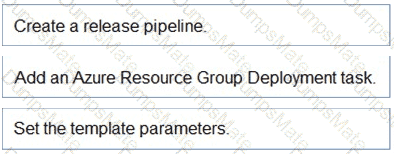

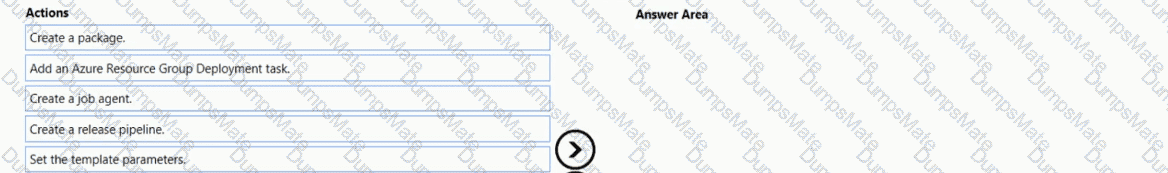

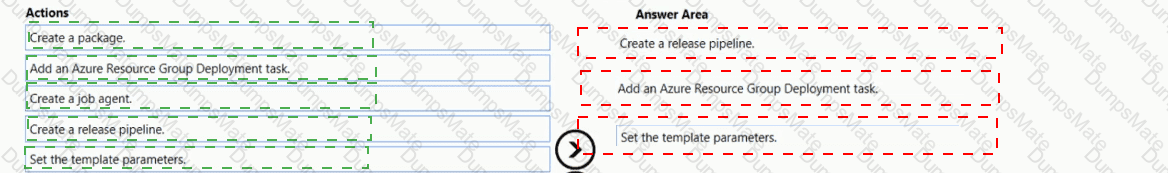

Step 1: Create a release pipeline

You need to create a new pipeline.

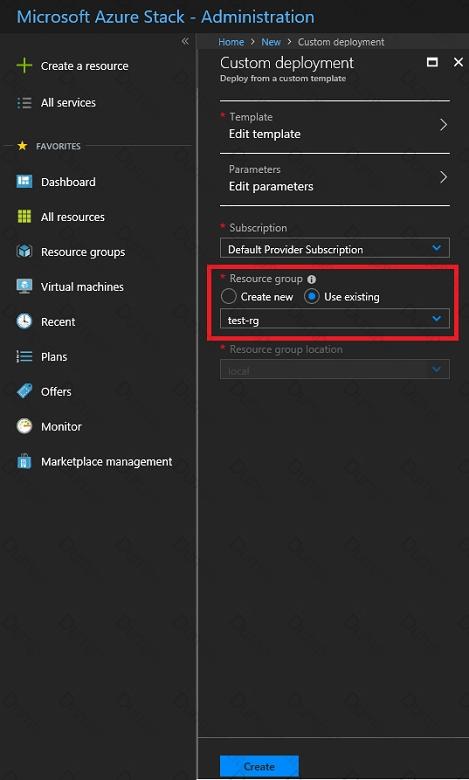

You can integrate Azure Resource Manager templates (ARM templates) with Azure Pipelines for continuous integration and continuous deployment (CI/CD).

Step 2: Add an Azure Resource Group Deployment task

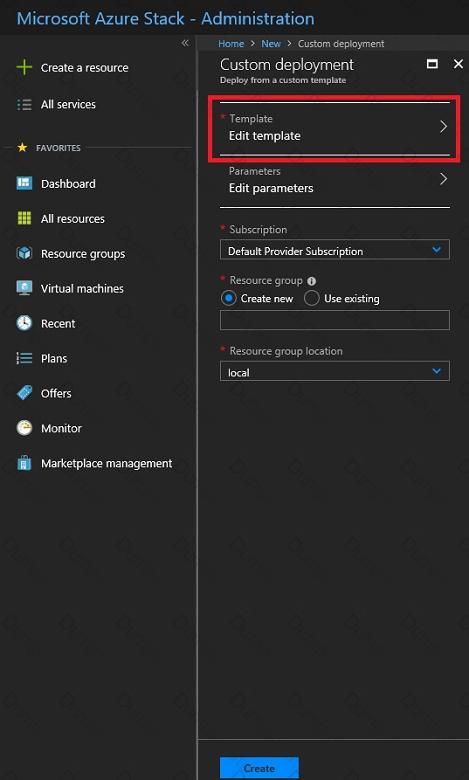

Step3: Set the template parameters

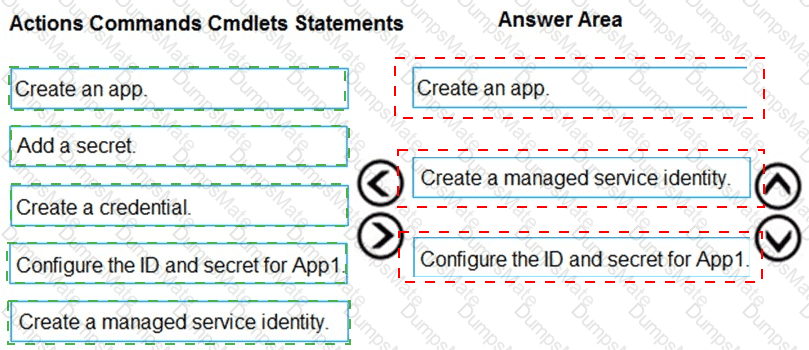

Woodgrove Bank plans to implement the following changes to the identity environment:

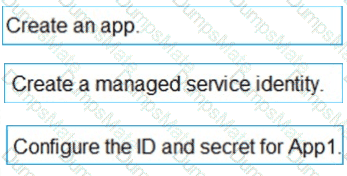

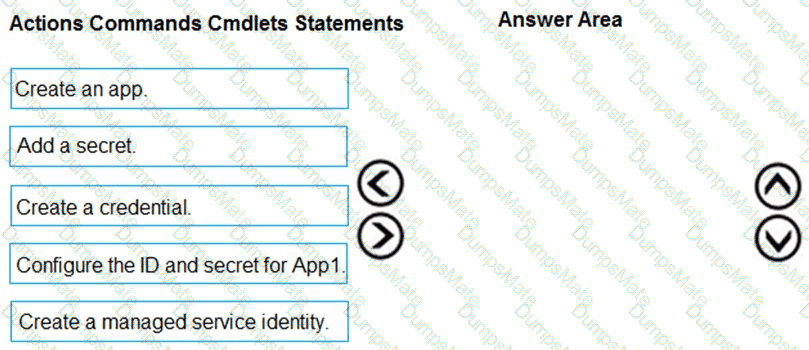

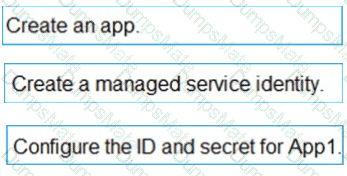

Configure App1 to use a service principal.

Before this will work, the build needs permission toaccess the Azure Key Vault. This can be added in the Azure Portal.

Open the Access Policies in the Key Vault and add a new one. Choose the principle used in the DevOps build.

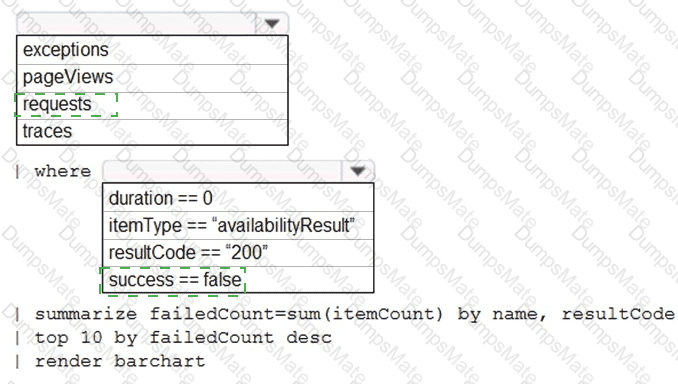

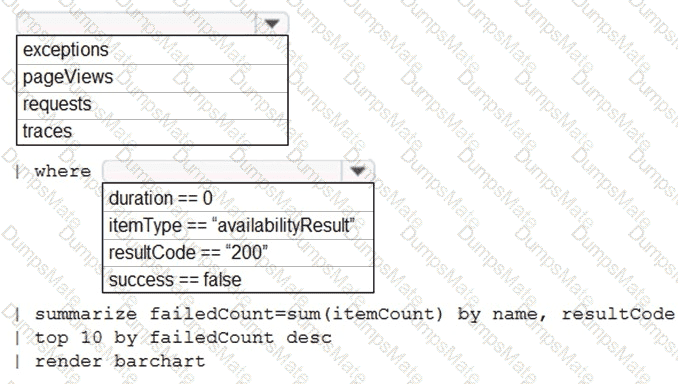

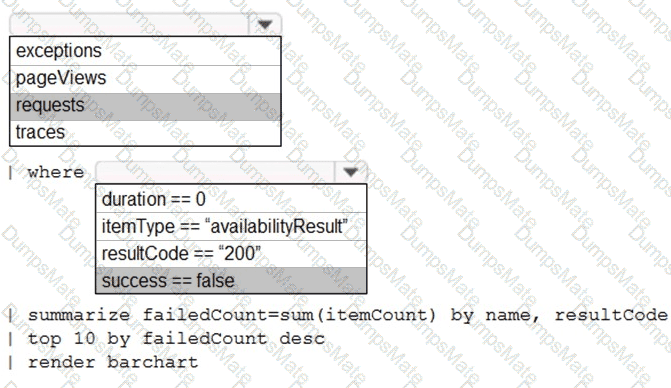

Box 1: requests

Failed requests (requests/failed):

The count of tracked server requests that were marked as failed.

Kusto code:

requests

| where success == 'False'

Box 2: success == false

The Secure Development Lifecycle (SDL) Guidelines recommend that teams perform static analysis duringthe implementation phase of their development cycle.

Note: The company should focus in particular on the implementation of DevOps tests to assess the quality of the software from the planning stage to the implementation phase of the project.

There are three types of Application Insights availability tests:

URL ping test: a simple test that you can create in the Azure portal.

Multi-step web test

Custom Track Availability Tests

Note: After you've deployed your web app/website, you can set up recurring tests to monitor availability and responsiveness. Azure Application Insightssends web requests to your application at regular

intervals from points around the world. It can alert you if your application isn't responding, or if it responds too slowly.

You can set up availability tests for any HTTP or HTTPS endpoint that is accessible from the public internet. You don't have to make any changes to the website you're testing. In fact, it doesn't even have to

be a site you own. You can test the availability of a REST API that your service depends on.

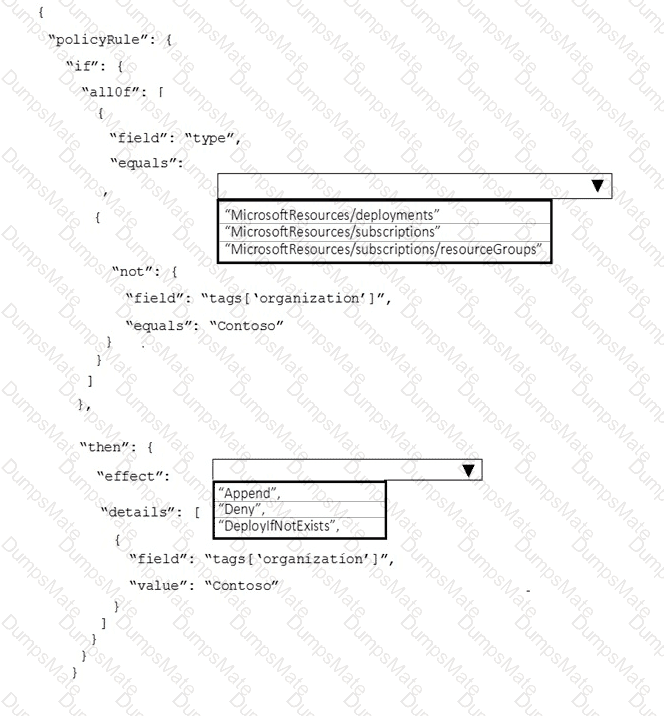

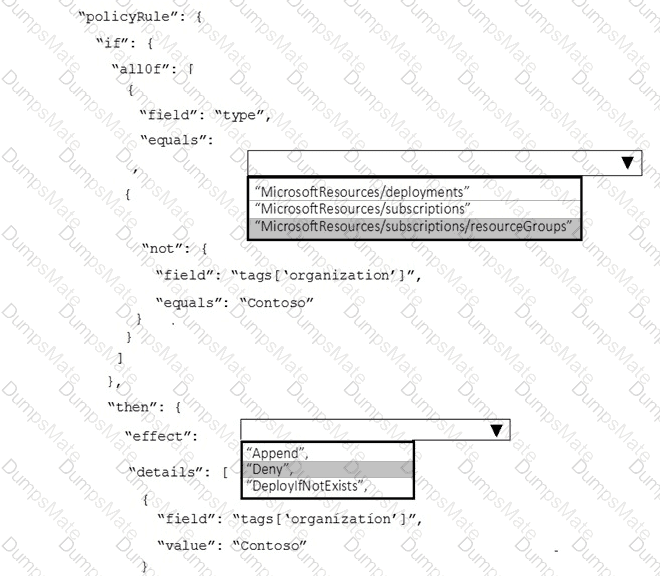

Box 1: " Microsoft.Resources/subscriptions/resourceGroups"

Box 2: "Deny",

Sample- Enforce tag and its value on resource groups

},

"policyRule": {

"if": {

"allOf": [

{

"field": "type",

"equals": "Microsoft.Resources/subscriptions/resourceGroups"

},

{

"not": {

"field": "[concat('tags[',parameters('tagName'), ']')]",

"equals": "[parameters('tagValue')]"

}

}

]

},

"then": {

"effect": "deny"

}

}

}

}

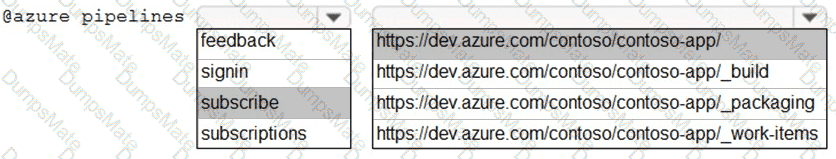

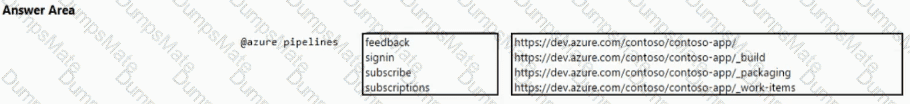

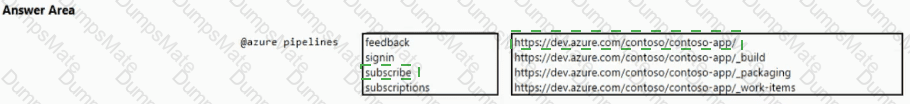

To start monitoring all pipelines in a project, use the following command inside a channel:

@azure pipelines subscribe [project url]

The project URL can be to any page within your project (except URLs to pipelines).

For example:

@azure pipelines subscribe https://dev.azure.com/myorg/myproject/

The first thing to do is to declare your Sonar Qube server as a service endpoint in your VSTS/DevOps project settings.

https://www.scrum.org/resources/what-is-a-sprint-retrospective

QUESTIONNO: 42

Your company uses Azure DevOps to manage the build and release processes for applications.

You use a Git repository for applications source control.

You plan to create a new branch from an existing pull request. Later, you plan to merge the new branch and the target branch of the pull request.

You need to use a pull request action to create the new branch. The solution must ensure that the branch uses only a portion of the code in the pull request.

Which pull request action should you use?

A. Set asdefault branch

B. Approve with suggestions

C. Cherry-pick

D. Reactivate

E. Revert

Answer: C

Cherry-pick a pull request

To copy changes made in a pull request to another branch in your repo, follow these steps:

In a completed pull request,select Cherry-pick, or for an active pull request, select Cherry-pick from the ... menu. Cherry-picking a pull request in this way creates a new branch with the copied changes. Merge into a target branch in a second pull request.

In Target branch, enter the branch you want to merge the copied changes.

In Topic branch name, enter a new branch to contain the copied changes, then select Cherry-pick.

Select Create pull request to merge the topic branch into the target branch to complete the cherry-pick.

nce:

https://docs.microsoft.com/en-us/azure/devops/repos/git/pull-requests

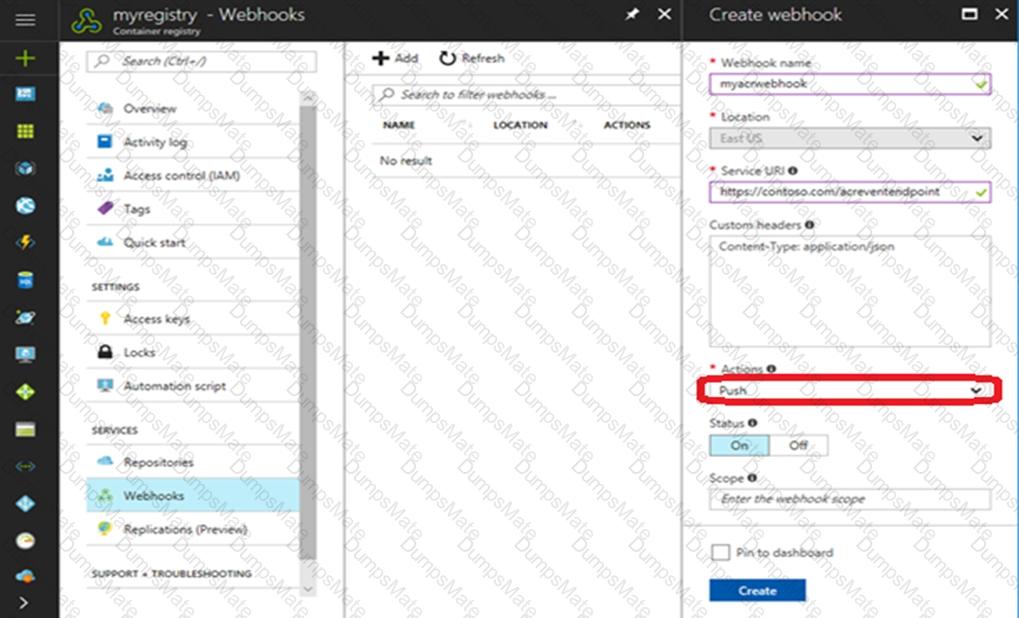

Scenario: Implement Project4 and configure the project to push Docker images to Azure Container Registry.

You use Azure Container Registry Tasks commands to quickly build, push, and run a Docker container image natively within Azure, showing how to offload your "inner-loop" development cycle to the cloud. ACR Tasks is a suite of features within Azure Container Registry to help you manage and modify container images across the container lifecycle.

Scenario:

The Register-AzureRmAutomationDscNode cmdlet registers an Azure virtual machine as an APS Desired State Configuration (DSC) node in an Azure Automation account.

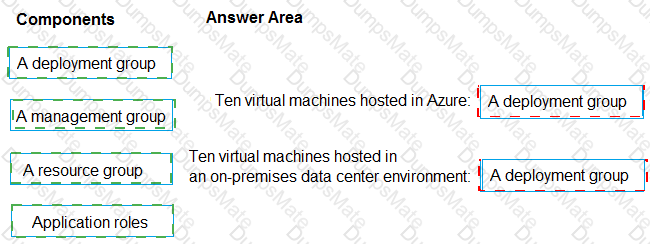

Scenario: The Azure DevOps organization includes:

The Docker extension

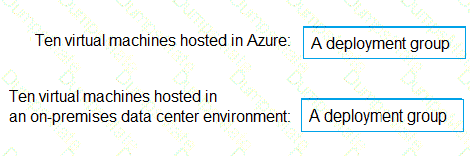

A deployment pool named Pool7 that contains10 Azure virtual machines that run Windows Server 2016

Scenario: Implement Project3, Project5,Project6, and Project7 based on the planned changes

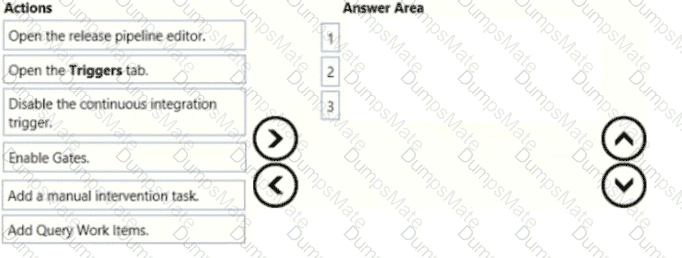

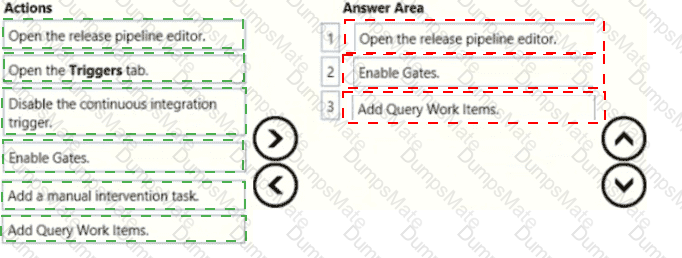

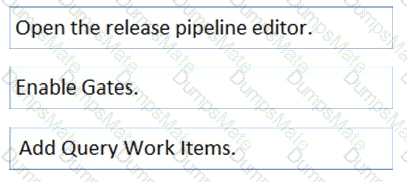

Step 1: Open the release pipeline editor.

In the Releases tab of Azure Pipelines, select your release pipeline and choose Edit to open the pipeline editor.

Step 2: Enable Gates.

Choose thepre-deployment conditions icon for the Production stage to open the conditions panel. Enable gates by using the switch control in the Gates section.

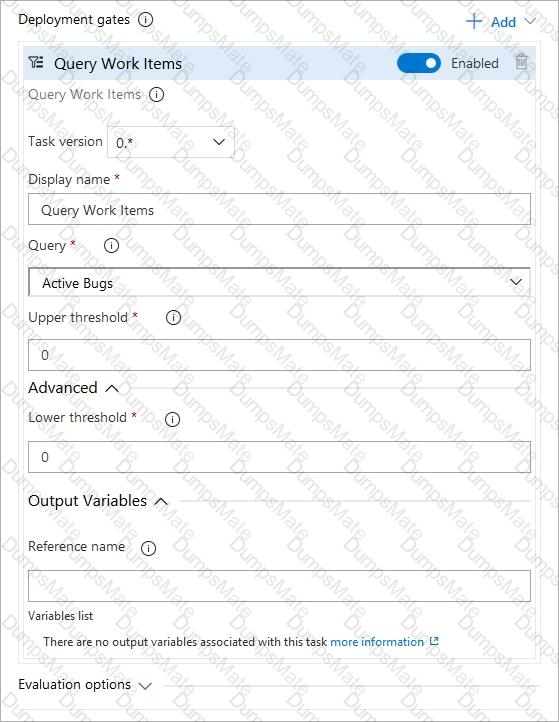

Step 3: Add Query Work items.

Choose + Add and select the Query Work Items gate.

Configure the gate by selecting an existing work item query.

Note: A case for release gate is:

Incident and issues management. Ensure the required status for work items, incidents, and issues. For example, ensure deployment occurs only if no priority zero bugs exist, and validation that there are no active incidents takes place after deployment.

Step 1: Sign Up for Azure DevOps

Navigate to Azure DevOps.

Click on Start Free.

Enter the credentials:

Email: UserUsefl-42147509@ExamUsers.com

Password: eWrSalD2!

Follow the prompts to complete the sign-up process using the default settings.

Step 2: Create an Azure DevOps Organization

Once signed in, you will be prompted to create a new organization.

Enter a name for your organization and select your region.

Click on Continue to create the organization.

Step 3: Create a Private Project

In your new organization, click on New Project.

Name the project Project1.

Set the visibility to Private.

Click on Create.

Step 4: Add an External User as a Stakeholder

Go to the Organization Settings.

Under General, select Users.

Click on Add users.

Enter the email address: Usfrr2-42147S09@ExamUsers.com.

Set the access level to Stakeholder.

Add the user to the most restrictive group, which is typically the Readers group.

Click on Add to complete the process.

Step 5: Verify the User Addition

Ensure that the external user has been added successfully by checking the Users list.

Confirm that the user has the Stakeholder access level and is part of the Readers group.

By following thesesteps, you should be able to complete the task successfully. If you encounter any issues, feel free to ask for further assistance!

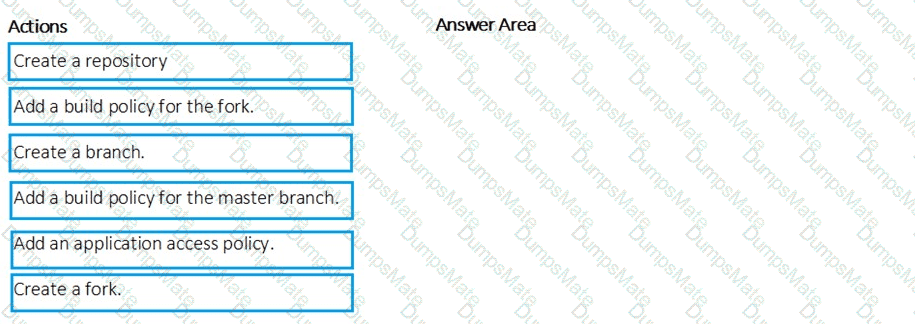

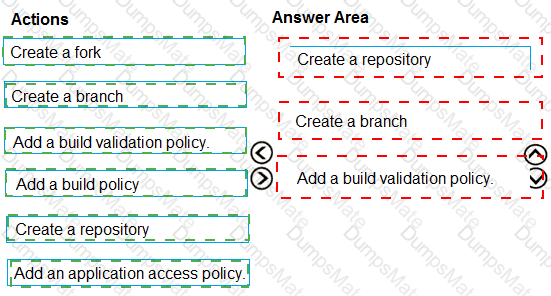

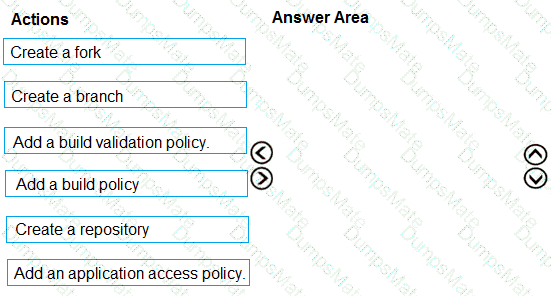

Step 1: Createa repository

A Git repository, or repo, is a folder that you've told Git to help you track file changes in. You can have any number of repos on your computer, each stored in their own folder.

Step 2: Create a branch

Branch policies help teams protect their important branches of development. Policies enforce your team's code quality and change management standards.

Step 3: Add a build validation policy

When a build validation policy is enabled, a new build is queued when a new pull request is created or when changes are pushed to an existing pull request targeting this branch. The build policy then evaluates the results of the build to determine whether the pull request can be completed.

Scenario:

Implement a code flow strategy for Project2 that will:

Enable Team2 to submit pull requests for Project2.

Enable Team2 to work independently on changes to a copy of Project2.

Ensure that any intermediary changes performed by Team2 on a copy of Project2 will be subject to the same restrictions as the ones defined in the build policy of Project2.

Scenario:

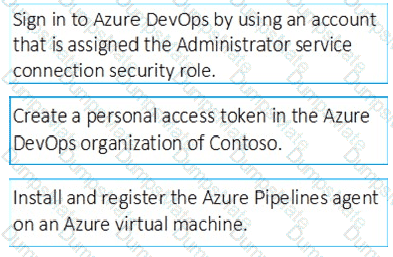

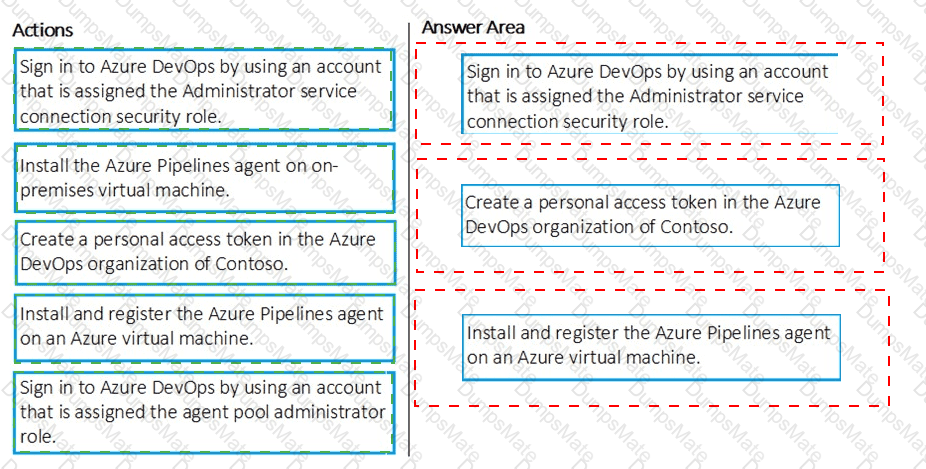

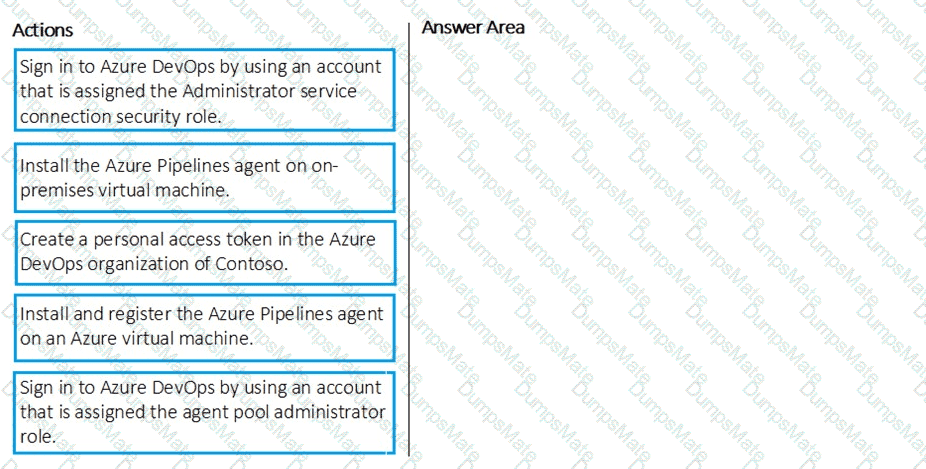

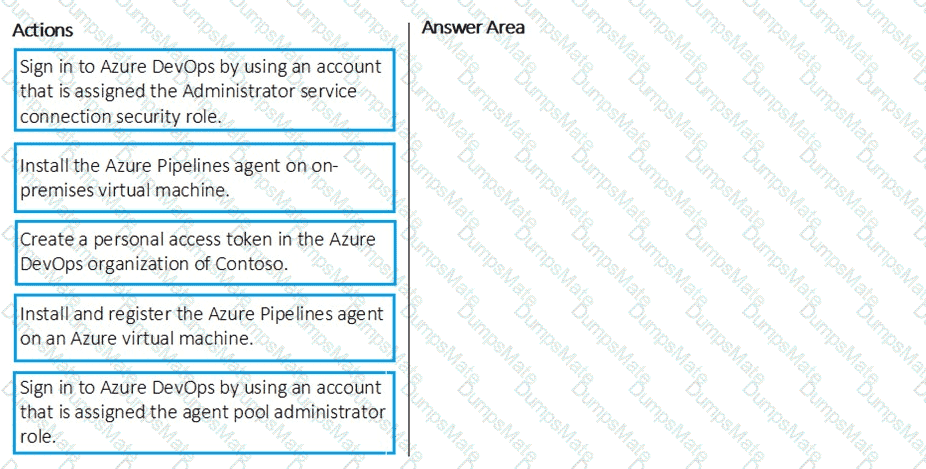

Step 1: Sign in to Azure Develops by using an account that is assigned the Administrator service connection security role.

Note: Under Agent Phase, click Deploy Service Fabric Application. Click Docker Settings and then click Configure Docker settings. In Registry Credentials Source, select Azure Resource Manager Service Connection. Then select your Azure subscription.

Step 2: Create a personal access token..

A personal access token or PAT is required so that a machine can join the pool created with the Agent Pools (read, manage) scope.

Step 3: Install and register the Azure Pipelines agent on an Azure virtual machine.

By running a Azure Pipeline agent in thecluster, we make it possible to test any service, regardless of type.

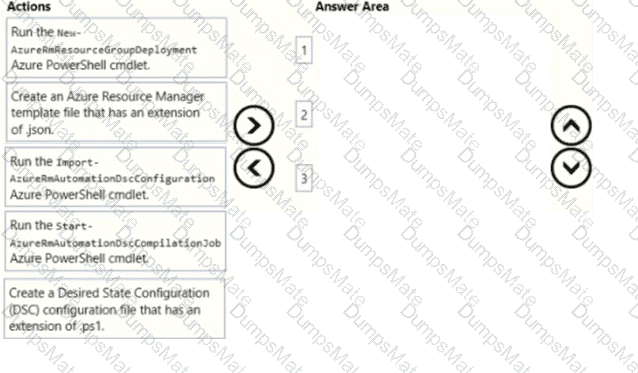

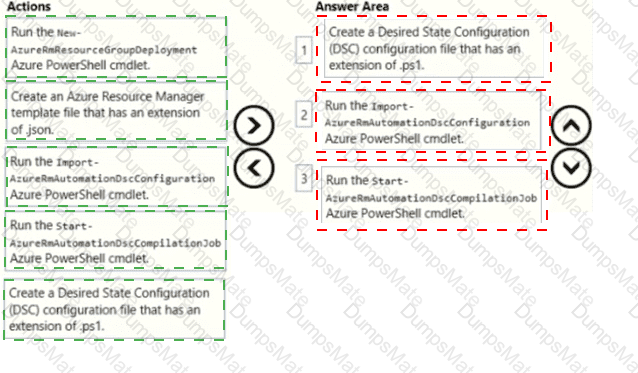

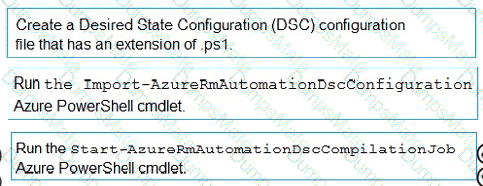

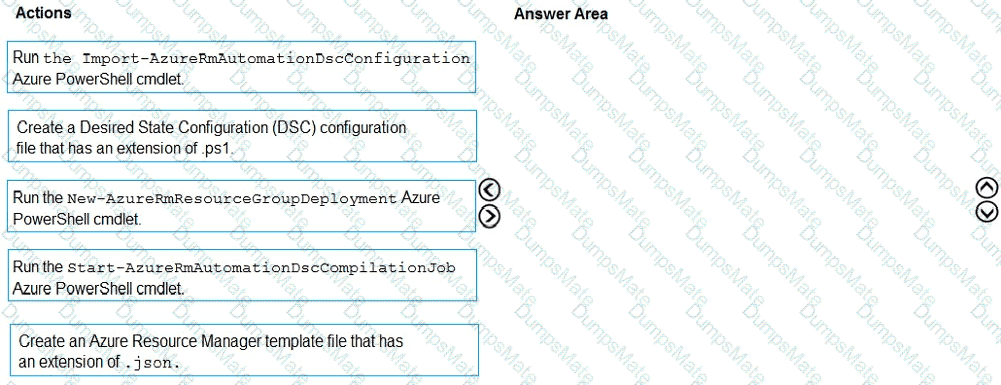

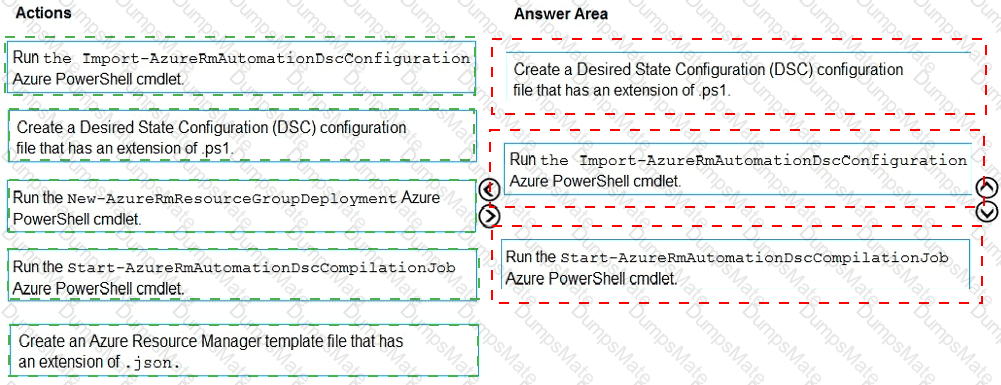

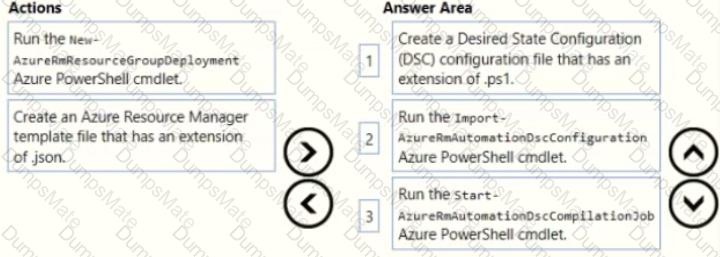

Step 1: Create a Desired State Configuration (DSC) configuration file that has an extension of .ps1.

Step 2: Run the Import-AzureRmAutomationDscConfiguration Azure Powershell cmdlet

TheImport-AzureRmAutomationDscConfiguration cmdlet imports an APS Desired State Configuration (DSC) configuration into Azure Automation. Specify the path of an APS script that contains a single DSC configuration.

Example:

PS C:\>Import-AzureRmAutomationDscConfiguration -AutomationAccountName "Contoso17"-ResourceGroupName "ResourceGroup01" -SourcePath "C:\DSC\client.ps1" -Force

This command imports the DSC configuration in the file named client.ps1 into the Automation account named Contoso17. The command specifies the Force parameter. If there is an existing DSC configuration, this command replaces it.

Step 3: Run the Start-AzureRmAutomationDscCompilationJob Azure Powershell cmdlet

The Start-AzureRmAutomationDscCompilationJob cmdlet compiles an APS Desired State Configuration (DSC) configuration in Azure Automation.

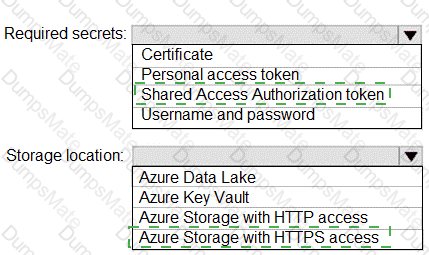

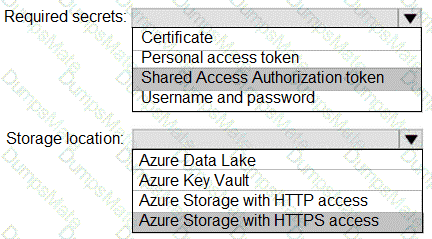

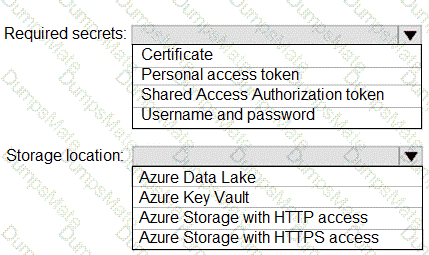

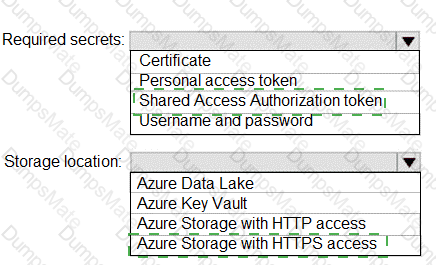

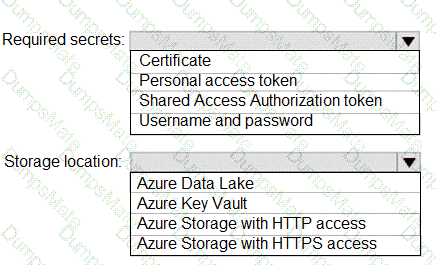

Every request made against a storage service must be authorized, unless the request is for a blob or container resource that has been made available for public or signed access. One option for authorizing a request is by using Shared Key.

Scenario: The mobile applications must be able to call the share pricing service of the existing retirement fund management system. Until the system is upgraded, the service will only support basic authentication over HTTPS.

The investment planning applications suite will include one multi-tier web application and two iOS mobile application. One mobile application will be used by employees; the other will be used by customers.

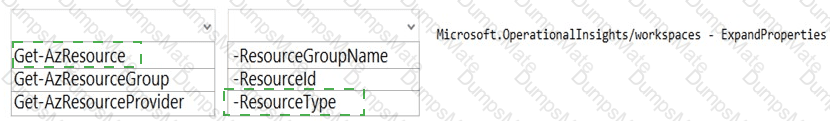

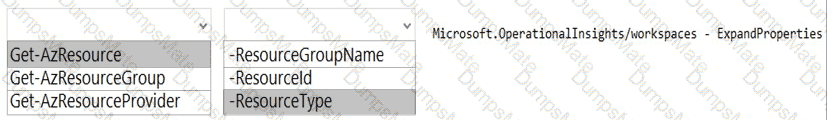

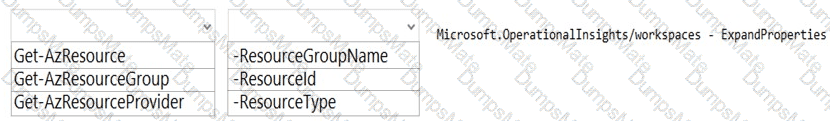

Box 1: Get-AzResource

Use the followingcommand to examine the access control mode for all workspaces in the subscription:

PowerShell

Get-Az Resource –Resource Type Microsoft. Operational Insights/workspaces –Expand Properties | for each {s.Name + ": " + $_.Properties.features.enableLogAccessUsingOnlyResourcePermissions

Box 2: -Resource Type

Unattended config:

The agent can be set up from a script with no human intervention. You must pass--unattended and the answers to all questions.

To configure an agent, it must know the URL to your organization or collection and credentials of someone authorized to set up agents. All other responses are optional.

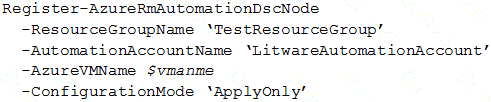

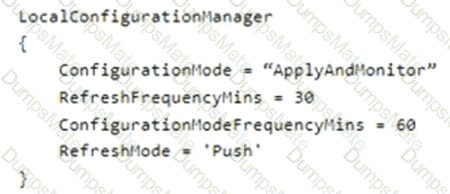

Change the ConfigurationMode parameter from ApplyOnly to ApplyAndAutocorrect.

The Register-AzureRmAutomationDscNode cmdlet registers an Azure virtual machine as an APS Desired State Configuration (DSC) node in an Azure Automation account.

Scenario: Current Technical Issue

The test servers are configured correctly when first deployed, but they experience configuration drift over time. Azure AutomationState Configuration fails to correct the configurations.

Azure Automation State Configuration nodes are registered by using the following command.

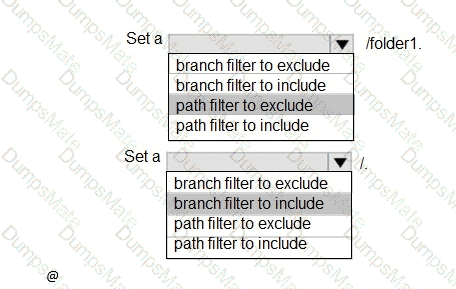

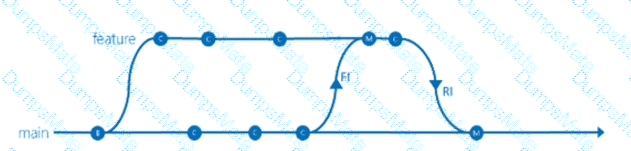

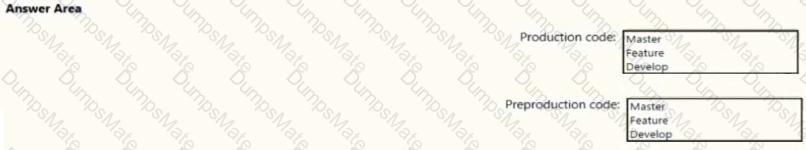

Scenario: A branching strategy that supports developing newfunctionality in isolation must be used.

Feature isolation is a special derivation of the development isolation, allowing you to branch one or more feature branches from main, as shown, or from your dev branches.

When you need to work on a particularfeature, it might be a good idea to create a feature branch.

Batching CI runs

If you have many team members uploadingchanges often, you may want to reduce the number of runs you start. If you set batch to true, when a pipeline is running, the system waits until the run is completed, then starts another run with all changes that have not yet been built.

Example:

# specific branch build with batching

trigger:

batch: true

branches:

include:

- master

To clarify this example, let us say that a push A to master caused the above pipeline to run. While that pipeline is running, additional pushes B and C occur into therepository. These updates do not start new independent runs immediately. But after the first run is completed, all pushes until that point of time are batched together and a new run is started.

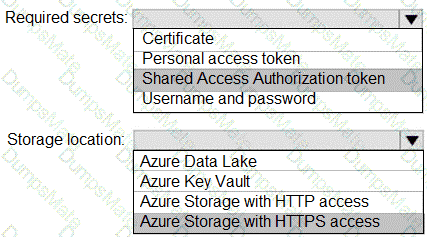

Every request made against a storage service must be authorized, unless the request is for a blob or container resource that has been made available for public or signed access. One option for authorizing a request is by using Shared Key.

Scenario: The mobile applications must be able to call the share pricing service of the existing retirement fund management system. Until the system is upgraded, the service will only support basic authentication over HTTPS.

The investment planning applications suite will include one multi-tier web application and two iOS mobile application. One mobile application will be used by employees; the other will be used by customers.

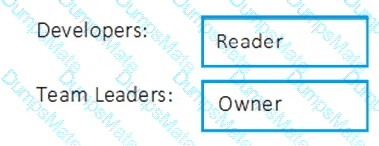

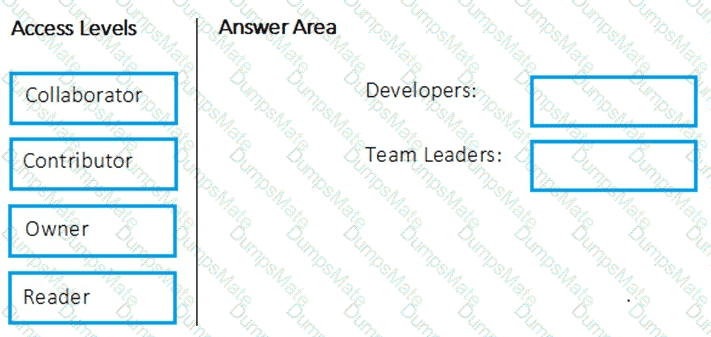

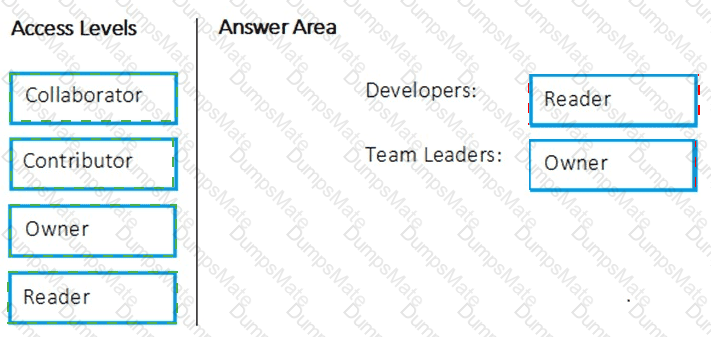

Box 1: Reader

Members of a group named Developers must be able to install packages.

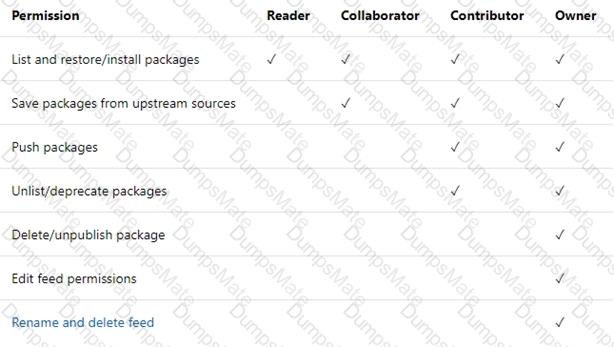

Feeds have four levels of access: Owners, Contributors, Collaborators, and Readers. Ownerscan add any type of identity-individuals, teams, and groups-to any access level.

Box 2: Owner

Members of a group named Team Leaders must be able to create new packages and edit the permissions of package feeds.

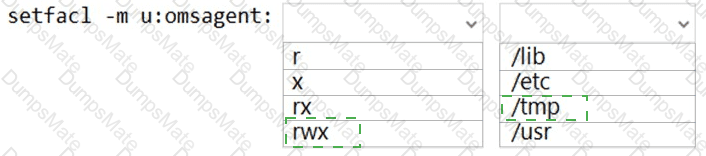

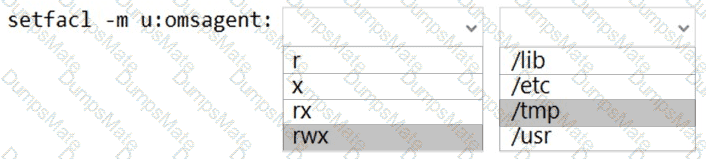

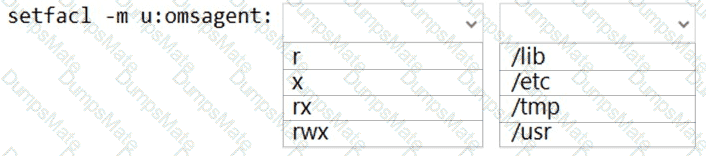

Box 1: rwx

The Log Analytics agent for Linux runs as the omsagent user. To grant >write permission to the omsagent user, run the command setfacl -m u:omsagent:rwx /tmp.

Box 2: /tmp

Deploying DSC to a Linux node uses the /tmp folder.

Scenario: Visual Studio App Center must be used to centralize the reporting of mobile application crashes and device types in use.

In order to use App Center, you need to opt in to the service(s) that you want to use, meaning by default no services are started and you will have to explicitly call each of them when starting the SDK.

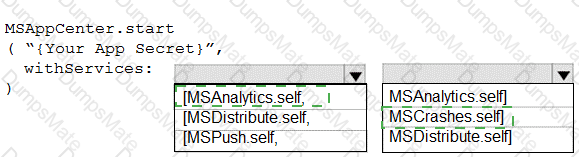

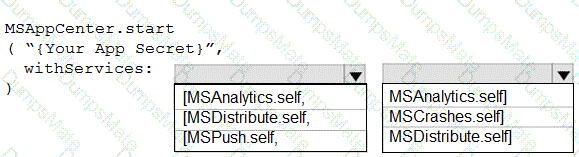

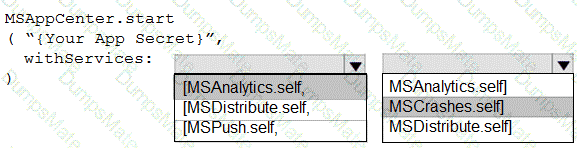

Insert the following line to start the SDK in your app's App Delete class in the didFinishLaunchingWithOptions method.

MSAppCenter.start("{Your App Secret}", withServices: [MSAnalytics.self, MSCrashes.self])

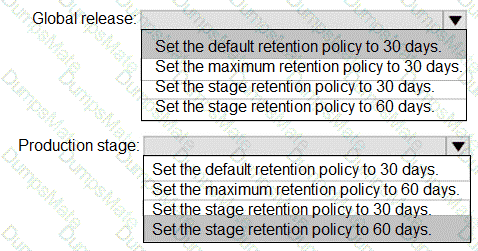

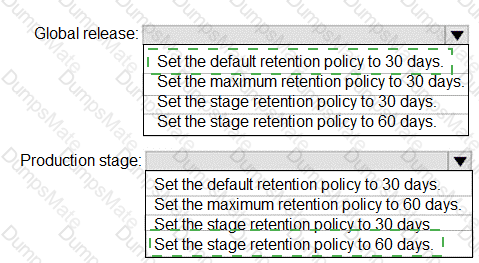

Scenario: By default, all releases must remain available for 30 days, except for production releases, which must be kept for 60 days.

Box 1: Set the defaultretention policy to 30 days

The Global default retention policy sets the default retention values for all the build pipelines. Authors of build pipelines can override these values.

Box 2: Set the stage retention policy to 60 days

You may want to retain more releases that have been deployed to specific stages.

The commit-msg hook is invoked by git-commit and git-merge, and can be bypassed with the --no-verify option.

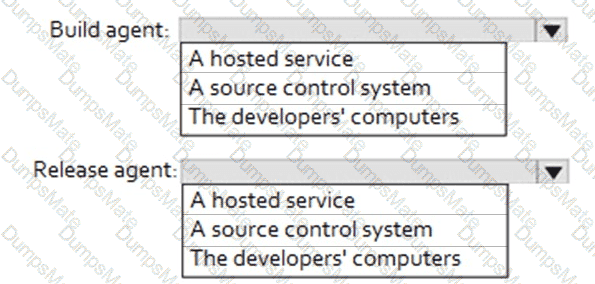

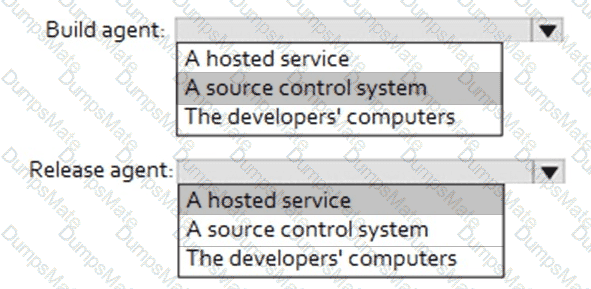

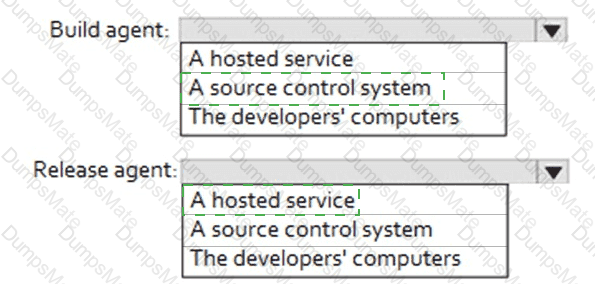

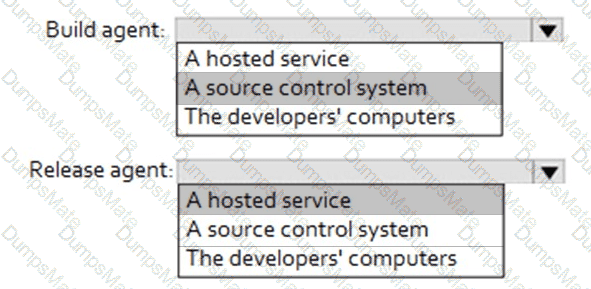

Box 1: A source control system

A source control system, also called a version control system, allows developers to collaborate on code and track changes.Source control is an essential tool for multi-developer projects.

Box 2: A hosted service

To build and deploy Xcode apps or Xamarin.iOS projects, you'll need at least one macOS agent. If your pipelines are in Azure Pipelines and a Microsoft-hosted agentmeets your needs, you can skip setting up a self-hosted macOS agent.

Scenario: The investment planning applications suite will include one multi-tier web application and two iOS mobile applications. One mobile application will be used by employees; the other will be used by customers.

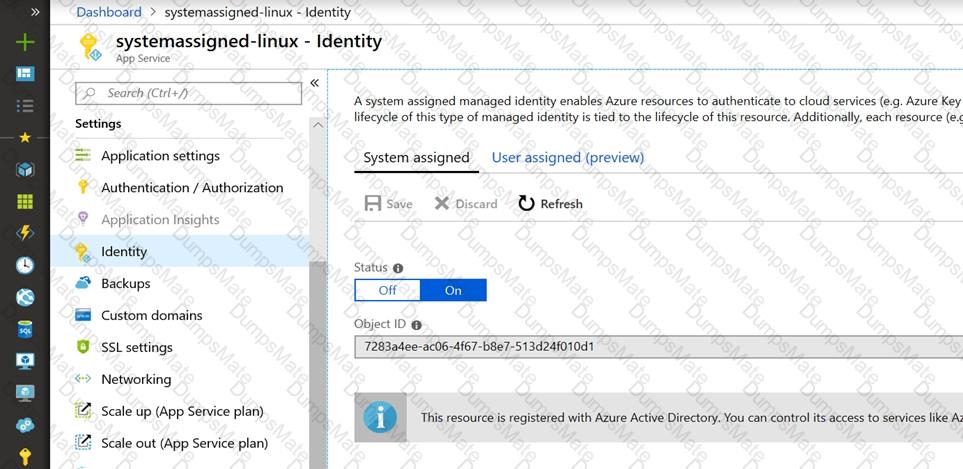

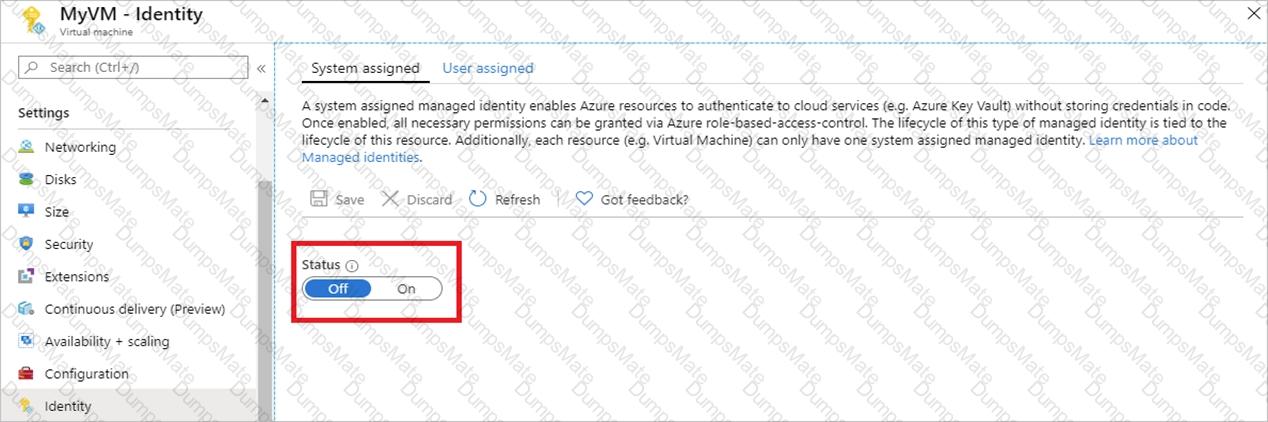

1. In Azure portal navigate to the az400-9940427-main app.

2. Scroll down to the Settings groupin the left navigation.

3. Select Managed identity.

4. Within the System assigned tab, switch Status to On. Click Save.

Task 10: Create a Variable Group in Azure DevOps

Step 1: Navigate to Library

In your Azure DevOps Project (Project1), click on the Pipelines section in the left menu.

In the Pipelines submenu, click on Library.

Step 2: Create a New Variable Group

Click on the + Variable group button.

Enter the Name:

nginx

Copy

varGroup1

Step 3: Add Variables

Add the first variable:

Click Add.

In the Name field, enter:

nginx

Copy

username

In the Value field, enter:

Copy

Userl-48901628

Add the second variable:

Click Add again.

In the Name field, enter:

nginx

Copy

password

In the Value field, enter:

Copy

aFpJ2j+6M!

Check the box Keep this value secret.

Step 4: Save the Variable Group

Click Save at the top to save the variable group.

To ensure that the webhook athttps://contoso.com/statushookis called every time the repository namedaz40038443478acr1receives a new version of an image nameddotnetapp, you can follow these steps to configure a webhook in Azure Container Registry:

Navigate to the Azure Container Registry:

Go to the Azure Portal.

Find and select yourAzure Container Registry instanceaz40038443478acr1.

Create a New Webhook:

UnderServices, selectWebhooks.

Click on+ Addto create a new webhook.

Fill in the form with the following information:

Webhook name: Enter a unique name for your webhook.

ServiceURI: Enterhttps://contoso.com/statushook.

Custom headers: (Optional) Add any headers you want to pass along with the POST request.

Trigger actions: SelectPushto trigger the webhook on image push events.

Scope: Specify the scope asaz40038443478acr1:dotnetappto target the specific image.

Status: Set toEnabled.

Save the Webhook Configuration:

Review the information and clickCreateto save the webhook.

Once configured, the webhook will send a POST request tohttps://contoso.com/statushookwhenever a new version of thedotnetappimage is pushed to theaz40038443478acr1repository in your Azure Container Registry1.

This setup will automate the notification process, ensuring that the specified webhook is called with each new image version, thus fulfilling the task requirements.

You can usea system-assigned managed identity for a Windows virtual machine (VM) to access Azure Key Vault.

Sign in to Azure portal

Locate virtual machine VM1.

Select Identity

Enable the system-assigned identity for VM1 by setting the Status to On.

Note:Enabling a system-assigned managed identity is a one-click experience. You can either enable it during the creation of a VM or in the properties of an existing VM.

1. Open Microsoft Azure Portal

2. Log into your Azure account and go to App Service and look under Monitoring then you will see Alert.

3. Select Add an alert rule

4. Configure the alert rule as per belowand click Ok.

Source: Alert on Metrics

Resource Group: az400-9940427-main

Resource: az400-9940427-main

Threshold: 5

Period: Over the last 5 minutes

Webhook: https://contoso.com/notify

To create an instance of Azure Application Insights namedaz400-38443478-mainand configure it to receive telemetry data from an Azure web app with the same name, you’ll need to follow these steps:

Create a Log Analytics Workspace:

Go to theAzure Portal.

Search for Log Analytics Workspaces and select Add.

Select a Subscription and either use an existing Resource Group or create a new one.

Provide a unique name for your Log Analytics workspace.

Choose the Region that is appropriate for you.

Review the settings and then selectCreate1.

Create an Azure Application Insights Instance:

In the Azure Portal, navigate to Application Insights.

Click on + Create.

Fill in the instance details, ensuring the name isaz400-38443478-main.

Link the instance to the Log Analytics workspace you created in the previous step.

Review and create the Application Insights instance2.

Configure the Azure Web App to Send Telemetry Data:

Go to the Azure Web Appaz400-38443478-main.

Under Monitoring, selectApplication Insights.

Choose to use an existing resource and select the Application Insights instance you created.

Follow the prompts to set up the connection, which may involve adding the appropriate SDK to your web app and configuring the connection string or instrumentation key.

Verify Telemetry Data Reception:

After setting up, send some test traffic to your web app.

Then, go to the Application Insights instance and check the Overview or Performance sections to see if telemetry data is being received.

Remember to replace placeholder names with the actual names of your resources where necessary. These steps will help you set up Azure Application Insights to monitor your web app effectively.

Step 1: Write the KQL Query

Open Azure Data Explorer:

Navigate to Azure Data Explorer and sign in with your credentials.

Access the Securitylogs Database:

Open the Securitylogs database.

Write the Query:

Use the following KQL query tocount the number of inbound requests for each source IP address:

InboundBrowsing

| where Timestamp between (datetime(2021-10-01) .. datetime(2021-12-31))

| summarize NumberOfRequests = count() by SourceIP

| project SourceIP, NumberOfRequests

Step 2: Export the Query Results

Run the Query:

Execute the query in Azure Data Explorer.

Export the Results:

Once the query results are displayed, click on the Export button.

Choose the export format (e.g., CSV) and specify the export path as C:\Samples.

By following these steps, you will have successfully written a KQL query to count the number of inbound requests for each source IP address during the last three months of 2021 and exported the results to C:\Samples

1. Open Microsoft Azure Portal, and select the Azure Container Registry instance named az4009940427acr1.

2. Under Policies, select Content Trust > Enabled > Save.

Set up Advanced Threat Protection in the Azure portal

1. Sign into the Azure portal.

2.Navigate to the configuration page of the server you want to protect. In the security settings, select Advanced Data Security.

3. On the Advanced Data Security configuration page:

4. Enable Advanced Data Security on the server.

Note: Advanced Threat Protection for Azure SQL Database detects anomalous activities indicating unusual and potentially harmful attempts to access or exploit databases. Advanced Threat Protection can identify Potential SQL injection, Access from unusual location or data center,Access from unfamiliar principal or potentially harmful application, and Brute force SQL credentials

Task 9: Initialize the main branch (if it doesn’t exist) and create a pull request-triggered pipeline for .NET Core build

Step 1: Initialize the main Branch

In your Azure DevOps Project (Project1), navigate to Repos.

In the left menu, click Files.

If you see a message like “This repository is empty,” click Initialize.

Create a README.md file (or another file) and set the default branch name to main.

Click Initialize.

If the main branch already exists, you can skip this step.

Step 2: Create a New Branch for the Pipeline

In Repos > Files, click on the Branches tab.

Click New branch.

Enter:

Branch name: azure-pipelinesT

Based on: main

Click Create.

This creates a new branch named azure-pipelinesT from main.

Step 3: Create the Pipeline YAML File in the New Branch

Switch to the azure-pipelinesT branch.

In Files, click New file.

Name the file: azure-pipelines.yml.

Step 4: Write the YAML Pipeline for .NET Core Build

Here’s a sample YAML file:

trigger: none

pr:

branches:

include:

- main

pool:

vmImage: 'windows-latest'

variables:

buildConfiguration: 'Release'

steps:

- task: UseDotNet@2

displayName: 'Install .NET Core SDK'

inputs:

packageType: 'sdk'

version: '8.x' # Or specify the exact version of .NET Core SDK you need

installationPath: $(Agent.ToolsDirectory)/dotnet

- script: dotnet build src --configuration $(buildConfiguration)

displayName: 'Build .NET Core project'

This pipeline:

Runs only when a pull request is created or updated targeting the main branch.

Uses the windows-latest agent.

Installs the .NET SDK and builds the project in the src directory.

Step 5: Commit the Pipeline File

In the bottom commit message box:

Message: Add PR-triggered pipeline for .NET Core build

Ensure the branch is set to azure-pipelinesT.

Click Commit.

Step 6: Create the Pipeline in Azure DevOps

In the left menu, click Pipelines.

Click New pipeline.

Select:

Azure Repos Git.

Select your repository.

Choose Existing Azure Pipelines YAML file.

In the branch selector, choose the azure-pipelinesT branch.

Select the YAML file path (azure-pipelines.yml).

Click Continue and Run to validate.

Step 7: Test the Pipeline Trigger

Create a new branch (e.g., feature/test-pr).

Push a commit and create a pull request targeting main.

Verify that the pipeline runs automatically for this PR in Pipelines.

Step 1: To create a general-purpose v2 storage account in the Azure portal, follow these steps:

On the Azure portal menu, select All services. In the list of resources, type Storage Accounts. As you begin typing, the list filters based on your input. Select Storage Accounts.

On the Storage Accounts window that appears, choose Add.

Select the subscription in which to create thestorage account.

Under the Resource group field, select RG1lod11566895

Next, enter a name for your storage account named: az400lod11566895stor

Select Create.

Step 2: Enable boot diagnostics on existing virtual machine

To enable Boot diagnostics on an existing virtual machine, follow these steps:

Sign in to the Azure portal, and then select the virtual machine VM1.

In the Support + troubleshooting section, select Boot diagnostics, then select the Settings tab.

In Boot diagnostics settings, change the statusto On, and from the Storage account drop-down list, select the storage account az400lod11566895stor.

Save the change.

You must restart the virtual machine for the change to take effect.

To ensure that your Azure Web App namedaz400-38443478-maincan retrieve secrets from an Azure Key Vault namedaz400-3844J478-kv1using a system managed identity with the principle of least privilege, follow these detailed steps:

Enable a System Managed Identity for the Azure Web App:

Navigate to the Azure Portal.

Go to the Azure Web Appaz400-38443478-main.

SelectIdentityunder theSettingssection.

In theSystem assignedtab, switch theStatustoOn.

ClickSaveto apply the changes.

Grant the Web App Access to the Key Vault:

Go to the Azure Key Vaultaz400-3844J478-kv1.

SelectAccess policiesunder theSettingssection.

Click onAdd Access Policy.

ChooseSecret permissionsand selectGetandList. This grants the app the ability to read secrets, adhering to the principle of least privilege.

Click onSelect principal, search for your Web App nameaz400-38443478-main, and select it.

ClickAddto add the policy.

Don’t forget to clickSaveto save the access policy changes.

Retrieve Secrets in the Web App Code:

In your Web App’s code, use the Azure SDK to retrieve the secrets.

For example, in a .NET application,you can use theAzure.IdentityandAzure.Security.KeyVault.Secretsnamespaces.

Utilize theDefaultAzureCredentialclass which will automatically use the system managed identity when running on Azure.

using Azure.Identity;

usingAzure.Security.KeyVault.Secrets;

var client = new SecretClient(new Uri("https://az400-3844J478-kv1.vault.azure.net/ "), new DefaultAzureCredential());

KeyVaultSecret secret = await client.GetSecretAsync("my-secret-name");

string secretValue =secret.Value;

Replace"my-secret-name"with the actual name of the secret you want to retrieve.

By following these steps, your Azure Web App will be able to securely retrieve secrets from the Azure Key Vault using a system managed identity, without needingto store credentials in the code, and adhering to the principle of least privilege. Remember to replace the placeholder names with the actual names of your Web App and Key Vault.

With the storage account ready, you can configure backs up in the web app or App Service.

Open the App Serviceaz400-11566895-main, which you want to protect, in the Azure Portal and browse to Settings > Backups. Click Configure and a Backup Configuration blade should appear.

Select the storage account.

Click + to create a private container. You could name this container after the web app or App Service.

Select the container.

If you want to schedule backups, then set Scheduled Backup to On and configure a schedule: every five hours

Select your retention. Note that 0 means never delete backups.

Decide if at least onebackup should always be retained.

Choose if any connected databases should be included in the web app backup.

Click Save to finalize the backup configuration.

Step 1: Create an instance of Azure Application Insights

1. Open Microsoft Azure Portal

2. Log into your Azure account, Select Create a resource > Developer tools > Application Insights.

3. Enter the following settings, and then select Review + create.

Name: az400-9940427-main

Step 2: Configure App Insights SDK

4. Open your ASP.NET Core Web App project in Visual Studio > Right-click on the AppName in theSolution Explorer > Select Add > Application Insights Telemetry.

5. Click the Get Started button

6. Select your account and subscription > Select the Existing resource you created in the Azure portal > Click Register.

Step 1: To create a general-purpose v2 storage account in the Azure portal, follow these steps:

On the Azure portal menu, select All services. In the list of resources,type Storage Accounts. As you begin typing, the list filters based on your input. Select Storage Accounts.

On the Storage Accounts window that appears, choose Add.

Select the subscription in which to create the storage account.

Under the Resource group field, select RG1lod11566895

Next, enter a name for your storage account named: az400lod11566895stor

Select Create.

Step 2: Enable boot diagnostics on existing virtual machine

To enable Boot diagnostics on an existing virtual machine, follow these steps:

1.Sign in to the Azure portal, and then select the virtual machine VM1.

2. In the Support + troubleshooting section, select Boot diagnostics, then select the Settings tab.

3. In Boot diagnostics settings, change the status to On, and from the Storage account drop-down list, select the storage account az400lod11566895stor.

4. Save the change.

You must restart the virtual machine for the change to take effect.

Task 11: Create an Artifact Feed with Specific Retention Policies

Step 1: Navigate to Artifacts

In your Azure DevOps Project (Project1), click on the Artifacts section in the left menu.

Step 2: Create a New Feed

Click on the + New feed button.

In the Name field, enter:

nginx

Copy

artifact_feed

Choose the visibility of the feed:

Project scoped (only accessible to Project1).

Or Organization scoped (accessible across your Azure DevOps organization).

Leave other settings at default unless you have specific permissions or upstream sources.

Click Create.

This creates a new feed named artifact_feed.

Step 3: Configure Retention Policies

In the Artifacts section, click on the feed named artifact_feed to open its details page.

In the top-right corner, click on the three dots (...) and select Feed settings.

Step 4: Set the Maximum Number of Versions to Retain

In the Feed settings page, find the Retention policies section.

Set Maximum number of versions per package to:

Copy

10

Click Save.

This ensures that only the latest 10 versions of any package are retained in the feed.

Step 5: Set the Downloaded Package Retention Period

In the Feed settings page, under Retention policies, find Downloaded package retention.

Set Number of days to retain downloaded packages to:

Copy

90

Click Save.

This ensures that downloaded packages will be retained in the cache for 90 days before deletion.

Enable Remote Debugging

Before we start a debugging session to our Azure Function app we need to enable the functionality.

Navigate in the Azure portal to your function app fa-11566895

Go to the “Application settings”

Under “Debugging” set Remote Debugging to On and set Remote Visual Studio version to 2017.

1. Open Microsoft Azure Portal and Log into your Azure account.

2. Select network security group (NSG) named az400-9940427-nsg1

3. Select Settings, Outbound security rules, and click Add

4. Click Advanced

5. Change the following settings:

Destination Port range: 8080

Protocol. TCP

Action: Allow

Note: Bydefault, Azure DevOps Server uses TCP Port 8080.

To prepare a Network Security Group (NSG) namedaz400-38443478-nsg1for hosting an Azure DevOps pipeline agent, while allowing only the required outbound port for Azure DevOps and denying all other inbound and outbound access to the Internet, follow these steps:

Create the NSG:

Navigate to the Azure Portal.

Go toNetwork Security Groupsand click on+ Create.

Fill in the details, including the nameaz400-38443478-nsg1, and create the NSG.

ConfigureOutbound Security Rules:

Once the NSG is created, go to its settings.

Navigate toOutbound security rules.

Click on+ Addto create a new rule.

Set theDestination port rangesto443, which is the required port for Azure DevOps12.

Set theProtocoltoTCP.

Set theActiontoAllow.

Assign aPrioritynumber (e.g.,100) that does not conflict with existing rules.

Provide a meaningfulNamefor the rule (e.g.,AllowAzureDevOps).

Configure Default Rules to Deny All Other Traffic:

In the sameOutbound security rulessection, edit the default rule to deny alltraffic.

Change theActiontoDenyfor the rule with the lowest priority (highest number).

Ensure that this rule applies to all protocols, source and destination IP ranges, and port ranges.

Associate the NSG with the Appropriate Resource:

Associate the NSGwith the subnet or network interface of the virtual machine or resource where the Azure DevOps pipeline agent will be hosted.

By following these steps, you will ensure that the Azure DevOps pipeline agent can communicate with Azure DevOps services over the required port while blocking all other inbound and outbound Internet access, adhering to the principle of least privilege and security best practices.

Task 6: Create a Service Connection for Resource Group Deployment using Managed Identity and Workload Identity Federation

Step 1: Understand the Requirements

You want to deploy resources in the RGHod489Q1628 resource group.

The service connection must:

Use the ManagedJd1 managed identity.

Use workload identity federation (OIDC-based authentication for enhanced security).

Step 2: Verify Prerequisites

You need to ensure:

The ManagedJd1 managed identity exists in your Azure subscription.

Your Azure DevOps project (Project1) is linked to an Azure Active Directory tenant (for OIDC support).

You have the Owner or User Access Administrator role on the RGHod489Q1628 resource group.

Step 3: Assign Role to Managed Identity

Go to the Azure Portal.

In the search bar, type Managed Identities and select Managed Identities.

Locate and click on the ManagedJd1 identity.

In the left menu, click Azure role assignments.

Click + Add role assignment.

Set the following:

Scope: Resource Group

Subscription: Your subscription

Resource Group: RGHod489Q1628

Role: Contributor (or appropriate role)

Click Save.

This step ensures ManagedJd1 has permissions to deploy resources to RGHod489Q1628.

Step 4: Create a Federated Credential for Workload Identity Federation

In the Azure Portal, navigate to the ManagedJd1 managed identity.

In the left menu, click Workload identity federation (preview).

Click + Add a federated credential.

Configure as follows:

Federated credential name: devops-oidc

Issuer: https://vstoken.actions.githubusercontent.com (or use the default https://pipelines.actions.githubusercontent.com for Azure DevOps)

Subject identifier: Use the following format for Azure DevOps:

css

Copy

system:azuredevops:{organizationName}:{projectName}

For example:

css

Copy

system:azuredevops:{YourOrganizationName}:{Project1}

Audience: api://AzureADTokenExchange

Click Add.

This federated credential establishes trust between your Azure DevOps project and the managed identity.

Step 5: Create a Service Connection in Azure DevOps

Go to your Azure DevOps project (Project1) in the browser.

In the left menu, click Project settings.

Under Pipelines, click Service connections.

Click New service connection.

Choose Azure Resource Manager.

Choose the authentication method:

Select Workload identity federation.

Configure the service connection:

Scope level: Resource Group.

Resource Group: RGHod489Q1628.

Subscription: Your subscription.

Authentication method: Managed Identity with workload identity federation.

Managed Identity: Enter the client ID or select ManagedJd1.

Service connection name: e.g., Project1-RGHod489Q1628-Conn.

Grant access permission to all pipelines (recommended).

Click Save.

Step 6: Validate the Service Connection

After creation, click on the new service connection to Verify it.

Ensure the connection test is successful.

You can now use this service connection in your pipelines for deploying resources to RGHod489Q1628.

Step 1: Initialize the Default Main Branch

Navigate to Azure DevOps:

Go to Azure DevOps and sign in with your credentials.

Select Your Project:

Choose Project1 from your list of projects.

Initialize the Main Branch:

Go to Repos > Files.

If themain branch does not exist, you will see an option to initialize it. Click on Initialize and follow the prompts to create the main branch.

Step 2: Implement an Approval Process for the Main Branch

Navigate to Branch Policies:

Go to Repos > Branches.

Findthe main branch and click on the … (ellipsis) next to it.

Select Branch policies.

Enable Required Reviewers:

Under Policies, enable Minimum number of reviewers.

Set the minimum number of reviewers to 2 to enforce the four-eyes principle.

Add RequiredReviewers:

Add the users who should review the changes. Ensure that at least one approval is required on every iteration.

Enable Reset Code Reviewer Votes:

Enable the Reset code reviewer votes when there are new changes option to ensure that any new changes require re-approval.

Save Changes:

Click on Save changes to apply the policies.

Step 3: Verify the Approval Process

Create a Pull Request:

Make a change in a branch and create a pull request to merge it into the main branch.

Review and Approve:

Ensurethat the pull request requires at least two reviewers to approve it before it can be merged.

By following these steps, you will have successfully initialized themain branch and implemented an approval process that adheres to the four-eyes principle, ensuring that every iteration has at least one approval

Sign in to the Azure portal.

Navigate to the container registry az40010480345acr1.

Under Services, select Webhooks.

Select the existing webhook https://contoso.com/statushook, and double-click on itto get its properties.

For Trigger actions select image push

Example web hook:

1. Open Microsoft Azure Portal

2. Log intoyour Azure account and go to App Service and look under Monitoring then you will see Alert.

3. Select Add an alert rule

4. Configure the alert rule as per below and click Ok.

Source: Alert on Metrics

Resource Group: az400-9940427-main

Resource: az400-9940427-main

Threshold: 5

Period: Over the last 5 minutes

Webhook: https://contoso.com/notify

To configure a virtual machine template in your DevTest Labs environment namedaz400-38443478-dtl1with Windows Server 2016 Datacenter that includes the Selenium tooland the Google Chrome browser, follow these steps:

Create a Custom Image with Windows Server 2016 Datacenter:

In the Azure Portal, go to your DevTest Labaz400-38443478-dtl1.

Navigate toConfiguration and policies>Custom images.

Use an existing VM or create a new one with Windows Server 2016 Datacenter.

After setting up the VM, capture it to create a custom image1.

Install Selenium and Google Chrome on the VM:

Connect to the VM via RDP.

Download and install the Selenium WebDriver for your preferred programming language from the official Selenium website2.

For Google Chrome, download the offline installer from the official website and install it on the VM3.

Generalize the VM:

Run thesysprepcommand to generalize the VM, which prepares it to be used as a template.

Shutdown the VM aftersysprepcompletes.

Capture the Generalized VM to Create a Template:

In the Azure Portal, navigate to the VM and selectCapture.

Provide the required details and create the image.

Add Selenium and Google Chrome Artifacts to the Template:

Go back to the DevTest Labaz400-38443478-dtl1.

SelectArtifactsand add Selenium and Google Chrome artifacts to the template.

Ensure these artifacts are configured to install during the VM creation process.

Create VMs from the Template:

Now, when youcreate a new VM in the DevTest Lab, select the custom image you created.

The VM will be provisioned with Windows Server 2016 Datacenter, and the Selenium tool and Google Chrome browser will be installed automatically.

By following these steps, you can ensure that all virtual machines created from this template in your DevTest Lab will have the required operating system, tools, and browser installed. Remember to replace placeholder names with the actual names of your resources where necessary.

Step 1: Create an Action Group

Navigate to Azure Portal:

Go to Azure Portal and sign in with your credentials.

Access Azure Monitor:

In the left-hand menu, select Monitor.

Create ActionGroup:

Under Alerts, select Action groups.

Click on + Create.

Configure Basic Settings:

Subscription: Select your subscription.

Resource Group: Select RG1 lod42147S09.

Action Group Name: Enter DevOpsAG.

Display Name: Enter a display name for the action group.

Step 2: Define Actions

Add Email Notifications:

Click on Add action.

Action Type: Select Email/SMS message/Push/Voice.

Action Name: Enter a name for the action (e.g., EmailAdmins).

Email: Enter admin1@contoso.com and admin2@contoso.com.

Click OK.

Notify Resource Owners:

Click on Add action again.

Action Type: Select Email/SMS message/Push/Voice.

Action Name: Enter a name for the action (e.g., NotifyOwners).

Email: Select Notify all owners.

Click OK.

Step 3: Enable Common Alert Schema

Common Alert Schema:

In the Advanced tab, enable the Common alert schema option1.

Step 4: Review and Create

Review:

Review all the settings you have configured.

Create:

Click on Review + create and then Create.

By following these steps, you will have successfully created an action group named DevOpsAG that emails the specified users and notifies resource owners using the common alert schema

1. Open Microsoft Azure Portal

2. Select All Services, and then select DevTest Labs in the DEVOPS section.

3. From the list of labs, select the az400-9940427-dtl1 lab

4. On the home page for your lab, select + Add on the toolbar.

5. Select the Windows Server 2016 Datacenter base image for the VM.

6. Select automation options at the bottom of the page above the Submit button.

7. You see the Azure Resource Manager template for creating thevirtual machine.

8. The JSON segment in the resources section has the definition for the image type you selected earlier.

Step 1: Create an instance of Azure Application Insights

1. Open Microsoft Azure Portal

2. Log into your Azure account, Select Create a resource > Developer tools > Application Insights.

3. Enter the followingsettings, and then select Review + create.

Name: az400-9940427-main

Step 2: Configure App Insights SDK

1. Open your ASP.NET Core Web App project in Visual Studio > Right-click on the AppName in the Solution Explorer > Select Add > Application InsightsTelemetry.

2. Click the Get Started button

3. Select your account and subscription > Select the Existing resource you created in the Azure portal > Click Register.

To configure your Azure Functionaz400-38443478-functto automatically update whenever new code is committed to the main branch of the specified GitHub repository, you can use GitHub Actions for continuous deployment. Here’s how to set it up:

Create a GitHub Actions Workflow:

In your GitHub repository, navigate to the.github/workflows/directory.

Create a new file for your workflow (e.g.,azure-function-cd.yml).

Define the Workflow:

In the workflow file, define the steps for the build and deployment process.

Use theAzure/functions-actionto deploy to your Azure Function App.

Set up triggers for themainbranch to initiate the workflow on every commit.

Generate Deployment Credentials:

In the Azure Portal, navigate to your Function Appaz400-38443478-funct.

Download the publish profile from theOverviewsection by clicking onGet publish profile.

Store the Publish Profile as a GitHub Secret:

In your GitHub repository, go toSettings>Secrets and variables>Actions.

Create a new secret (e.g.,AZURE_FUNCTIONAPP_PUBLISH_PROFILE) and paste the content of the publish profile.

Configure the Workflow to Use the Secret:

In the workflow file, reference the secret to authenticate the deployment to Azure.

Here’s a sample GitHub Actions workflow snippet:

name: Deploy Azure Function

on:

push:

branches:

- main

jobs:

build-and-deploy:

runs-on: ubuntu-latest

steps:

- uses: actions/checkout@v2

- name: Set up Python version

uses: actions/setup-python@v2

with:

python-version: '3.x'

- name: Install dependencies

run: |

pip install -r requirements.txt

- name: Deploy to Azure Functions

uses: Azure/functions-action@v1

with:

app-name: az400-38443478-funct

publish-profile: ${{ secrets.AZURE_FUNCTIONAPP_PUBLISH_PROFILE }}

package: .

Replace theapp-namewith the name of your Azure Function App and ensure the Python version and dependencies match your application’s requirements.

By following these steps, yourAzure Function will automatically update whenever new code is pushed to the main branch of the GitHub repository. This setup minimizes manual effort and ensures that your function app is always running the latest code.

Step 1: Create a Project Wiki

Navigate to Azure DevOps:

Go to Azure DevOps and sign inwith your credentials.

Select Your Project:

Choose Project1 from your list of projects.

Create a Wiki:

In the left-hand menu, select Wiki.

Click on Create project wiki.

Enter the name Wiki1 and click Create.

Step 2: Add Mermaid Syntax to Render a Diagram

Open the Wiki Page:

Navigate to the newly created Wiki1.

Edit the Wiki Page:

Click on Edit to start editing the wiki page.

Insert Mermaid Diagram:

Use the following Mermaid syntax to render a diagram. For example, to render a simple flowchart, you canuse:

```mermaid

graph TD;

A-->B;

A-->C;

B-->D;

C-->D;

Save the Page:

Click on Save to save your changes.

Step 3: Render the TCP Handshake Diagram

Convert TCPHandshake.png to Mermaid Syntax:

Since you have a sample diagram in C:\Resources\TCPHandshake.png, you need to convert this diagram into Mermaid syntax. Here’s an example of how a TCP handshake might look in Mermaid syntax:

```mermaid

sequenceDiagram

participant Client

participant Server

Client->>Server: SYN

Server-->>Client: SYN-ACK

Client->>Server: ACK

Add the Diagram to the Wiki:

Replace the sample Mermaid syntax with the TCP handshake diagram syntax in the wiki page.

Save the Page:

Click on Save to save your changes.

By following these steps, you will have created a project wiki named Wiki1 and used Mermaid syntax to render a diagram

Task 7: Create a Pipeline to Deploy a Docker Image in a New Branch

Step 1: Create a New Branch

In your Azure DevOps Project (Project1), navigate to Repos.

In the left menu, click on Branches.

Click New branch.

Enter:

Branch name: azure-pipelines

Based on: main (or your default branch)

Click Create.

This creates a new branch named azure-pipelines.

Step 2: Switch to the New Branch

In Repos, click on Files.

In the top-left branch selector, choose azure-pipelines.

Step 3: Use the Predefined Docker Pipeline Template

Azure Pipelines has predefined YAML templates for common tasks, including Docker.

Here’s how to add it:

In the azure-pipelines branch, click New file.

Name the file: azure-pipelines.yml.

Click the Show templates button in the YAML editor (if available).

Search for the Docker template in the list of predefined templates.

Select the Docker template to auto-populate the YAML file.

If the editor doesn’t show the template picker, you can manually add the following basic Docker pipeline template:

yaml

Copy

# Predefined Docker pipeline template

trigger:

- main

resources:

- repo: self

variables:

imageName: 'mydockerimage'

stages:

- stage: Build

displayName: Build and push stage

jobs:

- job: Build

pool:

vmImage: 'ubuntu-latest'

steps:

- task: Docker@2

displayName: Build and push an image to container registry

inputs:

command: buildAndPush

repository: $(imageName)

dockerfile: '**/Dockerfile'

containerRegistry: ''

tags: |

latest

Replace with your actual Azure Container Registry (ACR) or DockerHub service connection name.

Step 4: Commit the Pipeline to the New Branch

In the YAML editor, review and adjust if needed (like setting the correct container registry service connection).

In the bottom commit message box:

Message: e.g., Add Docker deployment pipeline

Ensure the branch is set to azure-pipelines.

Click Commit (not commit to main).

This creates the pipeline YAML file in the new azure-pipelines branch.

Step 5: Create the Pipeline in Azure DevOps

In the left menu, click Pipelines.

Click New pipeline.

Choose:

Azure Repos Git.

Select your repo.

Select Existing Azure Pipelines YAML file.

In the branch selector, choose the azure-pipelines branch.

Select the YAML file path (azure-pipelines.yml).

Click Continue and then Run to validate the pipeline.

1. Sign in to the portal,

2. Choose template Deploy-lod9940427

3. Select Edit template, andthen paste your JSON template code into the code window.

4. Change the ASddressPrefixes to 10.0.0.0/24 in order to support only 256 total IP addresses.

addressSpace":{"addressPrefixes": ["10.0.0.0/24"]},

5. Change the firstSubnet addressprefix to 10.0.0.0/26 to support only 64 total IP addresses.

"subnets":[

{

"name":"firstSubnet",

"properties":{

"addressPrefix":"10.0.0.0/24"

}

6. Select Save.

7. Select Editparameters, provide values for the parameters that are shown, and then select OK.

8 Select Subscription. Choose the subscription you want to use, and then select OK.

9. Select Resource group. Choose an existing resource group or create a new one, and then select OK.

10. Select Create. A new tile on the dashboard tracks the progress of your template deployment.

Step 1: Navigate to the Library

Navigate to Azure DevOps:

Go to Azure DevOps and sign in with your credentials.

Select Your Project:

Choose Project1 from your list of projects.

Access the Library:

In the left-hand menu, select Pipelines > Library.

Step 2: Create a Variable Group

Create a New Variable Group:

On the Library page, click on + Variable group.

Configure the Variable Group:

Name: Enter varGroup1.

Description: Optionally, add a description for thevariable group.

Add Variables:

Click on + Add to add a new variable.

Variable Name: Enter serverName.

Value: Enter server1.

Click OK.

Click on + Add again to add another variable.

Variable Name: Enter dbName.

Value: Enter db1.

Click OK.

Save the Variable Group:

Click on Save to save the variable group.

By following these steps, you will have successfully created a variable groupnamed varGroup1 containing the specified variables
