220-1101 CompTIA A+ Certification Exam: Core 1 Questions and Answers

The next step that the technician should do to troubleshoot the issue is C. Swap the power supply if it is inoperable.

A power supply is a device that converts the alternating current (AC) from the wall outlet into direct current (DC) that the computer components can use. A power supply is essential for the computer to boot and function properly. A faulty or inadequate power supply can cause various issues, such as no power, no display, random shutdowns, or beeping sounds.

In this scenario, the technician is trying to fix a computer that fails to boot even when all the RAM is removed. RAM stands for Random Access Memory, and it is a type of memory that stores data and instructions for the processor to access and process. RAM is also essential for the computer to boot and function properly. A faulty or incompatible RAM can cause various issues, such as no boot, no display, blue screen, or beeping sounds.

One of the basic troubleshooting techniques for a computer that fails to boot is to remove all the RAM modules and try to boot with one module at a time in different slots. This can help to identify if the problem is caused by a bad RAM module or a bad RAM slot. If the computer still fails to boot even when all the RAM is removed, it means that the problem is not related to the RAM, but to another component.

The next step that the technician should do is to swap the power supply if it is inoperable. This means that the technician should test the power supply with a multimeter or a power supply tester, and replace it with a known good one if it is faulty or insufficient. This can help to determine if the problem is caused by a bad power supply or a bad motherboard.

The other options are not the next steps that the technician should do, because they are less likely or less effective. Inspecting the motherboard for swollen capacitors (option A) may be helpful if the problem is caused by a damaged or defective motherboard, but it requires opening the computer case and visually examining the motherboard components. Replacing the CMOS battery (option B) may be necessary if the problem is caused by a low or dead CMOS battery, but it usually affects only the BIOS settings and not the boot process. Checking to see if the HDD power connectors are well seated (option D) may be useful if the problem is caused by a loose or faulty HDD connection, but it usually affects only the data access and not the boot process.

For more information about troubleshooting power supply and boot issues, you can refer to the following web search results: [How to Troubleshoot a Computer That Won’t Turn On], [How to Test a Power Supply Using a Multimeter], [How to Fix a Computer That Shows No Sign of Power], [How to Troubleshoot Beep Codes].

A Personal Area Network (PAN) is designed to connect devices in close proximity, typically within a few meters, often using wireless technologies like Bluetooth. This allows for the interconnection of smart devices such as smartphones, tablets, and wearables within an individual's personal space. Unlike a Local Area Network (LAN), which covers a larger geographical area such as a home or office building and can support wired and wireless connections, a PAN specifically facilitates wireless connections between personal devices.

To make sure that the new operating system on the USB drive loads automatically, the user must configure the boot options in the BIOS/UEFI. Boot options determine the sequence of devices the computer will attempt to boot from when powered on. Setting the USB drive as the first boot option ensures that the system will load from the USB before trying other devices.

D. Boot options: The user should configure the boot sequence to prioritize the USB drive, so the system boots from it automatically.

Why the other options are incorrect:

A. BIOS password: A BIOS password is used to restrict access to the BIOS settings, not to control boot order.

B. Trusted Platform Module (TPM): TPM is a security feature used for cryptographic operations and securing hardware, not for controlling boot options.

C. USB permissions: This refers to access permissions for USB devices but does not affect booting from a USB drive.

This concept is part of the Hardware domain in the CompTIA A+ Core 1 exam, specifically regarding BIOS configuration​.

When configuring a router for a small business, the first setting a technician should configure is DHCP (Dynamic Host Configuration Protocol). DHCP is responsible for automatically assigning IP addresses to devices on the network, which is essential for enabling communication within the network. Without DHCP, devices would not receive the necessary IP configurations to communicate effectively.

A. DHCP: Configuring DHCP first ensures that all devices on the network receive their IP addresses automatically.

Why the other options are incorrect:

B. UPnP: UPnP (Universal Plug and Play) is used for simplifying device connectivity, but it is not a critical setting to configure first.

C. MAC filtering: MAC filtering is a security feature that limits which devices can connect to the network based on their MAC addresses, but it should be set up after basic network configuration.

D. VPN: VPN (Virtual Private Network) settings are for secure remote access, and should be configured after the essential network settings like DHCP are in place.

This topic falls under the Networking domain of the CompTIA A+ Core 1 exam​.

A firewall implements ACLs (Access Control Lists) to filter traffic and enforce policies based on rules such as IP address, port, or protocol.

Why Not A (Managed switch): A managed switch supports VLANs and QoS but does not enforce ACLs at the network perimeter.

Why Not B (Gateway): Gateways connect networks and translate protocols but don’t typically implement ACLs.

Why Not C (Repeater): Repeaters extend signal range but don’t enforce policies.

CompTIA A+ Exam Reference: Core 1 (220-1101), Section 2.2, firewall concepts​.

Comprehensive and Detailed In-Depth Explanation:

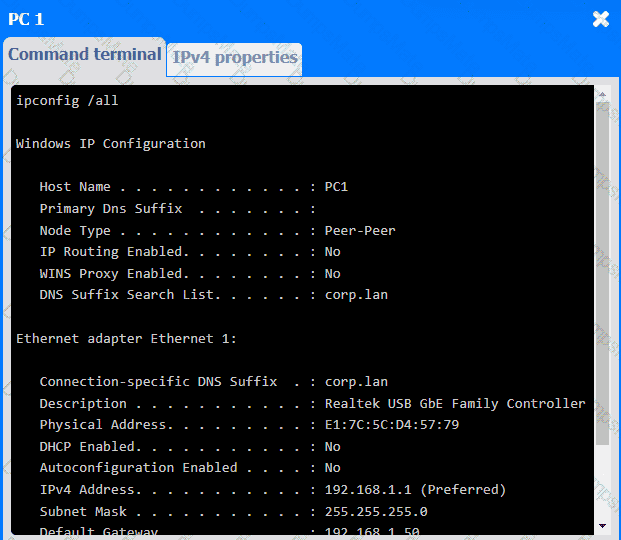

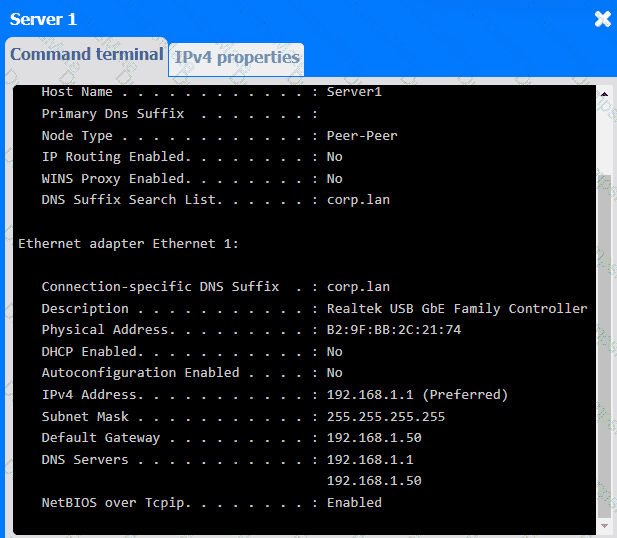

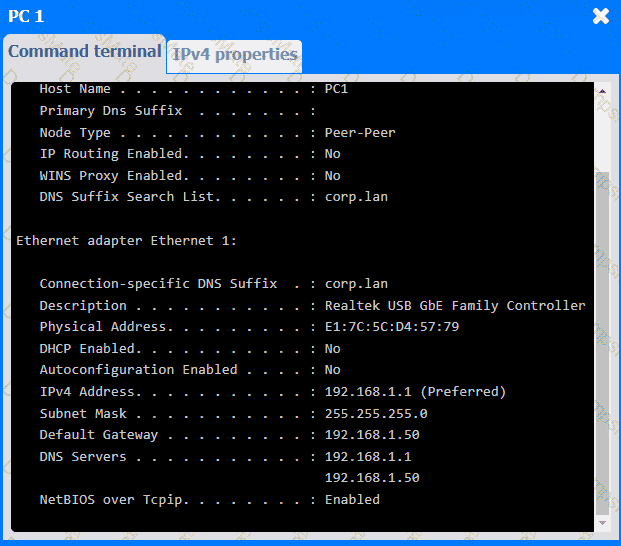

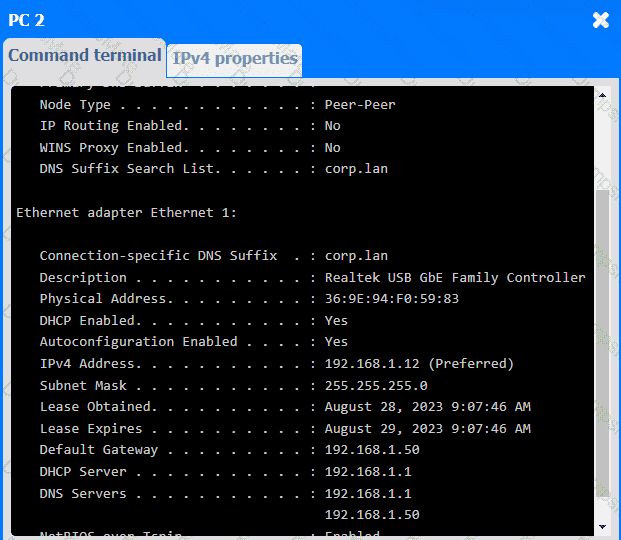

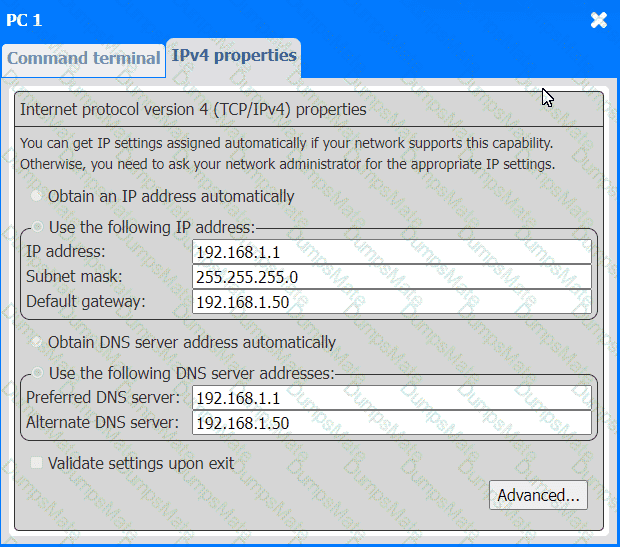

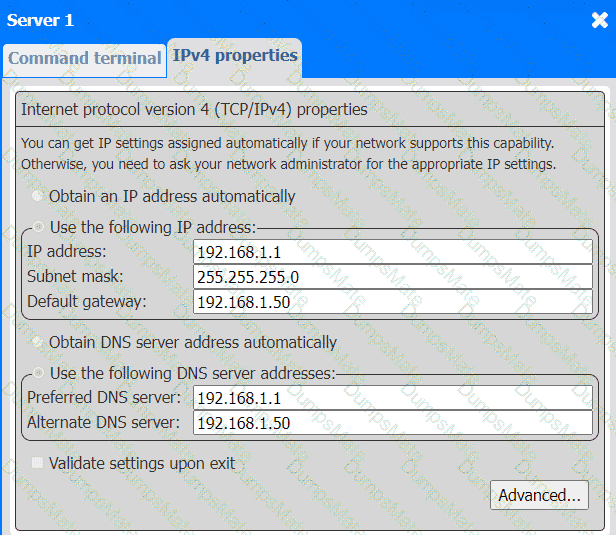

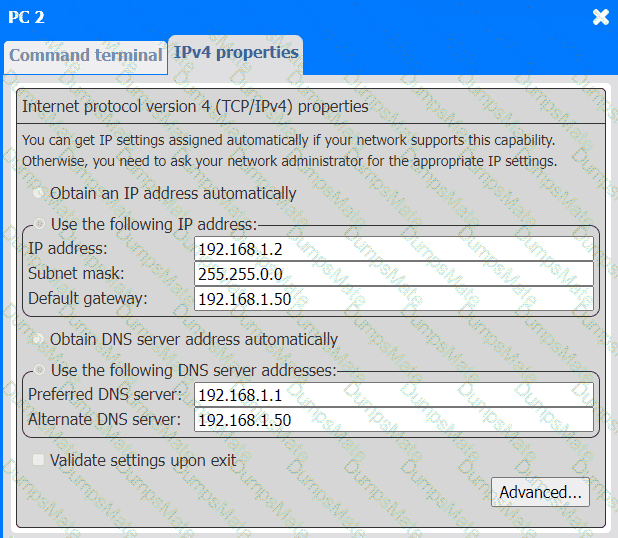

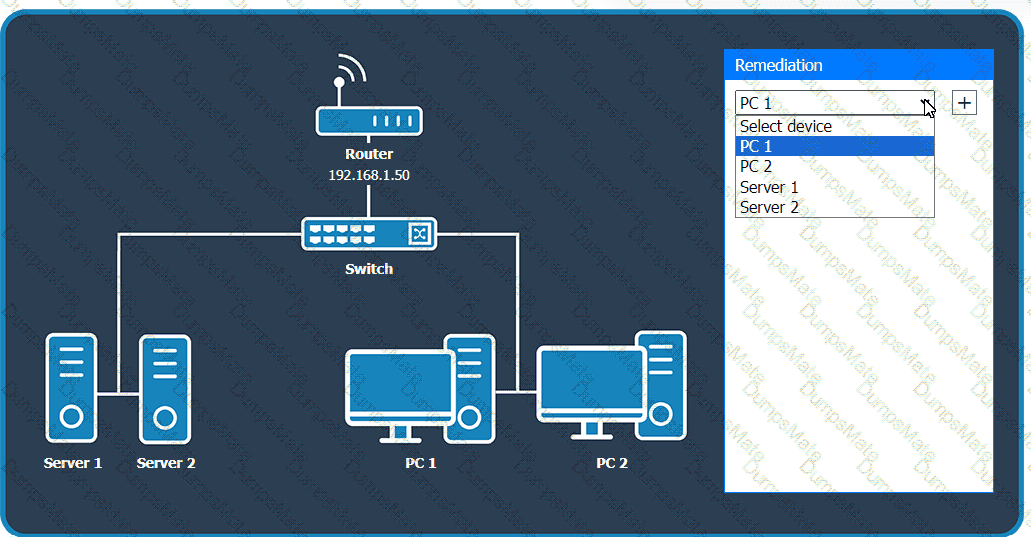

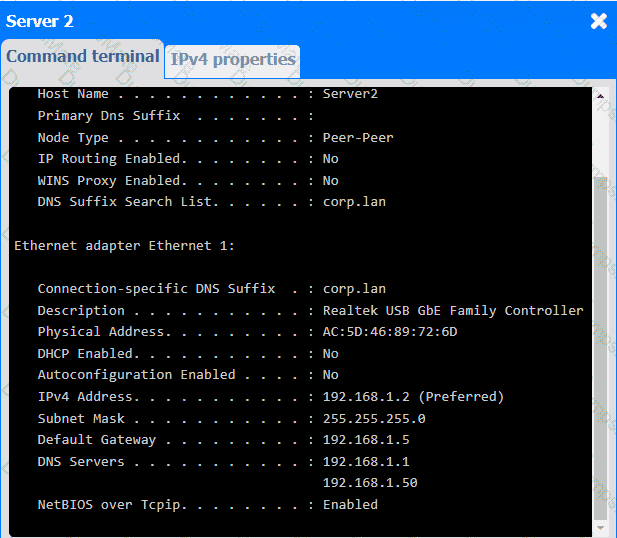

If two devices have the same static IP address, an IP conflict occurs. This results in both devices being intermittently disconnected or unable to communicate on the network. It’s a common mistake when copying configurations manually.

Option B: DNS conflicts wouldn’t cause total disconnection — and wouldn't occur just from copying IP settings.

Option C: A cable issue would only affect one workstation.

Option D: Switchport security issues wouldn't affect both machines simultaneously unless port security was configured very specifically.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 2.6: Given a scenario, configure and troubleshoot network connectivity.

To allow multiple users to print to networked printers:

Printer shares enable users to access printers shared on the network.

Print servers manage print jobs and provide centralized control of printing.

Why Not B (DHCP server): DHCP is unrelated to print management.

Why Not D (Printer subnet): Subnets group devices but don’t manage printing.

Why Not E (SMB configuration): SMB is for file sharing, not specifically print management.

Why Not F (Printer Wi-Fi settings): These settings are irrelevant since the printers use Ethernet.

CompTIA A+ Exam Reference: Core 2 (220-1102), Section 4.6, printer configuration​.

The technician will need to connect the DVI port on the computer to the new display's HDMI port. To do this, a DVI to HDMI cable will be needed. This type of cable will allow the computer's DVI video signal to be transmitted to the new display's HDMI port.

A digital-to-analog converter (DAC) is used to convert a digital signal to an analog signal. An A/V switcher is used to switch between multiple audio and video sources and display them on a single monitor or display. A DisplayPort to HDMI adapter is used to convert a DisplayPort signal to an HDMI signal, but it is not necessary in this scenario as the computer has a DVI port and not a DisplayPort.

Port 20 is used for FTP data transfer (along with port 21 for control), so enabling this port is required. Ports 23, 53, and 68 are unrelated to FTP functionality, as they correspond to Telnet, DNS, and DHCP respectively. CompTIA A+ Core 1 objectives outline the importance of knowing standard port numbers for network services.

CompTIA 6-Step Troubleshooting Process:

1. Identify the problem.

2. Establish a theory of probably cause. (Question the obvious)

3. Test the theory to determine cause.

4. Establish a plan of action to resolve the problem and implement the solution.

5. Verify full system functionality and if applicable implement preventative measures.

6. Document findings, actions, and outcomes.

Writing a knowledge base article in the ticketing software would help document the root cause of the application error and the steps taken to resolve it, which can help other technicians resolve similar issues in the future. This is an example of knowledge management best practices. References: CompTIA A+ Certification All-in-One Exam Guide, Tenth Edition, Chapter 6

Choppy or unintelligible audio is typically caused by issues with the microphone, such as poor quality, hardware defects, or misconfiguration.

Why Not A (Webcam): The webcam handles video, not audio.

Why Not B (Digitizer): A digitizer relates to touchscreens, not audio.

Why Not C (Inverter): Inverters manage power for displays, not audio.

CompTIA A+ Exam Reference: Core 1 (220-1101), Section 3.6, audio troubleshooting​.

If the user can hear sound through a Bluetooth headset but not through the laptop's internal speakers, the issue is likely related to the laptop's audio settings. One of the most common causes is that the laptop's speakers might be muted, either in the system settings or via a hardware mute button. This is the simplest and most likely solution to the problem.

B. Toggling the laptop's mute setting: Checking whether the laptop is muted, either through the keyboard shortcut or the system sound settings, is a quick way to resolve this common issue.

Why the other options are incorrect:

A. Updating the Bluetooth drivers: The issue is not with the Bluetooth headset, as it is working correctly. The problem is with the laptop's speakers.

C. Updating the speaker drivers: Updating the drivers is not the first step in troubleshooting, as the issue is more likely related to settings rather than outdated drivers.

D. Replacing the laptop's speakers: This is an extreme step and unlikely to be necessary if the problem is simply related to audio settings.

This scenario covers hardware troubleshooting and falls under the Hardware and Software Troubleshooting domain in the CompTIA A+ Core 1 exam​.

If a laptop does not charge when connected to a USB 3.1 docking station despite the AC adapter being plugged in, the most likely reason is that the dock is not designed to provide power passthrough. This means that the dock's primary function is connectivity for peripherals rather than power delivery to the laptop. The other options are possible but less likely if the sole issue is the absence of charging functionality when the dock and its power supply are properly connected.

Comprehensive and Detailed Step-by-Step Explanation:

Random BSODs (Blue Screen of Death), intermittent freezing, and degraded performance under load are common symptoms of failing or faulty RAM (Random Access Memory). Here's the reasoning:

RAM Module (Correct Answer):

Faulty or failing RAM can cause random BSODs due to memory errors when the system attempts to read or write to corrupted memory locations.

Intermittent freezing, especially under performance-intensive operations, can occur because the CPU relies heavily on RAM for active processing tasks.

Over time, heat generated during usage can exacerbate RAM instability, leading to progressively worse performance throughout the day.

Solution: The technician should run a memory diagnostic tool, such as Windows Memory Diagnostic or MemTest86, to confirm if the RAM is at fault.

Incorrect Options:

A. Video Card: A faulty video card can cause graphical glitches, screen artifacts, or crashes, but it is unlikely to cause system-wide performance degradation and random freezing under normal operations unless the issue is specific to GPU-intensive tasks (e.g., gaming or video rendering).

B. HDD: A failing hard drive can cause system slowdowns and freezing, but it typically produces other symptoms such as read/write errors, boot failures, or clicking sounds. HDD issues do not usually cause BSODs unless critical system files are corrupted.

D. TPM (Trusted Platform Module): A TPM is a hardware-based security module used for encryption and secure authentication. It does not affect performance or cause BSODs or freezing under normal operation.

Key Takeaway:

The symptoms described (random BSODs, intermittent freezing, and degraded performance under load) are most likely caused by faulty or failing RAM. Memory diagnostic tools should be used to confirm the issue.

Containers are lightweight, isolated environments perfect for deploying and running microservices in a cloud or virtualized infrastructure.

The first step in troubleshooting a printer issue is to disconnect the printer power to avoid electric shock or further damage to the printer. The technician can then inspect the fuser and determine if it needs to be replaced or repaired. Installing a printer roller kit or replacing the paper with thicker paper stock will not solve the problem of the overheating fuser. Replacing the fuser without disconnecting the power is dangerous and not recommended. References: https://www.comptia.org/certifications/a#examdetails https://www.comptia.org/blog/what-is-a-fuser

The minimum cable category that could be used to support a 10Gbps throughput is Cat 6a. Cat 6a cable is required with 10 Gigabit Ethernet for reliable performance with cable lengths up to 100 metres. However, lower-specification cables can often be successfully used, particularly with the shorter cable lengths required in a typical home123.

When configuring a network device like a printer, assigning it a static IP address ensures that it always uses the same IP address. If a static IP cannot be set due to security restrictions, the next best solution is to configure a reservation in the DHCP (Dynamic Host Configuration Protocol) server. This reservation ensures that the device (in this case, the printer) always receives the same IP address based on its MAC address, even if the router restarts.

A. Reservation: A DHCP reservation ties a specific IP address to the MAC address of a device, ensuring it always receives the same IP address from the DHCP server.

Why the other options are incorrect:

B. Scope: A DHCP scope defines the range of IP addresses that can be assigned to devices. It doesn’t ensure that a specific device always gets the same IP.

C. Lease: A lease refers to the length of time a device is assigned an IP address from the DHCP server. It doesn’t guarantee that the same IP will be re-assigned after the lease expires.

D. Exclusion: An exclusion in DHCP configuration excludes specific IP addresses from being assigned dynamically. This is used to prevent certain addresses from being given out but doesn’t ensure a device will always get the same IP.

This topic is covered under the Networking domain of the CompTIA A+ Core 1 exam​.

A Wi-Fi analyzer is a tool that can be used to scan the local area for available wireless networks and can provide information such as signal strength, interference, and available channels. It can also be used to locate the best channel to use for a given access point, which can help to reduce latency and improve performance.

A load balancer is a network device that distributes network or application traffic across multiple servers to ensure that no single server bears too much of the load. Load balancing helps to improve application availability, increase scalability, and optimize resource utilization.

A bridge is used to connect two different networks, often to divide a larger network into smaller segments. A proxy server is used to forward client requests to other servers, and can also be used to cache frequently requested data. A switch is used to connect multiple devices within a network and to control the flow of network traffic. A firewall is used to secure a network by controlling incoming and outgoing traffic based on defined security rules.

The appropriate connection types for connecting an external keyboard to an Android tablet are USB-C and Bluetooth123.

An impact printer is a type of printer that uses a ribbon to produce text and images on paper. If an impact printer is producing faded text and images when printing, it could be due to a worn-out ribbon that needs to be replaced. The technician would need to replace the ribbon on the impact printer to resolve the issue.

A ribbon is a consumable component used in impact printers that uses a cloth or plastic strip coated with ink to produce text and images on paper. Examples of impact printers include dot matrix printers and line printers. References: Study Guide Section 4.6 - Printer technologies

The pink hue is most likely caused by physical cabling issues

the output on a monitor is clear but has a pink hue, it could be due to an issue with the physical cabling connecting the monitor to the computer. The video signal may be degraded or distorted due to a damaged or loose cable. The technician should check and replace the cable if necessary to resolve the issue.

Lightning Connector: Apple introduced this brand-new connector back in 2012. It is over 80% smaller than the 30-pin connector and is reversible.

https://www.cablewholesale.com/support/technical_articles/whats_your_port.php#:~:text=Lightning%20Connector%3A%20Apple%20introduced%20this,pin%20connector%20and%20is%20reversible.

If a computer is not booting and the onboard speaker emits beeps, it can indicate a hardware issue. One of the most common causes of beep codes is overheating, which can occur if the processor's fan is not properly installed and running. The processor's fan is responsible for cooling the processor and preventing damage to the internal components.

Vertical or horizontal lines—Marks that appear in the same place (referred to as repetitive defects) are often due to dirty feed rollers (note that there are rollers in the toner cartridge and fuser unit too) or a damaged or dirty photosensitive drum.

Vertical streaks on a laser printer output are usually caused by a damaged or worn-out drum, which is responsible for transferring toner to the paper. If the drum is damaged, toner may accumulate on certain parts of the drum, leading to streaks on the printed output. References: CompTIA A+ Certification All-in-One Exam Guide, Tenth Edition, Chapter 15

The primary security concern with virtual machine escape is compromising the hypervisor, which can allow attackers to gain access to other virtual machines or the host system. Virtual machine escape refers to an attack that allows a guest virtual machine to break out of its isolated environment and access other parts of the system.

A SIM card is needed for the device to use cellular network services, so without it, the device will be unable to connect to the cloud services when taken off site. MDM (Mobile Device Management) can be used to manage settings and access on a device, but it is not necessary for the device to be able to use cloud services. S/MIME (Secure/Multipurpose Internet Mail Extensions) certificates are used to encrypt and digitally sign emails, and are not related to device connectivity. Bluetooth can be used to connect devices together, but it is not necessary for the device to be able to use cloud services.

Using the device as a Wi-Fi hotspot, a failing battery, and too many open applications are the most likely causes of the cell phone getting hot. These actions require the phone to use more power and processing, causing it to heat up.

A private cloud deployment model provides the company with complete control over how the data is managed. This is because a private cloud is managed solely by the organization and resides on-premises or in a data center. Therefore, a private cloud deployment model is the best option for this scenario.

If a laser printer is producing output with duplicate images (also known as ghost images), it could be due to an issue with the toner drums and rollers. The first step to eliminate the ghost images would be to clean the toner drums and rollers to remove any excess toner that may be causing the issue.

Ghost images are a common issue in laser printers where an image or text from a previous page appears faintly on subsequent pages. The cause of this issue is usually due to toner residue on the drum or rollers, which can be removed by cleaning the toner drums and rollers. References: Study Guide Section 4.6 - Printer technologies

Since the hard drive appears to be functioning normally, the technician should investigate other potential causes of the issue. This could include checking the BIOS settings, verifying the connections to the hard drive, and testing the RAM. Once these steps have been completed, the technician can then take the necessary steps to resolve the issue.

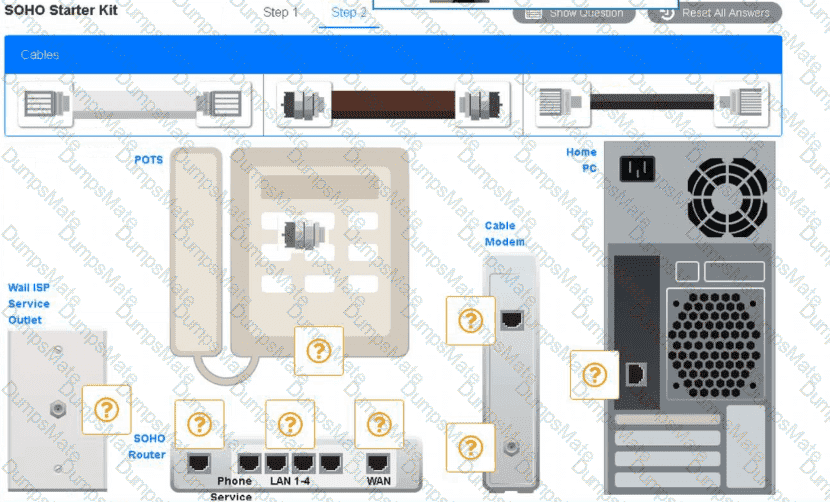

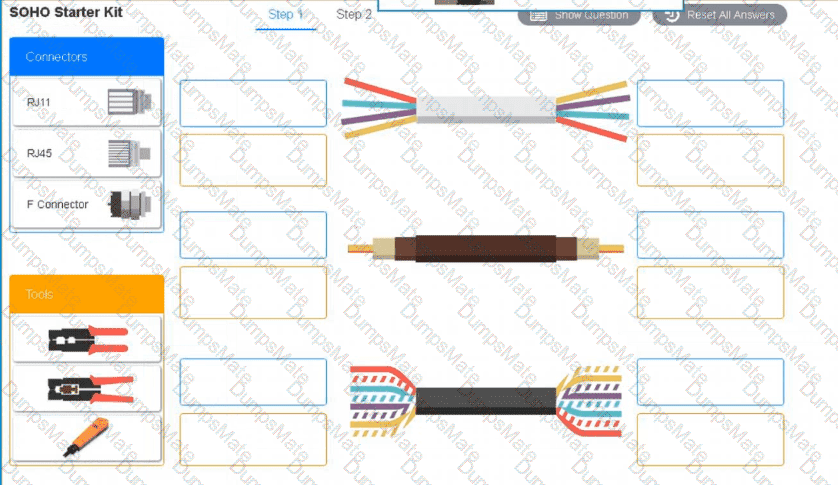

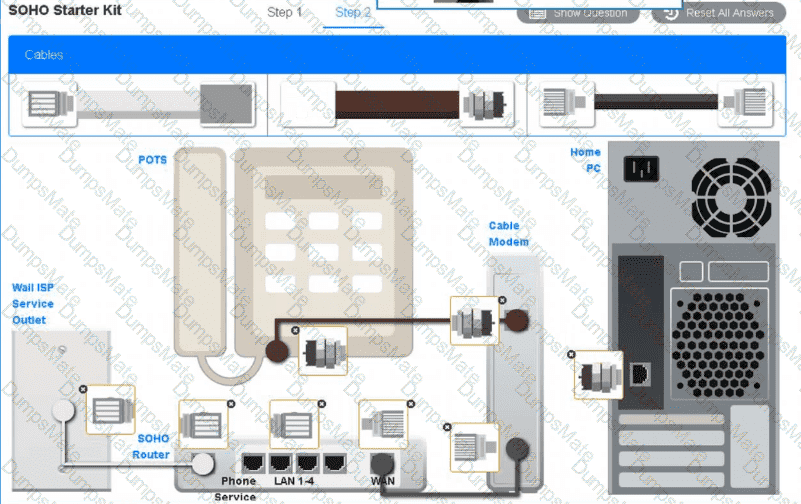

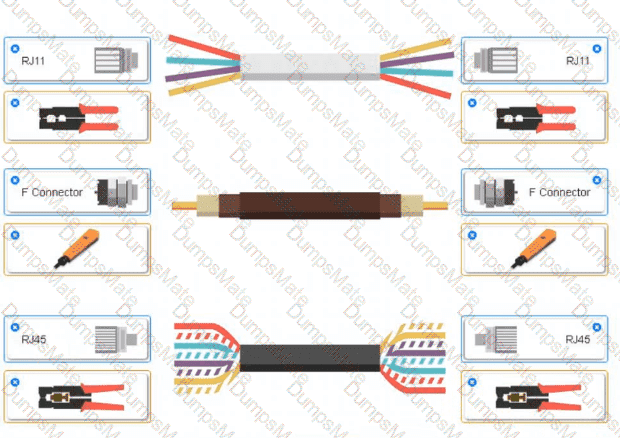

The company should buy Coaxial cables to be used with F-type connectors.

When a device is experiencing slow file transfers to an external USB drive and the physical connections are confirmed to be correct, the next step is to update the device drivers. Outdated or corrupt drivers can cause suboptimal performance and slow transfer speeds. Updating the drivers can resolve these issues and improve the device's communication with the USB drive, leading to faster file transfers.

M.2 NVMe SSD provides the fastest data access possible for a laptop. It is a high-performance solid-state drive that connects directly to the motherboard through an M.2 slot.

Adjusting the lens is the best solution to improve image quality in a projector. The lens can become misaligned over time or during transportation, causing the image to appear fuzzy.

http://www.221021.com/Hardware/input-output-devices/32310.html

1. Identify the problem.

Gather information from the user, identify user changes, and, if applicable, perform backups before making changes.

Inquire regarding environmental or infrastructure changes.

2. Establish a theory of probable cause (question the obvious).

If necessary, conduct external or internal research based on symptoms.

3. Test the theory to determine the cause.

Once the theory is confirmed, determine the next steps to resolve the problem.

If the theory is not confirmed, re-establish a new theory or escalate.

4. Establish a plan of action to resolve the problem and implement the solution.

Refer to the vendor's instructions for guidance.

5. Verify full system functionality and, if applicable, implement preventive measures.

6. Document the findings, actions, and outcomes.

DMARC (Domain-based Message Authentication, Reporting and Conformance) is an email authentication protocol. It is designed to give email domain owners the ability to protect their domain from unauthorized use, commonly known as email spoofing.

USB 3.0 ports are slightly smaller than other USB connections, so if the port appears to be the wrong size, it is likely that the port belongs to a different form factor. This can be caused by a number of factors, such as the device being too old to support USB 3.0, or the device not having a USB 3.0 port in the first place.

The technician should boot into the BIOS and enable the TPM on the new motherboard to enable the system to boot again and get access to the stored data1.

Boot into the BIOS and enable the TPM on the new motherboard. Explanation: After upgrading the motherboard, the TPM may need to be enabled in the BIOS in order to access the encrypted key and boot the system. Enabling the TPM on the new motherboard should allow the system to boot and provide access to the encrypted data. References: CompTIA A+ Certification Exam Guide, 220-1001, Chapter 13

A sandbox environment is an isolated testing environment where code can be written and tested without impacting other infrastructure. This provides a safe and controlled environment for experimentation and development. References: CompTIA A+ Certification Exam Core 2 Exam Objectives - 5.5 Compare and contrast common workstation security best practices

If a workstation shuts down unexpectedly during a burn-in test, overheating is the most likely cause. This is because a burn-in test is designed to stress the components of the workstation, which can generate a lot of heat. Therefore, overheating is the correct answer. References: CompTIA A+ Certification Exam Guide, Ninth Edition, page 120

Thunderbolt cables are commonly used to connect Apple laptops to external displays or other devices. While Thunderbolt is available on some Windows and Chromebook devices, it is most commonly associated with Apple products. References: https://www.intel.com/content/www/us/en/products/docs/io/thunderbolt/thunderbolt-technology-general.html

This is because high-end graphics cards, processors, and multiple hard drives require a significant amount of power to operate. A power supply with insufficient wattage could cause stability issues or even damage the components.

The CompTIA A+ Core1 certification guide emphasizes the importance of selecting an appropriate power supply for a computer build. In addition to wattage, other factors to consider when selecting a power supply include efficiency, modularity, and the number and type of connectors required to power the components. However, of the options listed, the wattage rating is the most critical consideration.

Therefore, the technician should ensure that the power supply they select has a wattage rating that is sufficient to power all the components in the gaming computer. It is always a good practice to select a power supply with a wattage rating that exceeds the estimated power usage of t

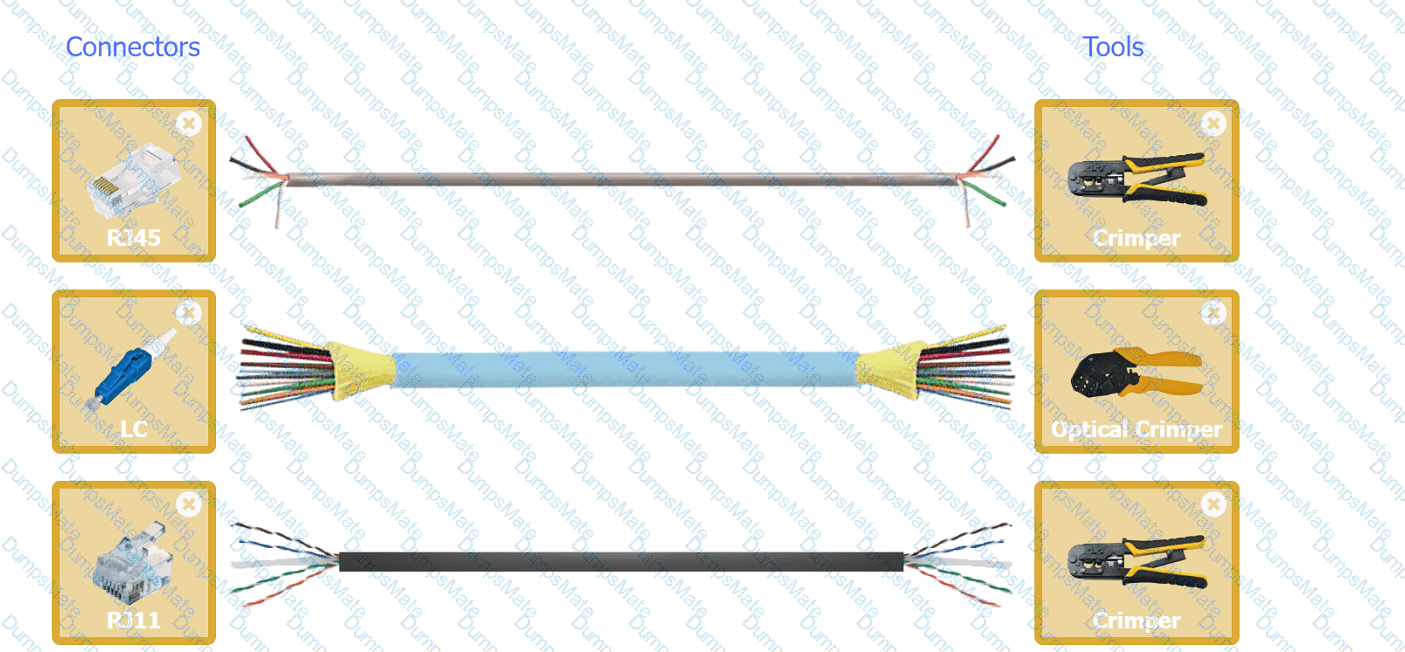

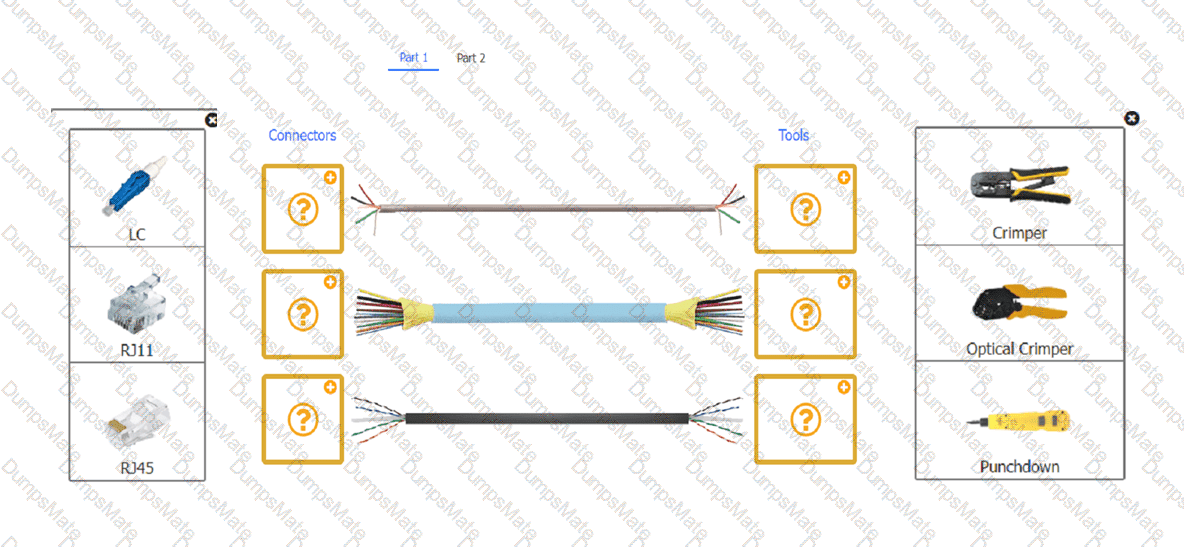

Punchdown tools are used to make connections between wires in a 66/110 block at the demarcation point. The tool is used to insert the wire into the appropriate holes in the block, and it can be used to add additional lines to the demarcation point. The other options are not the correct tools for adding lines to the demarcation point. A toner is used to identify cable pairs, a network tap is used to monitor network traffic, and a crimper is used to terminate cables.

Every computer has a CMOS battery and when you remove that battery, your computer will work almost the same as before. The only difference is you won’t be able to save any settings in the BIOS, which includes the date and time. If your PC is not booting after removing CMOS, you need to make sure that you have your CPU and RAM connected because it’s not possible for your system to boot without those.. Your motherboard and computer will be able to boot just fine even without a CMOS battery present. The only issue is all your BIOS settings will be reset and the time and date will be inaccurate. You will also be unable to save BIOS settings.

A 1000W 24-pin modular power supply provides enough power to support a dual graphics card configuration, which requires a significant amount of power. A modular power supply allows the technician to connect only the cables that are necessary for the current configuration, reducing cable clutter and improving airflow inside the case. This makes it easier to install and maintain the power supply.

If a user’s PC is very sluggish, the HDD light on the PC is constantly on without blinking, the PC itself is slow receiving input, and it takes a very long time to load the OS, the HDD has no free space is most likely the cause of these issues. When the hard disk drive (HDD) has no free space, the computer may become slow and unresponsive. The technician should check the amount of free space on the HDD and delete any unnecessary files to free up space.

Before attempting to resolve the issue, it is important to first determine the cause or probable cause of the issue, so that a plan of action can be developed. In this case, the fact that the retention policy was updated shortly before users first noticed the issue suggests that this could be the cause of the issue. The systems administrator should investigate this further to determine if this is indeed the cause of the email server issue.

The cloud concept that should be used for migrating all common business applications, including email and fileshares, to the cloud is Software as a Service (SaaS).

A docking station is a hardware accessory that allows laptops to connect to multiple peripherals and devices with a single connection. A docking station with DisplayPort would provide the necessary connectivity for the dual monitors, and it can also support the required peripherals such as the keyboard, mouse, and speakers. In addition, it will provide a wired network connectivity for faster and more reliable network access.

If a technician is tasked with upgrading a laptop’s RAM, the technician should verify the memory requirements of the motherboard first. The motherboard of the laptop will have specific requirements for the type and amount of RAM that can be installed. By verifying the memory requirements of the motherboard, the technician can ensure that the new RAM is compatible with the laptop.

Before upgrading a laptop's RAM, a technician should verify the memory requirements of the motherboard to ensure the new RAM is compatible. The type, speed, and maximum capacity of the RAM should be checked to ensure it meets the requirements of the motherboard. References: CompTIA A+ Certification Exam Guide, pg. 347-348

The Domain Name System (DNS) is responsible for translating domain names into IP addresses. By blocking malicious sites from resolving correctly, the DNS server is able to prevent the user from accessing those sites. Therefore, the DNS server setting on the user’s router needs to be changed to enable this functionality123.

The most appropriate solution for the technician to consider in this situation is Application virtualization. Application virtualization is a technology that allows applications to run in a virtual environment, which isolates them from the underlying operating system and other applications. This ensures that the application deployment will not affect other legacy applications on the end users’ computers1.

BSoDs can be caused by poorly written device drivers or malfunctioning hardware, such as faulty memory, power supply issues, overheating of components, or hardware running beyond its specification limits. In the Windows 9x era, incompatible DLLs or bugs in the operating system kernel could also cause BSoDs.

The technician should verify the header panel connector is properly connected. A beep code is a diagnostic tool used by motherboards to indicate issues with hardware components. This beep code may be indicating an issue with the connection between the motherboard and the case's header panel connector. This connector is responsible for providing power to the system and any connected peripherals. Therefore, the technician should verify the connection is secure and properly connected before attempting any other troubleshooting steps.

If a user is unable to connect a laptop to a projector or videoconferencing system and sees the error message "No source found," the next step should be to check the display settings on the computer and set them to extend/duplicate. This will ensure that the laptop's display is being output to the external device. References: CompTIA A+ Certification Exam Guide, pg. 514

NVMe (Non-Volatile Memory Express) drives are high-speed solid-state drives that utilize the PCIe (Peripheral Component Interconnect Express) interface to connect to the motherboard. Before purchasing an NVMe drive, the user should confirm that the PC has an available M.2 slot for the drive and that the PC has a PCIe interface for the M.2 slot.

SATA (Serial ATA) is an older interface for hard drives and is not compatible with NVMe drives. SAS (Serial Attached SCSI) is a newer interface for hard drives and is typically used for enterprise-level storage systems. SCSI (Small Computer System Interface) is a parallel interface for hard drives that is primarily used in high-end workstations and servers. DRAM (Dynamic Random Access Memory) is a type of memory commonly used in computers, but it is not relevant to the storage of data on a hard drive.

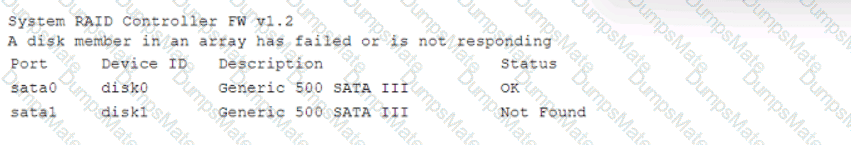

RAID 10 combines the benefits of RAID 0 and RAID 1. It uses a striped configuration across multiple disks (similar to RAID 0) to provide high-speed read and write access. Additionally, it also mirrors the striped array onto a second set of drives (similar to RAID 1), providing redundancy in case of a drive failure.

The Official CompTIA® A+® Core 1 and Core 2 Student Guide (Exams 220-1001 and 220-1002) | 193 Protected content. If you encounter an error that indicates unauthorized content or an HDCP error: • DVI, HDMI, DisplayPort, and Thunderbolt all provide support for the Digital Rights Management (DRM) mechanism High-bandwidth Digital Content Protection (HDCP). HDCP allows a content source (such as a Blu-ray disc) to disable itself if the display adapter and monitor and/or speaker system do not support HDCP and fail to authenticate themselves with the playback source. There have been various iterations of HDCP (at time of writing the current version is 2.2) and backward-compatibility can be problematic as authentication may fail between devices that support different versions of the standard.

The most common reasons you may be seeing the "No Signal" message: The projector and the source device are not connected correctly.

The first action should be to check the video cable and replace it if necessary, as the error message suggests that the projector is not receiving a signal from the laptop. Verifying that the projector is turned on and checking the bulb would come after verifying the video cable.

The technician should install the appropriate printer drivers for the OS to enable the computer to communicate with the printer. The generic printer name suggests that the drivers are missing or not installed correctly.

Reducing the frequency of location checks using cellular location services will consume less battery power while still allowing the user to view weather forecasts while travelling. The other options may not solve the battery drain issue while using the weather application.

Configuring less frequent location checks using cellular location services is the best option for the salesperson to view weather forecasts while traveling without draining the battery too quickly. References: https://www.makeuseof.com/tag/5-ways-improve-battery-life-android-phone/

TPM stands for Trusted Platform Module, and it is a special chip installed on a computer’s motherboard that stores encryption keys, passwords, and digital certificates. It can also securely store a user’s PIN, allowing them to access the laptop without having to enter the PIN every time they log on. TPM is a secure way to store and protect sensitive data, making it ideal for use in laptops that need to securely store a PIN.

Verifying the correct type of paper is loaded is the best solution for resolving the issue of blank receipts being printed by a point-of-sale printer. Some receipt printers require a specific type of paper, and using the wrong type can result in blank receipts. References: https://www.techwalla.com/articles/what-are-the-causes-of-blank-receipts-from-a-printer

Top of Form

Verify the correct type of paper is loaded. If a point-of-sale printer is printing blank receipts, one possible cause could be that the wrong type of paper is loaded in the printer. Thermal printers require thermal paper to print properly. If regular paper is loaded instead of thermal paper, the printer will not be able to produce an image on the paper and will print blank receipts.

If users are experiencing decreased bandwidth and connectivity issues in a Wi-Fi mesh network, the technician should use a Wi-Fi analyzer to determine whether the channel in use is overcrowded and to identify which channel the mesh network should use for best performance. References: CompTIA A+ Certification Study Guide, Tenth Edition, pg. 308

M.2 is a form factor for solid-state drives (SSDs) that enables direct attachment to the motherboard without the need for cables. Thunderbolt is a high-speed interface that supports data transfer, video output, and charging. eSATA is an external interface for connecting SATA devices. SCSI is an older interface standard for connecting hard drives, printers, and other peripherals.

Installing a hard drive directly on the motherboard without using cables is usually done with an M.2 slot. References: CompTIA A+ Certification Exam Guide, Ninth Edition, Chapter 5

DDR3 is the most commonly used RAM type in modern desktop computers. It is faster and more energy efficient than its predecessors, and offers larger capacity modules. References: CompTIA A+ Certification Exam Guide, Ninth Edition, Chapter 5

Cat 5 cable is limited to a maximum data transfer rate of 100Mbps, while Cat 5e, Cat 6, and Cat 6a cables support Gigabit Ethernet (1000Mbps) and higher speeds. Even though the LAN card is capable of Gigabit speeds, it cannot achieve that speed when using a Cat 5 cable. Upgrading to a Cat 5e or higher cable would allow the computer to achieve Gigabit speeds. References: CompTIA A+ Certification Exam: Core 1 - Page 196

Two-factor authentication (2FA) is a security process that requires users to provide two different authentication factors to verify their identity. This means that in addition to providing something they know (such as a password or PIN), they must also provide something they have (such as a smart card or token) or something they are (such as a fingerprint or retinal scan).

In this case, the correct answer would be C. Password/thumbprint. This option meets the requirement for two-factor authentication because it combines two different types of authentication factors: something the user knows (the password) and something the user is (the thumbprint). The other options do not meet the requirement for 2FA because they either use only one type of authentication factor (A and D) or use two instances of the same type of factor (B).

FTP (File Transfer Protocol) uses TCP ports 20/21 and transfers data in cleartext, which means the data is not encrypted and can be read by anyone who intercepts it. This makes FTP insecure for transferring sensitive information. SSH (Secure Shell), on the other hand, uses port 22 and encrypts data, making it more secure. SNMP (Simple Network Management Protocol) uses ports 161/162 and is used to monitor network devices. Telnet uses port 23 and transfers data in cleartext, making it insecure. References: CompTIA A+ Certification Exam: Core 1 - Page 199

The most likely cause of the issue is that the page orientation is incorrect. The printer may be set to print labels in a different orientation than the orientation of the label sheet1.

Domain Name System (DNS) is an Internet service that translates domain names (e.g., its.umich.edu) into IP addresses. Dynamic Host Configuration Protocol (DHCP) is a protocol for automatically assigning IP addresses and other configurations to devices when they connect to a network.

Device interference is the most likely cause of the wireless connection dropping or becoming slow. Interference can come from other wireless devices, microwave ovens, or physical barriers like walls and metal objects. Hidden SSID, Ethernet port flapping, and high ISP latency are not likely to cause this issue.

Wireless interference from other devices can cause a drop in wireless connection speed and stability. In a small office environment, there may be several wireless devices competing for the same bandwidth, causing the issues described. References: CompTIA A+ Certification Exam Core 1 Exam Objectives - 3.7 Given a scenario, troubleshoot wired and wireless networks with appropriate tools

he main difference between T568A and T568B cabling standards is that the green and orange cables are interchanged12. T568A is designed for backward compatibility with older telephone wires, while T568B is designed for better signal isolation and noise protection for newer networking systems and products3. T568A is used in blue cables, and T568B is used in green cables1. The standards use the same cable connectors3.

Three beeps indicate a "base memory read/write test error". Check out "beep codes" for more information.

https://en.wikipedia.org/wiki/Power-on_self-test#POST_beep_codes_on_CompTIA_A.2B_certification_exam

Reseating the RAM is the best course of action to remediate the issue of three consecutive beeps during boot, as it may indicate a RAM failure or loose connection. By reseating the RAM, the technician can ensure that the connection is secure and the computer should boot normally. References: CompTIA A+ Certification Exam Objectives 1001, 1.9

Changing the connector setting on the monitor is a possible solution for a PC and its monitor that display the error message "No input signal detected". This error can be caused by an incorrect input selected on the monitor, so changing the connector setting to the correct input should resolve the issue. References: CompTIA A+ Certification Exam Objectives 1001, 1.10

Top of Form

Regenerate response

Bottom of Form

The most likely action that would resolve the issue is to clean the keyboard. Sometimes dust, hair, and other debris can affect keyboard functionality. The technician can try to clean the keyboard as much as possible, which may be enough to get the keyboard back in working order

According to Dell Community, the Wi-Fi antenna is located in the top of the LCD display housing. It consists of two elements, fed by two cables, a white main designated on the Wi-Fi card by a white triangle, and a black auxiliary designated on the Wi-Fi card by a black triangle1.

Rapid elasticity would be used by an online retailer to quickly add more web servers during peak sales times. References: CompTIA A+ Certification Exam Guide, Exam 220-1001, Page 405

NFC (Near Field Communication) is a technology used for short-range wireless communication between devices, typically used for contactless payments and authentication. In this scenario, the 13.56MHz frequency short band was implemented, and users can authenticate using their mobile devices, which requires NFC to be enabled on the device. References: CompTIA A+ Certification Exam Objectives 220-1001 - Mobile device network and device synchronization - 4.4

Opening multiple large Excel files simultaneously requires a large amount of RAM. Upgrading the RAM in the workstation should improve performance. References: CompTIA A+ Certification Exam Guide, Ninth Edition, Chapter 9

Rapid elasticity is only suitable for a domain whose resource requirements suddenly up and down for a specific time interval. Referring to the question the online retailer wants to migrate to public cloud services during peak season, then wants it to be removed "automatically" when the peak is over.

Dot Matrix printers do not use heat, they use a pin striking an inked ribbon (for the first copy, the subsequent copies are handled by the carbon paper)

The ribbon is low on ink or missing and must be replaced to get proper output in a dot matrix printer that uses carbon paper. References: CompTIA A+ Certification Exam Guide, Exam 220-1001, Page 361

The unexpected reboots on a graphics workstation when rendering complex 3-D models may be caused by insufficient power supply. The workstation is configured with a 115V power supply that is rated at 200W, which may not be enough when the GPU is heavily tasked. The technician should begin troubleshooting by checking the power supply.

If you want to install Windows 11 on a virtual machine using Hyper-V, you will have to use a “Generation 2” VM and enable the “trusted platform module” (TPM) and Secure Boot options. Otherwise, the OS won’t install.

Starting with Windows 11, Microsoft is changing the system requirement and making TPM 2.0 and Secure Boot a prerequisite to perform an in-place upgrade or clean install the new version on any device. This is in addition to the new 4GB of RAM and at least 64GB of storage.

quoted from here:

https://pureinfotech.com/enable-tpm-secure-boot-hyperv-install-windows-11/

Furthermore, Multithreading is not a requirement for hyper-v hosting.

To create virtual machines on a workstation, the technician needs to enable Trusted Platform Module (TPM) in the system BIOS. TPM is a hardware-based security feature that helps protect the system from unauthorized access and tampering. It is required for many virtualization technologies, including Hyper-V, VirtualBox, and VMware. References: CompTIA A+ Certification Exam Objectives - 220-1002: 2.7 Explain the basics of virtualization.

The clicking sound is the sound of a damaged disk in the HDD

A clicking sound from a hard disk drive typically indicates a mechanical failure, such as the read/write head hitting a physical obstruction or a problem with the disk motor. This can cause the drive to fail to initialize or not be recognized by the system during booting.

The main reason to use a virtual machine as a sandbox is to test new software in a safe environment without risking the integrity of the host operating system. Using a virtual machine enables the testing of software and allows for the isolation of the software from the host system. References: CompTIA A+ Certification Study Guide, Tenth Edition, pg. 409

Client-side virtualization guest machines require isolation from other guest machines to maintain their security. Isolation ensures that each virtual machine is separated from others and runs its own operating system and applications, making it less vulnerable to attacks from other guest machines. References: CompTIA A+ Certification Exam Objectives 220-1002 - Virtualization and cloud computing - 4.1

RAID 10 array is often used for server virtualization as it provides both redundancy and performance benefits. It uses a combination of mirroring and striping to provide both fault tolerance and improved I/O performance. An optical disk drive or eMMC storage device would not provide enough storage or performance for a VM host server, while a 15,000rpm drive may provide good performance but would not provide redundancy for fault tolerance. Therefore, a RAID 10 array is the best option for cost-effective storage that will be used for all VMs that run from the server.

Based on the given information, it seems that the projector is experiencing issues with overheating or a faulty power supply. The fact that it shuts off and cannot be turned back on until it has cooled down for 15 minutes suggests that the projector is overheating or there is a problem with the power supply. Therefore, the next logical step would be to clean the filter to ensure proper ventilation and airflow, as a dirty filter can cause overheating.

In this situation, the best course of action for the technician to take NEXT would be C. Verify the socket type and manufacturer. If the pins on the CPU do not line up with the socket on the motherboard, it is likely that there is a compatibility issue between the two components. The technician should verify that the socket type and manufacturer of the motherboard match those of the CPU to ensure that they are compatible.

Thin, vertical lines on every printed page are usually caused by a dirty drum or toner cartridge. Performing the drum-cleaning procedure will likely resolve the issue. References: CompTIA A+ Certification Exam Guide, Ninth Edition, Chapter 18

https://techlibrary.hpe.com/docs/iss/proliant-gen10-uefi/s_enabling_VT-d.html

Enabling VT-d (Virtualization Technology for Directed I/O) in the server's BIOS settings is required for the hypervisor to run properly. References: CompTIA A+ Certification Exam Guide, Ninth Edition, Chapter 11

A smartphone that takes more than a day to fully charge may be due to a charger that is not powerful enough. The technician should verify that the charger is rated for the smartphone’s battery capacity and that it is providing the correct voltage and amperage123.

ADF/flatbed scanner would most likely be used to obtain electronic images of a large number of printed documents. References: CompTIA A+ Certification Exam Guide, Exam 220-1001, Page 351

Metered utilization of cloud resources refers to payments made only for resources that are used. Cloud providers offer a pay-as-you-go model where customers are charged based on their usage of resources. Customers can easily scale up or down their usage of resources as per their needs and only pay for what they use. References: CompTIA A+ Certification All-in-One Exam Guide, Tenth Edition by Mike Meyers (Page 642)

Installing an M.2 SSD will improve a workstation's overall response time for frequently used applications and data without removing the current hard drive. M.2 drives are faster and more efficient than traditional hard drives, making them a good option for increasing overall performance. References: CompTIA A+ Certification Exam Core 1 Exam Objectives - 1.5 Given a scenario, configure storage devices and use appropriate media

To fix a Cat 5 cable issue where the cable fails when it is moved around, the technician would need to use an RJ45 connector (option E) and a crimper (option F). The technician can use the crimper to attach a new RJ45 connector to the end of the cable, which should resolve the issue.

An RJ45 connector (option E) is a type of connector commonly used for Ethernet networking. It is an 8-position, 8-contact (8P8C) modular plug and jack that is used to terminate Cat 5 and other types of twisted pair cables. A crimper (option F) is a tool used to attach connectors to the ends of cables. In this case, the technician would use the crimper to attach a new RJ45 connector to the end of the Cat 5 cable.

When a cable fails when it is moved around, it often indicates that there is a problem with the connector at the end of the cable. By attaching a new RJ45 connector using a crimper, the technician can ensure that the cable has a secure and reliable connection.

If the filesystem check shows that all files are accessible and the filesystem is clean, but a hard drive error message persists, it's possible that the hard drive is experiencing S.M.A.R.T. (Self-Monitoring, Analysis, and Reporting Technology) failure. This is a warning system built into hard drives to alert users of potential issues before they become critical. References: CompTIA A+ Certification Exam Core 1 Exam Objectives - 3.3 Given a scenario, troubleshoot mobile device issues

The technician should check the level of network utilization to determine if there is an excessive amount of traffic that may be causing the slow access to the network fileshare. This can be done using network monitoring tools to track the amount of data being transmitted on the network. References: CompTIA A+ Certification Exam Objectives 1001, 2.9

In this situation, the MOST cost-effective cable medium that would not sacrifice system performance would be B. Shielded Cat 6. Electromagnetic interference (EMI) can disrupt network connectivity by interfering with the signals transmitted over network cables. Shielded Cat 6 cables are designed to provide protection against EMI by incorporating a layer of shielding material around the cable’s conductors. This shielding helps to prevent EMI from interfering with the signals transmitted over the cable.

The 802.11n wireless networking standard supports Multiple Input Multiple Output (MIMO) technology. MIMO technology uses multiple antennas on both the transmitting and receiving devices to improve wireless performance by increasing the amount of data that can be transmitted simultaneously. 802.11a, 802.11b, and 802.11g do not support MIMO technology. References: CompTIA A+ Certification Exam: Core 1 - Objective 3.3

By requiring a code or badge before releasing a print job, it ensures that only authorized personnel can collect the printouts. This method is effective in preventing waste and in keeping sensitive documents confidential. Sending reminders, enabling duplex printing, and billing departments are useful strategies for reducing paper utilization but may not necessarily prevent waste caused by uncollected printouts.

Requiring a code or badge before releasing a print job is the best solution to prevent the waste of printed materials, as it ensures that only the user who initiated the print job is able to pick up the printed materials. This can be achieved by implementing print release software or requiring users to enter a PIN code at the printer. References: CompTIA A+ Certification Exam Objectives 1001, 2.10

The issue described in the question is most likely due to an incorrect configuration of the printer's duplex settings. To enable automatic duplex printing, the technician needs to read the printer's installation manual to understand how to configure the printer's duplex settings correctly. Once the settings are configured, the printer should be able to print on both sides of the paper automatically.

To fix the issue of a newly installed printer capable of automatically printing on both sides of the paper but only printing on both sides manually, the technician should read the installation manual and configure duplex settings. Duplex printing settings can be configured in the printer driver software, which can be accessed through the printer settings in the Control Panel. Installing the most recent firmware upgrade available for the printer, contacting the vendor for a hardware replacement, or reinstalling the printer software and drivers and restarting the printer will not resolve the issue.

Satellite internet is the most widely available internet connection type, as it does not depend on cables or wires. It can reach remote areas that lack infrastructure for other types of internet connections1. References: Satellite Internet

An uninterruptible power supply (UPS) can help ensure maximum uptime for customers' virtual machines by providing a backup power source in case of a power outage or other power-related issues. A line conditioner and AC voltage regulator are designed to stabilize the power supply, but do not provide backup power. Cloud storage backup is a way to backup data, but does not directly impact uptime. References: CompTIA A+ Certification Exam: Core 1 - Page 159

The technician should restart the modem and run an online internet connection and speed diagnostic tool1. High latency is a common issue with satellite internet connections, and it can cause slow internet speeds2. Restarting the modem can help to resolve the issue1. The technician should also run an online internet connection and speed diagnostic tool to check the connection and speed1. Guiding the customer on how to upgrade the internet plan with the provider in order to improve latency is not likely to be the correct option2.

High latency while pinging can indicate a problem with the modem or the connection between the modem and the satellite. Restarting the modem can often resolve connectivity issues. Running an online internet connection and speed diagnostic tool can help identify any other issues with the connection. Upgrading the internet plan may not resolve latency issues and may not be necessary if the download test is performing perfectly with very good download speeds. High latency is not normal for satellite internet connections, so replacing the modem based on this one test result is premature. References: CompTIA A+ Certification Exam: Core 1 - Page 102

An administrator would use Infrastructure as a Service (IaaS) to migrate virtual machines from on-premises to the cloud. IaaS is a cloud computing service that provides virtualized computing resources, such as servers, storage, and networking, that can be used to deploy and run applications in the cloud. By using IaaS, an administrator can create a virtual machine in the cloud and migrate the existing virtual machine from on-premises to the cloud. References: CompTIA A+ Certification Exam: Core 1 - Objective 3.3

The phone's GPS may fail due to a loss of service from the carrier, which provides the phone with GPS location data. The fact that the in-car GPS continued to function suggests that the issue was related to the phone, not the GPS satellites. References: CompTIA A+ Certification Study Guide, Tenth Edition, pg. 372

eSATA is the best choice for adding external storage as it offers a fast transfer rate and is specifically designed for external storage devices. SCSI is an older interface that is rarely used today, PCIe is typically used to add expansion cards to a computer, and NVMe is a newer interface for high-speed solid-state storage, but it is typically used for internal storage devices.

The technology that allows multiple networks to traverse a switch is VLAN (Virtual Local Area Network) which is a logical grouping of devices on the same network regardless of their physical location12.

Virtual Local Area Network (VLAN) technology can allow multiple networks to traverse a switch. A VLAN is a logical network created within a physical network that can separate traffic and allow multiple networks to coexist on the same physical network infrastructure. VRRP (Virtual Router Redundancy Protocol), VPN (Virtual Private Network), and DHCP (Dynamic Host Configuration Protocol) do not allow multiple networks to traverse a switch. References: CompTIA A+ Certification Exam: Core 1 - Objective 3.2

If a laptop has been returned for a screen repair and the owner insists the screen is broken, but occasionally a faded image is able to be seen in very bright settings on the desktop, the first step the repair technician should take is to ensure the backlight is functioning as expected. If the backlight is faulty, the screen may appear to be broken, but it may only be dim or too dark to be visible

The MOST efficient next step the technician should complete is to check the printer paper path to locate any obstructions1. The error message “Paper Jam, Jam in fuser” indicates that there is a paper jam in the fuser2. The fuser is one of the parts of a laser printer most likely to fail without giving any explicit message2.

The printer LCD screen indicates a paper jam in the fuser. The most efficient next step the technician should complete is to check the printer paper path to locate any obstructions. Applying a maintenance kit or replacing the fuser may not be necessary if the issue is caused by a paper jam.

RAID 1 is a mirrored configuration that utilizes two drives and provides redundancy by allowing one drive to fail without data loss. This configuration meets the requirement of mirrored storage with two 4TB drives that support one failure. References: CompTIA A+ Certification Exam Guide, Ninth Edition, Chapter 8

DHCP stands for Dynamic Host Configuration Protocol, which is a protocol that provides quick, automatic, and central management for the distribution of IP addresses within a network1. A DHCP server can assign IP addresses and other network information to devices that request them, such as computers, smartphones, and routers2.

The IP address 169.254.2.2 is an example of an APIPA (Automatic Private IP Addressing) address, which is a special type of IP address that devices use when they cannot obtain a valid IP address from a DHCP server3. APIPA addresses are in the range of 169.254.0.1 to 169.254.255.254, with a subnet mask of 255.255.0.03. Devices that use APIPA addresses can only communicate with other devices on the same local network that also use APIPA addresses3.

The router in the question is assigned the address scope of 192.168.1.254/24, which means it has an IP address of 192.168.1.254 and a subnet mask of 255.255.255.04. This address scope belongs to the private IP address range of 192.168.0.0 to 192.168.255.255, which is commonly used for local networks4. Devices that use private IP addresses can communicate with other devices on the same local network or across different networks through NAT (Network Address Translation)4.

The most likely cause of the technician receiving the IP address 169.254.2.2 is that the DHCP server on the router is not working properly or is not configured correctly3. This could be due to various reasons, such as a misconfigured router, a faulty cable, a firewall blocking DHCP traffic, or an exhausted pool of IP addresses3. As a result, the technician’s device cannot obtain a valid IP address from the DHCP server and resorts to using an APIPA address instead3.

To fix this issue, the technician should check the router settings and make sure that the DHCP server is enabled and has enough available IP addresses to assign to devices2. The technician should also check the physical cabling and make sure it is properly connected and secured2. If the issue persists, the technician should try rebooting the router or resetting it to factory defaults2. Alternatively, the technician could manually assign a static IP address to the device that matches the router’s address scope, such as 192.168.1.x/242.

The correct answer is D. Sandboxing.

Sandboxing is a security technique that isolates email attachments in a safe place until the attachments can be scanned for malware. A sandbox is a virtual environment that mimics the operating system and applications of the user, but prevents any changes or damage to the actual system. A sandbox can also monitor the behavior and activity of the attachments and detect any malicious code or actions12.

An approve listing is a security technique that allows only trusted or authorized email senders or domains to be received by the user. An approve listing can help reduce spam and phishing emails, but it does not scan or isolate email attachments for malware3.

A screened subnet is a security technique that creates a buffer zone between the internal network and the internet. A screened subnet uses firewalls and routers to filter and control the traffic that enters and exits the network. A screened subnet can help protect the network from external attacks, but it does not scan or isolate email attachments for malware.

Cross-platform virtualization is a technology that allows running multiple operating systems and applications on the same physical machine. Cross-platform virtualization can help improve efficiency, flexibility, and compatibility, but it does not scan or isolate email attachments for malware.

A router is a device that can dynamically distribute an IP address to the devices connected to its network using a protocol called DHCP (Dynamic Host Configuration Protocol). DHCP allows a router to automatically assign an IP address and other network configuration information to a device when it joins the network, without requiring manual intervention from the administrator. A router can also act as a gateway between different networks, such as a local area network (LAN) and the internet1.

A hub is a device that connects multiple devices on a network and forwards data packets between them. However, a hub does not assign IP addresses or perform any routing functions. A hub operates at the physical layer of the OSI model and does not understand IP addresses or other network protocols.

A switch is a device that connects multiple devices on a network and forwards data packets between them based on their MAC addresses. A switch can improve the performance and security of a network by reducing collisions and isolating traffic. However, a switch does not assign IP addresses or perform any routing functions. A switch operates at the data link layer of the OSI model and does not understand IP addresses or other network protocols.

An injector is a device that provides power to another device over an Ethernet cable, such as a wireless access point or a security camera. This is also known as Power over Ethernet (PoE). An injector does not assign IP addresses or perform any routing functions. An injector operates at the physical layer of the OSI model and does not understand IP addresses or other network protocols.

A sandbox is a virtual environment that isolates the engineer’s research activities from the rest of the system. This allows the engineer to test, experiment, and modify the system without affecting the real data, applications, or settings. A sandbox is the best environment for research purposes because it provides a safe and controlled way to explore new ideas, simulate scenarios, and troubleshoot problems. A sandbox can also be easily reset or deleted after the research is done.

References

What is a Sandbox Environment?

Chapter 4: Virtualization and Cloud Computing

The most likely answer is C. The pen batteries need recharging.

An active touch pen is a stylus that uses a battery to power features such as pressure sensitivity, buttons, or Bluetooth connectivity. If the pen batteries are low or depleted, the pen may stop working or become inaccurate1. To fix this issue, you should recharge the pen batteries using the provided charger or cable, or replace them with new ones if they are not rechargeable1.

The other options are less likely to cause the issue. A scratched tablet screen may affect the touch sensitivity, but it should not affect the pen functionality. The pen software may need updating to improve performance or compatibility, but it should not stop the pen from working altogether. Software updates may disable the pen if they change the settings or drivers, but this can be fixed by re-enabling the pen or reinstalling the drivers2.

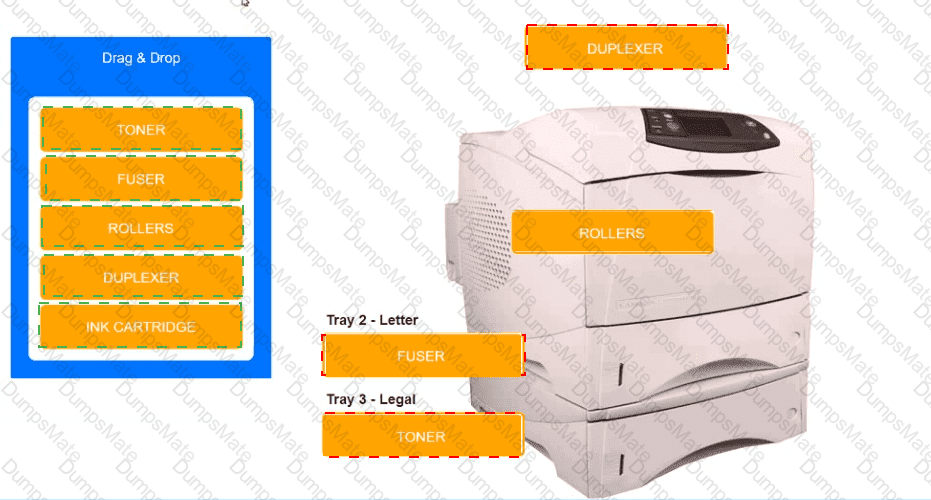

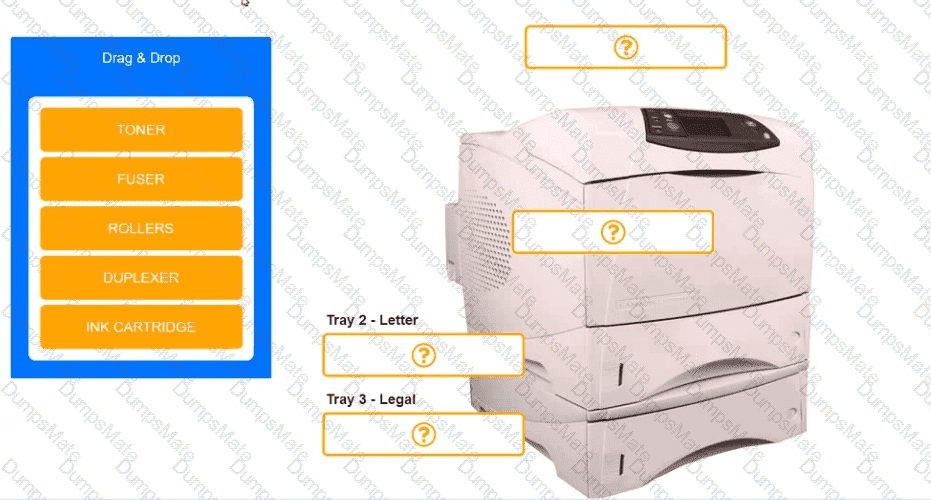

An imaging drum is a component of a laser printer that transfers the toner to the paper. It is sensitive to light and can wear out over time, resulting in poor print quality or missing colors. If the cleaning cycle does not resolve the issue, the imaging drum may need to be replaced1.

A fuser is a component of a laser printer that heats and melts the toner onto the paper. It does not affect the color output of the printer, but it can cause paper jams, smudges, or wrinkles if it is defective2.

An ink cartridge is a component of an inkjet printer, not a laser printer. A laser printer uses toner, which is a dry powder, instead of ink, which is a liquid. An ink cartridge would not be compatible with a laser printer3.

A toner tank is a container that holds the toner for a laser printer. It can be either integrated with the imaging drum or separate from it. If the toner tank is empty or low, the printer will display a warning message and the print quality will deteriorate. However, if only one color is missing, the problem is more likely with the imaging drum than the toner tank4.

Resin is a material that is used in some types of 3D printers, not laser printers. Resin printers use a liquid resin that is cured by a light source to create solid objects. Resin has nothing to do with laser printing5.

A crimper is a tool that is used to attach connectors to network cables, such as RJ-45 or RJ-11. A technician might need a crimper to create a longer cable for the router access point or to replace a damaged connector.

A Wi-Fi analyzer is a software or hardware tool that can scan and measure the wireless signal strength, interference, channel usage, and security of a Wi-Fi network. A technician might need a Wi-Fi analyzer to find the optimal location and configuration for the router access point to improve the signal coverage for the SOHO client.

Relocating a router access point (AP) farther from the modem to optimize signal coverage involves two key aspects: physically extending the network connection (likely via Ethernet cabling) and ensuring the wireless signal is optimally placed. The CompTIA A+ Core 1 Study Guide emphasizes tools for cabling and wireless network configuration in such scenarios, aligning with Objective 2.6 ("Given a scenario, install and configure basic wired/wireless networks") and Objective 5.4 ("Given a scenario, troubleshoot wired and wireless network problems").

B. Crimper: A crimper is essential for creating or modifying Ethernet cables, such as attaching RJ45 connectors to twisted pair cabling (e.g., Cat 5e or Cat 6) to extend the connection from the modem to the new AP location. Since the AP is moving farther away, a longer Ethernet cable may be needed, and the technician might need to terminate a new cable or repair an existing one. This is a common task in SOHO network setups.

E. Wi-Fi analyzer: After relocating the AP, a Wi-Fi analyzer is used to assess signal strength, identify interference, and optimize placement for maximum coverage. This tool ensures the relocation achieves the goal of improving wireless performance, a critical step in the process.

Evaluation of Other Options:

A. Punchdown tool: Used to terminate wires into a patch panel or keystone jack, not typically for connecting a router AP directly to a modem via Ethernet. It’s less likely unless the relocation involves structured wiring termination, which isn’t implied here.

C. Clamp-style wire stripper: Useful for stripping insulation from wires during cable preparation, but it’s a secondary tool to a crimper, which both strips and attaches connectors. The crimper is more directly tied to completing the cable.

D. Network tap: A diagnostic tool for monitoring network traffic, not relevant to relocating or optimizing an AP’s signal coverage.

F. Loopback plug: Used to test network ports for functionality, not for cabling or wireless optimization in this scenario.

The combination of crimper (for physical connection) and Wi-Fi analyzer (for signal optimization) directly supports the relocation and coverage goals, making them the most likely tools.

Exact Extracts from the Study Guide:

From The Official CompTIA A+ Core 1 Study Guide (220-1101):

Section 2.2, Tools for Networking:

"Crimper: A crimper is used to attach connectors (such as RJ45) to the ends of twisted pair cabling. It presses the metal contacts in the connector into the wires to make a solid electrical connection. Many crimpers also include a stripper function to remove insulation from the cable."

Implication: The crimper is key for preparing Ethernet cables to extend the AP’s connection.

Section 2.6, Wireless Networking:

"Wi-Fi analyzer: A Wi-Fi analyzer is a software tool or handheld device that scans the wireless spectrum to identify signal strength, channel usage, and interference. It’s invaluable when setting up or troubleshooting wireless networks to ensure optimal access point placement and channel selection."

Implication: Essential for verifying and optimizing signal coverage after relocation.

Section 5.4, Troubleshooting Wired and Wireless Network Problems:

"Poor wireless signal—Use a Wi-Fi analyzer to check signal strength and interference… Relocate the access point to a more central location or away from obstructions… Ensure the wired connection to the access point is secure and within cable length specifications."

These excerpts confirm the crimper’s role in cabling and the Wi-Fi analyzer’s role in optimizing wireless performance, aligning with the task’s requirements.

Additional Reasoning:

Physical Relocation: Moving the AP farther from the modem likely requires extending the Ethernet cable connecting them. A crimper is the primary tool for creating a custom-length cable with RJ45 connectors, a common SOHO task.

Signal Optimization: The goal is to "optimize signal coverage," which involves more than just moving the AP—it requires verifying the new location improves Wi-Fi performance. A Wi-Fi analyzer provides data on signal strength and channel conflicts, ensuring the relocation succeeds.

SOHO Context: In a small office/home office, technicians often use basic tools like crimpers for cabling and software/apps (Wi-Fi analyzers) for wireless setup, rather than specialized tools like punchdown tools unless structured wiring is involved.

The most likely reason for this issue is A. The webcam is not on a level surface.

A webcam is a device that captures and transmits video and audio signals over the internet. A webcam can be integrated or external, depending on whether it is built-in or attached to the computer. A webcam can be used for various purposes, such as videoconferencing, streaming, or recording.

An integrated webcam is a webcam that is embedded in the monitor or the bezel of the laptop. An integrated webcam usually has a fixed position and angle, and it can be adjusted by tilting or rotating the laptop screen. An integrated webcam may have advantages such as convenience, portability, and compatibility, but it may also have disadvantages such as low quality, limited features, or vulnerability to damage.

An external webcam is a webcam that is connected to the computer via a cable or a wireless connection. An external webcam usually has a clip or a stand that allows it to be placed on a level surface or attached to the monitor or the laptop. An external webcam may have advantages such as high quality, advanced features, or flexibility, but it may also have disadvantages such as inconvenience, cost, or compatibility issues.

In this scenario, an integrated webcam on a user’s laptop broke, so a technician installed a temporary, external webcam. Since the external webcam installation, other users can only see part of the user’s face during videoconferences. This could indicate that the external webcam is not properly positioned or aligned to capture the user’s full face. The most likely cause of this issue is that the webcam is not on a level surface, and it is either too high or too low, or too far or too close to the user.

To resolve this issue, the user should adjust the position and angle of the external webcam until it captures their full face clearly and accurately. The user should also check the settings and features of the external webcam, such as zoom, focus, resolution, or brightness, and modify them if necessary. The user should also test the video and audio quality of the external webcam before joining a videoconference .

The other options are not the most likely causes of this issue, because they are not related to the partial face problem. A webcam driver should be updated (option B) if the webcam is not recognized or functioning properly by the computer. A webcam driver is a software component that enables the communication and interaction between the webcam and the operating system. A webcam is plugged into the wrong USB port (option C) if the webcam does not receive enough power or bandwidth from the computer. A USB port is a physical interface that allows data and power transmission between devices. A webcam is not compatible with the OS (option D) if the webcam does not work with the operating system installed on the computer. An operating system is a software program that manages the hardware and software resources of the computer.

For more information about webcams and how to use them effectively, you can refer to the following web search results: [What Is a Webcam?], [Integrated vs External Webcams: Which One Is Better?], [How to Set Up Your Webcam for Video Calls], [How to Look Good on Video Calls], [What Is a Device Driver?], [What Is a USB Port?], [What Is an Operating System?].

One of the possible causes of slow OS performance, random shutdowns, and loud fan noise is the CPU overheating. This can happen due to dust accumulation, faulty cooling system, or high CPU usage. Overheating can damage the CPU and other components, so it is important to monitor the CPU temperature and take preventive measures.

The next thing that the technician should investigate is D. Radio frequency.

Radio frequency is the range of electromagnetic waves that are used to transmit wireless signals. Different devices and networks use different radio frequencies, such as 2.4 GHz or 5 GHz, to communicate with each other. If there are multiple devices or networks using the same or overlapping radio frequencies, they can interfere with each other and cause Wi-Fi connection issues, such as intermittent disconnections, slow speeds, or poor quality .

To fix this issue, the technician can try changing the radio frequency or channel of the router or the laptop, to avoid interference from other sources. The technician can also use a tool such as Wi-Fi Analyzer to scan the nearby wireless networks and find the best frequency or channel to use. Alternatively, the technician can move the router or the laptop to a different location, away from potential sources of interference, such as cordless phones, microwaves, Bluetooth devices, or other routers .

The other options are less likely to be the reason for the issue. Firewall settings are software configurations that control the network traffic and security of a device. They may block some websites or applications from accessing the internet, but they should not affect the Wi-Fi connection itself. MAC address filter is a feature that allows the router to restrict access to specific devices based on their MAC addresses, which are unique identifiers for network interfaces. If the MAC address filter is enabled and the laptop’s MAC address is not on the allowed list, it will not be able to connect to the Wi-Fi network at all, not intermittently. Number of connected devices is the amount of devices that are using the same Wi-Fi network at the same time. This may affect the network performance or bandwidth, but it should not cause intermittent disconnections, unless the network is overloaded or unstable.

DDR5 SDRAM (Double Data Rate 5 Synchronous Dynamic Random-Access Memory) is the latest and fastest type of RAM for desktop workstations as of 2023. DDR5 SDRAM offers higher speeds, lower power consumption, greater capacity, and improved reliability than previous generations of DDR SDRAM. DDR5 SDRAM can operate at frequencies up to 8400 MHz, compared to 3200 MHz for DDR4 SDRAM, which means it can transfer data faster and more efficiently. DDR5 SDRAM also supports dual-channel memory, which allows two memory modules to work together and double the bandwidth. DDR5 SDRAM is compatible with the latest Intel and AMD processors that support the DDR5 standard.

The other options are not as fast or suitable for a desktop workstation. DDR2 SDRAM, DDR3 SDRAM, and DDR4 SDRAM are older and slower types of RAM that have lower frequencies, higher voltages, and lower capacities than DDR5 SDRAM. DDR2 SDRAM, DDR3 SDRAM, and DDR4 SDRAM are not compatible with the latest processors that support DDR5 SDRAM, and require different motherboards and slots. DDR2 SDRAM, DDR3 SDRAM, and DDR4 SDRAM are more suitable for older or budget systems that do not require high performance or memory-intensive applications.

The scenarios that best illustrate a need for VDI are A and D.

VDI can provide several benefits for different use cases, such as:

Enhancing security and compliance by centralizing and encrypting data and applications on the server, rather than on the endpoint devices. This can prevent data loss, theft, or leakage, as well as reduce the risk of malware or unauthorized access. This is especially important for organizations that deal with sensitive or regulated information, such as banks, healthcare providers, or government agencies123.

Improving flexibility and mobility by allowing users to access their desktops and applications from any device, location, or network. This can enable remote work, bring your own device (BYOD) policies, or disaster recovery scenarios. This is especially useful for organizations that have distributed or mobile workforce, such as IT engineers, consultants, or sales representatives123.

Reducing costs and complexity by simplifying the management and maintenance of desktops and applications. This can lower the hardware, software, and energy expenses, as well as the IT staff workload. This is especially beneficial for organizations that have large or diverse desktop environments, such as schools, call centers, or manufacturing plants123.

Based on these benefits, the scenarios that best illustrate a need for VDI are:

A. An IT engineer who is designing and showcasing organization user experiences for multiple clients. This scenario requires flexibility and mobility, as the IT engineer needs to access different desktop environments and applications from various devices and locations. VDI can enable the IT engineer to create and switch between multiple virtual desktops on the same server, and to access them from any client device with an internet connection1.

D. A bank that has security concerns regarding employee activity. This scenario requires security and compliance, as the bank needs to protect its data and applications from internal and external threats. VDI can enhance the security of the bank’s desktop environment by storing and encrypting all data and applications on the server, rather than on the endpoint devices. VDI can also provide granular control and monitoring of user access and activity2.

The scenarios that do not illustrate a need for VDI are:

B. A company that needs to store IOPB worth of data. This scenario does not require VDI, as VDI is not a storage solution but a desktop virtualization solution. VDI can help reduce the storage requirements of endpoint devices by storing data on the server, but it does not provide storage capacity or performance for large-scale data processing or analysis. The company may need a different type of cloud service, such as storage as a service (SaaS) or big data as a service (BDaaS), to store and manage its massive amount of data4.

C. A manufacturing plant that has high turnover. This scenario does not require VDI, as VDI is not a human resource solution but a desktop virtualization solution. VDI can help reduce the costs and complexity of managing desktops and applications for a large number of users, but it does not address the root causes of high turnover, such as low wages, poor working conditions, or lack of training. The manufacturing plant may need to improve its human resource policies and practices to retain its employees.

E. A payment processor that is planning on implementing virtual currency. This scenario does not require VDI, as VDI is not a payment solution but a desktop virtualization solution. VDI can help improve the security and flexibility of accessing desktops and applications over the internet, but it does not provide the functionality or compatibility for processing virtual currency transactions. The payment processor may need a different type of cloud service, such as blockchain as a service (BaaS) or cryptocurrency as a service (CaaS), to implement and manage its virtual currency platform.

F. An application developer who needs to configure network settings for an application. This scenario does not require VDI, as VDI is not a development solution but a desktop virtualization solution. VDI can help provide different desktop environments and applications for testing purposes, but it does not provide the tools or resources for developing or configuring applications. The application developer may need a different type of cloud service, such as platform as a service (PaaS) or software development as a service (SDaaS), to create and deploy applications.

The best option that the technician should do to optimize performance is D. Utilize all channels. This option means that the technician should install the RAM modules in a way that maximizes the number of memory channels that are used by the motherboard. Memory channels are pathways that connect the memory controller to the RAM modules, and they allow data to be transferred between them. The more memory channels that are used, the higher the memory bandwidth and performance1.

DDR5 memory supports up to eight memory channels per module, which is twice as many as DDR42. However, not all motherboards can support eight channels per module, and some may only support four or two channels per module. Therefore, the technician should check the motherboard specifications and manual to determine how many memory channels it supports and how to install the RAM modules accordingly.

For example, if the motherboard supports four channels per module, then the technician should install four RAM modules in slots 1, 3, 5, and 7 to use all 16 available channels. If the motherboard supports two channels per module, then the technician should install eight RAM modules in all slots to use all 16 available channels. If the technician installs fewer modules than the number of slots, then some channels will be left unused and the performance will be lower1.

The correct answer is C. SPF.

SPF stands for Sender Policy Framework, which is a protocol that allows domain owners to specify which IP addresses are authorized to send email on behalf of their domains1. SPF helps prevent email spoofing and phishing by verifying the sender’s identity and preventing unauthorized use of their domain name12.

When an email is received, the receiving server checks the SPF record of the sender’s domain, which is a DNS TXT record that lists the valid IP addresses for that domain12. The server then compares the sender’s IP address with the SPF record and determines if it matches or not. If it matches, the email passes the SPF check and is accepted; if it does not match, the email fails the SPF check and is rejected or marked as spam12.

DKIM stands for DomainKeys Identified Mail, which is a protocol that allows domain owners to digitally sign their emails using a public-private key pair3. DKIM helps ensure the integrity and authenticity of email messages by verifying that they have not been tampered with or forged during transit3 .

MX stands for Mail Exchange, which is a type of DNS record that specifies the mail servers that are responsible for receiving email for a domain. MX records help direct incoming email to the correct destination and prioritize them based on preference values .

DMARC stands for Domain-based Message Authentication, Reporting and Conformance, which is a protocol that builds on SPF and DKIM and allows domain owners to define how receivers should handle unauthenticated or suspicious emails from their domains. DMARC helps protect domains from email fraud and abuse by providing feedback and reports on email delivery and authentication status .

Therefore, SPF is the only service among the options that checks whether the sender’s IP address is associated with the sender’s domain name when receiving email.

The correct answer is C. Ethernet.

An Ethernet cable is a type of network cable that is used to connect devices on a local area network (LAN), such as computers, routers, switches, and modems. Ethernet cables have RJ-45 connectors at both ends, which are similar to telephone jacks but larger. Ethernet cables can carry data signals at speeds ranging from 10 Mbps to 10 Gbps, depending on the type and quality of the cable.

A cable modem is a device that connects to a coaxial cable from a cable service provider and provides high-speed internet access. A SOHO router is a small office/home office router that connects to a cable modem or DSL modem and provides network and internet access to multiple devices on a LAN. A SOHO router typically has one WAN port and four LAN ports. The WAN port is used to connect to the cable modem or DSL modem, while the LAN ports are used to connect to computers or other devices on the LAN.

To connect a cable modem to a SOHO router, an Ethernet cable is needed. The Ethernet cable is plugged into the WAN port of the SOHO router and the Ethernet port of the cable modem. This allows the SOHO router to receive an IP address from the cable service provider and share it with the devices on the LAN using network address translation (NAT). The SOHO router also provides firewall and wireless features for the LAN.

The other options are incorrect because they are not suitable for connecting a cable modem to a SOHO router. FireWire is a type of serial bus that is used to connect devices such as digital cameras, external hard drives, and audio interfaces. FireWire cables have different connectors than Ethernet cables and cannot be used for network communication. Fiber is a type of optical cable that uses light signals to transmit data over long distances. Fiber cables have special connectors that are not compatible with Ethernet ports. Coaxial is a type of copper cable that has a central conductor surrounded by an insulating layer and a braided shield. Coaxial cables are used for cable TV and internet services, but they cannot be directly connected to Ethernet ports without an adapter.

Host-only mode is a network option that isolates a client-side virtual machine from the rest of the network. It allows the virtual machine to communicate only with the host machine and other virtual machines on the same host. NAT mode allows the virtual machine to share the host’s IP address and access the network through it. Bridge mode allows the virtual machine to have its own IP address and connect directly to the network. Direct mode is not a valid network option for virtual machines.

This is because HDMI (High-Definition Multimedia Interface) is a digital video cable that can also carry audio signals1. HDMI cables are commonly used to connect devices like Blu-ray players, game consoles, and streaming boxes to HDTVs and monitors. The other options are not capable of carrying audio signals. VGA (Video Graphics Array) is an analog video cable that only carries RGBHV signals12. S-Video (Super Video) is another analog video cable that carries separate luminance and chrominance signals1. DVI (Digital Visual Interface) is a digital video cable that can carry either analog or digital signals, but not audio1.

A swollen battery is the most likely cause of the issue that the customer is reporting. A swollen battery is a battery that has expanded in size due to a chemical reaction, gas buildup, or overheating. A swollen battery can cause pressure on the laptop’s chassis, keyboard, track pad, and other components, making them hard to press or click. A swollen battery can also pose a fire hazard and damage the laptop’s performance and lifespan.

The other options are not as likely or relevant to the issue. Dropping the laptop may cause cracks or other visible damage to the chassis or screen, but the technician did not notice any. The digitizer is the part of the laptop that converts touch input into digital signals, and it has nothing to do with the keyboard or the track pad buttons. An open bottle of rubbing alcohol falling onto the keyboard may cause liquid damage, corrosion, or short circuits, but it would not affect the track pad buttons or the bottom edge of the keyboard.

To troubleshoot and resolve the issue, the technician should remove the battery from the laptop and inspect it for signs of swelling, such as bulging, deformation, or leakage. The technician should also check the laptop’s chassis, keyboard, and track pad for any signs of damage or warping caused by the battery. The technician should then replace the swollen battery with a new one that is compatible with the laptop’s model and specifications. The technician should also dispose of the swollen battery properly and safely, following the local regulations and guidelines.

The user should check the display settings on the computer and set them to extend/duplicate. This will allow the computer to send the video signal to both the laptop screen and the projector. If the display settings are set to only show on one screen, then the projector may not detect any source. According to the CompTIA Core1 objectives, one of the common display issues is no image on screen. A troubleshooting guide for projectors also suggests checking the display settings as a possible solution for no source found error.

The correct answer is A. Access point.

An access point is a device that extends the wireless coverage of a network by creating a hotspot that allows wireless devices to connect to the network1. An access point can be connected to a router or a switch via an Ethernet cable or a wireless bridge1. By deploying one or more access points throughout a SOHO location, the technician can provide better wireless connectivity and eliminate dead zones or weak signals2.

A managed switch is a device that allows multiple devices to communicate on a network by forwarding data packets based on their destination addresses3. A managed switch can also provide advanced features such as VLANs, QoS, security, and remote management3. However, a managed switch does not improve wireless connectivity, as it only works with wired devices.

A POE hub is a device that provides power and data over a single Ethernet cable to devices that support Power over Ethernet (PoE) technology, such as IP cameras, VoIP phones, and wireless access points4. A POE hub can simplify the installation and placement of these devices by eliminating the need for separate power adapters or outlets4. However, a POE hub does not improve wireless connectivity by itself, as it still requires an access point or a router to create a wireless network.

A Wi-Fi router is a device that combines the functions of a router and an access point, providing both wired and wireless connectivity to a network and the internet. A Wi-Fi router can be used to create a SOHO network, but it may not be sufficient to cover the entire location with a strong and reliable wireless signal. To improve wireless connectivity, the technician may need to add additional access points or use a mesh Wi-Fi system that consists of multiple routers that work together to create a seamless wireless network.

Therefore, an access point is the best option among the choices to improve wireless connectivity throughout a SOHO location.

The issue is related to interference from the microwave, which operates at 2.4GHz, the same frequency as some Wi-Fi channels. To avoid this interference, the technician should configure the Wi-Fi access point (AP) to use a 5GHz band, which has more channels and less interference from other devices. Changing the Wi-Fi operation channel may not solve the problem if the microwave interferes with multiple channels. Increasing the power output of the AP may not overcome the interference and may cause more interference to other devices. Changing the SSID to hidden does not affect the interference at all, and may make it harder for users to connect to the network. References: https://www.comptia.org/blog/what-is-wifi-6-and-why-is-it-important

An SSD (solid state drive) is a removable storage device that uses flash memory to store data. It is secure, portable, and does not contain moving parts, which makes it more reliable and durable than other types of storage devices. An HDD (hard disk drive) is not suitable, as it contains spinning platters and read/write heads that are prone to damage and data loss. A NAS (network attached storage) and a SAN (storage area network) are not removable devices, as they are connected to a network and provide shared storage for multiple users.

The first step to troubleshoot this issue is to check if the website that hosts the random number generator is HTTPS enabled. This means that the website supports secure communication using SSL certificates and encryption. If the website is not HTTPS enabled, it may not be compatible with the SSL redirection implemented by the IT department. SSL redirection is a technique that automatically redirects HTTP requests to HTTPS, ensuring that the data exchanged between the web browser and the website is protected. However, some websites may not have SSL certificates or may have expired or invalid ones, which can cause errors or warnings when trying to access them via HTTPS. Therefore, the technician should check the website’s URL and see if it starts with https:// or http://. If it is the latter, the technician should try to manually change it to https:// and see if the website loads correctly. If it does not, the technician should contact the website owner or administrator and ask them to enable HTTPS or update their SSL certificates.

The correct answer is C. Check the RAID drive status LEDs.

RAID stands for Redundant Array of Independent Disks, which is a technology that combines multiple physical disks into a logical unit that provides improved performance, reliability, or both1. RAID can be implemented using hardware or software, and there are different levels of RAID that use different methods of data distribution and redundancy1.

One of the common issues with RAID is disk failure, which means that one or more of the disks in the array stop working properly. Disk failure can affect the performance and availability of the network fileshares, depending on the RAID level and the number of failed disks2. For example, RAID 0, which uses striping to split data across multiple disks, has no redundancy and will lose all data if any disk fails. RAID 1, which uses mirroring to duplicate data on two disks, can tolerate one disk failure and still function. RAID 5, which uses striping with parity to distribute data and error correction information across three or more disks, can also tolerate one disk failure and still function1.

One of the ways to detect disk failure is to check the RAID drive status LEDs, which are lights that indicate the health and activity of each disk in the array. Different RAID controllers may have different LED patterns and colors, but generally, a green LED means that the disk is working normally, a red LED means that the disk has failed or is offline, an amber LED means that the disk is degraded or rebuilding, and a blinking LED means that the disk is active or busy34.

The first step that a technician should perform when troubleshooting network fileshare issues is to check the RAID drive status LEDs to see if any disk has failed or is degraded. This can help identify the cause of the problem and determine the appropriate solution. For example, if a disk has failed in a RAID 1 or RAID 5 array, the technician can replace the failed disk and rebuild the array to restore performance and redundancy. If a disk has failed in a RAID 0 array, the technician will need to restore the data from a backup2.

The other options are not the best steps to perform first. Defragmenting the files on the network share may improve performance by reducing fragmentation, but it will not solve the problem if there is a disk failure in the RAID array. Asking the users to perform a network speed test may help diagnose network issues, but it will not help identify disk issues in the RAID array. Starting the process of rebuilding the array may be necessary after replacing a failed disk, but it should not be done before checking the RAID drive status LEDs.

The correct answer is A. Tethering.

Tethering is the process of sharing a mobile device’s internet data connection with other devices, such as laptops, tablets, or other phones. Tethering can be done by using a Wi-Fi hotspot, a Bluetooth connection, or a USB cable. A Wi-Fi hotspot creates a wireless network that other devices can join, a Bluetooth connection pairs the devices and allows data transfer, and a USB cable connects the devices physically and enables data sharing.

A PAN, or personal area network, is a type of network that connects devices within a short range, usually up to 10 meters. A PAN can be used for various purposes, such as transferring files, printing documents, or accessing the internet. A PAN can be created by using Bluetooth, Wi-Fi, or infrared technologies.

A technician can use a PAN to connect a group of users on a field project by using tethering on a mobile device. The technician can activate the tethering service on the mobile device and choose the preferred method of sharing the internet data connection. The other devices can then connect to the mobile device and access the internet through it.

The other options are incorrect because they are not services that can share the internet data connection on a mobile device. Pairing is the process of establishing a connection between two Bluetooth devices, but it does not necessarily share the internet data connection. Bluetooth is a technology that can create a PAN and enable tethering, but it is not a service that can be activated on a mobile device. Hotspot is a term that can refer to a Wi-Fi hotspot created by tethering on a mobile device, but it is not a service that can be activated on its own.

One of the benefits of virtualization is that it allows you to create and manage multiple virtual machines (VMs) on a single physical computer. This can be used to enhance security by centralizing all user desktops on a server, rather than storing them on individual user machines. This way, the user desktops can be isolated from each other and from the host machine, preventing malware infections, data breaches, and unauthorized access. Additionally, the user desktops can be easily backed up, restored, updated, and monitored by the administrator, reducing the risk of data loss and downtime.

This type of virtualization is called desktop virtualization, and it separates the desktop environment from the physical hardware the user interacts with1. The user can access their virtual desktop from any device, such as a laptop, tablet, or smartphone, using a remote display protocol. The user experience is similar to using a local desktop, but with improved security and manageability.

A PAN, or Personal Area Network, is the network type that is used for pairing a Bluetooth device to a smartphone. A PAN is a network that connects personal devices, such as phones, tablets, laptops, headphones, speakers, or printers, over a short distance, usually less than 10 meters or 33 feet. A PAN can use wireless technologies, such as Bluetooth, Wi-Fi, or infrared, to enable communication and data exchange between the devices. A Bluetooth PAN, also known as a piconet, can consist of up to eight devices, one of which acts as the master and the others as slaves. The master device initiates the pairing process with the other devices and controls the data transmission. The devices use radio waves in the 2.4 GHz frequency band to communicate with each other. Bluetooth is a low-power, low-cost, and secure technology that is widely used for creating PANs.

The most likely component that is failing and causing the PC to overheat is D. CPU fan. The CPU fan is a vital part of the cooling system that prevents the CPU from overheating by blowing air over the heatsink and dissipating the heat. If the CPU fan is faulty, noisy, or clogged with dust, it can reduce the airflow and cause the CPU temperature to rise12. This can result in poor performance, instability, or shutdowns of the PC.

The other components are less likely to be the cause of overheating. RAM, motherboard, and SSD do not generate as much heat as the CPU and usually do not require fans to cool them down1. They may overheat if there is poor ventilation in the case or if they are defective, but they are not as common as a failing CPU fan.

Therefore, the correct answer is D. CPU fan. This is the most likely component that is failing and causing the PC to overheat.

To configure the laptop to show both screens, the technician should adjust the monitor display settings. On Windows 10 or 11, the technician can select the Start menu, then open Settings, then select Display. The PC should automatically detect the monitors and show the desktop. If the monitors are not detected, the technician can select Multiple displays, then Detect. The technician can then use the dropdown list next to the image of the desktop to choose how the screen will project across the displays12345.

Rapid elasticity is the ability of a cloud service to scale up or down the resources (such as virtual servers, storage, bandwidth, etc.) according to the demand of the users. This is an efficient way to handle unusually high web traffic usage, as it allows the company to provision more virtual servers when needed and release them when not needed, without wasting resources or paying for unused capacity. Rapid elasticity also improves the performance and availability of the web service, as it can adjust to the fluctuations in traffic and avoid overloading or downtime.

References

Rapid Elasticity in Cloud Computing: On-Demand Scaling for Business

Chapter 4: Virtualization and Cloud Computing

The most likely answer is A. Change the resolution settings.

The error “Out of Range” normally means that the resolution being output by the computer is not compatible with the projector. The resolution is the number of pixels that are displayed on the screen. If the resolution is too high for the projector, it may not be able to display the image correctly or at all12.

To resolve this issue, you should try lowering the resolution settings on your laptop to match the native resolution of the projector or a lower one. You can do this by following these steps1:

•Right-click on an empty area of your desktop and select Display settings.

•Under Scale and layout, click on Display resolution and choose a lower option from the drop-down menu.

•Click Apply and then Keep changes.

•Reconnect your laptop to the projector and check if the image is displayed properly.

If changing the resolution settings does not help, you may need to check other factors, such as the video cable, the display settings, or the video card driver. However, these are less likely to cause the “Out of Range” error than the resolution settings.

The correct answers are C. Pickup roller and D. Separation pad.

A pickup roller is a rubber wheel that grabs the paper from the paper tray and feeds it into the printer. A separation pad is a small piece of cork or rubber that prevents more than one sheet of paper from being fed at a time. If the pickup roller or the separation pad is worn out, dirty, or damaged, it can cause the printer to pull multiple sheets of paper instead of a single sheet. This can lead to paper jams, misprints, or wasted paper.

To resolve this issue, a technician should investigate the condition of the pickup roller and the separation pad and replace them if necessary. The technician should also clean the paper tray and make sure the paper is loaded correctly and not stuck together.

A toner cartridge is a component that contains the toner powder used to create the printout on a laser printer. A tractor feed is a mechanism that uses sprockets to move continuous paper through a dot matrix printer. A duplexer is a device that allows a printer to print on both sides of the paper automatically. A fuser is a part of a laser printer that melts the toner onto the paper using heat and pressure. None of these components are related to the issue of pulling multiple sheets of paper from the paper tray.

A physical firewall is a hardware device that filters and blocks unwanted or malicious traffic from entering or leaving a network. A physical firewall can be configured with rules and policies to allow or deny traffic based on various criteria, such as source and destination IP addresses, ports, protocols, applications, etc. A physical firewall can also provide logging and monitoring capabilities to detect and prevent network attacks12.

A physical firewall is the most appropriate tool for a technician to use to mitigate threats to web clusters, which are groups of web servers that work together to provide high availability and scalability for web applications. Web clusters are often exposed to the internet and face various types of threats, such as denial-of-service (DoS) attacks, brute force attacks, SQL injection attacks, cross-site scripting (XSS) attacks, etc. A physical firewall can protect the web clusters’ public-facing interface by filtering and blocking the unwanted or malicious traffic before it reaches the web servers, thus reducing the risk of compromise or downtime34.

The other options are not as effective or relevant as a physical firewall for mitigating threats to web clusters. Device encryption is a process of transforming data into an unreadable form using a secret key, which can prevent unauthorized access to the data if the device is lost or stolen. However, device encryption does not prevent network attacks or filter traffic, and it may not apply to web clusters that use shared storage or cloud services. Intrusion detection system (IDS) is a software or hardware tool that monitors network traffic and alerts the administrator of any suspicious or malicious activity. However, IDS does not block or filter traffic, and it may not be able to prevent or stop an attack in progress. IDS is often used in conjunction with a firewall, not as a replacement. Antivirus/anti-malware is a software tool that scans and removes viruses, worms, trojans, spyware, ransomware, and other malicious software from a device. However, antivirus/anti-malware does not filter or block network traffic, and it may not be able to detect or prevent some web-based attacks, such as XSS or SQL injection. Antivirus/anti-malware is also often used in conjunction with a firewall, not as a replacement.

A cellular card is a device that allows a laptop to connect to the internet using a cellular network, such as 4G or 5G. A cellular card can provide internet access when the user travels and does not have access to a Wi-Fi network. A cellular card may require a subscription plan from a cellular service provider. A Wi-Fi extender is a device that boosts the signal of an existing Wi-Fi network, but it does not provide internet access by itself. Bluetooth is a wireless technology that allows devices to communicate over short distances, but it does not provide internet access either. GPS is a satellite-based system that provides location and navigation information, but it does not provide internet access as well. References: https://www.comptia.org/blog/what-is-a-cellular-card

A network jack faceplate is a device that covers and protects the network jack or outlet on a wall or a floor. A network jack or outlet is a physical interface that allows a network cable, such as an Ethernet cable, to be plugged into a network device, such as a computer or a printer. A network jack faceplate usually has one or more ports that correspond to different types of network cables, such as RJ-45, RJ-11, or coaxial.

A label on a network jack faceplate should refer to the patch panel port that the network jack or outlet is connected to. A patch panel is a device that connects multiple network cables in an organized and convenient way. A patch panel has a number of ports that correspond to different cables, such as Ethernet, coaxial, or fiber-optic cables. A patch panel can help simplify the wiring and management of a network, as well as provide flexibility and scalability for adding or changing network devices.

By labeling the network jack faceplate with the patch panel port, the network technician can easily identify and trace the cable that is connected to the network jack or outlet. This can help to troubleshoot and resolve network issues, such as connectivity, performance, or configuration problems. It can also help to avoid confusion or errors when installing or modifying network cables.

A limited wireless range after replacing the wireless card could indicate that the antenna is not properly connected to the card, or that the antenna is damaged or obstructed. According to the web search results, some possible steps to troubleshoot and verify the antenna’s connection are:

Open the laptop case and locate the wireless card and the antenna wires. Make sure that the wires are securely attached to the card’s connectors, and that they are not loose or broken12.

Check the position and orientation of the antenna. Make sure that it is not blocked by any metal objects, walls, or other sources of interference. Adjust the angle or location of the antenna if possible to improve the signal strength3.

Replace the antenna with a new one or a compatible one from another device. Test the wireless range and performance with the new antenna2.

A virtual sandbox is an isolated environment that mimics the characteristics of a real system, but does not affect or interact with it1. A virtual sandbox can be used to run potentially unsafe or malicious code and observe its behavior without risking harm to the host machine or network2. This is useful for cybersecurity researchers who want to test and analyze malware samples, such as viruses, worms, ransomware, etc., and understand how they work and how to prevent or mitigate them3.

The next step that the technician should take after replacing the battery in the phone is to check the device for malware. Malware is a malicious software that can infect the phone and cause various problems, such as overheating, battery drain, data theft, pop-up ads, or performance slowdowns. Malware can enter the phone through various sources, such as downloading apps from untrusted sources, clicking on suspicious links or attachments, or connecting to insecure Wi-Fi networks.

To check the device for malware, the technician can use a reputable antivirus or anti-malware app, such as the ones found in the web search results123. The technician can follow these steps:

Download and install the antivirus or anti-malware app from a trusted source, such as the Google Play Store or the Apple App Store.

Launch the app and grant it the necessary permissions to scan the device.

Run a full scan of the device and wait for the results.

If the app detects any malware, follow the app’s instructions to remove or quarantine it.

Restart the device and check if the overheating and battery drain issues are resolved.

Other steps, such as checking the device for updates, checking the device for liquid damage, or checking the device’s charging adapter, may not be relevant or effective for solving the overheating and battery drain issues caused by malware. Checking the device for updates may improve the security and performance of the device, but it may not remove the existing malware. Checking the device for liquid damage may reveal physical damage to the device, but it may not explain the constant overheating and battery drain. Checking the device’s charging adapter may ensure the proper charging of the device, but it may not affect the device’s temperature or battery life when it is not plugged in.

The most likely issue that the technician will encounter is A. Corrupt job in print spooler.

A corrupt job in the print spooler is a common problem that can cause a printer to stop printing or print slowly. The print spooler is a service that manages the print queue, which is a list of documents that are waiting to be printed. Sometimes, a document in the print queue can become corrupted or incompatible with the printer, and prevent other documents from being printed. This can happen due to various reasons, such as power outage, network interruption, driver mismatch, virus infection, etc12.

To troubleshoot and resolve this issue, the technician can use the diagnostic tool in the printer’s administrator menu, which is a feature that allows the technician to access and configure various settings and options of the printer. The diagnostic tool can help the technician identify and delete the corrupt job in the print spooler, and restart the print service. The technician can also use the diagnostic tool to check the printer’s status, error messages, firmware updates, network settings, and other information that can help with the troubleshooting process34.

The other options are less likely to be encountered by the technician, as they are not related to the printer’s heavy use or the diagnostic tool. Insufficient space in the printer is an issue that can occur when the printer’s memory or storage is full, and it can cause the printer to print slowly or incompletely. However, this issue can be easily resolved by clearing the printer’s memory or storage, or adding more memory or storage to the printer12. Network connectivity issues are problems that can affect the communication between the printer and the network, and they can cause the printer to be offline or unreachable. However, these issues can be resolved by checking and fixing the physical or wireless connection, the network configuration, the firewall settings, and the printer’s IP address12. Improperly installed drivers are issues that can affect the compatibility and functionality of the printer, and they can cause the printer to print incorrectly or not at all. However, these issues can be resolved by updating, reinstalling, or rolling back the printer’s drivers, or by using the correct drivers for the printer’s model and operating system12.

DHCP (Dynamic Host Configuration Protocol) is a network service that automatically assigns IP addresses and other configuration parameters to devices that request them. DHCP simplifies the management of IP addresses and avoids conflicts and errors67. An APIPA (Automatic Private IP Addressing) is a feature of Windows that assigns a default IP address in the range of 169.254.x.x to a device when it cannot obtain a valid IP address from a DHCP server. An APIPA indicates that there is a problem with the DHCP service or the network connectivity between the device and the DHCP server89. Therefore, the technician should investigate the DHCP service first to check if it is running, configured correctly, and has enough available IP addresses to assign. The other services are not directly related to the IP address assignment. RADIUS (Remote Authentication Dial-In User Service) is a protocol that provides centralized authentication, authorization, and accounting for network access10. AAA (Authentication, Authorization, and Accounting) is a framework that controls the access and usage of network resources11. DNS (Domain Name System) is a service that resolves domain names into IP addresses12.

References

6: What is DHCP (Dynamic Host Configuration Protocol)? - Definition from WhatIs.com

7: How DHCP works - Windows Server | Microsoft Docs

8: What is APIPA (Automatic Private IP Addressing)? - Definition from WhatIs.com

9: How to Fix an IP Address Conflict

10: What is RADIUS (Remote Authentication Dial-In User Service)? - Definition from WhatIs.com

11: What is AAA (authentication, authorization, and accounting)? - Definition from WhatIs.com

12: What is DNS (Domain Name System)? - Definition from WhatIs.com

A serial interface is a common way to connect to the console port of a switch using a rollover cable and a terminal emulator program. This allows the network technician to configure and troubleshoot the switch. Bluetooth, near-field communication, and port replicator are not used for console connections.

The transmit power settings of the access point determine how strong the Wi-Fi signal is. If the transmit power is too low, the Wi-Fi network will have slow connection speeds and poor coverage. If the transmit power is too high, the Wi-Fi network will interfere with other nearby networks and devices, causing congestion and performance issues. Therefore, the technician should check the transmit power settings first and adjust them to an optimal level for the office environment.

The projector is overheating and needs to be cleaned. A common cause of projector shutdown is overheating, which can be triggered by dust accumulation, blocked vents, or faulty fans. The projector has a thermal protection circuit that turns it off when the temperature reaches a certain level, and it will not turn back on until it cools down. To prevent this issue, the projector needs to be cleaned regularly and placed in a well-ventilated area. The video cable, the bulb, and the outlet are not likely to cause the projector to turn off intermittently.

802.11 ax is a wireless networking protocol that supports both 2.4GHz and 5GHz devices, as well as backward compatibility with previous 802.11 standards. 802.11 ax offers higher data rates, lower latency, increased capacity, and improved power efficiency than previous protocols. It is also known as Wi-Fi 6 or High Efficiency Wireless (HEW). Reference: https://www.comptia.org/training/books/a-core-1-220-1101-study-guide (page 82)

The correct answers are D. The overall IT cost goes down and F. Upgrading applications is easier.

Application virtualization is a technology that allows users to run applications without installing them on their devices. The applications are stored and executed on a remote server, and the users can access them through a network connection. Application virtualization has several benefits, such as12:

•The overall IT cost goes down: Application virtualization reduces the need for hardware, software, and maintenance costs, as the applications are centralized and managed on the server side. This also saves energy and space, as fewer physical machines are required to run the applications. Additionally, application virtualization can reduce licensing costs, as the applications can be delivered on-demand and based on usage.

•Upgrading applications is easier: Application virtualization simplifies the process of updating and patching applications, as the changes can be made on the server side and pushed to the users instantly. This eliminates the need for manual installation and configuration on each device, and ensures that all users have the latest version of the applications.

Other benefits of application virtualization include123:

•Allows the running of legacy apps: Application virtualization can enable users to run applications that are developed for older or incompatible operating systems, such as Windows 7 or XP. This can extend the lifespan of legacy applications and avoid compatibility issues.

•Enables cross-platform operations: Application virtualization can allow users to run applications that are designed for different platforms, such as Windows apps on iOS, Android, macOS, or Chrome OS. This can increase the accessibility and mobility of the applications and enhance the user experience.

•Improves security and compliance: Application virtualization can isolate the applications from the underlying operating system and hardware, preventing malware or unauthorized access from affecting them. This can also protect the data and settings of the applications from being tampered with or lost. Furthermore, application virtualization can help enforce compliance policies and regulations, as the applications can be controlled and monitored by the server.

A load balancer is a device or software that distributes network traffic across multiple servers or resources, such as web server farms, to optimize performance, reliability, and scalability. A load balancer controls the flow of users connecting to web server farms and prevents overutilization on any individual server by using various algorithms, such as round robin, least connections, or weighted distribution. A load balancer can also provide health checks, failover, caching, compression, encryption, and other features to enhance the user experience and security.

The best way to connect the devices is A. Enable pairing.

Pairing is a process that allows two Bluetooth devices, such as a smartphone and a headset, to communicate with each other wirelessly. Pairing creates a secure connection between the devices and allows them to exchange data and audio signals. To pair the devices, the user needs to enable Bluetooth on both devices, make them discoverable, and select the desired device from the list of available devices. The user may also need to enter a PIN code or confirm a passkey to complete the pairing process .

The other options are not the best ways to connect the devices. A hotspot is a feature that allows a smartphone to share its cellular data connection with other devices via Wi-Fi, Bluetooth, or USB. A hotspot can provide internet access to other devices, but it does not allow them to communicate with each other directly. NFC stands for Near Field Communication, which is a technology that allows two devices to exchange data by bringing them close together (usually within 4 cm). NFC can be used to initiate pairing between two Bluetooth devices, but it cannot establish a connection by itself. Synchronization is a process that allows two devices to update and match their data, such as contacts, calendars, photos, or music. Synchronization can be done via Wi-Fi, Bluetooth, USB, or cloud services, but it requires an existing connection between the devices.

The correct answer is A. Enable 32-bit drivers on the Print Server.

A print server is a computer or device that manages the printing requests from multiple clients over a network. A print server can share one or more printers with different types of clients, such as Windows, Mac, or Linux. However, to ensure compatibility and functionality, the print server must have the appropriate drivers for each printer and each client1.

A driver is a software component that enables the communication and interaction between a device and an operating system. A driver must match the specifications and features of the device, as well as the architecture and version of the operating system. A driver that is incompatible with either the device or the operating system may cause errors, malfunctions, or performance issues2.

In this scenario, the technician installed a new printer that is being shared over the network via a 64-bit Windows Print Server. This means that the print server has a 64-bit operating system and a 64-bit driver for the printer. However, two users who have computers with a legacy OS (an older or outdated operating system) are unable to print to this new printer. This may be because their computers have a 32-bit operating system and require a 32-bit driver for the printer.

To resolve this issue, the technician should enable 32-bit drivers on the Print Server. This means that the technician should install and configure a 32-bit driver for the printer on the print server, in addition to the existing 64-bit driver. This way, the print server can support both 64-bit and 32-bit clients, and allow them to print to the same printer34.

To enable 32-bit drivers on a Windows Print Server, the technician can follow these steps4:

On the print server, open Control Panel and select Devices and Printers.

Right-click on the printer that needs a 32-bit driver and select Printer Properties.

Click on the Sharing tab and check the box that says Share this printer.

Click on Additional Drivers and check the box that says x86 (for 32-bit).

Click OK and follow the instructions to install and configure the 32-bit driver.

For more information about print servers, drivers, and compatibility issues, you can refer to the following web search results: What is a Print Server?, What is a Device Driver?, How to Install Additional Drivers for Shared Printers, How to Enable 32-Bit Drivers on Windows Server.

Application virtualization is a technique that allows an application to run on a computer without being installed or affecting other applications on the system. Application virtualization creates a virtual environment for the application that isolates it from the underlying operating system and hardware. This way, the technician can verify the application deployment will not affect other legacy applications on the end users’ computers.

To enable the printer to be shared across the network, the technician should configure the IP settings of the printer. The IP settings include the IP address, subnet mask, default gateway, and DNS server of the printer. The IP settings allow the printer to communicate with other devices on the network and access network resources such as print servers or cloud services.

The technician can configure the IP settings of the printer in different ways, such as:

Using the printer’s control panel or web interface to manually enter the IP settings or obtain them automatically from a DHCP server.

Using the printer’s software or driver to assign a static or dynamic IP address to the printer.

Using a network discovery tool to find and configure the printer on the network.

The technician should also make sure that the IP settings of the printer are compatible with the network configuration and do not cause any conflicts or errors.

Cable internet service is delivered through coaxial cables that are shared among multiple customers in a neighborhood. This means that the bandwidth may vary depending on the network congestion. Fiber, NIC, and DSL are not copper-based or shared mediums.

A virtual Trusted Platform Module (vTPM) is a technology that can be used to harden guest virtual machines by providing them with a secure cryptographic device. A vTPM can store encryption keys, certificates, and passwords, and can perform integrity checks on the guest operating system and applications. A vTPM can also enable features such as BitLocker and Credential Guard in Windows 10 virtual machines.

A. Containerization is a technology that can be used to isolate applications from the underlying operating system and hardware resources. Containerization does not directly harden guest virtual machines, but rather provides a lightweight alternative to virtualization.

B. Network isolation is a technology that can be used to separate network traffic between different virtual machines or groups of virtual machines. Network isolation can help prevent unauthorized access or attacks on guest virtual machines, but it does not harden them internally.

C. Resource reservation is a technology that can be used to guarantee a minimum amount of CPU, memory, disk, or network resources for a virtual machine or a group of virtual machines. Resource reservation can help improve the performance and availability of guest virtual machines, but it does not harden them against security threats.

D. vTPM is a technology that can be used to harden guest virtual machines by providing them with a secure cryptographic device. A vTPM can store encryption keys, certificates, and passwords, and can perform integrity checks on the guest operating system and applications.

A media converter is a network device that operates as a bridge function, which means it connects two different types of network media, such as copper and fiber optic cables, and converts signals between them. This allows network devices that use different media types to communicate with each other over long distances or in different environments, without requiring major changes or upgrades to the existing network infrastructure. Reference: https://www.comptia.org/training/books/a-core-1-220-1101-study-guide (page 73)

A scratch on the scanning bed of a copier can cause a solid black line to appear on all copies, as the scanner cannot read the original document properly through the scratch. The scratch can also reflect light and create noise in the scanned image. The printing function is unaffected by the scratch, as it does not use the scanning bed. The technician should inspect and clean the scanning bed, and replace it if necessary. Reference: https://partners.comptia.org/docs/default-source/resources/a-core-1-content-guide (page 16)

Calibrating the touch screen is the best action to resolve the issue of inaccurate touch input. Calibration adjusts the touch screen’s sensitivity and alignment to match the user’s touch. Resetting the mobile device could erase user data and settings and may not fix the touch screen issue. Replacing the LED screen or updating the mobile device are unnecessary and costly actions that may not solve the problem.

A damaged battery can cause a laptop to overheat and swell, making it unable to sit level on the workspace. A swollen battery can also pose a fire hazard and damage other components of the laptop, such as the motherboard or keyboard. The technician should replace the battery as soon as possible and dispose of it properly according to local regulations. Reference: https://partners.comptia.org/docs/default-source/resources/a-core-series-combined-content-guide (page 25)

Cleaning the air filter is the best action to resolve the issue of a projector that shuts down after fifteen minutes of use. A dirty air filter can cause overheating and trigger the projector’s thermal protection mechanism. Replacing the video input cable, changing the bulb, or swapping the power cord are unlikely to solve the overheating issue

Telnet is an unsecure remote access protocol that allows a user to connect to a remote device and execute commands on it12. Telnet does not encrypt the data that is transmitted between the user and the device, which means that anyone who intercepts the network traffic can read the information, including usernames and passwords12. Telnet also does not authenticate the user or the device, which means that anyone can impersonate either party and gain unauthorized access1.

Loading the hard disk drive (HDD) drivers using a flash drive is the most likely action that can fix the issue of a computer not being able to find the hard drive during an OS installation from Windows 7 to Windows 10. The HDD may have a different interface or controller than what Windows 10 supports by default, such as SATA or RAID, which would require loading additional drivers during the installation process. The technician can use a flash drive to load the drivers from another device or source. Changing the partition to MBR, upgrading the RAM modules, or replacing the hard drive are not likely to fix the issue, as they are not related to the HDD drivers

Asking the user about the symptoms the computer is experiencing is the first step the technician should take when a user reports that a computer has a virus on it. This step helps the technician to gather information and identify the problem before determining a plan of action to resolve it. Running antivirus software, making a backup of the user’s data, or determining a plan of action are not the first steps, but possible actions that can be taken after identifying the problem.

Thunderbolt 3 is a USB-C port, so any device with a USB-C connector can be plugged into it. MiniUSB, microUSB and USB-A are not compatible with Thunderbolt 3.

If lines appear down copied pages but printed pages sent directly to copier render as intended, it could be due to scratched scanner glass which can cause lines or streaks on copied pages.

If there are lines appearing on copied pages, but not on printed pages sent directly to the copier, the issue is most likely caused by a scratch on the scanner glass. References: https://www.pacificoffice.com/how-to-fix-lines-on-copier/

RAID 0 is a configuration that stripes data across multiple disks without parity or redundancy. It provides the fastest speed and maximum storage capacity among the RAID types listed, but it also has no fault tolerance. RAID 1 mirrors data across two disks, providing redundancy but halving the storage capacity. RAID 5 stripes data across three or more disks with parity, providing fault tolerance but reducing the storage capacity by one disk. RAID 10 combines mirroring and striping across four or more disks, providing both speed and redundancy but reducing the storage capacity by half.

The technician should ensure the input connections to the screen are secure1. The screen may not be receiving the signal from the device outputting the data if the input connections are not secure1. Swapping cables with a screen that works is not likely to be the correct option1

By documenting the findings, action, and outcomes of issues, the technicians can create a knowledge base that can be used to resolve similar issues in the future more quickly and efficiently. The documentation can also help identify patterns or trends that can lead to preventive measures or root cause analysis. Documenting the issues can also improve communication and collaboration among technicians and users, as well as provide evidence of service quality and performance. Reference: https://partners.comptia.org/docs/default-source/resources/a-core-1-content-guide (page 4)

A cable tester and a crimper are the best tools to execute the task of replacing all RJ45 cables in a customer environment. A cable tester can be used to check the continuity and quality of a cable, and a crimper can be used to attach RJ45 connectors to the ends of a cable. An optical fiber tester is a tool that can be used to test fiber optic cables, which are not RJ45 cables. Scissors are not a tool for replacing cables, but for cutting them. A coaxial cable is a type of cable that has a single copper conductor at its center, which is not an RJ45 cable either. A screwdriver is not a tool for replacing cables, but for fastening or loosening screws.

The most likely cause of the problem is that the printing trays are not configured to match the paper size of the print jobs. The technician should verify that the printing trays are correctly set for 8.5in x 14in (216mm x 356mm) paper and that the printer driver settings match the tray settings. This will ensure that the printer can feed and print the paper correctly without cutting off any part of the document.

 Enabling high-accuracy mode is the most likely action to resolve the issue of unreliable GPS on a user’s phone. High-accuracy mode uses multiple sources of location data, such as Wi-Fi, cellular networks, and Bluetooth, to improve the accuracy and reliability of GPS. Replacing the battery, disabling Wi-Fi connections, or utilizing a third-party map application are unlikely to fix the GPS issue, as they are not directly related to the GPS function

To configure a printer for network communications, the technician must configure its network settings, such as gateway, subnet mask, and IP address. The gateway is the IP address of the router or device that connects the printer to other networks or the internet. The subnet mask is a value that defines which part of the IP address identifies the network and which part identifies the host or device on that network. The IP address is a unique identifier that allows the printer to communicate with other devices.

The message prompting to press "OK" indicates that the printer is waiting for a user input. This suggests that there is some issue with the printer settings, and the most probable cause is that the default paper type has been changed, and the printer needs the user to confirm the paper type before proceeding with the print job. This is a common issue that can occur when the default paper type is not set correctly or has been changed without the user's knowledge.

 M2PCIeNVMeSSD. M.2 PCIe NVMe SSDs are the fastest internal storage devices available for desktops. They are faster than SATA SSDs and PCIe SATA HDDs12.

A CPU fan is a component that cools down the CPU, which is the main processor of the computer. If the CPU fan is failing, it can cause the computer to slow down and the fans to alternate between silent and very loud12. This is because the CPU fan cannot maintain a consistent speed and airflow to keep the CPU at a safe temperature. When the CPU gets too hot, it throttles its performance to avoid overheating, which results in a slower computer. The other fans in the computer also try to compensate for the lack of cooling from the CPU fan by spinning faster and louder2.

The screen rotation is locked. If a user’s touch-screen tablet is having an issue with screen orientation, it could be due to screen rotation being locked in device settings.

If the screen rotation is locked, the touch-screen tablet will not rotate the screen when the device is turned. This can usually be unlocked in the settings or by pressing a specific key combination. References: https://www.howtogeek.com/254132/how-to-enable-screen-rotation-on-windows-10/

 If a technician is on site troubleshooting a customer’s laptop and needs to download a software update but the company’s proxy is blocking updates, the most appropriate action for the technician to take would be to request a traffic exemption from the company’s IT department.

The power supply unit (PSU) is the component that converts AC power from the outlet to DC power for the computer. If the PSU fails, the computer will not turn on. The CPU, RAM, and GPU are not directly related to the power supply and would not prevent the computer from turning on.

To increase the volume on a laptop using only a keyboard, a user can press and hold down the Fn key while pressing one of the function keys (usually F1-F12) that has an icon representing volume up.

One of the possible causes of extreme slowness and application crashes on a phone is low or insufficient storage space. This can affect the performance and functionality of the phone, as well as prevent new applications from being installed or updated. The technician should check the storage space on the phone and see if there is enough free space available for the diagnostic application and other operations. The technician should also advise the customer to delete or move any unnecessary or unused files, apps, or data from the phone to free up some space. Reference: https://partners.comptia.org/docs/default-source/resources/a-core-1-content-guide (page 10)

A network tap is a physical device that allows promiscuous monitoring of network traffic by creating a copy of the data packets for analysis. A toner probe is used to trace and identify cables. A Wi-Fi analyzer is used to measure wireless signal strength and interference. A loopback plug is used to test network ports or cables by sending and receiving signals from the same device.

A repetitive clicking noise coming from a laptop is usually a sign of a failing hard disk drive (HDD), which is a type of storage device that uses spinning platters and moving heads to read and write data. A failing HDD can also cause severe delays in input and output operations, as well as data loss or corruption. The technician should replace the HDD with a new one or upgrade it to a solid state drive (SSD), which is another type of storage device that uses flash memory and has no moving parts. Reference: https://partners.comptia.org/docs/default-source/resources/a-core-series-combined-content-guide (page 24)

Liquid cooling is a method of cooling the CPU by circulating a liquid through a closed loop that absorbs heat from the CPU and transfers it to a radiator. Liquid cooling is more effective and quieter than air cooling, which uses a fan and a heat sink. However, liquid cooling is also more expensive and complex to install. Upgrading the thermal paste, using a copper heat sink, or upgrading the CPU fan are ways to improve air cooling, but they will not lower the CPU temperature as much as liquid cooling. References: https://www.comptia.org/certifications/a#examdetails https://www.comptia.org/blog/what-is-liquid-cooling

NFC stands for near-field communication, which is a wireless technology that allows two devices to exchange data when they are in close proximity (usually within a few centimeters). NFC is commonly used by mobile devices to process payments at kiosks, such as Apple Pay or Google Pay. Wi-Fi 6 is a wireless standard that provides faster speed and lower latency than previous versions of Wi-Fi. Bluetooth is a wireless technology that allows devices to communicate over short distances (usually within 10 meters). RFID stands for radio-frequency identification, which is a wireless technology that uses radio waves to identify and track objects that have RFID tags attached to them

A sandbox is a virtualization solution that allows a legacy application to run in an isolated environment without affecting other applications or systems. A sandbox can emulate an older operating system or hardware configuration that is compatible with the legacy software. A hybrid cloud is a combination of public and private cloud services that share data and resources. Infrastructure as a service is a cloud computing model that provides servers, storage, networking, and software over the internet. Public cloud is a cloud computing model that provides services and resources to anyone over the internet. Private cloud is a cloud computing model that provides services and resources to a specific organization or group over a private network.

Rapid elasticity is a cloud feature that allows cloud services to scale up or down automatically according to demand or load on the server, without requiring manual intervention or configuration changes by users or administrators.This enables cloud services to provide optimal performance and efficiency at all times, as well as reducing costs by only using resources when needed. Reference: https://www.comptia.org/training/books/a-core-1-220-1101-study-guide (page 98)

SODIMM stands for Small Outline Dual In-line Memory Module and is a type of memory module that is compatible with laptops and other small devices. SODIMMs are smaller and thinner than DIMMs (Dual In-line Memory Modules), which are typically used for desktop PCs and servers. Upgrading or adding SODIMMs can increase the amount of RAM available for a laptop, which can improve its performance and speed when running process-intensive tasks. Reference: https://partners.comptia.org/docs/default-source/resources/a-core-series-combined-content-guide (page 24)

Updating the preferred roaming list (PRL) is what a user should do to resolve the issue of being unable to get personal cell phone service after traveling to another country. The PRL is a database that contains information about cell towers and frequencies that a phone can use in different areas. Updating the PRL can improve the phone’s ability to connect to local networks and avoid roaming charges. CDMA is a type of cellular technology that uses code division multiple access to transmit data over radio frequencies. MDM is an acronym for mobile device management, which is a type of software solution that allows remote management and security of mobile devices. GPS is an acronym for global positioning system, which is a satellite-based navigation system that provides location and time information

A USB-C cable is the best option for installing an RS-232 serial signature pad to an ultralightweight laptop. USB-C is a universal connector that supports various protocols and devices, including serial devices. A port replicator is a device that expands the connectivity options of a laptop by providing additional ports. Wi-Fi Direct is a wireless technology that allows devices to connect directly without a router or access point. Hotspot is a feature that allows a device to share its internet connection with other devices via Wi-Fi, Bluetooth, or USB.

Virtual memory is a software-based memory management system that allows a computer to use hard disk storage space as RAM. This can be used to increase the total RAM in a system without upgrading the hardware. To set up virtual memory, the user should go to the System Properties window and select the Advanced tab. In the Performance section, click on the Settings button, which will open the Performance Options window. Then, click on the Advanced tab and click on the Change button in the Virtual memory section. Finally, select the option to Automatically manage paging file size for all drives, and then click OK to save the changes.

DNS stands for Domain Name System and is a service that translates domain names (such as www.example.com) into IP addresses (such as 192.168.1.100) that computers can use to communicate over a network. If the DNS server is offline, users may not be able to access websites or other network resources by using their domain names, even if they are online and reachable by their IP addresses. The technician should check if the DNS server is running and configured correctly, or use an alternative DNS server if possible. Reference: https://www.comptia.org/training/books/a-core-1-220-1101-study-guide (page 81)

Metered utilization is a cloud feature that allows cloud providers to charge customers based on their actual consumption of resources, such as CPU time, storage space, bandwidth, or transactions.This enables customers to pay only for the resources they use, rather than a fixed or flat rate, which can reduce costs and increase efficiency. Metered utilization can also provide more transparency and accountability for both cloud providers and customers, as they can track and monitor their resource usage and billing. Reference: https://partners.comptia.org/docs/default-source/resources/a-core-1-content-guide (page 97)

One of the possible causes of random and incorrect characters appearing on print jobs sent to a laser printer is an outdated or corrupted driver. The driver is a software component that communicates between the operating system and the printer, and converts data into a format that the printer can understand. If the driver is outdated or corrupted, it may send incorrect or garbled data to the printer, resulting in poor print quality or errors. The technician should update the driver to the latest version from the manufacturer’s website, or uninstall and reinstall it if necessary. Reference: https://www.comptia.org/training/books/a-core-1-220-1101-study-guide (page 47)

To resolve the issue of new memory modules not being recognized, the systems administrator should configure appropriate settings within the BIOS. This can include enabling memory mapping or setting memory speed and timings. References: CompTIA A+ Certification Exam Objectives, 220-1001 Section 1.8

Configure appropriate settings within the BIOS. If new memory modules were installed in several Windows desktops but some users are still reporting performance issues and the desktop has not recognized the new memory modules, the systems administrator should configure appropriate settings within the BIOS to help resolve this issue.

The BEST solution to mitigate spam that appears to come from an organization's own domain is to implement SPF (Sender Policy Framework). SPF is an email validation protocol designed to detect and prevent email spoofing, which is a common tactic used by spammers. By publishing SPF records in the organization's DNS (Domain Name System), the recipient's mail server can check if an incoming email originated from a valid source. If the email fails SPF authentication, it can be blocked or flagged as spam. Therefore, SPF helps to prevent email spoofing and mitigate the risk of spam coming from an organization's own domain

Optical fiber is the type of cable that should be used to terminate ST connectors on each end. ST connectors are commonly used for fiber optic cables, which transmit data using light pulses. Coaxial, shielded twisted pair, and HDMI are not types of cables that use ST connectors, but different types of connectors and transmission methods.

A toner probe is a tool that can be used to trace and identify cables in a wiring closet. The technician can use a toner probe to find the cable that connects the new computer to the internet. A cable tester is a tool that can be used to check the continuity and quality of a cable. A loopback plug is a tool that can be used to test network ports or cables by sending and receiving signals from the same device. A punchdown tool is a tool that can be used to terminate wires into a patch panel or jack.

TPM stands for Trusted Platform Module, which is a hardware component that securely stores encryption keys and other sensitive data12. TPM can be used to enable hard drive encryption, which is a technology that encrypts the data stored on a hard drive using sophisticated mathematical functions34. Hard drive encryption protects the data from unauthorized access in case the hard drive is lost, stolen, or tampered with.

The cloud model that BEST addresses the company’s need is the Community cloud model. A community cloud is a cloud infrastructure in which multiple organizations share resources and services based on common operational and regulatory requirements. The concept of a community cloud is akin to a community garden, where different individuals grow produce on a single piece of shared land1.

This is because the fuser is the part of the printer that heats and melts the toner onto the paper. If the fuser is defective or dirty, it can cause streaks or smudges on printed pages. The system board and the memory are not related to the quality of the print output. The paper tray may cause paper jams or misfeeds, but not streaks on the paper.

A sandbox is a lab environment in which virtual machines can be created, rebooted, and shut down without affecting the production network. This allows for testing and experimentation without the risk of damaging the production environment123..

Server message block (SMB) is the setting on the multifunction printer (MFP) that the technician should edit to best address the user’s request of making the scans viewable on the network for the entire department. SMB is a network protocol that allows file sharing and printer access among different devices on a network. The technician can configure the MFP to scan to a shared folder on the network using SMB. Scan to email is a feature that allows the MFP to send scanned documents as email attachments, which may not be viewable by everyone in the department. Secured prints is a feature that allows the MFP to print documents only after entering a PIN or password, which does not address the user’s request. Web services is a feature that allows the MFP to access online services such as cloud storage or email, which may not be viewable by everyone in the department either. Printer share is not a setting on the MFP, but a feature that allows a device to share its printer with other devices on a network

A storage area network (SAN) is the type of network that the technician will be working with when adding more space to resolve the issue of all VMs being down due to the network being out of space. A SAN is a network that provides access to consolidated and block-level data storage, which can be used for virtualization and backup purposes. SCSI is a type of interface that connects devices such as hard drives and optical drives to a computer. NAC is a type of security solution that controls access to a network based on policies and device compliance. WISP is a type of internet service provider that delivers wireless broadband access over long distances.

Automatic document feeder (ADF) is a feature that allows a multifunction printer to photocopy documents with hundreds of pages automatically without requiring manual intervention. ADF scans multiple pages from a stack of documents and feeds them into the printer one by one. SMB is a network protocol that allows file sharing and printer access among different devices on a network. PCL is a printer language that controls how data is formatted for printing. SSH is a network protocol that allows secure remote access to another device over an encrypted connection.

The issue described suggests the 12V CPU power connector was likely forgotten during installation. The 12V power rail is essential for the operation of high-end workstation components, including the CPU. Without the 12V connection, the system will fail to POST and may power off shortly after being turned on.

Why 12V?

The 12V connector is critical for providing power to the CPU via the motherboard. Modern CPUs require a dedicated power source from the PSU, usually supplied through the 4-pin or 8-pin EPS12V connector.

If this connection is omitted, the motherboard will not receive adequate power for the CPU to function, resulting in the system failing to POST or shutting down after a brief period.

Incorrect Options:

A. 5V: The 5V rail powers USB devices, some motherboard components, and certain peripherals, but not the CPU directly.

C. 120V and D. 220V: These voltages refer to the power supply’s input from the wall outlet, not the internal connections to components.

CompTIA A+ Exam Objectives References:

220-1101 (Core 1), Section 3.5: Explains power supply requirements and troubleshooting scenarios related to component connections​.

Outdated drivers: Device functionality issues after an OS upgrade are often caused by incompatible or outdated drivers.

Disabled settings: Some features may be disabled during the upgrade process, requiring re-enablement.

Why Not A (Incorrect configuration): This is unlikely given the issues arose only after the upgrade.

Why Not B (OS and device incompatibility): Upgrades check for compatibility before installation.

Why Not D (Full storage): Storage issues typically prevent installation, not device functionality.

Why Not F (Corrupted registry entries): While possible, this is less common than the selected answers.

CompTIA A+ Exam Reference: Core 1 (220-1101), Section 3.5, troubleshooting OS upgrades​.

Comprehensive and Detailed In-Depth Explanation:

NFC (Near-Field Communication) operates at very short ranges — usually less than 4cm, and is ideal for quick, secure transactions like contactless payments. Bluetooth supports longer ranges (up to 10 meters or 32 feet) and is suited for ongoing connections like wireless headsets or file transfers.

Option A: Bluetooth is faster for large file transfers.

Option B: NFC uses less power, not more.

Option C: NFC does not require pairing — Bluetooth does.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 1.5: Given a scenario, connect and configure accessories and ports of mobile devices.

===========

Turning off the laptop and disconnecting power immediately prevents further damage and potential safety hazards. Checking for foreign objects or damage is essential for identifying the root cause. Other options, such as contacting the vendor or using a different adapter, are not immediate troubleshooting steps for an active burning smell. CompTIA A+ Core 1 objectives emphasize safety and hardware troubleshooting.

Data throttling, often implemented by network providers to manage bandwidth usage, can slow data speeds after a certain usage limit is reached. Turning off wireless would prevent uploads, while roaming and 5G status primarily affect connectivity rather than speed throttling. CompTIA A+ Core 1 objectives cover connectivity troubleshooting for mobile devices, including factors impacting network speed and performance.

C. Installing redundant PSUs (Power Supply Units):

Redundant PSUs provide fault tolerance by ensuring that if one power supply fails, another will take over seamlessly.

This is a cost-effective way to increase uptime while waiting for the UPSs to arrive.

Incorrect Options:

A. Purchasing backup generators: Generators are costly and are typically used for long-term outages, not as an immediate or cost-effective solution.

B. Increasing input voltage: This is not a practical solution to hardware failures or power issues.

D. Activating a hot site: A hot site is an expensive, fully operational backup facility that would not be a cost-effective solution for this scenario.

Key Takeaway: Installing redundant PSUs is a cost-effective way to balance uptime requirements in case of power or hardware failure.

In this scenario, running a network cable over a long distance (279ft or 85m) and sharing conduit with a large power cable requires careful consideration of electromagnetic interference (EMI) and the physical distance limitations of the cable type. Fiber optic cables are immune to electromagnetic interference and can support much longer distances than copper-based cables like Cat 5e or Cat 6 without signal degradation. This makes fiber optic the most appropriate choice for this project.

Step by Step Detailed Comprehensive Explanation with All CompTIA References:

Analysis of the Problem:

IPv4 records are associated with "A" records in DNS servers.

Option Evaluation:

A. AAAA: Used for IPv6. Incorrect.

B. MX: Relates to email servers. Incorrect.

C. CNAME: Provides aliases, not IP mappings. Incorrect.

D. A: Maps hostnames to IPv4 addresses. Correct.

The IPv4 address (192.168.10.5) and the gateway address (192.168.1.1) are on different subnets. With a netmask of 255.255.255.0, the network part of the IPv4 address is 192.168.10.x, while the network part of the gateway address is 192.168.1.x. For the workstation to correctly route traffic to the gateway, both must be on the same subnet. The correct gateway address should be within the same subnet as the IPv4 address, such as 192.168.10.1.

If the smartphone is showing a 5G symbol, it is connected to a cellular network rather than Wi-Fi. Enabling Autoconnect ensures the device automatically connects to the company Wi-Fi when in range, resolving the issue.

Why Not B (VPN): VPN is used for secure remote access and does not resolve Wi-Fi connection issues.

Why Not C (Encryption): Encryption settings are related to data security, not network connectivity.

Why Not D (WPS): WPS (Wi-Fi Protected Setup) is used to easily connect devices to Wi-Fi, but it is not required for this issue.

CompTIA A+ Exam Reference: Core 1 (220-1101), Section 2.4, wireless network troubleshooting​.

When multiple RAM modules with different speeds are installed in a system, the system will default to the speed of the slowest module to maintain reliability and stability. In this case:

The system contains two DDR3-1066 (PC3-8500) modules and one DDR3-1333 (PC3-10600) module.

The slowest RAM speed is DDR3-1066 (PC3-8500), and the system will run all memory modules at this speed to prevent timing mismatches and data corruption.

Key Concepts:

Backward Compatibility: RAM modules with higher speeds can operate at lower speeds when mixed with slower modules.

Reliability vs. Performance: Operating all modules at the slowest speed ensures stability, especially when modules have different specifications.

CompTIA A+ Exam Objectives References:

220-1101, Section 3.2: Covers selecting and installing appropriate RAM, understanding different speeds (DDR3-1066, DDR3-1333), and how system compatibility is ensured​.

B. USB-C:

USB-C is a versatile connector that supports charging, high-speed data transfer, and the ability to send audio and video signals (e.g., DisplayPort over USB-C).

It is used by most modern mobile devices and laptops because of its fast transfer speeds and power delivery capabilities.

Incorrect Options:

A. Lightning: Lightning is proprietary to Apple devices and does not natively support video output.

C. MicroUSB: MicroUSB is outdated and does not support video output.

D. MiniUSB: MiniUSB is an older standard and does not support modern features like video output or fast charging.

Key Takeaway: USB-C is the most versatile connector for charging and transferring data, audio, and video.

DKIM (DomainKeys Identified Mail) is an email authentication method that attaches a digital signature to outgoing emails to verify the email’s authenticity and detect email spoofing.

SPF (Sender Policy Framework): Specifies which mail servers are authorized to send emails for a domain but does not involve digital signatures.

DNS Pointer (PTR): Used for reverse DNS lookups, not email authentication.

MX Records: Specify mail servers for email delivery but do not authenticate emails.

CompTIA A+ Exam Reference: Core 2 (220-1102), Section 2.4, email security and authentication​.

If a color laser printer's image quality decreases after being serviced for dust removal, it's likely that the servicing process affected the printer's calibration. Calibration ensures that color reproduction is accurate, and if disturbed, can lead to a decrease in image quality. It's important to check and recalibrate the printer to restore its ability to accurately reproduce colors and maintain high image quality.

Comprehensive and Detailed In-Depth Explanation:

Thermal printers create images using a heated print head on specially coated thermal paper. Vertical white lines indicate that part of the heating element is dirty or blocked, preventing heat transfer to the paper. Cleaning the print head (heating element) will restore full functionality.

Option A: Thermal printers do not use ink or toner, so this is not applicable.

Option B: Wrong paper could cause blank output, but consistent vertical lines point to the print head.

Option C: Maintenance kits are typically for laser printers, not thermal printers.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 3.7: Given a scenario, troubleshoot common printer problems.

When a user connects a laptop to a projector and the image displayed is very fuzzy (blurred) but the brightness level is satisfactory, the first setting to adjust on the projector is the focus. The focus control adjusts the clarity and sharpness of the projected image. Incorrect focus settings can lead to a fuzzy or blurred image even when the brightness is adequate. Adjusting the focus should help in making the image clear and sharp.

Testing the power supply first ensures that the correct voltage is reaching all components, which is a common cause of boot issues. Modifying BIOS settings is not possible without a POST. Checking PCIe cards or replacing the motherboard are secondary steps if the power supply is functional. CompTIA A+ Core 1 objectives cover power supply testing as an essential troubleshooting step in system startup issues.

An inverter failure commonly causes dim screens as it fails to power the backlight, which is crucial for visibility. The LCD glass, IPS panel, and digitizer relate to touch and image display, not brightness. According to CompTIA A+ Core 1 objectives, understanding mobile device display issues, including inverter-related problems, is essential for effective troubleshooting.

C. Initiate the system restore:

If the technician is confident that rolling back the system to a previous restore point will resolve the issue, the next logical step is to initiate the System Restore process.

System Restore allows the system to revert to a state before the OS update, which can eliminate the performance issues caused by the update.

Incorrect Options:

A. Document the findings: Documentation is important but should occur after resolving the issue.

B. Investigate any recent infrastructure changes: This is unnecessary if the issue is already attributed to the OS update.

D. Verify full system functionality: This step should be performed after the System Restore is completed.

Key Takeaway: When confident that rolling back will resolve the issue, the technician should proceed with initiating a System Restore to revert the OS.

Comprehensive and Detailed In-Depth Explanation:

A Private Cloud is operated solely for a single organization. It is hosted on-premises or in a dedicated off-site data center, giving the company full control over data, security, and compliance — often hosted in the organization’s own local data center.

Option B (Public): Hosted by third-party providers and shared by multiple clients.

Option C (Hybrid): Combines private and public cloud resources.

Option D (Community): Shared by several organizations with similar goals.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 4.1: Compare and contrast cloud computing concepts.

===========

By running the specified tests (ping of the default gateway, ping of the localhost, and tracert of the IP address of the default gateway), the technician can find connection latency and the subnet mask of the network.

Connection latency: The time it takes for a ping or tracert command to send and receive a response helps in determining the latency in the network connection. Higher latency values can indicate delays in communication over the network.

Subnet mask of the network: The ipconfig command, which the technician would initially run to perform these tests, provides various details about the network configuration, including the subnet mask. The subnet mask is essential in determining the network and host portions of an IP address, which is crucial for networking and troubleshooting connectivity issues.

To adjust the VLAN configuration, the technician needs to configure the switch. VLANs are configured on switches to segment network traffic logically, even if the devices are connected to the same physical network. By adjusting the VLAN settings on the switch, the technician can ensure that the sales department has access to the marketing department's network resources.

C. Switch: VLANs are configured on switches to logically separate or combine network segments.

Why the other options are incorrect:

A. Network card: A network card is a hardware component that connects a device to a network, but it does not configure VLANs.

B. Patch panel: A patch panel is used to organize and manage network cables but does not play a role in VLAN configuration.

D. Server: A server may host resources, but VLANs are managed at the switch level.

E. Hub: A hub is a basic networking device that simply forwards traffic; it cannot be used to configure VLANs.

This falls under the Networking domain in the CompTIA A+ Core 1 exam​.

Comprehensive and Detailed In-Depth Explanation:

High resource usage along with frequent pop-ups are strong signs of a malware infection. The next logical step is to update anti-malware definitions and run a full scan to detect and remove threats.

Option A: Network performance is likely not the root cause — local system behavior points to malware.

Option B: Drivers affect hardware functionality; they don’t resolve malware-related slowness.

Option D: DHCP issues usually cause IP conflicts or no network access, not CPU spikes or pop-ups.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 4.2: Given a scenario, detect, remove, and prevent malware using appropriate tools and methods.

802.1X is a network authentication protocol commonly used in enterprise environments. If the user cannot connect to the office wireless network but can connect at home, the issue is likely related to the 802.1X certificate required for authentication. Installing or updating the certificate will resolve the issue.

Why Not B (Check the wireless router settings): If other users can connect to the network, this step is unnecessary.

Why Not C (Update the wireless driver): Driver updates might resolve connectivity issues but are unrelated to 802.1X certificate authentication.

Why Not D (Disable the Windows firewall): The firewall does not affect 802.1X authentication.

CompTIA A+ Exam Reference: Core 1 (220-1101), Section 2.6, wireless network authentication​.

Comprehensive and Detailed In-Depth Explanation:

Upgrading to a solid-state drive (SSD) provides more storage space and faster read/write speeds, which resolves both the “insufficient storage” error and slow application loads.

Option B (USB): Not intended for permanent application storage or performance improvements.

Option C (HDD): Could solve storage capacity but would not improve speed.

Option D (RAM): Affects multitasking and memory-intensive tasks, not storage capacity directly.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 3.5: Given a scenario, troubleshoot problems related to storage devices.

Looking at the network configurations and outputs from both PCs and servers, here are the possible issues and solutions:

1. PC 1

Issue: The IP address for PC1 is 192.168.1.1, which conflicts with Server 1 (which also uses 192.168.1.1).

Solution: Change the IP address on PC1 to a unique one within the range, like 192.168.1.3.

2. PC 2

Issue: PC 2 is configured with 192.168.1.2, which conflicts with Server 2 that has the same IP address.

Solution: Update the IP address on PC 2 to something unique, like 192.168.1.4.

3. Server 1

Issue: The IP address for Server 1 is 192.168.1.1, which conflicts with PC1.

Solution: Since Server 1 and PC1 are using the same IP address, change one of them. For Server 1, you could change the IP address to 192.168.1.5.

4. Server 2

Issue: Server 2 is using the IP address 192.168.1.2, which conflicts with PC2.

Solution: Update Server 2 to use a different IP address, such as 192.168.1.6.

General Remediation:

The primary problem here is overlapping IP addresses, leading to connectivity issues. Each device on the network must have a unique IP address. After making these changes, ensure that all devices can communicate properly by testing the connection between devices and verifying they can access shared resources.

Clicking and grinding noises indicate mechanical drive failure.

SMART data provides insights into the health and status of drives, helping identify failing components in the RAID array.

Why Not A (Run a magnet): This would damage drives.

Why Not B (Check if one drive is not level): Physical leveling is irrelevant.

Why Not D (Check OS logs): OS logs may provide limited information for RAID arrays.

Why Not E (Update RAID controller firmware): While important, it does not diagnose drive failure.

CompTIA A+ Exam Reference: Core 1 (220-1101), Section 3.3, storage troubleshooting​.

The most likely cause is a swollen battery, which occurs when the battery's internal components break down, causing a buildup of gas. This results in:

Physical Symptoms: The battery bulges, pushing the screen away.

Operational Symptoms: The device may still power on when connected to a charger but fails to hold a charge due to battery degradation.

Option A (Malfunctioning power supply): Incorrect. Power supply issues affect charging but do not cause physical bulging.

Option B (Damaged charge port): Incorrect. A damaged port can prevent charging but does not explain the bulge.

Option D (Broken screen): Incorrect. A damaged screen does not cause the device to bulge; it is likely a secondary effect of the swollen battery.

Safety Note: A swollen battery poses a risk of fire or explosion and should be replaced immediately following proper disposal procedures.

Comprehensive and Detailed In-Depth Explanation:

A degraded RAID 1 array usually means one of the drives has failed or is failing. The correct next step is to run diagnostics on each drive to identify the faulty one. RAID 1 uses mirroring, so one good drive should still contain all the data.

Option B: chkdsk checks file system integrity, not hardware drive health.

Option C: Rebuilding should only occur after identifying and replacing a faulty drive.

Option D: RAID 0 offers no redundancy and would destroy data in this context.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 3.5: Given a scenario, troubleshoot problems related to storage devices.

The CMOS battery powers the real-time clock (RTC) on the motherboard, which maintains the date and time when the computer is turned off. If the battery fails, the system will lose date and time settings, reverting to defaults on restart.

Why Not A (OS updates): While OS updates can sometimes cause time issues, they don’t typically affect changes persisting after shutdown.

Why Not C (NTP server): An incorrect NTP server setting would cause the system to synchronize incorrectly, but this issue relates to time resetting during power-off.

Why Not D (RAM): RAM is volatile memory and unrelated to storing persistent time settings.

CompTIA A+ Exam Reference: Core 1 (220-1101), Section 3.4, motherboard troubleshooting​.
