3V0-21.25 Advanced VMware Cloud Foundation 9.0 Automation Questions and Answers

VCF 9.0 Automation natively supports GitOps methodologies by providing version synchronization with Git-based repositories (such as GitHub, GitLab, or Bitbucket). This integration allows administrators and developers to treat infrastructure as code (IaC) by storing blueprints (Cloud Templates) as YAML files in a version-controlled environment. The platform can be configured to periodically sync with the repository, ensuring that the latest "released" versions in Git are automatically available in the VCF Automation service catalog. This enables a declarative management model where changes to infrastructure are proposed via Pull Requests, peer-reviewed, and then synchronized to the private cloud environment. While it facilitates the lifecycle of the templates, it is primarily a synchronization engine (Option A) rather than a full-scale CD tool like ArgoCD or a real-time "auto-apply" engine for running instances, providing the necessary balance between developer flexibility and operational governance.

In VCF 9.0, the Region construct acts as the bridge between physical vSphere infrastructure and the logical automation consumption layer. Storage policies (SPBM) are used to abstract the underlying physical datastores (such as vSAN, VMFS, or vVOLs). A region identifies which storage policies are available for consumption by the tenant organizations mapped to it. Consequently, storage policies determine which datastores are available within a region; if a datastore is not associated with a policy selected during region configuration, it cannot be used for workload placement. Furthermore, a storage policy can be associated with one or more regions. This allows a provider to offer standardized "Gold," "Silver," or "Bronze" storage tiers across different geographic or logical regions of the VCF fleet, ensuring a consistent consumption experience for developers regardless of which physical workload domain their virtual machines or Kubernetes pods are deployed into.

In VMware Cloud Foundation 9.0, the distinction between VMApps and AllApps Organizations is fundamental to how resources are consumed. VMApps Organizations are designed for traditional virtual machine workloads, leveraging existing vSphere-backed distributed switches or standard NSX-backed segments. In this model, networking is typically managed at the infrastructure level, and the automation portal simply maps these segments to the project. Conversely, AllApps Organizations introduce a modern cloud-consumption model centered around Virtual Private Clouds (VPCs). This enables "AllApps" users to dynamically provision isolated network spaces, utilize VPC-based routing, and manage ingress/egress services natively within the organization. The Development organization (AllApps) sees VPC-based options because it is built to support both Kubernetes and VM workloads in a self-service, cloud-native fashion, whereas the Finance organization (VMApps) is restricted to the pre-defined, "traditional" network paths assigned by the provider. This architectural separation ensures that legacy VM environments and modern application development environments can coexist with the appropriate levels of networking complexity and isolation.

In VMware Cloud Foundation 9.0, multi-tenancy is structured around the concept of Organizations. To meet the requirement of hosting multiple companies within a single private cloud with strict segregation and governance, the administrator must utilize the VMApps Organization model. Unlike the AllApps model, which is highly optimized for modern containerized and VPC-driven workloads, the VMApps Organization is specifically designed for environments requiring traditional VM-centric segregation and access control while sharing underlying physical infrastructure. Enabling a Supervisor cluster on the vCenter instance is a foundational prerequisite for these advanced automation capabilities. The Supervisor provides the necessary integration between the vSphere compute layer and the VCF Automation control plane, allowing for the instantiation of the Namespace and Organization constructs that enforce RBAC and resource quotas. By configuring a VMApps Organization per company, the administrator ensures that each tenant has a distinct administrative boundary, private catalog, and isolated resource allocation, effectively satisfying the requirements for hard tenancy within a consolidated private cloud environment.

VCF 9.0 introduces a more granular RBAC model to support complex operational requirements. To meet the first requirement regarding cluster lifecycle management, the administrator must assign the Cluster Administrator role to the operations group. This role provides the specific permissions needed to perform actions such as scaling, patching, and modifying the configuration of Supervisor or TKG clusters. By scoping this at the cluster level (or within the project containing those clusters), the operations group is empowered to maintain the resources without having broad administrative access to other organizational settings. For the second requirement, the Security Administrator role in NSX must be assigned to the network administrators group. By scoping this to the project, the network admins can manage distributed firewall rules, gateway policies, and security profiles specific to that project’s VPCs while being prevented from interfering with the compute lifecycle managed by the operations team. This separation of duties is essential for large-scale enterprise deployments to prevent unauthorized security changes or accidental cluster disruptions.

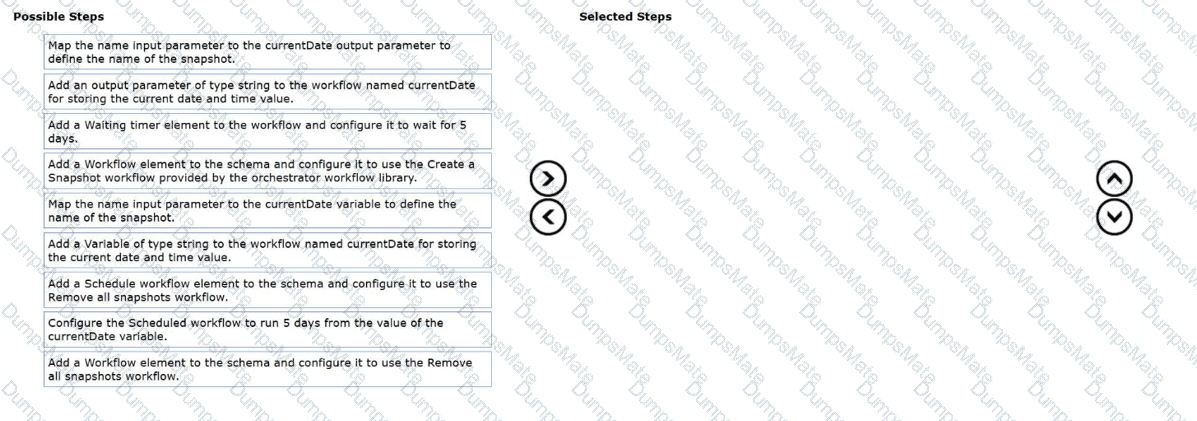

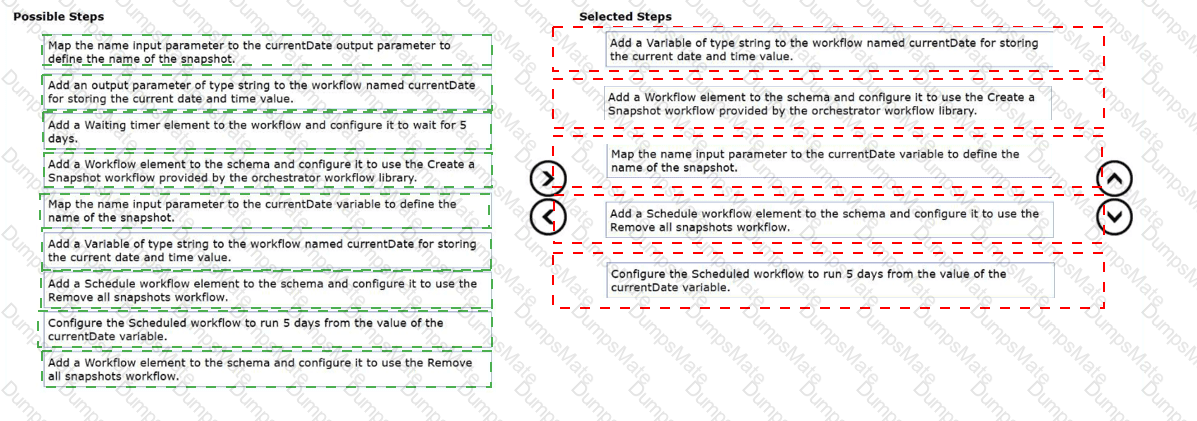

Add a Variable of type string to the workflow named currentDate for storing the current date and time value.

Add a Workflow element to the schema and configure it to use the Create a Snapshot workflow provided by the orchestrator workflow library.

Map the name input parameter to the currentDate variable to define the name of the snapshot.

Add a Schedule workflow element to the schema and configure it to use the Remove all snapshots workflow.

Configure the Scheduled workflow to run 5 days from the value of the currentDate variable.

In VMware Cloud Foundation (VCF) 9.0, the Operations orchestrator (vRO) is used to build complex, state-aware automation. To satisfy the requirement that the main workflow stops running while a second cleanup task triggers later, the administrator must use the Schedule workflow element rather than a "Waiting Timer". A waiting timer keeps the workflow "Active," consuming system resources for the duration of the wait (5 days), whereas a scheduled task is handed off to the orchestrator’s database to be triggered independently.

The configuration begins by defining a currentDate variable of type string. This variable captures the execution timestamp, which is then mapped to the Create a Snapshot library workflow to provide the required dynamic naming. To handle the automated cleanup, the administrator adds a Schedule workflow element. Unlike a standard workflow call, the scheduler allows for a specific execution offset. By configuring the Remove all snapshots workflow to run 5 days from the currentDate value, the administrator ensures the snapshot exists for exactly the maintenance and cooling-off period before being programmatically removed. This approach is robust against orchestrator service restarts and provides a clean, asynchronous method for managing the temporary infrastructure lifecycle in a VCF 9.0 environment.

In an AllApps (AIIApps) organization, resource entitlement follows the Supervisor-native path. To provide access to the "Gold Tier" storage, the VCF Automation administrator must first ensure the vSphere storage policy is recognized as a Storage Class by the Supervisor. The correct operational step is to Add the Storage Class backed by the Gold Tier policy to a Supervisor Namespace Class. The Namespace Class acts as the policy engine that governs what resources are "allow-listed" for the tenant. Once the Namespace Class is configured with the Gold Tier storage class, the administrator must bind that Namespace Class to the PerformanceTest Project. This makes the high-performance NVMe storage visible and available for use by the users within that specific project, allowing them to select it when deploying stateful applications or persistent volumes, without affecting other projects or organizations.

The AllApps Organization in VCF 9.0 is specifically engineered to provide the "cloud-native" consumption experience required by modern development teams. While traditional VM management is handled by VMApps, the AllApps model unlocks the full potential of the vSphere Supervisor. By leveraging Supervisor Services, the organization can present a catalog that goes far beyond simple IaaS. Developers can provision not only VMs and TKG clusters but also higher-level services like vSAN Data Persistence platform for S3-compatible storage and managed databases (e.g., PostgreSQL or MySQL) through integrated operators. This architecture abstracts the underlying vSphere and NSX complexity, presenting the developer with a unified API and UI for multi-cloud-style resource consumption, directly fulfilling the goal of providing a public-cloud-like experience within the on-premises data center.

In VCF 9.0, the AllApps (AIIApps) organization model allows users to interact with infrastructure using Kubernetes-native tools like kubectl. To establish this connection, the user must first Generate an API token from the VCF Automation UI. This token provides the necessary authentication context for the specific organization and project the user belongs to. Once the token is obtained, the user must use the VCF CLI (vcf-cli) to create a context. The VCF CLI is the specialized tool that bridges the gap between the VCF Automation API and the local kubeconfig file. By running the login command within the VCF CLI, a specialized context is injected into the user's kubectl configuration, mapping the local environment to the remote Supervisor Namespace and its associated VPC resources. This allows developers to use standard kubectl apply commands to provision virtual machines and other resources directly into their assigned tenant space.

In VCF 9.0 Automation, enabling the Operations Orchestrator (vRO) for a specific organization is an integration task performed within the portal's infrastructure settings. If the administrator sees a message stating "No VCF Operations Orchestrator integration available" under the Orchestrator tab, it indicates that the logical link between the Automation service and the Orchestrator engine has not been established for that tenant. To resolve this, the administrator must navigate through the following path: Infrastructure > Connections > Integrations. Under the Integrations menu, the administrator can select "Add Integration" and choose VCF Operations Orchestrator. They must provide the FQDN of the orchestrator server and the appropriate credentials. Once the integration is finalized and the "Collect Data" task completes, the Orchestrator tab will become functional, allowing the administrator to import, create, and manage workflows directly from the VCF Automation UI.

The Terraform provider for VCF Automation is the specific tool designed to allow Infrastructure-as-Code (IaC) workflows to interact with the VCF 9.0 API surface. In VCF 9.0, the provider has been expanded to support the newer Organization and Region-based architecture. By utilizing this provider, developers can declare Content Libraries, Cloud Zones, and Flavor/Image Mappings within their HCL (HashiCorp Configuration Language) files. While specific RBAC roles (like Organization Administrator) are necessary for the credentials used by the Terraform runner, the solution itself is the provider that translates Terraform commands into the correct REST API calls for the VCF Automation engine. This enables a consistent developer experience where infrastructure configuration is versioned in Git and applied programmatically, aligning with modern DevOps practices supported by the VCF 9.0 platform.

The primary architectural risk in any single-zone deployment within VCF 9.0 is the existence of a shared failure domain. In a single-zone Supervisor cluster or workload domain, all components—including the web, application, and database tiers—reside within the same logical and often physical infrastructure boundary (such as a single rack or data center room). If the underlying zone experiences a critical failure, such as a localized power outage, cooling failure, or a total top-of-rack switch collapse, the entire 3-tier application stack will go offline simultaneously. For mission-critical applications requiring high availability, VCF 9.0 recommends a multi-zone or stretched cluster architecture. In such designs, the failure of one zone does not compromise the entire application because the tiers can be distributed across different fault domains, ensuring that the stateless web tier and stateful database remain operational elsewhere. In the context of the 99.9% uptime requirement mentioned, a single-zone design represents a significant risk because it lacks the redundancy needed to survive zone-level disruptions.

To automate CMDB updates in VCF 9.0, administrators leverage the Event Broker Service (EBS) and Custom Forms. First, the administrator can Request additional metadata as input during the blueprint request. This ensures that unique information, such as "Cost Center" or "Application ID," is captured directly from the user at request time. Second, the admin must Configure a subscription that specifically listens for the "Post-Provisioning" event topic. This subscription acts as the trigger for the automation logic. Finally, the subscription invokes an ABX action or Orchestrator workflow that is programmed to Call a webhook endpoint on the CMDB API. This call sends a JSON payload containing both the system-generated metadata (e.g., VM UUID, IP address) and the user-provided inputs directly to the CMDB. This "closed-loop" automation eliminates manual data entry, reduces human error, and ensures that the asset repository is updated in real-time as soon as the infrastructure is live.

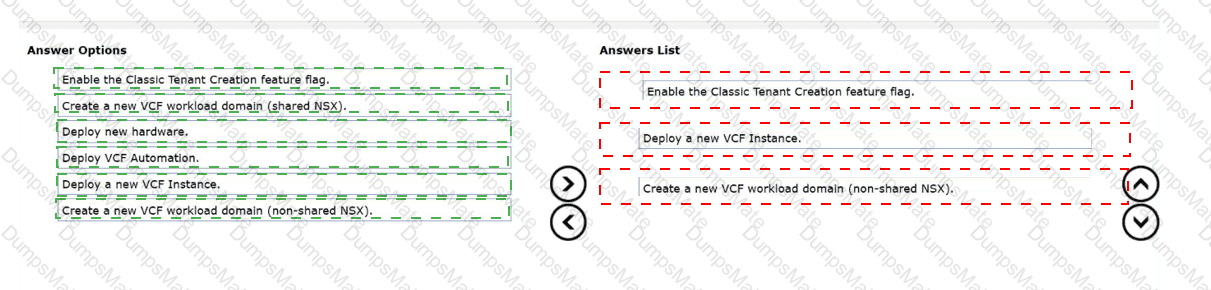

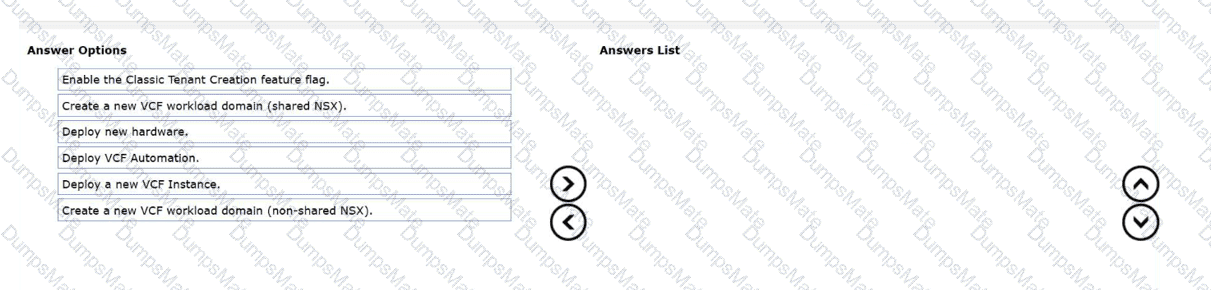

To create a new VM Apps organization with minimal operational overhead in a VCF fleet that already hosts an All Apps organization, select the following three actions:

Answers List

Enable the Classic Tenant Creation feature flag.

Deploy a new VCF Instance.

Create a new VCF workload domain (non-shared NSX).

In VMware Cloud Foundation (VCF) 9.0, the platform defaults to the modern AllApps (AIIApps) architectural model, which centers on Virtual Private Clouds (VPCs) and Supervisor-integrated networking. To introduce a VMApps Organization—the "classic" tenant model for traditional virtual machines—into this environment while maintaining minimal overhead, the administrator must first Enable the Classic Tenant Creation feature flag. This toggle exposes the legacy workflows necessary to provision organizations that do not rely on the VPC framework.

Furthermore, VMApps organizations typically require their own isolated networking and compute boundaries to avoid conflict with the modern VPC Transit Gateway architecture. Consequently, the administrator should Create a new VCF workload domain (non-shared NSX). Using a non-shared NSX manager ensures that the traditional segments and load-balancing services used by VM-centric workloads are logically and technically segregated from the container-optimized fabric of the AllApps organization. Finally, for a "fleet" approach, Deploying a new VCF Instance (or management block) provides the clean, dedicated infrastructure needed to host these legacy-style organizations with the highest degree of administrative isolation, ensuring that new VM-centric tenants do not consume resources or cause configuration drift within the existing AllApps environment.

The NSX Transit Gateway (TGW) is the architectural cornerstone of regional networking in VCF 9.0. In previous versions, administrators had to manually manage complex Tier-0/Tier-1 relationships for each tenant; however, VCF 9.0 abstracts this through the TGW. When a Region is created, the system automatically instantiates the Transit Gateway to act as the high-speed "backplane" for the organization. Every VPC created within that region connects to this TGW, which then handles all East-West traffic between VPCs and North-South traffic toward the corporate WAN or Internet. This design ensures that the routing logic is consistent, automated, and isolated from the physical underlying fabric. The TGW works in conjunction with VPC Connectivity Profiles to determine if a VPC is completely isolated or has an external path, providing a scalable and secure way to manage hundreds of isolated network segments without manual intervention.
