3V0-22.25 Advanced VMware Cloud Foundation 9.0 Operations Questions and Answers

In VCF 9.0, licensing is centralized through VCF Operations and the VCF Business Services console , and subscription-based license files replace traditional 25-character license keys for version 9 licensing. The documentation defines a license file as the object that proves to VCF Operations that the environment is licensed and notes that it can contain multiple license allocations . The primary VCF license is assigned to vCenter, after which connected components are licensed automatically. This includes components that previously used individual license keys, such as VMware HCX Enterprise , which maps to the VCF 9 license equivalent VMware Cloud Foundation (cores) . HCX licensing also occurs by detecting an active VMware Cloud Foundation cores license from the registered vCenter . For add-ons, VCF 9.0 explicitly supports license-file based add-on licensing for VMware vSAN (TiB) and VMware Private AI Foundation with NVIDIA (cores) . Therefore, the correct selections are Private AI Foundation with NVIDIA, HCX Enterprise through inherited VCF licensing, and vSAN Add-on Capacity. Reference topic: Objective 4.15 – Manage VCF licensing with VCF Operations / License files / Primary and add-on licenses / VCF Business Services console .

The scheduled oversized action remains valid for acme001, so the VM is reduced by 2 vCPU . Excluding the VM from the undersized list affects subsequent undersized resize actions, not the oversized action that was already scheduled. VCF Operations Rightsize separates oversized and undersized workflows. For oversized VMs, the administrator selects the Oversized VM tab, optionally excludes VMs, selects the target VMs, and schedules or runs the resize action to reduce vCPU or memory . For undersized VMs, the administrator separately selects the Undersized VMs tab, optionally excludes VMs, and then schedules or runs the scale-up action . The Rightsize table explicitly provides separate actions for oversized and undersized VMs, with Schedule Action , Resize VM(s) , and Exclude VM(s) available within each category . Because acme001 was selected for the oversized scheduled action before any undersized exclusion was applied, its vCPU reduction is still scheduled. Because the administrator then excluded acme001 from the undersized list before scheduling the undersized scale-up for the remaining VMs, acme001 is not included in that memory increase. Reference topic: Objective 4.2 – Rightsizing / Oversized and Undersized VM Actions / Exclude VM(s) / Scheduled Actions .

The required plug-in type is Webhook Notification Plugin . Workload Placement Action-based notifications are a specific notification type used for WLP virtual machine movement tasks , not standard alert notifications. The VCF Operations documentation states that administrators can create and manage Workload Placement action-based notifications and configure actions for which notifications are sent when a WLP action succeeds, fails, or times out. It further specifies that notifications are sent after the WLP VM movement task completes, regardless of final status . Before such notification rules can be created, the administrator must configure the Webhook Notification Plugin . In the WLP Action notification workflow, the outbound method supported by default is the Webhook Notification Plugin, and the administrator selects or creates a Webhook plug-in instance before selecting the payload template . This is reinforced in the payload-template workflow, where Action appears only when Webhook Notification Plugin is selected as the outbound method; WLP Action notification payloads are configurable only for Webhook . Network Share does not support notification rules, and SNMP or Standard Email are used for alert-style notifications, not WLP Action notifications. Reference topic: Objective 4.9 – Notifications / Outbound Plugins / WLP Action-Based Notifications .

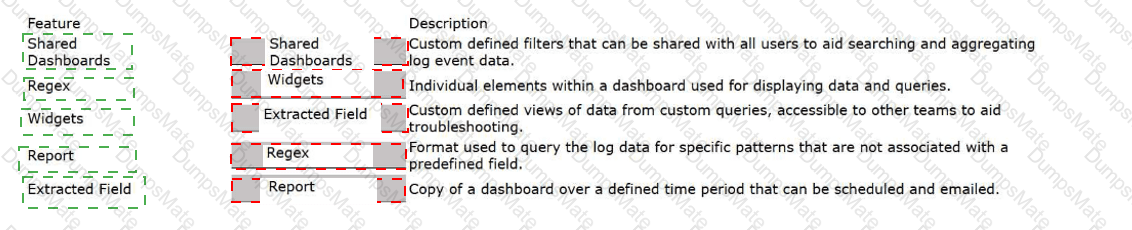

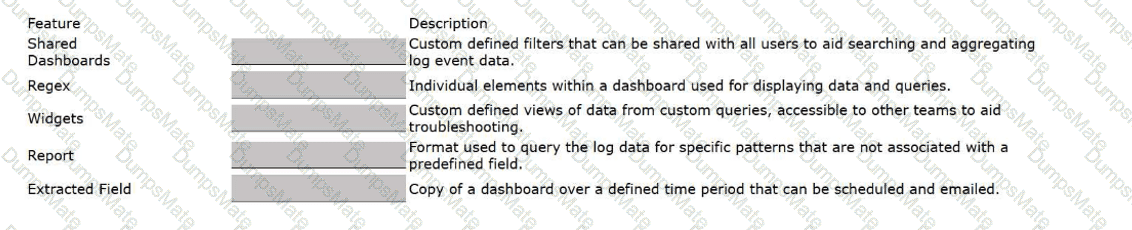

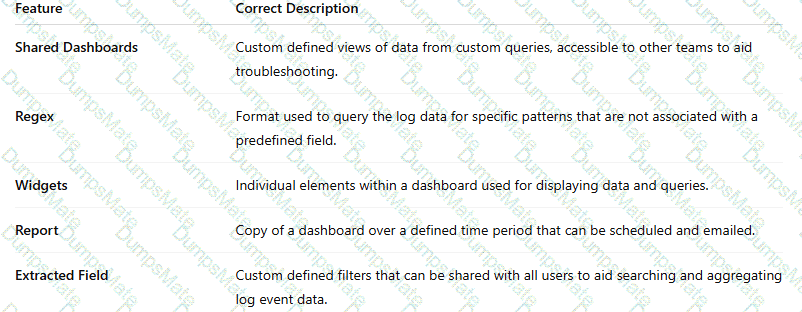

VCF Operations for Logs uses queries made from keywords, regular expressions, field operations, and aggregations. Regular expressions provide sophisticated pattern matching when keyword or glob searches are not sufficient. Extracted fields add structure to unstructured logs and can be used in filters and aggregations. Dashboards are created from widgets and views, while reports are scheduled snapshots of dashboards or views that can be distributed for offline review.

The correct administrative action is to clone the predefined dashboard and then modify the cloned copy. “Live! Heavy Hitters” is a predefined dashboard used to analyze shared infrastructure misuse and identify virtual machines with high activity against shared resources. Because it is delivered as predefined content, the supported customization pattern is not to directly edit the original dashboard, but to clone it and make changes to the copy. Broadcom’s dashboard documentation states that administrators can clone and edit predefined dashboards or create new dashboards from scratch. This preserves vendor-provided content while allowing operational teams to add site-specific widgets or metrics such as Cost | VM Cost Trend . Option A is not the best answer because changing ownership is used for ownership/sharing administration, not the preferred method for altering predefined dashboard content. Options B and C imply direct editing of the original dashboard, which is not the expected process for built-in dashboards. Option D is incorrect because exporting is used for portability or backup, not live customization. Reference topic: Objective 4.10 – Creating Custom Dashboards, Views and Reports in VCF Operations / predefined dashboards / clone and customize dashboard workflow .

The scheduled Reclaim action is created from the snapshot candidates visible at scheduling time, but execution still depends on the valid runtime state of each selected object. VCF Operations Reclaim supports scheduling snapshot reclamation from the Reclaim page; the administrator expands the cluster, selects one or more VMs or snapshots, and uses Schedule Action to run deletion later, with the job managed in Automation Central . The underlying delete snapshot action first retrieves snapshots based on age, then deletes selected snapshots, and the resulting task status is tracked in Recent Tasks . If a user reverts a VM to one of those snapshots before the scheduled job runs, that snapshot becomes part of the VM’s active rollback/current-state chain rather than an unused candidate that should be safely reclaimed. vSphere snapshot behavior requires caution because deleting a snapshot removes the ability to return to that snapshot state, and reverting changes the VM’s active snapshot relationship . Therefore, the reverted snapshot is not deleted, while the rest of the scheduled snapshot deletions can continue. The overall job is expected to finish as partially successful , reflecting that some selected objects were processed while the reverted snapshot was skipped or failed validation. Reference topic: Objective 4.2 – Reclaim Capacity / Snapshot Reclamation / Scheduled Actions / Automation Central .

The correct selections are A, C, and E . For VCF Operations for Logs content-pack query design, Broadcom’s documented leading practice is to build portable and efficient message queries. Queries should not be tied to environment-specific attributes such as a particular hostname, source, or facility, because content-pack queries must work consistently across customer environments and not depend on local naming conventions ( TechDocs ). For performance, the query should use the least expensive matching method first: keywords , then globs , and only then regular expressions when the simpler forms cannot meet the requirement. Broadcom explicitly documents that query construction should follow this keyword-to-glob-to-regex progression ( TechDocs ). Regular expressions are the most expensive search type, so when regex or field operations are required, the query should include as many selective keywords as possible to reduce the event set before regex processing occurs ( TechDocs ). Splitting text filters into multiple lines or multiple regex expressions increases complexity and cost. Boolean restructuring alone does not replace proper keyword-first design. Reference topic: Objective 4.12 – VCF Operations for Logs / Content Packs / Message Query Best Practices .

The correct configuration is to set Operational Intent Cluster Headroom to 20% and set Workload Optimization to Consolidate. VCF Operations Workload Optimization is governed by Operational Intent, which defines how workloads are placed and balanced across clusters. The Workload Automation policy settings define Workload Optimization goals as Balance, Moderate, or Consolidate. The documentation states that Consolidate proactively minimizes the number of clusters used by workloads, potentially freeing resources and supporting cost optimization while still meeting performance goals . That directly maps to the requirement to place workloads into as few clusters as possible. The same policy workspace includes Cluster Headroom, which establishes a required capacity buffer, with the documentation explicitly giving 20 percent as an example and explaining that it preserves extra space for growth inside the cluster . Business Intent tags are used for placement rules based on vCenter tag categories such as operating system, environment, tier, network, or other business constraints, not for defining operational headroom or consolidation strategy . Reference topic: Objective 4.6 – Workload Optimization / Operational Intent / Consolidate mode / Cluster Headroom.

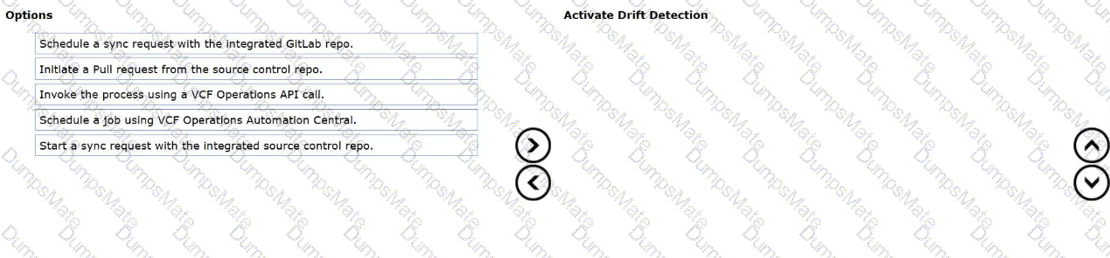

Invoke the process using a VCF Operations API call.

Schedule a job using VCF Operations Automation Central.

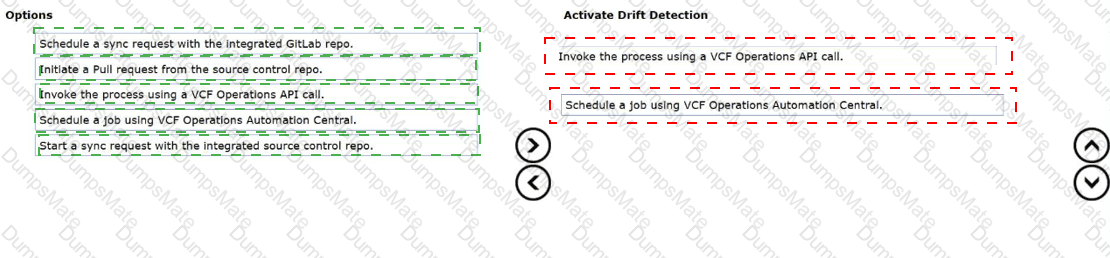

The two valid activation methods are to invoke Drift Detection through a VCF Operations API call and to schedule a job using VCF Operations Automation Central . VCF Operations Configuration Drift uses desired-state templates assigned through policy to compare vCenter and vSphere cluster configuration values against approved standards. The VCF 9.0 documentation states that unified configuration management supports scheduled drift detection for vCenter and cluster objects and allows administrators to schedule drift detection through VCF Automation or the VCF Operations orchestrator . The scheduling workflow is performed from Fleet Management > Configuration Drifts > Schedule Drift Detection , where the administrator defines the scope, criteria, and schedule; after creation, VCF Operations creates a new job in Automation Central . API invocation is also valid because VCF Operations exposes fleet and cloud proxy functionality through APIs for automation-driven operations . The GitLab or source-control sync options are not correct because source control synchronizes configuration templates, not the drift detection process itself. Pull requests govern template change review, not drift execution. Reference topic: Objective 4.16 – Monitor Security, Compliance and Configuration / Configuration Drift / Scheduled Drift Detection / Automation Central / API-driven operations

The correct troubleshooting sources are the Request Log , the Management Pack Builder Adapter log , and the Integration Designer Controller log . Management Pack Builder troubleshooting is centered on validating the API requests, collection execution, adapter behavior, and server-side design processing. The VCF 9.0 documentation states that every test request or test collection in Management Pack Builder exposes request tabs showing the body, headers, and logs; these are used to diagnose response-code errors and request/response issues . For collection problems after installation, the administrator should review Management Pack Builder Adapter logs , located under $VCOPS_BASE/user/log/adapters/MPBAdapter on the selected node or cloud proxy, because these logs show adapter-side warnings and errors during collection . If the issue appears to be with Management Pack Builder itself, the official guidance identifies /usr/lib/vmware-vcops/user/log/integration-designer-controller.log as the server-side log to review . The Design Screen is used to build and verify definitions, but it is not one of the listed troubleshooting data sources. Observability Workbench is for infrastructure troubleshooting, not Management Pack Builder design diagnostics. Reference topic: Objective 4.8 – Management Pack Builder / Troubleshooting a Design .

The correct setting is ssl_accept_any_trusted=yes in the agent configuration. VCF Operations for Logs agent SSL communication is controlled from the agent configuration file under the [server] section. A secure agent configuration uses proto=cfapi, ssl=yes, and the secure ingestion port, and then defines how the agent validates the server certificate. Broadcom documentation examples for secure Operations for Logs agent communication show the agent configuration using ssl_accept_any_trusted=yes, with ssl=yes and the certificate trust settings, to allow the agent to establish encrypted communication while accepting the trusted certificate presented by the server . Broadcom’s Operations for Logs SSL parameter documentation also states that ssl_accept_any accepts any certificate when set to yes or 1, but that is broader and less controlled than accepting the trusted self-signed certificate path . Port 9000 is not the SSL ingestion setting, and proto=syslog is not the Log Insight agent CFAPI configuration. Copying the certificate alone is not the requested agent.ini modification. Reference topic: Objective 4.12 – VCF Operations for Logs / Agent SSL Parameters / Encrypted Agent Communication .

The failure is caused by removal of the Linux socket statistics utility, ss , and visibility is restored by reinstalling or restoring that utility. VCF Operations Service Discovery relies on in-guest commands to identify running services and network relationships. For UNIX/Linux operating systems, the documented Service Discovery command and utility requirements are ps , ss , and top . If a hardened Linux image removes ss under least-functionality controls, VMware Tools and the Service Discovery plug-in can still be present, but the collector cannot perform the required service enumeration. This explains why legacy Linux systems still work while newly hardened systems do not. The correction is to restore the ss utility and ensure the discovery user can execute it. The documentation also shows that for non-root Linux users, sudoers may need NOPASSWD entries that include the ss path so collection scripts do not block on password prompts . tcpdump is not listed as a Service Discovery prerequisite, and netstat is a Windows Service Discovery utility in this context, not the required Linux dependency. Reference topic: Objective 4.7 – Service Discovery / Linux prerequisites / Supported commands and utilities .

The administrator must deregister the second VCF Instance from the existing Single Sign-On configuration . In this scenario, the second VCF Instance is currently attached to an SSO configuration whose identity source is managed by the first VCF Instance. The requirement is not merely to change the LDAP provider on the existing shared configuration; it is to connect the second instance to a new SAML 2.0 Identity Provider and a new VCF Single Sign-On configuration . The VCF 9.0 documentation provides a specific workflow for this condition: when a VCF Instance must be removed from an existing SSO configuration, the administrator navigates to the VCF Instance, opens Component Configuration , filters configured components, selects all configured components, and clicks Deregister Component . After all registered components are deregistered, the page reloads and allows the administrator to either connect to an existing SSO configuration or create a new SSO configuration for that VCF Instance . Resetting the first instance would disrupt the controlling SSO configuration. Resetting the second instance is used for changing identity-source details within its own SSO lifecycle, not for detaching it from an SSO configuration managed by another instance. Reference topic: Objective 4.14 – Fleet Management / Identity and Access Management / VCF Single Sign-On / Deregister VCF Instance from SSO .

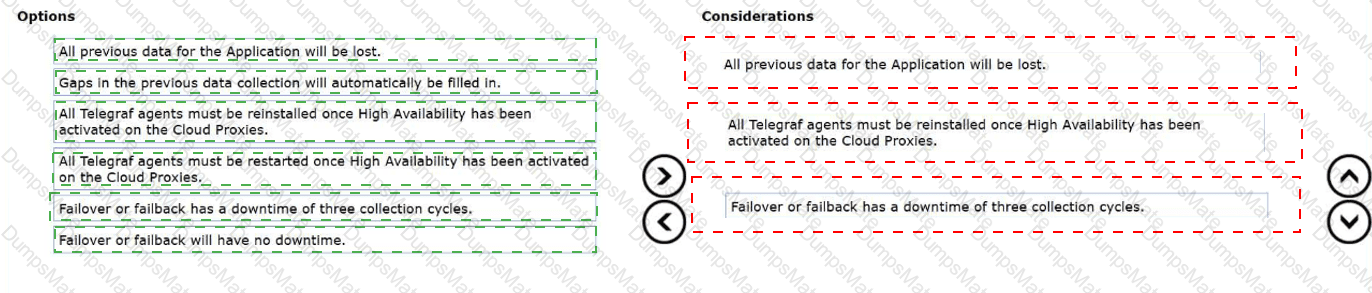

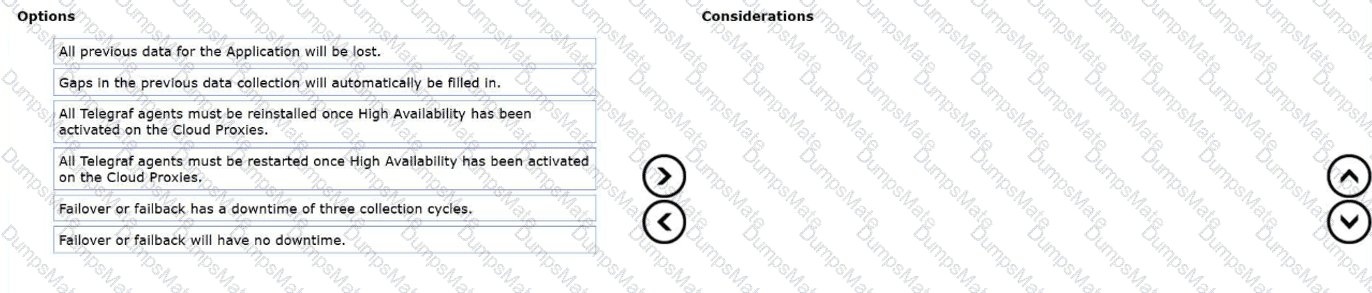

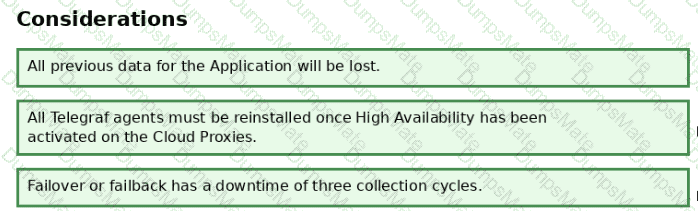

The three required considerations are data loss, agent reinstallation, and failover/failback downtime. VCF Operations supports Application Monitoring High Availability for collector groups so application monitoring can continue when a cloud proxy or cloud proxy component fails. The documentation states that cloud proxies in an application-monitoring HA collector group operate in a primary-secondary mode . However, existing Telegraf agents cannot simply be converted to HA. To move an existing target machine to application monitoring HA, the administrator must install or reinstall the agent using an application-monitoring HA activated collector group . The same guidance states that adding a cloud proxy currently used by Telegraf agents to an HA activated collector group causes loss of existing application data, so historical application data must be treated as non-preserved during this transition . Finally, HA does not eliminate all interruption: failover or failback has a downtime of three collection cycles , and adding or removing a cloud proxy from the HA collector group also has a three-cycle downtime . Reference topic: Objective 4.7 – Monitor Applications / Product-Managed Telegraf / Application Monitoring High Availability / Collector Groups .

The OUT_OF_SYNC state indicates that the configuration template state in VCF Operations no longer matches the corresponding state expected from Source Control. VCF Operations supports GitHub-based source control so configuration templates can be synchronized to and from a repository, and the documented sync workflow explicitly changes template status back to IN_SYNC after the administrator uses the Sync option in VCF Operations . A template can become out of sync when it is modified outside the VCF Operations workflow, such as being edited directly in the GitHub repository. It can also become out of sync if the corresponding template file is deleted from the repository, because VCF Operations can no longer reconcile the local template object with its source-controlled copy. If the source-control configuration itself is deleted, VCF Operations loses the configured repository association required to validate and synchronize templates. Removing a template from a policy or removing a vCenter instance from a drift-detection job affects drift evaluation scope, not Git template synchronization. Reference topic: Objective 4.16 – Configuration Drift / Source Control Integration / Syncing Configuration Templates with GitHub .
