3V0-24.25 Advanced VMware Cloud Foundation 9.0 vSphere Kubernetes Service Questions and Answers

VCF 9.0 explicitly documents thatVKS supports two CNI options: Antrea and Calico, and that thesystem-defined default CNI is Antrea. This directly eliminates Flannel and Cilium as default supported options for VKS clusters on Supervisor in this context. VCF 9.0 also describes how a vSphere administrator can view or change this setting in the vSphere Client underSupervisor Management → Configure → Kubernetes Service → Default CNI, further reinforcing that Antrea is the baseline/default choice.

From a policy perspective in the question, the requirement is Kubernetes-layer observability and control of pod communications “without additional licensing or overlay complexity.” Antrea is presented in VCF 9.0 as the default CNI and is implemented usingOpen vSwitch, with networking and network policy capabilities provided at the Kubernetes layer for pods and services. Because it is the documented default (and supported) option for new VKS clusters, selectingAntreabest aligns with the “default supported option” requirement.

In Workload Management, updating the Supervisor and updating VKS clusters are related but distinct lifecycle operations. The Supervisor runs its own Kubernetes distribution, while VKS clusters consume vSphere Kubernetes releases (VKrs). These are “delivered differently,” with Supervisor Kubernetes releases and VKrs each having their own release cadence and compatibility constraints. As a result, successfully updating the Supervisor control plane does not automatically change the Kubernetes version running inside an existing VKS workload cluster; the VKS cluster must be updated to a compatible VKr separately. This mismatch is exactly why an application can still fail after a Supervisor update: the DevOps engineer is still deploying onto a cluster that hasn’t been updated to the Kubernetes version required by the application (or by the API versions/features it depends on). Additionally, Workload Management enforces sequential minor-version updates and compatibility checks between Supervisor and VKrs, so the correct remediation is to update the VKS cluster to an appropriate VKr that satisfies both application needs and Supervisor compatibility.

VCF 9.0 documentation explicitly indicates thatvCenter upgrades and the Supervisor/cluster (Workload Management) upgrade are distinct, noting that “if you have only upgraded vCenter and not the cluster” then DevOps engineers have reduced permissions until the cluster is upgraded. This supports the stated standard that VKS/Workload Management lifecycle can be treated separately from vCenter. For the private registry requirement, VCF 9.0 provides an operational mechanism to authenticate and pull artifacts from private registries: “Registry secrets allow package and repository consumers to authenticate to and pull images from private registries,” implemented via a standard Kubernetes Secret of type kubernetes.io/dockerconfigjson.

Taken together, the standard implies (1)asynchronoushandling (separate lifecycle from vCenter) and (2)privatesourcing (images pulled from an internal registry with registry secrets). Therefore, selectingAsynchronous Privatebest matches both requirements in a single configuration choice, aligning with the documented separation of upgrades and the documented need to use authenticated access to private registries.

Within the VMware Cloud Foundation (VCF) 9.0 ecosystem, managing security and multi-tenancy in the vSphere Supervisor and associated workload clusters relies on Kubernetes Role-Based Access Control (RBAC). A Role is the specific Kubernetes object used to define a set of permissions that are scoped to a single namespace. While a ClusterRole defines permissions at the cluster level (across all namespaces or for cluster-scoped resources), a Role is explicitly designed to govern what actions a user or service account can perform within the boundaries of a specific Supervisor Namespace.

In a VKS environment, when a platform administrator grants a user access to a namespace, the system creates or references a Role (or a ClusterRole bound to a specific namespace via a RoleBinding) to specify allowed operations such as " get, " " list, " " create, " or " delete " on pods, deployments, and services. VCF 9.0 documentation highlights that utilizing namespaced Roles is a best practice for implementing the principle of least privilege, ensuring that developers or applications in one namespace cannot impact or view resources in another. This granular control is essential for enterprise environments where multiple teams share the same vSphere infrastructure. While " User " represents the identity and " Networkpolicy " handles traffic flow, the Role is the foundational object that defines the administrative or operational capabilities allowed within the namespace ' s logical boundary.

VCF 9.0 positions VKS clusters as Kubernetes-native environments where platform teams install and manage “standard packages” and add-ons. In VCF Automation’s VKS overview, VMware states that a set of packages is automatically included with a VKS cluster, includingkapp-controllerandsecret-gen controller. These components are part of theCarveltoolchain used for packaging and deploying applications/configuration in a Kubernetes-friendly, declarative way.

In addition, the VCF 9.0 CLI “package” workflows explicitly supportytt overlaysduring package installation/updates (for example, --ytt-overlay-file and --ytt-overlays), which are configuration mechanisms associated with Carvel-based packaging workflows.

Helmis the other widely used Kubernetes package manager for installing and configuring applications through charts and values, and is commonly used by DevOps teams on Kubernetes clusters such as VKS for app deployment and configuration management. By contrast, Fluent Bit is a log shipper, Multus is a CNI multiplexer, and Grafana is a visualization tool—none are package management tools.

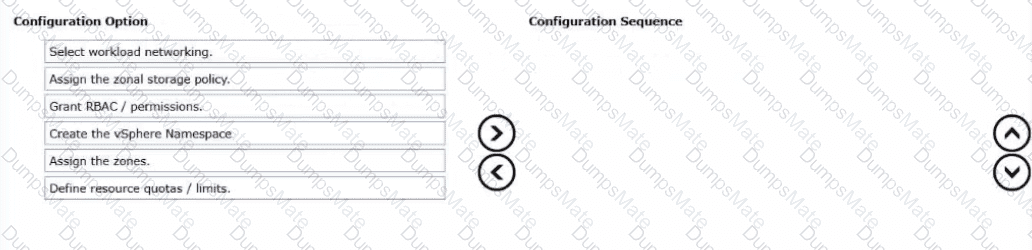

Configuration Sequence (in order):

Create the vSphere Namespace

Assign the zones

Select workload networking

Assign the zonal storage policy

Define resource quotas / limits

Grant RBAC / permissions

A zonal vSphere Namespace is created as a standard namespace first, then “zonalized” by associating it with one or morevSphere Zonesso workloads can be scheduled according to zone placement rules. You start bycreating the namespacebecause it is the tenancy and governance container where networking, storage access, quotas, and permissions are applied. Next, youassign the zones, since zone association is what makes the namespace “zonal” and determines where Kubernetes workloads (and their node pools) are allowed to land.

With zones set, you configureworkload networking, because namespaces must have the correct network attachment and IP behavior for the workloads that will be placed across the selected zones. Then youassign the zonal storage policy, ensuring that persistent volumes can be provisioned using storage that is valid/available for the zone placement model you selected. After networking and storage access are defined, you setresource quotas/limits(CPU, memory, storage) so multi-tenant consumption stays within governance boundaries. Finally, yougrant RBAC/permissionsso the right DevOps/users can consume the namespace and provision clusters/workloads under the enforced controls.

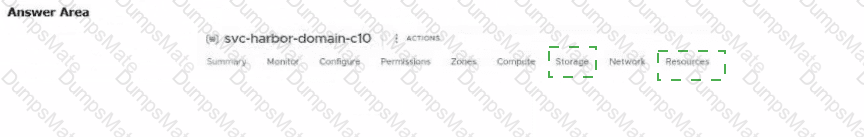

Storage

Resources

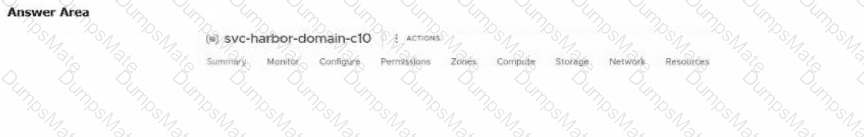

When a stateful pod (like Harbor’s database) is stuck Pending/ContainerCreating or repeatedly failing to attach/mount storage, one of the first checks is whether the PVC’sAccess Modesmatch what the workload and backing storage support (for example, ReadWriteOnce vs ReadWriteMany). In Kubernetes, the PVC and PV explicitly showAccess Modes(for example Access Modes: RWO) when you inspect them.

In the vSphere Namespace UI, theStoragetab is where namespace storage is managed and reviewed (including storage policy assignments that back storage classes/PVCs), making it the natural place to validate the storage configuration being consumed by the Harbor database PVC. VMware’s VCF documentation directs administrators to navigate to a namespace and use theStoragetab for storage-related settings.

TheResourcestab is the Kubernetes-object oriented view for the namespace, where you can locate the PVC object associated with the failing pod and inspect its properties/YAML (including the requested storage class and access mode intent). Namespace permissions explicitly include the ability to view Kubernetes resources within the namespace, which aligns with checking PVC details there.

VCF 9.0 explicitly lists thecomponents that run in a VKS clusterand groups them into areas such as authentication/authorization, storage integration, pod networking, and load balancing. In that list, the documentation names:“Container Storage Interface Plugin”(a paravirtual CSI plug-in that integrates with CNS through the Supervisor),“Container Network Interface Plug-in”(a CNI plugin that provides pod networking), and“Cloud Provider Implementation”(supports creating Kubernetes load balancer services).

These three items map directly to the answer choicesD (Container Storage Interface),F (Container Network Interface), andA (Cloud Provider Implementation). The same VCF 9.0 section also mentions an authentication webhook, but that component is not offered as a selectable option in this question, so the best three matches among the provided choices are the CSI, CNI, and cloud provider implementation entries that the document explicitly states are present inside a VKS cluster.

In VMware Cloud Foundation (VCF) 9.0, providing secure, centralized access to Kubernetes clusters is a critical requirement for enterprise compliance. The vSphere Kubernetes Service (VKS) utilizes OpenID Connect (OIDC) as the primary supported protocol for integrating with external identity providers (IdPs). While vCenter Server itself supports SAML 2.0 for administrative access to the vSphere Client, the workload clusters (VKS) specifically leverage OIDC to provide a modern, token-based authentication flow for developers and automated systems.

Through the integration of the Pinniped authentication service within the vSphere Supervisor, administrators can configure VKS clusters to delegate authentication to external providers like Okta, Microsoft Entra ID (formerly Azure AD), or PingFederate. When a developer uses the kubectl vsphere login command, the system facilitates an OIDC flow that issues short-lived identity tokens. This ensures that user identities are managed in a single source of truth rather than locally on each cluster. Although Active Directory (Option D) is a common identity source, it is typically reached via an OIDC provider or integrated into vCenter ' s SSO, which then presents an OIDC interface to the Kubernetes API. VCF 9.0 documentation emphasizes OIDC because of its native compatibility with Kubernetes authentication headers and its ability to handle complex claims and group memberships efficiently within a cloud-native SDDC environment.

In VMware Cloud Foundation 9.0 and vSphere Supervisor architectures, the decision to deploy aSingle-Zoneor aMulti-ZoneSupervisor is made at the time ofinitial enablement. A Single-Zone Supervisor is tied to a specific vSphere Cluster. A Multi-Zone Supervisor requires a minimum of three vSphere Zones (each mapped to a cluster) to be defined before the Supervisor is deployed so that the Control Plane VMs can be distributed for high availability.

Currently, there is no supported " in-place " migration path to convert a deployed Single-Zone Supervisor into a Multi-Zone Supervisor by simply adding zones later. If an organization requires the high availability provided by a three-zone architecture, the administrator must decommission the existing Single-Zone Supervisor and then re-enable the Supervisor Service using the Multi-Zone configuration wizard. This design ensures that the underlying Kubernetes Control Plane components are correctly instantiated with the necessary quorum and anti-affinity rules that can only be established during the initial " Workload Management " setup phase.

In Kubernetes RBAC, cluster-wide permissions are defined withClusterRoleand granted to a user, group, or service account by creating aClusterRoleBinding. The VCF 9.0 documentation for VKS cluster access describes the RBAC workflow used to grant access: first you “define a Role or ClusterRolefor the user or group,” and then you “create a RoleBinding or ClusterRoleBindingfor the user or group and apply it to the cluster.” This wording reflects the RBAC distinction:RoleBindingis scoped to a namespace, whereasClusterRoleBindingis used when the permissions must apply at thecluster scope(cluster-wide resources and/or across namespaces).

VCF 9.0 further illustrates the purpose of ClusterRoleBinding in a token-auth example: it lists the required objects, including “ClusterRole: This defines the access to the Kubernetes cluster” and “ClusterRoleBinding: This binds the created Service Account with the defined ClusterRole.” That binding step is what grants the subject the cluster-level privileges defined in the ClusterRole, makingClusterRoleBindingthe correct object for permissions to cluster-wide resources.

VCF 9.0 explains pod fundamentals by describing how Workload Management introducesvSphere Pods, stating a vSphere Pod is “equivalent of a Kubernetes pod” and that it “runs one or more Linux containers.” This directly eliminates optionB, because a pod can includeone or morecontainers (not only one).

The vSphere 9.0 documentation further defines a KubernetesPodas “a group of one or more containerized applications that share such resources as storage and network,” and notes the containers inside a pod are “started, stopped, and replicated as a group.” That definition reflects Kubernetes’ scheduling and lifecycle model: Kubernetes treats the pod as the primary unit it places and manages together, which is why a pod is regarded as thesmallest deployable unitfor running containerized workloads in Kubernetes. OptionsCandDare incorrect because pods are Kubernetes objects (not “managed by Docker” as a smallest entity), and Kubernetes abstracts the underlying runtime/host so pods are not defined as being “deployed directly on the virtual machine” as a characteristic.

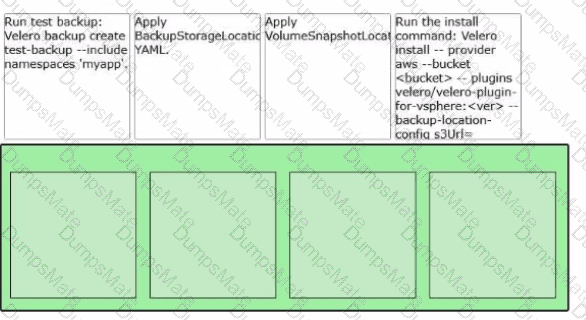

Answer (Correct Order):

Run the install command:velero install … --provider aws --bucket < bucket > … --plugins … --backup-location-config …

Apply BackupStorageLocation YAML.

Apply VolumeSnapshotLocation YAML.

Run test backup:velero backup create test-backup --include-namespaces " myapp1 "

The correct sequence follows Velero’s operational model: install the Velero components first, then define where backups and snapshots are stored, and finally validate with a real backup. In VCF 9.0, the Velero Plugin for vSphere installation command includes parameters for the object-store provider, bucket, and plugin images, which establishes the Velero control plane in the target namespace and prepares it to communicate with an S3-compatible store.

After the installation is in place, you apply theBackupStorageLocationconfiguration so Velero has a durable destination for Kubernetes backup metadata in the object store. This aligns with the VCF 9.0 guidance that backups upload Kubernetes metadata to the object store and require S3-compatible storage for backup/restore workflows.

Next, apply theVolumeSnapshotLocationso Velero knows how and where to create/track volume snapshots for stateful workloads. The VCF 9.0 install example explicitly includes snapshot/backup location configuration parameters, reflecting that both must be set for complete protection.

Finally, run a test backup scoped to the namespace (--include-namespaces=my-namespace) to confirm end-to-end functionality.

The errors described—specifically the memcache.go failure, the inability to fetch resource lists for Antrea, and the YAML context error—are classic symptoms of aConfiguration Context mismatch. In VCF 9.0, there are two distinct layers of API interaction: theSupervisor Cluster API(used for management tasks like creating clusters) and theGuest Cluster API(used for deploying workloads within the VKS).

When an administrator upgrades a Supervisor, the API endpoint or the available API groups may change. If the administrator attempts to run kubectl commands against a VKS cluster while their kubeconfig context is still pointing to the Supervisor (or vice versa), the client will encounter " mapping values " errors and " unable to handle request " errors because it is sending requests to an endpoint that does not recognize those specific resource definitions (like Antrea stats in the wrong context). To resolve this, the administrator must ensure they have switched to the correct context using kubectl config use-context < cluster-name > after the Supervisor update to ensure the local client is communicating with the correct API server and version of the Kubernetes binaries.

VCF 9.0 design guidance for theSupervisor NSX Load Balancer modelstates that theNSX load balancers run on NSX Edges, and sets explicit sizing requirements at theEdge nodelevel. In the “NSX Load Balancer Design Requirements,” VCF 9.0 requires that theNSX Edge cluster must be deployedbecause “NSX Load Balancers run on NSX Edges.” It further requires that“NSX Edge nodes must be deployed with a minimum of Large form factor”because NSX load balancers havefixed resource allocations on NSX Edge nodes, and the Large form factor is needed to accommodate basic system and workload needs.

This directly ties “deployment size” of the load balancer service capacity to theEdge node form factor(Small/Medium/Large, etc.) rather than the number of pods or the number of clusters. The document also notes that if additional load balancers are required, NSX Edges can bescaled up or out, again reinforcing that sizing is anEdge nodesizing decision.

In VCF 9.0 Workload Management, workload backup for VKS clusters (and vSphere Pods) is performed using Velero, specifically theVelero Plugin for vSpherefor Supervisor/VKS scenarios. The documentation describes that you must firstprovide an S3-compatible object storeas part of installing and configuring the Velero Plugin for vSphere, because backup data (Kubernetes metadata and volume snapshot data movement) relies on object storage rather than “namespace storage.” The backup workflow further indicates that when you create a backup, the system uploadsKubernetes metadata to the object store, and persistent volume snapshot handling is coordinated through the plugin components (Snapshot/Upload custom resources).

Therefore, the correct configuration pattern is to point Velero’s backup target (BackupStorageLocation) at anS3-compatible object storeendpoint so metadata and snapshot payloads have a durable destination. This aligns with the documented prerequisite that object storage is required to enable backup/restore operations for persistent workloads, and it is the mechanism Velero uses to store backup artifacts for later restore operations in VKS environments.

In the architecture of VMware Cloud Foundation (VCF) 9.0 and the vSphere Supervisor, a vSphere Pod (sometimes referred to as a Supervisor Pod) represents a unique execution model for containers. Unlike standard pods in a vSphere Kubernetes Service (VKS) workload cluster—which run as containers on top of a shared Linux guest operating system within a worker node virtual machine—a vSphere Pod runs directly on the ESXi hypervisor. This is achieved through the Container Runtime for ESXi (CRX) .

Each vSphere Pod is essentially wrapped in a highly optimized, lightweight virtual machine that contains its own dedicated Linux kernel. This architecture provides the strongest possible security isolation, as it utilizes the hardware-level boundaries of the hypervisor rather than just the software namespaces of a shared guest OS. Because each pod has its own kernel, the " attack surface " is significantly reduced, preventing container breakout scenarios from affecting other workloads. From an operations perspective, this allows vSphere administrators to view and manage these pods as first-class objects within the vCenter inventory, applying vSphere storage policies and viewing real-time performance metrics directly on the ESXi host. While VKS workload clusters are the primary vehicle for general-purpose Kubernetes applications in VCF 9.0, the vSphere Pod remains a key capability for high-security or performance-critical workloads that require the dedicated resources and isolation of a unique kernel instance.

In Kubernetes terms,non-persistentpod data (for example, transient logs and scratch space) is handled byephemeral storage, meaning the data exists only for the lifetime of the pod/workload and is not meant to survive beyond it. In the VCF Workload Management documentation, this concept is described directly: a pod requiresephemeral storageto store transient Kubernetes objects such as “logs” and “emptyDir volumes,” and this ephemeral (transient) storage “lasts as long as the pod continues to exist,” disappearing when the pod reaches end of life.

While VKS clusters can also consumepersistent storagethrough storage classes and CSI integration for stateful needs, that is specifically for data that must be retained (persistent volumes/claims). The question asks specifically aboutnon-persistentpod data, which aligns with the documented ephemeral/transient storage behavior for pod runtime needs. Therefore, the correct choice isEphemeral storage.

In VCF 9.0 VKS clusters, network policy is a core Kubernetes networking control implemented by the cluster’s CNI (Antrea or Calico). The VCF documentation’s “VKS Cluster Networking” table describesNetwork policyas the feature that “controls what traffic is allowed to and from selected pods and network endpoints,” and identifies Antrea or Calico as the providers for this capability. That definition precisely matches optionB: it governs pod-to-pod and pod-to-external endpoint communication rules. This is different from ingress routing (which the same table describes separately as “Cluster ingress … routing for inbound pod traffic”), so option C is not correct for “network policy.” It is also different from NodePort behavior (external access via a port on each worker node through the Kubernetes network proxy), which is explicitly listed as “Service type: NodePort.” Finally, creating/operating clusters natively in Supervisor is a broader lifecycle function (Cluster API/VKS API), not the definition of network policy. Therefore,NetworkPolicyis the Kubernetes-layer mechanism to define and enforce allowed traffic flows.

Contour is a high-performance Ingress controller for Kubernetes that serves as the control plane for the Envoy edge and service proxy. Within the VMware Cloud Foundation (VCF) 9.0 and vSphere Kubernetes Service (VKS) architecture, Contour is a critical component used to manage how external traffic reaches services running inside a cluster. It functions specifically at the application layer (Layer 7 of the OSI model), enabling sophisticated routing based on HTTP paths, hostnames, and headers.

By utilizing the Envoy proxy, Contour provides a scalable and maintainable way to handle standard Kubernetes Ingress resources as well as the more advanced HTTPProxy custom resource definitions (CRDs). In a VKS environment, once the Supervisor is configured and a workload cluster is deployed, Contour is typically installed as a managed package to provide ingress services. It handles essential tasks such as SSL/TLS termination, which offloads the encryption overhead from individual application pods, and supports advanced traffic management patterns like canary deployments or blue-green updates. Unlike traditional load balancers that may operate only at Layer 4, Contour’s deep integration with the Kubernetes API allows it to dynamically update routing rules as pods scale or fail, ensuring high availability and fine-grained control for containerized applications. This makes it the standard solution for application-layer ingress management across the VMware Tanzu and VKS ecosystem.

A Virtual Machine Class (VM Class) in VMware vSphere with vSphere Supervisor is a policy-driven construct used to define the resource footprint of virtual machines managed via the Kubernetes API. Within the VCF 9.0 ecosystem, the VM Class acts as a blueprint that specifies the amount of virtual CPU (vCPU) and Memory (RAM) allocated to a VM instance. This abstraction allows developers to request standardized sizes (such as " best-effort-small " or " guaranteed-large " ) without requiring direct access to the underlying ESXi host configurations.

In the context of the vSphere Kubernetes Service (VKS), when a user deploys a VirtualMachine object or a Tanzu Kubernetes Cluster node, the system references the assigned VM Class to determine the resource reservations and limits. The vSphere Supervisor ensures that the hypervisor correctly allocates these compute resources based on the specified class. While specialized VM Classes can be created to support advanced hardware like GPUs (using PCI passthrough), the primary and mandatory resources defined in every VM Class are CPU and Memory. Storage is managed independently through StorageClasses and Persistent Volume Claims (PVCs), while networking is governed by the Supervisor Namespace ' s network settings. By centralizing these compute definitions, VCF 9.0 provides a consistent, scalable method for platform administrators to manage hardware resources while offering self-service capabilities to DevOps teams.
