4A0-D03 Nokia SR Linux EVPN and Data Center Interconnect Questions and Answers

Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:

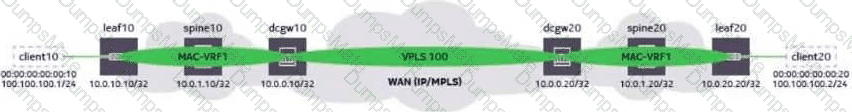

For Layer 2 data center interconnect using an integrated gateway, VPLS 100 on the Nokia 7750 SR represents the WAN-side Layer 2 VPN service. The VPLS requires an EVI because EVPN uses the EVI to identify the L2 service instance in the control plane. It also requires BGP EVPN signaling with the appropriate route targets so the local and remote service instances can import the correct EVPN routes. Because the service is transported across the WAN, the BGP/EVPN instance must be associated with the MPLS transport tunnels toward the remote gateway, dcgw20. A VXLAN instance with a VNI is not configured in the 7750 SR VPLS 100 for this integrated WAN gateway service. The VXLAN/VNI mapping is used inside the SR Linux data center fabric where MAC-VRF services are transported over VXLAN. On the WAN side, the VPLS service is carried using MPLS/EVPN mechanisms, not a VXLAN VNI configured directly under the VPLS. Reference: integrated gateway DCI, L2 EVPN/VPLS interworking, EVI and route-target operation.

================

Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:

In an integrated gateway-based DCI solution, the data center gateway and WAN PE functions reside on the same router. This device acts as the interworking point between the data center EVPN/VXLAN environment and the WAN transport service. It may need to translate or interwork between VXLAN encapsulation in the data center and MPLS or another WAN tunneling protocol in the WAN. For Layer 3 services, the integrated gateway may also re-advertise EVPN routes learned from the data center fabric into VPN-IPv4 or VPN-IPv6 routes for transport across the WAN. Option B does not describe the integrated gateway model. A border leaf using eBGP or static routes to interconnect with a gateway is a decoupled gateway-based design, where the data center border leaf and WAN PE/gateway are separate devices with a routing handoff between them. In the integrated model, that border-leaf-to-separate-gateway handoff is not the defining architecture because the gateway and WAN PE roles are combined on one router. Reference: integrated gateway DCI, VXLAN-to-WAN interworking, EVPN to VPN-IPv4/VPN-IPv6 re-advertisement, decoupled gateway distinction.

================

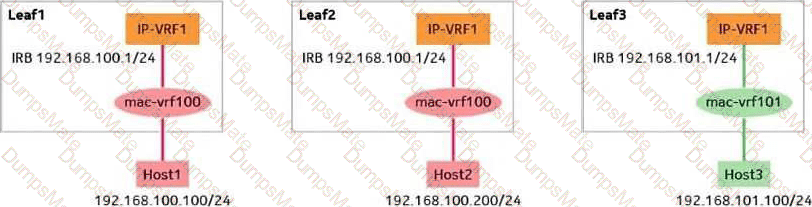

Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:

In interface-less symmetric L3 EVPN routing, hosts in a subnet may be attached to different leaf routers, while inter-subnet forwarding is performed through the IP-VRF using VXLAN routed interfaces. The ingress and egress PEs both participate in L3 forwarding, and the routed VXLAN interface provides the per-IP-VRF overlay data-plane construct needed for symmetric routing. The IRB interfaces on the local MAC-VRFs must advertise learned local host routes so that remote PEs have the necessary host reachability information. The MAC-VRFs also need the appropriate EVPN control-plane configuration so host MAC/IP information can be exchanged, while the IP-VRF participates in L3 VPN-style route exchange for routed reachability. Option A is false because anycast gateway is not optional in this design for Leaf1 and Leaf2. Anycast gateway allows the same default-gateway IP and virtual MAC behavior to exist consistently on multiple leaves serving the same subnet. Without it, host default-gateway behavior would be inconsistent and traffic mobility across the fabric would break expected distributed gateway operation. Reference: interface-less symmetric routing, IRB, anycast gateway, routed VXLAN interface.

================

Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:

In asymmetric L3 EVPN routing, the ingress PE performs the routing decision and then sends traffic across the overlay in the context of the destination MAC-VRF. The egress PE performs Layer 2 MAC forwarding only toward the destination host. This is why options A and B correctly describe asymmetric data-plane behavior. Asymmetric routing relies heavily on EVPN route type 2 MAC/IP Advertisement routes because the ingress PE must know the destination host's MAC/IP binding and the destination bridge domain information. EVPN route type 5, which advertises IP prefixes, is a symmetric L3 EVPN mechanism and is not mandatory for asymmetric routing. Therefore, option C is false. Option D is treated as correct in this asymmetric-routing model because each PE participating in inter-subnet forwarding needs the destination MAC-VRF context to encapsulate traffic toward the correct L2 VNI. This requirement is one reason asymmetric routing scales less efficiently than symmetric routing: MAC-VRF presence and host reachability information must be broadly available. Symmetric routing improves scale by using an IP-VRF routed VXLAN interface and RT-5 prefix routes instead. Reference: asymmetric L3 EVPN routing, ingress IP/MAC forwarding, egress MAC forwarding, RT-2 versus RT-5 usage.

================

Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:

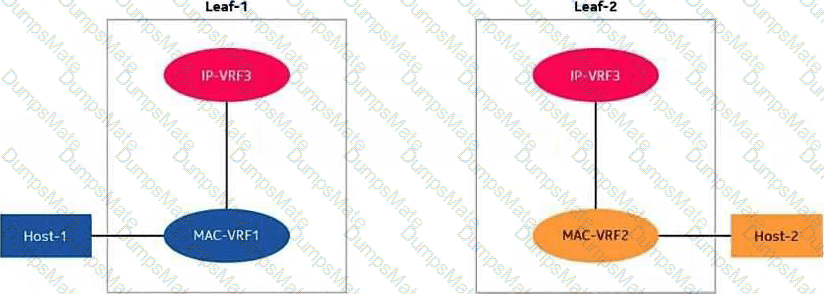

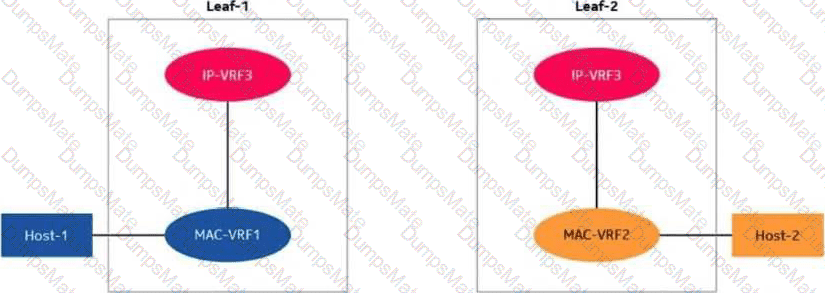

In asymmetric L3 EVPN routing, each participating PE must have the MAC-VRFs needed to forward traffic in the destination bridge domain. However, the specific exhibit describes two MAC-VRFs interconnected through IP-VRF3, with Leaf-1 hosting MAC-VRF1 and Leaf-2 hosting MAC-VRF2. The false statement is that Leaf-1 and Leaf-2 must both have instances of MAC-VRF1 and MAC-VRF2. That requirement is not true for this described deployment. Each local MAC-VRF connects to IP-VRF3 using an IRB interface, and host MAC/IP information is advertised using EVPN route type 2 so remote PEs can learn endpoint reachability. The question's answer also implies that IP prefix advertisement using route type 5 is part of the control-plane exchange between the leaves for the routed service context. What matters is that the fabric can resolve host and prefix reachability through EVPN without forcing every PE to instantiate every MAC-VRF in this topology. Option B overstates the MAC-VRF placement requirement and is therefore false. Reference: asymmetric L3 EVPN routing, RT-2 host advertisements, RT-5 IP prefix routes, IRB attachment.

================

Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:

An IRB interface provides the logical L3 gateway function between a Layer 2 MAC-VRF and a Layer 3 IP-VRF on the same PE. It allows locally bridged hosts to route into the tenant IP-VRF while preserving EVPN control-plane signaling for MAC/IP reachability. The IRB subinterface must have at least one IP address because it acts as the routed gateway for the subnet, and it may also be configured with ACLs to apply traffic policy at the L3 boundary. Option B is false because it incorrectly generalizes the IRB relationship. In SR Linux EVPN service modeling, an IRB subinterface connects a MAC-VRF to an IP-VRF in a controlled one-to-one service attachment context; the design is not that both IP-VRFs and MAC-VRFs arbitrarily contain multiple IRB interfaces for the same relationship. A MAC-VRF has its IRB gateway association into the IP-VRF, and the IP-VRF may connect to multiple MAC-VRFs through distinct IRB contexts, but the statement as written is not the correct rule for IRB interface behavior. Reference: SR Linux IRB interface operation, MAC-VRF/IP-VRF interconnection, gateway IP and ACL support.

================

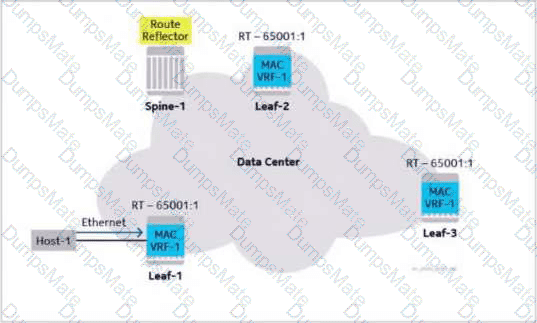

Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:

In SR Linux BGP configuration, parameters defined at a more specific hierarchy level can override broader protocol-level settings. Therefore, if a `local-as` value is configured within the BGP group used for EVPN MP-BGP route-reflector sessions, that value overrides the AS number configured directly under the BGP protocol for that group's sessions. Option A is correct. Option B is false because the cluster ID is configured on the route reflector, not on every participating client. The cluster ID identifies the RR cluster and helps prevent route-reflection loops. Option C is false because redundant route reflectors normally operate in parallel rather than as strict primary/backup devices; clients can peer with both for resilience. Option D is misleading because EVPN route reflectors are used to avoid a full mesh of overlay MP-BGP EVPN sessions between leaves, not to replace ordinary underlay eBGP leaf-spine routing sessions. In a clean fabric design, the underlay provides IP reachability, while the EVPN overlay uses MP-BGP sessions, often via route reflectors, to distribute tenant reachability. Reference: SR Linux BGP hierarchy, EVPN route reflector sessions, local-AS override, cluster ID behavior.

================

Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:

VXLAN provides a Layer 2 overlay over a Layer 3 underlay by encapsulating Ethernet frames in UDP/IP. This allows tenant bridge domains to span a routed IP fabric without requiring the underlay itself to behave like one large Layer 2 network. VXLAN uses a 24-bit VXLAN Network Identifier, which supports approximately 16 million logical overlays, far exceeding the scale of traditional 12-bit VLAN IDs. Because the VXLAN underlay is IP-routed, traffic can benefit from ECMP across equal-cost paths, improving fabric utilization and resiliency. The false statement is B. VXLAN was not originally developed specifically to support EVPN. VXLAN began as a data-plane overlay encapsulation technology, while EVPN later became the preferred control plane for distributing MAC, MAC/IP, multicast, and prefix reachability in VXLAN-based fabrics. In modern data center design, EVPN and VXLAN are commonly paired: VXLAN supplies the encapsulation and VNI-based segmentation, while EVPN supplies scalable control-plane learning and signaling. Reference: VXLAN data plane, EVPN control plane, ECMP underlay, VNI-based tenant isolation.

================

Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:

EVPN route type 2 carries MAC/IP advertisement information. It is central to host-based routing and to designs where the fabric must distribute host MAC-to-IP bindings for integrated routing and bridging. In host routing, RT-2 is required because individual host reachability is signaled through MAC/IP advertisements. In interface-less prefix routing, RT-2 is still needed because the system relies on host or gateway MAC/IP information associated with the IRB and distributed gateway behavior. Interface-ful unnumbered designs may also require RT-2-style information to resolve next-hop or adjacency behavior because the routed interface does not use a conventional numbered next-hop model. Prefix routing with interface-ful numbered operation is different. In that model, the routed interface has explicit IP addressing and prefix reachability can be carried with L3 prefix routes without requiring EVPN RT-2 host MAC/IP advertisement as a dependency. Therefore, the symmetric routing option that does not require EVPN route type 2 is prefix routing interface-ful numbered. Reference: symmetric L3 EVPN routing models, RT-2 MAC/IP advertisements, prefix routing behavior.

================

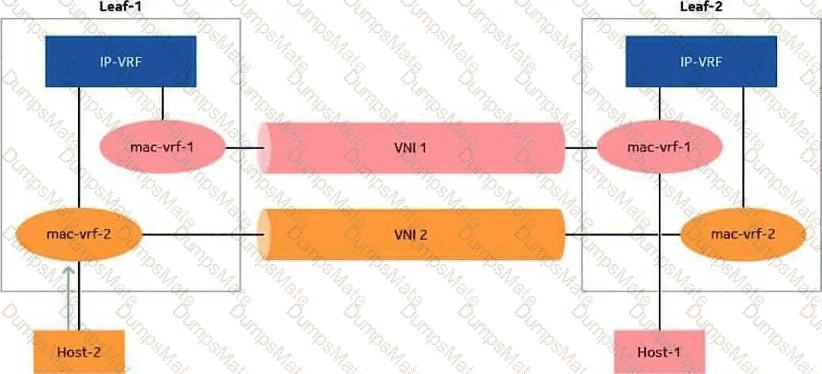

Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:

In asymmetric EVPN IRB, the ingress PE performs routing from the source subnet into the destination subnet, then forwards the packet across the VXLAN overlay using the destination MAC-VRF/VNI. The egress PE does not perform another IP-VRF lookup for that packet; it performs Layer 2 forwarding in the destination MAC-VRF. In this scenario, Host-2 sends traffic toward Host-1. After the ingress routing decision, the traffic arrives at Leaf-2 in the context of the destination MAC-VRF, mac-vrf-1. Leaf-2 then performs a MAC lookup in mac-vrf-1 and forwards the frame to Host-1. Option D is therefore correct. Option A reverses the forwarding direction and misidentifies the leaf action. Option B incorrectly sends mac-vrf-2 traffic toward the IP-VRF on Leaf-2, even though Leaf-2 is acting as the egress PE for Host-1. Option C is also incorrect because the egress forwarding action is based on the MAC table in the destination MAC-VRF, not an IP-VRF ARP lookup at that stage. Reference: asymmetric L3 EVPN IRB data-plane operation, ingress routing and egress MAC forwarding.

================

Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:

In a decoupled gateway-based DCI design, the data center border leaf and the WAN PE are separate devices. Traffic between them can be identified using VLAN tags, allowing different data center EVPN services to be mapped to corresponding WAN VPN services. This architecture provides a clean operational boundary: the border leaf remains aligned with the data center EVPN/VXLAN fabric, while the WAN PE handles WAN VPN transport, QoS, security policy, and service interconnection. The separation gives a strong demarcation point for troubleshooting and administrative control. Option D is false because the WAN PE does not maintain an MP-BGP EVPN peering session with the data center route reflector. In the decoupled model, the route reflector remains part of the data center EVPN control plane, while the WAN PE exchanges routing or service information with the border leaf through the local handoff model. Direct WAN PE-to-data-center-RR peering would blur the separation that defines the decoupled design and would make the WAN PE part of the data center EVPN overlay control plane, which is not the intended architecture. Reference: decoupled gateway DCI, VLAN handoff, WAN VPN mapping, security/QoS demarcation, route-reflector separation.

================

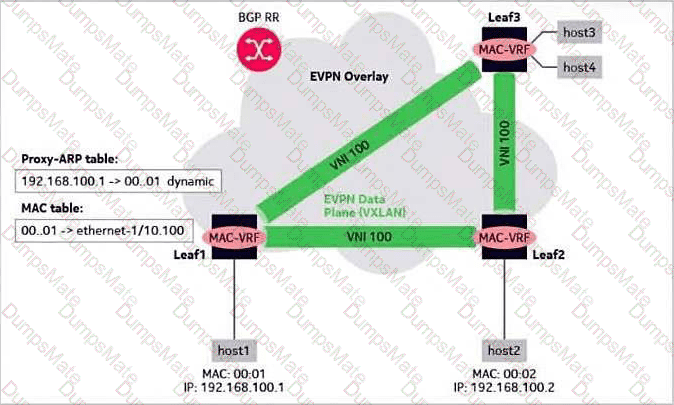

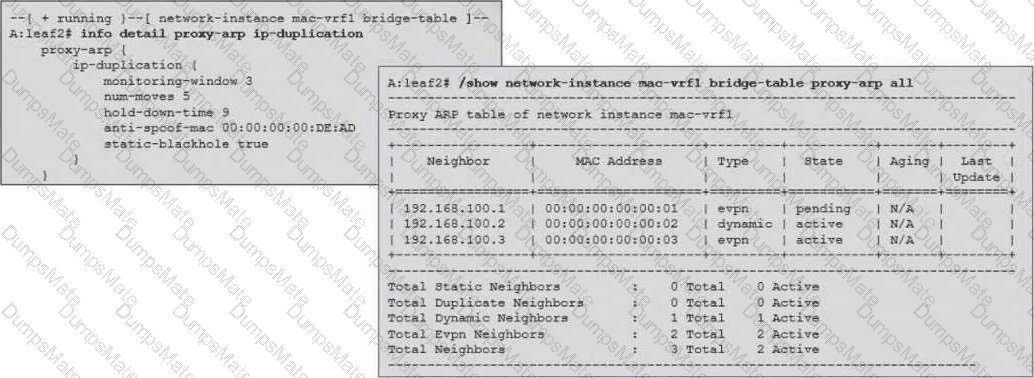

Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:

A Gratuitous ARP is an ARP message a host sends to announce or refresh its own IP-to-MAC binding without waiting for another host to request it. In a traditional Ethernet subnet, the GARP is sent as a broadcast so that other hosts can update their ARP caches with the sender's current MAC address. This is useful after a host boots, changes NICs, moves to another attachment point, or takes over an IP address in a redundancy scenario. In EVPN environments, GARPs are also important because a leaf can snoop the ARP information and update local proxy ARP and EVPN MAC/IP state. Option D is false because recipients do not acknowledge a gratuitous ARP with a reply. GARP is an announcement mechanism, not a request/response transaction. If every receiving host acknowledged a broadcast GARP, the result would be unnecessary ARP traffic amplification. The correct behavior is passive update of ARP state by receiving systems and, in EVPN, potential control-plane propagation of the learned binding by the local PE. Reference: GARP behavior, proxy ARP learning, Layer 2 EVPN endpoint update procedures.

================

Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:

Designated Forwarder election determines which PE forwards BUM traffic from the EVPN overlay toward a multi-homed Ethernet Segment for a given service. In this scenario, all leaf routers share the same DF candidate list for mac-vrf103, but the election configuration is not identical. Leaf1 and Leaf2 use the default algorithm, while Leaf3 and Leaf4 use the preference-based algorithm. Under preference-based DF election, the candidate with the highest configured preference is selected over lower-preference candidates, assuming the candidate list is valid and consistent. The question states that Leaf3 has the higher preference value compared with Leaf4. Therefore, Leaf3 becomes the DF for mac-vrf103. This is the correct outcome because the preference-based election explicitly overrides simple default behavior by assigning operator-defined priority to a PE. In production designs, this is useful when the operator wants deterministic forwarding placement, maintenance control, or service-specific primary-path selection rather than relying only on the default modulo-based DF selection process. Reference: EVPN DF election, preference-based algorithm, MAC-VRF service forwarding.

================
