AE-Adult-Echocardiography AE Adult Echocardiography Examination Questions and Answers

The echocardiographic image shows a mobile, highly echogenic, mesh-like structure within the right atrium consistent with the Chiari network. The Chiari network is an embryologic remnant of the right valve of the sinus venosus, appearing as a fenestrated, reticulated membrane that is usually thin and mobile, found near the orifice of the inferior vena cava or the coronary sinus.

This structure is benign and often an incidental finding but can be confused with thrombus or atrial tumors. Unlike left atrial thrombus, which appears as a more solid, immobile mass often located in the left atrial appendage, the Chiari network is mobile and located in the right atrium. Cor triatriatum is a rare congenital membrane dividing the left atrium into two chambers and appears differently on echocardiography. Artifact refers to non-anatomic echoes which do not persist or move consistently.

Recognition of Chiari network is important to avoid misdiagnosis, and its characteristics are well described in echocardiography literature such as the "Textbook of Clinical Echocardiography" and ASE imaging guidelines【16:Textbook of Clinical Echocardiography, 6e†p.400-402】【12:ASE Guidelines on Cardiac Masses†p.150-155】.

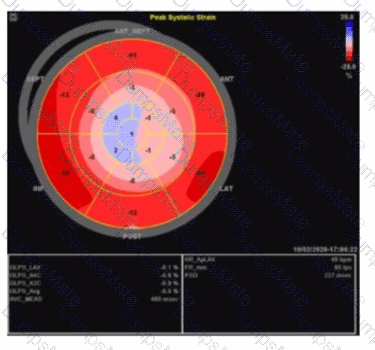

The strain imaging shown is a classic example of the "apical sparing" pattern, highly characteristic of cardiac amyloidosis. In cardiac amyloidosis, the basal and mid segments of the left ventricle show markedly reduced longitudinal strain (represented here by more positive or less negative strain values), while the apical segments retain relatively preserved strain (more negative strain values). This "cherry on top" or "bull's eye" pattern with apical strain preserved distinguishes amyloidosis from other causes of LV dysfunction.

This pattern is not typical of apical hypertrophy, which would show focal thickening and abnormal strain limited to the apex. Non-ischemic cardiomyopathy generally has a more diffuse and uniform reduction in strain without the apical sparing. Right coronary artery infarcts affect the inferior and posterior walls and would have segmental strain abnormalities corresponding to the infarct distribution, not the typical apical sparing.

The left ventricular global longitudinal strain (GLS) in amyloidosis is typically severely reduced, but the relative preservation of apical strain is a hallmark useful for diagnosis, as described in the "Textbook of Clinical Echocardiography, 6e" (Chapter on strain imaging and infiltrative cardiomyopathies) .

Acoustic shadowing is the artifact caused by calcified structures like the mitral annulus, resulting in attenuation or loss of echoes from structures posterior to the calcification. The calcification absorbs or reflects the ultrasound waves, preventing them from reaching deeper structures and causing a "dropout" or dark shadow behind the calcified area.

Reverberation involves repeated reflections creating multiple echoes. Side lobe artifacts arise from off-axis beams. Ring-down artifacts result from resonance in fluid or gas bubbles, not calcifications.

This artifact is explained in the "Textbook of Clinical Echocardiography, 6e", Chapter on Ultrasound Artifacts【20:75-80†Textbook of Clinical Echocardiography】.QUESTION NO: 134

What is the range of the aortic valve area in normal adults?

A. 1 - 2 cm2

B. 3 - 4cm2

C. 5 - 6cm2

D. 7- 8cm2

Answer: B

Comprehensive and Detailed Explanation From Exact Extract:

The normal aortic valve area (AVA) in adults typically ranges from 3 to 4 cm². This measurement is important for assessing aortic stenosis severity; values below this range suggest valve narrowing.

AVA values of 1-2 cm² indicate mild to moderate stenosis, while less than 1 cm² reflects severe stenosis. Larger areas like 5-6 or 7-8 cm² are not physiologically typical.

This normal range is documented in the "Textbook of Clinical Echocardiography, 6e", Chapter on Aortic Valve Anatomy and Function【20:360-365†Textbook of Clinical Echocardiography】.

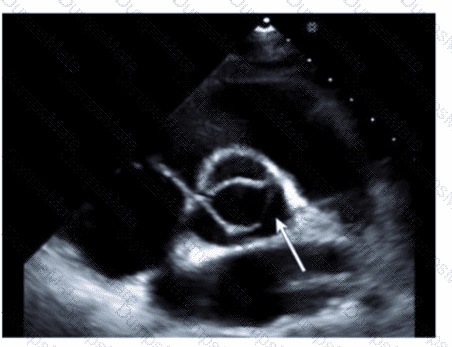

The arrow points to the left coronary cusp of the aortic valve, identifiable in the short axis view as one of the three cusps. The left coronary cusp is adjacent to the left coronary artery origin and lies anteriorly.

The posterior leaflet is part of the mitral valve, septal leaflet refers to the tricuspid valve, and non-coronary cusp is another aortic cusp located posteriorly.

This identification is found in the "Textbook of Clinical Echocardiography, 6e", Chapter on Aortic Valve Anatomy【20:50-55†Textbook of Clinical Echocardiography】.

The Simpson biplane method (method of disks) is the recommended two-dimensional echocardiographic technique to quantify left ventricular ejection fraction (LVEF), especially when regional wall motion abnormalities are present. It involves tracing endocardial borders in apical two- and four-chamber views to calculate LV volumes and EF, accounting for segmental dysfunction.

Visual estimation is subjective and less accurate. The Quinones method (single plane area-length) and Teichholz method rely on geometric assumptions and are less accurate in abnormal ventricles.

ASE chamber quantification guidelines strongly endorse Simpson biplane for LVEF assessment in regional wall motion abnormalities【12:ASE Chamber Quantification Guidelines†p.70-75】【16:Textbook of Clinical Echocardiography, 6e†p.60-65】.

Comprehensive and Detailed Explanation From Exact Extract:

Cardiac tamponade occurs when fluid accumulation in the pericardial space increases intrapericardial pressure, restricting ventricular filling and reducing cardiac output. A hallmark clinical feature is hypotension due to decreased stroke volume and cardiac output.

Jugular venous pressure is typically elevated (not decreased) because of impaired right heart filling. Tachycardia, not bradycardia, is usually present as a compensatory response. Blood pressure tends to be low or normal, not hypertensive.

This pathophysiology and clinical presentation are well documented in adult echocardiography literature and clinical cardiology textbooks, where tamponade is diagnosed with signs such as right atrial and ventricular diastolic collapse and associated clinical hypotension and elevated venous pressures【16:Textbook of Clinical Echocardiography, 6e†p.280-285】【12:ASE Pericardial Disease Guidelines†p.300-305】.

The most appropriate echocardiographic view to measure right ventricular (RV) dimensions is the apical four-chamber view with a right ventricular-focused modification. This RV-focused apical four-chamber view is optimized by shifting the transducer laterally and slightly anteriorly to better visualize the entire right ventricle in a single plane. This approach allows for accurate assessment of RV basal and mid cavity diameters, RV longitudinal dimension, and RV area measurements.

The standard apical four-chamber view often underestimates RV size because of its complex geometry and position in the chest. The subcostal four-chamber view may give some information on RV size but is limited by image quality and angle. Parasternal short axis views at the base focus more on the left ventricle and may not capture the entire RV adequately. Parasternal long axis views primarily visualize the left heart structures and do not adequately show the RV.

Adult echocardiography guidelines, including the American Society of Echocardiography (ASE) chamber quantification recommendations, endorse the RV-focused apical four-chamber view as the standard for RV linear measurements and volume assessment due to its accuracy and reproducibility【12:ASE Chamber Quantification Guidelines†p.80-85】【16:Textbook of Clinical Echocardiography, 6e†Chapter on RV Assessment】.

In severe tricuspid regurgitation (TR), the regurgitant jet flows back from the right ventricle into the right atrium during systole, causing reversal of flow in the hepatic veins during the same phase. On Doppler echocardiography, this manifests as systolic flow reversal in the hepatic veins, which is a hallmark sign of severe TR.

Normally, hepatic vein flow consists of a predominant systolic forward flow into the right atrium. However, in severe TR, the high pressure in the right atrium during systole causes retrograde flow in the hepatic veins. This pattern is diagnostic and aids in severity assessment.

Diastolic flow reversal is uncommon in TR and more associated with other pathologies. Atrial flow reversal in systole or biphasic flow reversal in diastole are not recognized patterns for severe TR.

This is described in detail in the "Textbook of Clinical Echocardiography, 6e", Chapter on Right Heart and Tricuspid Valve Disease, with Doppler patterns illustrated for hepatic vein flow in tricuspid regurgitation【20:330-335†Textbook of Clinical Echocardiography】.

The Valsalva maneuver transiently reduces preload, which can unmask or exaggerate diastolic dysfunction during mitral inflow Doppler assessment. During Valsalva, changes in mitral E and A wave velocities can differentiate between normal and pseudonormal filling patterns by observing alterations in filling pressures.

Hand grip, leg air cycling, and squatting affect afterload and preload differently but are less specific for assessing diastolic dysfunction via mitral Doppler.

This technique is outlined in the "Textbook of Clinical Echocardiography, 6e", Chapter on Diastolic Function Assessment and Maneuvers【20:210-215†Textbook of Clinical Echocardiography】.

Comprehensive and Detailed Explanation From Exact Extract:

Visualization of a patent ductus arteriosus (PDA) typically requires imaging planes that include the aortic arch and pulmonary artery, which are well seen from the suprasternal notch window and the basal parasternal short axis view.

The suprasternal notch window provides a longitudinal view of the aortic arch and adjacent pulmonary artery, where the PDA is located. The basal parasternal short axis at the level of the great vessels can also visualize flow through the PDA using color Doppler.

Other views like parasternal long axis and apical views are less optimal for direct PDA visualization.

This is detailed in the "Textbook of Clinical Echocardiography, 6e", Chapter on Congenital Heart Defects and PDA Imaging【20:370-375†Textbook of Clinical Echocardiography】.

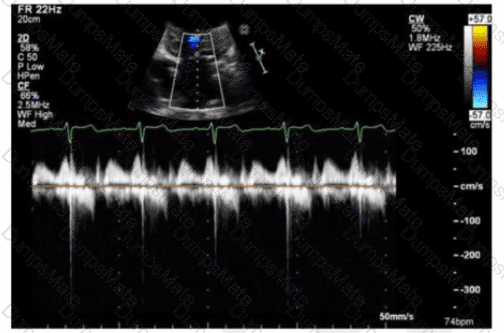

The Doppler signal shown is a continuous wave (CW) Doppler tracing typical of measuring high velocity flow, such as an intracavitary gradient in the left ventricle, often seen in hypertrophic obstructive cardiomyopathy (HOCM). CW Doppler is needed to capture the highest velocity flow across the entire ventricular cavity and outflow tract.

Pulsed wave Doppler has limited spatial resolution and cannot measure high velocities without aliasing; thus, it is less useful for localizing gradients in this context. Pulsed wave at mitral leaflet tips is used for mitral inflow assessment, not intracavitary gradients.

This approach is recommended in ASE guidelines for cardiomyopathy and valvular obstruction evaluation【12:ASE Doppler Guidelines†p.120-125】【16:Textbook of Clinical Echocardiography, 6e†p.350-355】

Comprehensive and Detailed Explanation From Exact Extract:

The suprasternal long axis window is best accessed with the patient in the supine position with the neck extended. To optimize image quality, instructing the patient to turn their head slightly toward the left side moves the trachea and clavicle away from the ultrasound beam path, allowing better visualization of the aortic arch and great vessels.

Moving the probe inferior to the sternum accesses the subxiphoid window rather than suprasternal. Left lateral decubitus improves parasternal and apical windows but not suprasternal. Rotating the transducer indicator toward the patient's right shoulder would change the imaging plane but is not a primary method to improve image quality.

This technique is highlighted in the "Textbook of Clinical Echocardiography, 6e", Chapter on Echocardiographic Windows and Acoustic Access【20:90-95†Textbook of Clinical Echocardiography】.

The two-chamber apical view allows visualization of the left ventricle's anterior and inferior walls, including the apical lateral segment. It is ideal for assessing wall thickness and segmental wall motion abnormalities in this region.

The four-chamber view visualizes septal and lateral walls but does not optimally display the apical lateral segment. Parasternal long axis primarily visualizes the anterior septum and posterior wall but is limited for lateral apex. The mid-parasternal short axis focuses on mid-ventricular segments and does not visualize the apex.

This anatomical and echocardiographic detail is described in the "Textbook of Clinical Echocardiography, 6e", Chapter on Left Ventricular Segmental Analysis【20:120-125†Textbook of Clinical Echocardiography】.

Comprehensive and Detailed Explanation From Exact Extract:

The left atrial volume index (LAVI) is the left atrial volume normalized to the patient's body surface area (BSA), which accounts for patient size. To calculate BSA, height and weight are required, most commonly using formulas such as the Mosteller formula.

Therefore, height is a necessary parameter to calculate the left atrial volume index. Age, blood pressure, and cardiac output are not used in the calculation of LAVI but may be clinically relevant for interpretation.

This approach standardizes LA size across patients of different body habitus, making LAVI a more accurate and reproducible measure of LA remodeling and a predictor of cardiovascular outcomes.

The echocardiography guidelines and textbooks emphasize the importance of indexing LA volume to BSA and highlight height as a required measurement for this purpose .

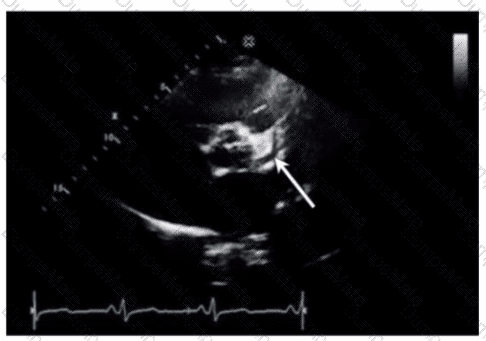

The arrow points to the left anterior descending (LAD) coronary artery, which runs in the anterior interventricular groove toward the apex of the heart. It supplies the anterior wall of the left ventricle.

The right coronary artery runs in the right atrioventricular groove. The left main coronary artery is proximal to the LAD and circumflex arteries. The circumflex artery runs in the left atrioventricular groove posteriorly.

This identification is detailed in the "Textbook of Clinical Echocardiography, 6e", Chapter on Coronary Artery Anatomy and Echocardiographic Visualization【20:150-155†Textbook of Clinical Echocardiography】.

Comprehensive and Detailed Explanation From Exact Extract:

Ebstein anomaly is a congenital malformation characterized by apical displacement of the tricuspid valve leaflets, leading to atrialization of the right ventricle and severe tricuspid regurgitation. The most common associated defect is an atrial septal defect (ASD), particularly a secundum type or patent foramen ovale, resulting in right-to-left shunting and cyanosis.

Ventricular septal defect and pulmonary stenosis are less commonly associated. Tricuspid stenosis is not typical; the tricuspid valve is usually regurgitant rather than stenotic.

This association is well described in congenital heart disease and echocardiography textbooks and ASE guidelines【16:Textbook of Clinical Echocardiography, 6e†p.570-575】【12:ASE Adult Congenital Guidelines†p.400-405】.

Comprehensive and Detailed Explanation From Exact Extract:

The recommended method to measure left atrial diameter in the parasternal long axis view is the inner edge to inner edge technique, perpendicular to the aortic root, measured at end-diastole. This approach provides the most reproducible and standardized measurement.

Measurement parallel to the aortic root or at end-systole is less accurate. Outer edge measurements overestimate size.

ASE chamber quantification guidelines specify this method for standardization and reproducibility in adult echocardiography practice【12:ASE Chamber Quantification Guidelines†p.90-95】【16:Textbook of Clinical Echocardiography, 6e†p.120-125】.

Comprehensive and Detailed Explanation From Exact Extract:

In hypertrophic obstructive cardiomyopathy (HOCM), systolic anterior motion (SAM) of the anterior mitral leaflet causes posteriorly directed mitral regurgitation (MR) jets. The abnormal anterior leaflet motion leads to incomplete leaflet coaptation and regurgitant flow directed toward the posterior left atrium.

Anterior jets are seen with posterior leaflet abnormalities. Central jets are seen in functional MR. Medial jets are less common and depend on leaflet pathology.

This jet direction is an important echocardiographic feature distinguishing HOCM-related MR and is outlined in ASE valvular heart disease and cardiomyopathy guidelines【12:ASE Valvular Regurgitation Guidelines†p.220-225】【16:Textbook of Clinical Echocardiography, 6e†p.350-355】.

Peak tricuspid regurgitant velocity (TRV) allows estimation of right ventricular systolic pressure (RVSP) using the simplified Bernoulli equation: RVSP = 4 × (TRV)^2 + estimated right atrial pressure.

This measurement is important for assessing pulmonary hypertension indirectly.

Right atrial pressure is estimated separately, pulmonary artery diastolic pressure and mean pressure require additional measurements.

This application is discussed in the "Textbook of Clinical Echocardiography, 6e", Chapter on Right Heart Pressure Estimation【20:335-340†Textbook of Clinical Echocardiography】.

Pulmonary artery end-diastolic pressure (PAEDP) can be estimated noninvasively by measuring the end-diastolic velocity of pulmonary regurgitation (pulmonary insufficiency) using continuous-wave Doppler. The pressure gradient between the pulmonary artery and right ventricle at end-diastole is calculated using the modified Bernoulli equation from this velocity.

Tricuspid insufficiency is used to estimate right ventricular systolic pressure. Tricuspid inflow and pulmonary inflow velocities provide information on diastolic function but not direct pressure gradients.

This method is well validated and included in ASE guidelines for pulmonary hypertension assessment and Doppler hemodynamics【16:Textbook of Clinical Echocardiography, 6e†p.300-305】【12:ASE Doppler Guidelines†p.110-115】.

Comprehensive and Detailed Explanation From Exact Extract:

Tetralogy of Fallot (TOF) is a congenital heart defect characterized by four key anatomical abnormalities: an outlet (malalignment) ventricular septal defect (VSD), an overriding aorta that receives blood from both ventricles, right ventricular outflow tract (RVOT) obstruction (commonly infundibular stenosis), and resultant right ventricular hypertrophy. These defects cause cyanosis due to right-to-left shunting and impaired pulmonary blood flow.

Option A describes Ebstein anomaly, characterized by a displaced tricuspid valve and atrialization of the right ventricle.

Option B describes features more consistent with Shone complex or other left heart obstructive lesions.

Option C describes atrioventricular septal defect (AVSD), seen in conditions like Down syndrome.

In unrepaired TOF, echocardiography demonstrates the large malalignment VSD, overriding aorta, RVOT obstruction, and hypertrophied right ventricle. These are classic textbook findings described in adult and pediatric echocardiography literature, including “Textbook of Clinical Echocardiography” (Chapter on Congenital Heart Disease) and ASE guidelines【16:Textbook of Clinical Echocardiography, 6e†p.560-565】【12:ASE Adult Congenital Guidelines†p.400-410】.

Comprehensive and Detailed Explanation From Exact Extract:

Pulmonary vein Doppler signals have low velocity and low frequency components that can be filtered out by standard Doppler wall filters. To obtain a good quality spectral Doppler waveform for diastolic function evaluation, the wall filter settings should be lowered or adjusted to allow low frequency signals to be detected and displayed clearly.

Non-imaging transducers and continuous wave Doppler are not appropriate for pulmonary vein Doppler because spatial resolution and site localization are required. Filtering out low frequency signals would degrade the quality of the pulmonary vein waveform.

This is detailed in ASE Doppler imaging and diastolic function assessment protocols【12:ASE Diastolic Function Guidelines†p.85-90】【16:Textbook of Clinical Echocardiography, 6e†p.125-130】.

Transesophageal echocardiography (TEE) provides superior visualization of the atrial septum, especially in the presence of an atrial septal aneurysm, which may obscure transthoracic views. TEE allows detailed anatomic assessment of the atrial septal defect (ASD), its size, and associated structures.

Agitated saline contrast echo is useful for detecting right-to-left shunts but is limited in anatomical delineation in complex cases. Cardiac MRI and catheterization can provide complementary information but are not first-line for ASD evaluation when TEE is available.

ASE adult congenital heart disease guidelines and echocardiography texts emphasize TEE as the gold standard for ASD evaluation in this setting【12:ASE Adult Congenital Guidelines†p.405-410】【16:Textbook of Clinical Echocardiography, 6e†p.570-575】.

Comprehensive and Detailed Explanation From Exact Extract:

Coarctation of the aorta (CoA) causes obstruction of blood flow in the descending aorta leading to increased afterload on the left ventricle. This pressure overload results in left ventricular hypertrophy (LVH) as the heart compensates for the increased resistance.

Atrial septal defect and ventricular septal defect are separate congenital defects not necessarily associated with CoA. Right ventricular hypertrophy occurs mainly with pulmonary hypertension or right heart pressure overload.

LVH is a well-recognized echocardiographic finding in CoA and is used to assess severity and chronic effects of the lesion in adult echocardiography references and ASE congenital heart disease guidelines【16:Textbook of Clinical Echocardiography, 6e†p.550-555】【12:ASE Congenital Guidelines†p.410-420】.

Comprehensive and Detailed Explanation From Exact Extract:

Atrioventricular canal defect (AV canal defect) is a congenital cardiac malformation characterized by defects in the atrial and ventricular septa, along with abnormalities of the atrioventricular valves including cleft mitral valve. These features collectively cause shunting and valve regurgitation.

Ebstein anomaly primarily involves the tricuspid valve and right atrium, Marfan syndrome is a connective tissue disorder with different manifestations, and Shone syndrome involves left-sided obstructive lesions.

This is clearly outlined in the "Textbook of Clinical Echocardiography, 6e", Chapter on Congenital Heart Defects - Atrioventricular Septal Defects【20:120-125†Textbook of Clinical Echocardiography】.

Partial anomalous pulmonary venous return (PAPVR) is a congenital defect where some pulmonary veins drain into the right atrium or systemic venous circulation rather than the left atrium. It is frequently associated with sinus venosus atrial septal defect (ASD), a defect near the junction of the superior vena cava and right atrium.

Cleft mitral valve is commonly associated with atrioventricular septal defects. Persistent left superior vena cava is a separate venous anomaly not typically linked with PAPVR. Perimembranous ventricular septal defects are different congenital defects not related to pulmonary venous anomalies.

The association between PAPVR and sinus venosus ASD is well described in the "Textbook of Clinical Echocardiography, 6e", Chapter on Congenital Heart Disease and Shunt Lesions【20:120-130†Textbook of Clinical Echocardiography】

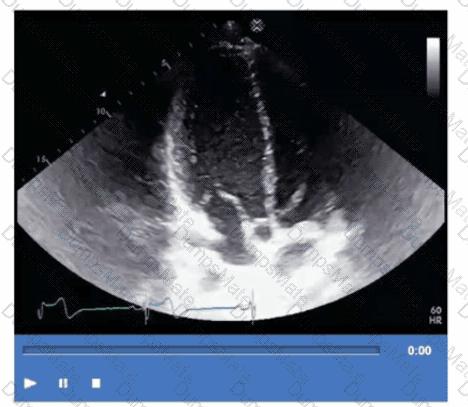

The echocardiographic image/video shows decreased brightness and penetration in the near field, making the anterior cardiac structures poorly visualized while deeper structures appear brighter. This indicates under-gain in the near field.

Increasing the time gain compensation (TGC) in the near field enhances the signal strength of superficial structures without affecting deeper tissues. This adjustment improves image quality by balancing the brightness across the field.

Increasing compression or decreasing overall gain would reduce the signal globally and are not specific for near field optimization. Decreasing TGC in the far field would reduce brightness deeper but does not address near-field issues.

This principle is outlined in the "Textbook of Clinical Echocardiography, 6e", Chapter on Image Optimization and Technical Settings【20:70-75†Textbook of Clinical Echocardiography】.

In significant aortic valve regurgitation (AR), the continuous wave Doppler signal across the valve demonstrates a rapid decline in regurgitant jet velocity, resulting in a pressure half-time (PHT) less than 250 milliseconds. A short PHT indicates severe AR with rapid equalization of aortic and left ventricular pressures during diastole.

Pulsed wave Doppler forward flow in the abdominal aorta evaluates stroke volume but does not directly indicate AR severity. Vena contracta to LVOT diameter ratio less than 25% would indicate mild AR, not significant. Peak velocity ≥4.5 m/s is more characteristic of aortic stenosis rather than regurgitation.

This criterion for AR severity using CW Doppler PHT is described in the "Textbook of Clinical Echocardiography, 6e", Chapter on Aortic Regurgitation Doppler Assessment【20:375-380†Textbook of Clinical Echocardiography】.

Takotsubo cardiomyopathy, also known as stress-induced cardiomyopathy or "broken heart syndrome," predominantly affects postmenopausal women (usually older than 50 years) and often presents with acute chest pain and ST-segment elevation on the ECG mimicking acute myocardial infarction. However, coronary angiography reveals normal or non-obstructive coronary arteries.

Echocardiographically, Takotsubo cardiomyopathy is characterized by transient left ventricular systolic dysfunction with a typical pattern of apical ballooning and basal hyperkinesis. The wall motion abnormality extends beyond a single coronary artery territory, differentiating it from ischemic cardiomyopathy.

The diagnosis is supported by the clinical presentation, typical echocardiographic findings, and exclusion of obstructive coronary artery disease. The condition is usually reversible over days to weeks.

This is extensively described in the "Textbook of Clinical Echocardiography, 6e" (Chapter 8: Coronary Artery Disease and Takotsubo Syndrome), which highlights the typical patient demographics, presentation, echocardiographic features, and prognosis .

Cardiac contusion is a myocardial injury resulting from blunt chest trauma, typically affecting the right ventricle more commonly than the left ventricle because of its anterior location and proximity to the chest wall. The injury can range from mild bruising to severe myocardial damage and dysfunction.

It does not result from myocardial infarction (which is ischemic injury), nor does it cause hypertrophy or hypercontractility. Instead, it may cause wall motion abnormalities, arrhythmias, or even rupture.

These features are detailed in echocardiography and trauma cardiology literature, including the "Textbook of Clinical Echocardiography" and clinical guidelines on blunt cardiac injury【16:Textbook of Clinical Echocardiography, 6e†p.600-605】【12:ASE Trauma Cardiology Guidelines†p.500-505】.

Intravenous drug use is a major risk factor for infective endocarditis, particularly involving the tricuspid valve and sometimes left-sided valves. Symptoms like fever, flu-like illness, dyspnea, and chest pain suggest possible septic emboli or valve destruction.

Echocardiographic findings associated with endocarditis include mobile echogenic masses attached to valve leaflets (vegetations), valve thickening, or destruction. These findings are diagnostic and guide treatment.

Aortic dissection, hypertrophic cardiomyopathy, and mitral valve prolapse can present with different clinical features and echocardiographic findings not consistent with infectious vegetations.

These clinical and echocardiographic correlations are detailed in the ASE guidelines on infective endocarditis and the "Textbook of Clinical Echocardiography"【16:Textbook of Clinical Echocardiography, 6e†p.470-475】【12:ASE Infective Endocarditis Guidelines†p.380-390】.

Systemic blood pressure should be documented during every echocardiogram because blood pressure influences cardiac loading conditions, hemodynamics, and interpretation of valvular lesions and ventricular function.

Blood pressure affects Doppler velocities, gradients across valves, and myocardial performance; therefore, it is essential to record it routinely to interpret echocardiographic findings accurately.

This guideline is stated in the "Textbook of Clinical Echocardiography, 6e", Chapter on Echocardiographic Examination Standards and Reporting【20:15-20†Textbook of Clinical Echocardiography】.

Comprehensive and Detailed Explanation From Exact Extract:

The left ventricular dP/dt is a measure of the rate of rise in left ventricular pressure during isovolumic contraction, which reflects systolic function. It is derived from Doppler echocardiography by measuring the time interval between mitral regurgitant jet velocities of 1 m/s and 3 m/s. Using the simplified Bernoulli equation, the pressure gradient at each velocity is calculated, and the rate of pressure rise (dP/dt) is calculated by dividing the pressure difference by the time interval between these velocities.

A normal left ventricular dP/dt is generally considered to be greater than 1200 mmHg/s. Values lower than this indicate impaired systolic function, as the ventricle is slower to generate pressure during contraction.

For example, a measured time interval of 36 milliseconds (0.036 seconds) between the MR velocities of 1 and 3 m/s corresponds to a dP/dt of approximately 889 mmHg/s, which is mildly reduced, indicating some systolic dysfunction.

The exact extract from the "Textbook of Clinical Echocardiography, 6e" states that normal dP/dt values are typically above 1000 mmHg/s, with >1200 mmHg/s considered a robust indicator of normal systolic function. This measure is useful but requires a measurable mitral regurgitation jet and consistent alignment of the ultrasound beam. Variability in measurement can occur based on technical factors, but the dP/dt remains a useful parameter to quantify systolic function noninvasively.

Comprehensive and Detailed Explanation From Exact Extract:

This M-mode echocardiographic image shows thickened mitral valve leaflets with a characteristic "doming" or "hockey-stick" appearance during diastole, which is classic for rheumatic mitral stenosis. Rheumatic mitral stenosis leads to leaflet thickening, restricted opening, and calcification, which alters the normal mitral valve motion on M-mode.

Mitral valve prolapse would show systolic displacement of the leaflets into the left atrium, typically later in systole, not doming in diastole. Mitral valve annuloplasty ring would appear as a bright echogenic line around the annulus but is not seen in this image. Systolic anterior motion (SAM) of the mitral valve is usually seen in hypertrophic cardiomyopathy and presents as anterior motion during systole, not the diastolic pattern shown.

This classical M-mode appearance is described in "Textbook of Clinical Echocardiography, 6e", Chapter on Rheumatic Valve Disease【20:385-390†Textbook of Clinical Echocardiography】.

Marfan syndrome is a connective tissue disorder characterized by abnormalities in the fibrillin-1 gene, leading to cardiovascular manifestations including aortic root and annular dilatation. Aortic annular dilatation predisposes to aortic valve insufficiency (regurgitation) and aortic aneurysm formation.

Coarctation of the aorta is more commonly associated with Turner syndrome. Parachute mitral valve and cleft mitral valve are congenital abnormalities linked to other syndromes or defects but not typical in Marfan syndrome.

This association is described in the "Textbook of Clinical Echocardiography, 6e", Chapter on Genetic Syndromes and Cardiovascular Manifestations【20:120-125†Textbook of Clinical Echocardiography】.QUESTION NO: 91

Which condition causes both tricuspid stenosis and tricuspid regurgitation?

A. Pulmonary hypertension

B. Cor pulmonale

C. Carcinoid heart disease

D. Amyloid heart disease

Answer: C

Comprehensive and Detailed Explanation From Exact Extract:

Carcinoid heart disease results from the deposition of fibrous plaques on the endocardium of right-sided heart valves, predominantly affecting the tricuspid and pulmonary valves. This leads to both tricuspid stenosis (valve leaflet thickening and immobility causing obstruction) and tricuspid regurgitation (incomplete coaptation due to leaflet retraction).

Pulmonary hypertension and cor pulmonale cause primarily functional tricuspid regurgitation without stenosis. Amyloid heart disease can cause restrictive cardiomyopathy but rarely causes combined tricuspid valve stenosis and regurgitation.

These pathological changes are detailed in the "Textbook of Clinical Echocardiography, 6e", Chapter on Carcinoid Heart Disease and Right Heart Valve Disease【20:335-340†Textbook of Clinical Echocardiography】.

Comprehensive and Detailed Explanation From Exact Extract:

The apical two-chamber echocardiographic view displays the inferolateral wall (also called posterior lateral). The arrow points to this inferolateral segment, which is located inferiorly and laterally in the left ventricle.

Anteroseptum and inferoseptum relate to the interventricular septum, while anterolateral is the anterior lateral wall, opposite the inferolateral wall. Correct regional wall motion assessment is essential for ischemic disease evaluation.

This identification and terminology are described in ASE stress echocardiography and chamber quantification guidelines【12:ASE Stress Echocardiography Guidelines†p.310-315】【16:Textbook of Clinical Echocardiography, 6e†p.380-385】.

Patent foramen ovale (PFO) is a common congenital cardiac anomaly found in approximately 25-30% of the adult population. It represents incomplete closure of the foramen ovale after birth and is usually asymptomatic.

Cleft mitral valve and bicuspid aortic valve are less common congenital anomalies, and hypertrophic cardiomyopathy is a genetic myocardial disease, not an anomaly.

This prevalence and clinical significance are discussed in the "Textbook of Clinical Echocardiography, 6e", Chapter on Atrial Septal Defects and Common Anomalies【20:110-115†Textbook of Clinical Echocardiography】.

Comprehensive and Detailed Explanation From Exact Extract:

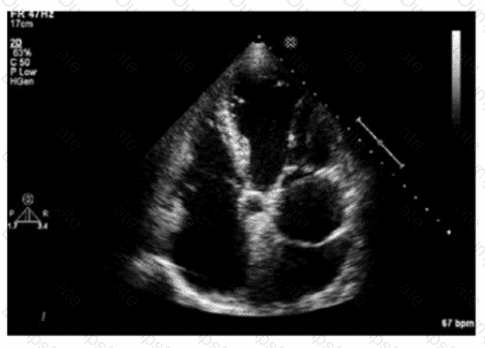

The echocardiographic image shows an apical four-chamber view of the left ventricle. The arrows point to the lateral wall of the left ventricle, which in this view corresponds to the anterolateral wall. The anterolateral wall is located opposite the septum and posterior to the left atrium.

Anteroseptum and inferoseptum refer to different segments of the interventricular septum. The inferior wall is visualized better in other views.

This segmental wall nomenclature and identification are described in ASE chamber quantification and stress echocardiography guidelines【12:ASE Chamber Quantification Guidelines†p.90-95】【16:Textbook of Clinical Echocardiography, 6e†p.140-145】.
