API-580 API 580 - Risk Based Inspection Questions and Answers

API 580 emphasizes the importance of identifying risk drivers as part of a systematic method to manage risks:

“Development of an appropriate inspection program to address key risk drivers. A method to systematically manage risks associated with the operation of process equipment.”

Understanding risk drivers is necessary to target mitigation actions effectively and to ensure that resources are allocated based on what contributes most to the risk.

According to Section 7.3 of API 580:

“The data quality has a direct relation to the relative accuracy of the RBI analysis… Although the data requirements are quite different for the various types of RBI analysis, quality of input data is equally important no matter what approach to RBI is selected.”

This clearly establishes that regardless of whether a qualitative, semi-quantitative, or quantitative RBI method is chosen, the quality of data must remain consistently high to ensure meaningful risk assessments.

According to API 580, Section 6.2.8:

“An RBI assessment made on new equipment or a new project while in the design stage may yield important information on potential risks. This may allow potential risks to be minimized by design and have a RBI plan in place prior to actual installation.”

This statement confirms the value of performing RBI even in the absence of historical data, especially for forward-looking risk identification.

As stated in Section 13.1 of API 580:

“Inspection is often an effective method of risk management. However, inspection may not always provide sufficient risk mitigation or may not be the most cost-effective method.”

This clarifies that inspection is categorized under risk mitigation activities. Similarly, decommissioning is used as a risk mitigation strategy when the risk from continued operation becomes unacceptable.

Risk mitigation activities described in API 580 may:

reduce the magnitude of consequence,

reduce the probability of failure,

enhance survivability, or

mitigate the source of the consequence.

Thus, both inspection and decommissioning clearly fall under the broad category of risk mitigation.

API 580, Section 6.1 and 6.2 clearly states:

“At the conclusion of the planning portion of the development of the RBI program the following should have been completed:

b) identify the physical boundaries;

c) identify the operating boundaries...”

Thus, one of the primary deliverables of the planning stage is defining boundaries to scope the risk evaluation.

According to API 580, Section 10.6.1:

“The consequences of releasing a hazardous material can be estimated in six steps…

a) estimate the release rate;

b) estimate total volume of fluid…

c) determine if the fluid disperses…”

Therefore, “Estimating the release rate” is the first step in the consequence evaluation process and is essential for modeling potential impact scenarios.

According to API 580 Section 10.3.3:

“Cost is commonly used as an indicator of potential consequences. Consequence may be expressed in relative monetary units (e.g. dollars)… This will permit adding the different consequences of a single event and facilitate comparisons of risk from one process unit to another.”

Cost can represent multiple consequence dimensions, including production loss, emergency response, equipment damage, fines, and more. This method enables direct comparison of diverse consequence types on a unified basis, making it the most commonly applied indicator in practice.

As stated in API 580 Section 7.3:

“The data quality has a direct relation to the relative accuracy of the RBI analysis. Although the data requirements are quite different for the various types of RBI analysis, quality of input data is equally important no matter what approach to RBI is selected.”

This highlights that data quality is critical across qualitative, semi-quantitative, and quantitative analyses.

According to Section 6.6 of API 580 (2016), titled “Estimating Resources and Time Required,” it is clearly stated:

“The resources and time required to implement an RBI assessment will vary widely between organizations depending on a number of factors including the following:

a) implementation strategy/plans.

b) knowledge and training of implementers.

c) availability and quality of necessary data and information.

d) availability and cost of resources needed for implementation.

e) amount of equipment included in each level of RBI analysis.

f) degree of complexity of RBI analysis selected.

g) degree of precision required.”

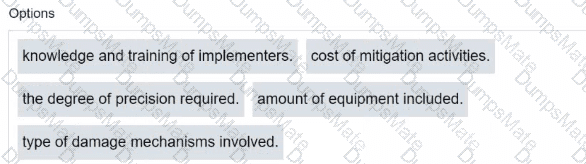

This confirms the following are among the officially listed influencing factors:

A. Knowledge and training of implementers✔

C. The degree of precision required✔

D. Amount of equipment included✔

However:

B. Cost of mitigation activities —✘Not listed in Section 6.6 as a driver for time/resources during implementation.

E. Type of damage mechanisms involved —✘Relevant to PoF modeling, but not a direct listed factor for estimating time/resources needed to implement the RBI.

According to Section 5.4 of API 580:

“Risk presented as a precise numeric value (as in a quantitative analysis) implies a greater level of accuracy… However, the implied linkage of precision and accuracy may not exist because of the element of uncertainty that is inherent with probabilities and consequences.”

This clearly supports that Option D is correct. While quantitative methods appear precise, their accuracy may be affected by model limitations, uncertainty, and data variability. Therefore, understanding this distinction helps practitioners avoid overconfidence in the output of RBI tools.

As per Section 9.2 of API 580:

“POF is typically expressed in terms of frequency. Frequency is expressed as a number of events occurring during a specific timeframe.”

Further clarified in the same section:

“For probability analysis, the timeframe is typically expressed as a fixed interval (e.g. one year) and the frequency is expressed as events per interval (e.g. 0.0002 failures per year).”

This confirms thatfrequencyis the correct term used to express probability of failure in RBI. Other options like deterioration rate or time are influencing factors but not the standard unit of expression.

Per Section 13.3 of API 580:

“A Fitness-For-Service (FFS) assessment (e.g., API 579-1/ASME FFS-1) may be performed to determine what size flaws, if found in future inspections, would require repair or equipment replacement.”

This makes Fitness-For-Service the correct method for evaluating whether existing or predicted flaws are tolerable or require corrective action.

API 580 clearly states under Section 13.6:

“Emergency depressurizing and/or de-inventory should be achieved within a few minutes to reduce the risk from an explosion/fire. This method reduces the amount and rate of release.”

While other methods (such as substitution or containment) reduce hazard or consequence, emergency depressuring directly targets the rate and quantity of material released.

As stated in Section 6.4.1:

“Operating within the boundaries is fundamental to the validity of the RBI study as well as good operating practice.”

Boundaries (both physical and operational) define the scope and assumptions of the RBI analysis. Without adherence to them, the analysis becomes invalid.

Section 5.3.5 of API 580 explains the nature of semi-quantitative RBI analysis:

“Semi-quantitative… is geared to obtain the major benefits of the previous two approaches (e.g. speed of the qualitative and rigor of the quantitative)… The results are usually given in consequence and probabilitycategories or as risk numbers, but numerical values may be associated with each category to permit the calculation of risk and the application of appropriate risk acceptance criteria.”

Therefore, semi-quantitative assessments often produce risk values in a numeric format, allowing comparative decision-making. This distinguishes them from purely qualitative assessments that rely on subjective categories like “High/Medium/Low.”

API 580, Section 12.4 and 12.6 emphasize that inspection should be optimized and risk-focused. Excessive inspections can increase exposure to damage mechanisms (such as mechanical or corrosion risks introduced during inspection activities), especially if not needed.

From Section 12.4:

“Organizations should be deliberate and systematic in assigning the level of risk management achieved through inspection and should be cautious not to assume that there is an unending capacity for risk management through inspection.”

Further, in risk-optimization contexts (Section 12.5):

“While there is a potential for reduction of inspection costs through utilization of RBI, increased equipment integrity and inspection cost optimization should remain the focus.”

Therefore, excess inspections may be:

Unjustified

Economically wasteful

Risk-enhancing (e.g., opening equipment unnecessarily may lead to deterioration)

As indicated in API 580 Section 11.8:

"Reduction of some risks to a lower level may not be practical due to technology and cost constraints. An as low as reasonably practical (ALARP) approach to risk management may be necessary for these items."

Thus, technology limitations are explicitly cited as a reason why some risks cannot be feasibly reduced further.

API 580 outlines the required contents of an inspection plan in Section 12.3 and also in the "Output" section:

“The RBI inspection plan should include:

b) inspection methods that should be used;

c) extent of inspection (percent of total area to be examined or specific locations);

d) inspection interval or next inspection date (timing).”​

Therefore, "examination methods to be used" is a fundamental part of the inspection plan, as explicitly stated. Probability and consequence of failure are inputs to the risk analysis but not part of the inspection plan structure itself.

API 580, Section 4.2 defines risk reduction as:

“Risk reduction is the act of mitigating a known risk that is deemed to be too high to a lower, more acceptable level of risk with some form of risk reduction activity.”

Risk assessment and risk determination involve identifying and evaluating risk.

Risk management is the broader process that may or may not involve mitigation.

As per API 580, failure is typically defined in terms of a breach in the pressure boundary — most clearly indicated by loss of containment. In Section 5.2, API 580 explains the fundamental focus of RBI:

“One objective of RBI is to determine what incident could occur (consequence) in the event of an equipment failure and how likely (probability) it is that the incident could happen. For example, if a pressure vessel subject to damage from corrosion under insulation develops a leak, a variety of consequences could occur.”

This leak constitutes a loss of containment and is therefore categorized as a failure.

Other options are not necessarily defined as equipment failures:

B (corrosion beyond allowance) is degradation, but failure only occurs if it breaches containment.

C (end of service life) is a lifecycle condition, not a failure by definition.

D (fire or explosion) are consequences of a failure, not the failure itself.

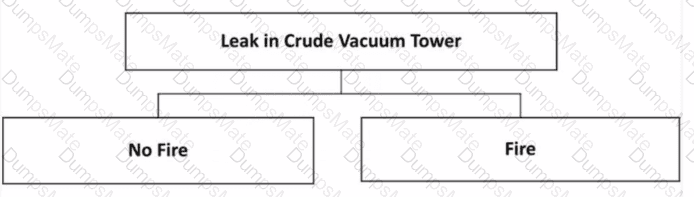

In RBI, risk is typically calculated using the basic formula:

      Risk = Probability of Failure (PoF) × Consequence of Failure (CoF)

Based on the question:

Probability of Fire = 0.00001 per year

Consequence of Fire = $50,000,000

Applying the formula:

      Risk = 0.00001 × $50,000,000

      Risk = $500/year

This is the annualized risk estimate associated with the fire event originating from a leak in the crude vacuum tower.

As per API 580, Section 10.2.1:

“A common approach used to express risk is to multiply the probability of failure by the consequence of failure. This simple equation is useful for determining the relative risk ranking among equipment items.”

And in Section 10.3.1:

“Risk can be expressed in various units such as monetary value per year (e.g., $/year)... This allows for comparison of risk levels in economic terms.”

Hence, the correct calculated value, $500/year, corresponds to option A.

As stated in API 580, Introduction (page xi):

“The RBI plans also identify equipment that does not require inspection or some other form of mitigation because of the acceptable level of risk associated with the equipment’s current operation. In this way, inspection and maintenance activities can be focused and more cost-effective.”

Options B, C, and D introduce concepts not aligned with the API definition. Option A correctly captures the intent and benefit of an RBI-based plan.

Per API 580, Section 7.2:

“The precision of the data should be consistent with the RBI method used. The individual or team should understand the precision of the data needed for the analysis before gathering it.”

This means that different RBI approaches (qualitative, semi-quantitative, quantitative) require different levels of precision.

API 580, Section 5.6.4 outlines situations where “inspection may not be sufficient to manage risks,” stating:

“Examples where inspection may not be sufficient… are: a) equipment nearing end of service life.”

In such scenarios, additional mitigation such as equipment replacement or redesign is often necessary to reduce risk to acceptable levels.
