CKAD Certified Kubernetes Application Developer (CKAD) Program Questions and Answers

Given a container that writes a log file in format A and a container that converts log files from format A to format B, create a deployment that runs both containers such that the log files from the first container are converted by the second container, emitting logs in format B.

Task:

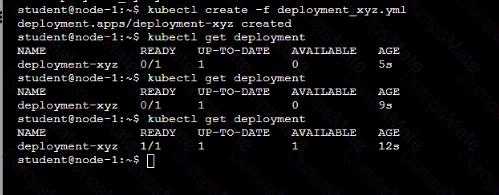

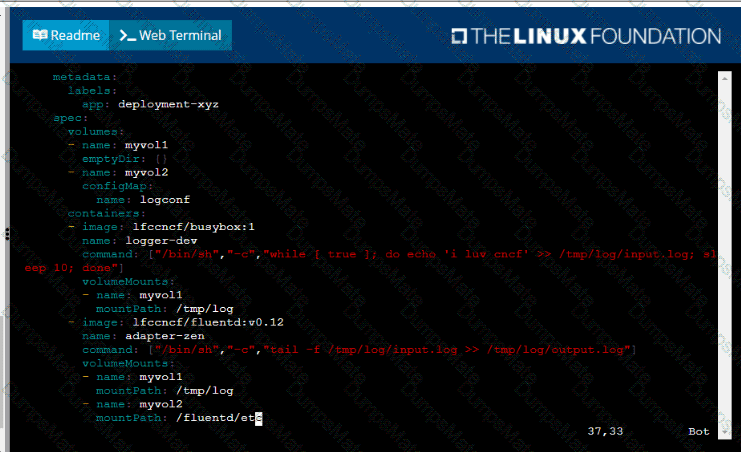

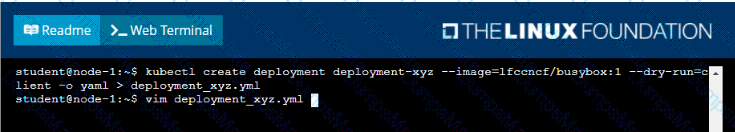

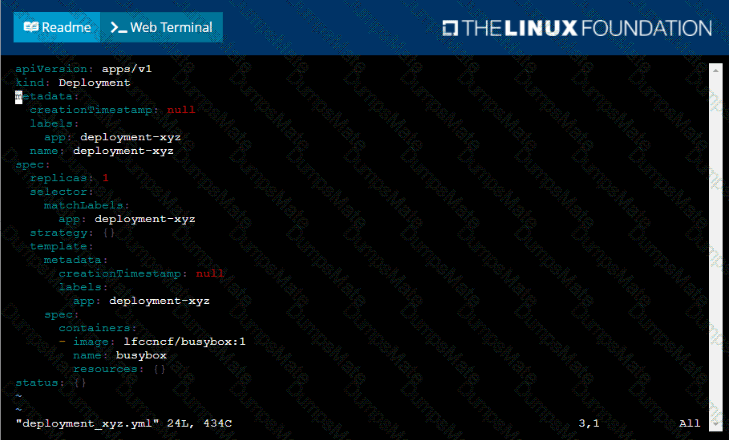

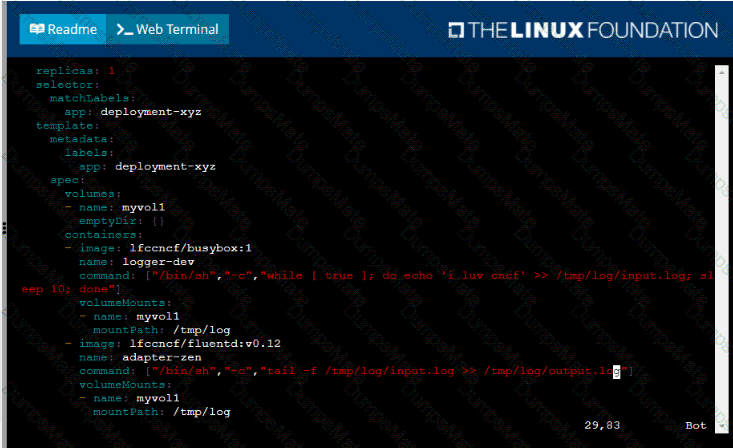

• Create a deployment named deployment-xyz in the default namespace, that:

•Includes a primary

lfccncf/busybox:1 container, named logger-dev

•includes a sidecar Ifccncf/fluentd:v0.12 container, named adapter-zen

•Mounts a shared volume /tmp/log on both containers, which does not persist when the pod is deleted

•Instructs the logger-dev

container to run the command

which should output logs to /tmp/log/input.log in plain text format, with example values:

• The adapter-zen sidecar container should read /tmp/log/input.log and output the data to /tmp/log/output.* in Fluentd JSON format. Note that no knowledge of Fluentd is required to complete this task: all you will need to achieve this is to create the ConfigMap from the spec file provided at /opt/KDMC00102/fluentd-configma p.yaml , and mount that ConfigMap to /fluentd/etc in the adapter-zen sidecar container

Context

You have been tasked with scaling an existing deployment for availability, and creating a service to expose the deployment within your infrastructure.

Task

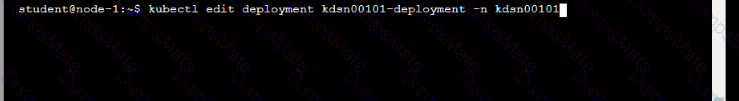

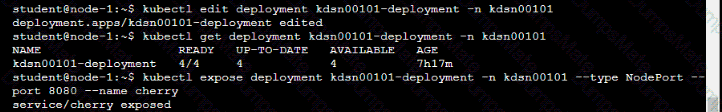

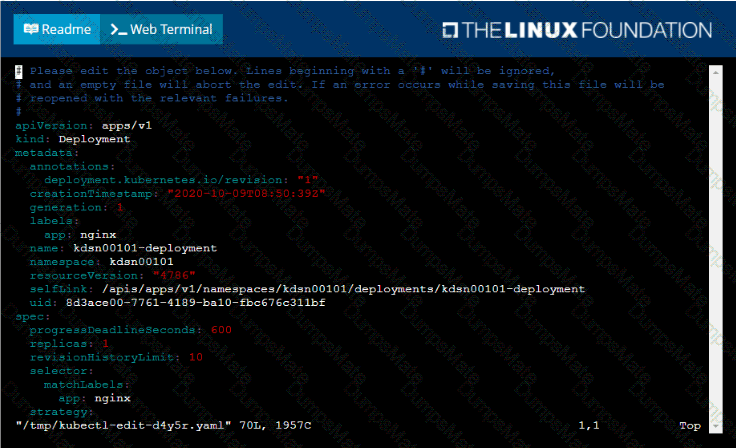

Start with the deployment named kdsn00101-deployment which has already been deployed to the namespace kdsn00101 . Edit it to:

• Add the func=webFrontEnd key/value label to the pod template metadata to identify the pod for the service definition

• Have 4 replicas

Next, create ana deploy in namespace kdsn00l01 a service that accomplishes the following:

• Exposes the service on TCP port 8080

• is mapped to me pods defined by the specification of kdsn00l01-deployment

• Is of type NodePort

• Has a name of cherry

Context

You are asked to scale an existing application and expose it within your infrastructure.

First, update the Deployment nginx-deployment in the prod

namespace :

. to run 2 replicas of the Pod

. add the following label to the Pod :

role: webFrontEnd

Next, create a NodePort Service named rover in the prod namespace exposing the nginx-deployment Deployment 's Pods

Task

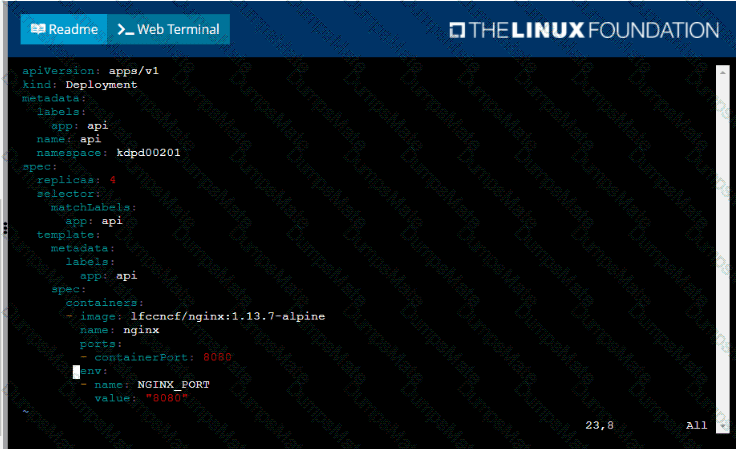

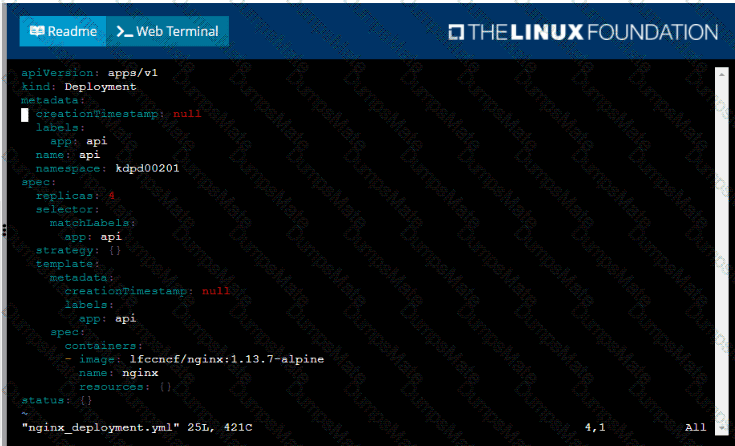

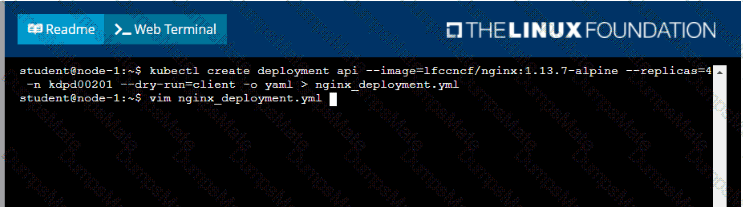

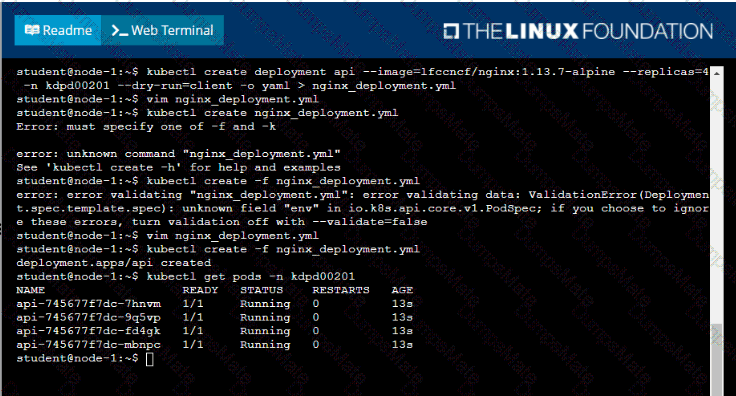

Create a new deployment for running.nginx with the following parameters;

• Run the deployment in the kdpd00201 namespace. The namespace has already been created

• Name the deployment frontend and configure with 4 replicas

• Configure the pod with a container image of lfccncf/nginx:1.13.7

• Set an environment variable of NGINX__PORT=8080 and also expose that port for the container above

You must connect to the correct host . Failure to do so may result in a zero score.

[candidate@base] $ ssh ckad00021

Task

Create a Cronjob named grep that executes a Pod running the following single container:

name: busybox

image: busybox:stable

command: ["grep", "-i", "nameserv

er", "/etc/resolv.conf"]

Configure the CronJob to:

execute Once every 30 minutes

keep 96 completed Job

keep 192 failed Job

never restart podsterminate pods after 8 seconds

Manually create and execute once job

named grep-test from the grep Cronjob

Task

A Deployment named backend-deployment in namespace staging runs a web application on port 8081.

Context

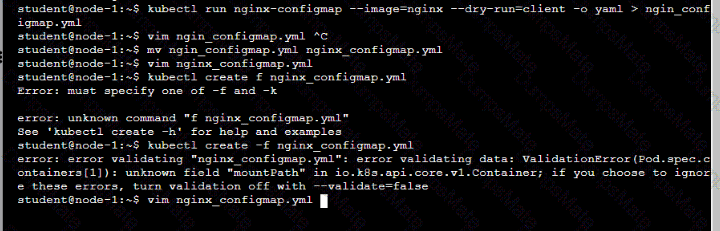

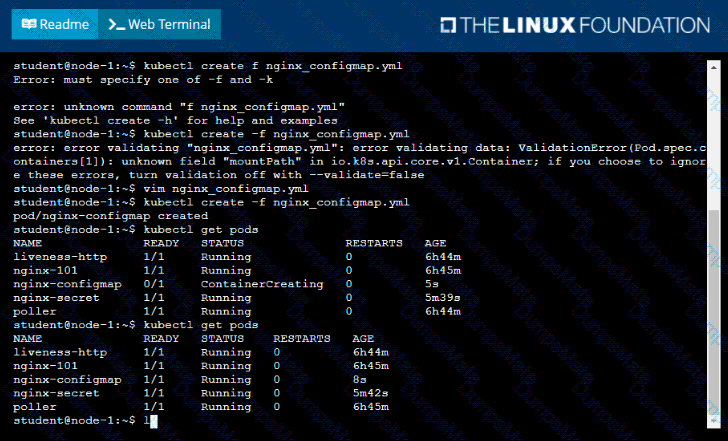

You are tasked to create a ConfigMap and consume the ConfigMap in a pod using a volume mount.

Task

Please complete the following:

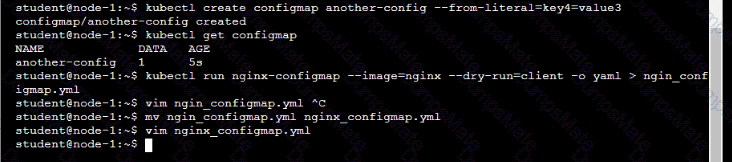

• Create a ConfigMap named another-config containing the key/value pair: key4/value3

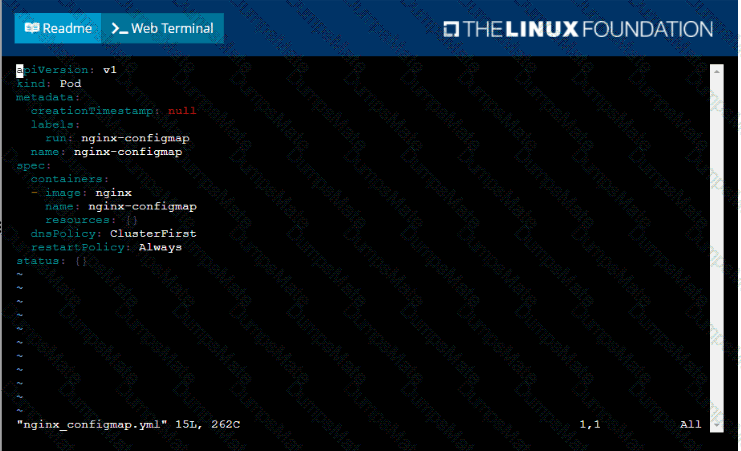

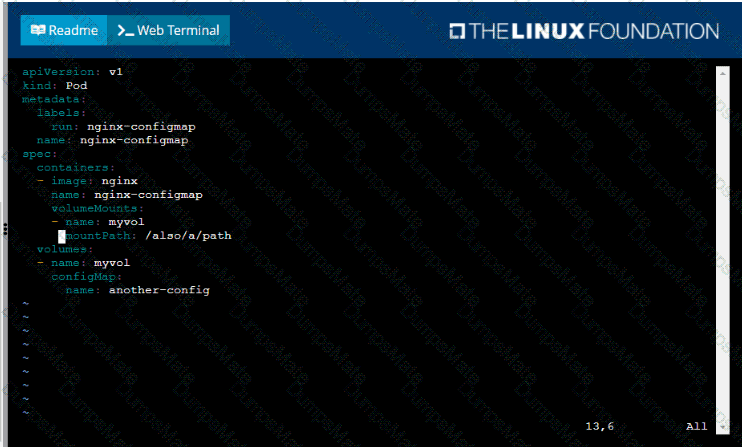

• start a pod named nginx-configmap containing a single container using the

nginx image, and mount the key you just created into the pod under directory /also/a/path

Task:

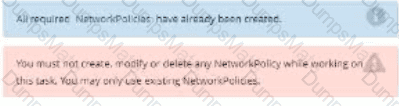

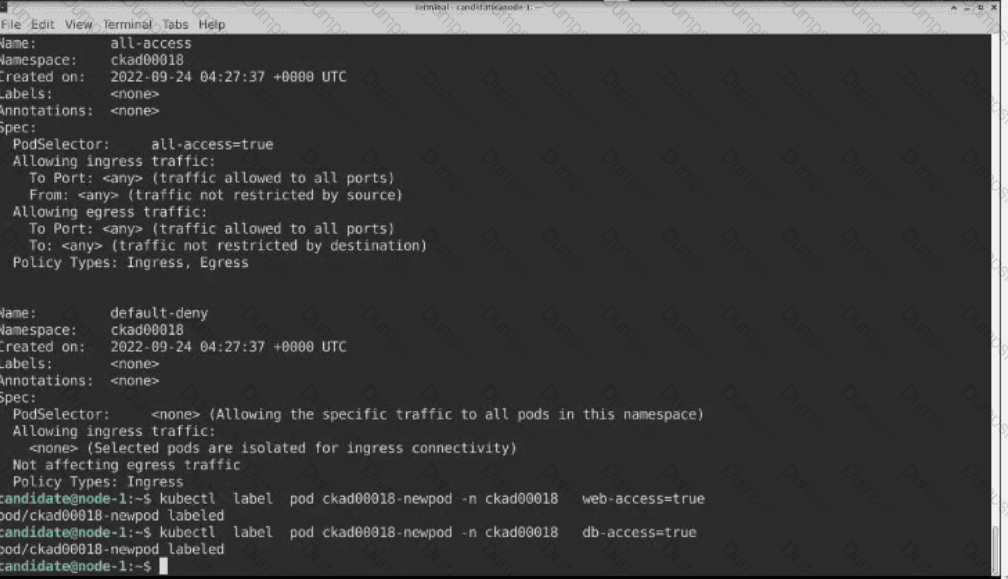

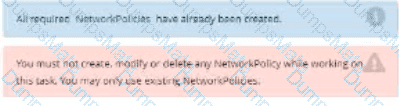

Update the Pod ckad00018-newpod in the ckad00018 namespace to use a NetworkPolicy allowing the Pod to send and receive traffic only to and from the pods web and db

Context

A project that you are working on has a requirement for persistent data to be available.

Task

To facilitate this, perform the following tasks:

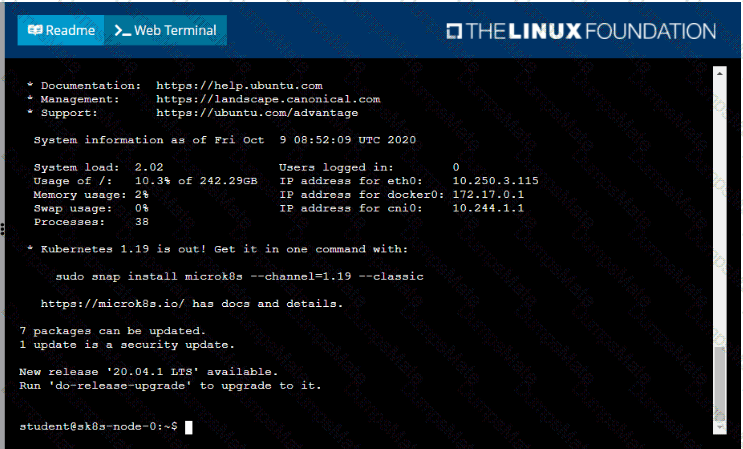

• Create a file on node sk8s-node-0 at /opt/KDSP00101/data/index.html with the content Acct=Finance

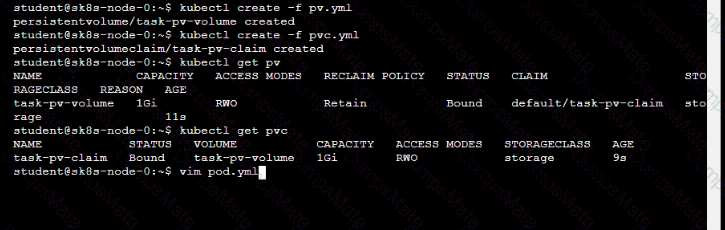

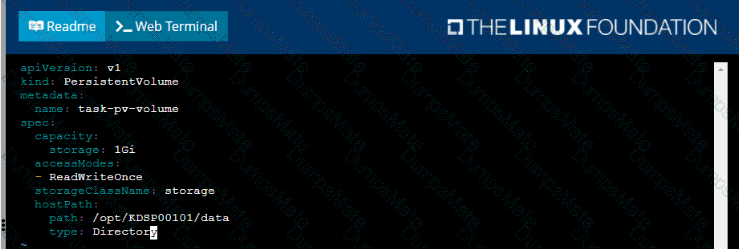

• Create a PersistentVolume named task-pv-volume using hostPath and allocate 1Gi to it, specifying that the volume is at /opt/KDSP00101/data on the cluster's node. The configuration should specify the access mode of ReadWriteOnce . It should define the StorageClass name exam for the PersistentVolume , which will be used to bind PersistentVolumeClaim requests to this PersistenetVolume.

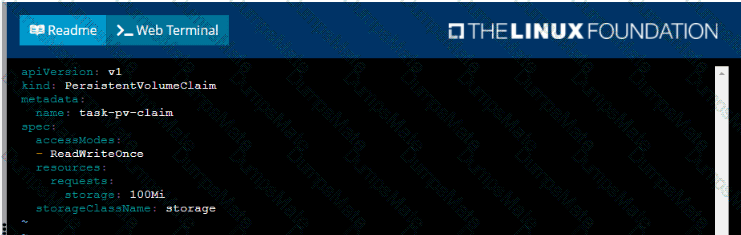

• Create a PefsissentVolumeClaim named task-pv-claim that requests a volume of at least 100Mi and specifies an access mode of ReadWriteOnce

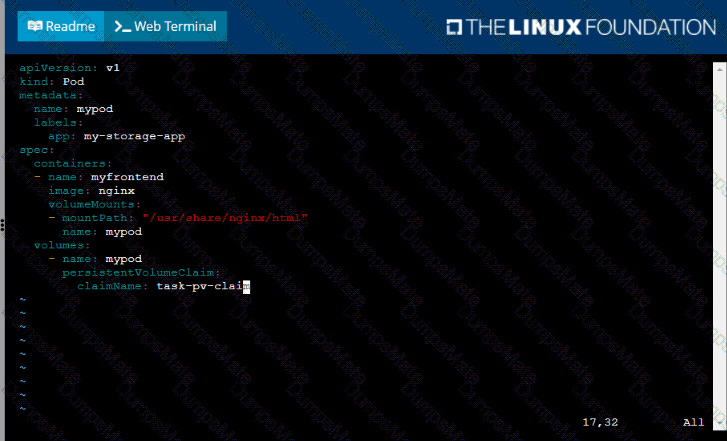

• Create a pod that uses the PersistentVolmeClaim as a volume with a label app: my-storage-app mounting the resulting volume to a mountPath /usr/share/nginx/html inside the pod

Task

A deployment is falling on the cluster due to an incorrect image being specified. Locate the deployment, and fix the problem.

Task:

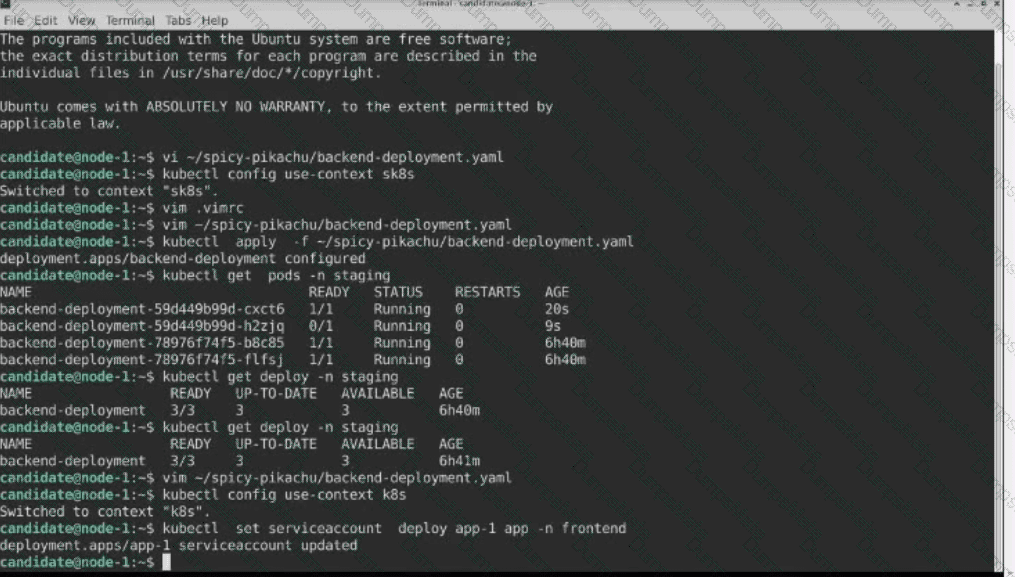

Update the Deployment app-1 in the frontend namespace to use the existing ServiceAccount app.
