D-PVM-OE-01 Dell PowerMax Operate v.2 Questions and Answers

Step by Step Comprehensive Detailed Explanation:

A Gatekeeper in PowerMax is a small, dedicated device used for communication between the storage array and Solutions Enabler (SYMCLI), the command-line management interface. The default size of a Gatekeeper on a PowerMax array is3 cylinders.

While the size can technically be specified in kilobytes (KB), the traditional and preferred unit for Gatekeeper size is cylinders. This is because cylinders represent a specific number of blocks on the physical disks, and using cylinders helps ensure consistent sizing across different disk types and configurations.

Why other options are incorrect:

A. 3 KB, C. 6 KB:These sizes are too small to be practical for a Gatekeeper.

D. 6 cylinder:While older VMAX models might have used 6 cylinders, the current default for PowerMax is 3 cylinders.

References and documents of Dell's public documentation for PowerMax Operate v.2:

Dell Solutions Enabler 10.0.0 CLI User Guide:This guide provides information about Gatekeepers and their role in Solutions Enabler. While it might not explicitly state the default size, it mentions that Gatekeepers are typically small devices. You can find this document on the Dell Support website by searching for "Solutions Enabler CLI User Guide."

Dell PowerMax Family: Essentials and Best Practices Guide:This guide might offer general information about Solutions Enabler and its configuration, which can provide context for understanding the purpose and sizing of Gatekeepers.

Step by Step Comprehensive Detailed Explanation:

The Dell VSI (Virtual Storage Integrator) vSphere plug-in is a tool that integrates Dell storage management capabilities into the VMware vSphere environment. It allows administrators to manage storage directly from the vSphere client. Within the "Configure Storage" section of the VSI plug-in, you can manage:

Snapshots:The plug-in allows you to create, delete, and restore snapshots of virtual machines' storage volumes. This provides a convenient way to protect data and revert to previous states if needed.

Why other options are incorrect:

A. Remote replication:While PowerMax supports remote replication (SRDF), this is typically managed through Unisphere or Solutions Enabler, not the VSI plug-in.

B. Port flags:Port configurations are usually handled through Unisphere or Solutions Enabler.

C. Access control:Access control and security settings are typically managed through Unisphere or other security tools.

References and documents of Dell's public documentation for PowerMax Operate v.2:

Dell PowerMax and VMware vSphere Configuration Guide:This guide provides detailed information about the Dell VSI vSphere plug-in and its functionalities, including snapshot management. You can find this document on the Dell Support website by searching for "PowerMax and VMware vSphere Configuration Guide."

Dell VSI for VMware vSphere User Guide:This guide specifically focuses on the VSI plug-in and its features, including storage configuration options.

Step by Step Comprehensive Detailed Explanation:

In TimeFinder SnapVX, snapshots of a source volume are assigned generation numbers. These numbers indicate the order in which the snapshots were created. The first snapshot taken has a generation number of 0, the second has 1, and so on.

In this case, four snapshots were created at different times:

8:00 AM (Generation 0)

10:00 AM (Generation 1)

12:00 PM (Generation 2)

2:00 PM (Generation 3)

Therefore, the snapshot created at 2:00 PM has a generation number of3.

References and documents of Dell's public documentation for PowerMax Operate v.2:

Dell Solutions Enabler 10.0.0 TimeFinder SnapVX CLI User Guide:This guide provides detailed information about SnapVX features and functionalities, including how generation numbers are assigned to snapshots. You can find this document on the Dell Support website by searching for "Solutions Enabler TimeFinder SnapVX CLI User Guide."

Step by Step Comprehensive Detailed Explanation:

When evaluating storage group compliance in PowerMax, Unisphere considers the weighted response time of the storage group against its defined service level objectives (SLOs). The compliance status is determined based on how well the storage group meets its response time goals over different time periods.

In this case, even though the storage group's weighted response time is compliant over the last four hours, the fact that it does not meet the defined response time for the last two weeks indicates an overallnon-compliantstatus.

This means that while the storage group might be performing adequately in the short term, it has not consistently met its performance goals over a longer period. This could indicate potential performance issues or the need for adjustments to the storage group's configuration or service level.

Why other options are incorrect:

A. Stable:A stable status would indicate consistent compliance over all time periods.

B. Marginal:A marginal status might suggest borderline performance, but not necessarily a clear violation of SLOs.

D. Critical:A critical status would likely indicate a severe performance issue or a significant breach of SLOs.

References and documents of Dell's public documentation for PowerMax Operate v.2:

Dell Unisphere for PowerMax 10.0.0 Online Help:The online help for Unisphere provides detailed information about storage group compliance monitoring, including how compliance status is determined and what the different status levels indicate. You can access this help within Unisphere itself or on the Dell Support website.

Dell PowerMax Family: Essentials and Best Practices Guide:This guide may offer general information about performance management and service level objectives in PowerMax, providing context for understanding storage group compliance.

Step by Step Comprehensive Detailed Explanation:

To register an ESXi server in Unisphere for PowerMax, you need to provide the following information:

IP Address:The IP address of the ESXi server that you want to manage. This allows Unisphere to communicate with the ESXi host.

ESXi Server Credentials:The username and password of an account with sufficient privileges to access and manage the ESXi server. This ensures that Unisphere has the necessary permissions to perform storage-related operations on the ESXi host.

Why other options are incorrect:

A. Unisphere credentials and hostname:Unisphere credentials are used to log in to Unisphere itself, not to register an ESXi server.

B. IP address and hostname:While the hostname might be helpful, the ESXi server credentials are essential for authentication and authorization.

D. ESXi server credentials and Unisphere credentials:Unisphere credentials are not required for registering an ESXi server.

References and documents of Dell's public documentation for PowerMax Operate v.2:

Dell PowerMax and VMware vSphere Configuration Guide:This guide provides detailed instructions on how to register and manage ESXi servers in Unisphere for PowerMax. You canfind this document on the Dell Support website by searching for "PowerMax and VMware vSphere Configuration Guide."

Dell Unisphere for PowerMax 10.0.0 Online Help:The online help for Unisphere might also provide guidance on registering ESXi servers.

https://visiondatacenter.com/products/DELLEMC_VMAX450F/vmax-software-datasheet.pdf

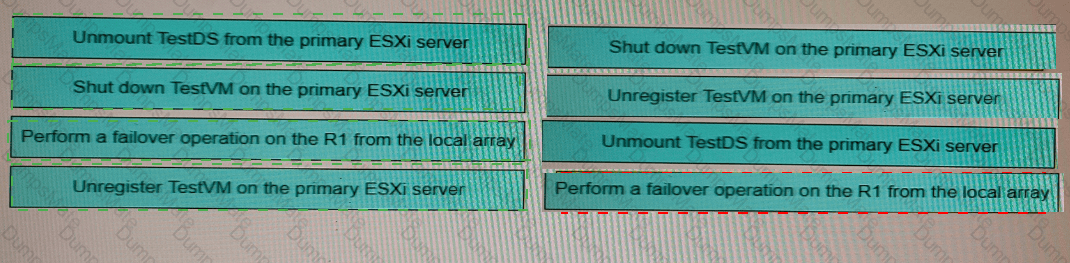

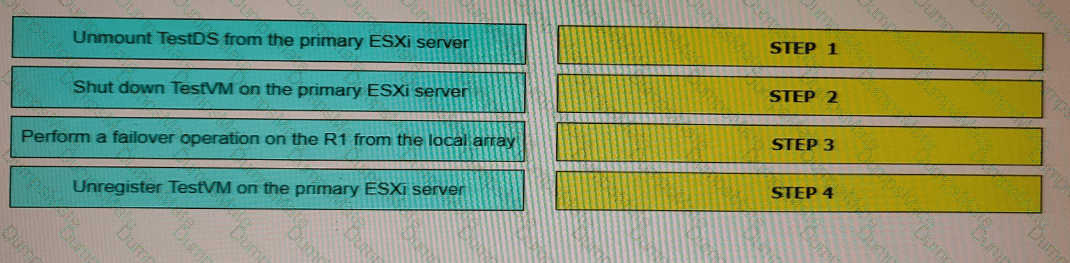

1.Shunt down testvm on the primary esxi server

2. unregister testvm.

3.Unamount testds .

4.perform a failover operation.

Step by Step Comprehensive Detailed Explanation:

In SRDF (Symmetrix Remote Data Facility), a "Restore" operation is used to resynchronize the source (R1) and target (R2) devices after a situation where the target device might have been modified independently. This typically occurs after a failover scenario where the target device becomes the primary and undergoes changes.

During an SRDF Restore operation:

R2 Changes Discarded:Any changes made to the target (R2) device since the last synchronization are discarded.

R1 Changes Propagated:The current data on the source (R1) device is copied over to the target (R2), overwriting any existing data on the target.

This effectively restores the target device to a state consistent with the source device, ensuring data integrity and consistency.

Why other options are incorrect:

B. Resumes normal SRDF mirroring and host access:While a Restore operation can be part of the failback process, it's not the only step involved. Failback might involve additional actions like reversing replication direction and restoring host access.

C. Changes made to the R2 are propagated to the R1. Changes made to the R1 are discarded:This describes an "Update" operation, not a "Restore."

D. Enables access to both the R1 and R2 devices for their hosts:This describes a "Split" operation, where both devices are made accessible independently.

References and documents of Dell's public documentation for PowerMax Operate v.2:

Dell Solutions Enabler 10.0.0 SRDF Family CLI User Guide:This guide provides detailed information about SRDF commands and operations, including the symrdf restore command. You can find this document on the Dell Support website by searching for "Solutions Enabler SRDF Family CLI User Guide."

Dell PowerMax Family: Essentials and Best Practices Guide:This guide offers a comprehensive overview of SRDF and its functionalities, including disaster recovery scenarios and the use of the "Restore" operation.

Host I/O Limits in PowerMax allow you to control the maximum IOPS (Input/Output Operations Per Second) or bandwidth that a storage group can consume. This helps prevent performance issues caused by one application or workload monopolizing resources.

When you associate Host I/O Limits with a Storage Group, the default Dynamic I/O distribution mode is set toNever.

Never:This means that the I/O limits are statically distributed across the directors in the associated masking view. If a director fails, its allocated portion of the I/O limit is lost. This is the most conservative setting, as it ensures that the I/O limits are strictly enforced even in the event of a director failure.

You can change this setting toBalancedorAlwaysif you need more dynamic distribution of I/O limits.

References and documents of Dell's public documentation for PowerMax Operate v.2:

Dell PowerMax and VMware vSphere Configuration Guide:This guide provides detailed information about Host I/O Limits, including the different distribution modes and their benefits. You can find this document on the Dell Support website by searching for "PowerMax and VMware vSphere Configuration Guide."

Dell Solutions Enabler 10.0.0 CLI User Guide:This guide provides information on how to set Host I/O Limits using SYMCLI commands, including the -dynamic option for specifying the distribution mode.

Step by Step Comprehensive Detailed Explanation:

Non-Disruptive Migration (NDM) in PowerMax offers different modes for migrating data between storage arrays. When migrating from a VMAX array running Enginuity 5876 to a PowerMax running PowerMaxOS 5978, theAdaptive Copymode is used.

Adaptive Copy mode is designed for migrations between different storage array platforms or microcode versions. It provides flexibility and efficiency by dynamically adjusting the migration process based on the source and target array capabilities.

Why other options are incorrect:

A. Asynchronous:This mode is typically used for SRDF replication, not NDM.

C. Pass-through:This mode is not relevant to NDM.

D. Metro-based:This mode is used for specific metro distance configurations in SRDF.

References and documents of Dell's public documentation for PowerMax Operate v.2:

Dell PowerMax Family: Essentials and Best Practices Guide:This guide provides an overview of NDM and its different modes, including Adaptive Copy. It also discusses the scenarios where each mode is applicable.

Dell Solutions Enabler 10.0.0 CLI User Guide:This guide may provide further details about NDM commands and options, including how to specify the migration mode.

We need to remove all resources associated with a deprecated web application server named web_host_1 in the Unisphere for PowerMax simulator.

Here's a step-by-step guide on how to accomplish this, based on typical Unisphere functionality and the context of the question:

Steps:

1. Launch the Simulator and Navigate to the Hosts Section

Open Unisphere for PowerMax in your web browser.

Log in to the simulator.

In the left-hand navigation pane, click onHosts>Hosts. This will take you to the Hosts management view.

2. Locate the Host web_host_1

In the Hosts view, you'll see a list of all configured hosts.

Find the host named web_host_1. You might need to use the search or filtering options if there are many hosts listed.

3. Identify Associated Resources

Before deleting the host, it's crucial to identify all resources associated with it. These typically include:

Masking Views:These define the LUNs that a host can access.

Storage Groups:These contain the volumes presented to the host.

Port Groups:These define the connectivity paths (ports) used by the host.

How to Find Associated Resources:

Click on the web_host_1 host entry. This should open a details view or properties page for the host.

Look for tabs or sections labeled "Masking Views," "Storage Groups," or similar.

Note down the names of any masking views and storage groups associated with web_host_1.

4. Remove the Host from Masking Views

Navigate toHosts>Masking Views.

Locate the masking views that you identified in Step 3 as being associated with web_host_1.

Open each masking view's properties.

Remove the Host:There should be an option to edit the host list within the masking view. Find web_host_1 in the list of hosts and remove it.

Save Changes:Save the changes to the masking view.

Repeatfor all masking views associated with web_host_1.

5. Delete or Modify Storage Groups

Navigate toStorage>Storage Groups.

Locate the storage groups that were associated with web_host_1.

Two Options:

If the storage group is ONLY used by web_host_1:You can delete the entire storage group. Select the storage group and click theDeletebutton (or a similar option).

If the storage group is shared with other hosts:You need to remove the volumes associated with web_host_1 from the storage group.

Open the storage group's properties.

Go to the "Volumes" tab.

Identify the volumes that were presented to web_host_1.

Select those volumes and choose the option to "Remove from Storage Group" or a similarly worded option.

Save the changes to the storage group.

6. Delete the Host

Go back toHosts>Hosts.

Select web_host_1.

Click theDeletebutton (or a similar option, like a trashcan icon).

Confirm that you want to delete the host.

7. Verify Removal (Optional)

After deleting the host and modifying the storage groups and masking views, you can verify that the resources have been properly cleaned up.

Check theStorage GroupsandMasking Viewssections again to ensure that web_host_1 is no longer listed and that the storage groups have been either deleted or modified as intended.

Step by Step Comprehensive Detailed Explanation:

Non-Disruptive Migration (NDM) is a feature in PowerMax that allows you to migrate data between storage arrays without any downtime or disruption to host applications. During NDM, SRDF (Symmetrix Remote Data Facility) is used to replicate data between the source and target arrays. Here are the configuration rules that apply to SRDF groups and connections during NDM:

A. The source and target arrays are at most one hop away from the control host:The control host, which manages the NDM process, must have direct connectivity to both the source and target arrays. This ensures efficient communication and control during the migration.

E. DM RDF groups are configured with a minimum of one path:SRDF groups used for NDM (DM RDF groups) must have at least one active path between the source and target arrays. This ensures that data can be replicated continuously during the migration.

Why other options are incorrect:

B. Two DM RDF groups are created per SG migration session:This is not a strict requirement. The number of DM RDF groups may vary depending on the configuration and the specific NDM operation.

C. RF and RE ports are supported, with RF ports being selected if both types are available:While RF and RE ports are supported for SRDF, there's no specific preference for RF ports during NDM. The choice of ports depends on the overall network configuration and availability.

D. A single array cannot have multiple DM RDF groups:An array can have multiple DM RDF groups if needed for different NDM operations or configurations.

References and documents of Dell's public documentation for PowerMax Operate v.2:

Dell PowerMax Family: Essentials and Best Practices Guide:This guide provides an overview of NDM and its requirements, including information about SRDF configuration.

Dell Solutions Enabler 10.0.0 CLI User Guide:This guide provides detailed information about SRDF commands and configuration options, which are relevant for NDM operations.

Okay, I understand. We need to perform a system health check and review the compliance status for a PowerMax array with SID ending in 1762 using the Unisphere simulator, then generate and download a compliance report.

Here's how you would do it in the Unisphere for PowerMax simulator, based on the provided image and common Unisphere functionality:

Steps:

1. Launch the Simulator and Access the System Health View

Open Unisphere for PowerMax in your web browser.

You should already be logged in to the simulator, with the PowerMax array with SID 1762.

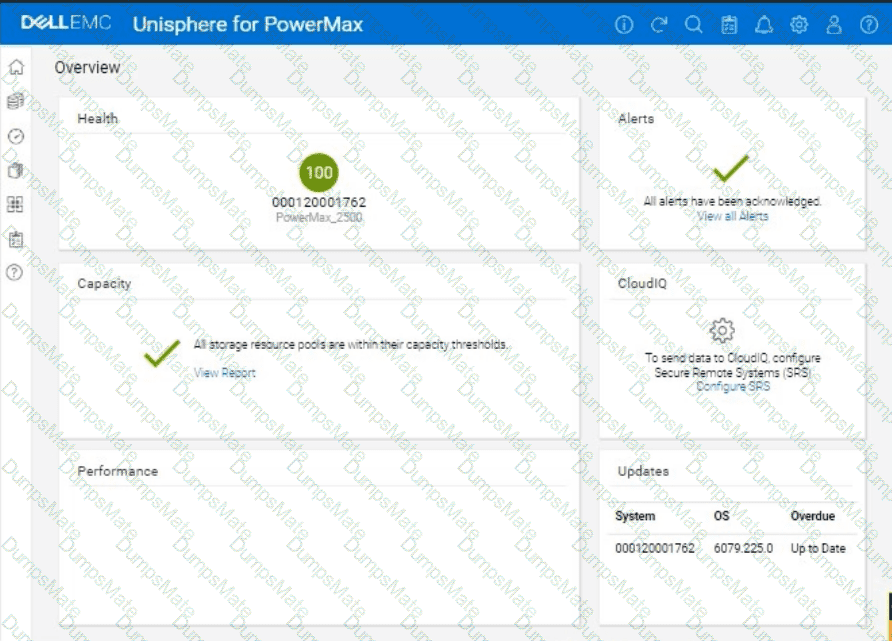

The initialOverviewpage (as shown in the image) provides a good starting point for a health check.

2. Analyze the Overview Page

Health:The "Health" section displays the overall health status of the array. In the image, it shows "100" with a green checkmark, which indicates that the array is currently healthy.

Alerts:The "Alerts" section will show if there are any active alerts. In the image, it shows a green checkmark and "All alerts have been acknowledged," meaning no unacknowledged alerts. You can click "View all Alerts" to see the alert history.

Capacity:The "Capacity" section indicates whether storage resource pools are within their capacity thresholds. The green checkmark and "All storage resource pools are within their capacity thresholds" message indicate that capacity is currently healthy. You can click "View Report" for more details.

Performance:The "Performance" section is not detailed in the image, but it would typically provide a quick overview of the array's performance.

Updates:The "Updates" section shows the system's PowerMaxOS code level and whether any updates are overdue. In the image, it shows that the system is "Up to Date."

3. Navigate to the Compliance Section

In the left-hand navigation pane, click onData Protectionto expand it.

Click onComplianceunder Data Protection.

4. Review Compliance Status

The Compliance view will show you the overall compliance status of your storage groups against the defined compliance policies.

Review the compliance status for each Storage Group.

Look for any storage groups that are marked as "Non-Compliant."

5. Generate the Compliance Report

Click on"Generate Report"(or a similarly worded button) within the Compliance view. This might also be represented as an icon in the simulator.

Select all Storage GroupsSince we need to generate the report for all storage groups.

Report Format:Choose the desired report format. Common options are usually PDF, CSV, or HTML. For this simulation, let's assume PDF is available and select it.

Download the Report:Once the report is generated, there will typically be a"Download"or similar option to save the report to your local system. Click it to download the compliance report.

6. Further Health Checks (Optional):

Detailed Performance Metrics:You can navigate to thePerformancesection in the left navigation pane (under "Dashboard") to view more detailed performance metrics for various components of the array.

Hardware Status:You can typically find a "Hardware" section (or similarly named section) that provides information about the physical components of the array (e.g., DAEs, directors, ports).
