D-VXR-DY-01 Dell VxRail Deploy v2 Exam Questions and Answers

When planning a VxRail deployment, administrators must choose between a VxRail-managed (internal) vCenter or a customer-managed (external) vCenter. A VxRail-managed vCenter is automatically deployed during initialization and is tightly coupled with the VxRail Manager to streamline lifecycle management. While modern VxRail software versions allow an internal vCenter to manage multiple VxRail clusters within the same orchestration domain, its administrative boundaries are strictly confined to VxRail hardware platforms.

If a customer requires a single pane of glass to manage both VxRail clusters and existing or future non-VxRail vSAN clusters or traditional ESXi workloads, a customer-managed vCenter is explicitly required. An internal VxRail vCenter cannot license or manage standard legacy vSphere environments or non-VxRail vSAN nodes. Opting for the customer-managed model ensures that the centralized vCenter Server instance can accommodate heterogeneous infrastructure, matching corporate operational models and centralizing multi-cluster resource monitoring under a pre-existing enterprise license configuration.

Dell best practices for physical rack deployment dictate specific structural and sequential guidelines when installing multiple VxRail nodes within an enterprise server rack. These methodologies ensure physical stability, optimize cooling efficiency, and streamline subsequent logical node mapping. The two approved physical installation configurations based on server serial numbers are Choice B and Choice D.

Under Choice B, engineers start installation from the bottom portion of the designated rack space, ordering the nodes by serial number from lowest to highest. This means the host with the lowest serial number (Node 1) is secured in the lowest physical position, with subsequent nodes stacked sequentially upward. Conversely, under Choice D, if the deployment architecture commands utilizing an upper portion of the rack first, the nodes are installed starting from the upper boundary ordered by serial number from highest to lowest. This specific configuration ensures that the lowest serial number (Node 1) remains positioned at the top of that specific node block, allowing the physical layout to maintain a logical sequence that maps cleanly to automated node discovery tools and management interfaces.

When an organization opts to deploy a VxRail cluster using a customer-supplied (external) vCenter Server instead of the embedded VxRail-managed virtual appliance, specific architectural and licensing boundaries must be accommodated during the design and planning phase. First, this model dictates that the customer must provide a separate, valid VMware vCenter Server license (Choice C), as the automated, bundled license included with the embedded deployment model is non-transferable to external management entities.

Second, because the infrastructure services are completely decoupled, the environment requires a fully functional, external DNS server (Choice B) with pre-established forward and reverse lookup records for all node management components, ESXi hosts, and the incoming VxRail Manager instance prior to initialization. Third, the long-term maintenance paradigm shifts completely; the cluster uses customer-defined procedures for vCenter software upgrades (Choice D). This means the customer is independently responsible for patching and upgrading the external vCenter Server instance using standard VMware utilities like the vCenter Server Appliance Management Interface (VAMI) before initiating updates on the VxRail cluster components, effectively separating the external management platform from the automated VxRail Manager lifecycle management (LCM) framework.

In data center environments where physical space, budget, or switch port availability is limited, VxRail architectural standards offer flexibility regarding network topology. While separating out-of-band (OOB) management traffic onto a dedicated functional switch is a best-practice recommendation, it is not a rigid physical requirement. VxRail deployment fully supports combining both the primary VxRail network traffic uplinks (including Management, vSAN, vMotion, and Virtual Machine networks) and the iDRAC management uplinks onto the same pair of Top-of-Rack (TOR) switches.

To maintain security boundaries and data integrity within this shared switch topology, logical separation must be implemented using IEEE 802.1Q VLAN tagging. This allows the iDRAC traffic and systemic VxRail cluster traffic to traverse the same physical switch fabric while remaining completely isolated at Layer 2. Other options are incorrect because IPv6 multicast handles automated (not manual) node discovery via Neighbor Discovery Protocol, and a Virtual Distributed Switch (VDS) is natively deployed and configured by the VxRail Manager during initialization rather than being a mandatory preconfigured prerequisite on the physical switches.

VxRail architecture natively supports two primary mechanisms to discover unconfigured nodes on a local network during cluster initialization: Automatic Discovery and IP Discovery. Automatic Discovery relies entirely on the proprietary Loudmouth service running concurrently on the ESXi hosts and the VxRail Manager virtual appliance. This service transmits and listens for discovery frames utilizing IPv6 Multicast (specifically through the Neighbor Discovery Protocol) over the default internal management VLAN 3939. However, if the upstream physical Top-of-Rack (ToR) switch fabric has IPv6 multicast filtering active, or if the incoming nodes are situated across separate routed Layer 3 network boundaries, this automated multicast broadcast will fail to establish a link.

To bypass these network infrastructure constraints, deployment teams must utilize the second method: IP Discovery. IP Discovery—frequently classified as manual discovery—eliminates the dependency on multicast routing by allowing the VxRail Deployment Wizard to directly scan a specific, predefined list or sequential range of static IPv4 addresses assigned to the host management interfaces. This ensures that node verification, hardware inventory checking, and node allocation can finish smoothly even within restricted or legacy enterprise networking topologies. Alternate combinations like "IP Loudmouth" do not exist within the product terminology.

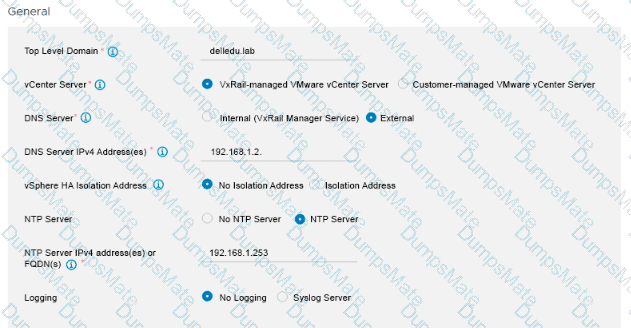

The exhibit illustrates the "General" settings section within the VxRail Deployment Wizard, where foundational infrastructure parameters are defined. Crucially, the radio button for "VxRail-managed VMware vCenter Server" is explicitly selected. In a VxRail deployment topology, choosing an internal, VxRail-managed vCenter server fundamentally changes how lifecycle management (LCM) operations are orchestrated for the cluster.

When a cluster is deployed with a VxRail-managed vCenter, the vCenter Server virtual appliance is tightly coupled with the VxRail Manager platform. This deep architectural integration guarantees that all future patch cycles, security definitions, and major platform upgrades for the vCenter Server are natively included within the unified VxRail composite update bundles. When an administrator applies an update package through the VxRail Manager dashboard, the orchestration engine automatically conducts pre-checks and applies the software versions to both the VxRail Manager and the vCenter Server in a fully automated, validated sequence. Conversely, infrastructure services configured as "External," such as the designated DNS or NTP servers, reside outside the VxRail ecosystem and are not targeted by VxRail lifecycle payloads. Therefore, the vCenter Server is the specific component captured in future update packages.

The vxm_backup_restore.py script is an internal system tool designed to execute file-based backups, scheduling modifications, and recovery tasks for the VxRail Manager management appliance. When an administrator issues the command utilizing both the -b and -l flags simultaneously, the script evaluates and applies both parameter arguments in a sequential execution pipeline.

The primary -b argument initializes a manual, file-based backup immediately, compressing the core database records, identity tokens, and environment parameters into a secure target archive file pushed to the vCenter vSAN datastore storage directory. Simultaneously, the trailing -l parameter commands the execution framework to poll the active archive path to retrieve and list the files. This outputs a detailed, chronological summary of all stored backup generations, and validation states directly to the terminal console. Running this flag combination ensures a fresh configuration snapshot is successfully committed while returning a clear inventory view of all current backup copies for operational confirmation.
