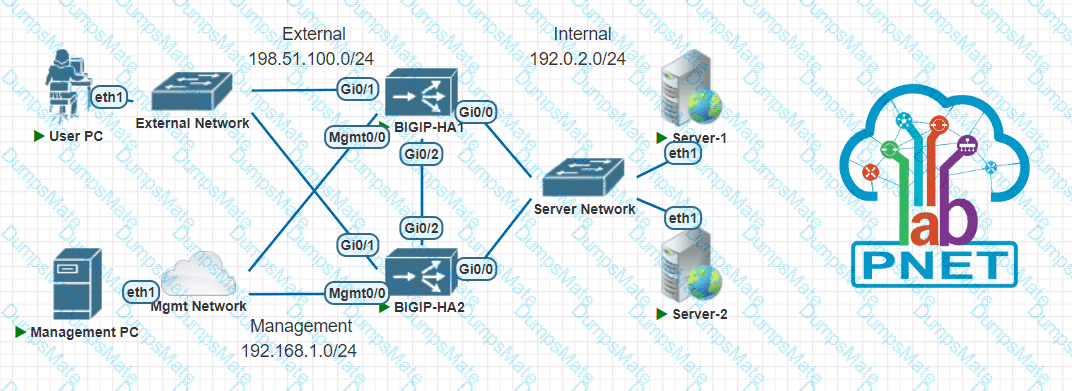

Virtual Servers have a setting called VLAN and Tunnel Traffic which defines where the BIG-IP " listens " for new connections. 4849

Ingress Logic: A virtual server is an entry point. It must be enab 50 led on the VLAN where the Client resides. If a client is on the " 51 Internal " VLAN, the Virtual Server must be enabled there to receive the traffic.

Egress Logic: The BIG-IP system uses the TMM Routing Table and Self-IPs to reach pool members. It does not need the Virtual Server to be " enabled " on the destination VLAN (External) to send traffic there.

Default Behavior: By default, Virtual Servers are enabled on " All VLANs. " However, if restricted for security, the administrator must ensure the Virtual Server is active on the client-facing (ingress) VLAN.

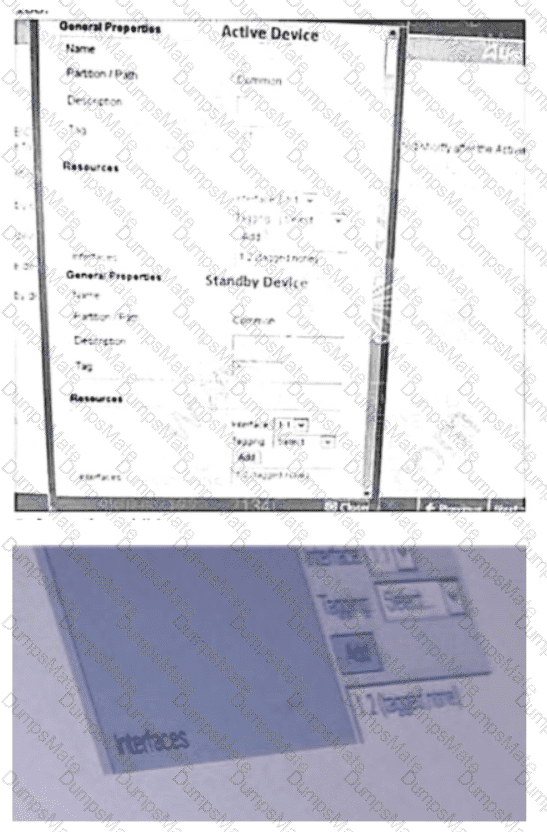

In the BIG-IP system, VLANs are the logical entities that group physical interfaces or trunks together. To modify how a VLAN interacts with an interface, the administrator must navigate to the specific VLAN configuration object.

VLAN List: This section displays all existing VLANs configured on the system.

Interface Association: Within the properties of a specific VLAN (in this case, " external " ), there is an Interfaces section. This is where physical ports or trunks are assigned to the VLAN.

Tagging Status: For each associated interface, the administrator can choose between Tagged (802.1Q) or Untagged .

Untagged: The interface will treat incoming traffic without a VLAN header as part of this VLAN, and outgoing traffic will not have a VLAN tag added. An interface can only be " Untagged " for one VLAN.

Tagged: Allows an interface to carry traffic for multiple VLANs simultaneously by using 802.1Q headers.

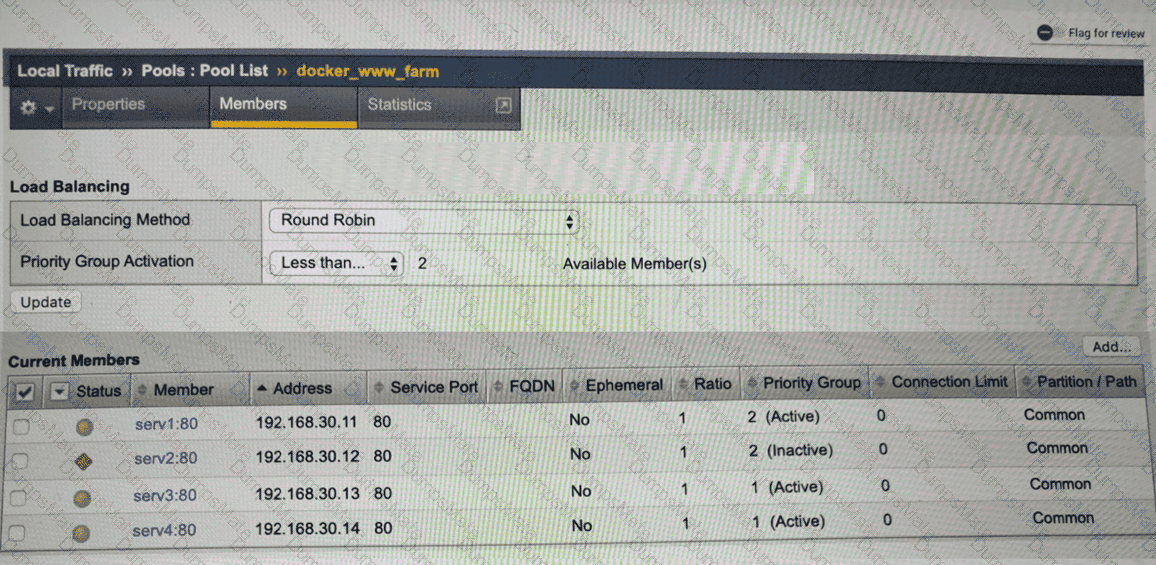

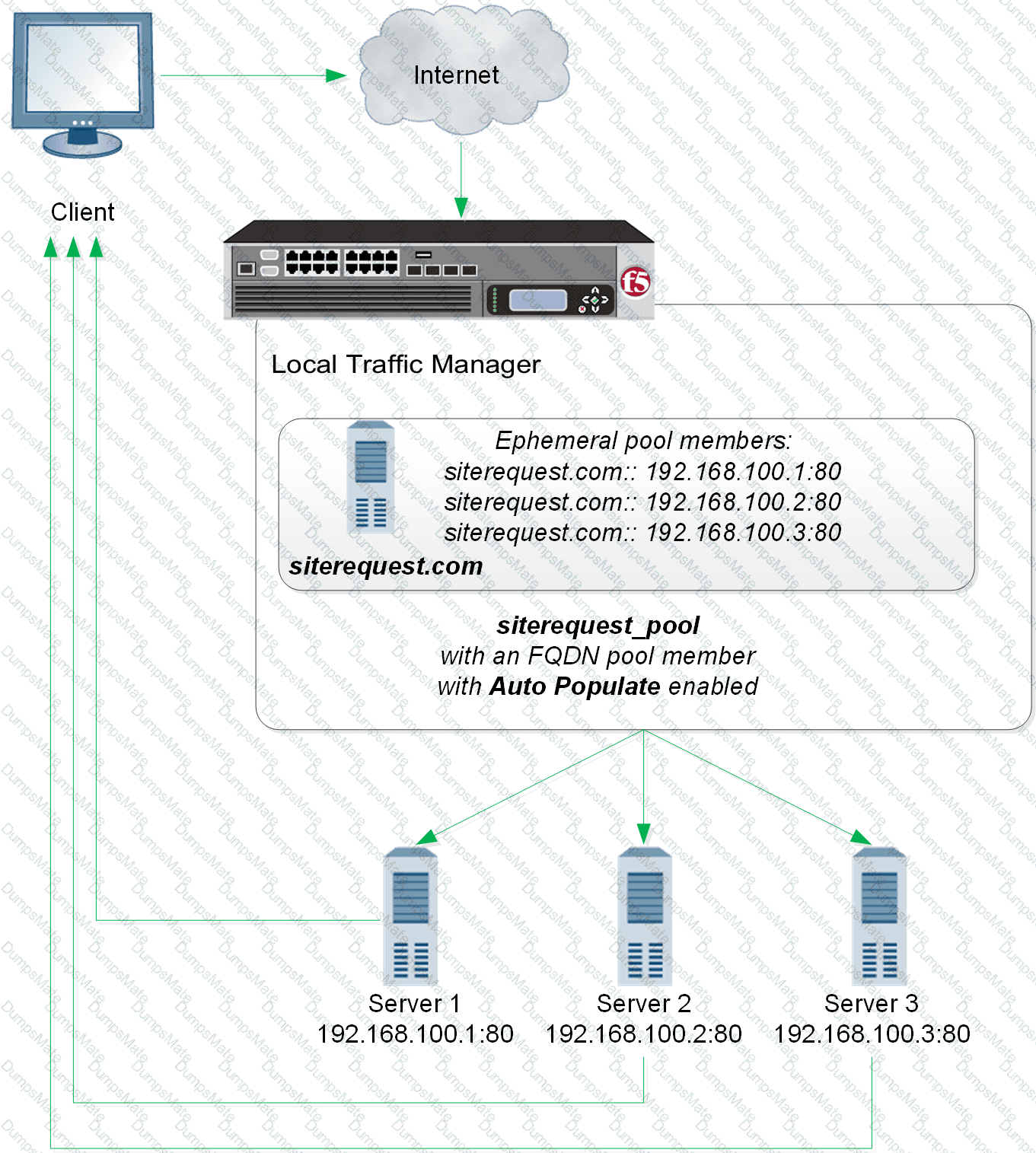

In BIG-IP LTM, health monitors are used to determine the availability of pool members and directly influence traffic flow decisions in the data plane.

Key characteristics of the default HTTP monitor according to BIG-IP Administration Data Plane Concepts:

Sends an HTTP request (typically GET /)

Expects an HTTP response code of 200 OK

Any response other than 200 is treated as a monitor failure

A failed monitor causes the pool member to be marked offline (down)

In this scenario:

Two pool members return 404 Not Found

A 404 response indicates that the requested object was not found

This does not meet the success criteria of the default HTTP monitor

These two members are therefore marked offline

One pool member returns 200 OK

This matches the expected response

The member is marked online

Resulting Pool Member Availability:

2 members: Offline

1 member: Online

Why the Other Options Are Incorrect:

B – 404 responses are not considered healthy by the default HTTP monitor

C – At least one member responds with the expected 200 OK

D – Members returning 404 responses fail the monitor and cannot be marked online

Key Data Plane Concept Reinforced:

BIG-IP health monitors make binary availability decisions based strictly on configured success criteria. For HTTP monitors, response codes matter— 404 is a failure , even if the service is technically reachable.

===========

In this scenario, two specific High Availability and Persistence requirements must be met to ensure session continuity during a failover.

Persistence Mirroring: By default, persistence records (which map a client to a specific server) exist only on the memory of the active BIG-IP. If a failover occurs, the standby unit has no knowledge of these sessions and will re-load-balance the client, likely to a different server. Enabling Persistence Mirroring ensures that the persistence table is synchronized in real-time to the standby peer.

Match Across Services: The requirement specifies that the session must persist across both HTTP and FTP . These are different Virtual Servers (and likely different ports). The Match Across Services setting in the persistence profile allows the BIG-IP to use the same persistence record for any Virtual Server that shares the same IP address and pool, regardless of the service port.

When handling high-volume UDP traffic where the BIG-IP does not need to maintain any session history or relationship between packets, a Stateless virtual server is the appropriate choice.

No Connection Tracking: A stateless virtual server does not create or maintain entries in the BIG-IP connection table. This means the system processes each packet as an individual event, without " considering previous connections " or packets from the same source.

High Performance: Because the system bypasses the overhead of state management, stateless virtual servers provide the highest possible throughput for UDP and ICMP traffic.

Use Cases: This is ideal for services like DNS (stateless queries) or some types of syslog traffic where each packet is independent and doesn ' t require the persistence or protocol inspection typically provided by a full-proxy.

Why other options are incorrect:

Forwarding: While a Forwarding (IP) virtual server can handle UDP, it still maintains a state entry in the connection table to ensure return traffic is handled correctly.

Standard: This is a full-proxy virtual server. It is inherently stateful and requires a connection table entry for every flow it manages.

Reject: This is a special virtual server type that simply drops incoming traffic and, in the case of TCP, sends a reset (RST) or, for UDP, sends an ICMP unreachable message. It is not a load balancing type.

The Forced Offline state is a critical administrative tool used during maintenance to ensure a device remains in a non-functional state relative to the traffic group.

Preventing Active Status: When a device is in " Forced Offline, " it is effectively disqualified from the HA election process. Even if the other peer fails, a device in Forced Offline will not become active. This is vital during maintenance (like firmware upgrades or hardware replacement) to prevent an unstable or half-configured device from attempting to process traffic.

Traffic Termination: Placing a device in Forced Offline triggers the system to stop accepting new connections and, depending on the configuration, can facilitate the termination of existing connections so that the administrator can perform work without the data plane actively utilizing system resources.

Persistence Handling: Unlike the " Disabled " state, Forced Offline ignores persistence records, ensuring that no new traffic is steered to the device via session affinity.

This scenario combines session continuity , multiple protocols (HTTP and FTP) , and HA failover behavior , which directly implicates persistence handling across devices and services .

Key Requirements Breakdown

Same pool member for entire session

Session must survive failover

Session must span multiple services (HTTP and FTP)

Why Persistence Mirroring + Match Across Services Is Required

Persistence Mirroring

Ensures persistence records are synchronized from the active BIG-IP to the standby BIG-IP.

Without mirroring:

After failover, the standby device has no persistence table

Clients are load-balanced again

Sessions break, forcing users to restart

Persistence mirroring is essential for session continuity during failover

Match Across Services

Allows a single persistence record to be shared across multiple virtual servers / protocols

Required when:

HTTP and FTP must use the same pool member

Multiple services are part of a single application session

Together, these settings ensure:

Persistence survives device failover

Persistence is honored across HTTP and FTP

Why the Other Options Are Incorrect

A. Cookie persistence and session timeout Cookie persistence only applies to HTTP and does not address FTP or failover synchronization.

B. Stateful failover and Network Failover detection Stateful failover applies to connection state , not persistence records , and does not link HTTP and FTP sessions.

D. SYN-cookie insertion threshold and connection low-water mark These are DoS / SYN flood protection settings, unrelated to persistence or HA behavior.

To select the correct virtual server type, an administrator must balance the need for L7 intelligence versus raw throughput and hardware offloading:

Performance (Layer 4) Virtual Server: This type is designed for maximum speed. It uses the fastL4 profile, which allows the BIG-IP system to leverage the ePVA (Embedded Packet Velocity Accelerator) hardware chip. When a Performance (L4) virtual server is used, the system processes packets at the network layer (L4) without looking into the application payload (L7). This fulfills the requirement for hardware acceleration and avoids the overhead of HTTP optimization features, which are not needed in this scenario.

Performance (HTTP) Virtual Server: While fast, this type uses the fasthttp profile to provide some L7 awareness and optimization (like header insertion or small-scale multiplexing). Since the requirement specifically states HTTP optimization is not required, the L4 variant is more efficient.

Standard Virtual Server: This is a full-proxy type. While it offers the most features (SSL offload, iRules, Compression), it processes traffic primarily in the TMOS software layer (or via high-level hardware assistance), which is " slower " than the pure hardware switching path of the Performance (L4) type.

Stateless Virtual Server: This is typically used for specific UDP/ICMP traffic where the system does not need to maintain a connection table. It is not appropriate for standard HTTP (TCP) applications requiring persistent sessions or stateful load balancing.

By choosing Performance (Layer 4) with the fastL4 profile, the organization ensures that the traffic is handled by the hardware acceleration chips, providing the lowest latency and highest throughput possible for their HTTP application.

The BIG-IP processing flow follows a specific sequence of events as a packet moves through the system.

TCP Handshake: Before any application-layer data (like HTTP) can be processed, a TCP connection must be established.

The First Event: The very first event triggered when a client completes the 3-way handshake with the virtual server is CLIENT_ACCEPTED .

Profile Influence: Even if an HTTP profile is attached, the system must first " accept " the connection at the protocol level. HTTP_REQUEST only triggers after the client sends data that the BIG-IP recognizes as a valid HTTP request. If a client connects but never sends a request, CLIENT_ACCEPTED will have fired, but HTTP_REQUEST will not.

A Forwarding (IP) virtual server is unique because it does not perform load balancing in the traditional sense.

No Pool Members: Unlike a Standard virtual server, which requires a pool to direct traffic, a Forwarding (IP) virtual server typically has no pool assigned .

Destination-Based Routing: The BIG-IP system looks at the destination IP address in the original packet header sent by the client. It then consults the BIG-IP system ' s local routing table to determine where to send the packet.

Transparency: It acts as a high-performance router/gateway, often used to forward traffic from internal servers to the internet or across different subnets while still allowing the BIG-IP to apply features like SNAT or bandwidth controllers.

Stateful Tracking: While it forwards traffic based on the routing table, it still creates an entry in the connection table to track the flow (unless it is a Stateless virtual server).

iRules are event-driven scripts that allow for advanced traffic manipulation.

Universality of Events: Every packet that passes through t 21 he BIG-IP data plane triggers events. Even non-HTTP traffic triggers events such as CLIENT_ACCEPTED (when the TCP connection is established 22 ) or CLIENT_DATA (when raw data is received). Therefore, all client traffic—regardless of protocol—has data that can trigger an iRule event.

Event Specificity: Events are not universal (Option C is false). For example, HTTP_REQUEST only occurs after a full HTTP header is parsed. You cannot trigger an HTTP_RESPONSE event before a request has been sent to a server.

Protocol Agnostic: iRules are not limited to HTTP (Option A is false); they can handle TCP, UDP, DNS, FTP, SIP, and more.

Error Handling: If an iRule references an event that never triggers (e.g., an HTTP_REQUEST event in a purely TCP virtual server), the iRule code for that event simply never executes. It does not terminate the connection (Option D is false).

In BIG-IP, a trunk is a Layer 2 network object used to aggregate multiple physical interfaces into a single logical link. This aggregation provides increased bandwidth and link resiliency , commonly in conjunction with LACP.

Key concepts that apply here:

Trunks are managed under the /net trunk tmsh hierarchy

Physical interfaces are added or removed using the modify command

The create command is used only when defining a brand-new trunk, not when updating an existing one

Because the trunk already exists and the goal is to add interfaces , the correct operation is:

tmsh modify /net trunk trunk_A interfaces add {1.3 1.4}

This command:

Modifies the existing trunk named trunk_A

Adds interfaces 1.3 and 1.4 to the trunk

Immediately increases available bandwidth and redundancy

Why the Other Options Are Incorrect

B uses the /sys hierarchy, which is not used for trunks

C attempts to create a trunk that already exists

D uses an incorrect hierarchy and an incorrect operation

In BIG-IP high availability (HA) configurations, MAC Masquerade is used to speed up failover by allowing traffic-group-associated Self IPs to retain the same MAC address when moving between devices. This prevents upstream switches and routers from having to relearn ARP entries during a failover event, resulting in near-instant traffic recovery.

By default, MAC masquerade applies one MAC address per traffic group, regardless of how many VLANs the traffic group spans. This can create problems in some network designs because the same MAC address appearing on multiple VLANs may violate network policies or confuse switching infrastructure.

To address this, BIG-IP provides Per-VLAN MAC Masquerade, enabled by the database variable:

`tm.macmasqaddr_per_vlan = true`

When this feature is enabled:

BIG-IP derives a unique MAC address per VLAN

The base MAC address configured on the traffic group remains the first four octets

The last two octets are replaced with the VLAN ID expressed in hexadecimal

The VLAN ID is encoded in network byte order (high byte first, low byte second)

### VLAN ID Conversion:

VLAN ID: 1501 (decimal)

Convert to hexadecimal:

1501₁₀ = 0x05DD

High byte: 05

Low byte: DD

### Resulting MAC Address:

Base MAC: `02:12:34:56:00:00`

Per-VLAN substitution → last two bytes = `05:DD`

Final MAC address:

`02:12:34:56:05:dd`

### Why the Other Options Are Incorrect:

A (01:15) – Incorrect hexadecimal conversion of 1501

B (dd:05) – Byte order reversed (little-endian, not used by BIG-IP)

D (15:01) – Uses decimal values instead of hexadecimal

### Key BIG-IP HA Concept Reinforced:

Per-VLAN MAC Masquerade ensures Layer 2 uniqueness per VLAN while preserving the fast failover benefits of traffic groups, making it the recommended best practice in multi-VLAN HA deployments.

The BIG-IP system supports various remote authentication methods like LDAP, Active Directory, and RADIUS.

Fallback to Local: This is a specific security and availability feature within the System > Users > Authentication configuration.

Redundancy: When " Fallback to Local " is enabled, the BIG-IP will first attempt to authenticate a user against the configured remote server. If that remote server is unreachable or fails to respond, the system will then check its internal Local User database for credentials.

Administrative Access: This is standard practice for the " admin " or emergency accounts to ensure the system remains accessible even if the corporate directory service (e.g., AD) is offline.

In a BIG-IP device service cluster , configuration objects such as virtual servers, pools, profiles, and iRules are maintained through configuration synchronization (config-sync) .

Key BIG-IP concepts involved:

Device Service Cluster (DSC) A cluster is a group of BIG-IP devices that share configuration data. One device is typically used to make changes, which are then synchronized to the rest of the group.

Config-Sync Direction Matters

Changes are made on a local device

Those changes must be pushed to the group

The correct operation is “Sync Device to Group”

Why C is correct:

The virtual server was created only on device 1

Other devices in the cluster do not yet have this object

To propagate the new virtual server to all cluster members, the administrator must synchronize device 1 to the group

Why the other options are incorrect:

A. Synchronize the settings of the group to device 1 This would overwrite device 1’s configuration with the group’s existing configuration and may remove the newly created virtual server .

B. Create a new cluster on device 1 The cluster already exists. Creating a new cluster is unnecessary and disruptive.

D. Create a new virtual server on device 2 This defeats the purpose of centralized configuration management and risks configuration drift.

Conclusion:

After creating a new virtual server on a BIG-IP device that is part of a cluster, the administrator must synchronize the configuration from that device to the group so all devices share the same ADC application objects.

The behavior of a health monitor is determined by its Send String and Receive String .

Default HTTP Monitor: The pre-configured default HTTP monitor on a BIG-IP system has an empty Receive String .

Success Criteria: When the Receive String is blank, the BIG-IP system considers the health check successful if it receives any valid HTTP response from the server.

Status Code Interpretation: Because a 404 Not Found is a valid HTTP status code (it is a properly formatted response from a running web server process), the BIG-IP interprets this as the application being " alive " .

Result: All three members (including the two returning 404s and the one returning 200) will be marked as UP/Available (Green).

A Traffic Group is a collection of related configuration objects that fail over together from one BIG-IP device to another. Only " floating " objects can be members of a traffic group.

Virtual Addresses (C): A virtual address (the IP part of a Virtual Server) is a floating object. It is assigned to a traffic group so that the entire IP moves to the standby unit during a failover.

Floating Self IPs (E): These are used as gateways for backend servers or SNAT addresses. By associating them with a traffic group, they remain reachable by the backend network regardless of which BIG-IP is currently active.

Why other options are incorrect:

iRules (A): iRules are configuration logic files; they are synchronized across devices but are not " hosted " by a traffic group.

VLANs (D): VLANs are local to the hardware interfaces/trunks of each specific device and do not fail over.

In BIG-IP traffic management, persistence profiles cause existing client connections (and subsequent requests) to be repeatedly sent to the same pool member. When persistence is enabled, simply preventing new connections is not sufficient if the requirement is to immediately remove all existing connections .

Key behavior of pool member states:

Forced Offline

Immediately removes the pool member from load balancing.

Terminates all existing connections , regardless of persistence.

Prevents new connections from being established.

This is the correct state when urgent maintenance or troubleshooting is required.

Disabled

Prevents new connections from being sent to the pool member.

Allows existing connections to continue , which is not acceptable when persistence is configured and connections must be cleared immediately.

Offline (non-forced)

Similar to Disabled behavior depending on context.

Does not guarantee immediate termination of existing connections.

Manually deleting connections via the command line

Is unnecessary and operationally inefficient.

BIG-IP already provides a supported mechanism ( Forced Offline ) to cleanly and immediately remove traffic.

Conclusion:

To immediately remove all existing connections , including those maintained by persistence, the BIG-IP Administrator must set the pool member to a Forced Offline state. This directly satisfies the requirement without additional manual steps.
