FCP_FAZ_AN-7.6 Fortinet NSE 5 - FortiAnalyzer 7.6 Analyst Questions and Answers

FortiAnalyzer manages and stores various types of logs, including local logs, across different ADOMs (Administrative Domains). Each type of log servesspecific purposes, with some logs being ADOM-specific and others providing system-wide information.

Option A - Local Logs Not Supported in FortiView:

Local logs are indeed supported in FortiView. FortiView provides visibility and analytics for different log types across the system, including local logs, allowing users to view and analyze data efficiently.

Conclusion:Incorrect.

Option B - Playbook Logs for All ADOMs in the Root ADOM:

FortiAnalyzer allows centralized viewing of playbook logs across all ADOMs from the root ADOM. This feature provides an overarching view of playbook executions, facilitating easier monitoring and management for administrators.

Conclusion:Correct.

Option C - Event Logs vs. Application Logs:

Event Logsprovide information about system-wide events, such as login attempts, configuration changes, and other critical activities that impact the overall system. These logs apply across the FortiAnalyzer instance.

Application Logsare more specific to individual ADOMs, capturing details that pertain to ADOM-specific applications and configurations.

Conclusion:Correct.

Option D - Event Logs Only in Root ADOM:

Event logs are available across different ADOMs, not exclusively in the root ADOM. They capture system-wide events, but they can be accessed within specific ADOM contexts as needed.

Conclusion:Incorrect.

Conclusion:

Correct Answer:B. You can view playbook logs for all ADOMs in the root ADOMandC. Event logs show system-wide information, whereas application logs are ADOM specific.

These answers correctly describe the characteristics and visibility of local logs within FortiAnalyzer.

Comprehensive and Detailed Explanation From Exact Extract of knowledge of FortiAnalyzer 7.6 Study guide documents:

The study guide explicitly describes what content fromFabric membersis visible/usable on theFabric supervisor:

Logs:“In the FortiAnalyzer Fabric supervisor,Log View displays logs collected on all FortiAnalyzer Fabric members.”

Reports:“For reports, the FortiAnalyzer Fabric supervisorcan fetch and aggregate data from multiple membersin the FortiAnalyzer Fabric.”

Events:“Events generated by event handlers on the FortiAnalyzer Fabric members are visible on the supervisor.”

By contrast, the study guide lists a key limitation that rules outPlaybooksas a supervisor capability over members: “You are not able to perform configuration changes or torun automation playbooks from the Fabric supervisor to members.”

Therefore, the three modules available for analysis on the supervisor areLogs, Events, and Reports(C, D, E).

Comprehensive and Detailed Explanation From Exact Extract of knowledge of FortiAnalyzer 7.6 Study guide documents:

The FortiAnalyzer study guide explains that IOC identification is performed by comparing relevant log fields against the FortiGuard threat database. Specifically, it states:“Depending on the log type, FortiAnalyzer identifies possible compromised hosts by checking the threat database against the log's IP address, domain, and URL.”

From this extract, two of the explicit parameters FortiAnalyzer uses for IOC detection areIP addressandURL(both listed verbatim). Policy ID and application category are not part of the IOC matching parameters described for threat-database checks in this context.

This is further consistent with the study guide’s definition of indicator types, which states:“There are three types of indicators: IP addresses, URLs, and domains.”

The command diagnose sql statussqlreportd is used in FortiAnalyzer to obtain specific information about the SQL reporting process and caching status. Here’s what this command accomplishes and an analysis of each option:

Command Functionality:

sqlreportd is the FortiAnalyzer daemon responsible for managing SQL-based reporting processes.

The diagnose sql status sqlreportd command provides information on active SQL query connections and thehcache(historical cache) status, which helps in monitoring and troubleshooting SQL report generation.

Option Analysis:

Option A - To View a List of Scheduled Reports:

This option is incorrect because the command does not list scheduled reports. Instead, it focuses on SQL reporting processes and cache details.

Option B - To List the Current SQL Processes Running:

While the command may show active SQL connections, its primary focus is not a detailed list of all SQL processes but rather the connections and cache status for reporting.

Option C - To Display the SQL Query Connections and hcache Status:

This is correct. The command specifically provides information on SQL query connections related to the reporting process (sqlreportd) and displays thehcachestatus.

Option D - To Identify the Database Log Insertion Status:

This is incorrect. The command does not provide details on log insertion status. Log insertion status is typically monitored through different diagnostic commands focused on database processes and log handling.

Conclusion:

Correct Answer:C. To display the SQL query connections and hcache status

This command is used to monitor SQL reporting activities and cache status, aiding in the analysis of report generation performance and connection health.

The study guide explains that in a Security Fabric,traffic logging is not duplicatedacross FortiGates for the same session:“Traffic logging for a session … is always carried out by the first FortiGate that handled it”and if a FortiGate receives traffic from a peer FortiGate MAC,“it does not generate a new traffic log for that session.”

For UTM (web filtering) logs, the study guide states:“When configured, upstream devices complete UTM logging.”

In the illustrated example, it further clarifies the role split:“All traffic from Client-1 is first received by FGT-B, which creates traffic logs for the initial session… [then] forwarded to FGT-A… [and] FGT-A … applies web filtering … and generates the relevant UTM logs as necessary.”

Because web filter profiles are configured tolog only violations, web filter (UTM) logs will be generated only when a violation is detected—and per the study guide behavior, that UTM logging is done by theupstreamFortiGate (FGT-A). Therefore,only FGT-A will create web filter logs if it detects a violation(Option D).

The exhibit shows a graph that tracks two metrics over time:Receive RateandInsert Rate. These two rates are crucial for understanding the log processing behavior in FortiAnalyzer.

Understanding Receive Rate and Insert Rate:

Receive Rate: This is the rate at which FortiAnalyzer is receiving logs from connected devices.

Insert Rate: This is the rate at which FortiAnalyzer is indexing (inserting) logs into its database for storage and analysis.

Data Point at 21:20:

At 21:20, theInsert Rateline is above theReceive Rateline, indicating that FortiAnalyzer is inserting logs into its database at a faster rate than it is receiving them. This situation suggests that FortiAnalyzer is able to keep up with the incoming logs and is possibly processing a backlog or temporarily received logs faster than new logs are coming in.

Option Analysis:

Option A - FortiAnalyzer is Indexing Logs Faster Than Logs are Being Received: This accurately describes the scenario at 21:20, where the Insert Rate exceeds the Receive Rate. This indicates that FortiAnalyzer is handling logs efficiently at that moment, with no backlog in processing.

Option B - The fortilogd Daemon is Ahead in Indexing by One Log: The data does not provide specific information about the fortilogd daemon’s log count, only the rates. This option is incorrect.

Option C - SQL Database Requires a Rebuild: High receive lag would imply a backlog in receiving and indexing logs, typically visible if the Receive Rate were significantly above the Insert Rate, which is not the case here.

Option D - FortiAnalyzer is Temporarily Buffering Logs to Index Older Logs First: There is no indication of buffering in this scenario. Buffering would usually occur if the Receive Rate were higher than the Insert Rate, indicating that FortiAnalyzer is storing logs temporarily due to indexing lag.

Conclusion:

Correct Answer:A. FortiAnalyzer is indexing logs faster than logs are being received.

The graph at 21:20 shows a higher Insert Rate than Receive Rate, indicating efficient log processing by FortiAnalyzer.

Option A - Purging Log Entries:

A SELECT query in SQL is used to retrieve data from a database and does not have the capability to delete or purge logentries. Purging logs typically requires a DELETE or TRUNCATE command.

Conclusion:Incorrect.

Option B - WHERE Clause Requirement:

In SQL, a SELECT query does not require a WHERE clause. The WHERE clause is optional and is used only when filtering results. A SELECT query can be executed without it, meaning this statement is false.

Conclusion:Incorrect.

Option C - Displaying Database Schema:

A SELECT query retrieves data from specified tables, but it is not used to display the structure or schema of the database. Commands like DESCRIBE, SHOW TABLES, or SHOW COLUMNS are typically used to view schema information.

Conclusion:Incorrect.

Option D - Usage in Macros:

FortiAnalyzer and similar systems often use macros for automated functions or specific query-based tasks. SELECT queries are typically not included in macros because macros focus on procedural or repetitive actions, rather than simple data retrieval.

Conclusion:Correct.

Conclusion:

Correct Answer:D. They are not used in macros.

This aligns with typical SQL usage and the specific functionalities of FortiAnalyzer.

Enablingauto-cachein FortiAnalyzer reports is designed to improve the efficiency and speed of report generation by leveraging cached data. Let’s analyze each option to determine which effects are correct.

Option A - The Generation Time for Reports is Decreased:

When auto-cache is enabled, FortiAnalyzer can use previously cached data instead of reprocessing all log datafrom scratch each time a report is generated. This results in faster report generation times, especially for recurring reports that use similar datasets.

Conclusion:Correct.

Option B - Hard-Cache Data is Automatically Updated When New Logs are Received:

Enabling auto-cache does not immediately update the cache with every new log received. Instead, the cache is updated when reports are generated, based on the existing logs up to that point. Therefore, auto-cache does not constantly refresh with each incoming log, which would be inefficient.

Conclusion:Incorrect.

Option C - FortiAnalyzer Local Cache is Used to Store Generated Reports:

Auto-cache utilizes FortiAnalyzer’s local cache to store data used in reports, reducing the need to retrieve and process logs repeatedly. This cached data can be reused for subsequent report generation, enhancing performance.

Conclusion:Correct.

Option D - The Size of Newly Generated Reports is Optimized to Conserve Disk Space:

Auto-cache does not directly impact the size ofthe report files themselves. It focuses on performance optimization through cached data for faster access, but it does not compress or optimize the storage size of the generated report.

Conclusion:Incorrect.

Conclusion:

Correct Answer:A. The generation time for reports is decreasedandC. FortiAnalyzer local cache is used to store generated reports.

Enabling auto-cache helps reduce report generation time by using locally cached data and optimizes report processing, though it does not impact report size or continuously update with each new log.

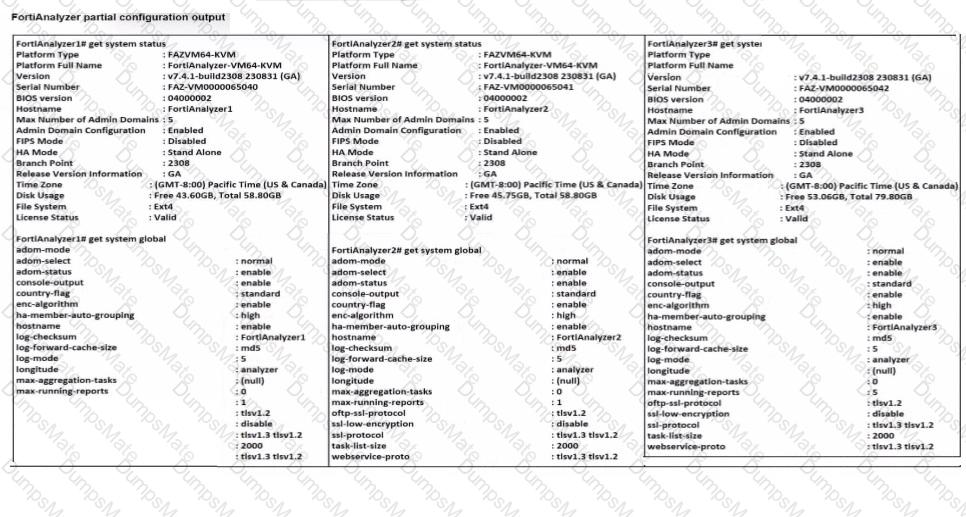

In a FortiAnalyzer Fabric, devices canparticipate in a cluster or grouping if they meet specific compatibility criteria. Based on the outputs provided, let’s evaluate these criteria:

Version Compatibility:

All three devices, FortiAnalyzer1, FortiAnalyzer2, and FortiAnalyzer3, are runningversion v7.4.1-build0238, which is the same across the board. This version alignment is crucial because FortiAnalyzer Fabric requires that devices run compatible firmware versions for seamless communication and management.

Platform Type and Configuration:

All three devices are configured asStandalonein the HA mode, which allows them to operate independently but does not restrict their participation in a FortiAnalyzer Fabric. Each device is also on theFAZVM64-KVMplatform type, ensuring hardware compatibility.

Global Settings:

Key settings such as adm-mode, adm-status, and adom-mode are consistent across all devices (adm-mode: normal, adm-status: enable, adom-mode: normal), which aligns with requirements for fabric integration and role assignment flexibility.

Each device also has thelog-forward-cache-sizeset, which is relevant for forwarding logs within a fabric environment.

Based on the above analysis,all devices(FortiAnalyzer1, FortiAnalyzer2, and FortiAnalyzer3) meet the requirements to be part of a FortiAnalyzer Fabric.

In FortiAnalyzer's incident management system, analysts have the option to manually manage incidents, which includes attaching relevant reports to an incident for further investigation and documentation. This feature allows analysts to consolidate information, such as detailed reports on suspicious activity, into an incident record, providing a comprehensive view for incident response.

Let's review the other options to clarify why they are incorrect:

Option A: You can manually attach generated reports to incidents

This is correct. FortiAnalyzer allows analysts to manually attach reports to incidents, which is beneficial for providing additional context, evidence, or analysis related to the incident. This functionality is part of the incident management process and helps streamline information for tracking and resolution.

Option B: The status of the incident is always linked to the status of the attached event

This is incorrect. The status of an incident on FortiAnalyzer is managed independently of the status of any attached events. An incident can contain multiple events, each with different statuses, but the incident itself is tracked separately.

Option C: Severity incidents rated with the level High have an initial service-level agreement (SLA) response time of 1 hour

This is incorrect. While incidents have severity levels, specific SLA response times are typically set according to the organization’s incident response policy, and FortiAnalyzer does not impose a default SLA response time of 1 hour for high-severity incidents.

Option D: Incidents must be acknowledged before they can be analyzed

This is incorrect. Incidents on FortiAnalyzer can be analyzed even if they are not yet acknowledged. Acknowledging an incident is often part of the workflow to mark it as being actively addressed, but it is not a prerequisite for analysis.

When using FortiAnalyzer to create playbooks that interact with FortiOS devices, anIncoming Webhooktrigger is required on the FortiGate side to make the actions in an automation stitch accessible through the FortiOS connector. The incoming webhook trigger allows FortiAnalyzer to initiate actions on FortiGate by sending HTTP POST requests to specified endpoints, which in turn trigger automation stitches defined on the FortiGate.

Here’s an analysis of each option:

Option A: FortiAnalyzer Event Handler

This is incorrect. The FortiAnalyzer Event Handler is used within FortiAnalyzer itself for handling log events and alerts, but it does not trigger automation stitches on FortiGate.

Option B: Fabric Connector event

This is incorrect. Fabric Connector events are related to Fortinet's Security Fabric integrations but are not specifically used to trigger FortiGate automation stitches from FortiAnalyzer.

Option C: FortiOS Event Log

This is incorrect. While FortiOS event logs can be used for monitoring, they are not designed to trigger automation stitches directly from FortiAnalyzer.

Option D: Incoming webhook

This is correct. The Incoming Webhook trigger on FortiGate enables it to receive requests fromFortiAnalyzer, allowing playbooks to activate automation stitches defined on the FortiGate device. This method is commonly used to integrate actions from FortiAnalyzer to FortiGate via the FortiOS connector.
