FCP_FMG_AD-7.6 Fortinet NSE 5 - FortiManager 7.6 Administrator Questions and Answers

FortiManager global policies and objects are shared across ADOMs, but they are not applied automatically to every package . The study guide states that when you create a global policy package, you can choose the ADOMs you want to apply it to, and you can even pick specific policy packages in individual ADOMs . That directly validates B .

A is also correct because the lab guide explicitly says you can promote ADOM objects to global objects by right-clicking an ADOM object and selecting Promote to Global .

C is incorrect because when Automatically Install Policies to ADOM Devices is enabled, FortiManager installs without giving you a preview/accept step first; the lab warns to use it only when you are sure of the changes.

D is incorrect because FortiManager imports device policies into an ADOM policy package, not into the global package for synchronization.

The FortiManager 7.6 Administrator Study Guide is explicit for the scenario where both FortiManager and FortiGate are behind NAT . It states that FortiManager can discover FortiGate through the FortiGate NATed IP address , which makes A correct. It also explains that in this scenario, the FortiManager NATed IP address is not configured on FortiGate by default under central management , which makes B correct.

C is incorrect because FortiGate must use the FortiManager NATed IP address , not the non-NATed IP, if it needs to announce itself or reestablish the FGFM tunnel. D is also incorrect because in this NAT scenario, if the tunnel is torn down, only FortiGate attempts to reestablish the connection ; FortiManager does not automatically do so.

=========

The correct conclusion is D . The FortiManager 7.6 Administrator Study Guide defines Never Installed as a state where the policy package was never created and was never imported for a managed device . That means FortiManager may already know the device itself at the device layer, but the firewall policy layer has not yet been built for that device.

The lab guide confirms this behavior directly: when you choose Import Later in the Add Device wizard, the policy package status becomes Never Installed because there is still no policy package created for the added FortiGate devices.

So this is not a revision-history issue, and it does not mean ADOM policy changes are merely waiting for first install. It means the policies still exist only on the managed device side until they are imported into a FortiManager policy package.

=========

The correct answer is C . The FortiManager 7.6 Administrator Study Guide explicitly says: “You must explicitly assign global policy packages to specific ADOMs” and “you can even pick specific policy packages in individual ADOMs that you want to apply the global policies to.” The study guide also explains the assignment workflow: “This slide shows the steps to assign a global policy package to an ADOM policy package” and “First, add the required ADOMs as targets. Second, assign the global policy package to the ADOMs.”

Because Remotes is a newly created policy package, it does not inherit the earlier assignment automatically. The administrator must explicitly assign the Training global policy package to the Remotes policy package. Automatic install does not create that assignment, and unassigning all packages is unnecessary.

The correct answer is B . The FortiManager 7.6 Administrator Study Guide gives the exact extract: “Also note when you upgrade the FortiManager firmware version the existing ADOMs are not automatically upgraded.” This directly explains why the administrator saw the FortiManager upgrade complete while the ADOM versions remained unchanged.

The same section also explains that ADOM upgrades are a separate action: “You can upgrade an ADOM in System Settings > ADOMs” and “Can upgrade to one version higher at a time.” In addition, the guide recommends: “upgrade all devices first, and then upgrade the ADOM.”

So the issue is not workspace mode, locked ADOMs, or a stuck task. The ADOMs simply require their own manual upgrade step after the FortiManager firmware upgrade.

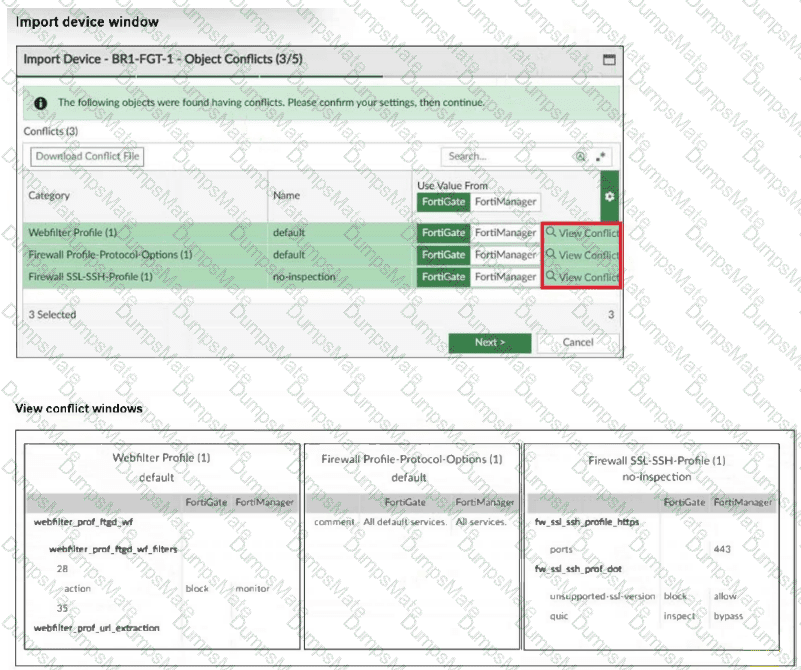

The exhibits are directly supported by the lab guide’s troubleshooting section. It states: “The only profile that can be replaced is the Firewall Profile-Protocol-Options profile, because the only difference is a change in the comment field.” It then explains that for the other two profiles, “Whether you accept the value from BR1-FGT-1 or FortiManager, it will cause changes on different devices.”

That exactly matches C . The conflict window is not primarily showing a firmware mismatch, and the guide does not say BR1-FGT-1 lacks HTTPS 443 support. It also does not describe this as a FortiGuard database mismatch for QUIC. Instead, the key point is that only the default Firewall Profile-Protocol-Options conflict is minor enough to safely take from FortiManager because the difference is only in the comment field . The web filter and SSL/SSH profiles would cause real configuration differences if replaced.

The FortiManager 7.6 Administrator Study Guide states under Copying System Templates Between ADOMs : “The first step is to export the system template from the original ADOM with the execute fmprofile export-profile command” and shows the output file being written to /tmp/Training , described as “File copied in FortiManager tmp folder.”

The key point is that the command exports the system template profile from the original ADOM , while /tmp/Backup_File is only the destination path on FortiManager where the exported file is stored. The same study guide also defines system templates as a “subset of model device configuration—system-level settings” , which means they belong to the device-level side of the ADOM , not the policy database.

So the export source is the ADOM device database , and the file is saved afterward in the FortiManager /tmp folder.

FortiManager must have the NAT device ' s IP address and correct ports configured to communicate properly with the FortiGate behind NAT.

The NAT device must have the correct virtual IP address and ports configured to allow push updates to reach the FortiGate device.

ADOM revisions save the current state of all policy packages and objects within an ADOM, allowing administrators to track changes over time and revert to previous configurations if needed.

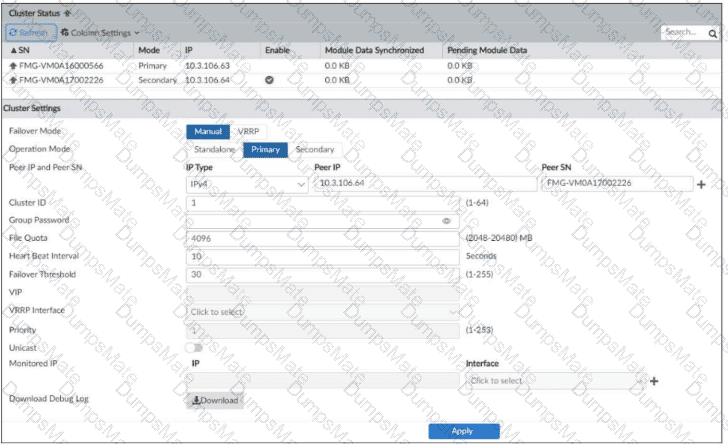

The exhibit shows a FortiManager HA cluster with one primary and one secondary member. The FortiManager 7.6 Administrator Study Guide clearly states that if FortiAnalyzer features are enabled, you cannot configure FortiManager HA , so in an HA environment like the one shown, FortiAnalyzer features are not enabled . That makes D the correct answer.

A is incorrect because the study guide explicitly says you do not need to reboot a device when promoting it from secondary to primary.

C is incorrect because the failover mode shown is Manual , not VRRP automatic failover , so failover does not occur automatically based on heartbeat loss.

B is not the best answer here because FortiGuard packages are downloaded separately rather than synchronized as HA data, but the exhibit’s key provable conclusion is the HA restriction on FortiAnalyzer features.

=========

In a FortiManager HA cluster configured with VRRP failover, the failover process is automatic and transparent to administrators. If the monitored interface on the primary device fails, the secondary device takes over without requiring manual intervention to maintain HA.

FortiManager helps with mass provisioning by using templates that allow administrators to configure the same settings on multiple FortiGate devices simultaneously, streamlining deployment and management.

If a BGP template is assigned to the FortiGate device on FortiManager, device-level BGP configurations made directly in the device-level database are overridden by the template settings, so the changes do not get pushed to the device.

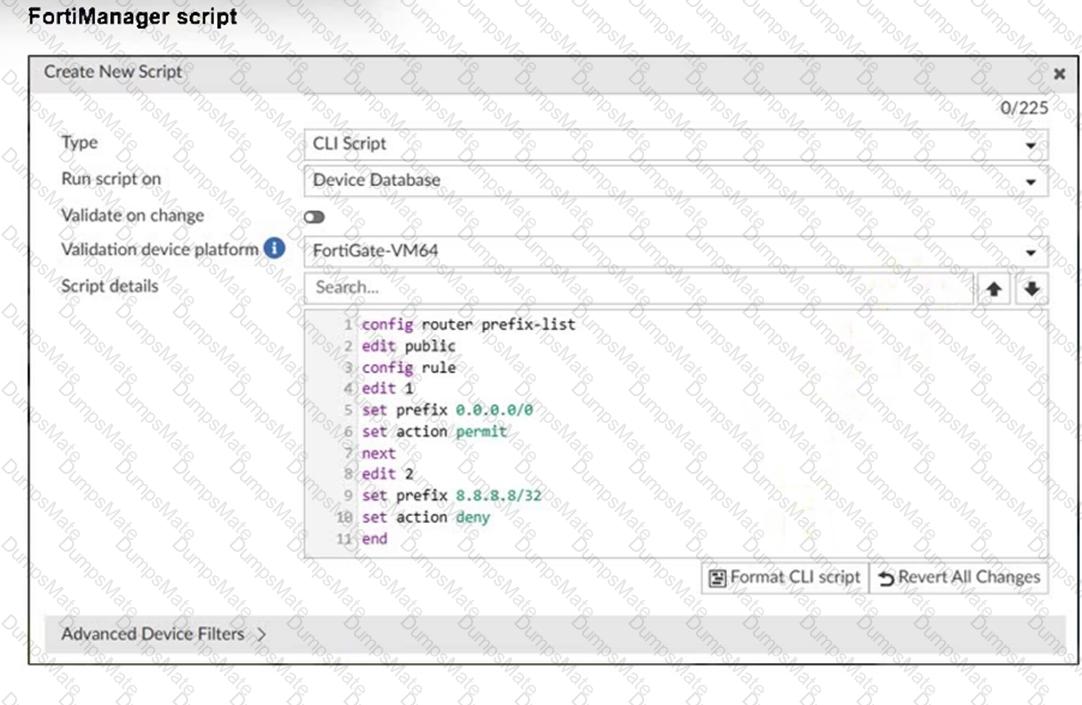

Running a script on the Device Database marks the configuration as modified but does not immediately apply changes to the device.

The administrator must use the Install Wizard to push and install these changes from the Device Database onto the managed device.

The correct answer is B . The FortiManager 7.6 Administrator Study Guide explicitly states: “CLI scripts use the FGFM tunnel and the FGFM tunnel is authenticated using the FortiManager and FortiGate serial numbers.” It also states: “Tcl scripts do not run through the FGFM tunnel like CLI scripts do. Tcl scripts use SSH to tunnel through FGFM and they require SSH authentication to do so.”

This is the exact reason CLI scripts can run without prompting for SSH authentication every time: they use the existing secure FGFM management tunnel , not a separate interactive SSH login. The FGFM section of the study guide also confirms that this is a secure communication tunnel established between FortiManager and managed FortiGate devices.

So the enabler is not legacy login, script location, or the “Remote FortiGate Directly” option by itself. It is the FGFM secure management tunnel .

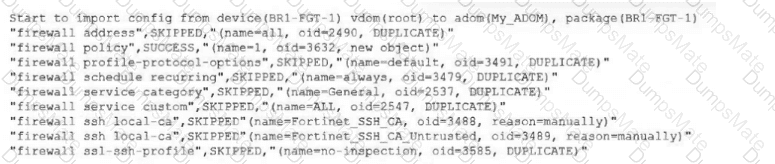

The import report clearly shows: " firewall profile-protocol-options " , SKIPPED, " (name=default, oid=3491, DUPLICATE) " . In FortiManager import reporting, SKIPPED means the object was not imported or updated , and DUPLICATE means an object with that identity already exists in the ADOM database. So FortiManager did not update its database with the imported value for the object default , which makes C correct.

The lab guide reinforces this behavior in the conflict-handling workflow. It explains that during import, FortiManager checks for duplicate names and conflicts , and for conflicting objects the administrator may need to choose whether to keep the value from FortiGate or FortiManager . For the default Firewall Profile-Protocol-Options object, the guide specifically discusses keeping the existing FortiManager value to avoid unnecessary changes.

=========
