FCSS_EFW_AD-7.6 Fortinet NSE 7 - Enterprise Firewall 7.6 Administrator Questions and Answers

Based on the FortiGate Infrastructure 7.6 study guide and the Hardware Acceleration technical documentation, the diagnose vpn tunnel list command provides the status of IPsec tunnel offloading to the Network Processor (NPU).

In the provided exhibit, the specific value npu_flag=20 (which corresponds to 0x20 in hexadecimal) indicates that the IPsec Security Association (SA) cannot be offloaded to the NPU. While the NPU may have visibility of the gateway IPs (npu_rgwy and npu_lgwy), the flag itself serves as a diagnostic indicator that the traffic must be processed by the system CPU rather than the hardware accelerator.

This lack of offloading typically occurs when the tunnel configuration uses a cipher (encryption algorithm) or an HMAC (authentication algorithm) that is not supported by the specific NPU model installed in the FortiGate. For example, if a tunnel is configured with a legacy or highly complex algorithm that the NP6 or NP7 chip is not designed to process in hardware, the FortiOS kernel handles the encryption and decryption, resulting in the npu_flag=20 status. Therefore, despite the presence of NPU-related fields, the specific flag value confirms that hardware acceleration is not active for these SAs.

In a transparent mode Virtual Domain (VDOM) configuration, FortiGate operates as a Layer 2 bridge rather than performing Layer 3 routing. The set forward-domain < domain_ID > command is used to control how traffic is forwarded between interfaces within the same transparent VDOM.

A forward-domain acts as a broadcast domain, meaning only interfaces with the same forward-domain ID can exchange traffic. This setting is commonly used to separate different VLANs or network segments within the transparent VDOM while still allowing FortiGate to apply security policies.

Zero phase selectors in IPsec Phase 2 mean that no specific traffic selectors (subnets) are defined, allowing any traffic to be encrypted through the VPN tunnel. This can cause unintended traffic forwarding issues and disrupt network operations.

To prevent this from happening during future migrations:

● Using routing protocols ensures that only specific subnets are advertised over the tunnel. Dynamic routing (such as OSPF or BGP) helps define which networks should use the tunnel, preventing unintended traffic from being encrypted.

● Clearly defining phase 2 selectors avoids the problem of encrypting all traffic by explicitly stating the allowed source and destination subnets. This prevents the tunnel from affecting unrelated network traffic.

Comprehensive and Detailed Explanation From Exact Extract documents and Knowledge:

VXLAN (Virtual Extensible LAN) is an encapsulation protocol that adds significant overhead due to the addition of outer Ethernet, IP, and UDP headers. Handling this encapsulation and decapsulation in software can lead to high CPU utilization and performance bottlenecks.

The latest generations of Fortinet ' s network processors, specifically the NPU7 , include dedicated hardware support for VXLAN offloading . Hardware acceleration via NPU7 allows the FortiGate to perform VXLAN encapsulation and decapsulation at wire speed within the network processor hardware. This drastically improves performance compared to processing the packets in the CPU (Option A). CP10 (Option C) is a content processor designed for offloading UTM and SSL tasks, while NTurbo (Option B) is a software optimization for offloading flow-based IPS, neither of which are designed for VXLAN header processing.

Comprehensive and Detailed 150 to 200 words of Explanation From Exact Extract of Enterprise Firewall 7.6 Administrator documents:

Based on the FortiOS 7.6 Administration Guide and the Life of a Packet documentation (Parallel Path Processing), the FortiGate follows a specific, hardcoded sequence when processing the first packet of a new session. This process is divided into several stages: Ingress, Kernel, and Egress.

The very first stage is Ingress, where all packets accepted by a network interface are processed by the TCP/IP stack. Immediately following this, the packet must pass through IP integrity header checking. This step involves reading the packet headers to verify that the packet is a valid protocol (TCP, UDP, ICMP, etc.) and that the header length is correct. This sanity check is performed before any other security functions, such as decryption (which occurs later in the Ingress stage) or the Reverse Path Forwarding (RPF) check (which occurs even later during the Routing step in the Kernel stage).

Installation of the session key (Option A) only occurs after the packet has matched a firewall policy and the session has been fully established and offloaded to the NPU. Therefore, IP integrity header checking is the absolute first security-related validation performed on an incoming packet.

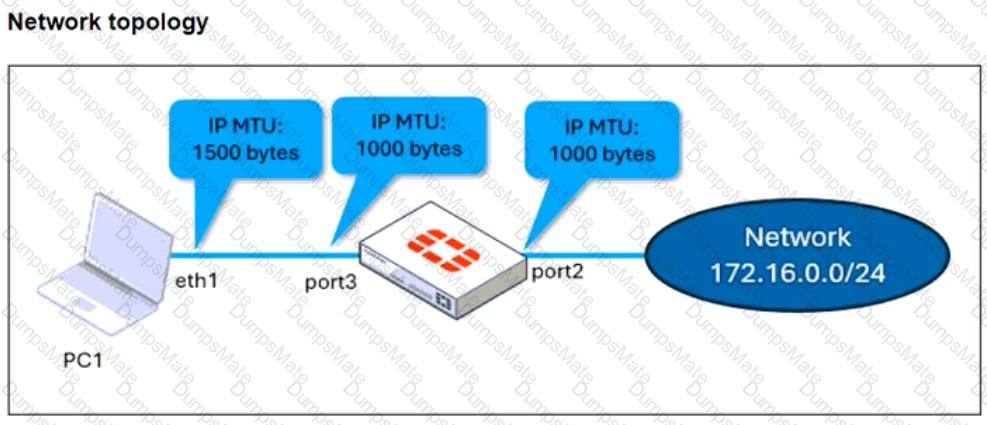

The TCP Maximum Segment Size (MSS) defines the largest payload (the data part of a TCP segment) that a device can receive in a single segment. Configuring tcp-mss-sender and tcp-mss-receiver on a FortiGate interface or within an IPsec tunnel configuration allows the firewall to intercept and modify the MSS value in the TCP SYN and SYN-ACK packets. This is primarily used to prevent packet fragmentation over links with lower MTUs (like IPsec or VXLAN) by ensuring the sender produces segments that fit within the tunnel ' s available payload space once encapsulation headers are added.

==============

IKEv2 (Internet Key Exchange version 2) is an improvement over IKEv1, offering enhanced security, efficiency, and flexibility in VPN configurations.

It includes stronger Diffie-Hellman (DH) groups, such as Elliptic Curve (ECP) groups.

IKEv2 supports stronger cryptographic algorithms, including Elliptic Curve Diffie-Hellman (ECDH) groups such as ECP256 and ECP384, providing improved security compared to IKEv1.

It supports the extensible authentication protocol (EAP).

IKEv2 natively supports EAP authentication, which allows integration with external authentication mechanisms such as RADIUS, certificates, and smart cards. This is particularly useful for remote access VPNs where user authentication must be flexible and secure.

Standard certificate inspection (which relies on the SNI) only identifies the destination domain; it does not allow the FortiGate to see the actual content of the encrypted session. As noted in the lab documentation, " certificate inspection on its own does not help HQ-DCFW to see the encrypted traffic " . To identify and block malware hidden within HTTPS traffic, the FortiGate must be configured with full SSL inspection (also known as deep inspection). This process involves the FortiGate acting as a man-in-the-middle to decrypt the packets, scan the payload for threats using the applied security profiles (like Antivirus or IPS), and then re-encrypt the traffic before sending it to the host. Without full decryption, the unit " will not decrypt packets to analyze if there is a possible attack, " allowing malware to bypass security layers.

==============

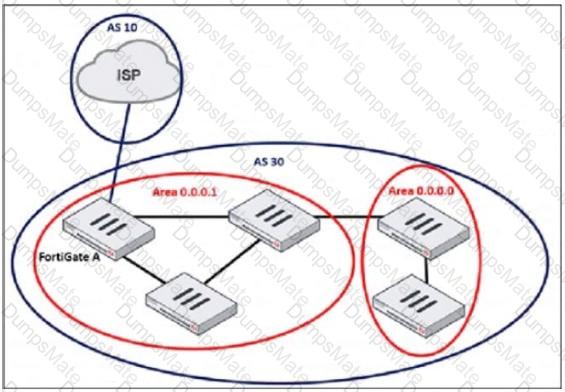

In BGP (Border Gateway Protocol), a neighbor (peer) configuration is required to establish a connection between two BGP routers. Since FortiGate A is connecting to the ISP (Autonomous System 10) from AS 30, the administrator must define the ISP ' s BGP router as a neighbor.

The config neighbor command is used to:

● Define the ISP ' s IP address as a BGP peer

● Specify the remote AS (AS 10 in this case)

● Allow BGP route exchanges between FortiGate A and the ISP

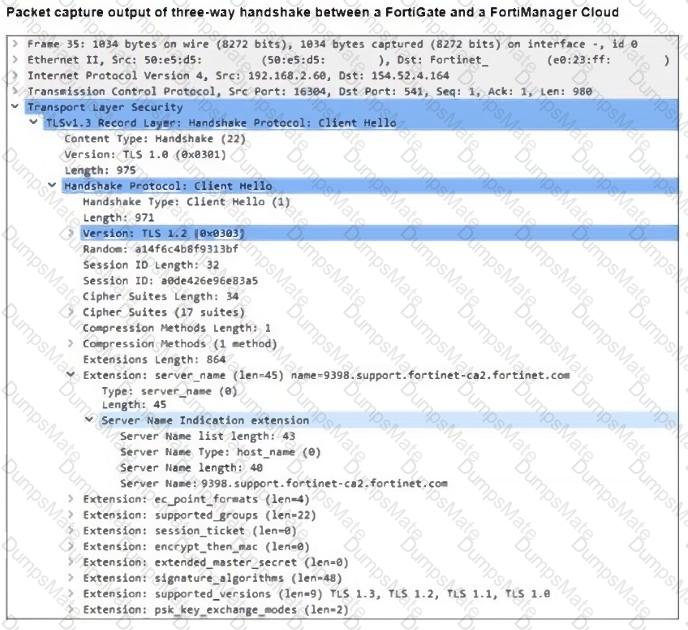

In modern TLS handshakes (starting with TLS 1.3), the Client Hello packet includes a specific extension called supported_versions. This extension lists all the TLS versions the client is capable of using. Typically, a client supporting TLS 1.3 will also list TLS 1.2 for backward compatibility to ensure it can successfully negotiate a secure connection with servers that have not yet upgraded. When both versions are present in the supported_versions field, it signifies that the client is capable of both TLS 1.2 and TLS 1.3 . This is a critical component for FortiGate when performing deep SSL/TLS inspection, as the firewall must understand the negotiated version to decrypt the traffic for security analysis.

Comprehensive and Detailed Explanation From Exact Extract documents and Knowledge:

By default, FortiGate ' s SSL/SSH Inspection profile is configured to recognize and inspect HTTPS traffic on the standard port 443. To inspect HTTPS traffic on a non-standard port , such as 8443 , the administrator must modify the protocol-to-port mapping within the security profile.

In the SSL/SSH Inspection configuration (accessible via Policy & Objects > Security Profiles), there is a section for " HTTPS " where additional ports can be specified. By adding 8443 to this list alongside 443, the FortiGate ' s inspection engine (IPS and UTM) is instructed to apply SSL decryption and analysis to any traffic using port 8443 as if it were standard HTTPS traffic. Without this mapping, the firewall would treat the traffic as an unknown encrypted protocol and would not be able to perform deep content analysis.

==============

In FortiManager, per-device mapping (also known as dynamic mapping ) is a fundamental feature used to manage objects that must have different values or names on different FortiGate units within the same ADOM.

According to the Fortinet Enterprise Firewall 7.6 Administrator Study Guide:

Policy Package View: When an administrator views a policy package in the FortiManager GUI, they see the ADOM-level object . In this case, the object is named or contains the value " 10.0.5 " .

Reinstall Preview/Installation: When FortiManager prepares the configuration for a specific device (like HQ-DCFW ), it checks for any per-device mappings defined for the objects used in the policy.

The Result: If a mapping exists, FortiManager replaces the ADOM-level object with the device-specific object or value. The reinstall preview shows the actual CLI commands that will be pushed to the device. In the exhibit, it is clear that the ADOM object " 10.0.5 " has been mapped to the device-specific address object " SSLVPN_tunnel_addr1 " for the HQ-DCFW unit.

This mechanism allows an administrator to maintain a single " Golden Policy " package for the entire enterprise while ensuring that device-specific details (like local subnet names or unique tunnel addresses) are correctly applied to each physical or virtual firewall.

Comprehensive and Detailed 150 to 200 words of Explanation From Exact Extract of Enterprise Firewall 7.6 Administrator documents:

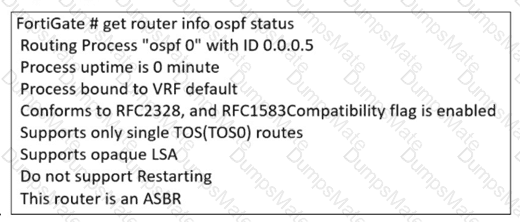

Based on the FortiOS 7.6 Infrastructure study guide and official documentation regarding OSPF monitoring, the command output get router info ospf status provides critical details about the OSPF process.

Injecting External Information (Option D): The last line of the exhibit explicitly states, " This router is an ASBR " (Autonomous System Boundary Router). By definition in the OSPF protocol, an ASBR is a router that connects the OSPF network to another routing domain (such as BGP, Static, or Connected routes) and is responsible for injecting external routing information into the OSPF domain.

OSPF ECMP Support (Option B): The output indicates that the OSPF process " Conforms to RFC2328 " . RFC 2328 is the standard for OSPFv2, which includes the capability for Equal-Cost Multi-Path (ECMP). In FortiOS, the OSPF engine supports multi-path routing by default, allowing the device to utilize multiple paths to the same destination if they share the same cost.

Option A is incorrect because the output does not indicate the router ' s DR/BDR election status on a specific segment. Option C is incorrect because " ID 0.0.0.5 " refers to the Router ID, not the OSPF Area ID.

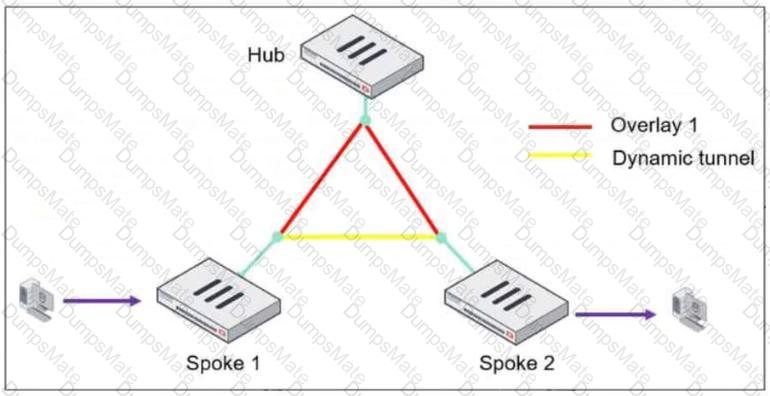

In an ADVPN (Auto-Discovery VPN) network, a dynamic VPN tunnel is established on-demand between spokes to optimize traffic flow and reduce latency.

Process:

1. Traffic Initiation:

A client behind Spoke-1 sends traffic to a device behind Spoke-2.

The traffic initially flows through the hub, following the pre-established overlay tunnel.

2. Hub Detection:

The hub detects that Spoke-1 is communicating with Spoke-2 and determines that a direct shortcut tunnel between the spokes can optimize the connection.

3. Shortcut Offer:

The hub sends a " Shortcut Offer " message to Spoke-1, informing it that a direct dynamic tunnel to Spoke-2 is possible.

4. Tunnel Establishment:

Spoke-1 and Spoke-2 then negotiate and establish a direct IPsec tunnel for communication.

Comprehensive and Detailed 150 to 200 words of Explanation From Exact Extract of Enterprise Firewall 7.6 Administrator documents:

According to the Fortinet Security Fabric 7.6 documentation and FortiAnalyzer study materials, when multiple FortiGate devices are part of a Security Fabric, logs are typically sent to a centralized FortiAnalyzer for a unified view of the network.

In the provided exhibit, the topology shows HQ-NGFW-1 as the Fabric Root and HQ-ISFW as a downstream device. One of the key benefits of the Security Fabric (Option C) is topology-wide visibility, where logs from different devices are correlated.

The traffic log table shows a " Malware " action for traffic originating from 10.0.2.51 (located behind HQ-ISFW) destined for a public IP. If UTM is not enabled on the HQ-ISFW itself, it cannot generate an Antivirus (AV) log. However, because HQ-ISFW is part of the Security Fabric, the traffic eventually passes through the upstream device, HQ-NGFW-1, to reach the internet. If UTM is enabled on HQ-NGFW-1 (Option B), that device will inspect the traffic, detect the malware, and generate the security log. FortiAnalyzer then displays this log as part of the unified threat view, associating it with the original source and the inspection point in the fabric path.

The best way to block outdated SSL/TLS versions is to configure the SSL/SSH inspection profile to enforce a minimum SSL/TLS version and disable weak SSL versions.

By setting the minimum allowed SSL version in the HTTPS settings of the SSL/SSH inspection profile, FortiGate will:

● Block any connection using outdated SSL/TLS versions (such as SSLv3, TLS 1.0, or TLS 1.1).

● Enforce secure communication using only strong SSL/TLS versions (such as TLS 1.2 or TLS 1.3).

● Protect users from man-in-the-middle (MITM) and downgrade attacks that exploit weak encryption.

Comprehensive and Detailed Explanation From Exact Extract documents and Knowledge:

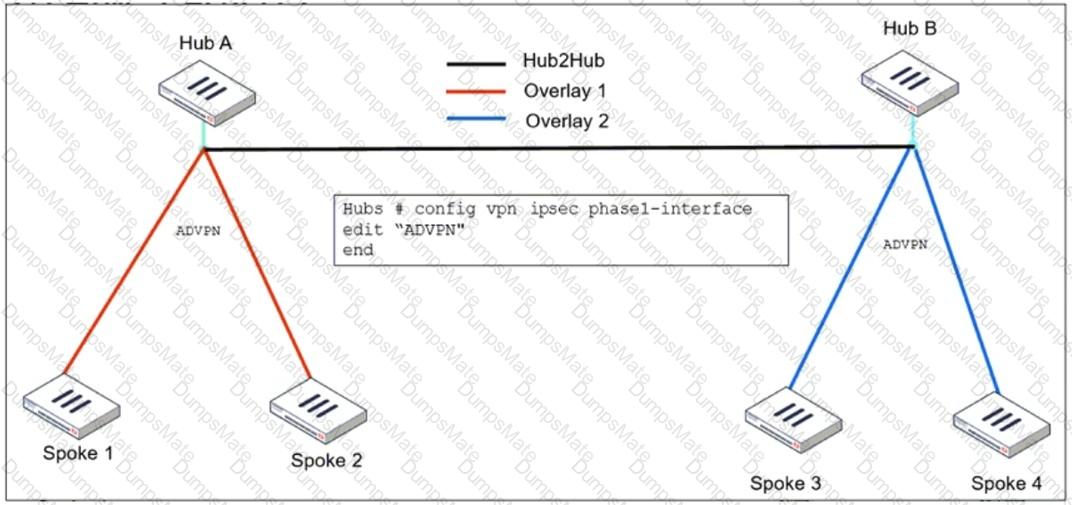

To deploy ADVPN (Auto-Discovery VPN) efficiently across an enterprise, Fortinet recommends centralized orchestration and standardized provisioning:

VPN Manager (A): Within FortiManager, the VPN Manager is the primary tool for orchestrating complex VPN topologies. It allows administrators to define a Hub-and-Spoke community and enable ADVPN features (like shortcuts) globally across all participating devices from a single interface.

IPsec templates (D): These templates (found under Provisioning Templates in FortiManager) allow administrators to define standard Phase 1 and Phase 2 settings once and apply them to multiple model devices or device groups. This ensures consistency across the enterprise and significantly reduces the manual configuration required for each spoke.

==============

VXLAN (Virtual Extensible LAN) is an overlay network technology that extends Layer 2 networks over Layer 3 infrastructure. When VXLAN is used extensively on FortiGate, hardware acceleration is crucial for maintaining performance.

● NP7 (Network Processor 7) is Fortinet’s latest network processor designed to accelerate high-performance networking features, including:

● VXLAN encapsulation/decapsulation

● IPsec VPN offloading

● Firewall policy enforcement

● Advanced threat protection at wire speed

NP7 significantly reduces latency and improves throughput when handling VXLAN traffic, making it the best choice for large-scale VXLAN deployments.

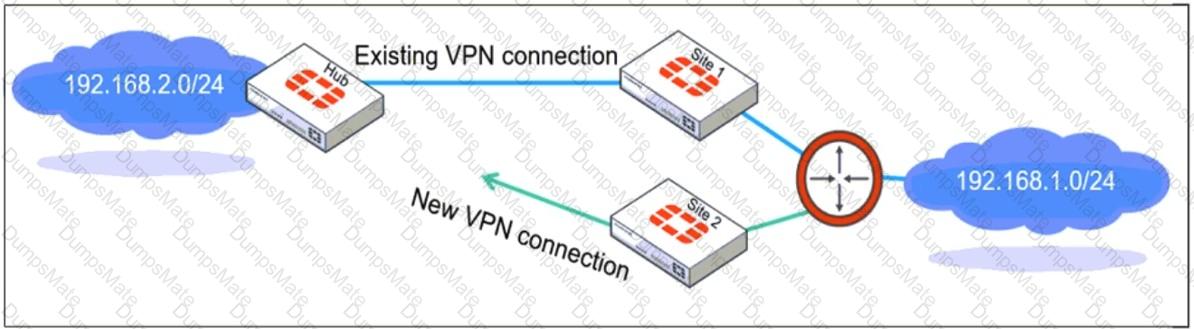

When multiple remote sites connect to the same hub using overlapping subnets, FortiGate needs to determine which route should be used for traffic forwarding. The route-overlap setting in IPsec Phase 2 allows FortiGate to handle this scenario by deciding whether to keep the existing route (use-old) or replace it with a new route (use-new).

In an ECMP (Equal-Cost Multi-Path) routing setup, both routes should be retained and balanced, but FortiGate does not support ECMP directly over overlapping routes in IPsec Phase 2. Instead, an administrator must decide which connection takes precedence using route-overlap settings.

Comprehensive and Detailed Explanation From Exact Extract documents and Knowledge:

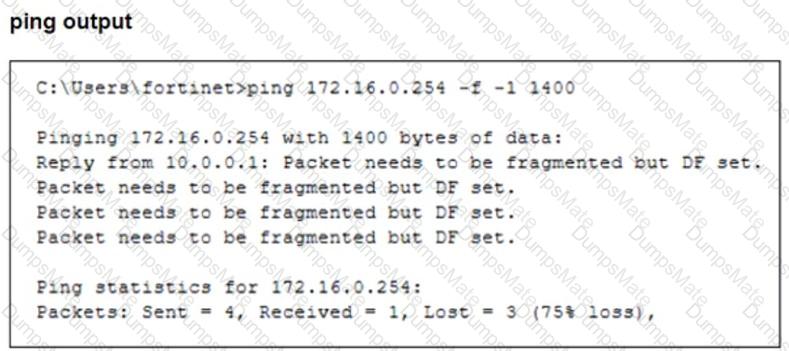

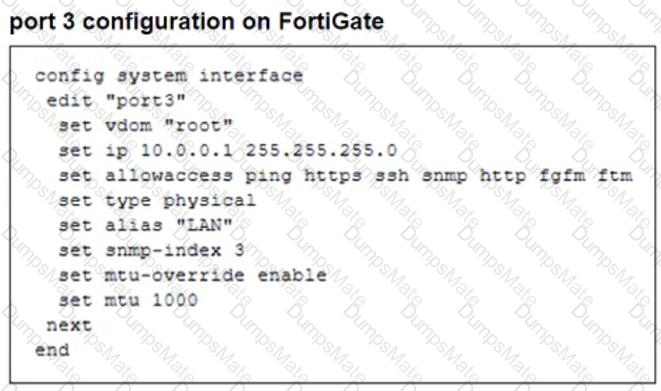

The TCP Maximum Segment Size (MSS) defines the largest payload (the data portion of the segment, excluding TCP and IP headers) that a device can receive in a single TCP segment.

When you configure tcp-mss-sender and tcp-mss-receiver on a FortiGate interface or tunnel, the FortiGate intercepts the TCP 3-way handshake (SYN and SYN-ACK packets). It modifies the MSS value announced by the hosts to ensure that the resulting segments, once encapsulated (e.g., by IPsec or VXLAN), do not exceed the MTU of the path. By reducing the allowed payload size at the source, FortiGate prevents the need for fragmentation further down the line, which improves overall network efficiency and prevents packet loss in " MTU-tight " environments.

==============

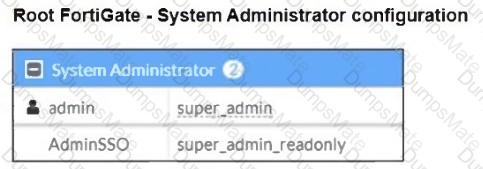

From the Root FortiGate - System Administrator Configuration exhibit:

● The AdminSSO account has the super_admin_readonly role.

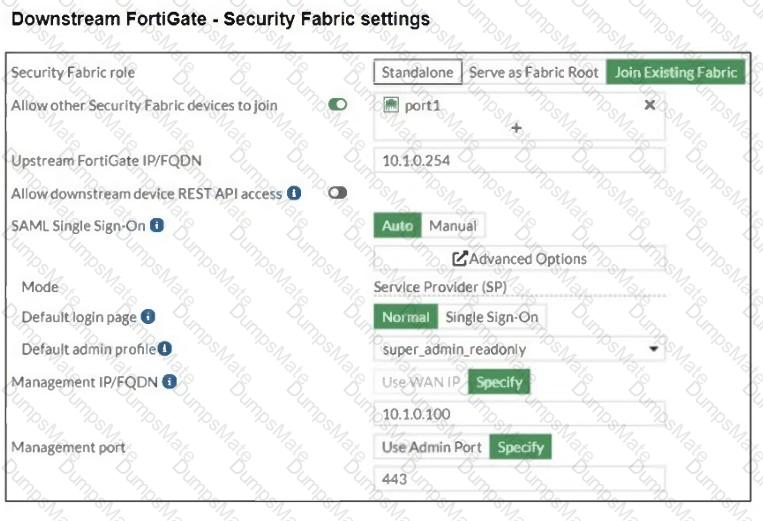

From the Downstream FortiGate - Security Fabric Settings exhibit:

● The Security Fabric role is set to Join Existing Fabric, meaning it will authenticate with the root FortiGate.

● SAML Single Sign-On (SSO) is enabled, and the default admin profile is set to super_admin_readonly.

When the AdminSSO user logs into the downstream FortiGate using SSO, the authentication request is sent to the root FortiGate, where AdminSSO has super_admin_readonly permissions. Since the downstream FortiGate inherits this permission through the Security Fabric configuration, the user will be granted super_admin_readonly access.

Comprehensive and Detailed Explanation From Exact Extract documents and Knowledge:

In an OSPF status output (typically retrieved via get router info ospf status), the unit identifies its role within the OSPF autonomous system. If the output indicates that the device is an ASBR (Autonomous System Boundary Router) , it means the FortiGate is redistributing routes from another protocol (like BGP, RIP, or static routes) into OSPF. The status will explicitly state " This router is an ASBR " if redistribution is active. This role is critical for providing connectivity between OSPF and external networks.

==============

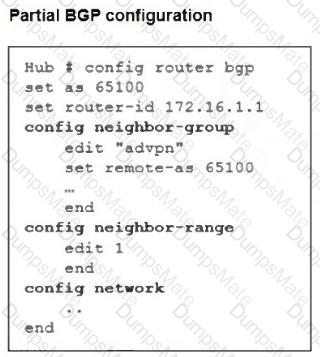

neighbor-group:

● This command is used to group multiple BGP neighbors with the same configuration, reducing redundant configuration.

● Instead of defining individual BGP settings for each spoke, the administrator can create a neighbor-group and apply the same policies, reducing manual work.

neighbor-range:

● This command allows the configuration of a range of neighbor IPs dynamically, reducing the need to manually define each spoke neighbor.

● It automatically adds BGP neighbors that match a given prefix, simplifying deployment.

Comprehensive and Detailed Explanation From Exact Extract of Enterprise Firewall 7.6 Administrator documents:

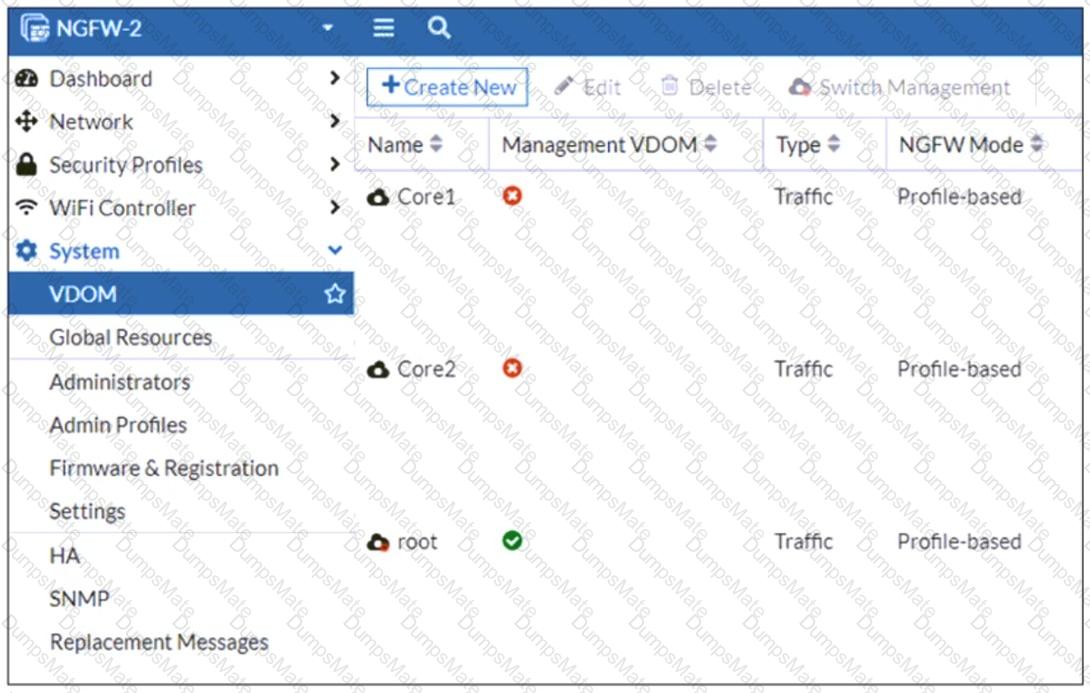

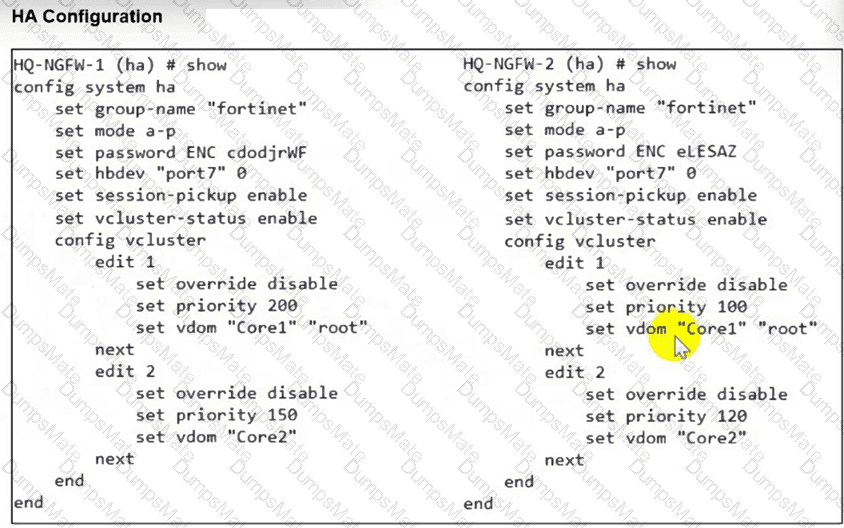

Based on the FortiOS 7.6 Administration Guide and the HA Virtual Clustering documentation, the exhibit demonstrates a Virtual Clustering environment where multiple VDOMs are distributed across an HA cluster.

In a virtual cluster setup, VDOMs are assigned to either virtual cluster 1 (vcluster 1) or virtual cluster 2 (vcluster 2). Each virtual cluster has its own independent primary unit selection process. The primary unit for a virtual cluster is determined based on the standard HA selection criteria: Monitored Interfaces > HA Uptime > Priority > Serial Number.

According to the exhibit:

Virtual Cluster 1 (edit 1) contains VDOMs " Core1 " and " root " .

Virtual Cluster 2 (edit 2) contains VDOM " Core2 " .

The HA uptime is stated to be the same for both devices.

For edit 2 (Core2), HQ-NGFW-1 has a priority of 150, while HQ-NGFW-2 has a priority of 120.

In both units, override is disabled (default).

Since the uptime is equal and no monitored interfaces are down, the cluster uses the Priority value to select the primary unit for each vcluster. Currently, HQ-NGFW-1 is the primary for Core2 because its priority (150) is higher than HQ-NGFW-2 ' s (120). To ensure HQ-NGFW-2 handles the Core2 traffic, its priority for virtual cluster 2 must be increased to a value higher than 150. Option C (changing the priority from 120 to 200) achieves this.

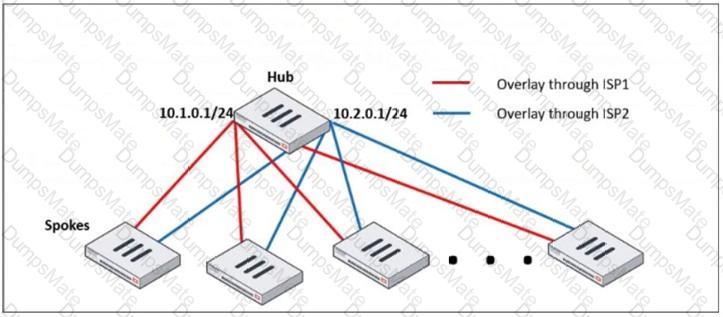

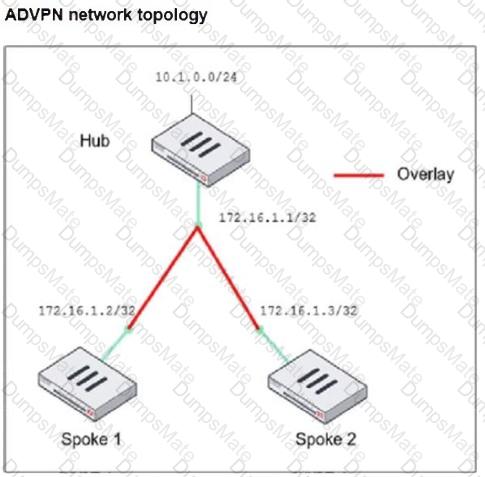

When designing an ADVPN (Auto-Discovery VPN) network for a large enterprise with spokes that have varying numbers of internet links, the main challenge is to minimize the number of peer connections and routes at the hub while maintaining scalability and efficiency.

Using a dynamic routing protocol (such as BGP or OSPF) with loopback interfaces helps in several ways:

● Reduces the number of peer connections at the hub by using a single loopback address per spoke instead of individual physical interfaces.

● Enables simplified route advertisement by dynamically learning and propagating routes instead of manually configuring static routes.

● Supports multiple internet links per spoke efficiently, as dynamic routing can automatically adjust to the best available path.

● Allows seamless failover if a spoke’s internet link fails, ensuring continuous connectivity.

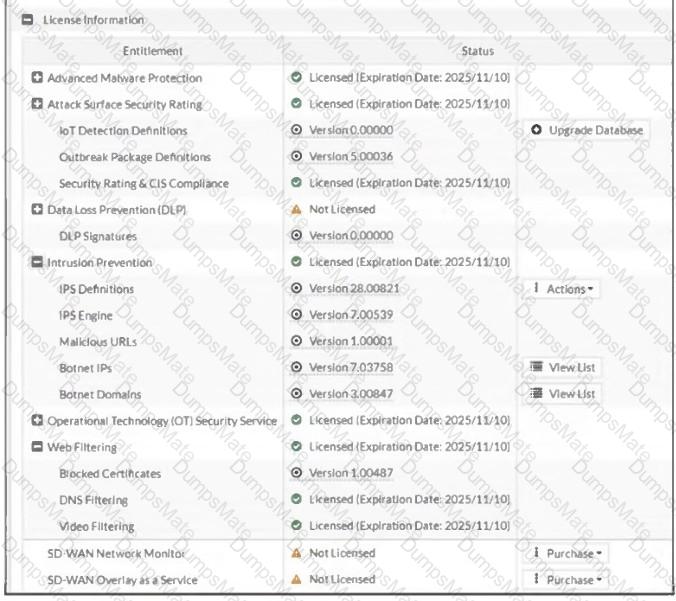

Unlike IPS or antivirus databases, FortiGate does not store a full web filter database locally. Instead, FortiGate queries FortiGuard (or FortiManager, if configured) dynamically to classify and filter web content in real time.

Key points:

● Web filtering works on a cloud-based model:

● When a user requests a website, FortiGate queries FortiGuard servers to check its category and reputation.

● The response is then cached locally for faster lookups on repeated requests.

● No local web filter database version:

● Unlike IPS and antivirus, which download and store signature updates locally, web filtering relies on cloud-based queries.

● This is why no database version appears in the GUI.

● Flow mode vs Proxy mode:

● In proxy mode, FortiGate can cache some web filter data, improving performance.

● In flow mode, all queries happen dynamically, with no locally stored database.

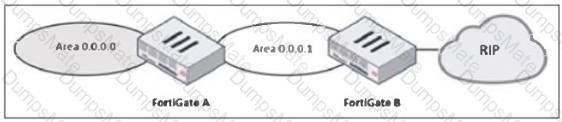

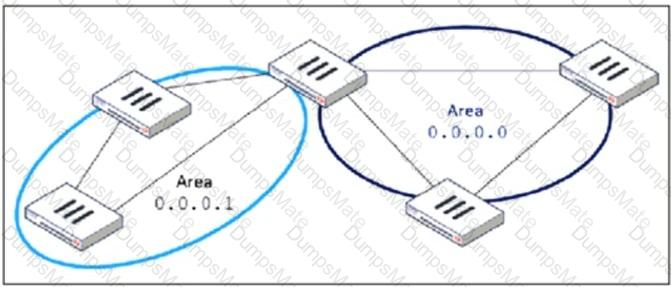

The diagram shows a multi-area OSPF network where:

● FortiGate A is in OSPF Area 0 (Backbone area).

● FortiGate B is in OSPF Area 0.0.0.1 and is connected to an RIP network.

To ensure that OSPF Area 0 (0.0.0.0) learns routes from the external RIP network, FortiGate B must redistribute RIP routes into OSPF.

Steps to achieve this:

1. Enable route redistribution on FortiGate B to inject RIP-learned routes into OSPF.

2. This allows OSPF Area 0.0.0.1 to forward RIP routes to OSPF Area 0 (0.0.0.0), making the external network visible.

In FortiOS, security services like Antivirus and Intrusion Prevention (IPS) download local databases to the FortiGate unit for inspection. However, Web Filter and DNS Filter function differently. Instead of a local database, FortiGate performs real-time queries to the cloud-hosted FortiGuard category servers. Because the database is hosted in the cloud and not locally stored on the device, there is no " version " number for a local file to display in the dashboard. The unit maintains a connection to FortiGuard Labs to retrieve ratings for URLs dynamically.

==============

In a hub-and-spoke topology using OSPF over IPsec VPNs, the point-to-multipoint network type is necessary to establish neighbor adjacencies between the hub and spokes. This network type ensures that OSPF operates correctly without requiring a designated router (DR) and allows dynamic routing updates across the IPsec tunnels.

Encapsulation (such as IPsec, VXLAN, or FGSP synchronization) adds overhead to standard packets, often causing them to exceed the standard MTU of 1500 bytes and leading to fragmentation or dropped packets. The Enterprise Firewall curriculum notes that while " jumbo packets " can be detected as possible attacks by IPS, adjusting MTU and MSS values to account for encapsulation should ideally be performed in a controlled environment . This allows administrators to accurately measure the required overhead and verify that the adjustments do not cause unintended network instability or performance degradation across the entire infrastructure.

==============
