FCSS_SDW_AR-7.4 FCSS - SD-WAN 7.4 Architect Questions and Answers

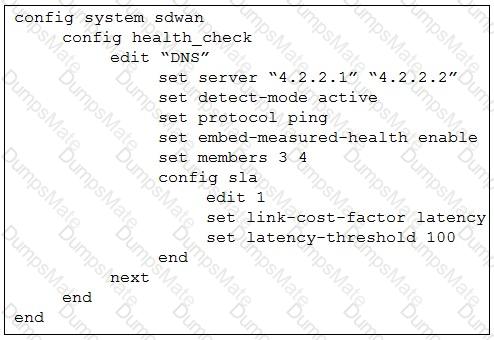

The hub must use a performance SLA with the same criteria as the spoke's health check. The spoke's health check is using ping (protocol ping) and measuring latency (link-cost-factor latency). For the hub to use the data sent by the spoke, its performance SLA must be configured to measure the same metrics. If the hub is looking for jitter or packet loss, it will not use the latency data sent by the spoke.

When a spoke sends embedded health data, the hub FortiGate must be configured to receive and use it. This is done by setting set embedded-measure accept within the performance SLA configuration on the hub. This setting explicitly tells the hub to trust and use the performance metrics received from the remote FortiGate (the spoke). Without this setting, the hub will likely ignore the embedded health data and rely on its own health checks, which could lead to incorrect traffic prioritization.

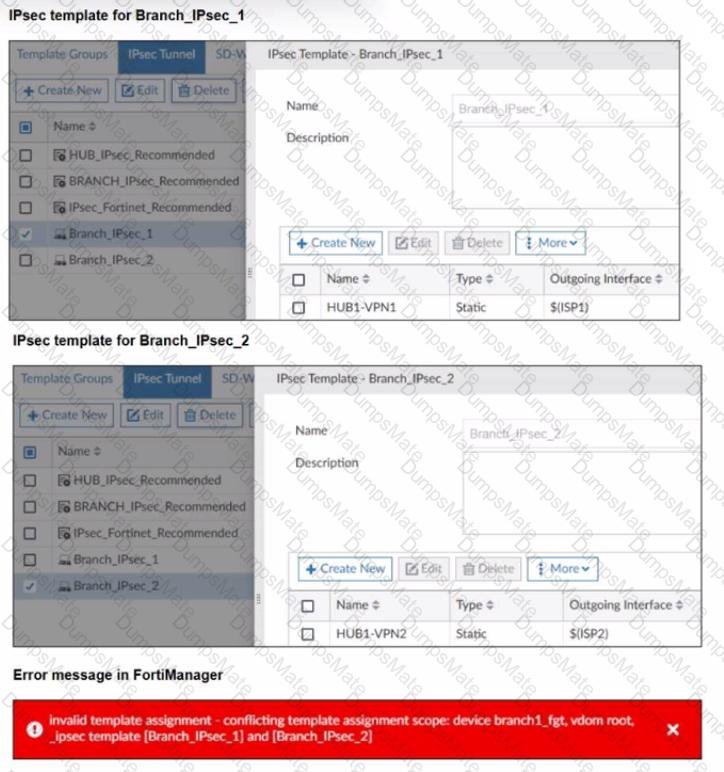

The provisioning templates in FortiManager are designed for flexible, scalable configuration of large SD-WAN deployments. The official documentation explains:

"Template groups can consist of both system and SD-WAN templates, providing a way to apply consistent settings across multiple devices. CLI templates are evaluated and executed in order from top to bottom within the template group, which is crucial for managing dependencies. Furthermore, CLI template groups can contain both regular CLI templates and advanced (Perl-script-based) templates, allowing complex or conditional configuration logic."

This modular design streamlines large deployments by separating system, SD-WAN, and CLI logic into reusable building blocks.

When using the diagnose sys session list command, SD-WAN-specific session steering is indicated by the presence of the sdwan_service_id field in the session data. This identifier ties the session directly to a specific SD-WAN rule or service. As noted in the Fortinet documentation: “Sessions that are handled according to SD-WAN rules will include a service ID tag (sdwan_service_id) in their session listing. This allows administrators to correlate live sessions with SD-WAN policy matches for troubleshooting and visibility.” This is a crucial diagnostic tool, as it distinguishes between traffic managed by traditional routing and that explicitly controlled by SD-WAN steering logic, aiding in operational insight and troubleshooting.

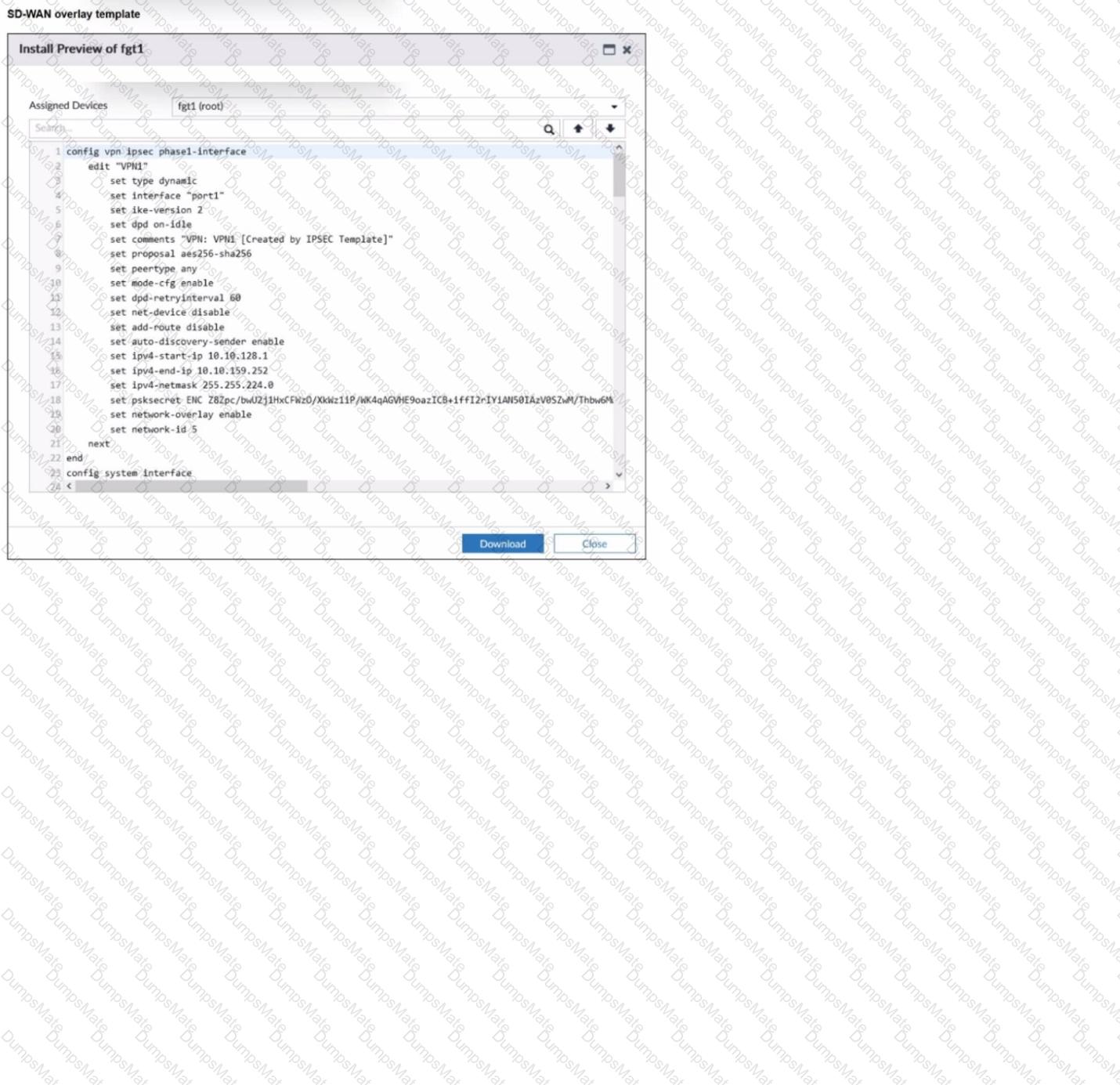

The FortiManager SD-WAN overlay template preview, as described in the document, indicates:

"When the device is acting as a hub, the configuration enables the sending of ADVPN shortcut offers to spokes. This means the hub can facilitate on-demand dynamic shortcut tunnel creation between spokes, improving performance for branch-to-branch communication by bypassing the hub for inter-branch traffic after initial discovery."

Such a role is critical in scalable ADVPN topologies, enabling hub devices to optimize overlays dynamically.

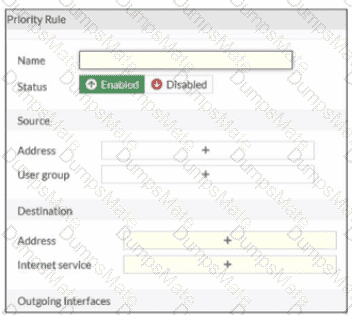

The use of SLA targets is specific to certain SD-WAN strategies. The "Lowest Cost (SLA)" and "Maximize Bandwidth (SLA)" strategies are explicitly designed to use the configured SLA targets to make routing decisions. The "Best Quality" strategy uses performance metrics but does not necessarily require or reference SLA targets in the same way, while "Manual" does not use metrics at all for path selection.

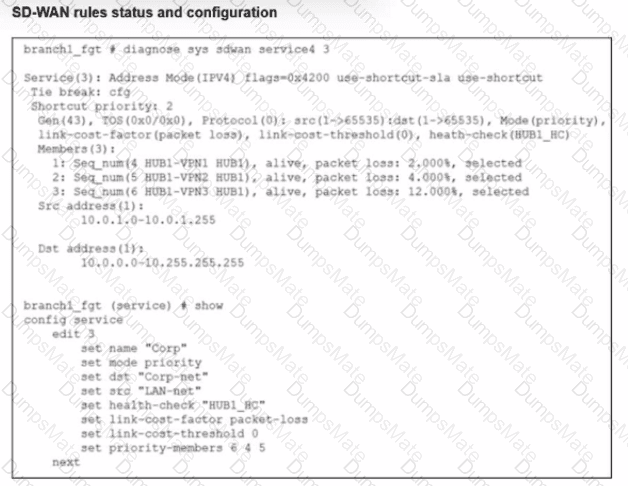

This is a core function of SD-WAN rules with SLA targets. The purpose of configuring an SLA target with specific thresholds for latency, jitter, and packet loss is to define what is considered "acceptable" performance for an application. SD-WAN rules then use these targets to check if the members (interfaces) meet these requirements before a flow is steered over them, ensuring that a preferred path still offers a good user experience.

FortiGate allows for a single SD-WAN rule to reference multiple, different performance SLAs. This is crucial for complex deployments where a single SD-WAN rule needs to handle traffic for multiple applications that have distinct performance requirements. For example, a single rule might direct VoIP traffic based on one performance SLA with strict latency/jitter targets, while simultaneously handling general web traffic using another performance SLA with more lenient requirements.

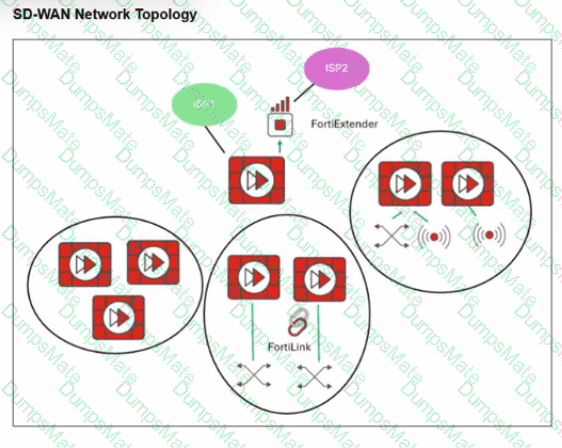

In Fortinet SD-WAN, hubs should not have extensions like FortiSwitch, FortiAP, or FortiExtender installed, as these can affect hub functionality and scalability. While all device types can be included in the topology, the hubs must be "clean" FortiGate devices without such extensions to ensure proper ADVPN and overlay management.

Hosting the hub at the MSSP centralizes installation, security, and ongoing management while each site (spoke) keeps local DIA. This can be done multi-tenant with a shared hub using a dedicated VDOM or with a fully dedicated hub per customer for stricter isolation and control, both meeting the requirement to delegate administration to the MSSP and support high inter-site traffic.

The SD-WAN monitor’s table view in FortiManager provides a donut visualization plus a detailed table that shows each SD-WAN member’s status and SLA pass/miss, giving the per-member health view you’re after.

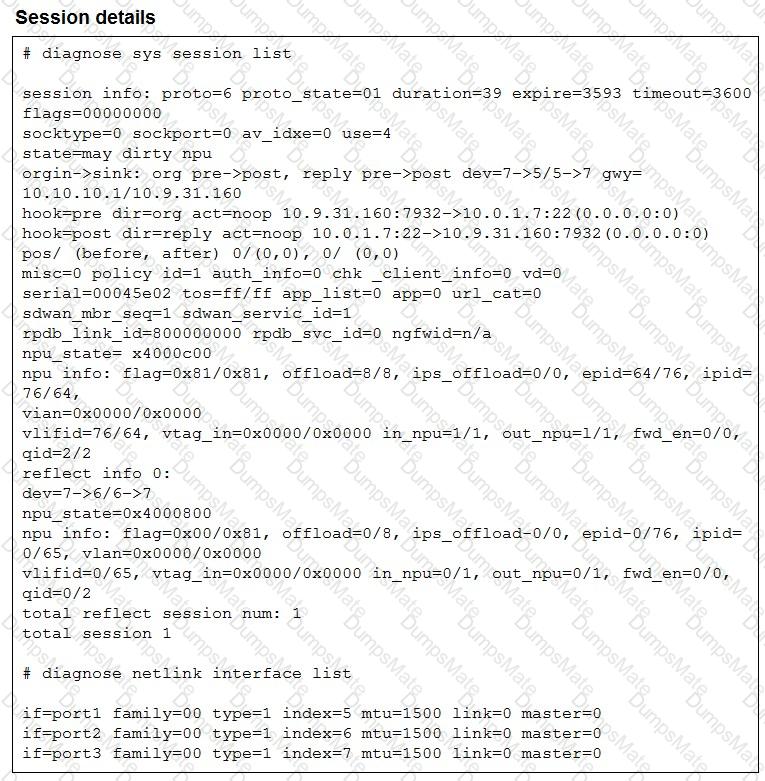

The session details show the symmetric flow’s original direction as port3 → port2.

The asymmetric flow’s reply direction is listed as port2 → port3.

The implicit SD-WAN rule serves as the final catch-all. Per Fortinet:

"Sessions matching the implicit SD-WAN rule do not have an SD-WAN service id, as they are not associated with any specific user-defined SD-WAN rule. Additionally, this occurs only when traffic fails to match any entry in the policy route table. This default handling guarantees connectivity while minimizing the risk of blackholed traffic."

Administrators can observe this in diagnostic outputs for troubleshooting.

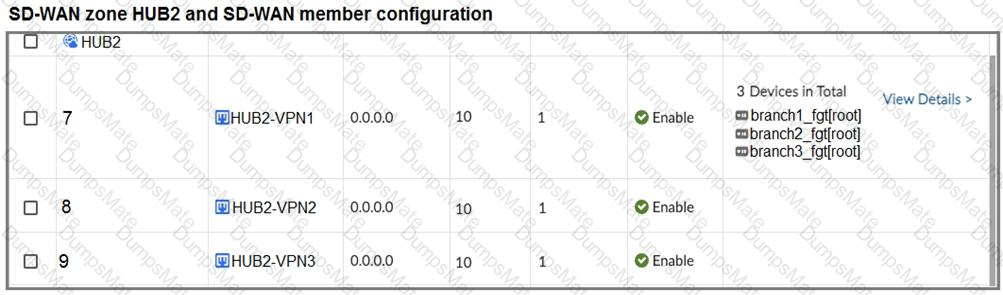

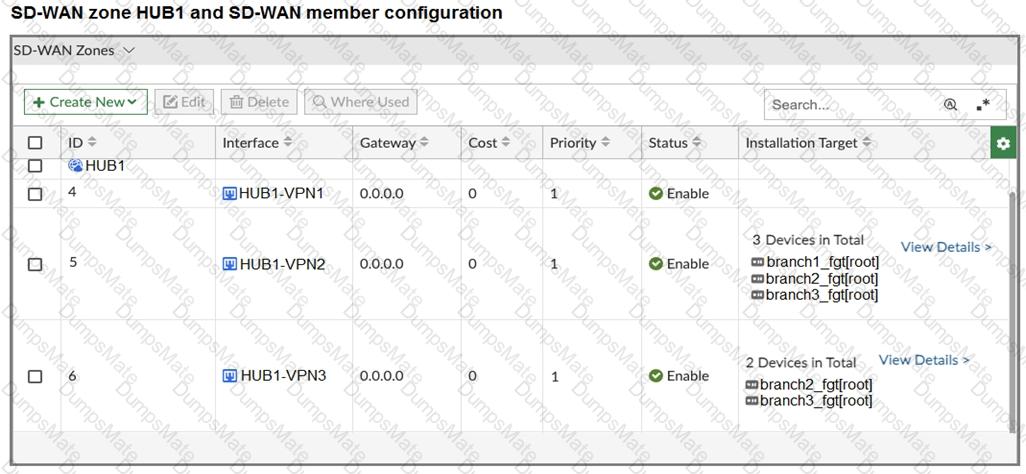

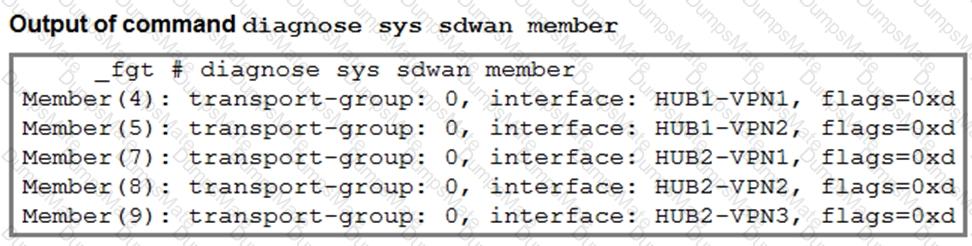

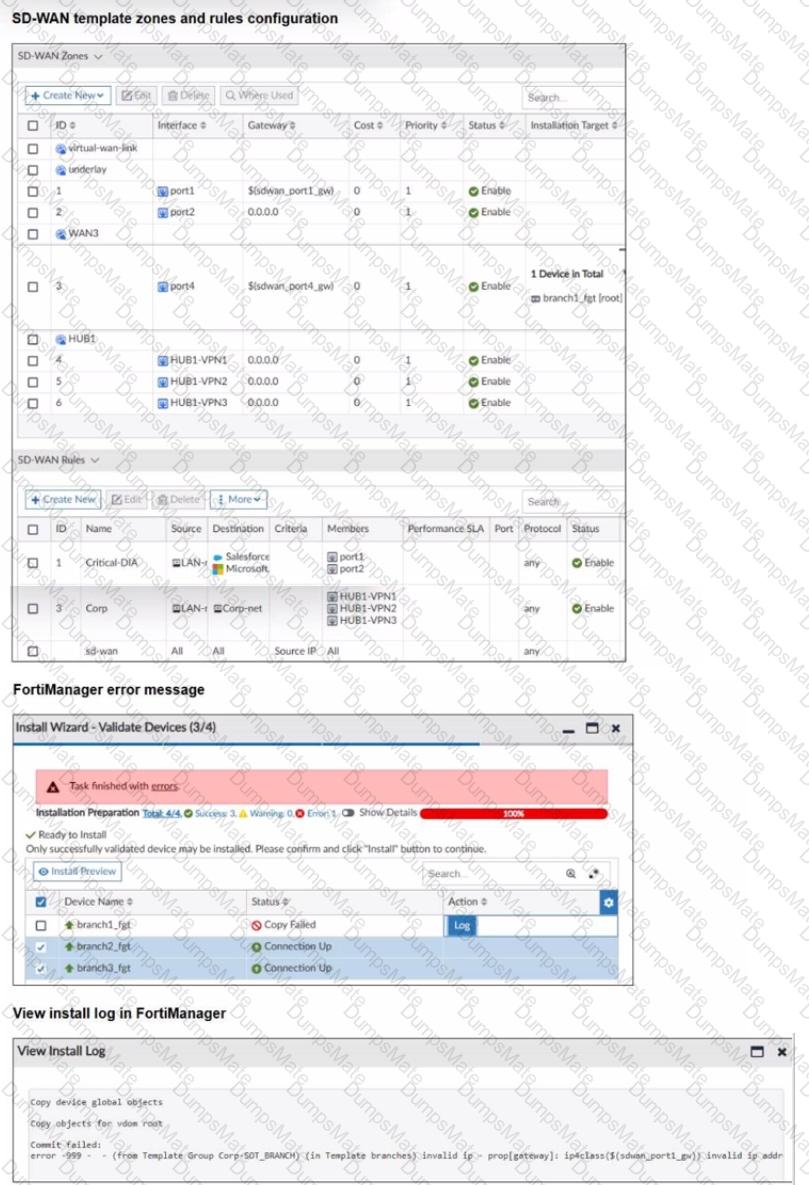

The diagnose output lists SD-WAN members 4(HUB1-VPN1), 5(HUB1-VPN2), 7(HUB2-VPN1), 8(HUB2-VPN2), and 9(HUB2-VPN3). It does not include member 6 (HUB1-VPN3). From the template, HUB1-VPN3 is installed only on branch2_fgt and branch3_fgt - not on branch1_fgt. Therefore, the output must be from branch1_fgt.

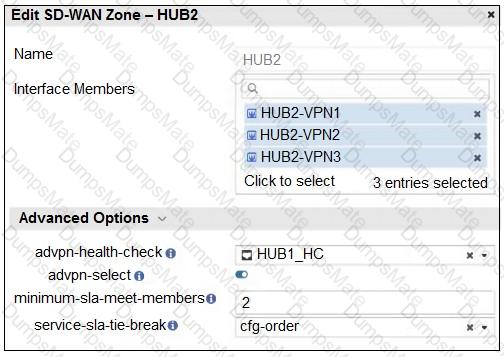

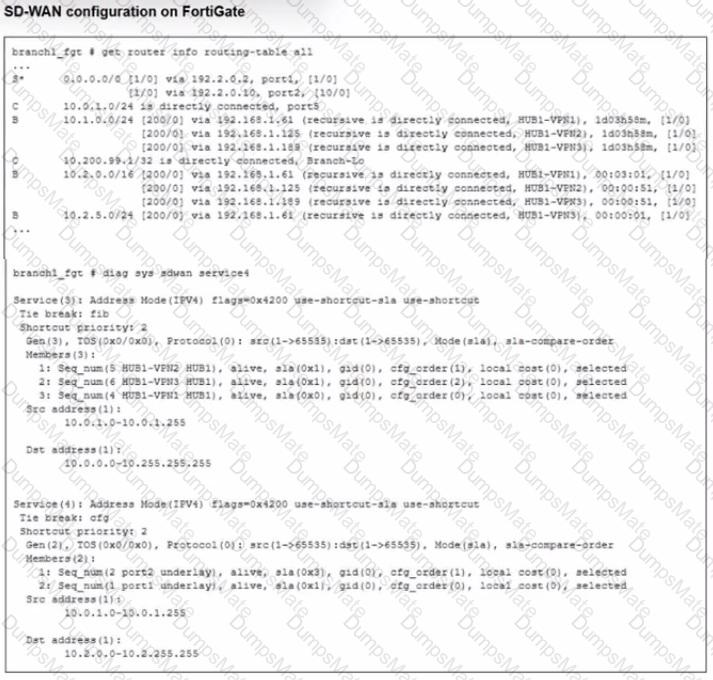

This is because the setting minimum-sla-meet-members = 2 requires at least two SD-WAN zone members (in this case, HUB2-VPN1, HUB2-VPN2, and HUB2-VPN3) to pass the defined SLA health check (HUB1_HC) before the FortiGate will establish ADVPN shortcuts. If fewer than two members meet the SLA, shortcuts will not be created.
