IPv6 text representation permits zero compression to make long addresses easier to read and write. One or more consecutive 16-bit groups containing only zeros can be replaced by a double colon, subject to the rule that the double-colon compression is used only once in a single IPv6 address; otherwise the number of omitted groups would be ambiguous. In the address 2001:DBFF:130F:0:0:0:0:130B, four consecutive zero groups appear between 130F and 130B. Replacing that run with :: produces 2001:DBFF:130F::130B, which expands back unambiguously to the original eight groups. Leading zeros within an individual 16-bit group can also be omitted, but that is a separate abbreviation rule. The example in the question follows valid IPv6 notation and does not alter the numeric address. Consequently, the statement that the address can be compressed in the manner shown is TRUE. The correct answer is A. The compression changes only the written representation of the IPv6 address; it does not change the underlying 128-bit address value itself in any way.

The protocol that cannot directly modify device configurations such as interface IP addresses or device names is SFTP , so option C is correct. SFTP is a secure file transfer protocol that runs over SSH and is mainly used to upload, download, and manage files between a client and a network device. It is commonly used for tasks such as transferring configuration files, system software, patches, or log files, but it does not itself provide an interactive or structured configuration modification mechanism.

By contrast, STelnet allows secure remote CLI login, through which an administrator can directly enter commands to change device settings. NETCONF is specifically designed for network configuration management and can modify configurations in a structured manner. SNMP can also modify certain managed object values through write operations when permissions and MIB support allow it, although in practice it is used more often for monitoring. HCIA-Datacom distinguishes between management-plane protocols based on their roles: interactive access, structured configuration, monitoring, and file transfer. This question checks whether the learner can identify SFTP as a file transfer tool rather than a direct configuration protocol.

In STP, the root bridge is elected based on the lowest bridge ID (BID). A BID is composed of the bridge priority and the MAC address of the switch. The device with the smallest BID becomes the root bridge. Therefore, if an administrator wants SW2 to become the root bridge, the most direct and correct method is to configure a lower system priority on SW2, making option C correct.

Option A is incorrect because port priority affects port-role selection in some tie-breaking scenarios, but it does not determine root-bridge election. Option B is the opposite of what is required, because a higher system priority makes the BID larger and reduces the chance of being elected as root. Option D is also incorrect because root path cost is used by non-root bridges to select the best path to the existing root bridge; it does not determine which switch becomes the root bridge in the first place. HCIA-Datacom stresses that bridge priority tuning is the standard administrative method used to control root bridge placement in campus networks for stable and predictable Layer 2 topology design.

This statement is false . In an Eth-Trunk operating in LACP mode , if the administrator sets the maximum number of active links to 3 and there is 1 standby link, then when one active member fails, LACP can automatically promote the standby member to active status. The purpose of the standby member is to maintain the configured active-link capacity whenever possible.

Therefore, after one active link fails, the normal expectation is not that the active-link count is reduced from 3 to 2 while the standby link remains idle. Instead, the standby link should participate and replace the failed member, so that the Eth-Trunk continues operating with 3 active links if the standby link and negotiation conditions are normal. This reflects the redundancy and fast recovery capabilities of LACP-based aggregation. HCIA-Datacom highlights that compared with manual mode, LACP provides more intelligent link selection, active/standby management, and fault adaptation. The statement is wrong because it ignores the intended behavior of the standby link in maintaining the number of active forwarding links after a failure.

All four statements are correct. The code uses the Paramiko library to automate SSH login to a network device. import paramiko and import time load the Python modules required for SSH communication and delay control, so option C is correct. The statement ssh = paramiko.SSHClient() creates an SSH client object, and ssh.set_missing_host_key_policy(paramiko.AutoAddPolicy()) allows the client to accept an unknown host key automatically in this example scenario.

The command ssh.connect( ' 192.168.1.254 ' , username= ' python ' , password= ' Huawei@123 ' ) establishes an SSH connection to the target device, so option B is correct. Then channel = ssh.invoke_shell() opens an interactive shell channel , which is commonly used to send CLI commands and receive output just as an administrator would in a terminal session, making option D correct. The command channel.send( ' screen-length 0 temporary\n ' ) disables page-by-page output for the current session, which is useful in network automation. Finally, ssh.close() closes the SSH session and releases the connection, so option A is correct. HCIA-Datacom automation knowledge often uses Paramiko examples to demonstrate basic Python-based device O & M.

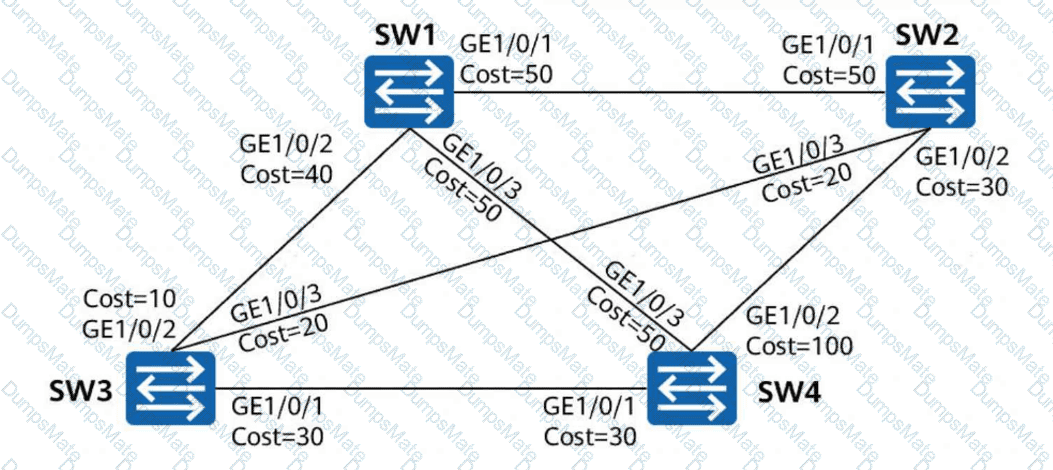

After STP convergence, only ports in the forwarding state participate in active traffic forwarding, while redundant ports may be placed into the blocking or discarding state to eliminate loops. According to the topology and STP role election shown in the question, the valid forwarding path from SW1 to SW4 is SW1 → SW3 → SW4, so option B is correct.

This means that the direct alternative path or the path through SW2 is not the active spanning-tree forwarding path after election and state transition. STP selects paths based on the root bridge, path cost, bridge ID, and port ID. Once the root bridge and port roles are determined, some links remain active and others are blocked to ensure a loop-free Layer 2 topology. HCIA-Datacom emphasizes that the resulting forwarding topology is a tree, not a mesh, even if the physical topology contains redundant links. Understanding the actual forwarding path after STP convergence is important for troubleshooting connectivity, predicting traffic behavior, and verifying whether bridge priority and path-cost settings have produced the intended design outcome in campus switching networks.

Python identifiers and string values are case-sensitive. The variables Test and test are therefore two different variable names, and the assigned strings also differ in capitalization. Test contains the string ' Hello World ' , whereas test contains ' hello world ' . Calling print(Test) outputs the capitalized form, while print(test) outputs the lowercase form. Python does not automatically normalize case when resolving variable names or when displaying strings. The same principle applies to function names, class names, dictionary keys, and most other identifiers or values used in network automation scripts. In Datacom automation work, case sensitivity matters when processing device output, JSON/YANG data, NETCONF payloads, interface names, and user-defined variables. A script that refers to Test when only test has been defined can even raise a NameError because Python treats the two identifiers as unrelated. In this question both variables are defined, but their printed output is visibly different. Consequently, the statement that the two print operations produce the same output is FALSE, option B.

In IPv6, link-local addresses use the prefix FE80::/10 . These addresses are automatically generated or configured for communication on the local link only and are not routed across Layer 3 boundaries. Therefore, among the given options, FE80::FA63:DBFF:FE9E:10 is the correct link-local address, making option C correct.

Options A and B belong to the Unique Local Address (ULA) space, which uses the prefix FC00::/7 . These addresses are intended for private internal IPv6 networks, somewhat similar in purpose to private IPv4 address ranges, but they are not link-local addresses. Option D , which starts with 2001::, is a global unicast address , used for routable communication across IPv6 networks. HCIA-Datacom teaches that link-local addresses are essential in IPv6 because they are used for functions such as neighbor discovery, router discovery, and routing protocol communication on the local segment. Even when a device has global unicast addresses, the link-local address still plays an important role in normal IPv6 operation and protocol adjacency establishment.

According to the original topology and service-planning question, the required VLANs are VLAN 100 , VLAN 101 , and VLAN 102 , so options A , B , and C are correct. In HCIA-Datacom campus design questions, VLAN planning is usually based on service separation, such as user services, voice services, wireless services, management services, or specific departmental segmentation. Each service type is assigned an appropriate VLAN so that broadcast domains are separated and policies can be applied more effectively.

The reason option D is not selected is that it does not match the service requirements shown in the original figure. VLAN planning must follow the actual service design rather than arbitrary numbering. HCIA-Datacom emphasizes that campus VLAN planning should align with traffic isolation, gateway design, security policy deployment, and future scalability. Proper VLAN assignment helps simplify troubleshooting, reduce unnecessary broadcasts, and support service-based policy enforcement. This question tests the ability to read a service topology and identify which VLANs are actually required by the depicted design rather than choosing extra VLANs that are not part of the planned campus solution.

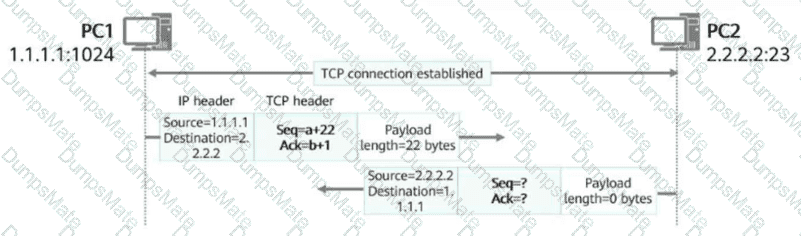

In TCP, the acknowledgment number indicates the next byte that the receiver expects to receive. In the figure, PC1 sends a TCP segment to PC2 with sequence number = a+22 and payload length = 22 bytes . Since TCP sequence numbers count bytes, the last byte carried in this segment corresponds to sequence number a+43 . Therefore, after PC2 successfully receives this data, it sends back an ACK indicating that the next expected byte is a+44 .

That is why option B is correct. This is a standard TCP reliability mechanism. TCP does not acknowledge “packets” as units; it acknowledges the byte stream. The ACK number always points to the next byte expected from the peer. The source and destination port numbers identify the session, but the sequence and acknowledgment numbers track ordered delivery. HCIA-Datacom uses this mechanism to explain connection-oriented transport, reliable delivery, retransmission, and traffic control. Understanding how the payload length affects sequence progression is essential when analyzing packet captures and troubleshooting TCP communication problems in enterprise networks.

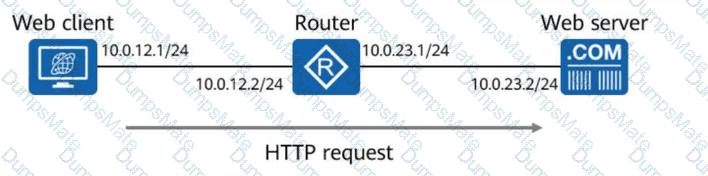

A router works mainly at the network layer . When it receives a frame, it removes the Layer 2 header and trailer, examines the destination IP address in the Layer 3 header, consults the routing table, selects the outgoing interface, and then re-encapsulates the packet into a new Layer 2 frame for the next hop. Therefore, statement B is true and is not part of the answer.

Statement A is false because the router does not create a new destination IP address during normal forwarding. The source and destination IP addresses remain unchanged end to end unless special functions such as NAT are used. Statement C is false because routing-table lookup is based on the destination IP address, not on TCP or UDP port numbers. Statement D is also false because normal IP routing does not inspect application-layer content to determine the outgoing interface. That decision is made from the network-layer destination address and the routing table. This question tests the layered forwarding logic of routers in TCP/IP networks.

ACL 2001 is a basic IPv4 ACL because Huawei numbered basic ACLs use the range 2000 to 2999. A basic ACL can match relatively simple conditions such as source IP address and an effective time range, but it does not support matching the IP protocol, destination IP address, or TCP/UDP source and destination port numbers. The attempted rule includes tcp, destination-port eq telnet, and a destination network, all of which require an advanced ACL. Huawei advanced ACLs use the 3000 to 3999 range and can match protocol type, source and destination addresses, and Layer 4 port values. Therefore, even after correcting the obvious command typo from ad 2001 to acl 2001, the rule syntax is still incompatible with a basic ACL 2001 and cannot be successfully configured in that ACL view. To implement the intended policy, the administrator should create an advanced ACL and express the TCP Telnet and destination conditions there. Consequently, the statement that the rule cannot be configured successfully is TRUE, option A.

This statement is false because the receiver is one of the fundamental elements of communication. In basic communication theory, a complete communication process requires at least four essential elements: the sender , the information or message content , the transmission medium or channel , and the receiver . If the receiver is missing, communication cannot be completed because there is no endpoint to accept, interpret, or respond to the transmitted information.

In datacom networks, this concept maps directly to real networking scenarios. A source host generates data, the data is carried over some medium such as copper, fiber, or wireless, and a destination host receives the data. Network devices such as switches and routers assist the forwarding process, but the fundamental communication model still includes both communicating endpoints. HCIA-Datacom emphasizes the complete sender-to-receiver process when introducing network communication basics, protocol encapsulation, and forwarding. Therefore, excluding the receiver from the communication elements is conceptually incorrect. The correct understanding is that sender, receiver, information content, and channel together form the essential basis of communication.

In OSPF, the packet type used to request specific link-state advertisements from a neighbor is the Link State Request (LSR) packet. Therefore, option B is correct. During database synchronization, OSPF neighbors first discover each other with Hello packets, then exchange summaries of their databases using Database Description (DD) packets. If one router finds that it is missing certain LSAs or has older versions, it sends an LSR packet to request the needed LSAs from its neighbor.

The neighbor then responds with a Link State Update (LSU) packet containing the requested LSAs. Finally, the receiving router confirms proper receipt with a Link State Acknowledgment (LSAck) packet. HCIA-Datacom emphasizes understanding the roles of these five OSPF packet types because they are central to neighbor formation, adjacency establishment, and LSDB synchronization. This question specifically tests whether the learner can distinguish between the request packet ( LSR ) and the update packet ( LSU ). The router does not use a DD packet to request detailed LSA content; DD packets provide database summaries, while LSR packets explicitly request the LSAs that are needed.

OSPF divides a large routing domain into areas so that link-state information can be contained and the processing burden on individual routers can be reduced. Within a given OSPF area, routers exchange LSAs and synchronize the area ' s link-state database. After the network has converged and the participating routers have full adjacency where required, routers in the same area maintain a consistent view of that area ' s topology. Each router then runs the SPF algorithm independently against that common LSDB, using itself as the root, so the calculated shortest-path tree can differ in perspective even though the underlying area topology database is the same. Area boundaries also limit which detailed LSAs need to be maintained by routers outside the area, which is one reason hierarchical OSPF scales better than a single very large area. The statement should be understood under normal, converged OSPF operation; simply sharing an area number without connectivity would not create synchronization. In the intended HCIA Datacom context, R1 and R2 participating in the same area maintain the same area LSDB. Therefore the answer is TRUE, option A.

This statement is true . ARP is a Layer 2 broadcast-based protocol used to resolve an IPv4 address into a MAC address within the same broadcast domain. If two PCs are connected to the same switch but cannot learn each other’s ARP entries, one likely reason is an incorrect VLAN configuration .

For example, if PC1 and PC2 are placed in different VLANs, or if one interface is configured with the wrong access VLAN, ARP broadcast frames from one PC will not reach the other PC because VLANs separate Layer 2 broadcast domains. As a result, the ARP request will not be received by the peer, and the MAC address cannot be resolved. Other causes may also exist, such as incorrect IP addressing, port isolation, or security policies, but VLAN misconfiguration is a very common and valid cause in campus switching scenarios. HCIA-Datacom teaches that ARP communication depends on correct Layer 2 domain membership, and VLAN planning or interface configuration errors often directly affect host-to-host communication even when both hosts are physically connected to the same switch.

The exhibit shows GE1/0/2 as an access port in VLAN 3 on both switches, so PC2 and PC4 belong to the same Layer 2 broadcast domain. The inter-switch GE1/0/3 link is a trunk that permits VLANs 2 and 3, allowing VLAN 3 frames to pass between SW1 and SW2. Therefore, PC2 and PC4 can communicate at Layer 2, making statement B true. GE1/0/1 remains an access interface in the default VLAN 1 because no other default VLAN is configured. VLAN 1 is not permitted across the shown trunk, so PC1 cannot communicate with PC3 across the switches. PC1 and PC2 are also in different VLANs locally, and PC2 and PC3 are in different VLANs. Devices in different VLANs cannot exchange Layer 2 traffic directly; a Layer 3 gateway is required for inter-VLAN communication. Accordingly, statements A, C, and D are the false statements, which makes A, C, and D the correct selections.

To check OSPF-learned routes in the global IP routing table , the correct command is display ip routing-table protocol ospf , so option A is correct. This command filters the routing table and shows only the routes whose source protocol is OSPF. It is especially useful when verifying whether OSPF-learned routes have been successfully installed into the forwarding table after neighbor establishment and LSDB calculation.

Option B , display ospf peer, is used to check OSPF neighbor information and adjacency states, not the routing table. Option C , display ospf interface, shows OSPF-related parameters on interfaces such as timers, network type, and cost. Option D , display ospf routing, displays OSPF route information maintained by the OSPF process itself, but the question specifically asks about routes in the global routing table , which is the RIB used for actual forwarding decisions. HCIA-Datacom distinguishes between protocol-specific route information and the final routing table seen by the device. Understanding this distinction helps engineers verify whether a protocol has only learned topology information or has actually produced usable forwarding entries.

The false statements are A and D . Option A is considered false in HCIA-Datacom wording because intelligent computing data center networks aim to build a lossless Ethernet fabric through coordinated technologies such as high-bandwidth interfaces, deep buffers, PFC, ECN, congestion control, and optimized forwarding. The exam-oriented knowledge point treats these technologies as solutions for a zero packet loss network design goal rather than stating that a truly lossless network cannot be achieved.

Option D is also false because RDMA is used to reduce end-to-end communication latency and CPU overhead between servers, especially for east-west traffic in AI and high-performance computing clusters. It is not specifically described as reducing latency between GPU servers and physical switches . That wording is inaccurate. Option B is true because PFC and ECN are standard lossless Ethernet technologies applied in intelligent computing networks. Option C is also true because AI training and distributed computing generate massive data synchronization traffic, requiring very high single-port bandwidth such as 200GE or 400GE . HCIA-Datacom highlights bandwidth, low latency, and lossless transport as the core requirements of intelligent computing data center networks.

Comprehensive and Detailed 150 to 200 words of Explanation From Datacom knowledge:

The false statement is B . From the AAA configuration output, the value of Remote-admin-user block time is clearly shown as 5 Min(s) , which means the account lockout duration is 5 minutes , not 30 minutes.

Option A is true because Remote-admin-user block retry-time : 3 indicates that after 3 consecutive authentication failures , the account will be blocked. Option C is also true because the displayed Domain Name Delimiter is @ , which is the separator used in usernames such as user@huawei.com. Option D is true as well because the output shows Local-user : total: 512 used: 2 , meaning that the device supports a maximum of 512 local users , and currently 2 local users have been created.

This question checks the ability to correctly read AAA configuration output on Huawei devices. In HCIA-Datacom knowledge, it is important to distinguish between retry interval , retry count , and block time , because these values represent different security control parameters and are often confused during troubleshooting or configuration review.

This statement is false . In Layer 3 in-path WLAN networking , the WAC and Fit APs communicate over Layer 3, which means the APs must discover the WAC through methods that are valid across Layer 3 boundaries. Broadcast is a Layer 2 mechanism and cannot normally be used for WAC discovery across Layer 3 networks. Therefore, saying that APs can obtain the WAC address through broadcast or DHCP in this scenario is incorrect.

In Huawei WLAN deployments, Fit APs can commonly discover the WAC address through methods such as DHCP option-based discovery , DNS , or preconfigured controller information, depending on the deployment model and product features. Because the WAC and AP are not in the same Layer 2 broadcast domain in Layer 3 in-path networking, broadcast discovery is not the standard mechanism here. HCIA-Datacom stresses the difference between Layer 2 direct discovery and Layer 3 discovery methods because this affects initial AP registration, CAPWAP establishment, and troubleshooting when APs fail to go online. Understanding the discovery mechanism is essential when planning IP addressing, DHCP options, and controller placement in enterprise WLAN designs.

Option C is false. In this configuration, the NAT address group test contains the public address range 100.1.23.1 to 100.1.23.254 , and the address group works in PAT mode . Port Address Translation allows multiple different intranet users to share the same public IP address while being distinguished by different transport-layer port numbers. Therefore, intranet users with different private IP addresses do not have to use different post-NAT public IP addresses.

Option A is true because 100.1.23.254 is included in the configured public address pool and can be used for source NAT. Option B is also true because NAT is enabled on GE0/0/2 , so if user traffic does not leave through that interface, the NAT policy may not be applied and public access may fail. Option D is true because the configured source address range includes 192.168.1.100, which falls within 192.168.0.0 to 192.168.255.255. HCIA-Datacom teaches that NAT behavior depends on matching traffic, address pools, PAT or no-PAT mode, and the interface where NAT is enabled. This question mainly tests understanding of source NAT and PAT address-sharing behavior.

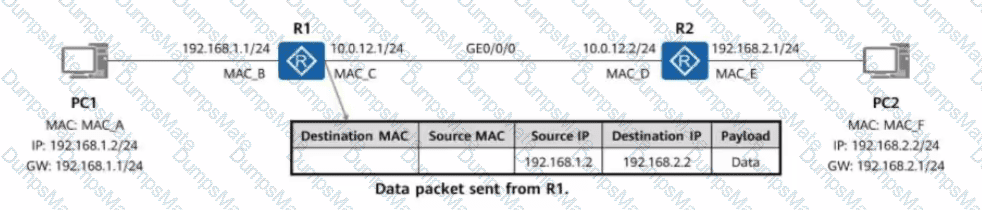

This question tests the difference between Layer 3 addressing and Layer 2 encapsulation during routing. The IP packet originated by PC1 keeps PC1 ' s IP address as its source IP and PC2 ' s IP address as its destination IP as it traverses the routers. Ethernet MAC addresses, however, are rewritten at every routed hop. When R1 forwards the packet across the link toward R2, R1 builds a new Ethernet frame on its outgoing interface. According to the exhibit, R1 ' s outgoing interface on the R1-R2 link uses MAC_C, so MAC_C is the source MAC address. The next-hop device on that link is R2, whose receiving interface uses MAC_D, so MAC_D is the destination MAC address. MAC_A belongs to PC1 and was relevant only on the first local Ethernet segment. MAC_F belongs to PC2 and is used on the final Ethernet segment from R2 to PC2, not on the R1-R2 link. Therefore the correct statements are B and D. The uploaded key B, C is incorrect.

The authentication-mode radius local configuration defines an authentication sequence in which RADIUS is attempted first and local authentication is used as a fallback under the conditions defined by Huawei AAA processing. A critical distinction exists between a RADIUS service being unavailable and a RADIUS server explicitly rejecting the credentials. If the RADIUS server is unreachable, times out, or otherwise cannot perform the authentication service, local authentication may be used as the backup method. However, when the device successfully contacts the RADIUS server and receives an explicit authentication failure or Access-Reject response, that is a definitive authentication result rather than a server-unavailable condition. The device does not simply bypass the rejection and retry the same user against the local database, because doing so would undermine centralized authentication policy. The question explicitly states that R1 is properly connected to the RADIUS server and that the server sends an authentication failure message. Therefore, the claimed fallback to local authentication does not occur in this situation. The statement is FALSE and option B is correct.

An IPv6 solicited-node multicast address is automatically derived from the lower 24 bits of a unicast or anycast IPv6 address. The fixed solicited-node prefix is FF02::1:FF00:0/104. The interface address in the question is 2001:db8:12::1. Its final 24 bits are 000001 in hexadecimal representation. Combining those 24 bits with the solicited-node multicast prefix produces FF02::1:FF00:1. This multicast address is used by IPv6 Neighbor Discovery for functions such as address resolution and Duplicate Address Detection, reducing the need to disturb every host on the local link in the way an IPv4 ARP broadcast does. FF02::1 is the all-nodes link-local multicast address and FF02::2 is the all-routers link-local multicast address, so neither represents the solicited-node group for this interface. Option A contains unrelated lower-order bits and does not correspond to the source address. Therefore the derived solicited-node multicast address is FF02::1:FF00:1, making option C correct.

ARP resolves an IPv4 address to a Layer 2 MAC address only within the local broadcast domain. When Host A determines, from its IP address and subnet mask, that Host B is on a different subnet, Host A does not broadcast an ARP request for Host B ' s MAC address. Instead, it forwards the packet to its default gateway. If the gateway ' s MAC address is not already cached, Host A broadcasts an ARP request for the gateway interface ' s IPv4 address. The gateway replies with its own MAC address, and Host A uses that MAC address as the Ethernet destination while retaining Host B ' s IP address as the IP destination. The router then forwards the packet toward Host B and may perform ARP on the destination subnet to learn Host B ' s MAC address. Therefore, the statement incorrectly describes cross-subnet forwarding as direct ARP resolution between the two hosts. The correct answer is FALSE, option B.

The normal DHCPv4 address-allocation exchange is commonly summarized as DORA: Discover, Offer, Request, and Acknowledge. A DHCP client that needs configuration begins by sending DHCPDISCOVER to locate available DHCP servers. A server responds with DHCPOFFER, proposing an address and other parameters. The client then sends DHCPREQUEST to indicate the offered address and server it has selected. Finally, the selected DHCP server sends DHCPACK to confirm the lease and deliver the final configuration. Therefore, DHCPDISCOVER and DHCPREQUEST are client-originated messages in the standard allocation process, while DHCPOFFER and DHCPACK are server-originated messages. DHCP also defines other messages for lease renewal, decline, release, and negative acknowledgment, but those are not among the answer choices. For the options provided, A, DHCPACK, and D, DHCP OFFER, are the messages sent by a DHCPv4 server. The verified answer is A and D. This server-versus-client message direction is fundamental when interpreting DHCP packet captures and troubleshooting address-allocation failures on enterprise campus access networks.
