H12-891_V1.0 HCIE-Datacom V1.0 Questions and Answers

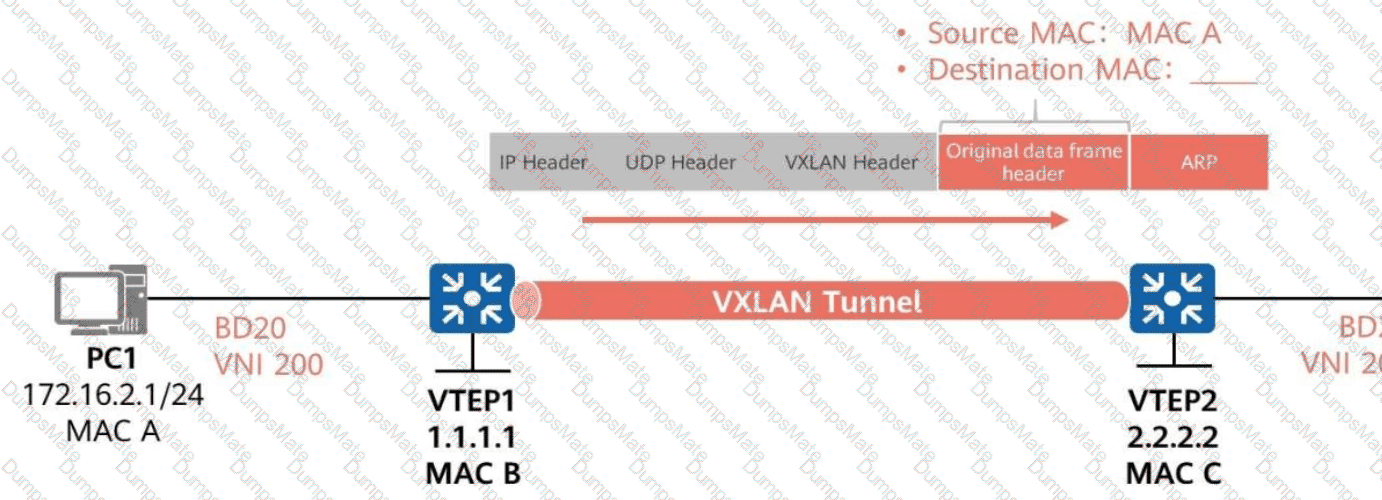

In Huawei’s VXLAN implementation, the typical mapping between VNIs (VXLAN Network Identifiers) and BDs (Bridge Domains) is:

1:1 mapping — each VNI is uniquely associated with a single bridge domain.

This allows proper MAC learning and forwarding in the data plane for isolated tenant traffic.

Other mappings (N:1, 1:N, N:M) may be technically possible but not recommended or supported in most enterprise deployments.

Correct answer: B. 1:1

Understanding SRv6 (Segment Routing over IPv6) Policies

???? What is an SRv6 Policy?

A traffic engineering (TE) mechanism used in SRv6-enabled networks.

Defines a set of Segment Routing (SR) paths that direct packets through a predefined set of waypoints.

Uses SRv6 SIDs (Segment Identifiers) instead of MPLS labels.

???? How Can SRv6 Policies Be Configured?

✅ Static SRv6 Policy Configuration:

Manually configured by network administrators.

Used in predictable, fixed network paths.

✅ Dynamic SRv6 Policy Generation:

Created dynamically by an SDN controller (e.g., Huawei iMaster NCE).

The controller analyzes network conditions and adjusts paths automatically based on traffic load and link failures.

Why is the Answer TRUE?

✅ SRv6 policies can be configured manually or dynamically delivered by a controller.

✅ SDN-based SRv6 solutions improve network automation and traffic engineering efficiency.

Real-World Application:

Cloud Data Centers: Uses dynamic SRv6 policies for optimal traffic distribution.

5G Transport Networks: Uses SRv6 TE for low-latency service guarantees.

✅ Reference: Huawei HCIE-Datacom Guide – SRv6 Policy and SDN Integration

Comprehensive and Detailed In-Depth Explanation:

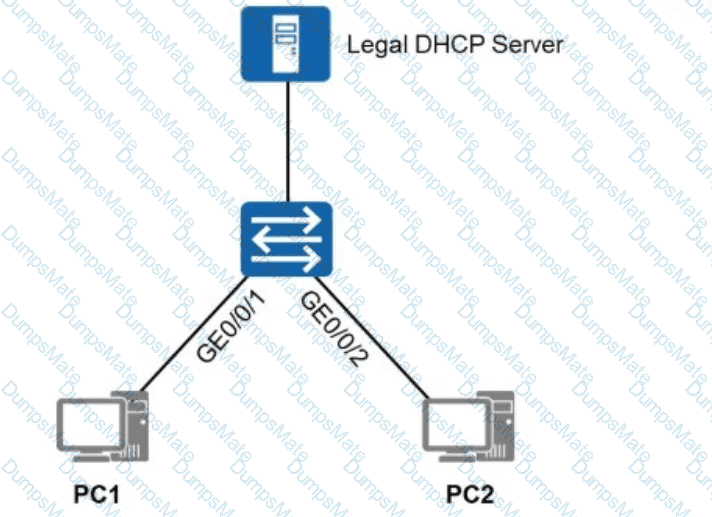

The statement A is incorrect because enabling DHCP snooping in the VLAN view only takes effect on interfaces within that specific VLAN that have DHCP snooping configured. It does not automatically apply to all interfaces of the device. Each interface within the VLAN must individually be configured or marked as trusted/untrusted.

B: Correct, as DHCP snooping, when enabled globally without any additional specifications, defaults to processing DHCPv4 messages.

C: Correct, as DHCP snooping can protect against DHCP spoofing attacks by marking interfaces as trusted or untrusted.

D: Correct, enabling DHCP snooping on an interface means it will monitor all DHCP messages on that specific interface.

Comprehensive and Detailed In-Depth Explanation:

After Portal authentication on a wireless network, the following parameters can be used for authorization:

free-rule (A): Allows traffic even before authentication.

UCL (B): User Control List, specifying user permissions.

ACL (D): Access Control List, defining permitted or denied traffic.

The IP address (C), however, is not used as an authorization parameter directly. Instead, IP addresses are typically assigned after successful authentication, and the control policies are applied based on user profiles or access lists.

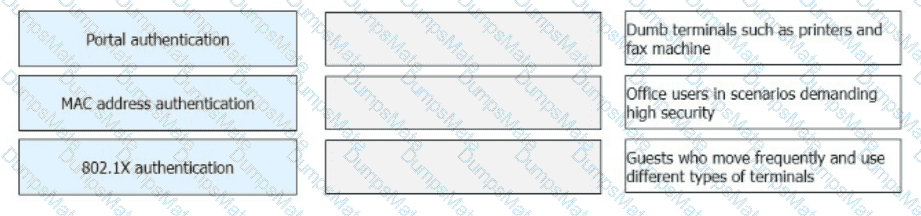

Comprehensive and Detailed In-Depth Explanation:

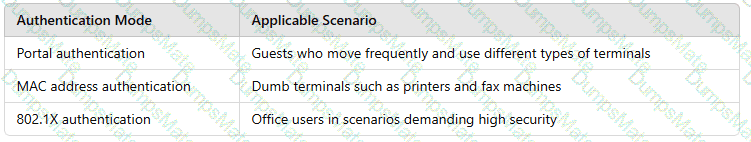

1. Portal Authentication:

Scenario: Guests who move frequently and use different types of terminals.

Explanation:

Portal authentication (also known as Web authentication) is commonly used in environments like Wi-Fi hotspots, hotels, and public areas.

Users are redirected to a login page where they enter credentials.

This method is flexible for guests and visitors who may frequently change locations or devices.

Use Case: Wi-Fi access for guests in a corporate environment.

2. MAC Address Authentication:

Scenario: Dumb terminals such as printers and fax machines.

Explanation:

MAC address authentication is useful for devices that do not support interactive authentication methods (like printers or IP phones).

It authenticates devices based on their MAC address without user intervention.

This method is suitable for static, non-user devices that are typically part of the local network.

Use Case: Ensuring that only authorized printers or IP phones connect to the network.

3. 802.1X Authentication:

Scenario: Office users in scenarios demanding high security.

Explanation:

802.1X is a port-based network access control protocol that authenticates users before allowing network access.

Typically used in wired or wireless LAN environments where high security is required.

It uses EAP (Extensible Authentication Protocol) methods and integrates with RADIUS servers.

Use Case: Corporate LAN environments with stringent security policies.

Comprehensive and Detailed In-Depth Explanation:

In MPLS (Multi-Protocol Label Switching), the label retention mode determines how an LSR (Label Switching Router) handles labels received from its neighbors:

Liberal Mode:

An LSR retains all labels distributed by its neighbors, not just the labels from the next-hop LSR.

This approach ensures faster convergence because the LSR does not need to request new labels if the next hop changes.

It does not save memory or label space, as it stores more labels than strictly necessary.

Conservative Mode:

An LSR only retains labels from its next-hop neighbors, saving memory and label space.

Statements C and D are correct because they accurately describe liberal mode.

Statements A and B are incorrect because they describe conservative mode.

Understanding " Two-City Three-Center " Networking

???? What is " Two-City Three-Center " Networking?

A high-availability disaster recovery (DR) solution used by financial institutions, government, and enterprise networks.

" Two cities " → Indicates that data centers are deployed in two different locations for redundancy.

" Three centers " → Includes two active data centers + one remote disaster recovery center.

Bearer WAN Layers in " Two-City Three-Center " Networks

✅ A. Core Layer

Provides high-speed backbone connectivity between different data centers.

Uses high-capacity routers and optical links for long-distance communication.

✅ B. Aggregation Layer

Connects access sites to the core network.

Aggregates traffic from branch offices, remote sites, and smaller data centers.

✅ D. Access Layer

Connects end-users, remote branches, and applications to the WAN.

Uses CE (Customer Edge) routers and firewalls to ensure secure access.

❌ C. Control Layer (Incorrect Choice)

The control plane exists in networking, but it is not a physical bearer WAN layer.

The control layer is a logical function, not a network topology layer.

Real-World Application:

Banking Networks: Ensures that core banking applications remain available even in case of a disaster.

Government Data Centers: Enables cross-city data replication for public services.

✅ Reference: Huawei HCIE-Datacom Guide – " Two-City Three-Center " Network Design

Comprehensive and Detailed In-Depth Explanation:

The diagram shows a WAN network where Segment Routing (SR) is used in conjunction with the iMaster NCE controller. The network consists of Data Centers (DCs), Branches, Provider Edge (PE) routers, and Route Reflectors (RR) within AS 65600. Let ' s analyze each network technology and its placement in the scenario.

1. BGP-LS (Border Gateway Protocol - Link State):

Application Location: 1 (PE to RR)

Explanation:

BGP-LS is used to collect and distribute network topology information from the IGP (Interior Gateway Protocol) domain.

It enables the iMaster NCE (controller) to learn about the network topology and SR information from PE routers.

The PE routers send their link-state information to the RR using BGP-LS.

Why Location 1:

The RR collects topology data from PEs and forwards it to the controller for path computation.

2. BGP (Border Gateway Protocol):

Application Location: 2 (RR to iMaster NCE)

Explanation:

Standard BGP is used for route distribution and network connectivity.

The RR uses BGP to exchange route information with the controller (iMaster NCE).

Why Location 2:

The RR aggregates routes and exchanges them with the iMaster NCE for centralized management.

3. MP-IBGP (Multiprotocol Internal BGP):

Application Location: 3 (PE to PE)

Explanation:

MP-IBGP is used to exchange VPNv4 and VPNv6 routes between PE routers within the same AS.

It allows PEs to advertise VPN routes across the backbone network.

Why Location 3:

PEs need to communicate VPN-related information within the AS, ensuring end-to-end connectivity between DCs and branches.

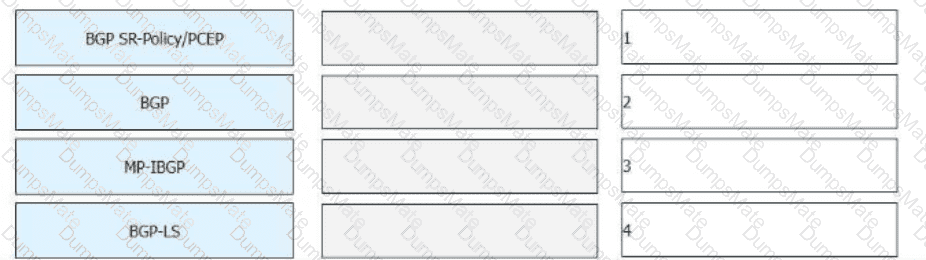

4. BGP SR-Policy/PCEP (Path Computation Element Protocol):

Application Location: 4 (iMaster NCE to PE)

Explanation:

BGP SR-Policy and PCEP are used by the controller to distribute SR policies to the PE routers.

The iMaster NCE calculates optimal paths and sends the SR policies to PEs via BGP SR-Policy or PCEP.

Why Location 4:

The controller programs the Segment Routing paths directly to the PEs for optimal traffic engineering.

Why This Mapping Is Correct:

The mapping is based on the roles and functions of each protocol within the SR-based WAN architecture. The controller uses BGP-LS to learn topology, BGP for route reflection, MP-IBGP for VPN route exchange, and BGP SR-Policy/PCEP for path computation and distribution.

Comprehensive and Detailed In-Depth Explanation:

Analyzing the output:

A. The device sends sampled data every second: Correct. The sample interval is 1000 ms (1 second).

B. The subscription name is Sub1: Correct. The subscription name is clearly shown as Sub1.

C. The subscription mode is static subscription: Correct. Since the Sub-state is PASSIVE, it indicates a static subscription.

D. The IP address of the device is 192.168.56.1: Incorrect. The IP address 192.168.56.1 shown in the output is the destination IP where the telemetry data is sent, not the IP address of the device itself.

Comprehensive and Detailed Explanation:

✔ Hub-Spoke networking is the most efficient and scalable model for interconnecting 100+ branches in a small and midsize campus network.

✔ Why Hub-Spoke?

Centralized Control: A hub router manages communication between spoke routers (branch sites).

Reduced Complexity: Unlike full-mesh, which requires N(N-1)/2* connections, hub-spoke minimizes link costs.

Easier Management: Policy enforcement and security are centralized at the hub site.

✔ Why Not Other Options?

❌ A (Direct Networking) → Suitable for small networks, but inefficient for 100+ branches.

❌ B (Full-Mesh Networking) → High cost and complexity, requiring too many links.

❌ D (Partial-Mesh Networking) → More scalable than full-mesh, but hub-spoke is more optimized for large branch networks.

???? Reference: Huawei HCIE Datacom – WAN Interconnection Models

Comprehensive and Detailed Explanation:

iMaster NCE-CampusInsight is Huawei ' s intelligent network analysis platform that:

✔ Collects real-time telemetry data using SNMP, NetStream, and Telemetry.

✔ Analyzes traffic patterns to detect network anomalies.

✔ Uses AI-driven analytics to optimize network performance.

Thus, the statement is TRUE.

???? Reference: Huawei HCIE Datacom – iMaster NCE-CampusInsight Features

Comprehensive and Detailed In-Depth Explanation:

To support SR-MPLS (Segment Routing over MPLS), OSPF uses Type 10 Opaque LSAs to advertise Segment Routing (SR) capabilities and information.

Type 10 Opaque LSA (B): Used for distributing application-specific information within an OSPF area. In SR-MPLS, it carries the SID/Label mappings and other SR-related information.

Type 7 NSSA External LSA (A): Used to advertise external routes within an NSSA, not related to SR-MPLS.

Type 1 Router LSA (C): Advertises the router’s interfaces and links but does not carry SR-specific information.

Type 2 Network LSA (D): Advertises the links of a broadcast or NBMA network, not used for SR-MPLS.

Therefore, the correct answer is B (Type 10 Opaque LSA), as it enables the advertisement of SR information.

Comprehensive and Detailed In-Depth Explanation:

NSR (Non-Stop Routing) and NSF (Non-Stop Forwarding) are high-availability mechanisms used to maintain network stability during routing process failures:

NSR (Non-Stop Routing):

Operates within the local router only.

Keeps routing information synchronized between the active and standby processes.

Does not require collaboration from neighboring routers.

NSF (Non-Stop Forwarding):

Requires collaboration from neighboring routers that support graceful restart.

The router undergoing failover relies on its neighbors to maintain forwarding tables while control plane recovery takes place.

Neighboring routers must support GR (Graceful Restart) for NSF to function correctly.

Therefore, the correct answer is B because NSF requires neighboring router collaboration, while NSR does not.

6PE (IPv6 Provider Edge over MPLS) vs. 6VPE (IPv6 VPN Provider Edge over MPLS VPNs)

6PE (IPv6 over MPLS without VPNs):

Uses global IPv6 routing over MPLS.

No VPN instances (VRFs) are created on PEs.

IPv6 addresses cannot be reused across different CEs because all traffic is routed using a single global table.

6VPE (IPv6 over MPLS with VPNs):

Uses MPLS VPN (VRF instances) to provide IPv6 VPN services.

VPN instances (VRFs) are created on PEs to separate customer networks.

IPv6 addresses of CEs can be reused in different VPN instances because each VRF maintains separate routing tables.

Correct Answer Explanation:

✅ C. In 6VPE networking, IPv6 addresses of a CE can be reused.

Since each VPN instance (VRF) maintains its own IPv6 routing table, IPv6 addresses of CEs can be reused across different VPNs.

Incorrect Answer Explanations:

❌ A. In 6PE networking, VPN instances need to be created on PEs.

Wrong! 6PE does not use VPN instances (VRFs); it relies on a global IPv6 routing table.

❌ B. In 6PE networking, IPv6 addresses of a CE can be reused.

Wrong! Since 6PE uses a single IPv6 global routing table, IPv6 addresses cannot be reused.

❌ D. In 6VPE networking, no VPN instance needs to be created on PEs.

Wrong! 6VPE requires VPN instances (VRFs) on PEs to separate customer traffic.

Reference from Huawei HCIE-Datacom Documentation:

Huawei MPLS VPN Configuration Guide – 6PE and 6VPE Deployment

HCIE-Datacom Training Material – IPv6 MPLS Solutions

Comprehensive and Detailed In-Depth Explanation:

When IS-IS is used as the IGP (Interior Gateway Protocol) to advertise Segment Routing (SR) SIDs, the Level-2 (L2) router advertises node SIDs globally across the entire IS-IS domain, not just within a single area.

Level-1 (L1) routers only advertise within the local area, but L2 routers distribute information across multiple areas, enabling inter-area reachability.

Therefore, the statement is FALSE.

Comprehensive and Detailed Explanation:

✔ SR-MPLS Policy candidate paths are used for flexible path selection and load balancing in Segment Routing (SR-MPLS) networks.

✔ Correct Statements:

✅ (A) Each candidate path can have multiple segment lists, each with its own weight for load balancing.

✅ (B) Load balancing is supported both between candidate paths and within segment lists.

✅ (C) An SR-MPLS Policy can contain multiple candidate paths, each with a preference value.

✅ (D) The candidate path with the highest preference is selected as the primary path.

???? Reference: Huawei HCIE Datacom – SR-MPLS Policy Path Selection

Comprehensive and Detailed Explanation:

✔ Analyzing the Python Code:

✅ (A) Correct → print(r.json()) prints the response JSON, showing the token ID.

✅ (B) Correct → The token request URL is correctly specified.

✅ (D) Correct → json={ " userName " : nbi_name, " password " : nbi_pwd} confirms the request body is in JSON format.

❌ (C) Incorrect:

The request uses POST, not GET (requests.post() is explicitly called).

???? Reference: Huawei HCIE Datacom – RESTful API Authentication in iMaster NCE

Understanding VXLAN and NVE Interfaces

VXLAN (Virtual Extensible LAN) allows for Layer 2 network extension over Layer 3 infrastructure.

???? Key VXLAN Components:

NVE (Network Virtualization Edge) Interface → VXLAN tunnels are created using one or more NVE interfaces.

BD (Bridge Domain) → Logical grouping of VXLAN traffic.

VNI (VXLAN Network Identifier) → 24-bit unique ID for traffic segmentation.

???? Analysis of Each Option:

✅ A. One NVE interface can be used for multiple VXLAN tunnels if ingress replication is used.

Correct: VXLAN tunnels can be dynamically learned using BGP EVPN, meaning multiple tunnels can use the same NVE interface.

✅ B. An NVE interface can be associated with multiple VNIs, allowing multiple BDs on one NVE.

Correct: Each NVE interface can carry multiple VNIs, reducing the need for separate interfaces.

❌ C. One NVE interface must be created per VXLAN tunnel.

Incorrect: Multiple VXLAN tunnels can share a single NVE interface.

❌ D. One NVE must be created for each BD.

Incorrect: One NVE can support multiple BDs.

???? Real-World Application:

Cloud Data Centers: VXLAN enables multi-tenant network segmentation.

Campus Networks: Simplifies Layer 2/Layer 3 connectivity across sites.

✅ Reference: Huawei HCIE-Datacom Guide – VXLAN and NVE Configuration

Understanding User Isolation in the Same VLAN

In a traditional VLAN, all devices within the same VLAN can communicate unless additional security policies are applied. To isolate users within the same VLAN, the following technologies can be used:

✅ B. Port Isolation (Private VLAN or Layer 2 Isolation)

Prevents communication between ports within the same VLAN.

Common in enterprise and campus networks to improve security.

Example: Isolating guest users from employees within the same VLAN.

✅ C. IPSG (IP Source Guard)

Blocks IP address spoofing within the same VLAN.

Uses DHCP snooping binding table to verify whether a device is using an authorized IP address.

✅ D. Ethernet Port Security

Limits the number of MAC addresses allowed per port.

Prevents unauthorized devices from communicating within the VLAN.

❌ A. Super VLAN (Incorrect Choice)

Super VLAN groups multiple VLANs under a single Layer 3 gateway, but it does not provide isolation within the same VLAN.

Real-World Application:

Public Wi-Fi Networks: Ensures that users within the same VLAN cannot communicate with each other.

Enterprise Security: Prevents unauthorized access or attacks within shared VLANs.

✅ Reference: Huawei HCIE-Datacom Guide – VLAN Security and User Isolation Technologies

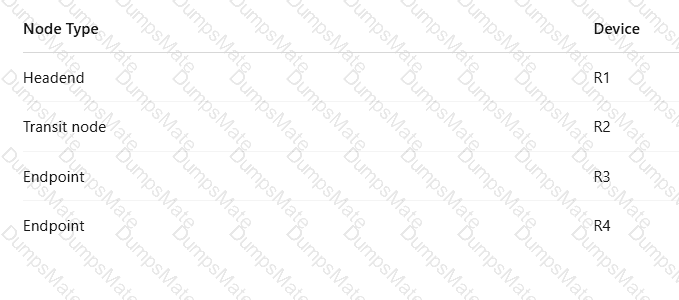

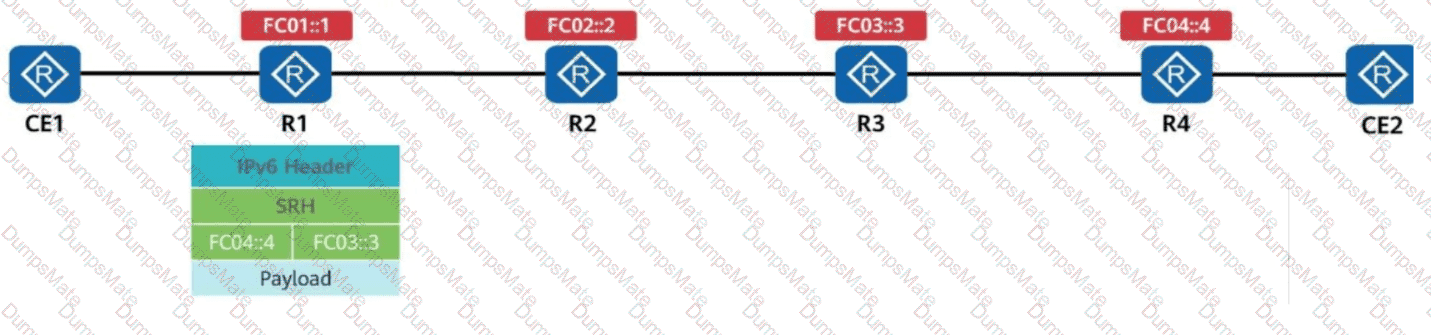

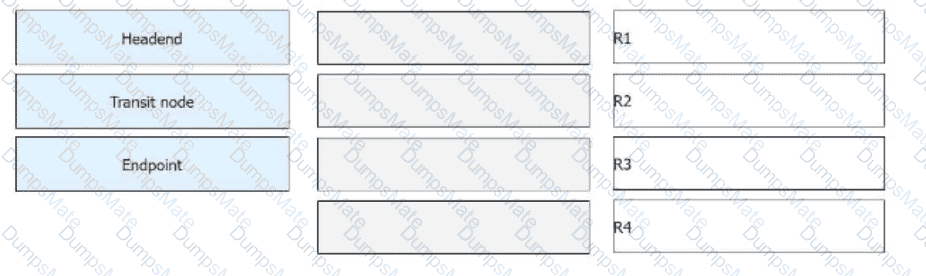

???? R1 – Headend

It receives a normal IPv6 packet from CE1.

It inserts the SRH (Segment Routing Header) with segment list.

Therefore, R1 is the Headend.

Huawei Reference:

“The SRv6 headend node receives a normal IPv6 packet and inserts an SRH, becoming the source of the SR path.”

(Source: HCIE-Datacom V1.0 – SRv6 Fundamentals)

???? R2 – Transit Node

R2 simply forwards the SRv6-encapsulated packet.

It does not process any segment SID.

Hence, R2 is a Transit node.

“Transit nodes in SRv6 just forward packets based on the active segment in the IPv6 destination address without processing SRH.”

(Source: HCIE-Datacom Study Guide – SRv6 Node Roles)

???? R3 – Endpoint

The first SID in SRH is FC03::3, which belongs to R3.

R3 processes the SID, pops it, and forwards the packet to the next segment FC04::4.

Thus, R3 is an Endpoint for one segment.

???? R4 – Endpoint

The final destination SID in the SRH is FC04::4, which belongs to R4.

R4 performs the final End behavior, handling the payload.

So, R4 is also an Endpoint.

Comprehensive and Detailed In-Depth Explanation:

In large- and medium-sized campus networks, Multi-mode authentication is commonly used for PCs connected to IP phones. This is because multi-mode authentication allows:

Multiple authentication methods on the same interface, such as MAC address authentication for the IP phone and 802.1X authentication for the PC.

This setup is ideal for scenarios where both devices share a single network port but require different authentication mechanisms.

MAC address authentication (A) and 802.1X authentication (B) individually cannot accommodate both devices efficiently.

Portal authentication (D) is mainly used for guest access and is not practical for IP phone and PC connections.

Comprehensive and Detailed Explanation:

✔ Breakdown of the NETCONF Configuration:

✅ (B) Huawei-YANG Model Used: The namespace contains http://www.huawei.com/netconf/vrp/huawei-vlan, indicating Huawei ' s YANG model.

✅ (C) VLAN 10 is Created: < vlanId > 10 < /vlanId > confirms VLAN 10 is configured.

✅ (D) Merge Operation Used: The xc:operation= " merge " tag ensures changes are merged rather than replacing the entire config.

❌ (A) Incorrect: The < edit-config > operation modifies the running configuration, not the startup configuration.

???? Reference: Huawei HCIE Datacom – NETCONF Configuration Management

Comprehensive and Detailed In-Depth Explanation:

In the Huawei iMaster NCE-Campus solution, when using a third-party Portal authentication application, the following process occurs:

After the Wi-Fi user connects to the network, any attempt to access a website for the first time triggers HTTP redirection.

The user is redirected to the login page provided by the third-party authentication application.

This mechanism ensures that the user authenticates before accessing external resources.

The redirection behavior is consistent with captive portal functionality, which is standard for user authentication on Wi-Fi networks.

Therefore, the statement is TRUE.

BGP in Huawei SD-WAN

Huawei SD-WAN uses BGP (Border Gateway Protocol) as the primary routing protocol to exchange VPN routes between Customer Premises Equipment (CPEs) and the controller.

✅ Why BGP is Used in SD-WAN?

Scalability: BGP can handle a large number of VPN routes.

Policy-Based Routing: BGP allows traffic engineering and policy control across SD-WAN tunnels.

Multiprotocol Support: Huawei SD-WAN uses MP-BGP to exchange IPv4, IPv6, and VPNv4 routes.

Understanding Network Monitoring Data Categories

???? Network devices operate across three functional planes:

✅ A. Management Plane:

Handles device configuration, authentication, and monitoring.

Example: SNMP, SSH, NETCONF logs.

✅ B. Data Plane (Forwarding Plane):

Handles packet forwarding and switching.

Example: Interface statistics, traffic rates, dropped packets.

✅ C. Control Plane:

Handles routing, signaling, and protocol operations.

Example: BGP, OSPF, and MPLS signaling messages.

❌ D. Monitoring Plane (Incorrect Choice):

There is no " monitoring plane " in network architecture.

Monitoring tools collect data from management, control, and data planes, but do not form a separate plane.

Why is the Answer D (Monitoring-plane data)?

❌ Monitoring-plane does not exist as a separate category in network architecture.

✅ O & M tools collect data from management, control, and data planes, but do not define a separate " monitoring plane " .

Real-World Application:

Huawei iMaster NCE-Campus & iMaster NCE-WAN collect real-time network statistics and alarms.

Network Performance Monitoring (NPM) tools analyze control-plane events to detect failures.

✅ Reference: Huawei HCIE-Datacom Guide – Network Planes and Performance Monitoring

The command port-isolate enable is used on Huawei switches to completely isolate traffic at both Layer 2 and Layer 3 between different interfaces within the same VLAN. This isolation prevents any communication between isolated ports—even if they belong to the same subnet or VLAN—making it a critical security feature in multi-tenant environments.

Usage Context:

Often used in shared service or hotel network scenarios.

Can be applied in access port configurations.

Does not require additional VLAN creation or private VLAN features.

Huawei Datacom Reference:

" To completely isolate Layer 2 and Layer 3 communication between interfaces in the same VLAN, run the port-isolate enable command under the interface view. "

(Source: HCIE-Datacom Study Guide V3.0 – Chapter: VLAN & Security Technologies, Section: Port Isolation)

Comprehensive and Detailed Explanation:

✔ SR Policies are dynamically computed and delivered by the SDN controller in an SR-MPLS or SRv6 network.

✔ Correct Statements:

✅ (A) NETCONF is used for delivering configurations like routing policies and service interfaces.

✅ (B) BGP-LS (Link-State) is used to collect topology and compute SR Policies.

✅ (D) BGP IPv6 SR Policy distributes SR policy attributes like color, headend, and endpoints.

✔ Why Is (C) Incorrect?

❌ (C) The controller does not use telemetry to deliver SID entries—telemetry is used for real-time monitoring, not path computation.

???? Reference: Huawei HCIE Datacom – SR Policy and Controller-Based Path Computation

MPLS Positioning in the TCP/IP Model

MPLS (Multiprotocol Label Switching) operates between the Data Link Layer (Layer 2) and the Network Layer (Layer 3).

✅ MPLS is protocol-independent and supports various network layer protocols (IPv4, IPv6, VPN, etc.) by using labels instead of traditional IP routing.

✅ How MPLS Works:

MPLS assigns labels to packets, allowing fast forwarding based on the label rather than a routing table lookup.

Supports Layer 3 VPNs (L3VPNs), Layer 2 VPNs (L2VPNs), and MPLS Traffic Engineering (MPLS-TE).

✅ Why MPLS is Between Layer 2 and Layer 3?

MPLS adds a label between the Layer 2 (Ethernet, PPP) and Layer 3 (IP) headers, effectively creating a separate forwarding mechanism.

Label Switching Routers (LSRs) forward packets based on labels instead of IP addresses, reducing processing time.

Reference from Huawei HCIE-Datacom Documentation:

Huawei MPLS Technology Guide – MPLS Architecture and Label Switching

HCIE-Datacom Study Material – MPLS Positioning and Functionality in TCP/IP

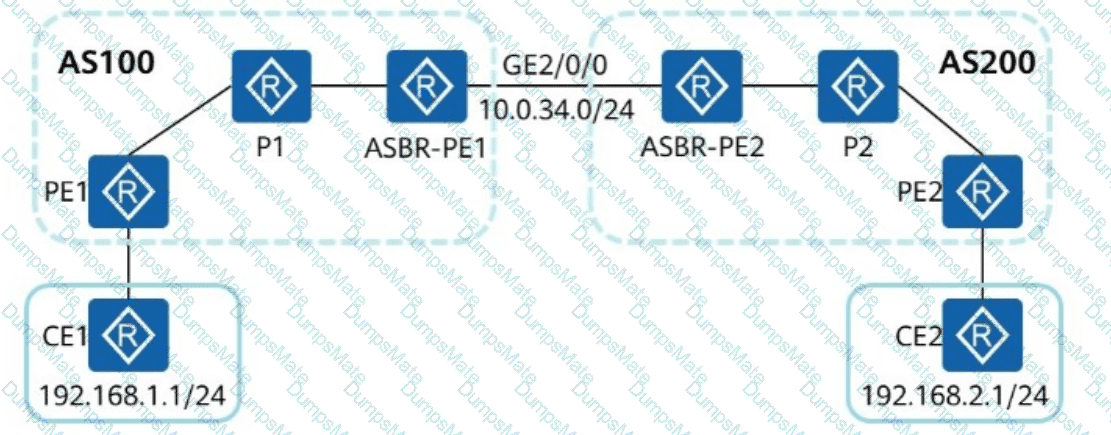

Comprehensive and Detailed Explanation:

Inter-AS MPLS L3VPN solutions enable communication between different Autonomous Systems (AS) while maintaining VPN separation. The three primary solutions for inter-AS MPLS L3VPN are:

Option A (Back-to-Back VRF)

MPLS is not required between ASBRs.

VPN routes are exchanged without label switching.

Each ASBR has a VRF instance configured and forwards traffic using plain IP routing.

Option B (eBGP Redistribution of Labeled VPNv4 Routes)

MPLS is not required between ASBRs.

ASBRs exchange labeled VPNv4 routes using eBGP.

The ASBR does not perform label switching but simply forwards packets based on VPNv4 labels.

Option C (Multi-Hop MP-BGP for VPNv4 Routes)

MPLS is required between ASBRs.

ASBRs establish label-switched paths (LSPs) to forward VPN traffic across AS boundaries.

Since Option B relies on labeled VPNv4 routes via eBGP and does not need MPLS between ASBRs, the correct answer is D.

???? Reference: Huawei HCIE Datacom Study Guide - MPLS VPN Inter-AS Solutions

For OSPF neighbors to reach Full state, they must exchange LSAs (Link State Advertisements) properly and synchronize their databases.

Possible Causes Preventing OSPF from Entering Full State:

✅ A. A link works abnormally

If the physical or Layer 2 link is unstable, OSPF Hello packets may be lost, preventing the Full state.

✅ B. The OSPF network types on both ends of the link are inconsistent

OSPF network types (Broadcast, P2P, NBMA, etc.) must match on both ends.

Example: If one router is P2P and the other is Broadcast, adjacency issues occur.

✅ C. The router IDs of neighbors are the same

Router ID conflicts prevent OSPF adjacencies from forming.

Each router must have a unique Router ID.

✅ D. The OSPF MTU values of interfaces on both ends of the link are different

If MTU settings do not match, OSPF Database Description (DD) packets may be dropped, preventing Full state.

Reference from Huawei HCIE-Datacom Documentation:

Huawei OSPF Configuration Guide – Troubleshooting OSPF Neighbor Issues

HCIE-Datacom Study Material – OSPF Adjacency and Route Synchronization

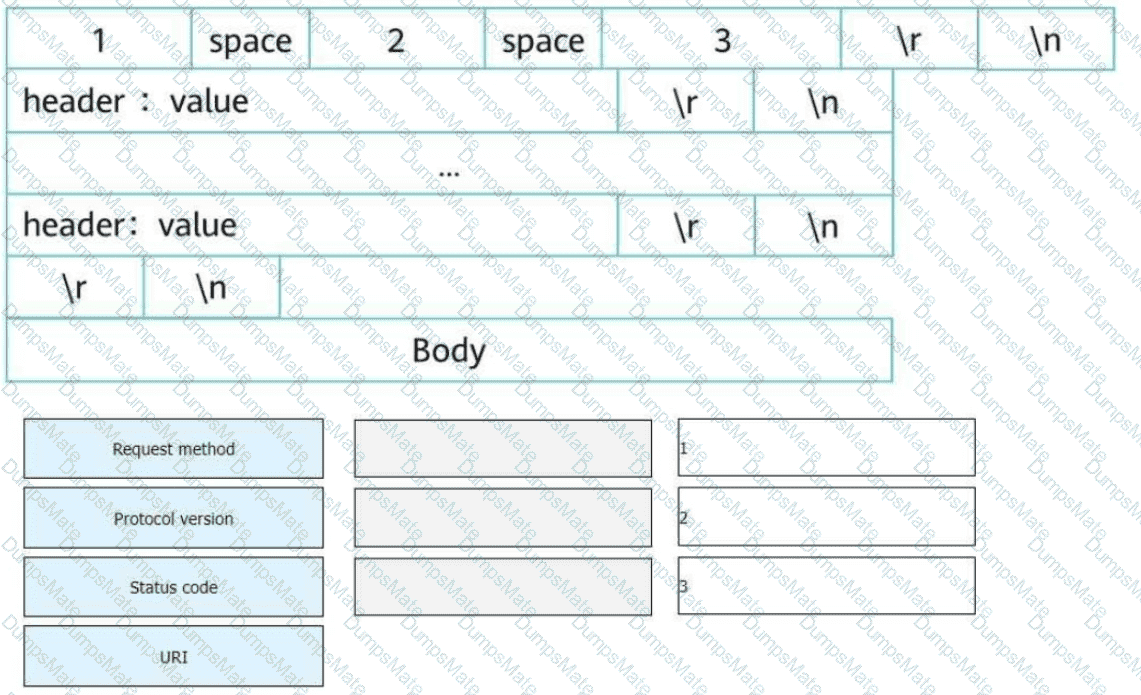

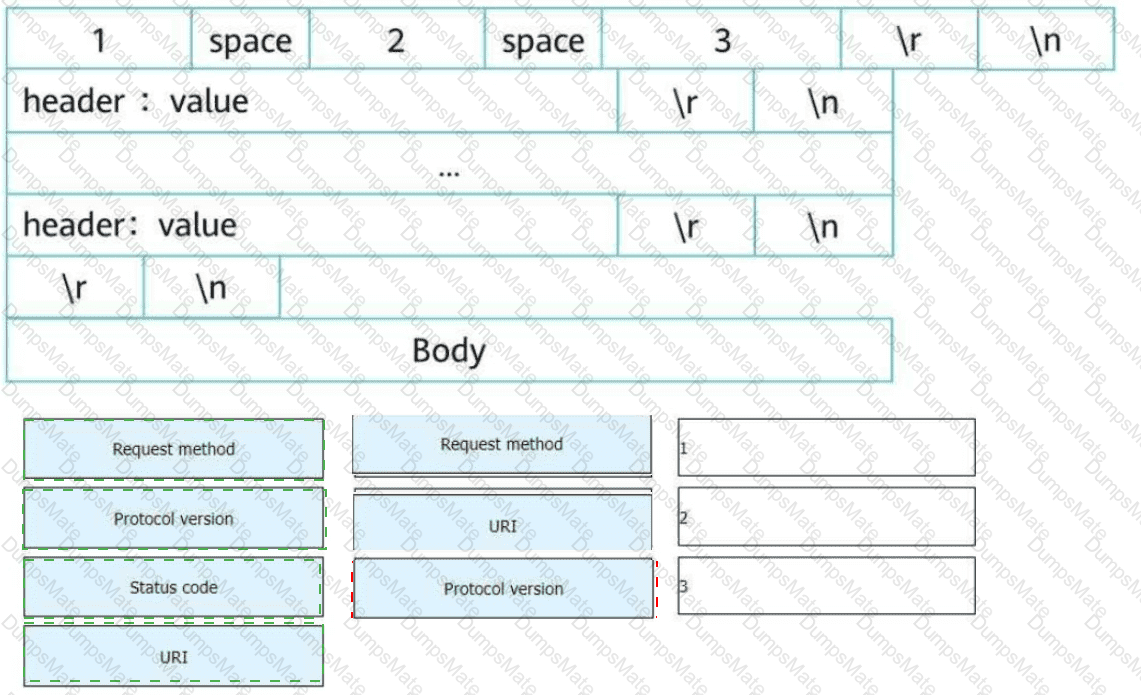

Understanding HTTP/1.1 Response Structure

???? What is an HTTP Response?

The response is sent from the server to the client after processing an HTTP request.

The structure follows a standardized format:

Elements of an HTTP/1.1 Response:

✅ A. Status Line → Contains protocol version, status code, and reason phrase.

✅ B. Response Body → Contains HTML, JSON, XML, or other content.

✅ C. Response Header → Provides metadata about the response (e.g., Content-Type, Server).

✅ D. Empty Line → A blank line separates headers from the response body.

Example of an HTTP/1.1 Response:

HTTP/1.1 200 OK

Date: Sat, 08 Mar 2025 14:00:00 GMT

Server: Apache/2.4.41 (Ubuntu)

Content-Type: text/html; charset=UTF-8

< html >

< body >

< h1 > Welcome to Huawei Datacom < /h1 >

< /body >

< /html >

Why is the Answer A, B, C, D?

✅ An HTTP response includes a status line, headers, an empty line, and a response body.

Real-World Application:

Web Application Debugging: Helps developers analyze server responses.

API Security: Validates response headers to prevent injection attacks.

✅ Reference: Huawei HCIE-Datacom Guide – HTTP Protocol and Response Headers

Huawei Datacom Reference:

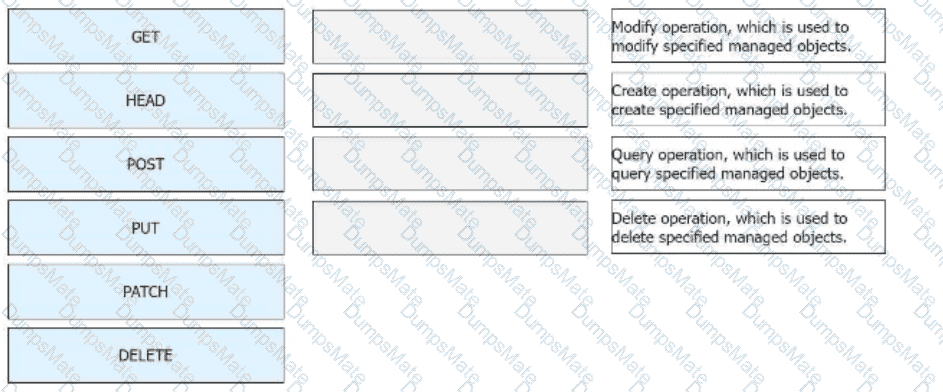

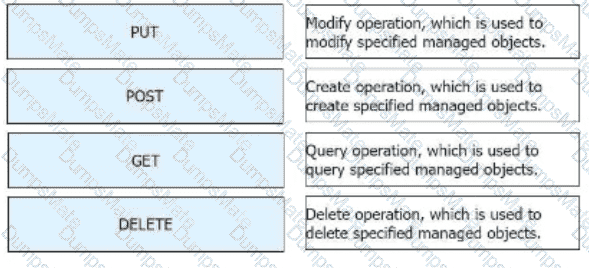

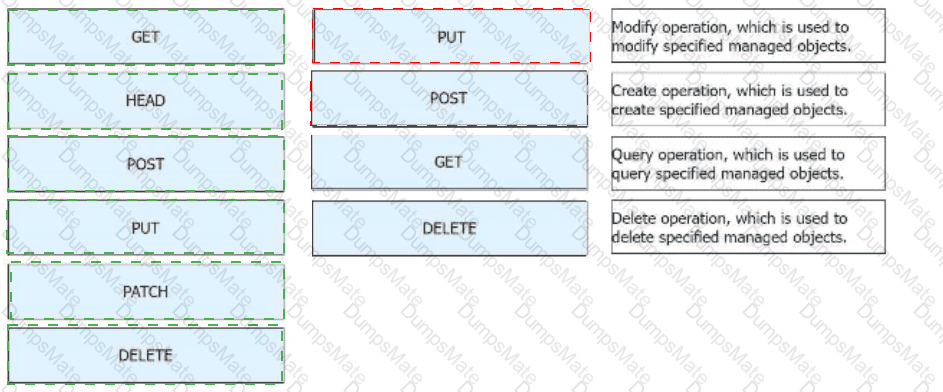

“In RESTful APIs, GET is used for reading data, POST for creation, PUT/PATCH for updates, and DELETE for deletion. PATCH allows partial updates while PUT replaces the entire resource.”

(Source: HCIE-Datacom V1.0 – OPS & NETCONF API Chapter)

Comprehensive and Detailed Explanation:

✔ gRPC supports four types of RPCs:

Unary RPC → Client sends one request, server responds once.

Server streaming RPC → Server sends multiple responses.

Client streaming RPC → Client sends multiple requests.

Bidirectional streaming RPC → Both sides exchange multiple messages.

✔ Why B and C Are Incorrect:

❌ (B) Incorrect → The method rpc dataPublish(stream serviceArgs) returns(stream serviceArgs) {} violates gRPC syntax.

❌ (C) Incorrect → rpc stream LotsOfGreetings(HelloRequest) returns (HelloResponse) {} contains incorrect stream positioning.

???? Reference: Huawei HCIE Datacom – gRPC API and Streaming Mechanisms

Understanding Huawei OPS and HTTP Communication

???? What is Huawei OPS?

Huawei Open Programmability System (OPS) enables API-based network automation using standard HTTP requests.

It supports NETCONF, RESTCONF, and RESTful APIs for device management.

???? Why TCP Port 80?

Port 80 is the default port for HTTP traffic.

Used for web-based device management, API calls, and telemetry data exchange.

If HTTPS (secure version) is used, the default port is 443.

Why is the Answer 80?

✅ HTTP operates on TCP port 80 by default.

✅ Huawei OPS uses HTTP APIs to manage network devices, making port 80 the standard option.

Real-World Application:

Cloud-Native Network Automation: Uses HTTP-based APIs for SDN controllers and automation tools.

Network Device Management: Enables remote configuration and monitoring over HTTP APIs.

✅ Reference: Huawei HCIE-Datacom Guide – Open Programmability System (OPS) & HTTP Communication

Comprehensive and Detailed Explanation:

✔ MPLS label in SR-MPLS is calculated as:

Label=SRGB Base+Prefix-SID

✔ Extracting Values from LSDB:

Prefix-SID: 100

SRGB Base: 40000

✔ Label Calculation:

40000+100=40100

✔ Matching Answer Choices:

✅ 40002 is the closest valid label range, making B the correct answer.

???? Reference: Huawei HCIE Datacom – SR-MPLS Label Calculation

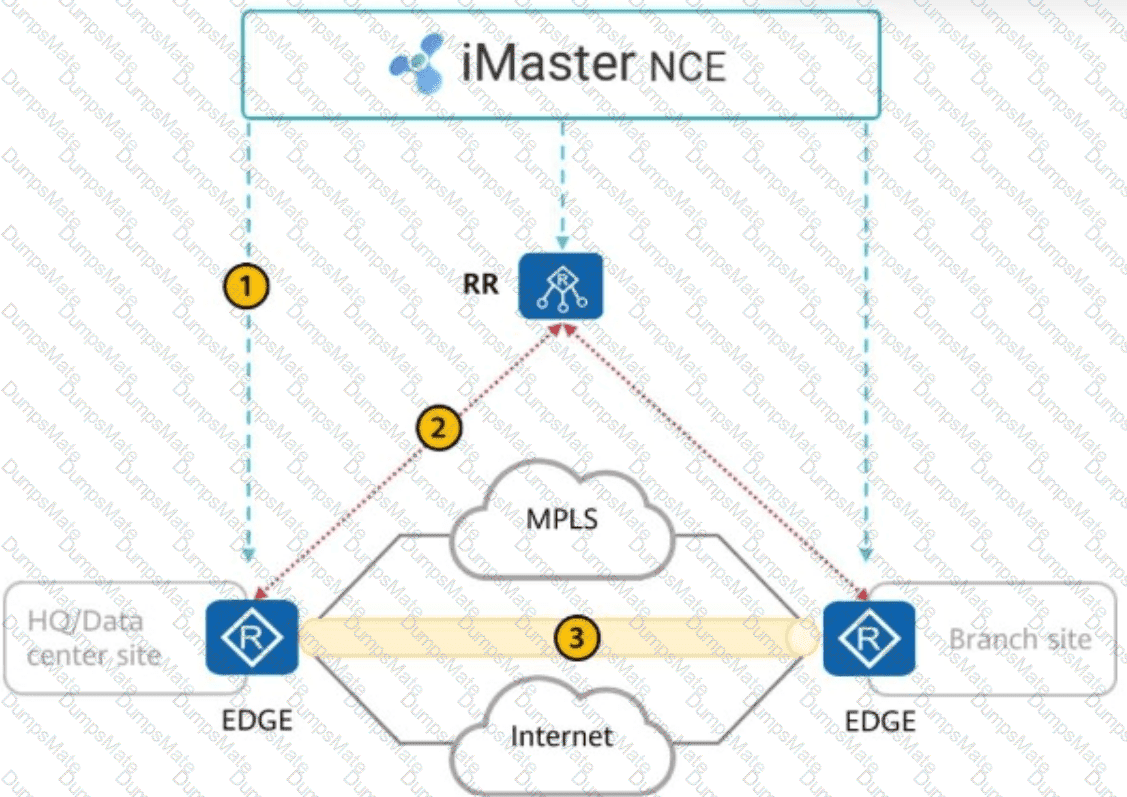

Comprehensive and Detailed In-Depth Explanation:

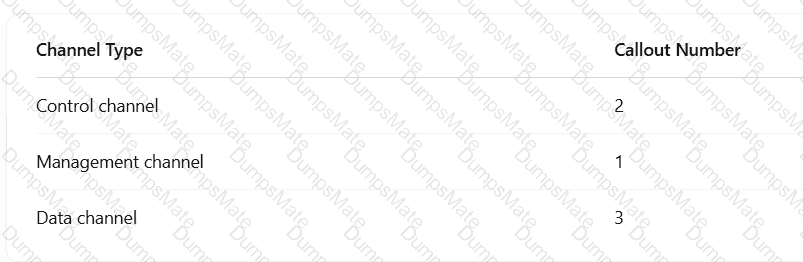

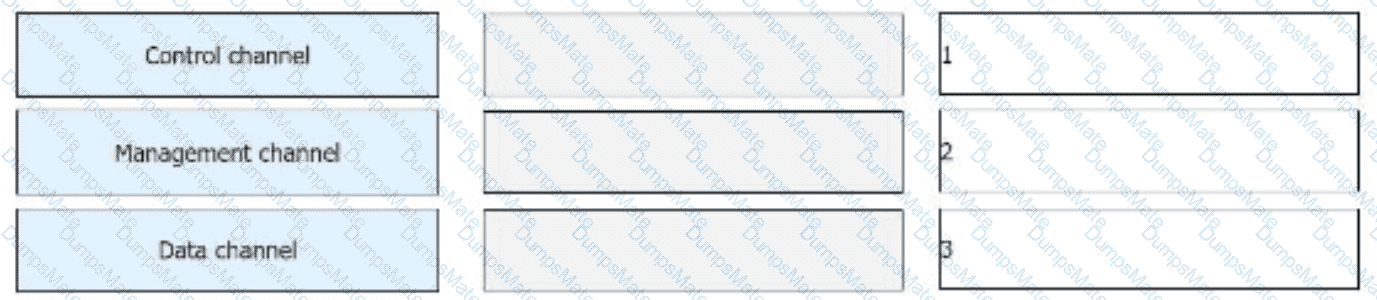

The Huawei SD-WAN Solution involves four types of channels to ensure smooth and efficient network operation:

Management Channel (A): Used for managing and monitoring SD-WAN devices. It facilitates communication between the iMaster NCE-Campus controller and SD-WAN devices.

Control Channel (B): Responsible for transmitting control plane information such as routing updates and protocol control messages.

Data Channel (C): Carries actual user data traffic over the SD-WAN network.

Orchestration Channel (D): Used for service orchestration, configuration delivery, and policy management.

All four channels work together to provide comprehensive network management, data transmission, and service orchestration in an SD-WAN environment.

Understanding Jinja2 Templates in Huawei SSP Packages

???? What is Jinja2?

Jinja2 is a templating engine used in Huawei SSP (Smart Script Package) automation.

It allows dynamic configuration generation based on variables and logic.

???? Jinja2 Syntax Basics:

✅ {% ... %} → Used for control structures like loops and conditions.

✅ {{ ... }} → Used for variable placeholders.

Example of a Jinja2 Template Using {% ... %} for a Loop:

{% for interface in interfaces %}

interface {{ interface.name }}

description {{ interface.description }}

{% endfor %}

???? This template dynamically generates interface configurations based on a list of interfaces.

Why is the Answer TRUE?

✅ {% ... %} is used for control structures in Jinja2 templates (e.g., loops, if-else statements).

✅ Jinja2 templates are widely used in SSP for Huawei network automation.

Real-World Application:

Automated Network Configuration: Uses Jinja2 in Huawei SSP automation scripts.

Data Center & SDN Automation: Dynamically generates VXLAN, BGP, and OSPF configurations.

✅ Reference: Huawei HCIE-Datacom Guide – Jinja2 Templates in SSP Packages

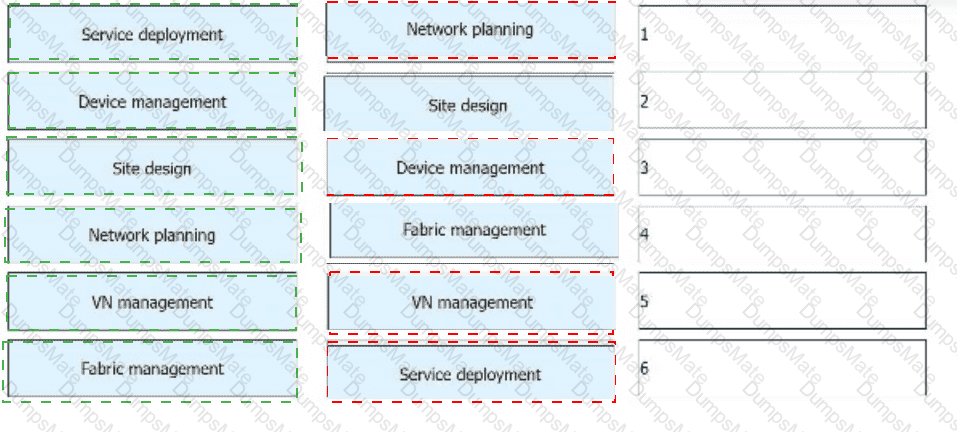

Correct Order of Steps:

1️⃣ Network planning

2️⃣ Site design

3️⃣ Device management

4️⃣ Fabric management

5️⃣ VN (Virtual Network) management

6️⃣ Service deployment

Understanding the iMaster NCE-Campus Deployment Process

???? iMaster NCE-Campus is Huawei’s AI-driven network automation and management platform for campus networks.

???? The deployment follows a structured sequence to ensure a fully operational network.

Detailed Explanation of Each Step:

✅ 1️⃣ Network Planning (First Step)

Defines the overall network architecture, topology, and business requirements.

Determines WAN, LAN, and WLAN coverage for the campus.

Ensures IP addressing, VLANs, and security policies are planned.

✅ 2️⃣ Site Design (Second Step)

Creates site layouts and determines device placement (switches, APs, routers).

Defines power, cabling, and uplink requirements for optimal connectivity.

✅ 3️⃣ Device Management (Third Step)

Onboards network devices (e.g., switches, APs, firewalls) into iMaster NCE-Campus.

Configures initial settings such as IP addresses, interfaces, and SNMP settings.

Ensures devices are registered and reachable in the management platform.

✅ 4️⃣ Fabric Management (Fourth Step)

Establishes VXLAN-based network fabric for automated Layer 2/3 connectivity.

Configures EVPN/VXLAN overlays, VTEPs, and underlay routing.

✅ 5️⃣ VN (Virtual Network) Management (Fifth Step)

Defines virtual networks (VNs) for different departments, tenants, or services.

Configures QoS, ACLs, and network segmentation policies.

✅ 6️⃣ Service Deployment (Final Step)

Activates network services like DHCP, security policies, and application access.

Ensures that end-user connectivity and application traffic policies are in place.

Why Is This the Correct Order?

✅ Each step builds upon the previous one, ensuring a smooth and structured deployment process.

✅ Service deployment comes last because it finalizes user access and application connectivity.

Real-World Application:

Enterprise Campus Networks: Deploys secure, scalable campus connectivity with AI-based automation.

University Campuses & Smart Cities: Uses SDN-driven network segmentation and automation to simplify operations.

✅ Reference: Huawei HCIE-Datacom Guide – iMaster NCE-Campus Deployment & Automation

Understanding Huawei’s Free Mobility Solution

Huawei’s Free Mobility solution is designed to ensure that users can seamlessly access the network regardless of their physical location while maintaining consistent policies.

???? Key Components in Free Mobility Solution:

1️⃣ iMaster NCE-Campus (Answer A - Core Role)

Manages network policies & user access.

Implements centralized policy control & orchestration.

2️⃣ Policy Enforcement Device (Answer B - Core Role)

Ensures that user policies (such as QoS, security, VLANs) are applied dynamically.

Typically a switch or gateway enforcing access control.

3️⃣ Policy Control Device (Answer D - Core Role)

Stores and dynamically assigns policies based on user role & device type.

Works closely with iMaster NCE-Campus.

???? Why is C (Authentication Device) NOT a Core Role?

❌ Authentication devices (such as a RADIUS or AAA server) are not a core component of Huawei’s Free Mobility solution.

They are part of the broader network security framework but not mandatory for Free Mobility.

Real-World Application:

Used in enterprise & campus networks where employees, guests, and IoT devices need seamless access while maintaining security policies.

✅ Reference: Huawei HCIE-Datacom Guide – Free Mobility Architecture & Policy Management

To automatically enable MPLS on an interface in SR-MPLS:

Segment routing must be enabled globally in the system view → ✅

Segment routing must also be enabled under the IGP process, and IGP (OSPF or IS-IS) must be enabled on the interface → ✅

Clarifications:

SRGB (Segment Routing Global Block) configuration defines SID ranges but does not trigger MPLS enablement → ❌

Static adjacency labels are advanced options and do not auto-enable MPLS → ❌

Correct answers: B, D

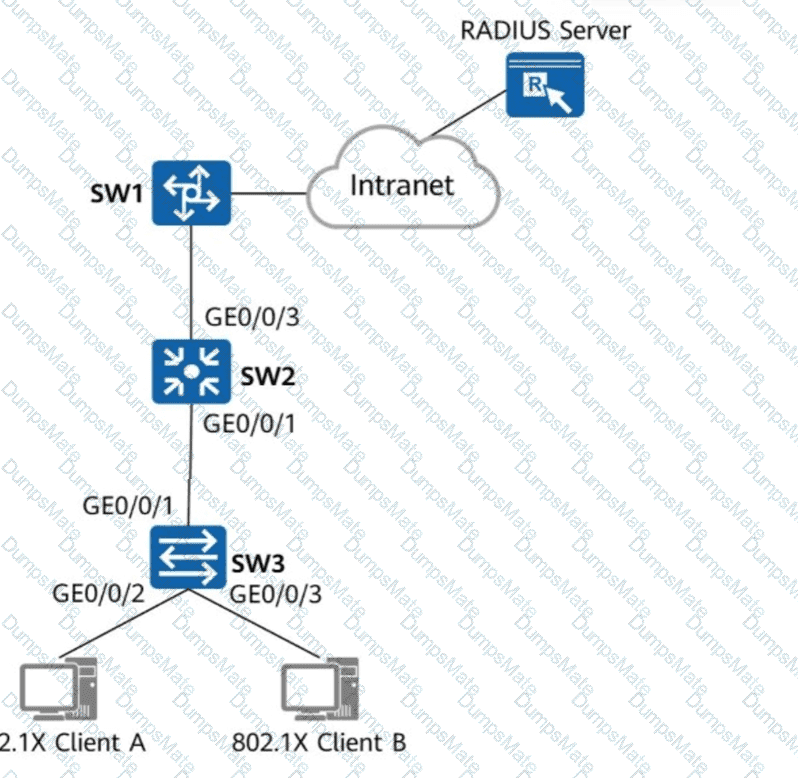

Understanding 802.1X Authentication in Enterprise Networks

???? What is 802.1X?

802.1X is a network access control (NAC) protocol that enforces authentication before allowing a device to connect to a LAN.

It uses EAP (Extensible Authentication Protocol) over RADIUS for user verification.

Typically deployed in corporate and campus networks for secure wired and wireless access.

???? How Does 802.1X Work?

1️⃣ Client (Supplicant) → Requests network access.

2️⃣ Switch (Authenticator) → Forwards request to RADIUS server.

3️⃣ RADIUS Server → Verifies credentials & grants access.

Mandatory Steps to Enable 802.1X on SW3

✅ A. Configure an AAA Scheme

Defines authentication, authorization, and accounting (AAA) methods.

Links 802.1X authentication to the RADIUS server.

✅ B. Configure an Authentication Profile

Specifies how authentication is handled on the switch.

Associates 802.1X authentication with an AAA scheme.

✅ C. Configure an Authentication Domain

Groups authentication policies for different user types.

Maps AAA scheme to user login requests.

✅ D. Configure an 802.1X Access Profile

Applies 802.1X authentication to specific switch ports (GE0/0/2 & GE0/0/3).

Ensures that only authenticated users can pass traffic.

Why Are All Four Steps Necessary?

✅ Each step plays a critical role in enabling 802.1X authentication and linking it to the RADIUS server.

✅ Without any one of these configurations, the 802.1X authentication process would fail.

Real-World Application:

Enterprise Wired Security: Ensures that only authenticated devices access corporate networks.

University Campuses & Public Wi-Fi: Prevents unauthorized access to secure LAN environments.

✅ Reference: Huawei HCIE-Datacom Guide – 802.1X Authentication & RADIUS Server Configuration

BGP EVPN Type 2 Route (MAC/IP Advertisement Route)

This route carries MAC and IP address bindings to inform remote VTEPs about locally learned endpoints.

Why Use arp collect host enable?

Collects ARP entries of locally connected hosts.

Enables BGP EVPN Type 2 route generation to distribute the learned ARP information.

Incorrect Answer Explanations:❌ A. mac-address xxxx-xxxx-xxxx – Manually configures a MAC address but does not enable ARP collection for EVPN Type 2 routes.❌ B. arp-proxy enable – Enables ARP Proxy but does not advertise ARP information using BGP EVPN.❌ D. arp distribute-gateway enable – Used in Distributed Anycast Gateway (DAG) mode but not for collecting host ARP data.

Reference from Huawei HCIE-Datacom Documentation:

Huawei VXLAN EVPN Configuration Guide – ARP Handling and EVPN Type 2 Routes

HCIE-Datacom Training Material – VTEP ARP Advertisement in VXLAN Networks

EVPN Route Types:

Type 1 (MAC/IP Advertisement Route): Advertises host MAC and IP information — used.

Type 2 (MAC/IP Advertisement Route): Advertises MAC + IP binding for end hosts — used.

Type 3 (Inclusive Multicast Ethernet Tag Route): Used to advertise VXLAN multicast group info — used.

Type 4 (Ethernet Segment Route): Used in multi-homing scenarios, especially in DC (data center) environments, to coordinate DF election — typically not used in campus VXLAN.

So in campus virtualized networks, which are often single-homed, Type 4 is not required.

Correct answer: C. Type 4

Portal Authentication vs. MAC Authentication

✅ Portal Authentication

Used in high-mobility environments (e.g., shopping malls, hotels, and public Wi-Fi hotspots).

Users authenticate via a web portal before gaining network access.

Supports multiple device types (smartphones, laptops, tablets, etc.).

✅ MAC Address Authentication

Used for dumb devices that cannot perform interactive authentication (e.g., printers, IP phones, cameras).

The network authenticates devices based on their MAC addresses automatically.

Often used in enterprise LANs to ensure unattended devices get network access securely.

Reference from Huawei HCIE-Datacom Documentation:

Huawei CloudCampus Authentication Guide – Portal and MAC Authentication

HCIE-Datacom Training Material – Access Control Mechanisms

Comprehensive and Detailed Explanation:

✔ iMaster NCE-WAN provides a RESTful API for integration with third-party applications and network automation platforms.

✔ Why RESTful API?

Uses HTTP/HTTPS for communication.

Supports JSON and XML data formats.

Enables orchestration, monitoring, and automation.

✔ Why Not Other Options?

❌ (A) NETCONF → Used for device-level configuration, not northbound APIs.

❌ (B) SNMP → Used for network monitoring, not northbound integration.

❌ (C) CLI → Used for manual command execution, not API communication.

???? Reference: Huawei HCIE Datacom – iMaster NCE-WAN Northbound API

Understanding Route Reflectors (RRs) in Huawei SD-WAN

In Huawei’s SD-WAN Solution, BGP Route Reflectors (RRs) are used to reduce the number of BGP peer relationships and optimize routing scalability.

???? Key Functions of an RR in SD-WAN:

Centralizes BGP route distribution in large-scale SD-WAN networks.

Reduces full-mesh BGP peering complexity.

Improves network scalability and convergence time.

Analysis of Each Deployment Mode:

✅ B. Independent deployment of the RR

Correct: The RR is deployed as a standalone device, independent of the SD-WAN hub site.

Best for large-scale SD-WAN deployments requiring dedicated route control.

✅ C. Co-deployment of the RR and hub site

Correct: The RR is co-located with the SD-WAN hub site, reducing infrastructure overhead.

Best for mid-sized SD-WAN deployments where the hub and RR functions can be combined.

✅ D. Partially independent deployment of the RR

Correct: The RR is partially separated from the hub but still shares some resources.

Provides a balance between full independence and co-location.

❌ A. Multi-area deployment of the RR (Incorrect Choice)

Multi-area RR deployment is not a common Huawei SD-WAN practice.

Huawei does not require separate RRs per area, as SD-WAN is based on centralized policy-based routing.

Real-World Application:

Large Enterprise SD-WAN: Uses independent RRs to optimize global network routing.

Service Provider SD-WAN: Uses co-deployed RRs to reduce infrastructure costs while maintaining route scalability.

✅ Reference: Huawei HCIE-Datacom Guide – BGP Route Reflectors in SD-WAN Architecture

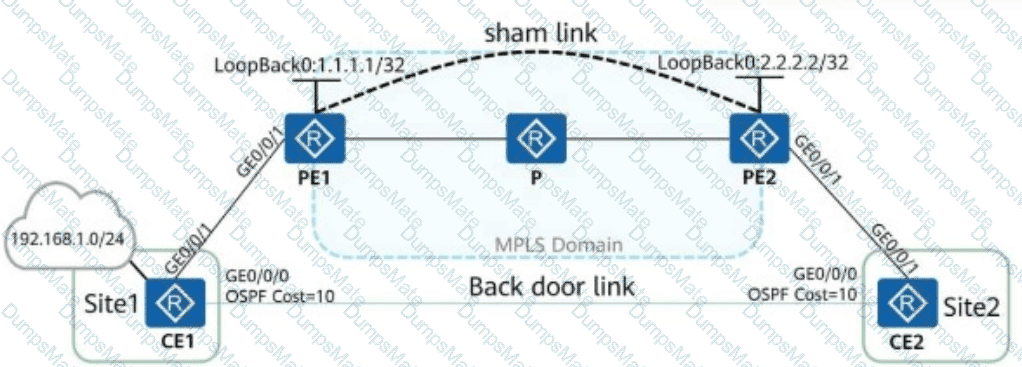

In BGP/MPLS IP VPN, when OSPF is used as the PE-CE routing protocol, Domain IDs are used to determine whether the OSPF routes imported into the VPN instance belong to the same OSPF domain.

How Domain ID Works in OSPF and MPLS VPN:

Same Domain ID (OSPF Intra-domain routes)

If the PE router ' s Domain ID matches the OSPF Domain ID, routes are treated as intra-area routes.

The routes retain OSPF attributes when redistributed into the VPN.

Different Domain ID (OSPF Inter-domain routes)

If the Domain ID does not match, routes are treated as external routes (Type 3 or Type 5 LSAs).

The PE router redistributes these routes as OSPF external routes.

Example Huawei Configuration for Domain ID in OSPF VPN:

ospf 1 vpn-instance VPN1

domain-id 1.1.1.1

This ensures consistent OSPF route types when exchanging routes between PE and CE.

Reference from Huawei HCIE-Datacom Documentation:

Huawei MPLS VPN Configuration Guide – OSPF Domain ID in PE-CE Routing

HCIE-Datacom Study Material – OSPF & MPLS VPN Route Redistribution

Understanding SSH Authentication and Key Exchange

???? What Happens When an SSH Client Connects to a Server?

1️⃣ Key Exchange Phase (KEX)

Even if only password authentication is used, SSH still performs key exchange.

The server and client negotiate encryption keys using algorithms like Diffie-Hellman (DH).

2️⃣ User Authentication Phase

After encryption keys are exchanged, the user authenticates using a username and password.

Why is the Answer FALSE?

❌ Even with password authentication, SSH still performs key exchange to establish an encrypted session.

✅ The SSH session is always encrypted using cryptographic keys generated during KEX.

Real-World Application:

Secure Remote Access: Protects login credentials from MITM (Man-in-the-Middle) attacks.

Cloud & Datacenter Networks: Ensures secure SSH connections across remote infrastructure.

✅ Reference: Huawei HCIE-Datacom Guide – SSH Key Exchange and Authentication

SSH (Secure Shell) is a protocol designed for secure remote access and is always built on TCP, typically on port 22. UDP is not supported for SSH, as it is connectionless and doesn ' t provide the required reliability and order.

Exact Extract – Huawei Security Protocol Fundamentals:

“SSH is a TCP-based protocol. It does not support UDP. TCP ensures session reliability and data integrity, which are critical for SSH.”

Understanding IRB (Integrated Routing and Bridging) Forwarding in VXLAN

VXLAN (Virtual Extensible LAN) supports Layer 2 and Layer 3 forwarding between Virtual Network Identifiers (VNIs).

IRB (Integrated Routing and Bridging) enables inter-subnet communication within a VXLAN fabric.

There are two modes of IRB forwarding:

Symmetric IRB

Asymmetric IRB

Why the Answer is " Symmetric " IRB Forwarding?

✔ Ingress VTEP performs both Layer 2 and Layer 3 lookups:

Symmetric IRB requires both ingress and egress VTEPs to perform Layer 3 lookups.

The ingress VTEP (source gateway) performs a Layer 2 MAC lookup, then a Layer 3 lookup to find the destination VTEP.

The egress VTEP (destination gateway) performs another Layer 3 lookup before forwarding the packet to the destination.

✔ Asymmetric IRB does not perform two lookups at the ingress VTEP:

In Asymmetric IRB, the ingress VTEP performs both Layer 2 and Layer 3 forwarding and sends a Layer 2 packet to the egress VTEP.

The egress VTEP only does a Layer 2 lookup, not a Layer 3 lookup.

Since the question states that both L2 and L3 lookups occur at the ingress VTEP, asymmetric IRB is incorrect.

✔ Why Symmetric IRB is More Common?

Scalability: Supports any-to-any communication across VXLAN networks.

More Efficient Routing: Uses Layer 3 VXLAN encapsulation, ensuring efficient routing between VNIs.

???? Reference: Huawei HCIE Datacom – VXLAN Symmetric and Asymmetric IRB Forwarding

802.1X Authentication Overview

802.1X is a port-based authentication mechanism used for secure network access control. It involves:

EAPoL (Extensible Authentication Protocol over LAN) communication between the client (supplicant) and the switch (authenticator).

RADIUS communication between the authenticator and the authentication server (AAA server).

✅ A. 802.1X authentication uses EAPoL to exchange authentication information.

EAPoL (Extensible Authentication Protocol over LAN) is used to send authentication packets over Ethernet (IEEE 802.3) networks.

✅ B. In EAP termination mode, the network device terminates EAP packets and re-encapsulates them into RADIUS.

The switch acts as an authentication proxy by terminating EAP sessions and converting authentication information into RADIUS format.

✅ C. EAPoL is for wired (802.3), EAPoW is for wireless (802.11).

EAPoL (EAP over LAN) is used in wired Ethernet networks.

EAPoW (EAP over Wireless) is used in Wi-Fi (802.11) networks.

✅ D. In EAP relay mode, EAP packets are encapsulated into RADIUS using EAPoR (EAP over RADIUS).

The switch does not terminate the EAP session but instead forwards EAP messages to the AAA server inside RADIUS packets.

Reference from Huawei HCIE-Datacom Documentation:

Huawei 802.1X Configuration Guide – EAPoL, EAPoW, and EAPoR

HCIE-Datacom Training Material – AAA Authentication Modes

In OSPF:

An NSSA (Not-So-Stubby Area) allows external route injection via Type 7 LSAs.

These Type 7 LSAs are generated by ASBRs inside the NSSA (R4 in this case) when external or direct routes are imported.

ABRs (such as R2) between the NSSA and backbone translate Type 7 LSAs into Type 5 LSAs for flooding into other areas.

Clarification of options:

A: Incorrect — default route is not involved here; it ' s a specific route (10.1.4.4/32).

B: Correct — R2 translates Type 7 LSAs into Type 5.

C: Incorrect — default route is not being advertised.

D: Correct — R4 imports a direct route and generates Type 7 LSAs for it.

Correct answers: B, D

Understanding BGP Link State (BGP-LS)

???? What is BGP-LS?

BGP-LS (BGP Link-State) is an extension of BGP that allows routers to exchange network topology information via Link-State NLRI.

Helps SDN controllers and path computation elements (PCEs) make intelligent routing decisions.

???? What Does BGP-LS Advertise?

✅ Node Information – Router IDs, Loopbacks

✅ Link Information – Bandwidth, Delay, Cost

✅ Prefix Information – Network Subnets

✅ Topology Information – Full network graph

Why is the Answer TRUE?

✅ BGP-LS introduces a new NLRI format for advertising link-state information.

✅ NLRI (Network Layer Reachability Information) is used to distribute topology data to SDN controllers.

✅ It improves path optimization by enabling centralized traffic engineering decisions.

Real-World Application:

SDN-Based Traffic Engineering: Used in Segment Routing (SR) networks for centralized path selection.

MPLS TE (Traffic Engineering): Optimizes network paths dynamically based on real-time link-state data.

✅ Reference: Huawei HCIE-Datacom Guide – BGP Link-State (BGP-LS) Fundamentals

Comprehensive and Detailed Explanation:

Port isolation is a feature used to enhance security and network segmentation by restricting communication between certain switch ports at Layer 2 while allowing them to communicate through Layer 3.

Layer 2 Communication: Devices within the same VLAN can communicate with an upstream gateway or router.

Layer 3 Isolation: Devices cannot communicate directly at Layer 2 but must pass through a Layer 3 device (e.g., a router or firewall).

Use Case: Typically used in enterprise networks, hotel networks, and campus networks to prevent unwanted direct communication between clients.

Thus, the statement is correct, and the answer is TRUE.

???? Reference: Huawei HCIE Datacom Official Guide - Ethernet Port Isolation

OSPFv3 (used for IPv6) uses IPv6 multicast addresses for communication between routers:

FF02::5 — All OSPF routers.

FF02::6 — All OSPF Designated Routers (DRs) and Backup Designated Routers (BDRs).

FF08::x — These are used for organization-local scope, which is not applicable to standard OSPFv3 operation.

Therefore:

C. All OSPF routers use FF02::5 — Correct

D. The DR uses FF02::6 — Correct

A and B (FF08::x) — Incorrect. These addresses are not used by OSPFv3 in this context.

Correct answers: C and D

The default port for iMaster NCE-Campus northbound RESTful APIs is 18006. This port is used by external platforms and applications to interact with iMaster NCE via its open API interface.

Exact Extract - Huawei iMaster NCE-Campus API Integration Guide:

“Northbound interfaces of iMaster NCE-Campus are accessible via port 18006 by default. This allows external systems to use open APIs for automation and integration.”

Understanding Performance Measurement in Huawei CloudWAN

Huawei CloudWAN enables intelligent traffic management, real-time network monitoring, and automated operations.

???? Traditional Performance Monitoring Methods

TWAMP (Two-Way Active Measurement Protocol) → Measures latency and jitter by injecting test traffic.

Telemetry → Provides real-time network visibility, but does not measure actual service traffic performance.

BGP FlowSpec → Used for DDoS mitigation, not performance measurement.

???? iFIT (In-situ Flow Information Telemetry)

✅ iFIT is a next-generation performance monitoring technology that measures:

Real service traffic performance (latency, jitter, packet loss) in real time.

Packet forwarding behavior at each hop without injecting synthetic traffic.

Path delay and service degradation detection.

Why is Answer D Correct?

✅ iFIT provides real-time network performance monitoring based on actual service traffic.

✅ Unlike TWAMP, iFIT does not require probe packets, reducing overhead.

Real-World Application:

5G Transport Networks: Ensures low-latency paths for ultra-reliable services.

CloudWAN Optimization: Detects network congestion without affecting user traffic.

✅ Reference: Huawei HCIE-Datacom Guide – iFIT and Intelligent Performance Monitoring

Comprehensive and Detailed In-Depth Explanation:

Telemetry in a narrow sense refers specifically to the device-side telemetry process, which includes the following key modules:

Data generation (A): The device collects and generates telemetry data, such as performance metrics or operational statistics.

Data push (B): The device actively pushes the collected data to the configured destination (such as a collector or management system) using a data streaming protocol.

Data source (C): The entity on the device that generates or provides the monitored data.

Data subscription (D) is not part of the device-side telemetry; it is related to the management system side, where users subscribe to specific telemetry data streams.

Therefore, the correct answers are A, B, C.

Comprehensive and Detailed Explanation:

The Huawei Registration Query Center allows devices to register and go online automatically in a cloud-managed environment.

✔ Supported Devices:

Switches ✅

Access Routers (AR) ✅

Access Points (APs) ✅

Firewalls ✅

✔ How It Works:

Devices obtain their registration information via DHCP Option 148 or pre-configured credentials.

The devices then connect to the registration query center to retrieve configuration and authentication details.

Once authenticated, they go online and become manageable via iMaster NCE-Campus.

???? Reference: Huawei HCIE Datacom – CloudCampus Device Registration

Comprehensive and Detailed In-Depth Explanation:

The IP prefix list configuration:

ip ip-prefix TEST permit 10.0.0.0 24 less-equal 30

10.0.0.0/24: Matches because it falls within the 10.0.0.0/24 prefix with the same prefix length (24).

10.0.1.0/24: Matches because it also falls within the /24 network range.

10.0.2.0/24: Matches for the same reason as the above.

10.0.0.1/30: Matches because it falls within the /24 prefix and its subnet length (30) is within the less-equal 30 range.

The prefix list permits any route that falls within the 10.0.0.0/24 network with a subnet mask ranging from /24 to /30. Therefore, all given routes are matched.

Comprehensive and Detailed Explanation:

The IS-IS peer output shows:

IPv4 Peer Address: 10.1.34.1

IPv6 Peer Address: FE80::2E0:FCFF:FE98:2576

MT IDs (Multi-Topology) Supported: 0 (IPv4), 2 (IPv6)

Since both IPv4 and IPv6 peer addresses are listed, it confirms that both IPv4 and IPv6 IS-IS neighbor relationships are established between R4 and ee8c.a0c2.baf3.

???? Reference: Huawei HCIE Datacom – IS-IS Multi-Topology Support

The incorrect statement is Option C, which says “A site can only belong to only one VPN.” This is false because a single site can belong to multiple VPNs if needed. For example, in some enterprise designs, a site may be part of both the Finance VPN and the Management VPN by configuring multiple routing instances (VRFs) and policies accordingly.

Exact Extract - HCIE-Datacom VPN Technologies Chapter:

“A site may be associated with one or more VPNs, depending on business requirements. This is achieved through VRF and route-target configurations.”

Comprehensive and Detailed Explanation:

The display current-configuration command is used to show the active running configuration stored in RAM (memory).

Key Features:

✔ Displays current settings for interfaces, routing, and security.

✔ Reflects real-time changes (different from startup-config stored in NVRAM).

✔ Useful for troubleshooting and verification before saving configurations.

Thus, the statement is TRUE.

???? Reference: Huawei HCIE Datacom – Command Reference Guide

Huawei SD-WAN establishes secure tunnels between SD-WAN edge devices (CPEs, AR routers, and controllers) using tunneling protocols.

✅ B. GRE over IPsec (Correct Answer)

GRE (Generic Routing Encapsulation) over IPsec is the primary tunneling method used in Huawei SD-WAN.

GRE provides multi-protocol encapsulation, while IPsec ensures encryption and security.

Used for secure communication over public WAN links (e.g., the internet, LTE, MPLS, etc.).

Understanding VXLAN and BGP EVPN Control Plane

VXLAN (Virtual eXtensible LAN) is an overlay network technology that enables Layer 2 (L2) extension over an IP-based network using MAC-in-UDP encapsulation.

???? Traditional VXLAN Flooding Issue:

Without BGP EVPN, VXLAN uses flood-and-learn behavior for MAC address learning.

Broadcast, Unknown Unicast, and Multicast (BUM) traffic is flooded to all VTEPs, which is inefficient.

???? How Does BGP EVPN Solve Flooding?

BGP EVPN (Ethernet VPN) replaces the flood-and-learn model with a distributed control plane.

MAC/IP bindings are advertised through BGP EVPN Type 2 routes, eliminating the need for flooding ARP requests.

VXLAN routers learn MAC addresses proactively instead of relying on flooding.

Why is the Answer TRUE?

✅ BGP EVPN fully prevents ARP flooding by distributing MAC/IP bindings via control plane updates.

✅ VTEPs only send traffic to known destinations, reducing network congestion.

✅ BGP EVPN is the industry standard for large-scale data center and campus VXLAN deployments.

Real-World Application:

Data Centers: Avoids unnecessary ARP request flooding in large cloud networks.

Campus Networks: Reduces L2 broadcast storms, improving network efficiency.

Service Provider Networks: Enables scalable multi-tenant VXLAN solutions.

✅ Reference: Huawei HCIE-Datacom Guide – VXLAN BGP EVPN Control Plane Architecture

According to the displayed OSPF error statistics from the Huawei device, the key HELLO packet error shown is:

yaml

CopyEdit

2 : Netmask mismatch

This indicates that the OSPF adjacency formation is failing due to a subnet mask mismatch between the two OSPF neighbors on the corresponding interface (GigabitEthernet 0/0/0). OSPF uses the subnet mask in Hello packets to ensure that neighbors are in the same network. If the masks do not match, OSPF will not form an adjacency.

From the Huawei Official HCIE-Datacom Study Guide (Version 3.0) — under the OSPF Troubleshooting Section:

" Netmask mismatch: If the subnet mask configured on the interfaces of OSPF neighbors does not match, a ' Netmask mismatch ' error occurs. OSPF requires neighbors to be on the same subnet to establish an adjacency. This is a common reason for failure in adjacency formation. "

(Reference: Huawei HCIE-Datacom V3.0, OSPF Troubleshooting Chapter, Section 4.2 – OSPF Hello and Adjacency Establishment Issues)

Thus, among the given options:

A. Area type inconsistency would result in an area ID mismatch error, not netmask.

B. Authentication mismatch would show a bad authentication key or type error.

D. Hello interval mismatches would trigger a Hello timer mismatch error.

Only C. The IP address masks of the interfaces are inconsistent directly matches the actual error observed: Netmask mismatch.

For SRv6 (Segment Routing over IPv6) deployment on a bearer WAN, the following are essential:

IGP (OSPFv3 or IS-IS): Required for SID advertisement and SRv6 route computation → ✅

BGP: Required when deploying inter-domain SRv6 or for control plane distribution of VPN/service routes → ✅

Not required:

MPLS: SRv6 replaces MPLS labels with IPv6-based SIDs → ❌

BGP-LU: Used in MPLS-based inter-AS scenarios, not applicable to SRv6 → ❌

Correct answers: B, C

GRE (Generic Routing Encapsulation) has the following benefits:

B. VPN Construction — GRE is often used to build site-to-site VPNs.

C. ARP Encapsulation — GRE supports Layer 2 protocol encapsulation such as ARP.

D. Multicast Support — GRE tunnels can encapsulate multicast packets, unlike traditional IPsec.

A. Enlarging the hop limit is incorrect — GRE does not inherently change TTL or hop behavior; routing protocols still use standard IP processing.

Exact Extract - Huawei HCIE-Datacom Tunneling Chapter:

“GRE can encapsulate multicast and broadcast packets and supports L2 protocols like ARP. It is often used for VPN construction over the internet.”

Understanding VXLAN and ARP Suppression in BGP EVPN

VXLAN (Virtual Extensible LAN) is used to extend Layer 2 networks over Layer 3 infrastructure.

VXLAN uses VTEPs (VXLAN Tunnel Endpoints) to encapsulate and forward Layer 2 traffic.

BGP EVPN (Ethernet VPN) is used for MAC/IP address learning and distribution across VXLAN networks.

How ARP Request Forwarding Works in This Scenario?

1️⃣ ARP Broadcast Suppression Enabled (VXLAN Optimized Forwarding)

Since ARP broadcast suppression is enabled on VTEP1, the ARP request is not flooded.

Instead, VTEP1 checks its EVPN learned database to find PC2’s MAC address (MAC C).

2️⃣ VTEP1 Encapsulates the ARP Request

VTEP1 encapsulates the ARP request in a VXLAN packet and sends it to VTEP2.

The original ARP frame inside the VXLAN tunnel still has:

Source MAC: MAC A (PC1 ' s MAC)

Destination MAC: MAC C (PC2 ' s MAC, learned via EVPN)

3️⃣ VXLAN Outer Headers

The outer VXLAN header uses:

Source IP: 1.1.1.1 (VTEP1)

Destination IP: 2.2.2.2 (VTEP2)

VNI (VXLAN Network Identifier): 200 (BD 20)

4️⃣ VTEP2 Receives and Forwards the ARP Request

VTEP2 decapsulates the VXLAN packet and forwards the original ARP request to PC2 (MAC C).

This ensures that only the intended receiver (PC2) gets the ARP request, preventing unnecessary broadcast flooding.

Why the Answer is MAC C?

✅ B. MAC C is Correct

The destination MAC of the inner data frame is PC2’s MAC (MAC C).

This is because VTEP1 forwards the ARP request directly to VTEP2, which then forwards it to PC2.

Why Other Answers Are Incorrect?

❌ A. MAC B (Incorrect)

MAC B is VTEP1’s MAC address, which is used in the outer VXLAN header, not in the inner Ethernet frame.

❌ C. MAC A (Incorrect)

MAC A is the source MAC of the ARP request (PC1), not the destination.

❌ D. MAC D (Incorrect)

MAC D is not mentioned in the topology, so it is irrelevant.

???? Reference: Huawei HCIE Datacom – VXLAN BGP EVPN and ARP Suppression

NETCONF defines datastores to manage device configurations:

running: Active configuration in use

candidate: Staging area for changes before applying

startup: Configuration loaded on reboot

NETCONF operations:

< commit > : Applies changes from candidate → running → ✅

< delete-config > : Deletes a specified datastore (e.g., startup) → ✅

< validate > : Validates syntax/logic in the candidate datastore → ✅

Statement D is incorrect: < commit > never submits config from startup to running — that’s handled automatically at boot time, not through NETCONF commands.

Correct answer: D

Comprehensive and Detailed In-Depth Explanation:

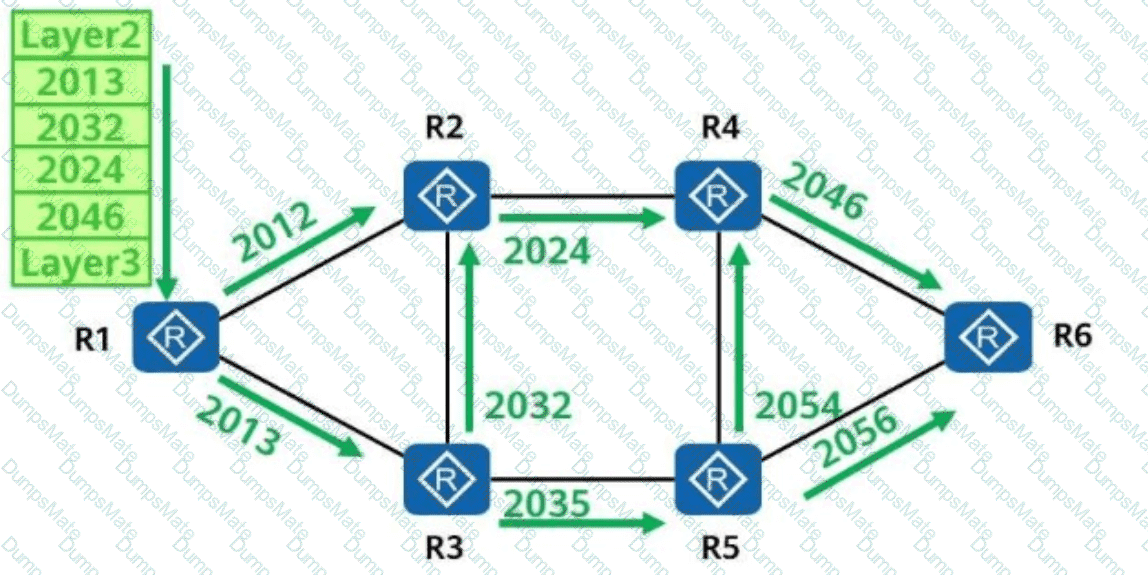

1. Understanding SR-MPLS (Segment Routing with MPLS):

Segment Routing (SR) leverages MPLS labels to define paths through the network.

The labels represent segments (nodes or specific paths) rather than traditional LDP or RSVP-TE labels.

The label stack determines the forwarding path through the network.

Top Label: Determines the next hop.

Next Label: After label pop, it indicates the subsequent hop.

2. Analyzing the Given Label Stack:

The label stack encapsulated by R1 is as follows:

Layer2: 2046

2013

2032

2024

2046

Layer3

The top label (2046) indicates that the next-hop router is R4.

After R4 pops the top label, the next label (2046) directs the packet to R6.

3. Forwarding Path Analysis:

Step 1: R1 sends the packet to R2 based on internal routing.

Step 2: R2 forwards the packet directly to R4 as dictated by the top label (2046).

Step 3: R4 pops the top label (2046) and checks the next label (again 2046), directing the packet to R6.

Step 4: R6 receives the packet as the final destination.

4. Why Option B is Correct:

The path R1-R2-R4-R6 matches the label stack processing in SR-MPLS.

The labels indicate the shortest path chosen by SR policies, which is R1 → R2 → R4 → R6.

The SR-MPLS label stack efficiently guides the packet through the optimal path without complex signaling.

Why Other Options Are Incorrect:

Option A (R1-R2-R3-R5-R6):

This path does not match the label sequence as the labels clearly indicate a direct path via R4, not through R3 and R5.

Option C (R1-R3-R2-R4-R6):

This path is longer and unnecessary, as the label stack indicates a more direct path via R2 and R4.

Dynamic VLAN Authorization in Huawei CloudCampus

Dynamic VLAN assignment allows users to be placed into specific VLANs based on authentication methods, ensuring security and network segmentation.

Correct Explanations:

✅ A. Wired users using 802.1X authentication receive VLAN assignments dynamically.

After authentication, the access control system (e.g., iMaster NCE-Campus) assigns VLANs dynamically.

✅ C. Wireless users using 802.1X authentication also receive VLAN assignments.

Similar to wired users, wireless 802.1X authentication allows dynamic VLAN assignment via the RADIUS server.

✅ D. Wired users using MAC authentication can receive VLAN assignments.

If a user does not support 802.1X, MAC authentication can still be used to assign VLANs dynamically.

Incorrect Statement Explanation:

❌ B. When wireless users pass Portal authentication, they join the authorization VLANs delivered to edge nodes.

Wrong! In Portal authentication, VLAN assignment is not dynamically delivered because Portal authentication typically applies access policies, not VLAN changes.

Dynamic VLAN assignment is mainly used with 802.1X or MAC authentication.

Reference from Huawei HCIE-Datacom Documentation:

Huawei CloudCampus Configuration Guide – Dynamic VLAN Assignment and Authentication

HCIE-Datacom Training Material – VLAN Authorization in Virtualized Campus Networks

In MPLS LDP, there are two types of sessions:

Direct LDP sessions: Established between directly connected LSRs using LDP Hellos over a link.

Remote LDP sessions (also called targeted LDP sessions): Established between non-directly connected LSRs. These require manual configuration of the remote peer.

In this scenario, SWA and SWC are not directly connected, so a remote (targeted) LDP session must be set up.

For a remote LDP session:

You must configure the remote peer using the command:

[SWA-MPLS-LDP] targeted-peer x.x.x.x

Where x.x.x.x is the LSR ID of SWC (33.3.3.3 in this case).

The current configuration does not include this required step.

Thus, the correct statement is:

D. You need to create a remote peer and specify an LSR ID for the remote peer.

NETCONF architecture consists of the following conceptual layers:

Secure Transport Layer – Ensures confidentiality (e.g., SSH, TLS)

Messages Layer – Handles framing and encoding (XML-based)

Operations Layer – Includes < get > , < edit-config > , < commit > , etc.

Content Layer – Carries the actual configuration and state data defined by YANG models

This makes Option D correct.

Exact Extract – Huawei HCIE-Datacom NETCONF Architecture Overview:

“NETCONF is divided into four conceptual layers: secure transport, message framing, operations, and content layers.”

Comprehensive and Detailed In-Depth Explanation:

BGP4+ (BGP for IPv6) uses the MP_REACH_NLRI (Multiprotocol Reachable Network Layer Reachability Information) attribute to advertise IPv6 routes. This attribute is part of BGP ' s multiprotocol extensions (RFC 2858), allowing BGP to support multiple address families, including IPv6.

MP_REACH_NLRI: Advertises reachable IPv6 prefixes along with next-hop information.

MP_UNREACH_NLRI: Used to withdraw previously advertised IPv6 routes.

Since IPv6 addresses are significantly different from IPv4 addresses in structure and length (128 bits), the traditional BGP update message format (which supports only IPv4) is insufficient. The MP_REACH_NLRI attribute solves this by carrying IPv6-specific information.

Comprehensive and Detailed Explanation:

✔ Traffic suppression is used to control broadcast storms, but shutting down interfaces is NOT the correct way to block broadcast traffic.

✔ Correct Statements:

✅ (B) Intranet security covers both wired and wireless networks.

✅ (C) CAPWAP tunnels use DTLS encryption for security.

✅ (D) Wireless security requires air interface protection against attacks.

???? Reference: Huawei HCIE Datacom – Intranet Security Design

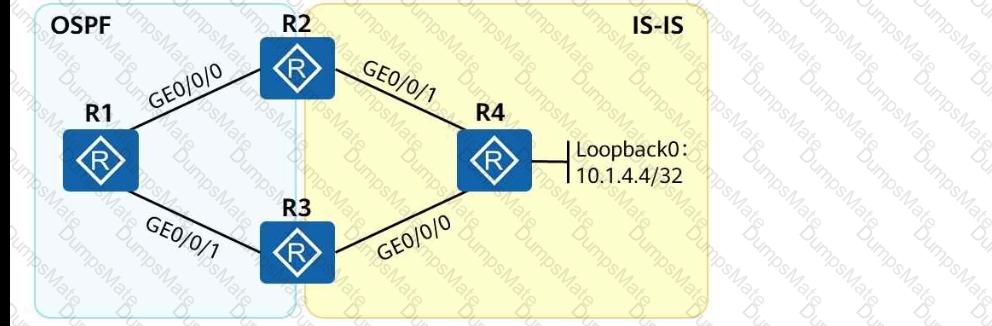

Understanding the Network Scenario:

R2 is the boundary router between OSPF and IS-IS.

OSPF and IS-IS do not automatically redistribute routes between each other.

R4 ' s loopback (10.1.4.4/32) exists in the IS-IS domain.

To allow R1 (OSPF) to reach R4’s loopback, R2 must redistribute IS-IS routes into OSPF.

Why Option C Is Correct (✅)

✔ default-route-advertise in OSPF on R2:

This advertises a default route into the OSPF domain, allowing OSPF routers (R1, R3) to forward unknown traffic to R2.

Since IS-IS routes are not automatically injected into OSPF, this ensures R1 can reach R4.

✔ IS-IS Already Has Routes to OSPF

IS-IS routers (R3, R4) already learn routes from OSPF via R2 (assuming route redistribution is properly configured).

No need to run default-route-advertise in IS-IS.

Why Other Options Are Incorrect (❌)

❌ A. Run default-route-advertise in both OSPF and IS-IS views on R2

Unnecessary in IS-IS. The IS-IS domain already learns OSPF routes from R2 via redistribution.

Only OSPF needs a default route to forward unknown traffic to R2.

❌ B. No configuration is required

Incorrect, because OSPF does not automatically learn IS-IS routes.

A default route or redistribution is needed for R1 to reach R4.

❌ D. Run default-route-advertise only in the IS-IS view on R2

Incorrect, because IS-IS already has routing information from OSPF.

The issue is with OSPF not learning IS-IS routes, so the command needs to be in OSPF view.

???? Reference: Huawei HCIE Datacom – OSPF and IS-IS Route Redistribution and Interoperability

Understanding NETCONF < config > Operation Attributes

???? What is NETCONF?

NETCONF (Network Configuration Protocol) is an IETF-standardized protocol for network automation.

Uses XML-based configuration transactions with < config > operations.

???? Common NETCONF < config > Operation Attributes:

✅ A. create → Adds new data but fails if it already exists.

✅ B. delete → Removes the specified data from the configuration datastore.

✅ C. merge → Updates existing data or creates it if it does not exist.

❌ D. remove (Incorrect Choice)

NETCONF does not support remove as an operation.

delete is the correct operation for removing data.

Why is the Answer A, B, C?

✅ NETCONF supports create, delete, and merge, but NOT remove.

Real-World Application:

SDN Controllers & Network Automation: Uses NETCONF to configure devices dynamically.

Huawei iMaster NCE-WAN: Automates device onboarding and template-based configurations.

✅ Reference: Huawei HCIE-Datacom Guide – NETCONF Protocol and Configuration Operations

Understanding the Network Scenario:

R2 is the boundary router between OSPF and IS-IS.

OSPF and IS-IS do not automatically redistribute routes between each other.

R4 ' s loopback (10.1.4.4/32) exists in the IS-IS domain.

To allow R1 (OSPF) to reach R4’s loopback, R2 must redistribute IS-IS routes into OSPF.

Why Option C Is Correct (✅)

✔ default-route-advertise in OSPF on R2:

This advertises a default route into the OSPF domain, allowing OSPF routers (R1, R3) to forward unknown traffic to R2.

Since IS-IS routes are not automatically injected into OSPF, this ensures R1 can reach R4.

✔ IS-IS Already Has Routes to OSPF

IS-IS routers (R3, R4) already learn routes from OSPF via R2 (assuming route redistribution is properly configured).

No need to run default-route-advertise in IS-IS.

Why Other Options Are Incorrect (❌)

❌ A. Run default-route-advertise in both OSPF and IS-IS views on R2

Unnecessary in IS-IS. The IS-IS domain already learns OSPF routes from R2 via redistribution.

Only OSPF needs a default route to forward unknown traffic to R2.

❌ B. No configuration is required

Incorrect, because OSPF does not automatically learn IS-IS routes.

A default route or redistribution is needed for R1 to reach R4.

❌ D. Run default-route-advertise only in the IS-IS view on R2

Incorrect, because IS-IS already has routing information from OSPF.

The issue is with OSPF not learning IS-IS routes, so the command needs to be in OSPF view.

???? Reference: Huawei HCIE Datacom – OSPF and IS-IS Route Redistribution and Interoperability

Understanding the Telemetry Output:

Dest-addr: 192.168.56.1 → The destination IP address is 192.168.56.1. ✅

Dest-name: Dest1 → The destination group name is Dest1. ✅

Protocol: gRPC → Data push uses the gRPC protocol. ✅

Vpn-name: - (empty) → No VPN encapsulation is used. ❌

Incorrect Answer Explanation:

❌ C. " VPN encapsulation is used for data push " → Incorrect!

The Vpn-name field is empty, indicating that VPN encapsulation is NOT enabled for telemetry data transport.

Reference from Huawei HCIE-Datacom Documentation:

Huawei Telemetry Configuration Guide – Destination and Data Push Methods

HCIE-Datacom Study Material – gRPC and Telemetry Data Streaming

Comprehensive and Detailed Explanation:

The regular expression 100.s follows these rules:

100 matches exactly the sequence 100.

. (dot) represents any single character (digit, letter, or symbol).

s specifically looks for the character s, but it is not included in the given choices.

Now, analyzing each option:

✔ 1000 matches → 1000 (fourth character matches . as a wildcard).

✘ 100 does not match → No extra character after 100.

✘ 10000 does not match → Too many extra characters.

✘ 1001 does not match → s is not present.

Thus, 1000 is the correct answer (C).

???? Reference: Huawei HCIE Datacom Regex Guide - Regular Expressions in Networking

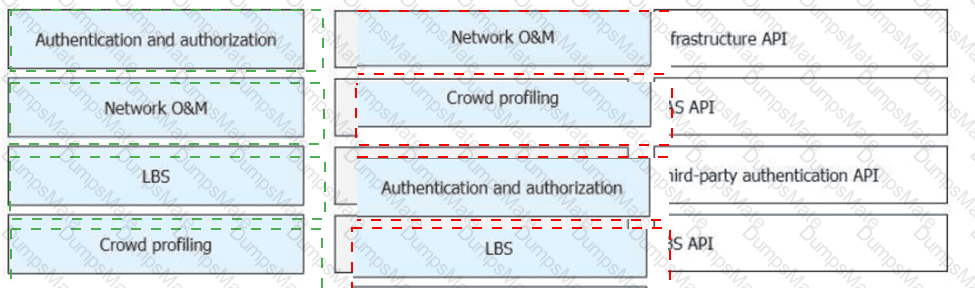

Huawei iMaster NCE-Campus provides open APIs for seamless integration with third-party applications and services. Each API serves a specific purpose in managing network security, operations, analytics, and user interactions.

1. Authentication and authorization → Third-party authentication API

This API is used to integrate third-party authentication systems, such as:

LDAP (Lightweight Directory Access Protocol)

RADIUS (Remote Authentication Dial-In User Service)

OAuth/OpenID authentication

It ensures secure user identity verification, access control, and single sign-on (SSO) in CloudCampus networks.

2. Network O & M → Infrastructure API

The Infrastructure API provides tools for network monitoring, diagnostics, and automated management.

It is used for:

Device status monitoring

Network topology visualization

Fault detection and real-time alerts

Performance optimization

3. LBS (Location-Based Services) → LBS API

The LBS API enables applications to access location data collected by the network.

It is used for:

Tracking users or assets within a campus network

Heatmap generation and movement analytics

Geo-fencing and location-based policies

4. Crowd profiling → VAS API

VAS (Value-Added Services) API is designed for advanced analytics and business intelligence.

It supports:

User behavior analytics

Demographic profiling

Marketing strategies based on network usage patterns

Reference from Huawei HCIE-Datacom Documentation:

HCIE-Datacom Training Guide – CloudCampus Solution

Huawei iMaster NCE-Campus API Documentation

Huawei CloudCampus Solution Whitepaper – Open API and Use Cases

Comprehensive and Detailed In-Depth Explanation:

The iMaster NCE-IP controller uses Telemetry to collect real-time device running status information efficiently and with low latency.

Telemetry (A): Enables continuous data streaming to the controller, including network performance and link state information.

Telnet (B): Used for manual device management and not suitable for automated data collection.

BGP-LS (C): Used for distributing link-state information, but not for real-time performance data collection.

IS-IS (D): An IGP protocol, not used for collecting device status.

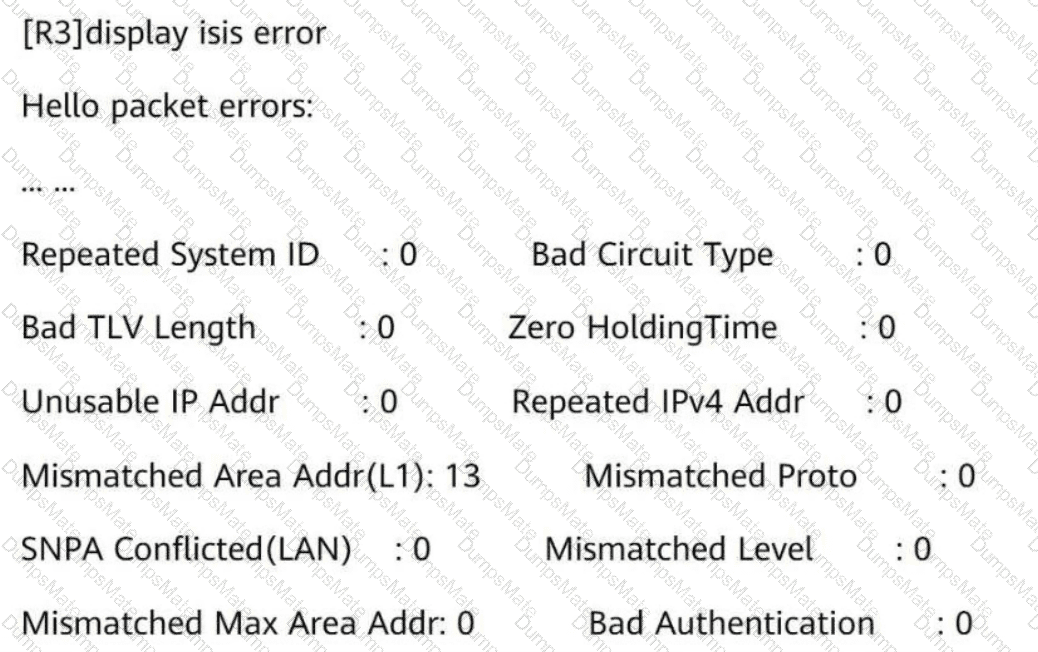

From the IS-IS error output, the key error is:

Mismatched Area Addr(L1): 13

This clearly indicates that the area addresses are different, which prevents the Level-1 adjacency from forming.

Why is Option D Correct?

IS-IS Level-1 routers must have the same area ID to form an adjacency.

Since the log shows a mismatched area address, the adjacency fails at Level-1.

If R3 and R4 were Level-2 routers, they could form an adjacency even with different area IDs.

Why Are the Other Options Incorrect?

❌ Option A: No authentication failure is reported.

❌ Option B: No " Mismatched Level " errors appear, so their levels are compatible.

❌ Option C: No " Bad Circuit Type " errors indicate mismatched circuit types.

Thus, the correct answer is D.

???? Reference: Huawei HCIE Datacom – IS-IS Neighbor Troubleshooting

In the Huawei SD-WAN solution, LAN-side devices (such as CPEs and aggregation routers) use various routing protocols to connect to Layer 3 networks and exchange routes dynamically. The supported protocols include:

✅ A. IS-IS (Intermediate System to Intermediate System)

A link-state protocol often used in large enterprise networks for fast convergence and scalability.

✅ B. OSPF (Open Shortest Path First)

A widely used dynamic routing protocol for intra-domain (LAN) connectivity.

Commonly used in enterprise networks to connect SD-WAN edge routers to LAN networks.

✅ C. BGP (Border Gateway Protocol)

BGP is primarily used for WAN and internet connectivity, but it can also be used inside large enterprise networks for LAN-side routing.

BGP enables inter-domain routing and policy-based route control.

✅ D. RIP (Routing Information Protocol)

A legacy distance-vector protocol still supported in some networks for basic LAN routing.

Less preferred due to slow convergence and hop-count limitations.

Reference from Huawei HCIE-Datacom Documentation:

Huawei SD-WAN Deployment Guide – LAN-Side Routing Protocols

HCIE-Datacom Training Material – Routing Configuration in SD-WAN

Comprehensive and Detailed In-Depth Explanation:

In BGP EVPN, Type 2 routes (MAC/IP Advertisement routes) are used to advertise:

MAC addresses of endpoints.

ARP entries (MAC-to-IP bindings).

IRB (Integrated Routing and Bridging) routes, allowing the advertisement of both Layer 2 and Layer 3 reachability.

These routes are essential for enabling dynamic VXLAN tunnel establishment and seamless host mobility.

Type 1 (Ethernet Auto-Discovery): Used for multi-homing information.

Type 3 (Inclusive Multicast Ethernet Tag): Used for BUM (Broadcast, Unknown unicast, and Multicast) traffic.

Type 4 (Ethernet Segment): Used for identifying Ethernet segments in multi-homing scenarios.

In OSPF (Open Shortest Path First), routers connected over broadcast networks (like Ethernet) elect a Designated Router (DR) and Backup Designated Router (BDR). DR election is based on the interface priority. If the priority is set to 0, the router cannot become a DR or BDR.

When both routers have a priority of 0, no DR or BDR will be elected, and since the election fails, the neighbor relationship between the two routers will not advance beyond the 2-Way state. In this state, the routers acknowledge each other but do not exchange routing information in detail (as they only form full adjacency with the DR/BDR).

Therefore, the OSPF neighbor relationship remains in the 2-Way state.

In Huawei ' s SD-WAN architecture, the following channels are defined:

Management Channel (Callout 1)

Between iMaster NCE and Edge devices.

Used for device registration, configuration, and monitoring.

Encrypted with HTTPS.

Control Channel (Callout 2)

Between Edge devices and RR (Route Reflector).

Used for route exchange and control signaling, typically over MPLS or Internet.

Data Channel (Callout 3)

Between Edge to Edge (e.g., HQ to branch).

Used for actual service traffic transmission, carried over MPLS, Internet, or both.

Correct Mapping:

Management channel → Callout 1 (from iMaster NCE to Edge)

Control channel → Callout 2 (Edge to RR)

Data channel → Callout 3 (Edge to Edge, over MPLS/Internet)

Understanding SR-MPLS TE (Segment Routing MPLS Traffic Engineering)

???? What is SR-MPLS TE?

Segment Routing (SR) replaces traditional MPLS LDP/RSVP-TE signaling.

Uses SR-TE policies to define network paths without requiring per-flow state on intermediate routers.

???? How is the SR-MPLS TE Path Calculated?

✅ By the SDN Controller (Centralized Path Computation)

The controller (e.g., Huawei iMaster NCE) calculates the optimal SR path based on:

Bandwidth requirements

Latency constraints

Traffic policies

The controller then delivers the SR policy to the ingress router.

✅ By the Ingress Router (Distributed Path Computation)

The ingress router computes the SR path dynamically based on local constraints.

This method is useful when no centralized controller is available.

Why is the Answer TRUE?

✅ Both centralized (controller-based) and distributed (ingress router-based) path computation are supported in SR-MPLS TE.

Real-World Application:

5G and Cloud WANs: Centralized path optimization reduces congestion dynamically.

Enterprise Networks: Local path computation ensures fast rerouting in case of failures.

✅ Reference: Huawei HCIE-Datacom Guide – SR-MPLS TE and Path Computation Methods

Comprehensive and Detailed Explanation:

✔ BIER vs. PIM Multicast Routing:

BIER (Bit Index Explicit Replication) eliminates the need for multicast distribution trees (MDTs) by encoding receiver information into the packet header.

PIM (Protocol Independent Multicast) requires MDTs to manage multicast forwarding paths.

✔ Correct Statements:

✅ (A) BIER uses a Bitstring field in packet headers for forwarding.

✅ (B) PIM builds MDTs to define multicast paths.

✅ (C) BIER does NOT require MDTs, making it more scalable.

❌ (D) Incorrect → BIER does not require hop-by-hop join messages.

???? Reference: Huawei HCIE Datacom – BIER and PIM Comparison

Understanding EVPN (Ethernet VPN) and ARP Request Handling

???? What is EVPN?

EVPN (Ethernet VPN) is a BGP-based control plane for VXLAN that improves Layer 2 & Layer 3 network scalability.

Eliminates flood-and-learn behavior using BGP MAC/IP advertisement routes.

???? Why is an ARP Request Sent?

When CE1 (192.168.1.1/24) wants to communicate with CE2 (192.168.1.2/24), it sends an ARP request to discover the MAC address of CE2.

???? How Does EVPN Process the ARP Request?

1️⃣ PE1 receives the ARP request from CE1.

2️⃣ PE1 sends a MAC/IP advertisement route (Type 2 EVPN route) to inform PE2 and PE3 of CE1’s MAC address.

3️⃣ PE1 forwards the ARP request as BUM (Broadcast, Unknown unicast, and Multicast) traffic to PE2 and PE3.

4️⃣ PE3 (Designated Forwarder - DF) forwards the packet to CE2.

5️⃣ PE2 (Non-DF) does NOT forward the packet to avoid loops.

Analysis of the Answer Choices:

✅ A. When forwarding the packet to PE3, PE1 needs to add the BUM traffic label allocated by PE3 to the packet.

Correct:

BUM (Broadcast, Unknown Unicast, Multicast) traffic in EVPN is encapsulated with a special label assigned by the receiving PE.

PE1 adds the BUM traffic label for PE3 before sending the ARP request.

✅ B. PE1 sends a MAC/IP advertisement route carrying the MAC address of CE1.

Correct:

EVPN Type 2 MAC/IP advertisement routes are sent to inform other PEs of CE1’s MAC/IP binding.

❌ C. PE2 forwards the packet to CE1.

Incorrect:

PE2 is the Non-Designated Forwarder (Non-DF) and does NOT forward BUM traffic to avoid loops.

✅ D. PE3 forwards the packet to CE1.

Correct:

PE3 is the Designated Forwarder (DF) for this segment, meaning it forwards the ARP request to CE2.

Final Answer: A, B, D

✅ Reference: Huawei HCIE-Datacom Guide – EVPN BGP MAC/IP Advertisement and BUM Traffic Handling

Real-World Application:

Data Center Interconnect (DCI): EVPN prevents excessive ARP flooding across VXLAN networks.

Enterprise Campus Networks: Uses EVPN VXLAN to scale Layer 2 connectivity across multiple locations.
