H13-629_V3.0 HCIE-Storage V3.0 Questions and Answers

Huawei defines To be recovered as the state entered after the fault causing an interruption is rectified when manual recovery is required. The state reminds the administrator that manual synchronization is needed to restore the pair. Therefore, D is correct.

A manually split pair enters Split, meaning replication is suspended; the replication relationship itself is not deleted. An ordinary link or LUN failure causes Interrupted, whereas Invalid is used when the properties of the primary or secondary resource change and the configurations become inconsistent. This makes A and C incorrect.

For file systems, Huawei states that HyperReplication(A) replicates at the file-system object layer and synchronizes all file-system contents and changes to the secondary file system. The WORM section separately documents that file expiration is governed by the WORM regulatory clock.

The retrieved course text documents these two mechanisms separately rather than giving one sentence explicitly naming both WORM fields during replication.

Study Guide Topics: Data Protection Solution → HyperReplication(A) for File Systems → Pair Status → WORM → Recovery and Synchronization.

All four listed capabilities are included in the DME data-management/O & M framework.

Huawei describes DME Storage as an intelligent storage management platform covering the complete storage lifecycle, including planning, deployment, O & M, and optimization. Its architecture includes intelligent diagnosis, intelligent optimization, resource optimization, planning simulation, operation visibility, insight analysis, and multidimensional analysis.

Planning enables administrators to model and organize resources before deployment. Analysis provides performance, capacity, topology, alarm, and workload insight. Optimization uses those analytics to recommend or execute improvements such as capacity balancing, migration, SLA adjustment, and QoS changes. Search is important for unstructured-data environments because files, objects, and other unstructured content must be located and analyzed according to metadata.

Huawei OceanStor Pacific also provides SmartIndexing for unstructured file, object, and HDFS storage. It can return search results from extremely large metadata sets within seconds and provides unified multi-protocol metadata indexing.

Consequently, DME ' s unstructured-data management workflow spans the complete chain of search, analysis, planning, and optimization.

Study Guide Topics: Data Storage Management and O & M → DME → Unstructured Data Management → Search → Analysis → Planning → Optimization.

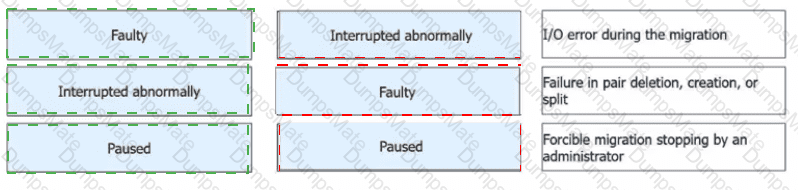

Interrupted abnormally → I/O error during the migration; Faulty → Failure in pair deletion, creation, or split; Paused → Forcible migration stopping by an administrator

The course states that “SmartMigration migrates services on a source LUN completely to a target LUN without interrupting host services.” It also explains that source-to-target synchronization uses dual-write and DCL technologies to maintain data consistency while services continue running.

The three states distinguish the cause of migration interruption. Interrupted abnormally corresponds to an I/O-related interruption occurring while migration is actually processing data. This differs from Faulty, which indicates that the SmartMigration relationship itself cannot successfully complete a control-plane operation such as pair creation, deletion, or splitting. Paused is an administrative state: migration is intentionally stopped rather than failing because of an underlying I/O or object-management error.

This distinction is consistent with SmartMigration ' s architecture. Data synchronization is a running data-plane process, while creation, splitting, and deletion are pair-management operations. An administrator-triggered stop does not imply that either of those mechanisms has failed.

The course also describes SmartMigration as Huawei ' s online LUN migration function.

Study Guide Topics: Data Migration Solution → SmartMigration → Migration Pair → Data Synchronization → Migration States and Exception Handling.

The Huawei flash-storage feature table defines SmartThin as “Intelligent thin provisioning.” Therefore, when the provisioning type is configured for thin provisioning, the associated feature is SmartThin.

The DME Storage course separately states that block-storage service levels support resource-tuning policies for Thin/Thick mode, deduplication and compression, and SmartTier. These are separate resource-tuning dimensions.

SmartTier concerns data placement among storage tiers, SmartCompression performs data reduction by compression, and SmartDedupe eliminates duplicate data. None of those features defines whether a LUN is thinly or thickly provisioned. SmartThin is specifically the capacity-allocation technology that exposes a logical capacity while allocating physical storage according to actual consumption.

Thus, among the four choices, SmartThin is the license/feature corresponding to the requested provisioning type.

The retrieved course material clearly maps SmartThin to intelligent thin provisioning and DME to Thin/Thick resource tuning; the exact licensing dialog wording is not separately reproduced in the parsed Training/Lab pages.

Study Guide Topics: Data Storage Management and O & M → DME Storage → Block Storage Service Level → Resource Tuning → Thin Provisioning → SmartThin.

Huawei explains that when a LUN snapshot is created and activated, “a data copy that is identical to the source LUN is generated.” The snapshot subsequently preserves data associated with that specific snapshot state.

The statement is therefore FALSE because a snapshot is fundamentally a point-in-time protection mechanism. It can recover data to the state represented by an available clean snapshot, but this does not automatically mean zero data loss. Any valid production changes written after the latest clean snapshot and before the ransomware incident may not exist in the restored snapshot.

The course makes the point-in-time property explicit for snapshot technology: snapshot data remains consistent with the source at the snapshot creation point.

Zero-data-loss protection is associated with technologies that synchronously maintain another valid copy, such as HyperMetro or synchronous replication, rather than ordinary scheduled snapshots. Consequently, snapshots can be highly effective for ransomware recovery when a clean recovery point exists, but the achievable RPO depends on the available snapshot protection points.

Study Guide Topics: Flash Storage Technology Presentation → HyperSnap → LUN Snapshot → Point-in-Time Recovery → RPO and Data Protection.

Huawei states that when communication between the two HyperMetro storage systems is interrupted, “the preferred site continues to provide services while the other site stops providing services.” In static-priority arbitration, the preset preferred site wins arbitration and continues service delivery. The arbitration table makes the scenario even more explicit. For a HyperMetro pair in To be synchronized state, it states: “If DC A is the preferred site, the LUN in DC A continues providing services while the LUN in DC B stops.” These symptoms identify interruption of the HyperMetro communication/replication connection between the two storage arrays. In the topology, that connection is fault point 3. A host-access link failure would affect host connectivity rather than produce this exact arbitration state. A quorum-link-only failure also does not match the combination of To-be-synchronized status and one-site service suspension. Therefore, the failed component is the inter-storage HyperMetro link represented by 3.

Study Guide Topics: Data Protection Solution → HyperMetro → Arbitration Mechanism → Quorum Server Mode → Static Priority Mode → Link Failure Scenarios.

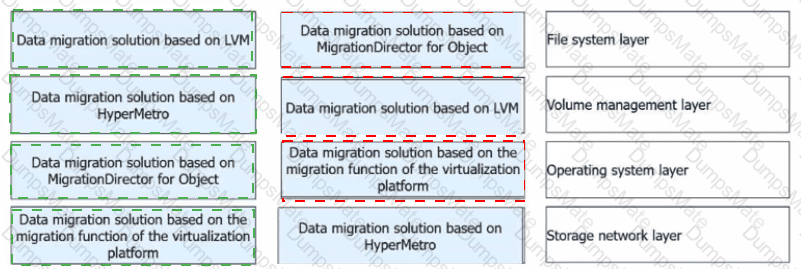

Data migration solution based on MigrationDirector for Object → File system layer; Data migration solution based on LVM → Volume management layer; Data migration solution based on the migration function of the virtualization platform → Operating system layer; Data migration solution based on HyperMetro → Storage network layer

The supplied practice-set answer maps the four migration approaches as shown above. Huawei’s migration architecture organizes migration technologies according to where the migration function is implemented in the host/storage stack. LVM-based migration operates through host volume management, while virtualization-platform migration uses capabilities supplied by platforms such as VMware or FusionCompute. HyperMetro/HyperReplication-based migration operates at the storage-network/storage-system level and moves or mirrors storage data independently of application logic.

There is one important source inconsistency in this item: the official Training Materials’ “Technical Structure of Huawei Storage Migration Solutions” explicitly places Migration Director for Object under the Object layer, while it separately associates the file-system layer with NAS migration. Therefore, the first match in the supplied question key does not align with the official training diagram.

For this practice set, the answer above reproduces the supplied key; for study purposes, remember that Huawei’s official architecture classifies object migration at the Object layer.

Study Guide Topics: Data Migration Solution → Huawei Migration Architecture → LVM → Virtualization Platform → MigrationDirector → HyperMetro.

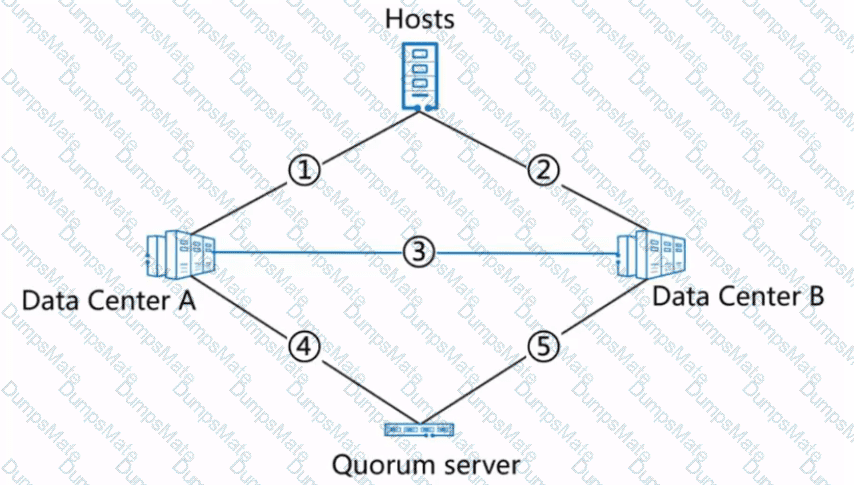

The only true statement is C, so the false statements are A, B, and D.

Huawei states: “If communication between the storage systems is down, the preferred site continues to provide services while the other site stops providing services.”

The HyperMetro pair therefore transitions to To be synchronized because the two storage systems can no longer maintain synchronous dual-write consistency across the failed inter-site link.

Option A is false because automatic fallback to static priority mode is associated with quorum-server failure, not merely failure of the HyperMetro communication link while the quorum server remains available. Option D is false because permitting both sites to continue independently would create a split-brain risk. Quorum arbitration exists specifically to prevent that condition.

Option B is also false because arbitration does not simply make both sides unavailable. One site wins arbitration and continues providing services, while the losing site stops host access.

This behavior preserves data consistency until the inter-site link is repaired and synchronization resumes.

Study Guide Topics: Data Protection Solution → HyperMetro → Single Quorum Server → Arbitration Mechanism → Link Failure → To-be-Synchronized State.

Huawei explicitly states under Working Principle of the Mirroring Function of Volume Management Software:

“Add the target storage to a VG before the mirroring.”

“Run the lvconvert command to mirror LVs.”

“After the mirroring, remove the source storage and the data migration is complete.”

Therefore, the correct answer is B. lvconvert.

In an LVM-based migration, both the source and target physical volumes are made available within the appropriate volume group. lvconvert converts the existing logical-volume layout into a mirrored configuration so that LVM creates and synchronizes another copy of the logical volume on the target storage.

The HCIE Lab Guide also demonstrates lvconvert during the migration workflow. Once synchronization is complete, the mirror can later be split, allowing the target-side image to become the active migrated copy while the original source-side image can be preserved temporarily for rollback.

lvmigrate, hrmirror, and lvexport are not the command used by Huawei ' s documented Linux LVM migration workflow for creating the mirror.

Study Guide Topics: Data Migration Solution → Host Volume Management Software → Linux LVM → Volume Mirroring → lvconvert.

The O & M training material defines the diagnostic information available through DeviceManager. It states that DHA runtime logs are disks ' daily running logs, including disk-health statistics, I/O statistics, and service-life information. It also states that HSSD logs contain S.M.A.R.T. information and disk running logs. The same section states that DeviceManager provides Download Recent Log or All Logs for configuration, event, and debugging information, as well as Download DHA Runtime Log or HSSD Log for disk runtime, I/O, service-life, and S.M.A.R.T. information. In a multi-controller Huawei storage system, diagnostic information is distributed among controllers. The log-download operation therefore performs the collection stage before producing the controller-associated downloadable packages. This design ensures that the final log set reflects information from the relevant controllers rather than only the management controller.

The Training Materials explicitly document the available log categories and DeviceManager collection mechanisms; the controller-by-controller collection progress is part of the operational log-download workflow.

Study Guide Topics: Data Storage Management and O & M → Collecting Storage System Information → DeviceManager → System Logs → DHA Runtime Logs → HSSD Logs.

The correct answer is C. MigrationDirector for NAS.

Huawei ' s technical structure for storage migration separates migration solutions according to the layer at which data is accessed and moved. The official training diagram associates NAS storage migration with the file-system layer and identifies MigrationDirector for NAS as the dedicated migration tool.

NAS data exists as files and directories exposed through file protocols rather than as raw SAN block devices. MigrationDirector for NAS therefore works with file-system-oriented migration workflows. Huawei ' s NAS migration procedure uses a migration server, configures a migration task, performs initial synchronization, applies access permissions and quotas as required, then performs incremental synchronization and service cutover.

MigrationDirector for SAN belongs to block/SAN migration rather than the host file-system layer. Similarly, a generic block migration tool would operate below the file-system abstraction.

Therefore, for the host file system layer, the dedicated Huawei migration solution is MigrationDirector for NAS.

Study Guide Topics: Data Migration Solution → Technical Structure → File System Layer → NAS Migration → MigrationDirector for NAS.

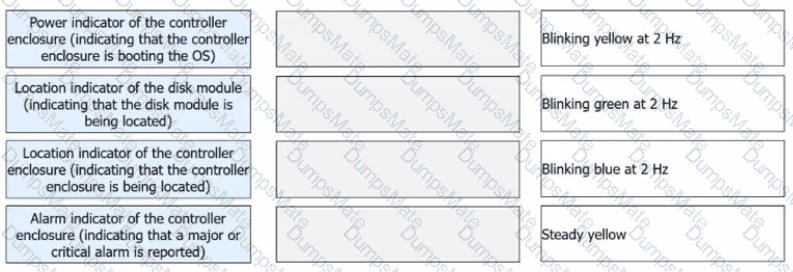

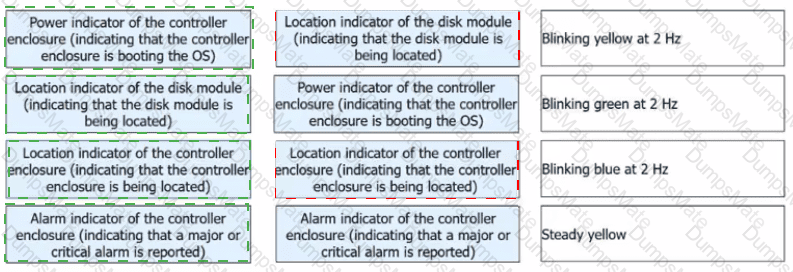

Controller enclosure power indicator during OS boot → Blinking green at 2 Hz; Disk module location indicator → Blinking yellow at 2 Hz; Controller enclosure location indicator → Blinking blue at 2 Hz; Controller enclosure major/critical alarm indicator → Steady yellow

Hardware indicators provide a direct physical diagnostic mechanism during OceanProtect maintenance. The four states represent different operational meanings rather than interchangeable fault conditions.

A blinking green power indicator at 2 Hz represents the controller enclosure progressing through its boot process. A blinking yellow disk-location indicator at 2 Hz identifies the specific disk selected for physical location. A blinking blue enclosure-location indicator at 2 Hz similarly helps maintenance personnel identify the correct controller enclosure in a rack. A steady yellow alarm indicator identifies a major or critical alarm condition requiring investigation.

Huawei emphasizes that abnormal hardware indicators are a primary method for locating failing FRUs and CRUs and should be correlated with DeviceManager alarm information. The OceanProtect X6000/X8000 architecture also uses redundant, serviceable hardware components, including controllers, BBUs, power supplies, and interface modules, making correct physical fault identification essential during maintenance.

Study Guide Topics: Data Storage Management and O & M → OceanProtect Hardware Maintenance → Hardware Indicators → FRU/CRU Fault Identification.

The correct selections are IPMI, RESTful, and Redfish.

Huawei describes DME as “the unified management software integrating software and hardware for data centers” and states that it controls, manages, and analyzes VMs, datastores, databases, servers, switches, and storage devices.

For API-oriented integration, RESTful is explicitly part of Huawei ' s DME architecture. The storage-management course states that the open southbound system manages storage, switch, and host resources through management protocols including RESTful.

IPMI and Redfish provide the hardware-management interfaces required when the management platform interacts with server/BMC infrastructure. Redfish supplies a modern REST-oriented hardware-management model, while IPMI provides established out-of-band platform-management functions.

Telnet is not selected. It is a legacy plaintext terminal protocol and is not an appropriate protocol for the hardware/API interconnection functions being tested in this DME management architecture.

Study Guide Topics: Data Storage Management and O & M → DME/eDME → Unified Data Center Management → Southbound Interconnection → Server Hardware Management.

The OceanStor Pacific logical software architecture states that the index layer provides fine-grained space-layout management capabilities and that the index module “maps the data objects in the DROS or block module to the lower-layer Plog space.” The training materials separately define the surrounding block-service components. VBS provides standard iSCSI/SCSI access. EDS provides structured services and value-added features, while OSD provides data-persistence capabilities. OceanStor Pacific block storage also uses a multi-MDC design to enhance reliability. The MDC is therefore the metadata-control component associated with maintaining the logical metadata relationship between block data and its allocated storage space. VBS is the access layer and does not own the metadata mapping function; OSD persists the actual data; EDS provides the broader structured-data service. Maintaining space metadata and the data-to-space index relationship belongs to the Metadata Controller function.

Study Guide Topics: Scale-Out Storage Technology Presentation → OceanStor Pacific → Logical Software Architecture → Block Service → Index Layer → MDC/VBS/EDS/OSD.

The OceanProtect software architecture states: “Infrastructure: Includes GaussDB, Elasticsearch, Kafka, ZooKeeper, and other common components.”

Accordingly, Elasticsearch, Kafka, and GaussDB are valid infrastructure components and the correct selections are A, C, and D.

GaussDB provides relational database services required by the management and data-protection software stack. Elasticsearch supports indexing and search-oriented functions, which are important for metadata processing, global search, and operational data retrieval. Kafka provides distributed messaging capabilities that enable communication and event/data exchange between components in the distributed OceanProtect architecture.

Ceph is not listed as one of the OceanProtect infrastructure components in this architecture. Instead, the storage layer is Huawei ' s integrated storage platform, providing file-system and protocol-access capabilities beneath the data-protection services.

The same architecture separates the platform into the management layer, data-protection layer, storage layer, hardware layer, and common infrastructure. ProtectManager schedules backup, recovery, archive, and replication jobs, while DataMover Engine processes protection data flows.

Study Guide Topics: Data Protection Solution → OceanProtect Backup Storage → Software Architecture → Infrastructure Components → ProtectManager/DataMover Engine.
