HPE0-S59 HPE Compute Solutions Questions and Answers

For VMware vSAN deployments, it is recommended that all drives in the D3940 storage modules be SSD drives to ensure optimal performance and efficiency. SSDs provide the necessary speed and reliability required by vSAN for handling storage-intensive operations and maintaining high performance.

HPE Tech Care is the operational support experience for HPE hardware and software. It was designed to go beyond traditional " break-fix " support by integrating advanced digital tools and direct access to expertise.

Digital Experience and Insights: A core component of the HPE Tech Care experience is the personalized digital dashboard accessible via the HPE Support Center. Within this portal, customers have access to My Insights Dashboards , which include a specific Software Dashboard .

Software Dashboard Functionality: This dashboard provides a centralized view of all the customer ' s covered HPE products. It automatically identifies the currently installed software and firmware versions and compares them against the latest available versions released by HPE. This allows IT teams to proactively identify systems that are out of date, reducing security risks and ensuring they are running on the most stable code.

Proactive vs. Reactive: While traditional support (like HPE Foundation Care) focused on reacting to failures, the Software Dashboard in Tech Care helps customers stay ahead of issues by providing " actionable intelligence " regarding their software and firmware lifecycle.

Comparison to Other Options:

Option A: HPE OpsRamp is an IT Operations Management (ITOM) platform that is typically bundled with HPE Complete Care (formerly Pointnext Complete Care) or available as a standalone subscription, but it is not a standard benefit of the base Tech Care service.

Option B: Multivendor support is a hallmark of HPE Complete Care , which provides a single point of contact for the entire data center environment, including non-HPE hardware. Tech Care is primarily focused on the support of HPE products.

Option D: An assigned or dedicated account team (personalized support) is a feature of HPE Complete Care . HPE Tech Care offers " Direct access to product-specific specialists " (expert-to-expert) rather than a dedicated, named account team that manages the customer ' s specific environment profile.

With 15 HPE Synergy 12000 frames, the customer must create multiple logical enclosures to manage the setup efficiently. HPE Synergy typically supports up to five frames per logical enclosure, meaning that at least five logical enclosures would be necessary to manage all 15 frames. This ensures proper organization, management, and scalability of the resources.

In the HPE Synergy architecture, Logical Interconnect Groups (LIGs) define the connectivity patterns for the frames. The ability of an LIG to span multiple frames depends entirely on the interconnect technology being used:

Ethernet Virtual Connect (Options A & D): The HPE Virtual Connect SE 40 Gb F8 and 100 Gb F32 modules are designed for Multi-Frame Link Aggregation . Using a Master/Satellite architecture, these LIGs can span up to five Synergy frames, allowing a single logical management point for the entire fabric.

Fibre Channel Switches (Option B): The Brocade 32GB Fibre Channel Switch Module is a traditional " managed switch " persona. Unlike Virtual Connect, which acts as a fabric extender/aggregator, the Brocade module operates as a standalone switch within the frame ' s backplane. In HPE OneView, an LIG containing traditional Fibre Channel switches is strictly limited to a single frame . You cannot " stack " or span a Brocade switch LIG across multiple frames in the same way you do with Ethernet VC modules.

Virtual Connect FC (Option C): While Virtual Connect Fibre Channel modules also generally operate within a frame context for their uplinks, the question specifically targets the " Switch Module " (Brocade) which, as a standard industry switch, does not participate in the proprietary Synergy multi-frame horizontal stacking architecture.

To prevent a timeout and loss of communication during an external switch firmware upgrade, the customer should configure the LACP failover trigger within the uplink set. By setting the LACP failover trigger to " All active uplinks transition to offline, " the configuration ensures that the traffic will be redirected to available uplinks in the event of an uplink failure or during the upgrade process, maintaining communication and preventing timeouts.

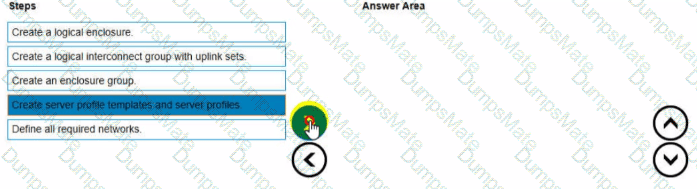

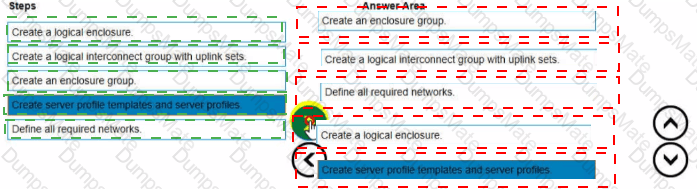

To set up HPE Synergy frames after the hardware components are discovered within HPE OneView, the following steps should be followed in the correct order:

Create an enclosure group.

Create a logical interconnect group with uplink sets.

Define all required networks.

Create a logical enclosure.

Create server profile templates and server profiles.

Create an enclosure group: This step involves defining the enclosure group, which includes the configurations for the enclosure such as firmware baselines and logical interconnect groups.

Create a logical interconnect group with uplink sets: Next, set up the logical interconnect group, which includes the uplink sets that define the connectivity from the enclosures to the data center networks.

Define all required networks: After setting up the logical interconnect group, define all the necessary networks that will be used within the HPE Synergy environment.

Create a logical enclosure: Create a logical enclosure by combining the physical enclosures with the defined enclosure group, effectively binding the hardware configuration with the logical settings.

Create server profile templates and server profiles: Finally, create server profile templates and individual server profiles to apply the required configuration settings to the compute modules.

Port flap protection is a feature of the HPE Virtual Connect SE 100Gb F32 Module for HPE Synergy that can be configured to disable ports experiencing frequent up and down transitions. This feature helps to stabilize the network by preventing the disruptive effects of port flapping.

The HPE Apollo 2000 Gen10 Plus platform offers flexibility in processor options, supporting both AMD EPYC and Intel Xeon Scalable CPUs. This allows customers to choose the best processor architecture based on their specific workload requirements and performance needs.

HPE OneView can manage both Synergy and ProLiant systems, allowing for centralized management of all infrastructure components. By adding the HPE ProLiant DL385 Gen10 Plus v2 systems to the existing HPE OneView instance used for Synergy, the customer can streamline management processes and maintain a unified management interface for all systems.

When a new Ethernet network is created in HPE OneView and is not available in the server profile, it is typically because the network has not been added to the uplink set within the Logical Interconnect Group (LIG). To resolve this issue, the network must be included in the uplink set configuration, and then the logical interconnect configuration must be updated from the LIG to propagate the changes.

HPE Private Cloud AI is a key component of the HPE GreenLake for Private Cloud portfolio, specifically co-engineered with NVIDIA. The architecture is designed to provide a " cloud-like " experience on-premises. To achieve this, HPE utilizes a distributed control plane model :

Management and Orchestration (The Control Plane): The management layer, which includes the Kubernetes orchestration, lifecycle management, and the user interface for provisioning AI workloads, is hosted in the HPE GreenLake cloud . This allows HPE to manage updates, monitoring, and security patches remotely as a managed service, reducing the operational burden on the customer.

The Data Plane (On-Premises): The actual compute power—consisting of HPE ProLiant servers (such as the DL380a or the newer Gen11/Gen12 NVIDIA-certified systems)—resides in the customer ' s data center. These are the " worker nodes " where the AI models are trained and inferred.

Connectivity: The on-premises infrastructure connects securely to the HPE GreenLake cloud control plane. While the compute and data stay local for performance, latency, and sovereignty reasons, the " logic " that dictates how those resources are sliced and managed stays in the cloud.

Why other options are incorrect:

Option A: Distributing the control plane across all worker nodes is a standard " vanilla " Kubernetes configuration but does not align with the " as-a-service " managed model of HPE GreenLake.

Option C: A two-node election would lack a " quorum, " making it unsuitable for high-availability control planes.

Option D: While some legacy or specific " Business Edition " private clouds used on-site management VMs, the Private Cloud AI architecture specifically leverages the HPE GreenLake cloud to provide a unified, scalable management experience across multiple locations.

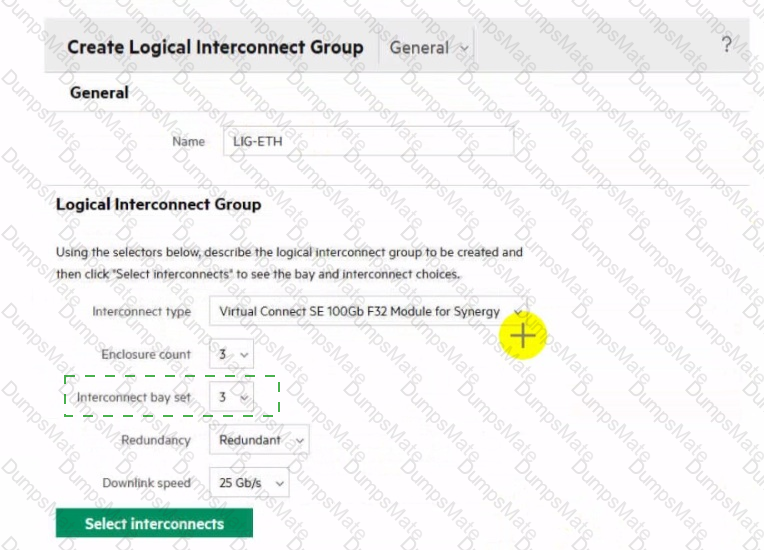

Click the drop-down menu next to " Interconnect bay set " .

To define the location of the master modules within the logical interconnect group, you need to select the appropriate interconnect bay set. The drop-down menu next to " Interconnect bay set " allows you to specify which bays the interconnect modules will be placed in, thereby determining the location of the master modules.

Storm control is a feature in HPE Virtual Connect that allows administrators to suppress excessive inbound multicast, broadcast, and destination lookup failure (DLF) packets. This feature helps to mitigate the negative impact of network storms, which can degrade network performance and availability. By configuring storm control, administrators can set thresholds to limit the rate of such packets entering the network, ensuring a stable and reliable network environment.

D. FC upgrade licenses for HPE Virtual Connect SE 100 GbF32 Module must be added: To enable Fibre Channel functionality on the HPE Virtual Connect SE 100Gb F32 Modules, it is necessary to add FC upgrade licenses. These licenses unlock the FC capabilities required for the proposed setup.

E. Remove 4 HPE Composer 2 modules from the design, as they are not required: The proposed design includes 6 HPE Composer 2 modules, but typically, only a pair of HPE Composer 2 modules is required to manage up to 21 frames. Therefore, the remaining 4 Composer 2 modules are not necessary and can be removed from the design.

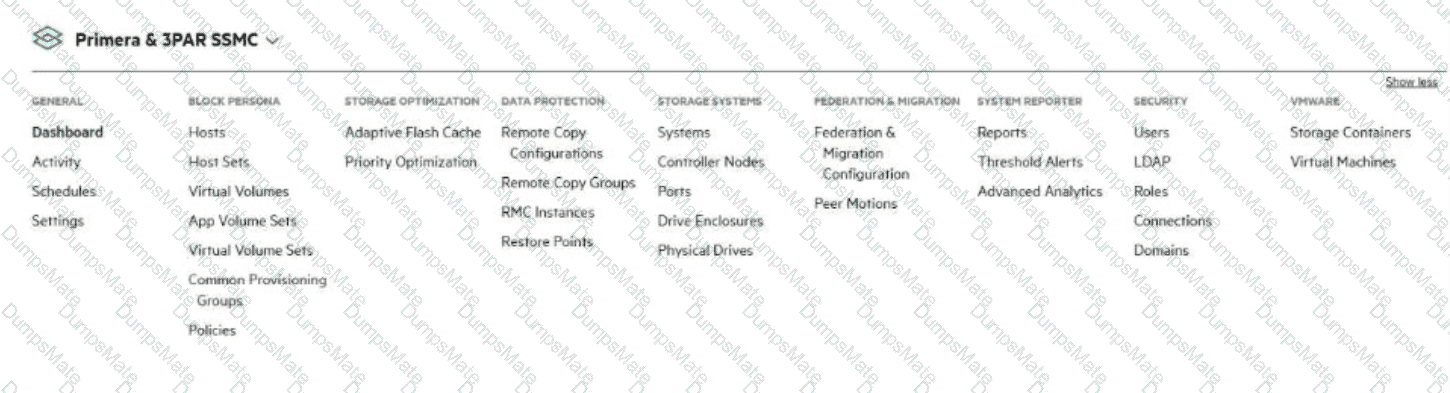

To verify whether a virtual storage operation is properly created on HPE Primera or 3PAR using the HPE Storage Integration Pack for VMware vCenter, you would click on the " Virtualization " option in the SSMC (StoreServ Management Console) main menu. This option allows you to manage and monitor storage operations related to virtual environments, including VMware integration.

When updating HPE OneView to version 6.1, it is necessary to first update to version 6.0, which is a milestone edition. Milestone editions include significant architectural changes and updates that are prerequisites for subsequent versions. This step ensures that the system is properly prepared and compatible with the new features and improvements introduced in version 6.1.

In the HPE AI Essentials software stack—which provides the orchestration and management layer for AI workloads— Prometheus is the industry-standard component used for system observability.

Metric Collection (Scraping): Prometheus is responsible for " scraping " or collecting real-time numerical data (metrics) from across the environment. This includes hardware statistics from GPU-accelerated nodes (via the NVIDIA DCGM exporter) and performance data from Kubernetes pods.

Time-Series Database: It stores these metrics in a time-series format, allowing administrators to visualize performance over time and identify historical trends in resource consumption.

Alerting Framework: Prometheus includes a built-in alerting engine. Administrators can define specific thresholds (e.g., if a GPU temperature exceeds a certain limit or if a training job stalls). When these conditions are met, Prometheus generates an alert and forwards it to the Alertmanager for notification.

Infrastructure Health: By providing a unified view of the cluster ' s health, Prometheus ensures that the AI platform remains stable and that bottlenecks are identified before they impact model development.

The phenomenon where a physical network port (uplink, downlink, or stacking port) transitions between " up " and " down " states repeatedly in a short period is known as port flapping . This behavior can cause significant instability in a network fabric, as it forces the switch to constantly update its MAC address tables and can trigger spanning tree recomputations.

Port Flap Protection: HPE OneView (managing the HPE Virtual Connect SE 100 Gb F32 and 40 Gb F8 modules) includes a feature specifically called Port flap protection (sometimes referred to as link fault monitoring).

Configurable Thresholds: Administrators can configure this feature within the Logical Interconnect Group (LIG) or Logical Interconnect (LI) settings. You can define a threshold (e.g., a certain number of flaps within a specific interval).

Action on Detection: When the threshold is exceeded, the feature can be set to " Detect and disable ports. " Once a port is disabled by this protection mechanism, it remains in a disabled state until an administrator manually resets it, preventing the " flapping " port from further disrupting the network.

Comparison to other options:

sFlow (B): A monitoring protocol used to sample network traffic for analysis; it does not take corrective action like disabling ports.

Pause flood protection (C): This feature protects against a " storm " of Ethernet PAUSE frames (flow control), which can exhaust switch buffers. While it can also disable ports, the trigger is traffic-based (PAUSE frames), not the physical link-state toggling described in the prompt.

Storm control (D): This limits the amount of broadcast, multicast, or unknown unicast traffic allowed on a port to prevent a broadcast storm; it does not monitor link-up/link-down transitions.

The VMware vSphere Standard license does not include support for advanced features like Distributed Resource Scheduler (DRS) and Distributed Switches. These features are available only with the vSphere Enterprise Plus license. Therefore, to meet the customer ' s requirement of using Distributed Switches and a DRS cluster, the proposal should include vSphere Enterprise Plus licenses instead of Standard licenses.

HPE Composer 2 offers enhanced scalability compared to HPE Composer 1. While HPE Composer 1 and HPE OneView support up to 21 frames, HPE Composer 2 extends this limit, allowing for greater scalability and more efficient management of larger HPE Synergy environments. This makes HPE Composer 2 a suitable recommendation for customers needing to manage more than 21 frames.

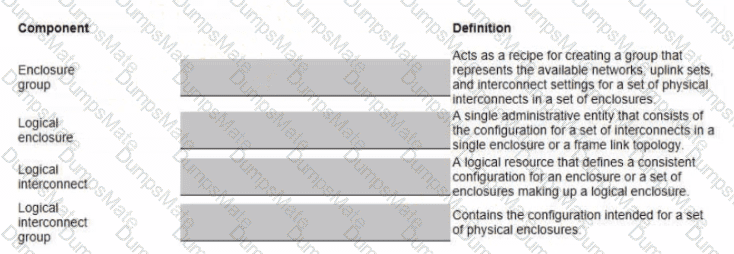

Here are the correct matches for each HPE Synergy logical component with their respective definitions:

Enclosure group Definition: Contains the configuration intended for a set of physical enclosures.

Logical enclosure Definition: A logical resource that defines a consistent configuration for an enclosure or a set of enclosures making up a logical enclosure.

Logical interconnect Definition: A single administrative entity that consists of the configuration for a set of interconnects in a single enclosure or a frame link topology.

Logical interconnect group Definition: Acts as a recipe for creating a group that represents the available networks, uplink sets, and interconnect settings for a set of physical interconnects in a set of enclosures.

Enclosure group: An enclosure group in HPE Synergy defines the configuration settings, including logical interconnect groups and firmware baselines, for a set of physical enclosures.

Logical enclosure: A logical enclosure in HPE Synergy is a resource that includes one or more physical enclosures and their associated logical interconnects, providing a consistent configuration for those enclosures.

Logical interconnect: A logical interconnect represents a set of interconnects within an enclosure, managed as a single entity. It includes the configuration of the interconnects and their connections.

Logical interconnect group: A logical interconnect group (LIG) defines the network configuration, including available networks, uplink sets, and interconnect settings, that can be applied to multiple enclosures.

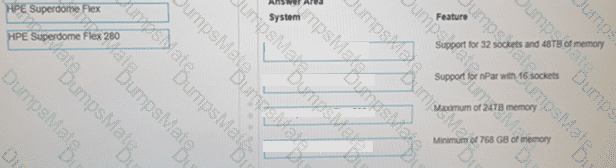

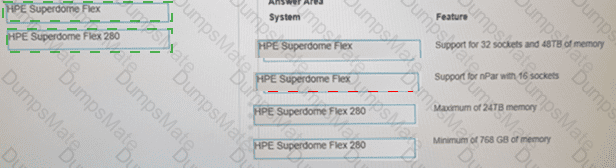

The HPE Superdome Flex 280 is the appropriate hardware platform for a customer requiring up to 24 TB of physical memory. This system is designed for high scalability and performance, supporting large memory configurations suitable for demanding applications and workloads.

In the HPE Synergy setup shown in the exhibit, the interconnect type is Virtual Connect SE 32Gb FC Module for Synergy with an enclosure count of 1 and interconnect bay set 1. Typically, in such configurations, the interconnect modules are installed in bays 1 and 4 for redundancy. This placement ensures high availability and failover capabilities.

The transition from the first-generation HPE Synergy Composer (based on Gen9 technology) to the HPE Synergy Composer 2 (based on Gen10 technology) introduced a critical hardware advancement for system administrators and troubleshooting scenarios.

Integrated iLO 5 ASIC: Unlike the original Composer, which did not provide a user-accessible iLO interface for the appliance itself, the HPE Synergy Composer 2 is built with an integrated HPE iLO 5 management processor.

Remote Appliance Management: This allows administrators to connect directly to the iLO of the Composer 2 module via its own IP address. From this interface, you can perform tasks that were impossible on the first-generation hardware, such as:

Remote Console Access: View the startup sequence or the maintenance console of the management appliance even if the OneView software is not responding.

Power Management: Remotely reset or power cycle the management module without having to physically visit the data center to " reseat " the module.

Virtual Media: Mount an ISO to recover or re-image the appliance remotely.

Silicon Root of Trust: Being based on Gen10 architecture, the Composer 2 also brings the Silicon Root of Trust security feature to the management layer, providing hardware-level validation of the appliance firmware to protect against rootkits and compromised code.

Why other options are incorrect:

Option A: Both the original Composer and Composer 2 support a maximum of 21 frames in a single management ring (a single Logical Enclosure).

Option B: While the original Composer hardware is less powerful than Composer 2, HPE OneView 5.2 did not officially reduce the supported frame count to 12; the 21-frame limit remained standard for both, though performance is significantly better on Composer 2.

Option C: Both generations of Composers support the management of satellite frames (sometimes referred to in architectures as remote frames within the same rack/complex). " Remote frames " in the context of geographically distant frames is a function of the Global Dashboard, not a limitation of the local Composer hardware.

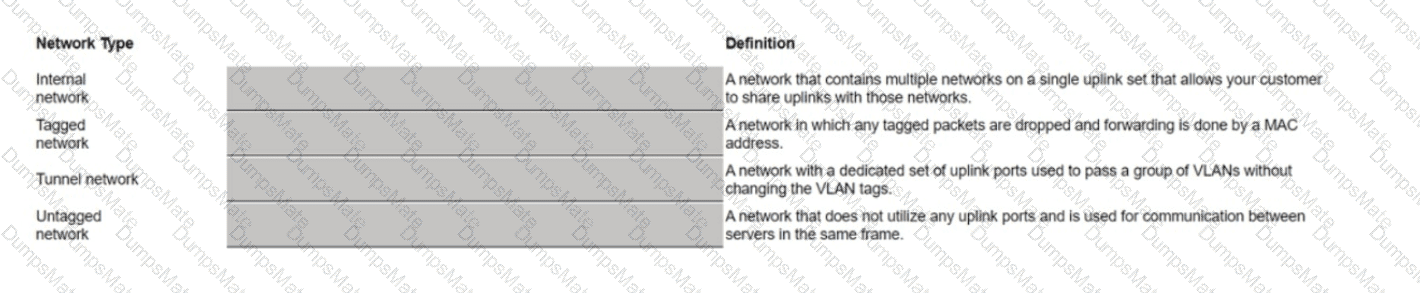

Here are the correct matches for each HPE OneView network type with their respective definitions:

Internal network Definition: A network that does not utilize any uplink ports and is used for communication between servers in the same frame.

Tagged network Definition: A network in which any tagged packets are dropped and forwarding is done by a MAC address.

Tunnel network Definition: A network with a dedicated set of uplink ports used to pass a group of VLANs without changing the VLAN tags.

Untagged network Definition: A network that contains multiple networks on a single uplink set that allows your customer to share uplinks with those networks.

Internal network: This network type facilitates communication between servers within the same frame without utilizing uplink ports, providing internal data exchange.

Tagged network: This network type drops any packets that are tagged and forwards packets based on their MAC address, ensuring only untagged traffic is processed.

Tunnel network: This type of network uses a specific set of uplink ports to pass VLAN groups while preserving the VLAN tags, useful for maintaining VLAN configurations across different network segments.

Untagged network: This network type enables the sharing of uplinks among multiple networks by placing them on a single uplink set, useful for optimizing network resource usage.

A logical interconnect group in HPE Synergy is used to define a consistent network configuration across multiple frames. The HPE Virtual Connect SE 100 Gb F32 Module for Synergy allows for logical interconnect groups to span across multiple frames. This is because the 100 Gb module supports high-speed connectivity and the necessary infrastructure to maintain consistent network configurations over multiple frames, which is essential for scalable and flexible Synergy environments.

The port labeled " MGMT " (Management) in the upper right section of the HPE Frame Link Module (FLM) is the correct port used to include an HPE Synergy frame in the management ring. This port is crucial for linking the frame into the management network of the Synergy infrastructure.
