HPE2-W06 Aruba Data Center Network Specialist Exam Questions and Answers

Refer to the exhibit.

which shows the topology tot an Ethernet Ring Protection Switching (ERPS) solution.

Is this a valid design for the control and protected VLANs on the VSX fabric 1 switches?

Solution:Ring l, instance 1:

control VLAN: 1000 protected VLANs: 51-135 Ring 1, Instance 2:

control VLAN: 1000 protected VLANs: 136-220 Ring 2, Instance 1: control VLAN: 1001 protected VLANs: 181 -200 Ring 2, Instance 2: control VLAN: 1001 protected VLANs: 201 -220

Is this how you should position switches in the ArubaOS-CX portfolio tor data center networks?

Solution:Deploy Aruba 83xx switches as core switches for very large three-tier data center networks.

Is this how you should position switches in theArubaOS-CX portfolio tor data center networks?

Solution:Deploy Aruba 83xx switches as data center leaf switches.

You are configuring Ethernet Ring Protection Switching (ERPS) on an ArubaOS-CX switch. Is this a guideline forconfiguring timers?

Solution:The wait to restore timer (WTR) Is set in units of minutes; you can set it to prevent frequent topology changes due to a link going up and down.

You need to integrate Aruba Fabric Composer (AFC) with customer datacenter software. Is this integration possible?

Solution:Aruba Fabric Composer (AFC) with Nutanix Hypervisor (AHV)

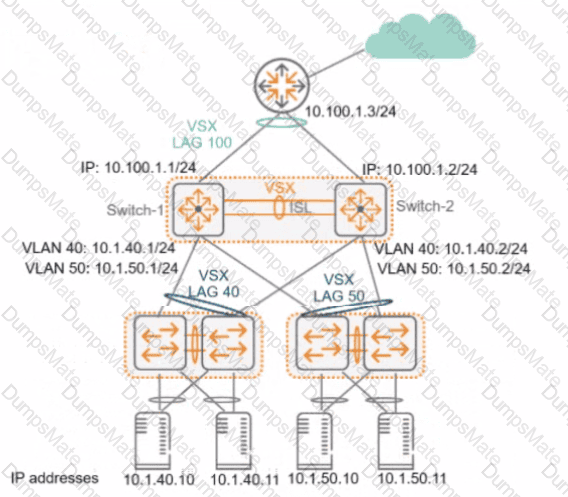

Referto the exhibit.

Switch-1, Switch-2, and the router run OSPF on LAG 100, which is a Layer 3 LAG. Does this correctly explain how to control how core-to-access traffic Is forwarded?

Solution: To reduce the amount of traffic sent over the ISLbetween Switch-1 and Switch-2. enable Equal Cost Multi Path (ECMP) on both Switch-1 and Switch-2.

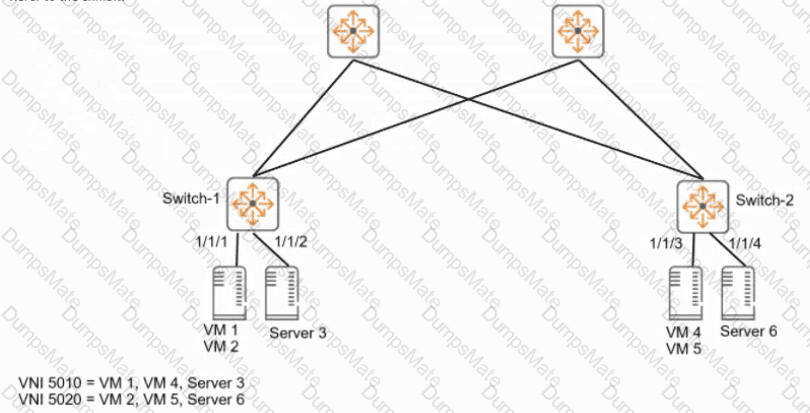

Refer to the exhibit.

:The company wants AtubaOS-CX switches to provide VXLAN services for several VMs and servers, as shown in the exhibit. Hypervisors will not run VXLAN for this solution. Is this part of a valid configuration to meet the requirements?

Solution:Work with the server admins to assign a consistent VLAN for VMs 1 and 4. Assign interface 1/1/2 on Switch-1 to the same VLAN.

Does this correctly describe how the Virtual Switching Extension (VSX) fabric reacts to various component failurescenarios?

Solution: The keepalive goes down, ISL link remains up. Switch-1 and Switch-2 remains up. The Split-recovery mode is disabled. In this case the secondary switch shutdowns Svls.
