HPE6-A78 Aruba Certified Network Security Associate Exam Questions and Answers

When setting up VLANs for a wireless solution with an Aruba Mobility Master (MM), Aruba Mobility Controllers (MCs), and campus APs (CAPs), it is recommended to use wireless user roles to assign devices to different VLANs. This allows for greater flexibility and control over network resources and policies applied to different user groups. Wireless user roles can dynamically assign devices to the appropriate VLAN based on a variety of criteria such as user identity, device type, location, and the resources they need to access. This approach aligns with the ArubaOS features that leverage user roles for network access control, as detailed in Aruba's configuration and administration guides.

The main distinction between a Distributed Denial of Service (DDoS) attack and a traditional Denial of Service (DoS) attack is that a DDoS attack is launched from multiple devices, whereas a DoS attack originates from a single device. This distinction is critical because the distributed nature of a DDoS attack makes it more difficult to mitigate. Multiple attacking sources can generate a higher volume of malicious traffic, overwhelming the target more effectively than a single source, as seen in a DoS attack. DDoS attacks exploit a variety of devices across the internet, often coordinated using botnets, to flood targets with excessive requests, leading to service degradation or complete service denial.

The company wants to deploy an open WLAN for guests with the following requirements:

Guests connect without entering a password (open authentication).

Guests are redirected to a welcome web page and log in (captive portal).

Encryption is provided for devices that support it.

Open WLAN with Captive Portal: An open WLAN means no pre-shared key (PSK) or 802.1X authentication is required to connect. A captive portal can be used to redirect users to a web page where they must log in (e.g., with guest credentials). This meets the requirement for guests to connect without a password and then log in via a web page.

Encryption for Capable Devices: The company wants to provide encryption for devices that support it, even on an open WLAN. Opportunistic Wireless Encryption (OWE) is a WPA3 feature designed for open networks. OWE provides encryption without requiring a password by negotiating unique encryption keys for each client using a Diffie-Hellman key exchange. OWE in transition mode allows both OWE-capable devices (which use encryption) and non-OWE devices (which connect without encryption) to join the same SSID, ensuring compatibility.

Option A, "Opportunistic Wireless Encryption (OWE) and WPA3-Personal," is incorrect. WPA3-Personal requires a pre-shared key (password), which conflicts with the requirement for guests to connect without entering a password.

Option B, "Captive portal and WPA3-Personal," is incorrect for the same reason. WPA3-Personal requires a password, which does not meet the open WLAN requirement.

Option C, "WPA3-Personal and MAC-Auth," is incorrect. WPA3-Personal requires a password, and MAC authentication (MAC-Auth) does not provide the web-based login experience (captive portal) specified in the requirements.

Option D, "Captive portal and Opportunistic Wireless Encryption (OWE) in transition mode," is correct. An open WLAN with OWE in transition mode allows guests to connect without a password, provides encryption for OWE-capable devices (e.g., WPA3 devices), and supports non-OWE devices without encryption. The captive portal ensures that guests are redirected to a welcome web page to log in, meeting all requirements.

The HPE Aruba Networking AOS-8 8.11 User Guide states:

"Opportunistic Wireless Encryption (OWE) is a WPA3 feature that provides encryption for open WLANs without requiring a password. In OWE transition mode, the WLAN supports both OWE-capable devices (which use encryption) and non-OWE devices (which connect without encryption) on the same SSID. This is ideal for guest networks where encryption is desired for capable devices, but compatibility with all devices is required. A captive portal can be configured on an open WLAN to redirect users to a login page, such as captive-portal guest-login, ensuring a seamless guest experience." (Page 290, OWE and Captive Portal Section)

Additionally, the HPE Aruba Networking Wireless Security Guide notes:

"OWE in transition mode is recommended for open guest WLANs where encryption is desired for devices that support it. Combined with a captive portal, this setup allows guests to connect without a password, get redirected to a login page, and benefit from encryption if their device supports OWE." (Page 35, Guest Network Security Section)

An example of a social engineering attack is described in option A, where an email is used to impersonate a bank and deceive users into entering their bank login information on a counterfeit website. Social engineering attacks exploit human psychology rather than technical hacking techniques to gain access to systems, data, or personal information. These attacks often involve tricking people into breaking normal security procedures. The other options describe different types of technical attacks that do not primarily rely on manipulating individuals through deceptive personal interactions.

In an Aruba network, when setting up a WPA3-Enterprise network that also supports WPA2-Enterprise clients, you would typically configure the network to operate in a transitional mode that supports both protocols. CNSA (Commercial National Security Algorithm) mode is intended for networks that require higher security standards as specified by the US National Security Agency (NSA). However, for compatibility with WPA2 clients, which do not support CNSA requirements, you would disable CNSA mode. WPA3 can use 256-bit encryption keys, which offer a higher level of security than the 128-bit keys used in WPA2.

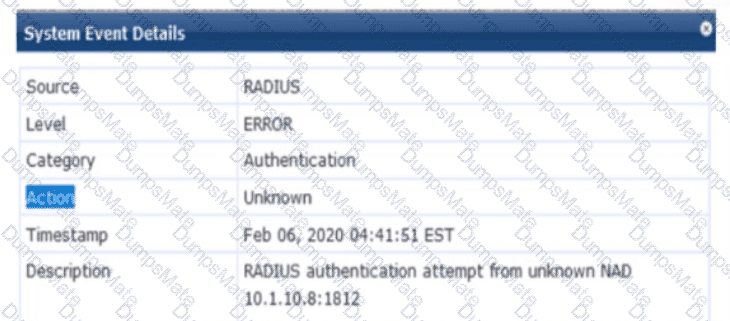

The exhibit shows an error in the CPPM Event Viewer: "RADIUS authentication attempt from unknown NAD 10.1.10.8:1812." This indicates that a new HPE Aruba Networking Mobility Controller (MC) is attempting to send RADIUS authentication requests to HPE Aruba Networking ClearPass Policy Manager (CPPM), but CPPM does not recognize the MC as a Network Access Device (NAD), resulting in the authentication failure.

Unknown NAD Error: In CPPM, a NAD is a device (e.g., an MC, switch, or AP) that sends RADIUS requests to CPPM for authentication. Each NAD must be configured in CPPM with its IP address and a shared secret. The error "unknown NAD 10.1.10.8:1812" means that the IP address 10.1.10.8 (the source IP of the MC’s RADIUS request) is not listed as a NAD in CPPM’s configuration, so CPPM rejects the request.

Option A, "That the IP address that the MC is using to reach CPPM matches the one defined for the device on CPPM," is correct. You need to check that the MC’s IP address (10.1.10.8) is correctly configured as a NAD in CPPM. In CPPM, go to Configuration > Network > Devices, and verify that a NAD entry exists for 10.1.10.8. If the IP address does not match (e.g., due to NAT, a different interface, or a misconfiguration), CPPM will reject the request as coming from an unknown NAD.

Option B, "That the MC has valid admin credentials configured on it for logging into the CPPM," is incorrect. Admin credentials on the MC are used for management access (e.g., SSH, web UI), not for RADIUS authentication. RADIUS communication between the MC and CPPM uses a shared secret, not admin credentials.

Option C, "That the MC has been added as a domain machine on the Active Directory domain with which CPPM is synchronized," is incorrect. Adding the MC as a domain machine in Active Directory (AD) is relevant only if the MC itself is authenticating users against AD (e.g., for machine authentication), but this is not required for the MC to act as a NAD sending RADIUS requests to CPPM.

Option D, "That the shared secret configured for the CPPM authentication server matches the one defined for the device on CPPM," is incorrect in this context. While a shared secret mismatch would cause authentication failures, it would not result in an "unknown NAD" error. The "unknown NAD" error occurs before the shared secret is checked, as CPPM does not recognize the IP address as a valid NAD.

The HPE Aruba Networking ClearPass Policy Manager 6.11 User Guide states:

"The error ‘RADIUS authentication attempt from unknown NAD ’ in the Event Viewer indicates that the IP address of the device sending the RADIUS request (e.g., a Mobility Controller) is not configured as a Network Access Device (NAD) in ClearPass. To resolve this, go to Configuration > Network > Devices in the CPPM UI, and ensure that the IP address of the device (e.g., 10.1.10.8) is added as a NAD with the correct shared secret. The IP address used by the device to reach CPPM must match the one defined in the NAD configuration." (Page 302, Troubleshooting RADIUS Issues Section)

Additionally, the HPE Aruba Networking AOS-8 8.11 User Guide notes:

"When configuring a Mobility Controller to use ClearPass as a RADIUS server, ensure that the MC’s IP address is added as a NAD in ClearPass. If ClearPass logs an ‘unknown NAD’ error, verify that the IP address the MC uses to send RADIUS requests (e.g., the source IP of the request) matches the IP address configured in ClearPass under Configuration > Network > Devices." (Page 498, Configuring RADIUS Authentication Section)

Creating the Certificate Signing Request (CSR) and the public/private keypair offline is recommended when deploying server certificates on multiple ArubaOS Mobility Controllers (MCs). This method enhances security by minimizing the exposure of private keys. By creating and handling these components offline, administrators can maintain better control over the keys and ensure their security before deploying them across multiple devices. This approach also simplifies the management of certificates on multiple controllers, as the same certificate can be installed more securely and efficiently.

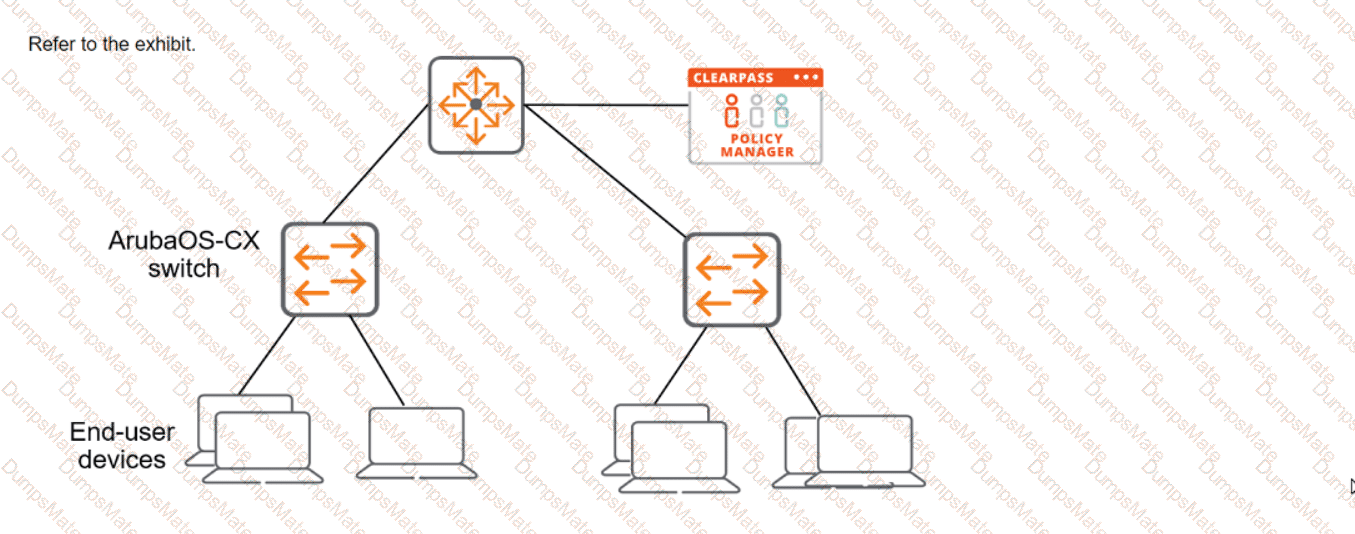

HPE Aruba Networking ClearPass Policy Manager (CPPM) uses TCP fingerprinting as a passive profiling method to classify endpoints by analyzing TCP packet headers (e.g., TTL, window size) to identify the operating system (e.g., Windows, Linux). The company in this scenario has Mobility Controllers (MCs), campus APs, and AOS-CX switches, and wants to use CPPM’s TCP fingerprinting capabilities for endpoint classification.

TCP Fingerprinting: This method requires CPPM to receive TCP traffic from endpoints. Since CPPM is not typically inline with network traffic, the traffic must be mirrored to CPPM for analysis. This is often done using a SPAN (Switched Port Analyzer) port or mirror port on a switch or controller.

Option A, "You will need to mirror traffic to one of CPPM’s span ports from a device such as a core routing switch," is correct. For CPPM to perform TCP fingerprinting, it needs to see the TCP traffic from endpoints. This is typically achieved by mirroring traffic from a core routing switch (or another device like an MC) to a SPAN port on the CPPM server. For example, on an AOS-CX switch, you can configure a mirror session with the command mirror session 1 destination interface source vlan to send traffic to CPPM. This is a key consideration for enabling TCP fingerprinting.

Option B, "ClearPass admins will need to provide the credentials of an API admin account to configure on HPE Aruba Networking devices," is incorrect. TCP fingerprinting does not require API credentials. It is a passive profiling method that analyzes mirrored traffic, and no API interaction is needed between CPPM and Aruba devices for this purpose.

Option C, "AOS-CX switches do not offer the support necessary for CPPM to use TCP fingerprinting on wired endpoints," is incorrect. AOS-CX switches support mirroring traffic to CPPM (e.g., using a mirror session), which enables CPPM to perform TCP fingerprinting on wired endpoints. The switch does not need to perform the fingerprinting itself; it only needs to send the traffic to CPPM.

Option D, "TCP fingerprinting of wireless endpoints requires a third-party Mobility Device Management (MDM) solution," is incorrect. TCP fingerprinting is a built-in capability of CPPM and does not require an MDM solution. For wireless endpoints, the MC can mirror client traffic to CPPM (e.g., using a datapath mirror), allowing CPPM to perform TCP fingerprinting.

The HPE Aruba Networking ClearPass Policy Manager 6.11 User Guide states:

"TCP fingerprinting requires ClearPass to receive TCP traffic from endpoints for analysis. A key consideration is that you must mirror traffic to one of ClearPass’s SPAN ports from a device such as a core routing switch or Mobility Controller. For example, on an AOS-CX switch, configure a mirror session with mirror session 1 destination interface source vlan to send traffic to ClearPass for TCP fingerprinting." (Page 248, TCP Fingerprinting Section)

Additionally, the HPE Aruba Networking AOS-8 8.11 User Guide notes:

"For ClearPass to perform TCP fingerprinting on wireless endpoints, the Mobility Controller can mirror client traffic to ClearPass using a datapath mirror. For wired endpoints, an AOS-CX switch can mirror traffic to ClearPass’s SPAN port, enabling TCP fingerprinting without requiring additional support on the switch itself." (Page 351, Device Profiling with CPPM Section)

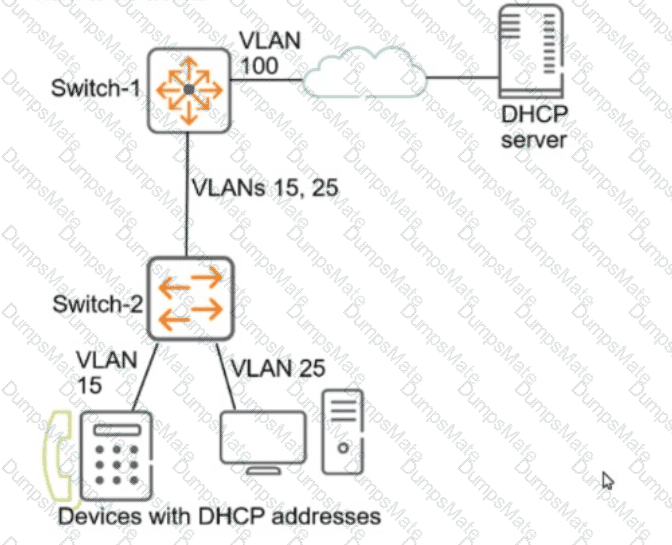

The scenario involves AOS-CX switches in a two-tier topology with Switch-1 as the core switch (default router) on VLAN 100 and Switch-2 as an access layer switch with VLANs 15 and 25, where end-user devices connect. The goal is to protect against exploits from untrusted end-user devices, such as DHCP spoofing or ARP poisoning attacks, which are common threats in access layer networks.

DHCP Snooping: This feature protects against rogue DHCP servers by filtering DHCP messages. It should be enabled on the access layer switch (Switch-2) where end-user devices connect, specifically on the VLANs where these devices reside (VLANs 15 and 25). DHCP snooping builds a binding table of legitimate IP-to-MAC mappings, which can be used by other features like ARP inspection.

ARP Inspection: This feature prevents ARP poisoning attacks by validating ARP packets against the DHCP snooping binding table. It should also be enabled on the access layer switch (Switch-2) on VLANs 15 and 25, where untrusted devices are connected.

Option B, "On Switch-2, enable DHCP snooping globally and on VLANs 15 and 25. Later, enable ARP inspection on the same VLANs," is correct. DHCP snooping must be enabled first to build the binding table, and then ARP inspection can use this table to validate ARP packets. This configuration should be applied on Switch-2, the access layer switch, because that’s where untrusted end-user devices connect.

Option A, "On Switch-1, enable ARP inspection on VLAN 100 and DHCP snooping on VLANs 15 and 25," is incorrect. Switch-1 is the core switch and does not directly connect to end-user devices on VLANs 15 and 25. DHCP snooping and ARP inspection should be enabled on the access layer switch (Switch-2) where the devices reside. Additionally, enabling ARP inspection on VLAN 100 (where the DHCP server is) is unnecessary since the DHCP server is a trusted device.

Option C, "On Switch-2, enable BPDU filtering on all edge ports in order to prevent eavesdropping attacks by untrusted devices," is incorrect. BPDU filtering is used to prevent spanning tree protocol (STP) attacks by blocking BPDUs on edge ports, but it does not protect against eavesdropping or other exploits like DHCP spoofing or ARP poisoning, which are more relevant in this context.

Option D, "On Switch-1, enable DHCP snooping on VLAN 100 and ARP inspection on VLANs 15 and 25," is incorrect for the same reason as Option A. Switch-1 is not the appropriate place to enable these features since it’s not directly connected to the untrusted devices on VLANs 15 and 25.

The HPE Aruba Networking AOS-CX 10.12 Security Guide states:

"DHCP snooping should be enabled on access layer switches where untrusted end-user devices connect. It must be enabled globally and on the specific VLANs where the devices reside (e.g., dhcp-snooping vlan 15,25). This feature builds a binding table of IP-to-MAC mappings, which can be used by Dynamic ARP Inspection (DAI) to prevent ARP poisoning attacks. DAI should also be enabled on the same VLANs (e.g., ip arp inspection vlan 15,25) after DHCP snooping is configured, ensuring that ARP packets are validated against the DHCP snooping binding table." (Page 145, DHCP Snooping and ARP Inspection Section)

Additionally, the guide notes:

"Dynamic ARP Inspection (DAI) and DHCP snooping are typically configured on access layer switches to protect against exploits from untrusted devices, such as DHCP spoofing and ARP poisoning. These features should be applied to the VLANs where end-user devices connect, not on core switches unless those VLANs are directly connected to untrusted devices." (Page 146, Best Practices Section)

The primary reason for adding a "Log Settings" definition in the ArubaOS Diagnostics > System > Log Settings page is to configure the Syslog server settings for the server to which the Mobility Controller (MC) forwards logs for a particular category and level. This setting enables the MC to send detailed logs to a Syslog server for centralized logging and monitoring, which is essential for troubleshooting, security analysis, and compliance with various policies.

ARP (Address Resolution Protocol) can indeed be exploited to conduct various types of attacks, most notably ARP spoofing/poisoning. Gratuitous ARP is a special kind of ARP message which is used by an IP node to announce or update its IP to MAC mapping to the entire network. A hacker can abuse this by sending out gratuitous ARP messages pretending to associate the IP address of the router (default gateway) with their own MAC address. This results in traffic that was supposed to go to the router being sent to the attacker instead, thus potentially enabling the attacker to intercept, modify, or block traffic.

A rogue radio operating in ad hoc mode with open security can pose several threats to a network. Ad hoc networks allow direct device-to-device communication without centralized control. If such a radio is present within or near a corporate environment, it can potentially be used to create a peer-to-peer network that bypasses corporate security controls, effectively acting as a backdoor into the corporate network for unauthorized users or devices. This can lead to a breach of data security and unauthorized access to network resources.

For a company that wants to deploy an open WLAN for guests with the ease of access and encryption for capable devices, using a captive portal with Opportunistic Wireless Encryption (OWE) in transition mode would be suitable. The captive portal allows for a user-friendly login page for authentication without a pre-shared key, and OWE provides encryption to protect user data without the complexities of traditional WPA or WPA2 encryption, which is ideal for guest networks. Transition mode allows devices that support OWE to use it while still allowing older or unsupported devices to connect.

To prevent users from exploiting Address Resolution Protocol (ARP) on a network with ArubaOS-Switches, the correct approach would be to enable DHCP snooping globally and on VLAN 201 before enabling ARP protection, as stated in option C. DHCP snooping acts as a foundation by tracking and securing the association of IP addresses to MAC addresses. This allows ARP protection to function effectively by ensuring that only valid ARP requests and responses are processed, thus preventing ARP spoofing attacks. Trusting ports that connect to employee devices directly could lead to bypassing ARP protection if those devices are compromised.

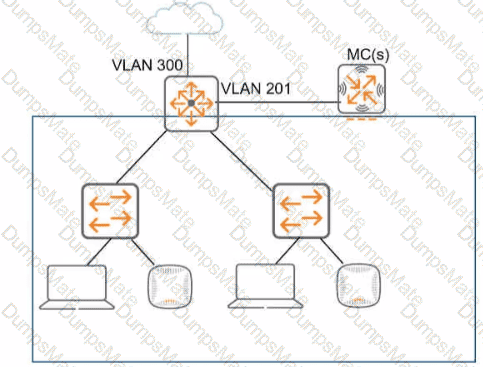

The company’s goal is to prevent internal users from exploiting ARP within their ArubaOS-Switch network. Let’s break down the options:

Option A (Incorrect): Enabling ARP protection globally on Switch-1 and all VLANs is not the best approach. ARP protection should be selectively applied where needed, not globally. It’s also not clear why Switch-1 is mentioned when the exhibit focuses on Switch-2.

Option B (Incorrect): Making ports connected to employee devices trusted for ARP protection is a good practice, but it’s not sufficient by itself. Trusted ports allow ARP traffic, but we need an additional layer of security.

Option C (Correct): This is the recommended approach. Here’s why:

DHCP Snooping: First, enable DHCP snooping globally. DHCP snooping helps validate DHCP messages and builds an IP-MAC binding table. This table is crucial for ARP protection to function effectively.

VLAN 201: Enable DHCP snooping specifically on VLAN 201 (as shown in the exhibit). This ensures that DHCP messages within this VLAN are validated.

ARP Protection: Once DHCP snooping is in place, enable ARP protection. ARP requests/replies from untrusted ports with invalid IP-to-MAC bindings will be dropped. This prevents internal users from exploiting ARP for attacks like man-in-the-middle.

Option D (Incorrect): While static ARP bindings can enhance security, they are cumbersome to manage and don’t dynamically adapt to changes in the network.

Based on the exhibits which seem to show RADIUS authentication and CoA logs, one can determine that CPPM (ClearPass Policy Manager) initially assigned the client to a role meant for non-profiled devices and then sent a CoA to the network access device (authenticator) once the device was categorized. This is a common workflow in network access control, where a device is first given limited access until it can be properly identified, after which appropriate access policies are applied.

In SNMPv3, security is paramount and each SNMP entity (client or agent) needs to have a user with a security name (username) and optionally, a security level which determines whether authentication and encryption are used. When configuring SNMPv3 users on network infrastructure devices, it is essential to match the username, authentication (auth) algorithm, authentication key (auth key), privacy (priv) algorithm, and privacy key (priv key) exactly as they are configured on the SNMP server to ensure successful communication.

This is because the SNMPv3 security model relies on a combination of a username and a pair of keys (authentication and privacy keys) to uniquely identify and secure communication between the agent and the manager. The keys are used to verify the integrity (auth key) and confidentiality (priv key) of the messages. Using the same algorithms ensures that the messages can be properly encrypted and decrypted on both ends.

When a device like Device A contacts a secure website and receives a certificate chain from the server, the browser's primary task is to validate the web server's certificate to ensure it is trustworthy. Part of this validation includes checking that the certificate contains a DNS Subject Alternative Name (SAN) that matches the domain name of the website being accessed—in this case, arubapedia.arubanetworks.com. This ensures that the certificate was indeed issued to the entity operating the domain and helps prevent man-in-the-middle attacks where an invalid certificate could be presented by an attacker. The DNS SAN check is critical because it directly ties the digital certificate to the domain it secures, confirming the authenticity of the website to the user's browser.

ClearPass Onboard is part of the Aruba ClearPass suite and it provides a mechanism to deploy certificates to end-user devices, regardless of whether or not they are members of a Windows domain. ClearPass Onboard facilitates the configuration and provisioning of network settings and security, including the delivery and installation of certificates to ensure secure network access. This capability enables a bring-your-own-device (BYOD) environment where devices can be securely managed and provided with the necessary certificates for network authentication.

When a browser, like Chrome, is validating a web server's certificate, it uses the public key in the certificate's signing authority to verify the certificate's digital signature. In the case of the exhibit, the browser would use the public key in the DigiCert SHA2 Secure Server CA certificate to check the signature of the Arubapedia web server's certificate. This process ensures that the certificate was indeed issued by the claimed Certificate Authority (CA) and has not been tampered with.

Endpoint classification in HPE Aruba Networking ClearPass Policy Manager (CPPM) involves identifying and categorizing devices on the network to enforce access policies. CPPM supports two types of profiling methods: passive and active.

Passive Profiling: Involves observing network traffic that devices send as part of their normal operation, without CPPM sending any requests to the device. Examples include DHCP fingerprinting, HTTP User-Agent analysis, and TCP fingerprinting.

Active Profiling: Involves CPPM sending requests to the device to gather information, such as SNMP scans, WMI scans, or SSH probes.

Option A, "TCP fingerprinting," is correct. TCP fingerprinting is a passive profiling method where CPPM analyzes TCP packet headers (e.g., TTL, window size) in the device’s normal network traffic to identify its operating system. This does not require CPPM to send any requests to the device, making it a passive method.

Option B, "SSH scans," is incorrect. SSH scans involve actively connecting to a device over SSH to gather information (e.g., system details), which is an active profiling method.

Option C, "WMI scans," is incorrect. Windows Management Instrumentation (WMI) scans involve CPPM querying a Windows device to gather information (e.g., OS version, installed software), which is an active profiling method.

Option D, "SNMP scans," is incorrect. SNMP scans involve CPPM sending SNMP requests to a device to gather information (e.g., system description, interfaces), which is an active profiling method.

The HPE Aruba Networking ClearPass Policy Manager 6.11 User Guide states:

"Passive profiling methods observe network traffic that endpoints send as part of their normal operation, without ClearPass sending any requests to the device. An example of passive profiling is TCP fingerprinting, where ClearPass analyzes TCP packet headers (e.g., TTL, window size) to identify the device’s operating system. Active profiling methods, such as SNMP scans, WMI scans, or SSH scans, involve ClearPass sending requests to the device to gather information." (Page 246, Passive vs. Active Profiling Section)

Additionally, the ClearPass Device Insight Data Sheet notes:

"Passive profiling techniques, such as TCP fingerprinting, allow ClearPass to identify devices without generating additional network traffic. By analyzing TCP attributes in the device’s normal traffic, ClearPass can fingerprint the OS, making it a non-intrusive method for endpoint classification." (Page 3, Profiling Methods Section)

For an ArubaOS-CX switch enforcing 802.1X on a port without any fallback options or port-access roles configured, and where the supplicant on the connected client has not completed authentication, the only type of traffic the authenticator accepts from the client is EAP (Extensible Authentication Protocol). EAP is a universal authentication framework used in 802.1X for message exchange during the authentication process. The switch allows EAP packets because they are necessary for the client and the authentication server to perform the authentication process. This is standard behavior for 802.1X authenticators, which is to permit EAP traffic to pass through even before authentication is successful to facilitate the authentication exchange. This information is supported by the IEEE 802.1X standard and ArubaOS-CX security configuration guides.

Tunneling traffic between an Aruba switch and an Aruba Mobility Controller (MC) allows for the centralized application of firewall policies and deep packet inspection to wired clients. By directing traffic through the MC, network administrators can implement a consistent set of security policies across both wired and wireless segments of the network, enhancing overall network security posture.

Malware (malicious software) is a broad category of software designed to harm or exploit systems. HPE Aruba Networking documentation often discusses malware in the context of network security threats and mitigation strategies, such as those detected by the Wireless Intrusion Prevention (WIP) system.

Option A, "Worms are usually delivered in spear-phishing attacks and require users to open and run a file," is incorrect. Worms are a type of malware that replicate and spread automatically across networks without user interaction (e.g., by exploiting vulnerabilities). They are not typically delivered via spear-phishing, which is more associated with Trojans or ransomware. Worms do not require users to open and run a file; that behavior is characteristic of Trojans.

Option B, "Rootkits can help hackers gain elevated access to a system and often actively conceal themselves from detection," is correct. A rootkit is a type of malware that provides hackers with privileged (elevated) access to a system, often by modifying the operating system or kernel. Rootkits are designed to hide their presence (e.g., by concealing processes, files, or network connections) to evade detection by antivirus software or system administrators, making them a stealthy and dangerous type of malware.

Option C, "A Trojan is any type of malware that replicates itself and spreads to other systems automatically," is incorrect. A Trojan is a type of malware that disguises itself as legitimate software to trick users into installing it. Unlike worms, Trojans do not replicate or spread automatically; they require user interaction (e.g., downloading and running a file) to infect a system.

Option D, "Malvertising can only infect a system if the user encounters the malware on an untrustworthy site," is incorrect. Malvertising (malicious advertising) involves embedding malware in online ads, which can appear on both trustworthy and untrustworthy sites. For example, a legitimate website might unknowingly serve a malicious ad that exploits a browser vulnerability to infect the user’s system, even without the user clicking the ad.

The HPE Aruba Networking Security Guide states:

"Rootkits are a type of malware that can help hackers gain elevated access to a system by modifying the operating system or kernel. They often actively conceal themselves from detection by hiding processes, files, or network connections, making them difficult to detect and remove. Rootkits are commonly used to maintain persistent access to a compromised system." (Page 22, Malware Types Section)

Additionally, the HPE Aruba Networking AOS-8 8.11 User Guide notes:

"The Wireless Intrusion Prevention (WIP) system can detect various types of malware. Rootkits, for example, are designed to provide hackers with elevated access and often conceal themselves to evade detection, allowing the hacker to maintain control over the infected system for extended periods." (Page 421, Malware Threats Section)

WPA3-Personal enhances security over WPA2-Personal by implementing individualized data encryption. This feature, known as Wi-Fi Enhanced Open, provides each user's session with a unique encryption key, even if they are using the same network passphrase. This prevents an authenticated user from eavesdropping on the traffic of other users on the same network, thus enhancing privacy and security.

WPA3-Enterprise enhances network security over WPA2-Enterprise through several improvements, one of which is the ability to operate in CNSA (Commercial National Security Algorithm) mode. This mode mandates the use of secure cryptographic algorithms during the 802.11 association process, ensuring that all communications are highly secure. The CNSA suite provides stronger encryption standards designed to protect sensitive government, military, and industrial communications. Unlike WPA2, WPA3's CNSA mode uses stronger cryptographic primitives, such as AES-256 in Galois/Counter Mode (GCM) for encryption and SHA-384 for hashing, which are not standard in WPA2-Enterprise.

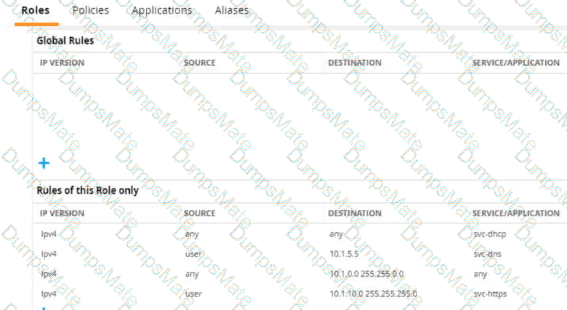

Referring to the exhibit, the ArubaOS Mobility Controller treats HTTPS packets based on the firewall rules applied to the client. The rule that allows svc-https service for destination IP range 10.1.0.0 255.255.0.0 would permit an HTTPS packet to 10.1.10.10 since this IP address falls within the specified range. There are no rules shown that would allow traffic to the IP address 203.0.13.5; hence, the packet to this address would be dropped.

Adding Aruba Airwave to an Aruba solution that includes a Mobility Master (MM), Mobility Controllers (MCs), and campus APs offers several benefits, notably in the realm of network forensics. One of the significant advantages is that Airwave can retain detailed information about the network for much longer periods than what is typically possible with just ArubaOS solutions. This extensive data retention is crucial for forensic analysis, allowing network administrators and security professionals to conduct thorough investigations of past incidents. With access to historical data, professionals can identify trends, pinpoint security breaches, and understand the impact of specific changes or events within the network over time.

In the context of an Aruba Mobility Controller (MC) configuration, a client will receive the default role assignment if they have passed 802.1X authentication and the authentication server did not send an Aruba-User-Role Vendor Specific Attribute (VSA). The default role is assigned by the MC when a client successfully authenticates but the authentication server provides no specific role instruction. This behavior ensures that a client is not left without any role assignment, which could potentially lead to a lack of network access or access control. This default role assignment mechanism is part of Aruba's role-based access control, as documented in the ArubaOS user guide and best practices.

When troubleshooting connectivity issues for a user connecting to an AP managed by a standalone Mobility Controller (MC) in an AOS-8 architecture, detailed logs and debugs specific to the user’s client are essential. The MC provides several tools for capturing logs and debugging information, including packet captures and user-specific debug logs.

Option D, "In the MC UI’s Diagnostics > Logs pages, add a ‘user-debug’ log setting for the client's MAC address," is correct. The "user-debug" feature in the MC allows administrators to enable detailed debugging for a specific client by specifying the client’s MAC address. This generates logs related to the client’s authentication, association, role assignment, and other activities, which are critical for troubleshooting connectivity issues. The Diagnostics > Logs pages in the MC UI provide a user-friendly way to configure this setting and view the resulting logs.

Option A, "In the MC CLI, set up a control plane packet capture and filter for the client's IP address," is incorrect because control plane packet captures are used to capture management traffic (e.g., between the MC and APs or other controllers), not user traffic. Additionally, the client may not yet have an IP address if connectivity is failing, making an IP-based filter less effective.

Option B, "In the MC CLI, set up a data plane packet capture and filter for the client's MAC address," is a valid troubleshooting method but is not the best choice for getting detailed logs. Data plane packet captures are useful for analyzing user traffic (e.g., to see if packets are being dropped), but they do not provide the same level of detailed logging as the "user-debug" feature, which includes authentication and association events.

Option C, "In the MC UI’s Traffic Analytics dashboard, look for the client's IP address," is incorrect because the Traffic Analytics dashboard is used for monitoring application usage and traffic patterns, not for detailed troubleshooting of a specific client’s connectivity issues. Additionally, if the client cannot connect, it may not have an IP address or generate traffic visible in the dashboard.

The HPE Aruba Networking AOS-8 8.11 User Guide states:

"To troubleshoot issues for a specific wireless client, you can enable user-specific debugging using the ‘user-debug’ feature. In the Mobility Controller UI, navigate to Diagnostics > Logs, and add a ‘user-debug’ log setting for the client’s MAC address. This will generate detailed logs for the client, including authentication, association, and role assignment events, which can be viewed in the Logs page. For example, to enable user-debug for a client with MAC address 00:11:22:33:44:55, add the setting ‘user-debug 00:11:22:33:44:55’." (Page 512, Troubleshooting Wireless Clients Section)

Additionally, the guide notes:

"While packet captures (control plane or data plane) can be useful for analyzing traffic, the ‘user-debug’ feature provides more detailed logs for troubleshooting client-specific issues, such as failed authentication or association problems." (Page 513, Debugging Tools Section)

Setting up a packet capture on an Aruba Mobility Controller (MC) is particularly useful in scenarios where detailed analysis of network traffic is necessary to identify and address security concerns. Option B is the correct answer because it directly addresses the need to closely examine the traffic of a potentially malicious wireless endpoint. Packet capture on the MC allows the security team to collect and analyze traffic to/from specific endpoints in real-time, providing valuable insights into the nature of the traffic and potentially identifying harmful activities. This capability is essential for forensics and troubleshooting security incidents, enabling administrators to respond effectively to threats.

The scenario involves an AOS-CX switch configured for 802.1X port-access authentication. The configuration defines several roles and their associated VLANs:

port-access role role1 vlan access 11: Role1 assigns VLAN 11.

port-access role role2 vlan access 12: Role2 assigns VLAN 12.

port-access role role3 vlan access 13: Role3 assigns VLAN 13.

port-access role role4 vlan access 14: Role4 assigns VLAN 14.

The switch has 802.1X authentication enabled globally (aaa authentication port-access dot1x authenticator enable). Two ports are configured:

Interface 1/1/1:

vlan access 1: Default VLAN is 1.

aaa authentication port-access critical-role role1: If the RADIUS server is unavailable, assign role1 (VLAN 11).

aaa authentication port-access preauth-role role2: Before authentication, assign role2 (VLAN 12).

aaa authentication port-access auth-role role3: After successful authentication, assign role3 (VLAN 13) unless overridden by a VSA.

Interface 1/1/2: Same configuration as 1/1/1.

Client1 on port 1/1/1:

Client1 authenticates successfully, and CPPM sends an Access-Accept with the VSA Aruba-User-Role: role4.

In AOS-CX, the auth-role (role3) is applied after successful authentication unless the RADIUS server specifies a different role via the Aruba-User-Role VSA. Since CPPM sends Aruba-User-Role: role4, and role4 exists on the switch, Client1 is assigned role4 (VLAN 14), overriding the default auth-role (role3).

Client2 on port 1/1/2:

Client2 does not attempt to authenticate (i.e., does not send 802.1X credentials).

In AOS-CX, if a client does not attempt authentication and no other authentication method (e.g., MAC authentication) is configured, the client is placed in the preauth-role (role2, VLAN 12). This role is applied before authentication or when authentication is not attempted, allowing the client limited access (e.g., to perform authentication or access a captive portal).

Option A, "Client1 = role3; Client2 = role2," is incorrect because Client1 should be assigned role4 (from the VSA), not role3.

Option B, "Client1 = role4; Client2 = role1," is incorrect because Client2 should be assigned the preauth-role (role2), not the critical-role (role1), since the RADIUS server is reachable (Client1 authenticated successfully).

Option C, "Client1 = role4; Client2 = role2," is correct. Client1 gets role4 from the VSA, and Client2 gets the preauth-role (role2) since it does not attempt authentication.

Option D, "Client1 = role3; Client2 = role1," is incorrect for the same reasons as Option A and Option B.

The HPE Aruba Networking AOS-CX 10.12 Security Guide states:

"After successful 802.1X authentication, the AOS-CX switch assigns the client to the auth-role configured for the port (e.g., aaa authentication port-access auth-role role3). However, if the RADIUS server returns an Aruba-User-Role VSA (e.g., Aruba-User-Role: role4), and the specified role exists on the switch, the client is assigned that role instead of the auth-role. If a client does not attempt authentication and no other authentication method is configured, the client is assigned the preauth-role (e.g., aaa authentication port-access preauth-role role2), which provides limited access before authentication." (Page 132, 802.1X Authentication Section)

Additionally, the guide notes:

"The critical-role (e.g., aaa authentication port-access critical-role role1) is applied only when the RADIUS server is unavailable. The preauth-role is applied when a client connects but does not attempt 802.1X authentication." (Page 134, Port-Access Roles Section)

In an AOS-8 Mobility Controller (MC) environment, a WLAN is configured with WPA3-Enterprise security, using HPE Aruba Networking ClearPass Policy Manager (CPPM) for authentication. The WLAN’s default role is set to "guest," which would be applied if no specific role is assigned after authentication. The MC has several roles configured, including "general-access" (note the underscore in the question: "general_access").

The client successfully authenticates, and CPPM sends an Access-Accept message with an Aruba-User-Role Vendor-Specific Attribute (VSA) set to "general_access." In AOS-8, the Aruba-User-Role VSA is used to assign a specific role to the client, overriding the default role configured on the WLAN. The role specified in the VSA must match a role that exists on the MC. Since "general-access" (or "general_access" as written in the question) is listed among the roles configured on the MC, the MC will apply this role to the client.

The underscore in "general_access" in the VSA versus the hyphen in "general-access" in the MC’s role list is likely a typographical inconsistency in the question. In practice, AOS-8 role names are case-insensitive and typically use hyphens, not underscores, but for the purpose of this question, we assume "general_access" matches "general-access" as the intended role.

Option A, "guest," is incorrect because the guest role is the default 802.1X role for the WLAN, but it is overridden by the Aruba-User-Role VSA specifying "general_access."

Option B, "logon," is incorrect because the logon role is typically applied during the authentication process (e.g., to allow access to DNS or RADIUS servers), not after successful authentication when a specific role is assigned.

Option C, "general-access," is correct because the MC applies the role specified in the Aruba-User-Role VSA ("general_access"), which matches the "general-access" role configured on the MC.

Option D, "authenticated," is incorrect because the "authenticated" role is not specified in the VSA, and there is no indication that it is the default role for successful authentication in this scenario.

The HPE Aruba Networking AOS-8 8.11 User Guide states:

"When a client authenticates successfully via 802.1X, the Mobility Controller checks for an Aruba-User-Role VSA in the RADIUS Access-Accept message. If the VSA is present and the specified role exists on the controller, the controller assigns that role to the client, overriding the default 802.1X role configured for the WLAN. For example, if the VSA specifies ‘general-access’ and this role is configured on the controller, the client will be assigned the ‘general-access’ role." (Page 305, Role Assignment Section)

Additionally, the HPE Aruba Networking ClearPass Policy Manager 6.11 User Guide notes:

"The Aruba-User-Role VSA allows ClearPass to assign a specific role to a client on an Aruba Mobility Controller. The role name sent in the VSA must match a role configured on the controller, and the controller will apply this role to the client session, ignoring the default role for the WLAN." (Page 289, RADIUS Enforcement Section)

An initialization vector (IV) is a random or pseudo-random value used in encryption algorithms to enhance security. It is commonly used in symmetric encryption modes like Cipher Block Chaining (CBC) or Counter (CTR) modes with algorithms such as AES, which is used in WPA3 and other Aruba security features.

Option B, "It makes encryption algorithms more secure by ensuring that the same plaintext and key can produce different ciphertext," is correct. The primary purpose of an IV is to introduce randomness into the encryption process. When the same plaintext is encrypted with the same key multiple times, the IV ensures that the resulting ciphertext is different each time. This prevents attackers from identifying patterns in the ciphertext, which could otherwise be used to deduce the plaintext or key. For example, in AES-CBC mode, the IV is XORed with the first block of plaintext before encryption, and each subsequent block is chained with the previous ciphertext, ensuring unique outputs.

Option A, "It enables programs to convert easily-remembered passphrases to keys of a correct length," is incorrect. This describes a key derivation function (KDF), such as PBKDF2, which converts a passphrase into a cryptographic key of the correct length. An IV is not involved in key derivation.

Option C, "It helps parties to negotiate the keys and algorithms used to secure data before data transmission," is incorrect. This describes a key exchange or handshake protocol (e.g., Diffie-Hellman or the 4-way handshake in WPA3), not the role of an IV. The IV is used during the encryption process, not during key negotiation.

Option D, "It enables the conversion of asymmetric keys into keys that are suitable for symmetric encryption," is incorrect. This describes a process like hybrid encryption (e.g., using RSA to encrypt a symmetric key), which is not the purpose of an IV. An IV is used in symmetric encryption to enhance security, not to convert keys.

The HPE Aruba Networking Wireless Security Guide states:

"An initialization vector (IV) is a random value used in symmetric encryption algorithms like AES to enhance security. The IV ensures that the same plaintext encrypted with the same key produces different ciphertext each time, preventing attackers from identifying patterns in the ciphertext. In WPA3, for example, the IV is used in AES-GCMP encryption to ensure that each packet is encrypted uniquely, even if the same data is sent multiple times." (Page 28, Encryption Fundamentals Section)

Additionally, the HPE Aruba Networking AOS-8 8.11 User Guide notes:

"The initialization vector (IV) in encryption algorithms like AES-CBC or AES-GCMP makes encryption more secure by ensuring that identical plaintext encrypted with the same key results in different ciphertext. This randomness prevents pattern analysis attacks, which could otherwise compromise the security of the encryption." (Page 282, Wireless Encryption Section)

ClearPass Policy Manager (CPPM) can receive detailed information about client device type, OS, and status from ClearPass OnGuard. ClearPass OnGuard is part of the ClearPass suite and provides posture assessment and endpoint health checks. It gathers detailed information on the status and security posture of devices trying to connect to the network, such as whether antivirus software is up to date, which operating system is running, and other details that characterize the device's compliance with the network's security policies.

An ArubaOS user role determines the firewall policies and bandwidth contracts that apply to the client’s traffic. When a user is authenticated, they are assigned a role, and this role has associated policies that govern network access rights, Quality of Service (QoS), Layer 2 forwarding, Layer 3 routing behaviors, and bandwidth contracts for users or devices.

Protected Management Frames (PMF), also known as Management Frame Protection (MFP), is designed to protect clients from denial-of-service (DoS) attacks that involve forged de-authentication and disassociation frames. These attacks can disconnect legitimate clients from the network. PMF provides a way to authenticate these management frames, ensuring that they are not forged, thus enhancing the security of the wireless network.

The thumbprint (also known as a fingerprint) of a certificate or SSH key is a hash that uniquely represents the public key contained within. When you first connect to the switch with SSH from a management station, you should ensure that the thumbprint matches what you expect. This is a security measure to confirm the identity of the device you are connecting to and to ensure that a man-in-the-middle (MITM) attack is not occurring. If the thumbprint matches the known good thumbprint of the switch, it is safe to proceed with the connection.

The ArubaOS firewall determines which rules to apply to a specific client's traffic based on the rules in policies associated with the client's user role. User roles are a fundamental part of ArubaOS and the firewall policies they encompass. These roles contain policies that dictate permissions and restrictions for network traffic. When a client authenticates, it is assigned a role, and the firewall enforces the rules defined within that role for the client's traffic.

EST (Enrollment over Secure Transport) is a protocol designed to streamline the certificate management process. It enables automated and secure enrollment, renewal, and revocation of digital certificates, which significantly reduces the management overhead typically associated with digital certificates. With EST, administrators can more easily manage certificates' lifecycle, ensuring that expired certificates are promptly replaced or renewed without significant manual intervention.

To meet the requirements for configuring an ArubaOS-CX switch for integration with ClearPass Policy Manager (CPPM), it is necessary to set the AAA authentication login method for SSH to use the “radius” server-group, with “local” as a backup. This ensures that when an admin attempts to SSH into the switch, the authentication request is first sent to CPPM via RADIUS. If CPPM is unavailable, the switch will fall back to using local authentication12.

Here’s why the other options are not correct:

Option B is incorrect because configuring a CPPM username and password on the switch that matches a CPPM admin account is not required for SSH login; rather, the switch needs to be configured to communicate with CPPM for authentication.

Option C is incorrect because while CPPM will send Aruba-Admin-Role Vendor-Specific Attributes (VSAs), the switch does not need to have port-access roles created with the same names; it needs to interpret the VSA to assign the correct role.

Option D is incorrect because disabling SSH on the default VRF and enabling it on the mgmt VRF is not related to the authentication process with CPPM.

Therefore, the correct answer is A, as setting the AAA authentication login method for SSH to the “radius” server-group with “local” as backup is a key step in ensuring that the switch can authenticate admins through CPPM while providing a fallback method12.

Aruba ClearPass Device Insight offers a significant benefit by providing highly accurate endpoint classification. This feature is particularly useful in complex environments with a wide variety of device types, including IoT devices. Accurate device classification allows network administrators to better understand the nature and behavior of devices on their network, which is crucial for implementing appropriate security policies and ensuring network performance and security.

Symmetric encryption is a type of encryption where the same key is used to encrypt and decrypt the message. It's called "symmetric" because the key used for encryption is identical to the key used for decryption. The data, or plaintext, is transformed into ciphertext during encryption, and then the same key is used to revert the ciphertext back to plaintext during decryption. It is a straightforward method but requires secure handling and exchange of the encryption key.

To enable managers to use certificates to log into the Web UI of an Aruba Mobility Controller (MC), where Aruba ClearPass Policy Manager (CPPM) acts as the external server for authentication, it is essential to ensure that the MC trusts the HTTPS certificate used by CPPM. This involves uploading a trusted CA certificate to the MC that matches the one used by CPPM. Additionally, configuring a username and password for CPPM on the MC might be necessary to secure and facilitate communication between the MC and CPPM. This setup ensures that certificate-based authentication is securely validated, maintaining secure access control for the Web UI.

The Lockheed Martin Cyber Kill Chain model describes the stages of a cyber attack. In the exploitation phase, the attacker uses vulnerabilities to gain access to the system. Following this, in the installation phase, the attacker installs a backdoor or other malicious software to ensure persistent access to the compromised system. This backdoor can then be used to control the system, steal data, or execute additional attacks.

The ArubaOS firewall is a stateful firewall, meaning that it can track the state of active sessions and can make decisions based on the context of the traffic. This stateful inspection capability allows it to automatically allow return traffic for sessions that it has permitted, thereby enabling seamless two-way communication for authorized users while maintaining the security posture of the network.

The scenario involves an AOS-CX switch that needs to send RADIUS debug messages to a central SIEM server at 10.5.15.6. The switch has already been configured to send logs to the SIEM server with the command logging 10.5.15.6, and the command debug radius all has been entered to enable RADIUS debugging.

Debug Command: The debug radius all command enables debugging for all RADIUS-related events on the AOS-CX switch, generating detailed debug messages for RADIUS authentication, accounting, and other operations.

Debug Destination: Debug messages on AOS-CX switches can be sent to various destinations, such as the console, a file, the debug buffer, or a Syslog server. The logging 10.5.15.6 command indicates that the switch is configured to send logs to a Syslog server at 10.5.15.6 (using UDP port 514 by default, unless specified otherwise).

Option D, "syslog," is correct. To send RADIUS debug messages to the SIEM server, the debug destination must be set to "syslog," as the SIEM server is already defined as a Syslog destination with logging 10.5.15.6. The command to set the debug destination to Syslog is debug destination syslog, which ensures that the RADIUS debug messages are sent to the configured Syslog server (10.5.15.6).

Option A, "file," is incorrect. Sending debug messages to a file (e.g., using debug destination file) stores the messages on the switch’s filesystem, not on the SIEM server.

Option B, "console," is incorrect. Sending debug messages to the console (e.g., using debug destination console) displays them on the switch’s console session, not on the SIEM server.

Option C, "buffer," is incorrect. Sending debug messages to the buffer (e.g., using debug destination buffer) stores them in the switch’s debug buffer, which can be viewed with show debug buffer, but does not send them to the SIEM server.

The HPE Aruba Networking AOS-CX 10.12 System Management Guide states:

"To send debug messages, such as RADIUS debug messages, to a central SIEM server, first configure the Syslog server with the logging command (e.g., logging 10.5.15.6). Then, enable the desired debug with a command like debug radius all, and set the debug destination to Syslog using debug destination syslog. This ensures that all debug messages are sent to the configured Syslog server for centralized logging." (Page 92, Debug Logging Section)

Additionally, the HPE Aruba Networking AOS-CX 10.12 Security Guide notes:

"RADIUS debug messages can be sent to a Syslog server for centralized monitoring. After enabling RADIUS debugging with debug radius all, use debug destination syslog to send the messages to the Syslog server configured with the logging command, such as a SIEM server at 10.5.15.6." (Page 152, RADIUS Debugging Section)

A Server Certificate is required by Aruba Mobility Controller when using RadSec to secure RADIUS communication. RadSec provides a secure transport for RADIUS traffic through SSL/TLS which requires the use of a Server Certificate to establish the secure tunnel. In the other scenarios listed, a Server Certificate is not explicitly required for the operations mentioned.
