HPE7-A01 Aruba Certified Campus Access Professional Exam Questions and Answers

OSPF (Open Shortest Path First) is a routing protocol that uses link-state information to calculate the best path to each destination in the network. OSPF establishes adjacencies with neighboring routers to exchange routing information and maintain a consistent view of the network topology1.

To establish an OSPF adjacency, the routers need to have some common parameters, such as the area ID, the network type, the hello interval, the dead interval, and the authentication method2. The routers also need to have a matching subnet mask on the interface that connects them3.

In this case, the Aruba CX 6300 VSF stack has an SVI (Switched Virtual Interface) on VLAN 10 with an IP address of 10.1.1.1/24 and a LAG (Link Aggregation Group) on port 1/1/1 and port 2/1/1 that connects to a neighboring device. The SVI is configured with OSPF area 0 and network type broadcast. The LAG is configured with OSPF passive mode, which means that it will not send or receive OSPF hello packets.

The neighboring device has an interface with an IP address of 10.1.1.2/24 and a LAG on port 1/0/1 and port 2/0/1 that connects to the Aruba CX 6300 VSF stack. The interface is configured with OSPF area 0 and network type broadcast.

Since the Aruba CX 6300 VSF stack and the neighboring device have the same area ID, network type, subnet mask, and default hello and dead intervals on their interfaces, they will be able to establish an OSPF adjacency over SVI 10 with LAG 1. The OSPF passive mode on the LAG will not affect the adjacency, because it only applies to the LAG interface, not the SVI interface.

The component that is used by the Aruba Network Analytics Engine (NAE) is D. Current State Database.

The Current State Database is a database that stores the configuration and state information of the switch, such as interfaces, VLANs, routing protocols, statistics, and more. The NAE can access this database through the AOS-CX REST API and monitor the values of any data point using monitors. The NAE can also track the history of the values in a time-series database and correlate them with network events or configuration changes1. The Current State Database provides NAE with direct visibility into the entire current state of the device, which enables intelligent troubleshooting and automation of network tasks1.

The other options are incorrect because:

A. JSON-based scripts: JSON is a data format that is used to exchange information between applications. It is not a scripting language that can be used by NAE. NAE scripts are written in Python, which is a popular and powerful programming language1.

B. Lisp-based agents: Lisp is a family of programming languages that are mainly used for artificial intelligence and functional programming. It is not a language that can be used by NAE. NAE agents are instances of scripts that run on the switch and collect relevant network information and trigger alerts or actions1.

C. Ruby-based scripts: Ruby is a general-purpose programming language that is known for its expressiveness and elegance. It is not a language that can be used by NAE. NAE scripts are written in Python, which is a popular and powerful programming language1.

An OSPF transit network is a network that has at least two routers that are connected by a multi-access link and can forward traffic for other networks1. A transit network is different from a stub network, which has only one router connected to it and does not forward traffic for other networks2. A transit network is also different from a virtual link, which is a logical connection between two areas that are not physically adjacent2. A transit network is not necessarily connected to a different routing protocol, although it can be if the router performs redistribution2. Therefore, the correct answer is C. A network on which a router discovers at least one neighbor.

802.11mc is a standard that uses Round Trip Time (RTT) and Fine Time Measurements (FTM) to calculate the distance a client is from an AP. 802.11mc defines a protocol for exchanging FTM frames between an AP and a client, which contain timestamps that indicate when the frames were transmitted and received. By measuring the RTT of these frames, the AP or the client can estimate their distance based on the speed of light. The other options are incorrect because they either do not use RTT or FTM or do not exist as standards. References: https://www.arubanetworks.com/assets/wp/WP_WiFi6.pdf https://www.arubanetworks.com/assets/ds/DS_AP510Series.pdf

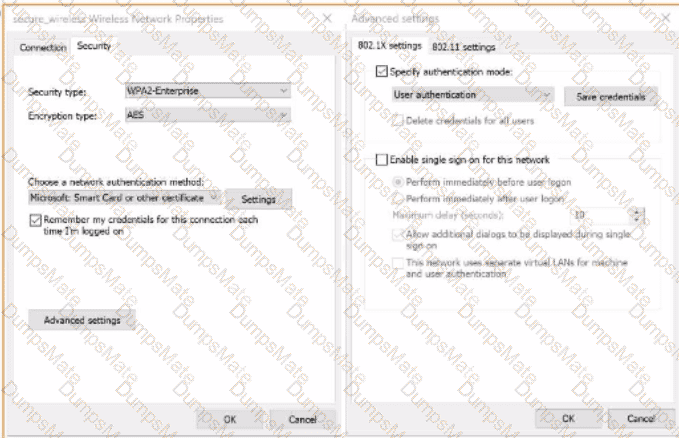

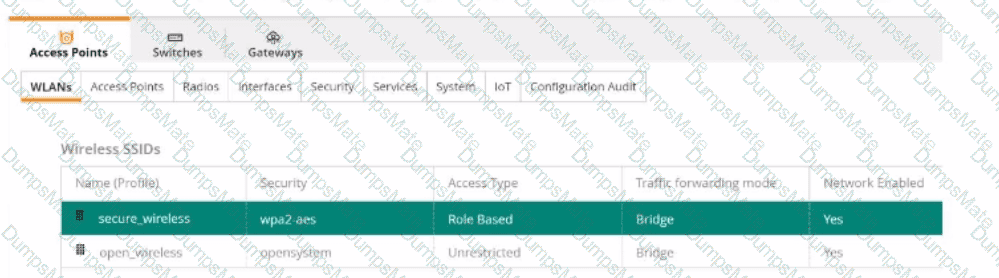

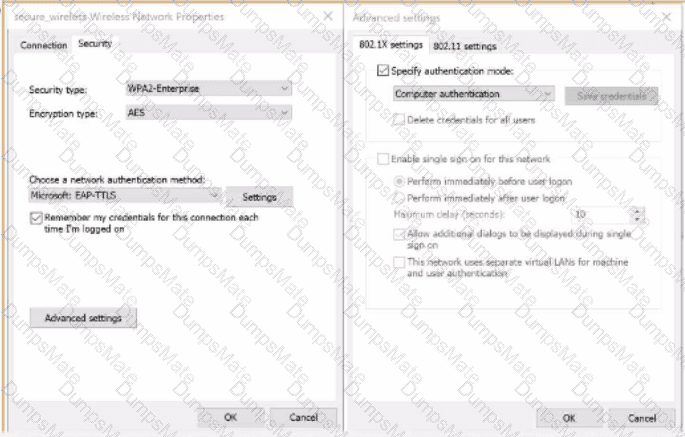

HPE Aruba Networking role-based access combines ClearPass authentication/authorization policy with user roles enforced by the Aruba wireless infrastructure. ClearPass first authenticates the employee and evaluates authorization attributes retrieved from a source such as Microsoft Active Directory . Membership in IT_Group should match an enforcement rule that returns the Aruba user role IT-ROLE , while membership in Sales_Group should result in SALES-ROLE .

The wireless infrastructure must then have corresponding roles configured so that the role returned by ClearPass has the required network policy. For this scenario, IT-ROLE must map to VLAN 100 , and SALES-ROLE must map to VLAN 200 . This preserves both the identity-based policy and the required VLAN segmentation.

The role is commonly returned through the Aruba RADIUS vendor-specific attribute Aruba-User-Role , allowing the AP/gateway to apply the appropriate role dynamically after successful authentication.

Options A and B reverse the required VLAN assignments, mapping IT to VLAN 200 and Sales to VLAN 100. Option C uses the wrong authorization group and also assigns the Sales role to VLAN 100. Therefore, only D satisfies all stated requirements.

Study Guide Topics: ClearPass Policy Manager, Active Directory Authorization, Enforcement Policies, Aruba-User-Role, Role-Based Access Control, Dynamic User Roles, VLAN Assignment.

MAC Caching is a feature that allows a guest user to bypass the captive portal page after the first authentication based on their MAC address1 MAC Caching can be enabled under the splash page settings in Aruba Cloud Guest2 MAC Caching can improve the user experience and reduce the network overhead by eliminating the need for repeated authentication.

To configure an IP address for an interface in default state for interface 1/1/1 on Aruba CX 6300 switch, you need to disable switching on the interface first with the command no switching. Then you can assign an IP address with the command ip address. The other options are incorrect because they either do not disable switching or use invalid keywords such as switching or routing. References: https://www.arubanetworks.com/techdocs/AOS-CX_10_08/UG/bk01-ch01.html https://www.arubanetworks.com/techdocs/AOS-CX_10_08/UG/bk01-ch02.html

According to the Aruba Documentation Portal1, the Aruba CX 6200F VSF stack is a feature that allows you to create a virtual switching framework (VSF) with up to eight members that can be managed as a single logical device. The VSF stack provides benefits such as load balancing, failover, redundancy, and security.

To add a new device to the VSF stack, you need to configure the device with the VSF command vsf member and specify the type, link, and secondary-member information. The type of the new device can be one of the following: JL726A, JL726B, JL726C, or JL726D. The link is the interface that connects the new device to the existing VSF members. The secondary-member is an optional parameter that specifies which member will act as a backup in case of a failure.

1: https://www.arubanetworks.com/techdocs/AOS-CX/10.06/HTML/5200-7726/index.html 2: https://buy.hpe.com/us/en/networking/switches/fixed-port-l3-managed-ethernet-switches/6000-switch-products/aruba-6200f-48g-4sfp-switch/p/jl726a 3: https://addin.co.th/shop/switch/aruba-switch/6200f-series/jl726a/

According to the Aruba Campus Access Professional documents1, WPA3-Enterprise is a security mode that supports 802.1X authentication and encryption with either AES-CCM or AES-GCMP. WPA3-Enterprise also optionally adds usage of Suite-B 192-bit minimum-level security suite that is aligned with Commercial National Security Algorithm (CNSA) for enterprise networks2. This mode provides the highest level of security and is suitable for government and financial institutions.

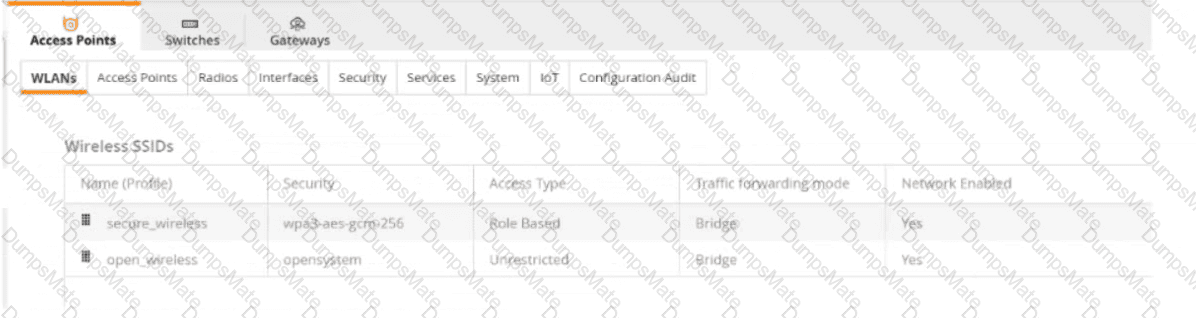

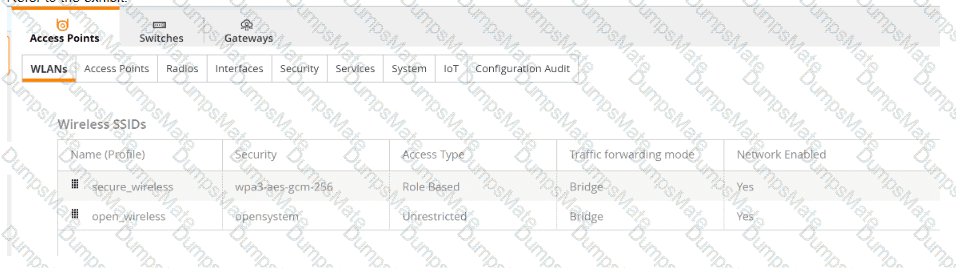

The exhibit shows that the SSID is configured with WPA3-Enterprise (CCM), which uses AES-CCM as the encryption protocol. However, this mode is not compatible with some devices that require CNSA compliance. Therefore, changing the SSID to WPA3-Enterprise (CNSA) would fix the issue and allow all devices to connect to the network.

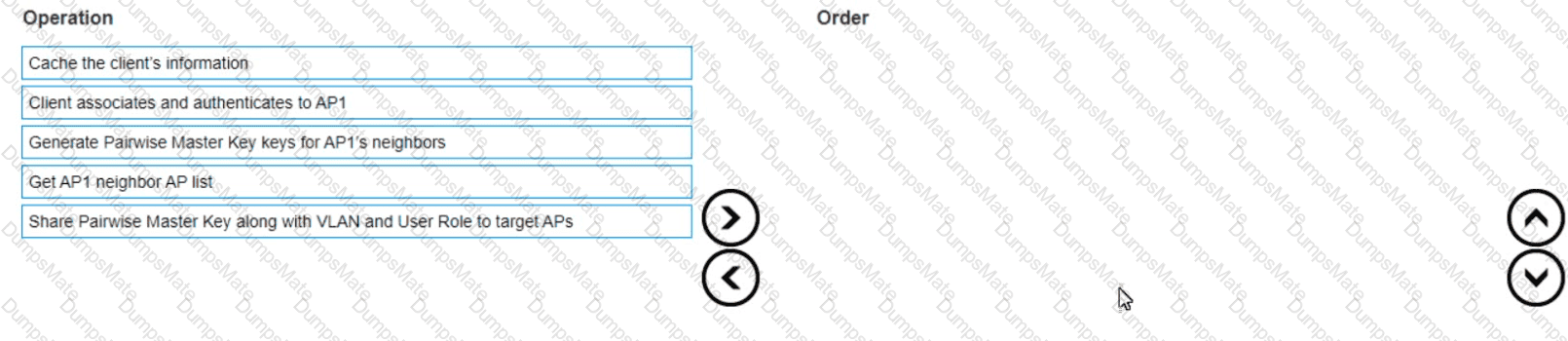

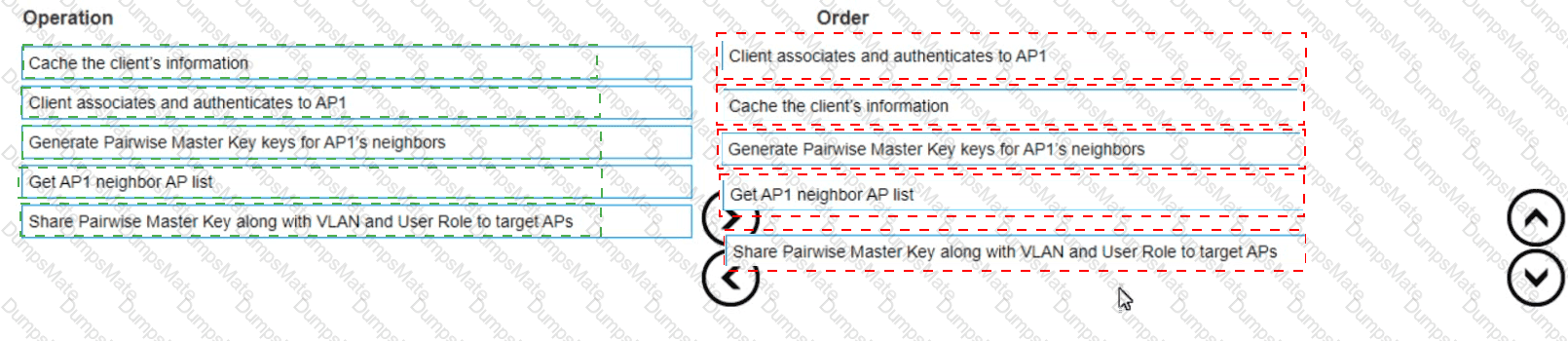

https://www.arubanetworks.com/techdocs/Instant_85_WebHelp/Content/instant-ug/wlan-ssid-conf/conf-fast-roam.htm

The correct built-in AOS-CX management role is administrators. HPE Aruba Networking defines the administrators group as the default role with full management privileges and explicitly assigns it privilege level 15. Members of this group can perform firmware upgrades, modify switch configuration, view sensitive configuration information, add or remove local user accounts, change passwords, and use all supported REST API methods. Aruba Networking

The existing auditors assignment does not satisfy the requirement. The auditors group is intentionally restricted to audit-related operations and is assigned privilege level 19, not 15. Its CLI access is limited to the auditor context, and its Web UI and REST API permissions are similarly restricted to logging and auditing resources. Aruba Networking

AOS-CX also documents the mapping used with TACACS+: privilege level 15 maps to administrators, privilege level 1 maps to operators, and privilege level 19 maps to auditors. Aruba Networking

Therefore, because this user needs both firmware-upgrade capability and privilege level 15, the appropriate default management role is administrators.

Study Guide Topics: AOS-CX Management Users, Built-in User Groups, RBAC, Privilege Levels, Administrators vs. Auditors, Firmware Management, TACACS+ Authorization.

Multicast Transmission Optimization (MTO) improves wireless multicast efficiency by allowing an Aruba AP to transmit broadcast and multicast frames at a higher data rate than the normally configured basic multicast rate. In Aruba Instant and Aruba Central WLAN configuration, the AP determines the optimized rate using the lowest unicast rate among all associated clients, ensuring that every associated client can still receive the multicast transmission reliably. Aruba Networking

Critically, Aruba documentation states that when this feature is enabled, multicast traffic can be transmitted at up to 24 Mbps. Therefore, B is the correct answer. In the documented Instant implementation, the normal default multicast transmission rates are typically much lower—1 Mbps on 2.4 GHz and 6 Mbps on 5 GHz—so MTO can substantially reduce airtime consumed by multicast traffic. Aruba Networking

Option A is incorrect because Aruba uses the lowest, not highest, unicast rate of associated clients. Option C incorrectly specifies 48 Mbps. Option D is also incorrect because MTO ' s rate-selection mechanism is based on client unicast data rates, not client latency. Aruba Networking

Study Guide Topics: WLAN Optimization, Multicast Transmission Optimization, Broadcast/Multicast Traffic, Wireless Data Rates, Aruba Instant/Central WLAN Profiles.

This is because Best Effort traffic is all other kinds of non-detrimental traffic that are not sensitive to Quality of Service metrics (jitter, packet loss, latency). A typical example would be peer-to-peer and email applications2. Background traffic is a type of traffic that is used for system maintenance or backup purposes and does not affect the performance or availability of the network3.

Therefore, Best Effort traffic has a higher priority than Background traffic in terms of network resources allocation and management.

1: https://www.arubanetworks.com/techdocs/ArubaDocPortal/content/docportal.htm 2: https://stackoverflow.com/questions/33854306/best-effort-traffic-and-real-time-traffic-difference 3: https://www.informit.com/articles/article.aspx?p=25315 & seqNum=4

The correct answer is C. Create a new SVI and use attach command.

To create a new SVI for a separate routing table, you need to use the attach command to associate the SVI with a VRF (Virtual Routing and Forwarding) instance. A VRF is a logical entity that allows multiple routing tables to coexist on the same switch. Each VRF has its own set of interfaces, routing protocols, and routes that are isolated from other VRFs.

According to the AOS-CX Virtual Switching Framework (VSF) Guide1, one of the steps to configure VRF-aware VSF is:

Configure the VRFs on each member switch and assign the SVIs to the respective VRFs using the attach command. For example:

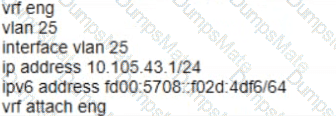

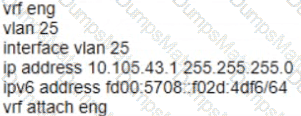

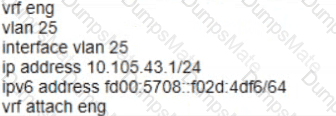

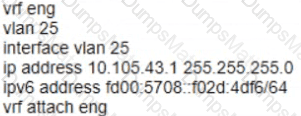

switch(config)# vrf red

switch(config-vrf)# exit

switch(config)# interface vlan 10

switch(config-if-vlan)# ip address 10.1.1.1/24

switch(config-if-vlan)# attach vrf red

The above commands create a VRF named red and assign VLAN 10 SVI to it. The SVI has an IP address of 10.1.1.1/24.

The other options are incorrect because:

A. You cannot attach a VRF to a VLAN directly. You need to create an SVI for the VLAN and then attach the VRF to the SVI.

B. You cannot create a new routing table manually. You need to create a VRF and then use routing protocols or static routes to populate the routing table for the VRF.

D. You cannot attach a routing table to a VLAN directly. You need to create an SVI for the VLAN and then attach a VRF that has a routing table associated with it.

The reason is that the Inter-Switch Link Protocol (ISLP) is a protocol that enables VSX stack join and synchronization between two VSX peer switches. ISLP uses a hello interval to exchange control messages between the switches.

The hello interval is a parameter that specifies the time interval between sending hello messages. The default value of the hello interval is 1 second. The hello interval can be configured from 1 second to 10 seconds.

https://www.arubanetworks.com/techdocs/AOS-CX/10.04/HTML/5200-6728/index.html

In the AOS-CX behavior covered by this Campus Access question, an HPE Compute/Server DAC is treated as an unsupported transceiver product when it is not specifically included in the supported Aruba CX transceiver matrix. HPE Aruba ' s AOS-CX Fundamentals documentation explicitly identifies HPE-branded products intended for HPE Compute Servers or Storage as examples of products classified as unsupported for AOS-CX switching platforms. Aruba Networking

The AOS-CX mechanism for permitting such devices is Unsupported Transceiver Mode (UT-mode) , controlled using the global:

allow-unsupported-transceiver

command. The command permits unsupported optical transceivers, DACs, and AOCs to establish connections on supported interfaces. Aruba Networking

Therefore, for the certification scenario, the Server DAC connected to interface 1/1/26 requires allow-unsupported-transceiver to be enabled, making C the intended answer. Simply stating that the port remains disabled describes the consequence when unsupported-transceiver operation is not permitted, but C identifies the actual configuration requirement.

Be aware that Aruba has changed default UT-mode behavior in later AOS-CX releases, so this question should be interpreted according to the course/exam software context rather than assuming every current release behaves identically. Aruba Networking

Study Guide Topics: CX 6300 Interfaces, DAC Support, Unsupported Transceiver Mode, Transceiver Compatibility, allow-unsupported-transceiver.

The correct answer is B. Spanning-tree instance VLAN mapping.

To load-balance VLANs with MSTP, you need to configure the same VLAN-to-instance mapping on all switches in the same MST region. This means that you need to assign different VLANs to different MST instances, and then adjust the spanning tree parameters (such as priority, cost, or port role) for each instance to achieve the desired load balancing. For example, you can make one switch the root for instance 1 and another switch the root for instance 2, and then map half of the VLANs to instance 1 and the other half to instance 2.

According to the Cisco document Understand the Multiple Spanning Tree Protocol (802.1s), one of the steps to configure MST is:

Split your set of VLANs into more instances and configure different MST settings for each of these instances. In order to easily achieve this, elect Bridge D1 to be the root for VLANs 501 through 1000, and Bridge D2 to be the root for VLANs 1 through 500. These statements are true for this configuration:

Switch D1(config)#spanning-tree mst configuration

Switch D1(config-mst)#instance 1 vlan 501-1000

Switch D1(config-mst)#exit

Switch D1(config)#spanning-tree mst 1 priority 0

Switch D2(config)#spanning-tree mst configuration

Switch D2(config-mst)#instance 2 vlan 1-500

Switch D2(config-mst)#exit

Switch D2(config)#spanning-tree mst 2 priority 0

The above commands create two MST instances, 1 and 2, and map VLANs 501-1000 to instance 1 and VLANs 1-500 to instance 2. Then, they make switch D1 the root for instance 1 and switch D2 the root for instance 2.

The other options are incorrect because:

A. Spanning-tree bpdu-guard setting is a security feature that disables a port if it receives a BPDU from an unauthorized device. It does not affect load balancing with MSTP.

C. Spanning-tree CIST mapping is not a valid command. CIST stands for Common and Internal Spanning Tree, which is the spanning tree instance that runs within an MST region and interacts with other regions or non-MST switches.

D. Spanning-tree root-guard setting is another security feature that prevents a port from becoming a root port if it receives superior BPDUs from another switch. It does not affect load balancing with MSTP.

This is an Aruba-recommended best practice for hardening that only applies to Aruba CX 6300 series switches with dedicated management ports. A dedicated management port is a physical port that is used exclusively for out-of-band management access to the switch. A dedicated management VRF is a virtual routing and forwarding instance that isolates the management traffic from other traffic on the switch. By creating a dedicated management VRF and assigning the management port to it, the administrator can enhance the security and performance of the management access to the switch. The other options are incorrect because they either do not apply to switches with dedicated management ports or do not follow Aruba-recommended best practices. References: https://www.arubanetworks.com/assets/ds/DS_AOS-CX.pdf https://www.arubanetworks.com/assets/tg/TB_ArubaCX_Switching.pdf

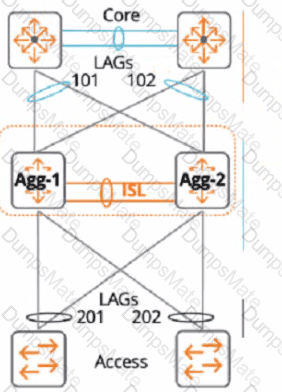

These are the correct statements about access from the servers to the Core when the ISL link between the switches fails, but the keepalive interface functions. Server 1 can access the core layer via both uplinks because it is connected to VSX-A, which is still active for VLAN 10. Server 2 can also access the core layer via its uplink to VSX-B, which is still active for VLAN 10 because of Active Gateway feature. Server 1 and Server 2 can communicate with each other via the core layer because they are in the same VLAN and subnet, and their traffic can be routed through the core switches. The other statements are incorrect because they either describe scenarios that are not possible or not relevant to the question. References: https://www.arubanetworks.com/techdocs/AOS-CX/10.04/HTML/5200-6728/bk01-

The statements that are true regarding Aruba NAE agents are A and C.

A. A single NAE script can be used by multiple NAE agents. This means that you can create different instances of the same script with different parameters or settings. For example, you can use the same script to monitor different VLANs or interfaces on the switch1.

C. NAE agents will never consume more than 10% of switch processor resources. This is a built-in safeguard that prevents the agents from affecting the switch performance or stability. If an agent exceeds the 10% limit, it will be automatically disabled and an alert will be generated2.

The other options are incorrect because:

B. NAE agents are not active at all times. They can be enabled or disabled by the user, either manually or based on a schedule. They can also be disabled automatically if they encounter an error or exceed the resource limit1.

D. NAE scripts do not need to be reviewed and signed by Aruba before being used. You can create your own custom scripts using Python and upload them to the switch or Aruba Central. You can also use the scripts provided by Aruba or other sources, as long as they are compatible with the switch firmware version1.

E. A single NAE agent cannot be used by multiple NAE scripts. An agent is an instance of a script that runs on the switch. Each agent can only run one script at a time1.

The reason is that AOS 10.x does not support clustering gateways with different versions in the same cluster profile. A cluster profile defines the configuration settings for a group of gateways that are managed by Aruba Central.

According to the Aruba documentation2, “You can combine 7200 Series and 7000 Series gateways in the same cluster with a maximum size of four devices with reduced AP client capacity on 7000 Series gateways.”

Authentication survivability is a feature that allows the device to remain operational when a remote link failure occurs between a Gateway cluster and a RADIUS server that is either in the cloud or a datacenter. Authentication survivability enables the Gateway cluster to cache successful authentication requests from the RADIUS server and use them to authenticate clients when the RADIUS server is unreachable. Authentication survivability also allows clients to use MAC caching or MAC authentication bypass (MAB) methods to access the network when the RADIUS server is down. References: https://www.arubanetworks.com/assets/tg/TG_AuthSurvivability.pdf

According to the Aruba Documentation Portal1, PAPI (Port Aggregation Protocol) is a protocol that allows multiple physical ports to be aggregated into a single logical port for increased bandwidth and performance. PAPI can be used between AOS-CX switches and gateways, or between AOS-CX switches and other devices.

Option A: Implement an IPSec tunnel to protect PAPI between the AOS-CX switches and the gateway

This is because option A shows how to implement an IPSec tunnel between two devices using the interface command and the ipsec command. An IPSec tunnel can provide encryption and authentication for PAPI traffic between two devices, such as an AOS-CX switch and a gateway2.

Therefore, option A is a feasible option to protect this traffic.

I hope this helps you. If you need more information, please let me know. ????

1: https://www.arubanetworks.com/techdocs/AOS-CX/10.06/HTML/5200-7727/Content/Chp_prev_traf_loss/Act_gtw_act_fwd/act-gat-ove-vsx-10.htm 2: https://community.arubanetworks.com/blogviewer?blogkey=989fc43a-e0df-42db-9c0b-f96d6565a1fa

In MSTP, root-bridge priority is configured per MST instance , not directly per individual VLAN. Since Core-1 already has spanning-tree instance 1 priority 0, Core-1 is intended to become the preferred root for MST instance 1 . To make VLAN 10 use that spanning-tree topology, VLAN 10 must therefore be mapped into instance 1 with:

spanning-tree instance 1 vlan 10

HPE Aruba Networking documents this exact syntax and states that the command either creates an MST instance with the specified VLAN mapping or maps a VLAN to an existing instance. Aruba Networks

This is how MSTP provides VLAN load balancing. Different VLANs can be assigned to separate MST instances, and each instance can have a different root bridge. For example, VLAN 10 can belong to instance 1 with Core-1 as root, while VLAN 20 can belong to another instance whose root priority favors Core-2 . Aruba specifically describes this ability to forward different VLAN groups along separate paths as an MSTP load-sharing mechanism. Aruba Networks

Options B, C, and D are not the appropriate AOS-CX MSTP VLAN-to-instance mapping syntax. The required command is therefore A .

Study Guide Topics: MSTP, MST Instances, VLAN-to-Instance Mapping, Root Bridge Priority, VLAN Load Balancing, AOS-CX Spanning Tree.

CoS and DSCP are both methods of marking packets for quality of service (QoS) purposes. QoS is a mechanism that allows network devices to prioritize and differentiate traffic based on certain criteria, such as application type, source, destination, etc. CoS stands for Class of Service and is a 3-bit field in the 802.1Q VLAN tag header. CoS can only be used on Ethernet frames that have a VLAN tag, and it can only be preserved within a single VLAN domain. DSCP stands for Differentiated Services Code Point and is a 6-bit field in the IP header. DSCP can be used on any IP packet, regardless of the underlying layer 2 technology, and it can be preserved throughout the IP packet flow, unless it is modified by intermediate devices. References: https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/qos/configuration/15-mt/qos-15-mt-book/qos-overview.html https://www.cisco.com/c/en/us/support/docs/lan-switching/8021q/17056-741-4.html https://www.cisco.com/c/en/us/support/docs/quality-of-service-qos/qos-packet-marking/10103-dscpvalues.html

The important advantage supplied by SNMPv3 is enhanced security, including authentication and message integrity. SNMPv3 employs a User-based Security Model in which authentication protocols such as MD5 or the SHA family can validate the sender and verify that the SNMP message has not been altered during transmission. HPE Aruba specifically documents SNMPv3 authentication protocols and recommends SNMPv3 because it provides authentication and strong privacy mechanisms that are absent from SNMPv2c. Aruba Networking

SNMPv2c relies on community strings, which are transmitted without the stronger user-based authentication and privacy protections available in SNMPv3. Aruba notes that SNMPv1 and SNMPv2c community names can be transmitted in clear text, whereas SNMPv3 supports authenticated users and encrypted management traffic. Aruba Networking

Options A and B are not unique SNMPv3 advantages. 64-bit counters were introduced with SNMPv2, particularly through Counter64 objects, and GetBulk was also introduced with SNMPv2 to improve retrieval efficiency. Option C is actually characteristic of SNMPv1/v2c rather than an SNMPv3 improvement.

Consequently, the distinguishing SNMPv3 feature among the available answers is message integrity.

Study Guide Topics: SNMPv3, SNMPv2c, User-Based Security Model, Authentication, Message Integrity, Privacy/Encryption, AOS-CX Network Management.

802.3bz is a standard for Ethernet over twisted pair at speeds of 2.5 and 5 Gbit/s. These use the same cabling as the ubiquitous Gigabit Ethernet, yet offer higher speeds. The resulting standards are named 2.5GBASE-T and 5GBASE-T.

Option A: 2.5Gb and 5Gb Ethernet ports

This is because option A shows how to identify the speed of an Ethernet port based on its name and the standard it supports. A port that supports 2.5GBASE-T or 5GBASE-T is a multi-gigabit port that can operate at speeds of up to 2.5 Gbit/s or 5 Gbit/s over twisted pair cables23.

Therefore, option A is correct.

1: https://en.wikipedia.org/wiki/2.5GBASE-T_and_5GBASE-T 2: https://kb.netgear.com/000049004/What-is-Multi-Gigabit-Ethernet-and-how-can-I-benefit-from-using-NETGEAR-Multi-Gigabit-Ethernet-Switches-in-my-network 3: https://arstechnica.com/gadgets/2016/09/5gbps-ethernet-standard-details-8023bz/

This is because option C shows how to create a single group in Central with different configuration methods defined for each device type. For example, you can create a group with the name Group1, and within this group, you can enable template-based configuration method for switches and UI-based configuration method for Instant APs and Gateways. Aruba Central identifies both these groups under a single name (Group1). If a device type in the group is marked for template-based configuration method, the group name is prefixed with TG (TG Group1). You can use Group1 as the group ID for workflows such as user management, monitoring, reports, and audit trail2.

https://www.arubanetworks.com/techdocs/central/latest/content/nms/groups/abt-groups.htm 2: https://www.arubanetworks.com/techdocs/central/latest/content/nms/groups/groups.htm

The Equivalent Isotropic Radiated Power (EIRP) is the measured radiated power of an antenna in a specific direction. It is also called Equivalent Isotropic Radiated Power. It is the output power when a signal is concentrated into a smaller area by the Antenna. The EIRP can take into account the losses in transmission line, connectors and includes the gain of the antenna. It is represented in dB2. The formula for EIRP is:

EIRP=PT−Lc+Ga

where PT is the output power of the transmitter in dBm, Lc is the cable and connector loss in dB, and Ga is the antenna gain in dBi.

For AP1, the EIRP can be calculated as:

EIRP=16−4+8=20 dBm

Therefore, the answer B is correct.

A session-based ACL is applied to traffic entering or leaving a port or VLAN based on the direction of the session initiation. To allow ping from any wired station to wireless clients but not vice versa, a session-based ACL should be used to deny icmp echo traffic from any source to any destination, and then permit icmp echo-reply traffic from any source to user destination. The user role represents wireless clients in AOS 10. References: https://techhub.hpe.com/eginfolib/Aruba/OS-CX_10.04/5200-6692/GUID-BD3E0A5F-FE4C-4B9B-BE1D-FE7D2B9F8C3A.html https://techhub.hpe.com/eginfolib/networking/docs/arubaos-switch/security/GUID-EA0A5B3C-FE4C-4B9B-BE1D-FE7D2B9F8C3A.html

The command loop-protect enables loop protection on each layer 2 interface (port, LAG, or VLAN) for which loop protection is needed. Loop protection can find loops in untagged layer 2 links, as well as on tagged VLANs.

HPE Aruba Networking ClientMatch is specifically designed to address this type of sticky-client and client-to-AP optimization problem. A sticky client remains associated with its current AP even though signal quality has deteriorated and another AP can provide a stronger signal or better service.

ClientMatch continuously evaluates client association health and can steer a client toward a more appropriate AP. Aruba documents that ClientMatch performs sticky steering by monitoring client RSSI/SNR and moving the station when a better radio match becomes available. Aruba Networking It also performs load balancing , considering both AP utilization and the SNR the client can obtain from alternative APs. Thus, the scenario ' s combination of a poorly performing current AP, a less-utilized candidate AP, and better SNR aligns directly with ClientMatch behavior. Aruba Networking

ClientMatch additionally supports HE steering for 802.11ax/Wi-Fi 6 clients , helping capable clients associate with suitable 802.11ax radios. Aruba Networking

AirMatch and ARM primarily optimize RF infrastructure parameters such as channels, channel widths, and transmit power. ClearPass provides AAA, policy, and access control rather than RF client steering.

Study Guide Topics: ClientMatch, Sticky Client Steering, Dynamic Load Balancing, SNR/RSSI, 802.11ax HE Steering, WLAN Optimization.

The correct answers are A and D.

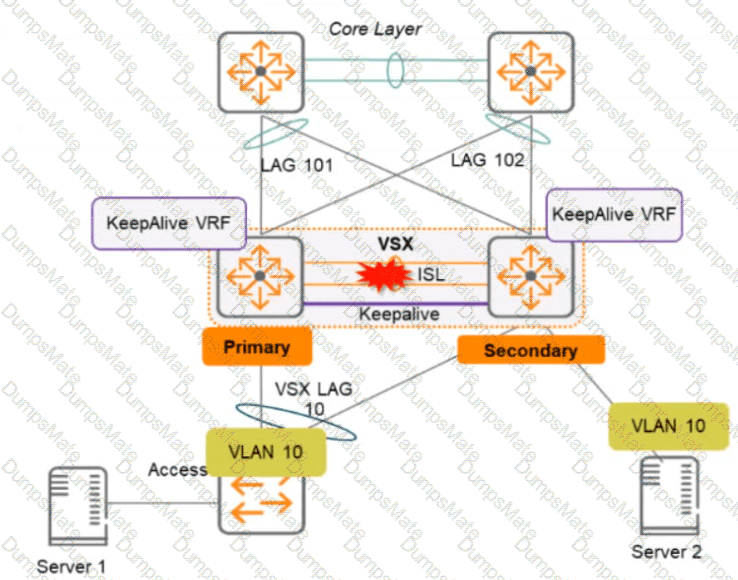

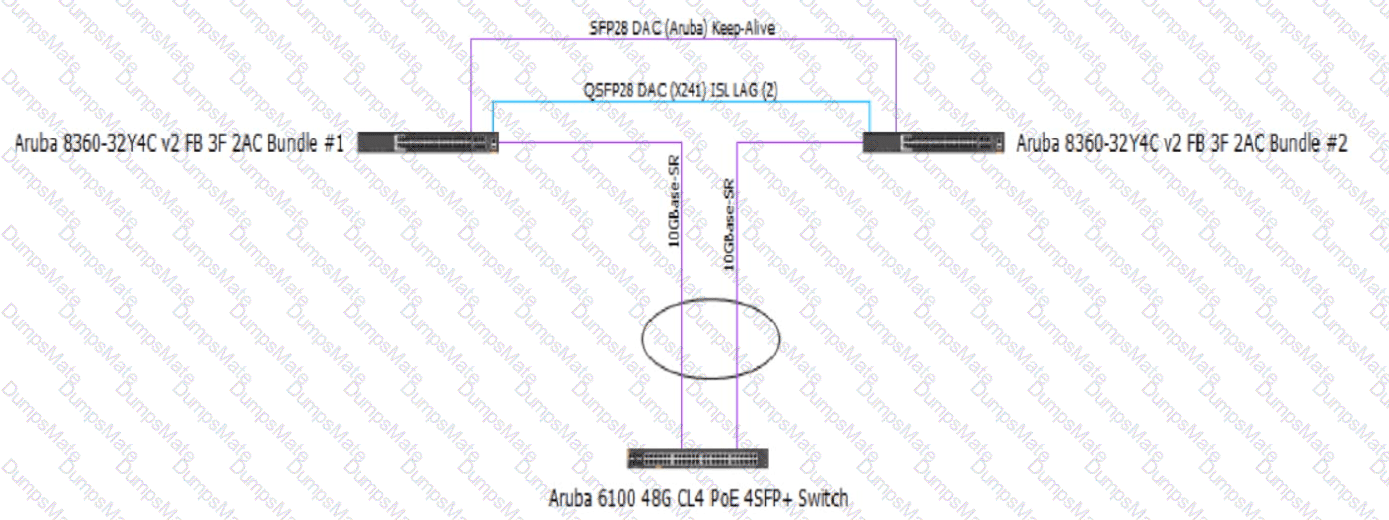

According to the web search results, VSX LAG is a feature that allows multiple PSKs to be used on a single SSID, providing device-specific or group-specific passphrases for enhanced security and deployment flexibility for headless IoT devices1. VSX LAGs span both aggregation switches and appear as one device to partner downstream or upstream devices or both when forming a LAG with the VSX pair2.

One of the statements that is true about VSX LAG is that the total number of configured links may not exceed 8 for the pair or 4 per switch1. This means that a VSX LAG across a downstream switch can have at most a total of eight member links, and a switch can have a maximum of four member links. When creating a VSX LAG, it is recommended to select an equal number of member links in each segment for load balancing1.

Another statement that is true about VSX LAG is that outgoing traffic is preferentially switched to local members of the LAG2. This means that when active forwarding and active gateway are enabled, north-south and south-north traffic bypasses the ISL link and uses the local ports on the switch. This optimizes the traffic path and reduces the load on the ISL link2.

The other statements are false or not relevant for VSX LAG. Outgoing traffic is not switched to a port based on a hashing algorithm, which may be either switch in the pair. This is a characteristic of MLAG (Multi-Chassis Link Aggregation), which is a different feature from VSX LAG. LAG traffic is not passed over VSX ISL links only while upgrading firmware on the switch pair. This is a scenario that may occur when performing hitless upgrades, which is a feature that allows software updates without impacting network availability. The number of VSX lags that can be configured on all 83xx and 84xx model switches is not 255, but depends on the switch model and firmware version. For example, the AOS-CX 10.04 supports up to 64 VSX lags for 8320 switches and up to 128 VSX lags for 8325 and 8400 switches.

PAPI is the protocol that is used to establish tunnels between the CX switch and the Aruba Gateway for Dynamic Segmentation1. By default, PAPI uses a simple checksum to verify the integrity of the messages, but it does not encrypt the payload2. This could expose the network to spoofing or replay attacks by malicious actors. To address this situation, the administrator must enable Enhanced PAPI security, which uses AES-256 encryption and HMAC-SHA1 authentication to protect the tunnel traffic2. Enhanced PAPI security can be enabled on the CX switch by using the command system papi enhanced-security enable3. This will ensure that the tunnels built between the CX switch and the Aruba Gateway are encrypted and authenticated.

The likely cause of the issue of weak Wi-Fi coverage in the office is that the AP is using a directional antenna. A directional antenna is an antenna that radiates or receives radio waves more strongly in one or more directions, creating a focused beam of signal. A directional antenna can provide better coverage and performance for a specific area, but it can also create dead zones or weak spots for other areas. The other options are incorrect because they either do not affect the Wi-Fi coverage or do not match the scenario. References: https://www.arubanetworks.com/techdocs/ArubaOS_86_Web_Help/Content/arubaos-solutions/wlan-rf/rf-fundamentals.htm https://www.arubanetworks.com/techdocs/ArubaOS_86_Web_Help/Content/arubaos-solutions/wlan-rf/antennas.htm

The best option to enhance security for the new IP cameras and scanners in this environment is C. MPSK provides for each device in the WLAN to have its own unique pre-shared key.

MPSK stands for Multi Pre-Shared Key, and it is a feature that allows different devices to connect to the same SSID with different pre-shared keys. This improves the security and scalability of the network, as each device can have its own key and role without requiring 802.1X authentication or an external policy engine. MPSK can be configured either locally on the AP or centrally on Aruba Central12.

The other options are incorrect because:

A. MPSK Local is a feature that allows the user to configure 24 PSKs per SSID locally on the device. These local PSKs would serve as an extension of the base MPSK functionality. However, MPSK Local is not suitable for this scenario, as it can only support up to 24 devices per SSID, while the client has 250 devices1.

B. Aruba ClearPass is a network access control solution that can perform 802.1X authentication and install certificates for devices. However, this option is not feasible for this scenario, as the new IP cameras and scanners do not support 802.1X authentication3.

D. MPSK Local will not allow the cameras to share a key and the scanners to share a different key. MPSK Local will assign a different key to each device, regardless of their type. Moreover, MPSK Local can only support up to 24 devices per SSID, while the client has 250 devices1.

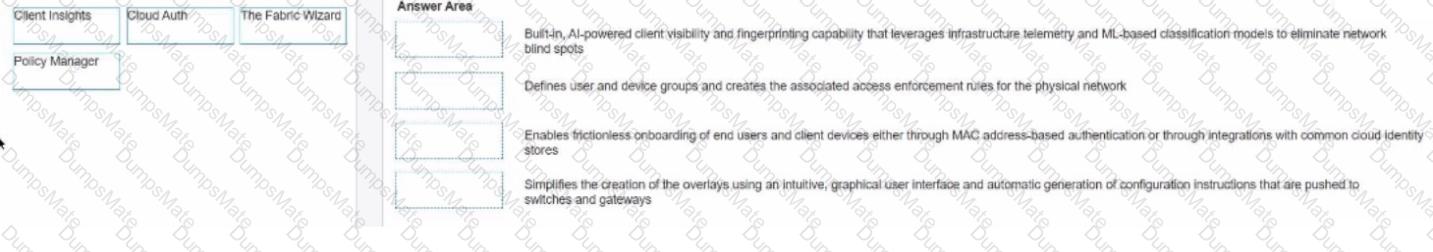

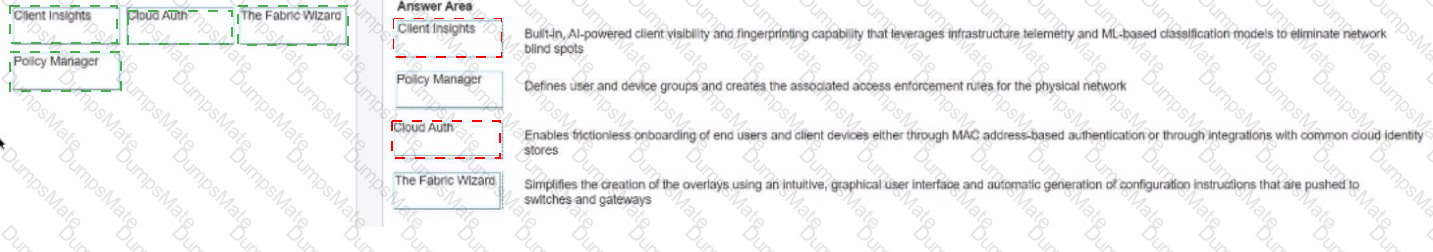

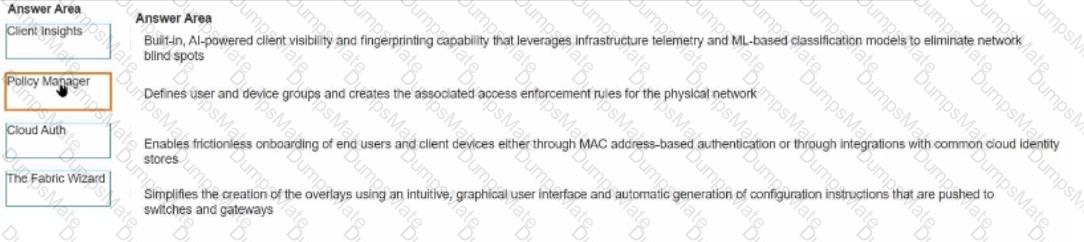

Client Insights matches with Built in , AI powered client visibility and fingerprinting capability that leverages infrastructure telemetry and ML based classification models to eliminate network bling spots

Client Insights is a solution component of NetConductor that provides built-in, AI-powered client visibility and fingerprinting capability that leverages infrastructure telemetry and ML-based classification models to eliminate network blind spots. Client Insights uses machine learning to automatically detect, identify, and classify devices on the network, such as IoT devices, BYOD devices, or rogue devices. Client Insights also provides behavioral analytics and anomaly detection to monitor device performance and security posture. Client Insights helps network administrators gain visibility into the device landscape, enforce granular access policies, and troubleshoot issues faster. References: https://www.arubanetworks.com/products/network-management-operations/central/netconductor/ https://www.arubanetworks.com/assets/wp/WP_NetConductor.pdf

Cloud Auth matches with Enables fictionless onboarding of end users and client devices either through MAC address-based authentication or through integrations with common cloud identity stores

Cloud Auth is a solution component of NetConductor that enables frictionless onboarding of end users and client devices either through MAC address-based authentication or through integrations with common cloud identity stores. Cloud Auth is a cloud-native network access control (NAC) solution that is delivered via Aruba Central. Cloud Auth allows network administrators to define user and device groups, assign roles and policies, and enforce access control across wired and wireless networks. Cloud Auth supports MAC authentication for devices that do not support 802.1X, as well as integrations with cloud identity providers such as Azure AD, Google Workspace, Okta, etc. References: https://www.arubanetworks.com/products/network-management-operations/central/netconductor/ https://www.arubanetworks.com/assets/wp/WP_NetConductor.pdf

The Fabric Wizard matches with Simplifies the creation of the overlays using an intuitive graphical user interface and automatic generation of configuration instructions that are pushed to switches and gateways

The Fabric Wizard is a solution component of NetConductor that simplifies the creation of the overlays using an intuitive graphical user interface and automatic generation of configuration instructions that are pushed to switches and gateways. The Fabric Wizard is a tool that allows network administrators to design, deploy, and manage overlay networks using VXLAN and EVPN protocols. The Fabric Wizard provides a graphical representation of the network topology, devices, and links, and allows users to drag and drop virtual components such as VRFs, VLANs, and subnets. The Fabric Wizard also generates the configuration commands for each device based on the user input and pushes them to the switches and gateways via Aruba Central. References: https://www.arubanetworks.com/products/network-management-operations/central/netconductor/ https://www.arubanetworks.com/assets/wp/WP_NetConductor.pdf

Policy Manager matches with Defines user and device groups and creates the associated traffic routing and access enforcement rules for the physical network

Policy Manager is a solution component of NetConductor that defines user and device groups and creates the associated traffic routing and access enforcement rules for the physical network. Policy Manager is a tool that allows network administrators to create and manage network policies based on user and device identities, roles, and contexts. Policy Manager uses Group Policy Identifier (GPID) to carry policy information in traffic for in-line enforcement. Policy Manager also integrates with Cloud Auth, ClearPass, or third-party solutions to provide flexible network access control. References: https://www.arubanetworks.com/products/network-management-operations/central/netconductor/ https://www.arubanetworks.com/assets/wp/WP_NetConductor.pdf

CoA (Change of Authorization) is a feature that allows ClearPass to dynamically change the authorization and access privileges of a device after it has been authenticated1. CoA uses RADIUS messages to communicate with the network device and instruct it to perform an action, such as reauthenticating the device, applying a new VLAN or user role, or disconnecting the device2.

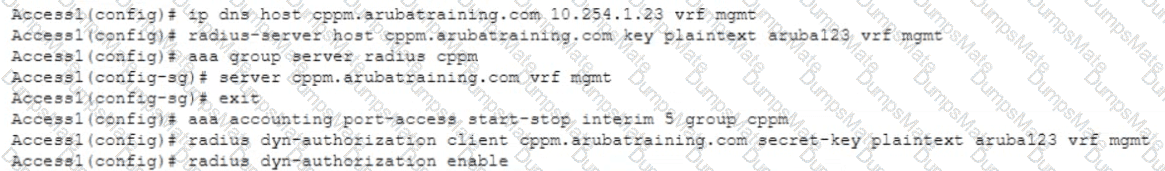

To enable CoA on a CX switch, the network engineer needs to configure dynamic authorization on the switch, which is a global command that allows the switch to accept RADIUS messages from ClearPass and execute the requested actions3. The network engineer also needs to specify the IP address and shared secret of ClearPass as a dynamic authorization client on the switch3.

To trigger CoA for a specific wired device, the network engineer needs to bounce the switchport, which is an action that temporarily disables and re-enables the port where the device is connected. This forces the device to reauthenticate and receive the new policy from ClearPass. Bouncing the switchport can be done manually by using the interface shutdown and no shutdown commands, or automatically by using ClearPass as a CoA server and sending a RADIUS message with the Port-Bounce-Host AVP (Attribute-Value Pair).

OFDMA (Orthogonal Frequency Division Multiple Access) is a technology that can minimize client latency in a high-density environment by eliminating contention overhead by dedicating subcarriers to clients. OFDMA allows multiple clients to transmit simultaneously on different subcarriers within the same channel, reducing contention and increasing efficiency. MU-MIMO (Multi-User Multiple Input Multiple Output) is a technology that allows multiple clients to transmit simultaneously on different spatial streams within the same channel, but it does not eliminate contention overhead. QWMM (Quality of Service Wireless Multimedia) is a technology that prioritizes traffic based on four access categories, but it does not eliminate contention overhead. Channel Bonding is a technology that combines two adjacent channels into one wider channel, increasing bandwidth but not eliminating contention overhead. References: https://www.arubanetworks.com/assets/ds/DS_AP510Series.pdf https://www.arubanetworks.com/assets/wp/WP_WiFi6.pdf

Two parts of the solution for these requirements are Option C and Option E.

Option C is a part of the solution because it defines a policy-based routing action list named route_test, which specifies the next hop IP address as 10.1.1.253 for the matching traffic. This is the new default route that the user wants to use for the subnet 10.2.250.0/24. The interface null parameter indicates that the traffic will be routed to the next hop without using a specific interface1.

Option E is a part of the solution because it applies the policy-based routing action list route_test to the VLAN interface 250, which has an IP address of 10.2.250.1/24. This is the subnet that the user wants to test the new default route for. The apply policy command enables policy-based routing on the interface and associates it with the action list2.

Option A is not a part of the solution because it defines a policy-based routing action list named route_test, but does not specify the next hop IP address as 10.1.1.253, which is the new default route that the user wants to use. Instead, it specifies a next hop IP address of 10.1.1.254, which is different from the requirement.

Option B is not a part of the solution because it defines a policy-based routing action list named route_test, but does not specify any next hop IP address at all, which is necessary for policy-based routing to work. Instead, it specifies an interface null parameter without any IP address, which is invalid.

Option D is not a part of the solution because it applies the policy-based routing action list route_test to the VLAN interface 200, which has an IP address of 10.2.200.1/24. This is not the subnet that the user wants to test the new default route for, but a different subnet that should not be affected by this change.
