HPE7-A08 HPE Aruba Networking Certified Professional - Switching Questions and Answers

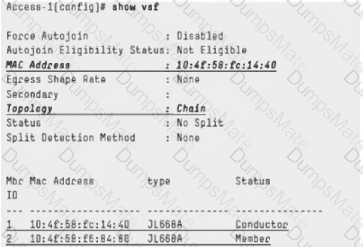

The exhibit shows the output of the show vsf command on a two-member Virtual Switching Framework (VSF) stack. To determine the outcome of a failover, we must look at the assigned roles and the secondary member configuration.

Analyzing the Roles: * Member 1 is the Conductor (the master controller).

Member 2 is a Member (a subordinate switch).

The Secondary Member Requirement: In VSF, high availability is not automatic just by having two switches. You must explicitly designate a Secondary member to act as the " Standby " for the Conductor. In the exhibit, the line Secondary : is blank .

Failure Scenario: * If Member 1 (Conductor) fails, Member 2 will look to see if it is the designated Secondary.

Since no Secondary is configured , Member 2 has no authority to take over the control plane or management functions of the stack.

Member 2 will remain in the " Member " state . Because the Conductor is gone and there is no Standby to promote, the logical stack effectively collapses; Member 2 will likely reboot or lose its configuration context because it has no Conductor to sync with. It certainly will not become the Conductor.

Best Practice Correction: To fix this, an administrator should have run the command vsf secondary-member 2. This would have changed Member 2 ' s status from " Member " to " Standby " (or Secondary), allowing it to transition to " Conductor " if Member 1 failed.

When deploying a new Aruba CX 8325 switch to provide gateway and routing services, the L3-apg profile (Layer 3 Aggregation Profile) should be selected instead of the factory default. This profile is designed for switches acting as aggregation or core routers, enabling Layer 3 routing capabilities and optimized configurations for such roles.

The Spine profile (factory default) is optimized for leaf/spine architectures, but may not be ideal for aggregation gateways.

Leaf and L3-core profiles are targeted for different roles.

Using the L3-apg profile helps to ensure the switch is correctly optimized for Layer 3 gateway functions.

The concept of Colorless Ports is central to Aruba ' s Dynamic Segmentation strategy. A colorless port is one where the configuration is not static but is instead determined dynamically based on the identity of the device that connects to it.

The Role of Authentication: To achieve a colorless port, the switch must first identify the connecting device. This is done through Port Access Control mechanisms.

MAC Authentication (MAC Auth): While 802.1X is the preferred method for devices with a supplicant (like laptops), MAC Authentication is used for " headless " devices (like printers, cameras, or IoT sensors) that cannot perform 802.1X. By configuring MAC Auth, the switch sends the device ' s MAC address to a RADIUS server (like ClearPass), which then instructs the switch on which User Role to apply to that port.

Why other options are incorrect:

Option A and C: Port-security and Sticky MAC are static security features. They lock a port to a specific MAC address but do not dynamically assign VLANs, ACLs, or QoS based on identity, which is the definition of a colorless port.

Option D: Virtual MAC is a component of Active Gateway or VRRP, used for default gateway redundancy in a VSX or high-availability environment. It has no role in edge port " colorless " provisioning.

To capture packets on an HPE Aruba CX switch and view the output remotely in real-time, the best practice is to use a mirror session that forwards traffic to a remote device running a packet analyzer such as Wireshark. ERSPAN (Encapsulated Remote Switched Port Analyzer) allows the mirror traffic to be encapsulated in GRE and sent over an IP network to a remote monitoring station. This method ensures full packet capture with no local resource constraints and provides full visibility to the analyst.

Option B (using tcpdump on the switch) only provides summarized or limited capture locally.

Option C (mirroring to another switch port) only allows local monitoring and does not provide remote real-time viewing.

Option D (mirror to CPU and then use tshark) is less efficient and may be resource-intensive on the switch.

Therefore, configuring ERSPAN to a remote Wireshark host is the recommended and best way.

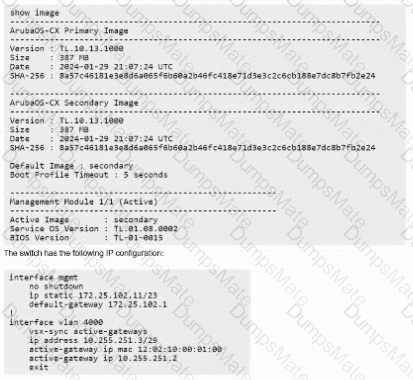

To upgrade an HPE Aruba Networking CX 8320 VSX cluster with minimal downtime from a remote server, the correct command is:

vsx update-software scp://172.25.101.10/image vrf mgmt

Using SCP (Secure Copy Protocol) ensures secure transfer.

Specifying vrf mgmt ensures the update uses the management VRF for connectivity.

Using TFTP is less secure and not recommended for production upgrades.

The primary keyword is not valid for the vsx update-software command.

This method allows an in-service software upgrade (ISSU) with least disruption.

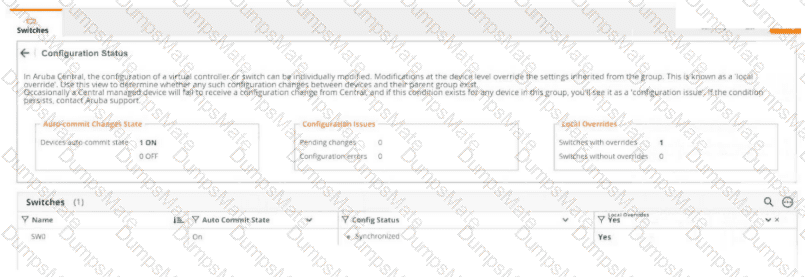

This exhibit displays the Configuration Status dashboard within HPE Aruba Networking Central for a specific switch (SW0).

Interpreting " Local Overrides " : In the Central management model, switches are typically assigned to a Group , and they inherit the configuration of that group (the " inherited settings " ). A Local Override (as explicitly defined in the exhibit ' s header text) occurs when an administrator makes a configuration change at the individual device level within Central. This device-specific configuration takes precedence over the group-level settings.

Analysis of SW0:

The table shows Local Overrides: Yes . This confirms that SW0 has unique configuration parameters applied to it that differ from the baseline configuration of its assigned group.

The Config Status is Synchronized , meaning these device-level changes have already been successfully pushed to the switch.

Evaluating the Options:

Option B (Correct): Having a " Local Override " means that a configuration has been pushed to the switch which deviates from the " default " (inherited group) settings.

Option A: " Local Overrides " in Central refers to the Central UI device-level settings , not changes made directly on the local physical CLI of the switch.

Option C: While Central does track configuration health, this specific screen is showing override and commit status, not the detailed logic for auto-checkpoints.

Option D: The exhibit shows Auto-commit Changes State: ON . This means any change made in Central is automatically committed and pushed to the device; no manual commit action is required by the administrator.

Device Profiles on AOS-CX switches are a " Lite " version of Dynamic Segmentation, allowing the switch to automatically configure a port when a specific device is detected via LLDP or CDP, without needing a RADIUS server.

Associate an LLDP group (Option C): To " catch " a device, you first define a Device Group (often an lldp-group) that contains match criteria such as the System Name or OUI of an Aruba AP. This group tells the switch which devices should trigger the profile.

Associate a role (Option A): Once a device matches the group, the switch needs to know what to do with it. The Role is the container that holds all the port attributes (VLAN, PoE priority, STP settings, etc.). The Device Profile ' s job is to " bridge " the group and the role together using the associate role and associate lldp-group commands.

Why other options are incorrect:

Options B, D, and E: These are all settings that are configured inside the Role . You do not associate a VLAN or an ACL directly to the Profile; you associate them to the Role, and then associate the Role to the Profile.

Dynamic ARP Protection (DAP) is a security feature used to intercept and validate ARP packets in a network to prevent " man-in-the-middle " attacks like ARP spoofing.

Validation Source: For the switch to know if an ARP packet is legitimate, it must check the sender ' s IP and MAC address against a trusted database.

Dynamic vs. Static: * In most modern environments, the switch builds this database automatically by using DHCP Snooping . When a client gets an IP from a DHCP server, the switch records the binding.

Static Environments (The Solution): If you have servers or devices with static IP addresses (no DHCP server), DHCP snooping will have no record of them. To prevent these legitimate devices from being blocked by ARP protection, you must manually configure Static IP-to-MAC bindings .

Why Option D is Correct: It correctly identifies that the feature is flexible enough to support non-DHCP environments through manual configuration.

Why others are incorrect: * Option A: While highly recommended, a DHCP server is not strictly required because of the static binding fallback.

Option C: Simply enabling the features isn ' t enough; you must also consider untrusted vs. trusted ports. Furthermore, " full information " is a bit of an overstatement, as static devices still need manual intervention.

In a network management environment like Aruba Central , alerts are used to provide proactive notification of infrastructure degradation. When dealing specifically with physical cabling issues (Layer 1), we look for symptoms of signal degradation or negotiation failures.

Switch Port Input Errors (Option A): This is the most direct indicator of a cabling problem. Physical issues—such as a bad crimp, a cable exceeded its maximum length, electromagnetic interference (EMI), or a damaged pin—typically manifest as CRC errors , runts , or giants . Monitoring for input errors allows Central to flag a port as unhealthy due to physical data corruption.

Switch Port Duplex Mode (Option E): While most modern devices use Auto-Negotiation, physical layer issues or faulty older hardware can lead to a Duplex Mismatch (e.g., one side is Half-Duplex, the other is Full-Duplex). This results in late collisions and extreme performance degradation. An alert for Duplex Mode changes or mismatches is a standard part of physical layer troubleshooting.

Why other options are incorrect:

Option B: Rx Rate monitors the volume of traffic. High or low traffic doesn ' t inherently mean the cable is bad; it just means the link is busy or idle.

Option C: Hardware failure refers to the internal components of the switch (ASICs, Fans, Power Supplies), not the external cabling.

Option D: Uplink Port Usage is a capacity planning metric (Layer 2/3) rather than a physical integrity metric.

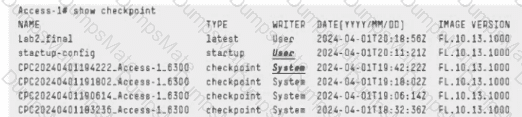

AOS-CX switches include a robust Configuration Checkpoint system that allows administrators to save snapshots of the configuration state. These checkpoints are stored in the switch ' s internal flash memory.

Understanding the Exhibit: The output shows several checkpoints.

Lab2_final: A user-created checkpoint.

startup-config: The current configuration that will be loaded on reboot.

CPC2024...: Automatic " System " checkpoints created by the switch during various configuration events or at scheduled intervals.

The " Diff " Operation: To investigate a missing configuration (like the missing device profile) without impacting the operational state of the switch, you use the checkpoint diff command. This command compares two configuration files and displays the specific lines that are present in one but missing in the other (marked with + and -).

Analyzing the Requirement: The user wants to validate the removal without changing the current config.

Option B (Correct): Executing checkpoint diff startup-config CPC20240401183236_Access-1_6300 (or another older checkpoint) will show exactly what was removed. This is a read-only comparison.

Why other options are incorrect:

Option A: show checkpoint only lists the metadata (name, date, version); it does not provide a content comparison.

Option C: This command would overwrite an existing checkpoint or create a new one, but it does not provide an analytical comparison of the differences.

Option D: checkpoint rollback is a destructive operation; it immediately applies the older configuration to the running state, which violates the requirement to not change the current configuration.

The troubleshooting methodology exemplified by comparing outputs or configurations to find discrepancies is called Spot the difference. It involves checking variations between working and non-working states or devices.

Follow the path: tracing packet flow step-by-step.

Top-down/Bottom-up: analyzing layers systematically.

Replace configuration: swapping configurations to isolate issues.

Here, comparing command outputs aligns with spot-the-difference.

OSPF neighbors on broadcast networks typically reach the 2WAY state during the DR/BDR election process. It is normal behavior for OSPF neighbors on a broadcast network to be in the 2WAY state until a Designated Router (DR) and Backup DR (BDR) are elected.

The tie in DR election explains why multiple neighbors can be in 2WAY.

No OSPF networks advertised would not cause 2WAY.

IGMP snooping does not affect OSPF adjacency states.

Quality of Service (QoS) on AOS-CX switches relies on hardware queues to manage congestion. Different traffic types require different handling logic.

Strict Priority (SP) Queuing: In an SP model, the switch services the highest-numbered queue (usually Queue 7 for Voice) until it is completely empty before it even considers sending a single packet from a lower-priority queue. This ensures that latency-sensitive traffic like Voice (VoIP) is never delayed by data bursts, providing the " highest priority " forwarding required by the prompt.

Weighted Fair Queuing (WFQ/DWRR): These methods (like Deficit Weighted Round Robin) assign a percentage of the bandwidth to each queue. While this prevents " queue starvation " for data traffic, it doesn ' t guarantee that voice will always go first; it just guarantees voice gets its " fair share. "

FIFO: This is the default " no-QoS " behavior where the first packet to arrive is the first to leave, regardless of its importance.

Virtual Output Queuing (VOQ): This is an internal architectural design of the switch fabric (often found in the 8000 series) used to prevent Head-of-Line (HOL) blocking across the switch backplane. It is not a configurable end-user queuing strategy for traffic prioritization.

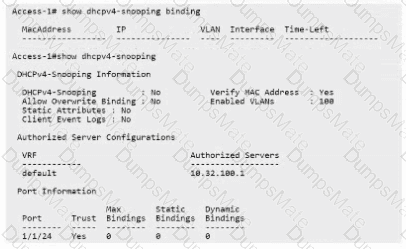

To prevent rogue DHCP servers in a VLAN, DHCP snooping authorized-server commands are used to specify trusted DHCP servers allowed to respond.

Option A (dhcpv4-snooping trust 10.100.100.10) configures a trusted port, but it is not VLAN specific and not precise enough for this purpose.

Enabling DHCP snooping globally and on VLAN or interface (Options C and D) are prerequisites but do not prevent rogue servers unless authorized servers are defined.

Option B correctly enables an authorized DHCP server IP on VLAN 30, blocking unauthorized DHCP responses.

To protect a network from Layer 2 man-in-the-middle attacks, AOS-CX switches utilize two closely related security features: DHCP Snooping and Dynamic ARP Protection .

DHCP Snooping: This feature acts as a firewall between untrusted hosts and trusted DHCP servers. When enabled, the switch categorizes ports as either trusted (connected to a legitimate DHCP server or another switch) or untrusted (connected to end-user devices). If a " malicious " DHCP server on an untrusted port attempts to send a DHCP OFFER or ACK message, the switch drops the packet.

The Snooping Binding Table: As a byproduct of monitoring legitimate DHCP exchanges, the switch builds a DHCP Snooping Binding Table . This table is a " source of truth " that maps a client ' s MAC address to its assigned IP address and the specific physical port it is connected to.

Dynamic ARP Protection: ARP poisoning (or spoofing) occurs when an attacker sends fake ARP messages to link their MAC address with the IP address of a legitimate server or gateway. When ARP protection is enabled, the switch intercepts all ARP packets on untrusted ports and validates them against the DHCP Snooping Binding Table . If the MAC-to-IP mapping in the ARP packet does not match the entry in the table, the packet is discarded.

Integration: These two features must work together. Without the binding table created by DHCP Snooping, ARP Protection has no data to validate against. This combination ensures that only the device that legitimately received an IP via DHCP can claim that IP in ARP responses.

In the exhibit, the CX8325 switch ports 1/1/47 and 1/1/48 are connected in a VSX setup. According to Aruba VSX best practices, ports on the CX8325 switch that serve as ISL or VSX interconnects should use SFP28 optics for 25Gbps links. If SFP56 optics are used, it would be incorrect because CX8325 ports are designed to support SFP28 modules for these speeds.

CX6300 ports use SFP56 or QSFP28 depending on model and link speed.

CX8300 series ports designed for QSFP28 for higher speeds.

Hence, the best practice is to use SFP28 on CX8325 for the interconnect links.

When receiving a ' 404 - Not Found ' HTTP response while attempting to configure a VLAN via REST API, the most common cause is specifying an incorrect URI endpoint. The correct approach is to specify the exact resource path for VLAN configuration, which is /rest/v1/system/vlan. Without the correct URI, the API will return a 404 error indicating the resource is not found.

Sending a POST request to login is necessary but not related to 404 after login.

Syntax errors in payload lead to 400-series errors but usually not 404.

Enabling REST API read/write is important but would result in different errors.

In an AOS-CX VSX environment, LACP is the standard for forming Multi-Chassis Link Aggregation Groups (MC-LAGs). However, LACP has a " chicken and egg " problem during certain boot processes.

The LACP Dilemma: LACP requires a software driver or " actor " on the client device to exchange BPDUs with the switch. During a Preboot Execution Environment (PXE) Boot , a server or workstation does not yet have its OS or LACP drivers loaded. Consequently, the switch receives no LACP packets, and by default, it keeps the LAG ports in a " blocked " or " waiting " state to prevent loops.

LACP Fallback Function: The lacp fallback command allows the VSX members to temporarily treat the LAG ports as non-bonded individual interfaces if no LACP partner is detected. This allows the device to communicate over a single physical link during the PXE process to download its OS image.

The Transition: Once the OS is loaded and the LACP driver starts sending BPDUs, the switch automatically transitions the ports back into a fully functional, bonded LAG.

Why other options are incorrect:

Option A: LACP mode (Active vs. Passive) is handled by the lacp mode command, not fallback.

Option D: While fallback results in a single interface operating, the intent and design requirement is to facilitate the pre-OS boot process, not simply to limit the partner to one interface.

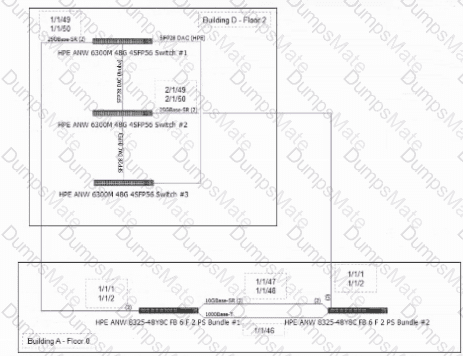

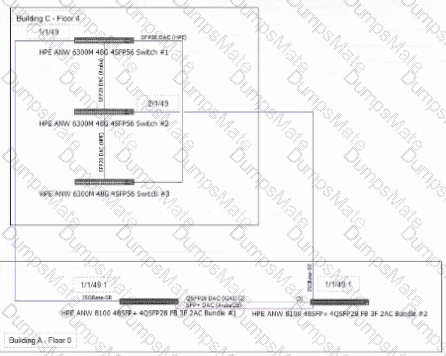

The configuration involves connecting two buildings over fiber using OM4 cabling with a distance of 200 meters. The current optics in use are 25GR (25 Gigabit Rate) optics.

For multimode fiber such as OM4, SR (Short Reach) optics are suitable for distances up to 300 meters. In contrast, LR (Long Reach) optics are typically designed for single-mode fiber and longer distances.

Therefore, to properly support the 200m OM4 fiber link, 25SR optics should be used instead of 25GR (which are often long-reach optics).

10SR and 10LR refer to 10Gbps optics, which do not meet the 25Gbps requirement.

25LR optics are for single-mode fiber and longer distances, not multimode.

When a recent routing change causes an outage affecting all users, the recommended immediate action is to restore the last-known working configuration to quickly return the network to a stable state. This is critical to minimize downtime and impact.

Asking customers to send logs or explaining the issue takes time and delays remediation.

Collecting show tech and opening TAC cases can be done after restoring service.

Hence, the quickest way to mitigate the impact is to restore the last known good configuration.

When establishing eBGP peering between devices that are not directly connected, the TTL (Time To Live) value of the BGP packets must be increased to allow them to traverse multiple hops. This is achieved by configuring ebgp-multihop, which increases the TTL beyond the default value of 1.

next-hop-self changes the BGP next-hop attribute but is not required for multihop eBGP.

route-reflector is a BGP design feature unrelated to multihop.

address-family ipv4 external is not a standard command on Aruba CX switches.

Therefore, to successfully peer eBGP sessions across multiple hops, ebgp-multihop must be configured.

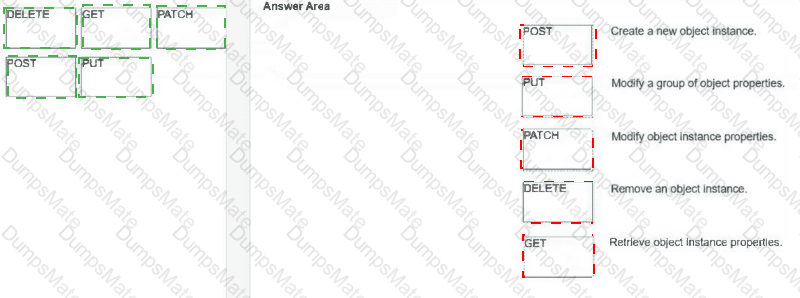

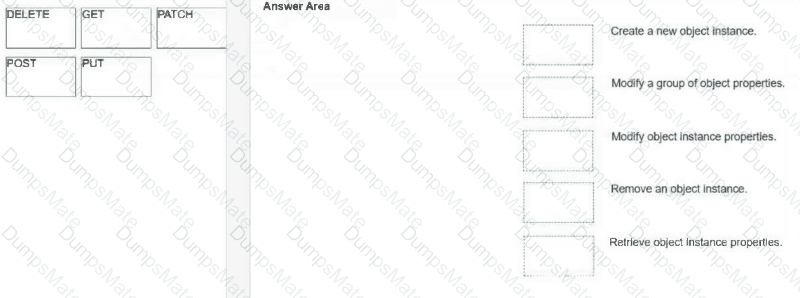

POST: Create a new object instance.

PUT: Modify a group of object properties.

PATCH: Modify object instance properties.

DELETE: Remove an object instance.

GET: Retrieve object instance properties.

AOS-CX is built with a REST-first architecture, where the Web UI and CLI both interact with the same internal database via an API. Understanding these standard HTTP methods is essential for network automation.

POST (Create): Used to create a new resource. For example, creating a new VLAN entry in the database.

GET (Read/Retrieve): Used to fetch information about a resource. It is a " read-only " operation used to check the status of a port or the contents of the routing table.

PUT (Replace/Modify Group): In the Aruba API context, PUT is used for a " complete update. " It essentially replaces the current object with a new set of properties. If you omit properties in a PUT request, they may return to default values.

PATCH (Partial Update/Modify Instance): PATCH is used for incremental changes. It allows you to modify only a specific subset of an object ' s properties (like changing only the description of a port) without having to resend the entire object configuration.

DELETE (Remove): Used to remove a specific resource instance from the switch database (e.g., deleting a VLAN or a static route).

Backing up the switch configuration to a remote Linux SFTP server requires using the copy command with the correct protocol (SFTP in this case), username, server IP, filename, and optionally the VRF to route management traffic.

Option A uses SCP and vrf default but the question mentions SFTP server, so SFTP protocol should be used.

Option B is a server-side command (not the switch).

Option C correctly uses copy startup-config sftp://user@192.168.1.100/switch_config.cfg vrf mgmt which backs up the startup-config via SFTP using the management VRF.

Option D is also a server-side command.

Using vrf mgmt is required because the management IP is in a separate VRF on CX switches.

In complex network designs involving different administrative domains (like a Campus and a Data Center), it is often desirable to prevent Spanning Tree Protocol (STP) from merging the two environments into a single, massive logical tree.

The Goal of Isolation: " Isolated spanning tree topology " means that the Campus and the Data Center should each have their own independent Root Bridge and calculate their own loop-free paths without being influenced by one another.

BPDU Filter (The Solution): When you apply BPDU Filter to an interface, the switch stops sending BPDUs out of that port and, more importantly, ignores any incoming BPDUs. Because the Campus switch no longer " sees " the BPDUs coming from the Data Center core, it will stop recognizing the DC as the Root Bridge and will instead elect a local Root Bridge (or remain as the Root itself). This effectively breaks the STP connection between the two domains while still allowing Layer 2 data traffic to flow.

Evaluating Other Options:

Option A (Root Guard): This is used to prevent a specific port from becoming a Root Port. If a superior BPDU is received, the port is placed into a " root-inconsistent " state (blocked). While this protects the local Root role, it does not " isolate " the topology; the switches still participate in the same overall STP domain.

Option C (BPDU Guard): This is intended for edge ports (connected to PCs/Printers). If it receives a BPDU, it shuts down the port entirely (rxtx-disable). Applying this to a core-to-core link would cause a total loss of connectivity as soon as the DC core sends a BPDU.

Option D (Admin Edge): This simply tells the switch to skip the Listening/Learning states and go straight to Forwarding. It does not provide topology isolation.

Comprehensive Detailed Explanation:

When a recent configuration change causes a spike in CPU utilization that negatively impacts users, the fastest way to restore normal operation is to revert the change. This rollback immediately removes the offending configuration, potentially stabilizing the CPU and restoring service.

Rebooting the switch (Option A) is disruptive and takes more time.

Disabling debug logging (Option C) may help if debug is causing high CPU, but it doesn ' t undo config changes.

Pausing NAE monitoring (Option D) only suspends monitoring and doesn’t address the root cause.

Hence, reverting the recent config change is the best immediate action.

The Network Analytics Engine (NAE) is a powerful built-in framework in AOS-CX for monitoring and troubleshooting. It uses Python-based agents to track system health and network events.

Direct UI Integration: The AOS-CX Web Interface (Web UI) includes a dedicated Analytics dashboard. Within this dashboard, there is a functional integration designed to simplify the acquisition of new monitoring scripts.

Aruba Solutions Exchange (ASE): The ASE is the official repository for Aruba-validated scripts, configuration templates, and NAE agents. When an administrator clicks the " Download " or " Discover " button within the NAE section of the switch ' s Web UI, the switch attempts to connect directly to the Aruba Solutions Exchange API . This allows the user to browse, select, and install verified NAE scripts without manually downloading files from a PC and then uploading them to the switch.

Evaluating Other Options:

Option A: The Support Portal is used for firmware and documentation, but it is not a script repository integrated into the switch UI.

Option C: Airheads is a community forum where scripts are discussed and shared manually, but it lacks the API integration for direct UI downloads.

Option D: While there is an official Aruba GitHub for NAE scripts, the built-in discovery mechanism specifically points to the ASE portal for a seamless, authenticated experience.

(Note: Corrected the typo in the original prompt where " Online " was used instead of " Only " .)

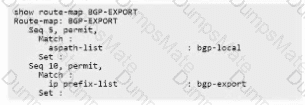

Redistribution between an Exterior Gateway Protocol (BGP) and an Interior Gateway Protocol (OSPF) is a high-risk operation on AOS-CX switches that requires careful planning.

Scale and Performance: BGP is designed to carry thousands (or even millions) of routes. OSPF is a link-state protocol that requires every router in an area to maintain an identical Link State Database (LSDB). If you were to redistribute a full BGP table into OSPF, the resulting flood of Type 5 LSAs would likely crash the OSPF process, consume all available switch memory, and cause network-wide instability.

The " Only Defined Routes " Rule: Aruba best practices dictate that you should use Route Maps to strictly control (define) which specific BGP prefixes are allowed into the OSPF domain. This ensures only necessary destination networks (like a remote branch office) are advertised to the campus routers, protecting the OSPF area ' s resources.

Evaluating Other Options:

Option A: While redistributing only a default route is a very safe strategy, it isn ' t a " universal truth " because some designs require specific internal subnets to be shared.

Options B and C: Choosing between External Type 1 (E1) and External Type 2 (E2) is a design choice regarding how costs are calculated (E1 adds internal path cost, E2 stays constant). Neither is an " always " requirement; the primary concern is the volume and definition of the routes being moved.

Aruba Central Support Mode is a specialized state that allows an administrator or TAC engineer to bypass the typical " Central is the Source of Truth " write-lock on the local CLI.

The Workflow: Normally, if a switch is managed by Central, local configuration commands are blocked. By enabling aruba-central support-mode, the local CLI becomes writable.

Synchronization Logic: Once the changes are made and the support mode session is closed, the AOS-CX switch communicates the new configuration back to the Central platform. Central recognizes these changes and updates its internal database for that specific device.

Local Override: In Central ' s UI, these changes often appear as " Local Overrides. " This ensures that the next time Central performs a configuration audit or a sync, it doesn ' t view the local change as a " conflict " and overwrite it; instead, it incorporates it into the device-level record.

Key Exam Point: AOS-CX was designed specifically to handle this " bi-directional " sync during support sessions to ensure that troubleshooting done by TAC is not lost the moment the switch reconnects to the cloud.

To enable Layer 3 multicast functionality on an AOS-CX switch, it is essential to understand the roles of different protocols and where they are applied in the hierarchy of the switch configuration.

L3 vs. L2 Multicast:

IGMP (Internet Group Management Protocol): This is a Layer 3 protocol used by hosts to report their multicast group memberships to adjacent routers. It is configured on a Layer 3 interface , such as an SVI (Switch Virtual Interface) or a routed port.

IGMP Snooping: This is a Layer 2 optimization feature. It allows a switch to " listen in " on IGMP conversations between hosts and routers to constrain multicast traffic to only those ports that have requested it, preventing the traffic from flooding the entire VLAN.

Enabling L3 Multicast Locally: When the " core switch " acts as the default gateway for multicast receivers, it must be able to process membership reports from those receivers. By enabling IGMP on the SVI (e.g., interface vlan 100), the switch begins listening for IGMP Join/Leave messages from clients on that subnet. This is a prerequisite for the switch to populate its multicast routing table and, when combined with a routing protocol like PIM (Protocol Independent Multicast) , forward traffic from a source to those local receivers.

Analysis of Options:

Option A (Correct): IGMP must be enabled on the SVI so the switch can function as a multicast-aware gateway for that specific subnet.

Option B: In AOS-CX syntax, you do not configure " IGMP " under the L2 vlan [ID] context; it is an L3 function.

Option C: Enabling IGMP-snooping on a VLAN only manages the L2 delivery of traffic; it does not enable L3 routing or the processing of multicast packets across different subnets.

Option D: While IGMP-snooping is often used in conjunction with L3 multicast, it is technically a VLAN-level configuration, not a property of the SVI itself.

Key CLI Commands:

To fully enable this, a professional would typically use:

Bash

router multicast

routing

!

interface vlan 100

ip igmp

ip pim-sm

The error message " Invalid input: interface " typically appears if the switch is managed by HPE Aruba Central, which restricts CLI interface configuration to prevent configuration drift. When managed externally, certain commands are disabled or locked.

Password recovery mode or authorization enabled would not cause this error.

Manager context is not a concept in Aruba CX CLI.

When configuring a Multi-Chassis Link Aggregation Group (MC-LAG) in a VSX environment, the two physical switches must act as a single logical entity to the connected device (the Gateway).

The Concept of Multi-Chassis (Option A): In many networking architectures, including Aruba ' s legacy AOS-Switch and the conceptual models taught in certification, a LAG must be explicitly identified as " Multi-Chassis " to enable the coordination between the two physical switches. In AOS-CX , while you don ' t literally type " multi-chassis " on the interface, the term is used in exam contexts to describe the MC-LAG functionality .

The " One Link Up " Problem: If the Gateway only sees one link up, it means the LACP negotiation has failed on one of the two switches. This happens because the two switches are not presenting the same LACP System ID to the Gateway. Without the proper multi-chassis/VSX coordination, Switch 1 and Switch 2 appear as two completely different devices. The Gateway’s LACP process will see two different IDs for what it thinks should be one bundle and will block one of the links to prevent a loop.

Why not B? vsx-sync is used to synchronize the commands between the two switches so you don ' t have to type them twice. While helpful for management, its absence doesn ' t prevent a link from coming up as long as you manually configured both sides identically.

Why not C? lacp mode active on the switch will work perfectly with either active or passive on the Gateway side.

Using the command copy checkpoint 20240722 running-config exemplifies the Replace configuration troubleshooting methodology. This involves replacing the current running configuration with a known good checkpoint to restore proper operation.

Divide and conquer isolates faults by segment.

Top-down/Bottom-up analyzes layer by layer.

Spot the difference compares configurations.

Replacing the config is a straightforward rollback approach.

The LACP state event Actor state: ALFNCD, Partner state: ASFNCD indicates that the LACP negotiation between the local (actor) and peer (partner) is successful with all flags matching and no errors.

ALFNCD and ASFNCD are standard LACP states indicating Active, Long timeout, Aggregation capable, Not synchronized, Collecting, and Distributing flags set as expected.

Also, the log shows the LACP rate is set to slow, which is the default.

Thus, the output shows the LAG 253 has a matching LACP configuration with its peer.

To receive a monthly report tracking available licenses and their expiration dates in Aruba Central, the Infra Inventory report should be scheduled. It provides detailed information about device inventories, including licenses and expiration.

Switch Capacity Planning focuses on resource utilization.

Resource Utilization monitors system performance.

Network report focuses on topology and health.

This is a classic troubleshooting scenario in AOS-CX multicast environments. IGMP Snooping is designed to be " quiet " and efficient, but it has a specific dependency.

The Need for a Querier: IGMP Snooping works by listening for IGMP Join messages. However, for hosts to keep sending Join messages, there must be an IGMP Querier on the network that periodically asks, " Is anyone still listening to this multicast group? "

The Problem: If you enable IGMP Snooping on a VLAN but there is no L3 device acting as a Querier, the initial Join messages will eventually time out. The switch will then stop forwarding the multicast traffic to those ports because it assumes no one is listening anymore.

The Solution: By enabling IGMP on the Layer 3 interface (SVI) for that VLAN, the switch becomes the IGMP Querier for that subnet. It will send out periodic queries, the hosts will respond with " Reports, " and the IGMP Snooping table will remain populated, allowing the multicast application to continue functioning.

Why other options are incorrect:

Option A: IGMP Snooping is a Layer 2 function and is not configured " on " the L3 interface (SVI).

Options C and D: While PIM (Protocol Independent Multicast) is used for routing multicast between subnets, the immediate failure described (local applications not working on a VLAN after snooping is turned on) is almost always a lack of an IGMP Querier on that local segment.

In a high-security " Colorless Ports " environment using AOS-CX, we often run both 802.1X (Dot1x) and MAC Authentication (MAC-auth) on the same port to handle a mix of corporate laptops and " dumb " IoT devices (printers, cameras).

The Default Behavior: By default, the switch usually attempts 802.1X first. When a device like a printer is plugged in, it does not have an 802.1X " supplicant " to respond to the switch ' s EAPOL-Request packets. The switch will wait for a series of timeouts and retries (EAPOL timeouts) before it gives up on 802.1X and moves on to the next method (MAC-auth). This waiting period is what causes the " few minutes " delay the user is experiencing.

Auth-Precedence vs. Auth-Priority:

Auth-Precedence: This defines the order in which the switch attempts the authentication methods.

Auth-Priority: This defines which method " wins " if multiple methods succeed (relevant for a PC that might trigger both).

The Solution: By changing the auth-precedence to mac-auth dot1x, the switch immediately captures the device ' s MAC address and sends it to the RADIUS server (like Aruba ClearPass) for authentication.

For a printer, MAC-auth succeeds immediately, and the port is authorized without waiting for 802.1X timeouts.

For a corporate laptop, MAC-auth happens first (granting basic or initial access), and then the 802.1X process can trigger immediately after to provide higher-level " User " access.

Why other options are incorrect:

Option A: Disabling 802.1X removes the security for corporate devices on those ports; it is not a " secure configuration " maintenance.

Option B: Increasing the timeout would make the delay worse , not better.

Option D: There is no specific " MAC auth start value " timer in AOS-CX that would solve a multi-minute delay caused by the 802.1X failure wait.

CLI Example:

Bash

interface 1/1/1

aaa authentication port-access auth-precedence mac-auth dot1x

When line card LEDs do not light up, and the cards are newly installed, the best troubleshooting methodology is Divide and conquer by swapping the line cards. This method isolates the problem by testing hardware in different slots or known working units.

Spot the difference involves comparing configurations, which does not directly isolate hardware failure.

Follow the path is more suited for connectivity issues.

Replace configuration relates to software or config problems.

Hardware issues are best isolated by physically swapping components.
