JN0-106 Junos - Associate (JNCIA-Junos) Junos OS 21.2 Questions and Answers

Transit traffic represents the primary " workload " of a Junos device; it is the data that enters one network interface and exits another, destined for a remote host. Unlike exception traffic, transit traffic is forwarded exclusively by the Packet Forwarding Engine (PFE) . The PFE uses specialized Application-Specific Integrated Circuits (ASICs) or programmable NPUs to perform lookups in the hardware-based forwarding table (FIB) at wire speed.

A defining characteristic of transit traffic is that it does not require control plane processing . Once the Routing Engine (RE) has populated the PFE with the necessary forwarding instructions, the RE steps out of the way. The packets pass through the PFE ' s ingress processing, lookups, and egress queuing without ever consuming CPU cycles on the Routing Engine. This bypass is what allows Junos devices to maintain massive throughput and low latency, even if the RE is busy recalculating a complex BGP table. Routing protocol packets (like OSPF updates) and traffic destined for the router ' s own management IP address are explicitly not transit traffic; they are control plane traffic because they terminate at the device ' s " brain. " Transit traffic is strictly " pass-through " data.

Root password recovery in Junos OS is a critical administrative procedure designed to regain access to the management plane when the root credentials are lost. This process is fundamentally tied to the physical security of the device, as it requires two specific conditions that cannot be met over a standard network connection. First, the administrator must have direct console access to the device. Because the recovery process involves interrupting the Junos boot sequence before the operating system kernel and its associated security services (such as SSH) are fully initialized, it must be performed through the serial management port.

Second, a system reboot is mandatory. The recovery mechanism is triggered by interrupting the boot loader (typically the " Loader " or " U-Boot " stage) by pressing the Space bar or a specific key sequence during power-on. This allows the administrator to enter " single-user mode " or boot into a " recovery " state. Once in this restricted environment, the device mounts its internal storage in a way that permits the modification of the root authentication parameters without requiring the existing password. This workflow intentionally bypasses the standard authentication database to restore management control while preserving the rest of the device configuration. This procedure underscores the importance of securing physical access to the chassis, as anyone with console access and the ability to cycle power can eventually gain root-level authority over the system.

In the Junos OS architecture, the configuration environment is strictly bifurcated to ensure system stability and integrity. The candidate configuration is a specific database that serves as a staging area, storing all proposed changes made by an administrator during a configuration session before they are finalized. Unlike other network operating systems where changes might take effect immediately upon entry, Junos utilizes this " sandbox " approach where modifications reside only in the candidate database until a commit command is explicitly executed.

Once the commit process is initiated, the Junos OS kernel validates the candidate configuration for syntax errors and logical consistency. If the validation check is successful, the candidate configuration is promoted and becomes the active configuration—the operational state currently running on the device hardware. This separation allows multiple administrators to work on complex changes without impacting live transit traffic or device stability prematurely. If a mistake is identified during the editing process, the candidate configuration can be easily discarded or compared against the active state to identify discrepancies. This workflow is a cornerstone of Junos OS, facilitating a " check-before-apply " methodology that is essential for carrier-grade reliability and minimizing the risk of accidental outages during critical maintenance windows. Reference: Junos OS Fundamentals, Configuration Databases, Candidate vs. Active.

==========

The statement describing commit confirmed 5 is correct. In Junos OS, configuration changes are first made to a candidate configuration . They do not become the active operational configuration merely because they have been entered in configuration mode. A commit operation is required to validate and activate those changes.

The commit confirmed mechanism provides an important administrative safety feature. When the administrator enters:

commit confirmed 5

Junos OS activates the candidate configuration but requires confirmation within 5 minutes . If the configuration is not confirmed before the timer expires, Junos OS automatically rolls back to the previously committed configuration. Juniper explicitly documents that the optional number following commit confirmed specifies the confirmation period in minutes.

Option A is incorrect because operational mode is primarily used for monitoring, troubleshooting, maintenance, and operational commands rather than making persistent configuration changes. Option B is incorrect because configuration-mode edits remain candidate changes until committed. Option D is also incorrect: rollback 0 does not restore factory defaults . It loads the most recently committed configuration and effectively removes pending uncommitted modifications.

Study Guide Reference Topics: Configuration Basics — candidate versus active configuration, commit operations, confirmed commits, configuration rollback, and Junos CLI modes.

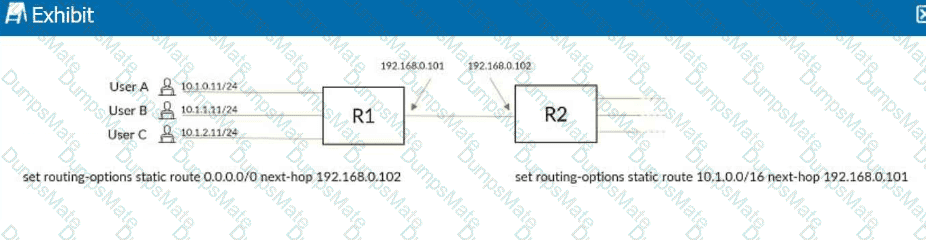

The configuration exhibit demonstrates a classic scenario where mismatched static routing leads to a routing loop . Router R1 is configured with a default route ( 0.0.0.0/0 ) pointing to R2 as its next hop. Conversely, R2 is configured with a broad static route for 10.1.0.0/16 pointing back to R1 .

If a user sends a packet to an unassigned IP address such as 10.1.99.1 , the following sequence occurs:

R1 receives the packet and consults its routing table. Finding no specific match for the 10.1.99.1 host, it uses the default route and forwards the packet to R2 .

R2 receives the packet and identifies that 10.1.99.1 falls within its defined static route for 10.1.0.0/16 .

Following its configuration, R2 forwards the packet back to R1 . This process repeats indefinitely—or until the packet ' s Time to Live (TTL) reaches zero—because the broad summary on R2 encompasses addresses that R1 does not actually have a local path for. This illustrates the critical importance of ensuring that summary routes or default routes do not overlap in a way that creates circular forwarding paths for non-existent destinations. Reference: Routing Fundamentals, Static Route Configuration, Routing Loops and TTL.

==========

In the Junos OS architecture and general networking standards, Layer 2 switches are designed to increase network efficiency by segmenting collision domains. Unlike legacy hubs, a switch creates a separate collision domain for each of its physical ports. This micro-segmentation allows for full-duplex communication, effectively eliminating the possibility of collisions on individual links. However, while switches segment collision domains, they maintain a single broadcast domain by default.

When a switch receives a broadcast frame, such as an ARP request, it must ensure the frame reaches all possible destinations within the local segment. Consequently, the switch floods the broadcast traffic out of all ports except the one on which it was received. This flooding behavior, while necessary for protocol discovery, makes Layer 2 networks susceptible to traffic loops. If redundant physical paths exist between switches without a loop-prevention mechanism like the Spanning Tree Protocol (STP), broadcast frames can circulate endlessly, leading to a broadcast storm that consumes all available bandwidth and processor resources on the Routing Engine. Furthermore, switches are highly active learners; they populate their Media Access Control (MAC) tables by observing the source addresses of incoming frames to ensure that subsequent unicast traffic is precisely forwarded rather than flooded. Therefore, understanding the management of broadcast domains and the risks of loops is a core competency for any Junos Associate.

In Junos OS, the configuration database is designed with a robust versioning system that facilitates rapid recovery from administrative errors. Every time a commit command is successfully executed, the system automatically archives the previous active configuration and assigns it a " rollback " index. The rollback command is used within configuration mode to revert the candidate configuration to a previously saved state.

The indices are zero-based, where rollback 0 represents the currently active configuration that was just committed. To restore the configuration that was functional immediately before the most recent, problematic commit, the administrator must use rollback 1. This command replaces the current candidate configuration with the contents of the last known working state. It is important to note that executing rollback 1 only populates the candidate buffer; to make this previous configuration active and restore connectivity, the administrator must subsequently issue the commit command. This mechanism is a cornerstone of Junos OS ' s commitment to high availability and operational resilience, allowing for nearly instantaneous restoration of services without the need for manual line-by-line configuration edits during a network outage.

Determining the appropriate subnet mask for a specific host requirement is a core task in designing Junos-based network infrastructures. The number of usable hosts in an IPv4 subnet is calculated using the formula $2^n - 2$, where $n$ represents the number of host bits remaining after the network prefix. In this scenario, the requirement is to support 50 hosts within a single broadcast domain.

Evaluating the options:

A /29 mask provides 3 host bits ($2^3 - 2 = 6$ hosts), which is insufficient.

A /28 mask provides 4 host bits ($2^4 - 2 = 14$ hosts), which is insufficient.

A /27 mask provides 5 host bits ($2^5 - 2 = 30$ hosts), which still fails to meet the 50-host threshold.

A /26 mask provides 6 host bits. Applying the formula: $2^6 - 2 = 64 - 2 = 62$ usable host addresses.

Since a /26 mask provides 62 usable addresses, it is the smallest standard subnet mask that fully satisfies the requirement of 50 hosts. Using a /26 mask allows for the 50 required hosts while providing a small buffer for future growth (12 additional addresses) without wasting the excessive address space associated with a /25 or /24 mask. This efficient allocation of address space is a best practice for maintaining scalable and organized routing tables on Juniper devices.

The Junos OS Command Line Interface (CLI) utilizes an advanced command-line editing environment influenced by standard Emacs and Unix terminal behaviors. One of the most critical features for operational efficiency is the command history buffer. This buffer automatically records a sequence of previously executed commands, allowing administrators to recall, modify, and re-execute them without manual re-entry.

The navigation of this history buffer is strictly chronological and operates as a stack. When the up arrow key is pressed once, the CLI retrieves the most recent command that was successfully entered—in this scenario, show chassis errors fpc-slot 0. Pressing the up arrow key a second time moves the cursor one step further back into the history stack to the command that preceded the most recent one. Following the provided sequence, the command executed prior to the " errors " check was show chassis fpc detail. Consequently, the second press of the up arrow key will display show chassis fpc detail at the prompt. This mechanism is essential for architects during intensive troubleshooting sessions, enabling them to cycle through relevant diagnostic commands rapidly while maintaining focus on the hardware output rather than syntax repetition. Reference: User Interfaces, CLI Editing Features, Command History.

==========

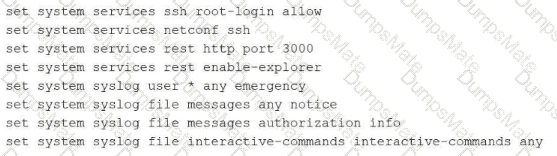

Securing the management plane is a core requirement for any Junos OS deployment. Secure Shell (SSH) is the industry-standard protocol used to provide encrypted, authenticated remote access to the Junos Command Line Interface (CLI). Unlike Telnet, which transmits both administrative credentials and command data in cleartext, SSH utilizes public-key cryptography to establish a secure tunnel, protecting the session from eavesdropping, man-in-the-middle attacks, and unauthorized interception.

In Junos OS, SSH is typically enabled within the [edit system services] hierarchy. Once active, it allows administrators to perform operational and configuration tasks with the assurance that their management traffic remains confidential. Beyond simple terminal access, SSH serves as the transport mechanism for other secure management functions, such as the NETCONF XML management protocol and Secure Copy (SCP) for file transfers. For high-security environments, Junos supports advanced SSH features including key-based authentication, strong cipher suites, and multi-factor authentication integration. Disabling insecure protocols like Telnet and FTP in favor of SSH and SFTP/SCP is a foundational best practice for hardening the Routing Engine against external threats.

Comprehensive and Detailed 150 to 250 words of Explanation From: The Transmission Control Protocol (TCP) is a core transport-layer protocol within the TCP/IP suite designed to provide a highly reliable, connection-oriented service. Unlike the User Datagram Protocol (UDP), which is connectionless and best-effort, TCP ensures that data is delivered accurately and in the correct order. A defining characteristic of TCP is its use of a three-way handshake to establish a session. This process involves the exchange of SYN, SYN-ACK, and ACK segments, which synchronizes sequence numbers between the two endpoints and ensures both hosts are ready for data transfer.

Furthermore, TCP provides reliable, ordered delivery by utilizing sequence numbers and acknowledgments. Each data segment is assigned a sequence number; the receiving host uses these numbers to reassemble the data in its original order, even if segments arrive out of sequence due to network jitter or multiple paths. If a segment is lost, the lack of a timely acknowledgment triggers a retransmission, guaranteeing that the application receives all data. TCP does not provide fixed latency guarantees, as its error-recovery mechanisms can introduce delays. Additionally, TCP is a unicast-only protocol and does not support broadcasting on Ethernet. Reference: Networking Fundamentals, Transport Layer Protocols, TCP vs. UDP.

==========

In Junos OS, route preference (often referred to as administrative distance in other operating systems) is the mechanism used to select the " best " path when the routing table receives multiple advertisements for the exact same destination prefix from different routing sources. The core rule for preference is that lower values indicate a more preferred or " higher priority " route . For example, a direct route has a default preference of 0, a static route is 5, and OSPF internal routes are 10. If a router learns about the same network from both OSPF and a static entry, it will select the static route because 5 is lower than 10.

Crucially, route preference is only evaluated after the longest prefix match (LPM) has been determined. LPM is the absolute first step in packet forwarding; the router will always choose the most specific route available (e.g., a /28 over a /24). Only if there are multiple entries for that same /28 does the router look at preference to break the tie. It is a common misconception that a lower preference value can override a more specific prefix; in reality, a /32 route with a preference of 170 (BGP) will always win over a /24 route with a preference of 5 (Static). Understanding this hierarchy is vital for network architects when designing redundant paths and predictable failover behaviors.

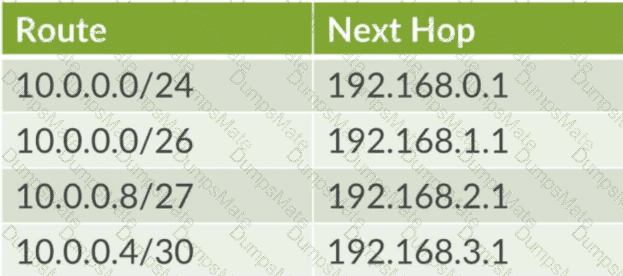

In Junos OS, the Packet Forwarding Engine (PFE) determines the next hop for a packet by performing a lookup in the forwarding table and identifying all valid matches for the destination IP address. When multiple routes encompass the same destination, the router strictly follows the Longest Prefix Match (LPM) rule to select the most specific entry.

For the destination address 10.0.0.9 , the following evaluation occurs based on the exhibit:

10.0.0.0/24 : This route matches, as the address falls within the 10.0.0.0–10.0.0.255 range.

10.0.0.0/26 : This route matches, as the address falls within the 10.0.0.0–10.0.0.63 range.

10.0.0.8/27 : This route matches, as the address falls within the 10.0.0.8–10.0.0.39 range.

10.0.0.4/30 : This route does not match, as its range ends at 10.0.0.7.

Among the matching entries, the prefix lengths are /24, /26, and /27. The longest prefix match is /27 , as it specifies the most granular network segment. Because 10.0.0.8/27 is the most specific match for the destination 10.0.0.9 , the router selects its associated next hop, which is 192.168.2.1 . This deterministic behavior ensures that traffic follows the most precise path calculated by the routing protocols or defined by the administrator, overriding broader routes like the default or summary advertisements.

The Junos Command Line Interface (CLI) is designed with an intuitive, context-sensitive help system that assists users in navigating the command hierarchy. When an administrator enters a question mark (?) at the prompt, the CLI provides immediate feedback based on the current location within the hierarchy. First, it lists all available commands and options that are valid at that specific point. This allows the user to see the breadth of possible next steps without needing to refer to external documentation.

Second, the ? character triggers the display of summary information for each of those commands and options. This brief descriptive text provides a clinical overview of what each command achieves, helping the user select the appropriate tool for their task. This " help-on-demand " feature is functional in both operational and configuration modes. It is important to distinguish this from the help command; while help (such as help topic or help reference) provides more exhaustive documentation and usage examples, the ? prompt is primarily a quick-reference tool for command completion and syntax discovery. This mechanism ensures that even complex configurations can be built accurately by exploring the available options and their summarized purposes directly within the terminal environment. Reference: User Interfaces, CLI Help Facilities, Command Discovery.

==========

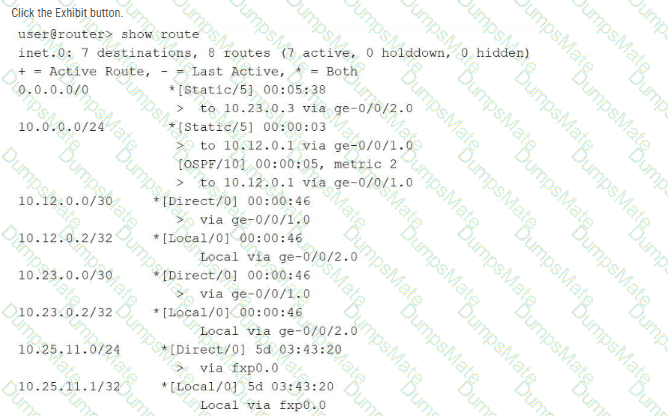

Analyzing the provided exhibit of the inet.0 routing table reveals that the destination network 10.0.0.0/24 currently has two viable paths: a static route with a preference of 5 and an OSPF route with a preference of 10. Both routes are configured to use 10.12.0.1 via the ge-0/0/1.0 interface as their primary next hop. The static route is currently marked with an asterisk (*), indicating it is the active path chosen by the Routing Engine due to its lower preference value.

In the event that the ge-0/0/1 interface transitions to a " down " state, the physical layer failure triggers the immediate invalidation of all routes associated with that link. Consequently, both the specific static and OSPF routes for the 10.0.0.0/24 prefix are purged from the active forwarding table. The Routing Engine must then perform a re-evaluation of the routing table to identify the next best match for any traffic destined for that range. Since there are no other more specific or equally specific routes available for the 10.0.0.0/24 network, the router falls back to the default route (0.0.0.0/0) . As shown in the exhibit, the default route points to the next-hop address 10.23.0.3 via interface ge-0/0/2.0 . Therefore, if the primary interface fails, traffic will be redirected through this secondary gateway.

In the Junos OS environment, distinguishing between static diagnostic data and real-time telemetry is crucial for effective troubleshooting. While commands like show interfaces provide a cumulative snapshot of counters since the last reboot or counter clear, they do not easily reveal instantaneous spikes or fluctuating utilization patterns. To address the requirement for " live, real-time traffic updates, " the monitor interface command is the correct operational tool.

When an architect executes monitor interface ge-0/0/5, the CLI launches an interactive, ncurses-based screen that refreshes every second. This display provides immediate visibility into input and output bits-per-second (bps), packets-per-second (pps), and error increments. Unlike static commands, this real-time stream allows a technician to observe micro-bursts or sustained high-utilization periods as they occur, which is essential for diagnosing " intermittent slowness " caused by congestion. In contrast, show chassis hardware focuses on physical inventory, and show interfaces terse only provides administrative and operational status. Even the extensive version of the show command only offers a point-in-time calculation of averages. Therefore, monitor interface is the primary mechanism for interactive performance auditing of individual ports on the Packet Forwarding Engine.

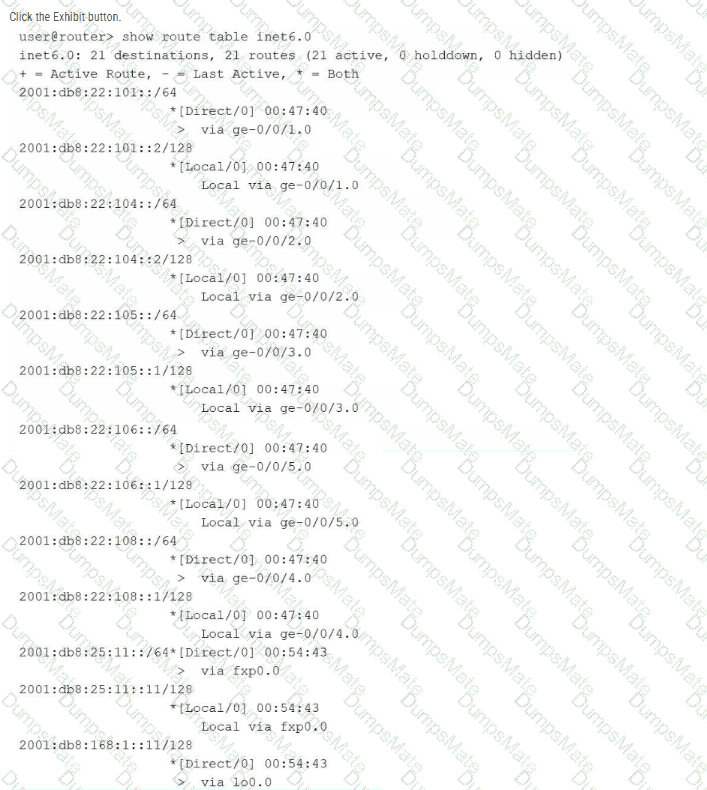

IPv6 introduces several fundamental shifts in networking architecture compared to its predecessor, IPv4. The most prominent characteristic is the address length; IPv6 utilizes a 128-bit address space, represented in hexadecimal notation across eight groups of 16 bits. This massive expansion from IPv4 ' s 32-bit limit was designed to ensure long-term address availability for the global internet and the growing ecosystem of connected devices.

Another defining characteristic of IPv6 is the concept of address scope, particularly regarding link-local addresses . Any IPv6 address beginning with the fe80::/10 prefix is classified as link-local. These addresses are automatically configured on every IPv6-enabled interface and are strictly not routable beyond the local physical or logical link segment. They are essential for local link operations such as neighbor discovery and routing protocol adjacency formation.

Architecturally, IPv6 also improves performance by streamlining the packet header. Unlike IPv4, the IPv6 header does not include a checksum, as modern link-layer (Layer 2) and transport-layer (Layer 4) protocols perform their own error checking, making a redundant header checksum unnecessary at the network layer. Additionally, IPv6 replaces the broadcast-based Address Resolution Protocol (ARP) with the multicast-based Neighbor Discovery Protocol (NDP). Understanding these core traits—massive address length and non-routable link-local scoping—is critical for managing modern Junos-based network infrastructures.

Prefix lists in Junos OS are named collections of IP addresses or network prefixes defined under the [edit policy-options] hierarchy. One of their most powerful features is their versatility and reusability. Because they are defined as independent objects, a single prefix list can be referenced in multiple different routing policies across the device. This modularity ensures consistency; for instance, if a set of " internal " prefixes changes, an administrator only needs to update the list in one location for those changes to propagate to every policy that utilizes it.

Furthermore, prefix lists are designed to be used across different functional areas of the Junos architecture. They are equally valid for use in routing policies (to control the import or export of routes between protocols like BGP or OSPF) and in firewall filters (to match source or destination addresses for transit or management traffic). When used in a routing policy, the prefix list typically performs an exact match on the prefix length unless modified by a match type like orlonger. In a firewall filter, it acts as a high-speed lookup table for the Packet Forwarding Engine. This dual-purpose capability makes prefix lists a foundational tool for architects seeking to implement scalable, automated security and routing logic within a unified configuration framework.

In Junos OS, the naming convention for physical interfaces is highly structured, providing immediate information regarding the media type, hardware location, and port number. The prefix of an interface name is a two-letter or three-letter code that identifies the speed and physical transmission characteristics of the interface. For 10-Gigabit Ethernet (GbE) interfaces, the correct prefix is xe. This prefix is a standard identifier across Junos platforms, regardless of whether the interface is fixed or modular.

Understanding these prefixes is essential for navigating the Junos configuration hierarchy and performing operational monitoring. For comparison, other common prefixes include fe for Fast Ethernet (10/100 Mbps), ge for Gigabit Ethernet (1 Gbps), and et for higher-speed interfaces such as 40-GbE or 100-GbE. When an administrator views the output of commands like show interfaces terse, identifying the xe prefix allows for the quick verification of high-bandwidth links within the network fabric. This standardized nomenclature ensures consistency across different hardware families, such as the EX, MX, and QFX series, facilitating easier management and troubleshooting for network architects. This concludes the provided set of questions from the Junos Associate (JNCIA-Junos) curriculum. Reference: Junos OS Fundamentals, Interface Naming Conventions.

The primary and most critical rule used by Junos OS (and routers in general) to determine the next hop for a specific packet is the Longest Prefix Match (LPM) algorithm. When the Routing Engine or Packet Forwarding Engine looks up a destination IP address in the routing or forwarding table, it may find several entries that technically encompass that address. The LPM rule dictates that the router must select the most specific route available—that is, the entry with the highest number of matching bits in its subnet mask (the longest prefix).

For example, if a router has a route for 10.1.1.0/24 and another for 10.1.1.0/28, a packet destined for 10.1.1.1 will always be forwarded according to the /28 route, as it is more specific. Longest prefix match takes precedence over all other selection criteria, including route preference (administrative distance) and metrics. Preference and metrics are only evaluated when the router has multiple entries for the exact same prefix length (e.g., two different paths to 10.1.1.0/24). This logic ensures that traffic is guided along the most precise path defined in the network topology. Routers never choose paths at random or based on the most recent update as their primary selection mechanism, as doing so would result in non-deterministic and inefficient routing behavior. Reference: Routing Fundamentals, Routing Table and Forwarding Table Selection.

==========

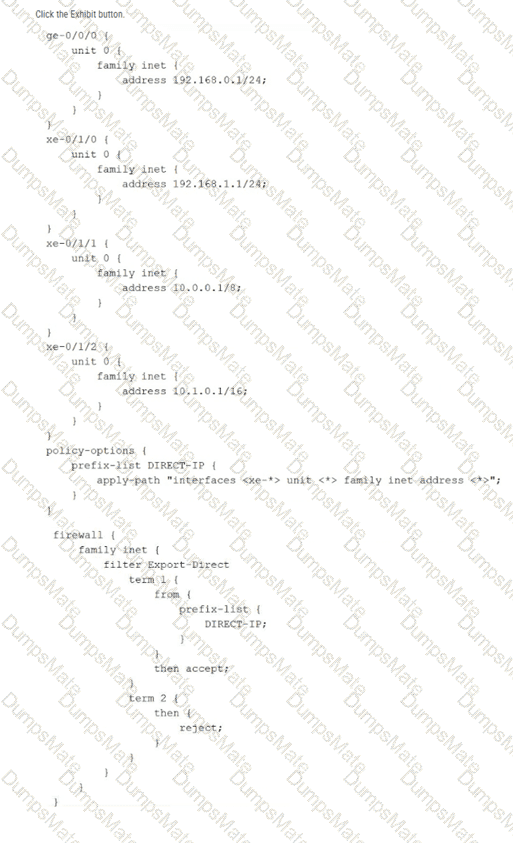

The exhibit illustrates the use of the apply-path feature within a prefix list configuration. In Junos OS, apply-path is a dynamic configuration utility that allows a prefix list to be automatically populated with values derived from other parts of the configuration—in this case, all IPv4 addresses assigned to interfaces with the xe-* prefix. This is particularly useful for building automated firewall filters or routing policies that stay updated as interfaces are added or modified.

When viewing the standard configuration using show configuration, the CLI only displays the literal apply-path statement. To verify the actual list of IP addresses that the system has inherited and populated into the DIRECT-IP list, the administrator must use the | display inheritance pipe filter. This command instructs the Junos OS parser to expand all inherited values and dynamic paths, showing the effective configuration as it is seen by the Packet Forwarding Engine. Based on the exhibit, this would reveal the subnets associated with xe-0/1/0, xe-0/1/1, and xe-0/1/2, while ignoring ge-0/0/0 because it does not match the xe-* wildcard. This verification is a critical troubleshooting step before applying such a prefix list to a transit firewall filter like Export-Direct.

Physical layer connectivity for Junos devices involves a variety of media types, with fiber-optic cabling being the standard for high-speed, long-distance, or high-density uplink requirements. Two of the most prevalent connector types used in these environments are the LC (Lucent Connector) and the SC (Subscriber Connector) .

The LC connector is a small-form-factor (SFF) connector that uses a 1.25 mm ferrule. Due to its compact size and " push-and-latch " mechanism, it is the primary connector type found on SFP, SFP+, and XFP transceivers used in Juniper EX, MX, and QFX series hardware. Its high-density design allows for more ports in a limited space on a line card or chassis. The SC connector , often referred to as a " square connector, " utilizes a larger 2.5 mm ferrule and a " push-pull " snapping mechanism. While it was highly common in older legacy hardware and fiber patch panels, it has largely been superseded by the LC in modern data center and enterprise switching environments.

In contrast, the RJ-45 is a standard copper Ethernet connector (typically used with Category 5e/6 cables), and the BNC (Bayonet Neill–Concelman) is a miniature quick connect/disconnect RF connector used for coaxial cable. As a Senior Architect, distinguishing between these physical interfaces is critical when specifying the correct Small Form-factor Pluggable (SFP) modules and patch cables required to bring a Junos interface into an operational up/up state.

In Junos OS, the rescue configuration is a specifically designated file that stores a known-working configuration, intended to be used for emergency recovery when the device becomes unreachable or unstable due to recent changes. This configuration is not created automatically; an administrator must proactively save a stable state using the operational mode command request system configuration rescue save. This differs from the standard rollback archive, which automatically stores up to 50 previous configurations but can eventually rotate out the specific " last known good " state needed for recovery.

When a device loses network connectivity, console access becomes the only viable management path. To restore the rescue configuration, the administrator must enter configuration mode using the configure command. Once inside the candidate configuration buffer, the rollback rescue command is issued. This command directs the Junos OS to locate the designated rescue file and load its contents over the current candidate configuration. Upon receiving the " load complete " confirmation, the administrator must execute a commit to promote the candidate configuration to the active, running state. Sequence C correctly follows this logic. Sequence A is technically incorrect for standard rescue restoration as load override typically targets specific file paths or URLs, whereas rollback rescue is the built-in mechanism for this function. Sequences B and D are destructive or counter-productive, either deleting the rescue file or overwriting it with the current, non-functional configuration state. Reference: Operational Monitoring and Maintenance, Configuration Recovery, Rescue Configuration.

==========

To effectively troubleshoot packet forwarding in a Junos environment, an architect must distinguish between the control plane ' s Routing Information Base (RIB) and the data plane ' s Forwarding Information Base (FIB). While the command show route displays the RIB (the master routing table maintained by the Routing Engine), it does not necessarily reflect the actual instructions being executed by the hardware. The definitive command for viewing the data plane ' s active path selection is show route forwarding-table.

Executing this command reveals the contents of the FIB as it has been pushed from the Routing Engine to the Packet Forwarding Engine (PFE). The output provides critical diagnostic data, including the destination prefix, the specific next-hop IP address, the interface through which the packet will egress, and the type of route (such as unicast or broadcast). This is the " ground truth " for packet movement; if a route exists in the RIB but is missing from the forwarding table, it indicates a failure in the communication between the RE and PFE. Utilizing this command is the primary method for identifying black holes, incorrect next-hop resolution, or issues with hardware-level filter applications that might be impacting transit traffic flow at wire speed.

Upgrading the Junos OS is a high-impact operation that requires thorough preparation to minimize risk and potential downtime. According to Juniper ' s best practices, one of the most critical preliminary steps is to verify that the device has sufficient available storage space. Using the show system storage command, an administrator can inspect the /var partition, which is the primary directory where software packages are temporarily stored and expanded during the installation process. If the storage is nearly full, the upgrade may fail midway, potentially leaving the device in an inconsistent state or requiring manual intervention via the boot loader.

The second mandatory task is to back up the active configuration . While Junos automatically maintains rollback files locally, these could be lost if the storage media fails or if a " clean install " (format install) becomes necessary. Having an external backup on a remote server or a local workstation ensures that the device ' s identity, policies, and interface settings can be restored quickly regardless of the upgrade outcome. Other tasks, such as creating a rescue configuration or performing a file system cleanup, are also highly recommended to ensure the " last known good " state is preserved. Disabling interfaces is generally unnecessary as Junos manages the transition gracefully, and deleting rollbacks would counterproductively remove historical recovery points. Ensuring these two pillars—storage availability and off-box backups—provides the safest foundation for a successful software lifecycle management event.

In modern Junos OS versions, the most efficient and standard way to isolate Out-of-Band (OOB) management traffic from transit traffic is by utilizing the management-instance . Historically, management interfaces like fxp0 (on M/MX/T series) or me0 (on EX/QFX series) shared the global routing table (inet.0), which could lead to routing conflicts if management subnets overlapped with production data.

To resolve this, Junos introduced the set system management-instance command. When this is enabled, the OS automatically creates a dedicated routing instance named mgmt_junos. The physical management interface (be it fxp0, em0, or me0) and its associated logical unit are moved into this private instance. This creates a complete separation: management protocols like SSH, SNMP, and NTP operate within mgmt_junos, while BGP, OSPF, and customer data remain in inet.0. This architecture ensures that even a massive routing loop or table exhaustion in the production plane will not prevent an administrator from accessing the device via the OOB port. Furthermore, it simplifies the configuration of default gateways for management traffic, as the mgmt_junos instance maintains its own independent routing table (mgmt_junos.inet.0), preventing management routes from ever being leaked into the provider core.
