JN0-232 Security, Associate (JNCIA-SEC) Questions and Answers

When troubleshooting packet handling on an SRX Series device, administrators need to understand exactly how the flow module is processing traffic. The most effective tool for this is the flow traceoptions feature .

Flow traceoptions: Provides detailed per-packet trace information showing each processing step within the flow module. It reveals how traffic is evaluated against session tables, NAT rules, and security policies. This is the recommended method for in-depth troubleshooting.

Why not the others?

The flow session table (Option A) shows only active sessions and counters, not detailed step-by-step handling.

The forwarding table (Option B) relates to routing and forwarding decisions, not flow security processing.

Firewall filters (Option D) can match and log traffic but do not display detailed flow processing steps.

Therefore, the correct method to get detailed information about flow handling is to enable flow traceoptions .

Static NAT: Provides a one-to-one bidirectional mapping between internal and external IP addresses. When configured, the translation automatically applies in both directions (Option A is correct). It does not use Port Address Translation (Option C is incorrect).

Destination NAT: Allows external clients to access internal resources by translating the destination address. It supports port forwarding so specific services (e.g., HTTP on port 80) can be forwarded to an internal host (Option D is correct). It does not require equal-sized address ranges (Option B is incorrect).

Correct Characteristics: Static NAT is bidirectional, and Destination NAT supports port forwarding.

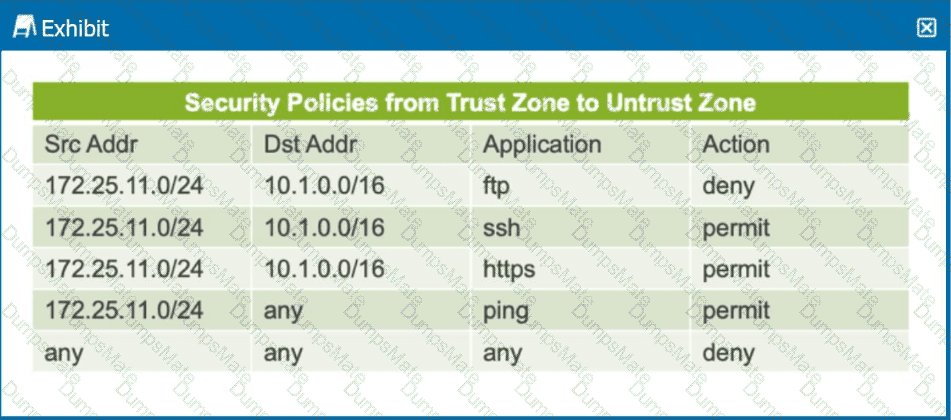

Juniper SRX evaluates security policies sequentially from top to bottom. Once a policy match is found, no further policies are evaluated. In this exhibit:

First Policy (FTP, deny):

Source: 172.25.11.0/24

Destination: 10.1.0.0/16

Application: FTP

Action: deny ⇒ Any FTP traffic from 172.25.11.0/24 to 10.1.0.0/16 is denied .

Second Policy (SSH, permit):

Same source/destination but application = SSH

Action = permit ⇒ SSH traffic from 172.25.11.0/24 to 10.1.0.0/16 is permitted .

Third Policy (HTTPS, permit): ⇒ HTTPS from the same source/destination is permitted .

Fourth Policy (Ping, permit):

Source: 172.25.11.0/24 to any destination

Application: ping

Action: permit ⇒ ICMP echo requests (ping) from 172.25.11.0/24 to any destination are permitted .

Fifth Policy (any → any, deny): ⇒ Serves as a default deny all at the end.

Now checking each option:

Option A: SSH from 172.25.11.10 → 10.1.0.10 matches the SSH permit rule (second policy). ✅ Correct.

Option B: Ping from 172.25.11.100 → 10.1.0.10 matches the ping permit rule (fourth policy). This traffic is permitted, not denied. ❌ Incorrect.

Option C: FTP from 10.1.0.10 → 172.25.11.100 is reverse traffic (untrust to trust) . The table applies only trust → untrust , so this policy does not apply. ❌ Incorrect.

Option D: FTP from 172.25.11.11 → 10.1.0.10 matches the first policy ( FTP deny rule ). ✅ Correct.

Correct Statements: A, D

Global security policies extend the flexibility of policy enforcement across the SRX. They are not tied to specific source and destination zones:

From-zone and to-zone contexts are not required (Option A). Global policies apply across all zones unless restricted by match conditions.

Global security policies do not require specific zone contexts (Option B is incorrect).

Global policies are processed after zone-based policies , not before. This means that zone-based security policies take precedence (Option C is incorrect).

Administrators can configure both zone-based security policies and global security policies at the same time on the same device (Option D is correct).

This allows flexible designs where specific policies can be enforced by zone, while general policies can be applied globally without duplicating rules across multiple zones.

The correct command is show security utm web-filtering status. This operational mode command verifies whether the web-filtering service connection is up. For NGWF, the SRX sends URL or destination IP information to the Juniper NGWF cloud, where the URL is categorized and reputation information is returned to the device. Because NGWF depends on cloud connectivity, checking web-filtering status is the appropriate troubleshooting and verification step. The anti-spam and anti-virus status commands verify different Content Security services, and content-filtering statistics show content-filter counters rather than cloud web-filtering connectivity. Juniper documentation also notes that this command can confirm whether web filtering is down because of a missing license or service condition.

After confirming correct routing:

The next step is to verify security zone assignments (Option A) . If interfaces are not correctly assigned to zones, traffic will not be evaluated against proper inter-zone or intra-zone security policies, causing drops.

Option B: The routing protocol is irrelevant once the correct route lookup is confirmed.

Option C: NAT is checked later in the flow, not the immediate next step after routing.

Option D: ALG is only needed for specific applications (FTP, SIP), not general troubleshooting.

Correct Next Step: Verify that interfaces are assigned to the correct security zones.

When a packet enters an SRX interface, a route lookup is performed:

It determines the egress interface (Option B) by checking the destination IP against the routing table.

Once the egress interface is known, its associated egress security zone (Option D) is also determined.

The ingress interface (Option A) is already known when the packet arrives, so the route lookup does not determine it.

DNS name (Option C): DNS is unrelated to routing lookups.

Correct Results: egress interface, egress security zone

License Requirement (Option B): NextGen Web Filtering (NGWF) is a licensed feature on SRX devices. Without a license, the service cannot operate.

Local vs. Cloud Lists (Option C): NGWF checks local block/allow lists first . If the URL does not match locally, the request is then checked against the Juniper cloud database.

Option A: Incorrect, since the cloud is only consulted if the URL is not in the local list.

Option D: Incorrect, as NGWF requires a valid subscription/license.

Correct Statements: NGWF requires a license, and it checks local lists before cloud lookup.

The SRX Series devices support third-party antivirus scanning engines such as Avira . To use the Avira antivirus engine, administrators must explicitly enable the engine and ensure that the required components are properly loaded.

Enable in configuration mode:

The Avira antivirus engine must be enabled under UTM configuration mode. This step ensures the SRX device uses the Avira scanning engine for antivirus inspection.

Example:

set security utm feature-profile anti-virus avira-engine enable

Reboot the SRX device:

A system reboot is required after enabling the Avira engine to load the Avira antivirus components into memory.

Without a reboot, the Avira engine will not become active.

Why not the others?

Restarting the mgd process (Option A) only reloads the management daemon and does not load antivirus engines.

Enabling in operational mode (Option B) is not supported; the configuration must be applied in configuration mode.

Therefore, the correct actions to use Avira Antivirus are: Enable the Avira engine in configuration mode (Option D) and reboot the SRX device (Option C).

Routing instances: Security zones are local to their routing instance. They cannot be shared between routing instances (Option B is correct). Each routing instance must define its own zones.

Intrazone and interzone traffic: Both types of traffic require policies in Junos OS. Intrazone traffic must have an explicit intra-zone policy to be controlled (Option C is correct).

Sharing zones: Option A is incorrect, as zones cannot span routing instances.

Multiple zones: SRX devices fully support multiple security zones (trust, untrust, DMZ, etc.). Option D is incorrect.

Correct Statements: B and C

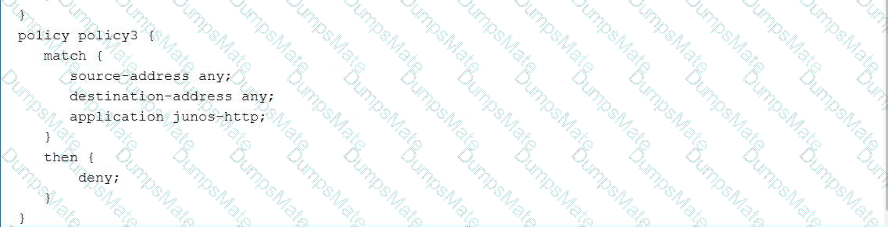

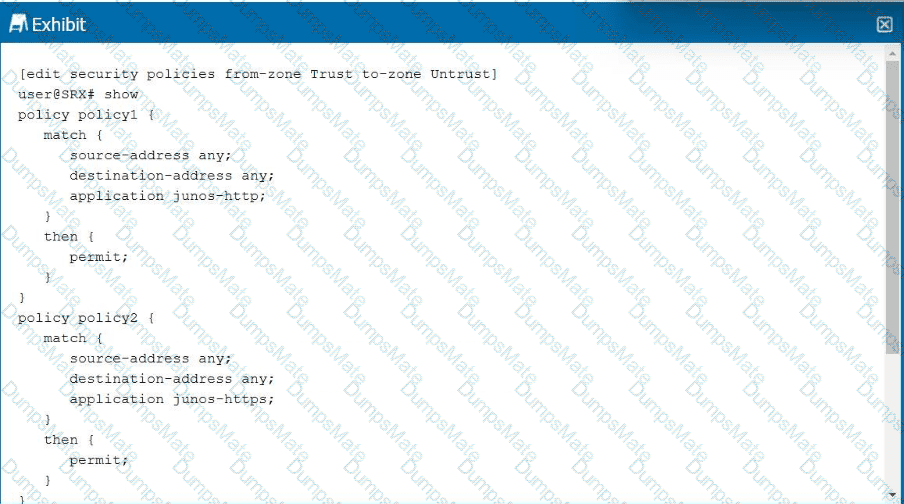

Juniper SRX evaluates security policies in order, top to bottom . The first matching policy determines the action, and no further policies are evaluated. This behavior can lead to shadowed policies if later policies match the same conditions as earlier ones.

From the exhibit:

Policy1: Matches application junos-http and permits traffic.

Policy2: Matches application junos-https and permits traffic.

Policy3: Matches application junos-http again, but denies traffic.

Since policy1 already matches all HTTP traffic and permits it, traffic never reaches policy3 . This makes policy3 shadowed because it has the same match condition as policy1 but is evaluated later in the list.

Other options:

Policy1 is not shadowed because it is evaluated first.

Policy2 is independent (application = HTTPS) and therefore unaffected.

Only policy3 is shadowed by policy1.

Correct Statement: Policy3 will be shadowed because it matches the same application as policy1.

For an SRX firewall interface to respond to management traffic such as ICMP pings:

The interface must be assigned to a security zone (Option A). If an interface is not part of any zone, it is placed into the null zone, which drops all traffic.

Additionally, the zone must be configured to allow management traffic types as host-inbound-traffic (Option D). For ICMP, the protocol must be explicitly allowed under host-inbound-traffic for that zone.

Other options:

Security policies (Option B) control traffic traversing the firewall, not traffic destined to the SRX device itself.

Assigning the interface to the null zone (Option C) prevents any communication, including management.

Correct Actions: Assign the interface to a zone and configure ICMP under host-inbound-traffic.

To verify and demonstrate the effectiveness of content filtering on an SRX firewall, administrators use operational mode commands that display UTM statistics.

The command show security utm content-filtering statistics provides detailed counters showing how many connections were inspected, how many were blocked, and other related metrics.

This is the correct way to measure and demonstrate filtering effectiveness.

Commands in options A, B, and C provide status information for antispam, antivirus, and web filtering features, but they do not provide content filter effectiveness statistics.

Avira Antivirus is an on-device antivirus scan engine used by Juniper Content Security on supported SRX Series Firewalls. Juniper documentation states that you must install and activate the Avira Antivirus scan engine and verify that you have an Avira antivirus license before using it. The documentation also states that after configuring Avira as the antivirus type, the device must be rebooted for the new scan engine to take effect. Therefore, a license is required and a reboot is required. Options B and D are incorrect because they contradict Juniper’s Avira Antivirus configuration requirements. After Avira is enabled, Content Security policies and antivirus profiles can be applied to security policies for protocol traffic inspection.

Unified security policies integrate traditional zone-based policies with application-based policies . Their characteristics include:

Zone-based or global (Option B): Unified policies can be applied as either zone-specific or global policies.

AppID engine (Option C): They leverage the AppID engine for application identification, enabling fine-grained control at the application layer.

Policy matching (Option A): Policies are evaluated sequentially like standard security policies; applications are not matched before policy processing.

Multiple matches (Option D): If multiple policies could match, the first match applies (sequential order), not the “most restrictive.”

Correct Statements: B and C

In Junos OS, security zones are the foundation of SRX firewall policy enforcement. Logical interfaces must be assigned to zones. This enables:

Separation of traffic by zone boundaries.

Enforcement of security policies for traffic traversing between zones.

Control of traffic across VLANs, subnets, or functional areas (e.g., trust, untrust, DMZ).

Other options:

Zone assignment is not used to simplify interface configuration (A).

Routing protocols and updates (B) are handled by routing instances, not zones.

SNMP monitoring (D) is enabled under system or services configuration, not zones.

SRX devices operate on a default deny-all policy if no explicit match is found:

If a packet does not match any configured zone-based or global policy, it is implicitly denied.

The traffic is discarded silently by the default security policy (Option A).

Option B: No predefined “safe zone” exists.

Option C: Logging occurs only if explicitly configured; default deny does not automatically log traffic.

Option D: Incorrect, since the firewall defaults to deny, not permit.

Correct Behavior: Traffic is discarded by the default security policy.

In Juniper SRX flow-based packet processing, the flow module is responsible for security functions such as screening, session management, NAT, and policy enforcement. The processing order is critical:

Screens are applied before any session lookup. This ensures that packets are inspected for anomalies, floods, or protocol violations before consuming resources for session management. Examples of these screens include TCP SYN flood protection, ICMP flood protection, and port scanning protection.

After screening, the session lookup occurs. At this point, the firewall checks whether the packet belongs to an existing session in the session table. If a matching session is found, the packet bypasses policy evaluation and is forwarded according to the session state.

If no existing session is found, the packet continues through route lookup, NAT processing, and security policy evaluation before a new session is created.

Thus, screening occurs before the session lookup , protecting the system early in the flow process. This design ensures efficiency by dropping malicious or malformed traffic before allocating session resources.

The exhibit shows an internal source address and port being translated to a different external source address and port. This behavior identifies source NAT with Port Address Translation. Source NAT changes the source IP address of traffic leaving the SRX, commonly allowing private hosts to access public networks. PAT extends this by translating the source port as well, allowing multiple internal devices or sessions to share a smaller number of public addresses, often a single public IP address. The exhibit does not show destination NAT because the translated value is associated with the internal client’s source identity, not the destination server address. It is not source NAT without PAT because the port number is also changed. Therefore, source NAT with PAT is the correct answer.

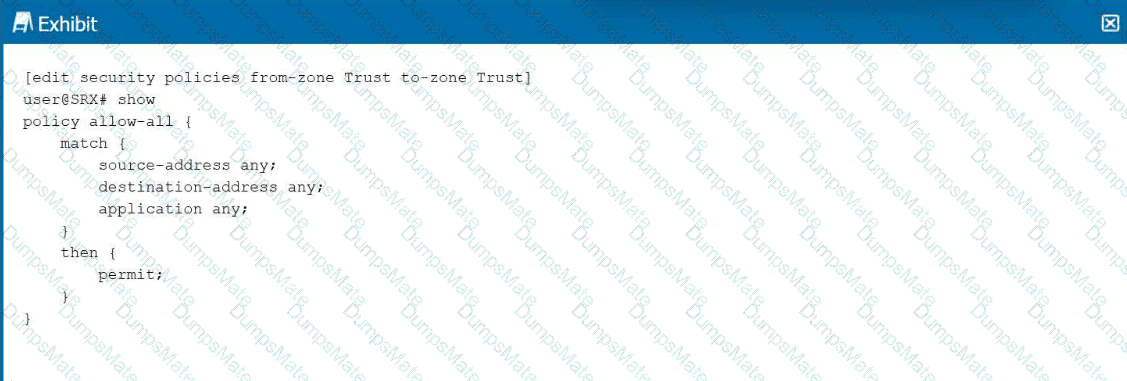

From the exhibit configuration:

[edit security policies from-zone Trust to-zone Trust]

policy allow-all {

match {

source-address any;

destination-address any;

application any;

}

then {

permit;

}

}

The from-zone and to-zone are both set to Trust → Trust .

This means the policy is governing traffic within the same zone .

Policies within the same zone are called intra-zone policies .

Analysis of options:

Global policy (A): Applied universally across zones, not zone-specific. Not the case here.

Inter-zone policy (B): Applies between two different zones (e.g., Trust → Untrust). Not the case here since both zones are Trust.

Intra-zone policy (C): Correct. Applies to traffic within the same zone (Trust → Trust).

Default policy (D): The implicit deny-all policy that applies when no policy matches. Not shown in this exhibit.

Correct Policy Type: Intra-zone policy

A Junos custom application is a security policy object used when a predefined Junos application does not match the traffic requirement. To create one, you must define an application name, the transport protocol, and port information such as the destination port. Juniper documentation describes custom application attributes as including the name, transport protocol, and source or destination port numbers for TCP or UDP applications. The security policy itself is not a required attribute of the custom application object; it is where the object is later referenced. The source address is also not part of defining the application object. Therefore, the valid requirements are the port number, application name, and protocol.

The Routing Engine is the control-plane component in Junos OS. It runs routing protocols, maintains routing tables, handles system management functions, and derives the forwarding table from active routes. Juniper documentation explains that the Routing Engine constructs and maintains routing tables and then copies the forwarding table into the Packet Forwarding Engine. The Routing Engine kernel also provides communication with the PFE and keeps the PFE forwarding table synchronized with the master copy on the Routing Engine. Therefore, options B and C are correct. Option A is incorrect because the PFE does not manage the Routing Engine; the relationship is the opposite. Option D is incorrect because transit packet forwarding is performed by the Packet Forwarding Engine, while the Routing Engine controls and programs forwarding behavior.

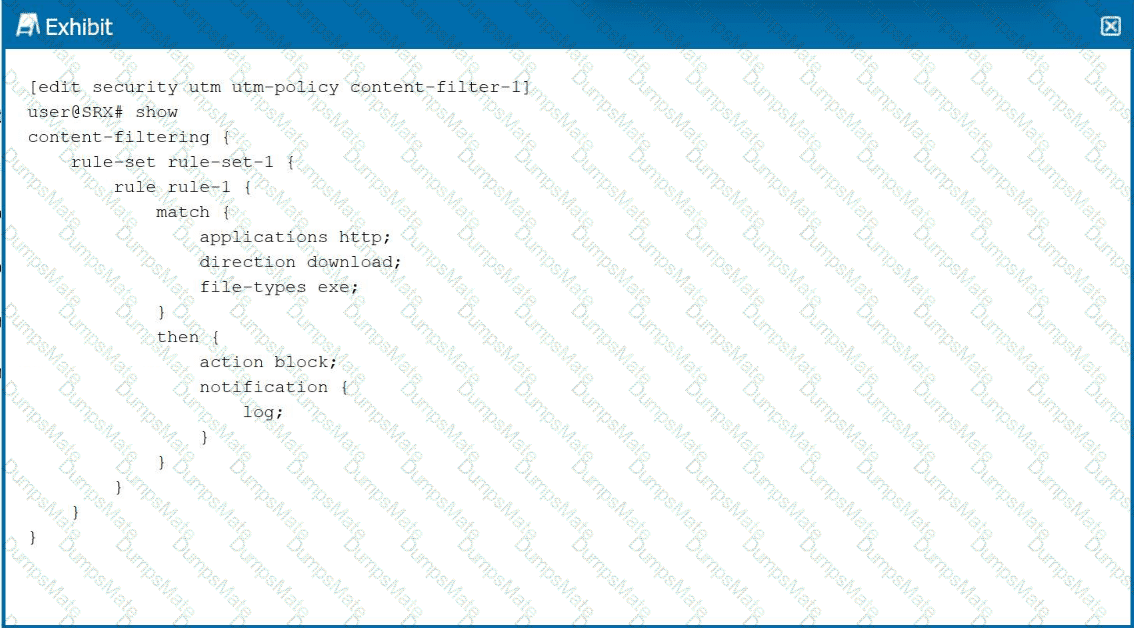

From the exhibit, the content filter configuration is as follows:

Match Conditions:

Application: HTTP

Direction: download

File-types: exe

Action:

block

notification log

Analysis of Options:

Option A: Incorrect. The configuration specifies the download direction , not upload. Uploads of .exe files are unaffected.

Option B: Correct. Because the rule applies to downloads , .exe files will be blocked when users attempt to download them over HTTP.

Option C: Correct. The notification { log; } statement ensures that an entry will be added to the SRX device’s log when the action is triggered.

Option D: Incorrect. No configuration for sending e-mail notifications is shown in the rule. Only logging is specified.

Correct Statements: B and C

The session output shows traffic entering the SRX from 192.0.2.212/49862 to the public destination 203.0.113.199/22. The paired flow shows the translated internal server address as 10.10.101.10/22. This confirms destination NAT because the original destination IP address 203.0.113.199 is translated to the internal destination IP address 10.10.101.10. Juniper’s destination NAT documentation shows the same interpretation of show security flow session: the incoming flow is destined to the public address, while the paired flow displays the translated private destination address. PAT is not being performed because the destination port remains 22 before and after translation. PAT would require port translation, but no port number changes are shown.

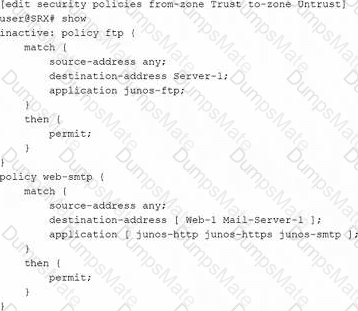

The exhibit shows that the FTP policy is marked inactive, so it remains in the configuration but does not take effect when the configuration is committed. Juniper documentation explains that inactive configuration elements are ignored and are not applied during commit. One valid fix is to activate the FTP policy and commit the configuration so that the policy becomes active again. Another valid fix is to use rollback 1 to return to the previously committed configuration, then commit that restored configuration. Simply moving the inactive FTP policy before another policy would not help because an inactive policy is still ignored. Changing the destination address to any is unnecessary because the primary problem shown is the inactive FTP policy.

During web filtering, the SRX first checks local policy elements such as allow lists, block lists, and cached URL categorization information. If the URL is not available locally, the device sends the URL information to the cloud-based web filtering service for categorization. Juniper documentation for enhanced and cloud-based web filtering explains that when the URL is not present in the filtering cache, the device sends a categorization request to the cloud service. NextGen Web Filtering similarly uses the Juniper NGWF cloud to categorize the URL and provide reputation information. Therefore, the correct action is to forward the URL to the NextGen Web Filtering application in the Juniper cloud. It is not simply allowed, blocked, or reset by default before categorization is attempted.

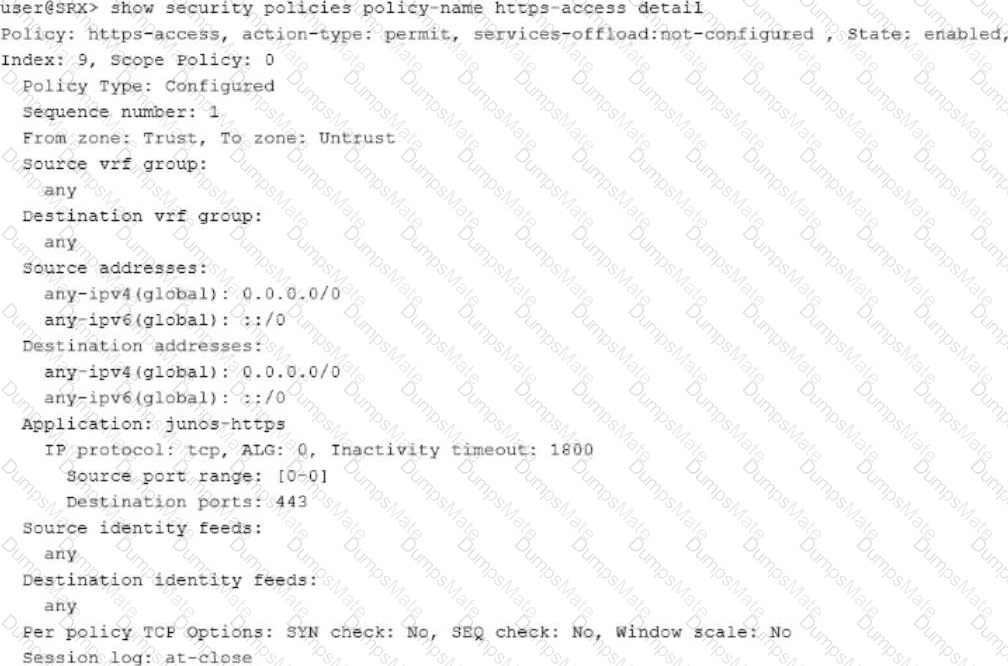

The exhibit shows From zone: Trust, To zone: Untrust, which identifies the policy as a zone-based security policy. It also shows the policy action as permit and the application as junos-https, with TCP destination port 443. Therefore, the policy permits HTTPS traffic. The displayed inactivity timeout is 1800 seconds, which is the normal value shown for predefined TCP applications such as HTTPS, so it does not prove a non-default timeout. The exhibit also shows sequence number 1, not sequence number 2, so it is not the second policy in the list. Junos security policies are configured in a from-zone to to-zone context and match traffic by criteria such as source address, destination address, and application before applying the configured action.

Security policies can reference additional services and authentication behavior after traffic matches the policy criteria. SSL proxy is applied through a security policy by matching the traffic that should be decrypted and inspected, then referencing the SSL proxy profile as an application service. Firewall authentication is also policy-based; Juniper describes it as requiring users to authenticate to the SRX Series Firewall before access between zones and devices is permitted. Captive portal authentication is a web redirection mechanism and is not the direct security policy feature identified in this question. MAC bypass is not a standard SRX security policy service. Therefore, SSL proxy and firewall authentication are the two features applied through security policy processing.

Exception traffic is traffic that must be sent from the Packet Forwarding Engine (PFE) to the Routing Engine (RE) for processing, such as routing protocol updates, management traffic, or other control-plane packets. Because the RE is a limited and critical resource, Junos OS implements rate limiting on exception traffic .

The purpose is to prevent denial-of-service (DoS) attacks on the Routing Engine by controlling the amount of traffic directed to it.

This ensures the RE continues to process control-plane operations reliably, even under potential attack or heavy traffic conditions.

Rate limiting does not enhance forwarding plane performance (Option A), simplify interface configuration (Option B), or manage routing protocols directly (Option D).

When source NAT uses a pool of addresses from the same subnet as the egress interface , the firewall must respond to ARP requests for those NAT pool IPs. Without this, upstream devices would not know how to forward traffic destined for those IPs.

Proxy ARP is required (Option D). It enables the SRX to answer ARP requests on behalf of the NAT pool addresses.

Static NAT (Option A) is unrelated and maps one-to-one, not required here.

Dynamic DNS (Option B) has no relation to NAT pools.

Destination NAT (Option C) applies to inbound translations, not outbound source NAT pools.

Correct Feature: Proxy ARP
