JN0-281 Data Center Associate (JNCIA-DC) Questions and Answers

In Junos OSPF, the passive setting is used when you want the prefix on an interface to be advertised into OSPF, but you do not want the interface to form OSPF neighbor adjacencies or send OSPF Hello packets. This is a common data center requirement for server-facing, management, or loopback-related interfaces where you want the subnet to be reachable through the routing domain, but there is no OSPF-capable neighbor on that link. By making the interface passive, the router still includes the connected network in OSPF as an internal route, so other routers learn how to reach that subnet. At the same time, the interface does not participate in adjacency formation, which reduces unnecessary protocol chatter and eliminates the risk of accidentally forming neighbors on an untrusted or unintended segment.

The other options do not meet the requirement. Interface-type changes the OSPF network type behavior, such as broadcast or point-to-point, but it does not stop adjacency formation while still advertising the network. Strict-bfd relates to failure detection behavior when BFD is used with routing protocols and does not control whether OSPF forms neighbors. Link-protection is related to fast reroute and protection mechanisms, not suppressing OSPF adjacency on an interface.

In legacy hierarchical network design, three key layers are used to create a scalable and structured network:

Step-by-Step Breakdown:

Access Layer:

The access layer is where end devices, such as computers and IP phones, connect to the network. It typically involves switches that provide connectivity for devices at the edge of the network.

Aggregation Layer (Distribution Layer):

The aggregation layer (also called the distribution layer) aggregates traffic from multiple access layer devices and applies policies such as filtering and QoS. It also provides redundancy and load balancing.

Core Layer:

The core layer provides high-speed connectivity between aggregation layer devices and facilitates traffic within the data center or between different network segments.

Juniper Reference:

Legacy Hierarchical Design: Juniper networks often follow the traditional three-layer design (Access, Aggregation, and Core) to ensure scalability and high performance.

Link aggregation groups, implemented on Junos as aggregated Ethernet interfaces, allow multiple physical Ethernet links to operate as one logical Layer 2 interface. This increases available bandwidth and provides link level resiliency because member links can fail without taking down the logical interface, as long as at least one member remains operational. In data center leaf spine designs, link aggregation is commonly used for server dual homing, uplinks to appliances, or inter switch connectivity where parallel links are desired with a single logical adjacency.

From a forwarding perspective, the device distributes traffic across member links using a hashing algorithm based on packet header fields so that individual flows remain in order while the aggregate uses multiple links. Control plane operation can be static or negotiated with LACP. With LACP, both sides exchange protocol information to ensure consistent bundling and to remove failed or miswired members automatically. This makes link aggregation a core high availability building block at the link layer, independent of Routing Engine redundancy features.

Graceful Routing Engine switchover, nonstop bridging, and nonstop active routing are control plane redundancy features. They are designed to minimize disruption during Routing Engine failover or preserve protocol state, but they do not combine multiple physical Ethernet interfaces into one logical link layer interface.

Verification sources from Juniper documentation

https://www.juniper.net/documentation/us/en/software/junos/interfaces-ethernet/topics/topic-map/understanding-lacp.html

https://www.juniper.net/documentation/us/en/software/junos/interfaces-ethernet/topics/topic-map/aggregated-ethernet-interfaces-overview.html

On Junos switching platforms used in data centers, a VLAN is a Layer 2 broadcast domain. To make a VLAN functional for user traffic, you define the VLAN with a name and typically a VLAN ID, and you associate Layer 2 interfaces with that VLAN so frames arriving on those interfaces are placed into the correct broadcast domain. Without interface membership, the VLAN exists as configuration but does not carry endpoint traffic because no ports participate in it. This is why assigning a VLAN name or ID and associating Layer 2 interfaces to the VLAN is a correct requirement.

Trunk mode interfaces are designed to carry multiple VLANs over a single physical link using 802.1Q tagging. In a data center, trunks are common on leaf-to-spine uplinks, switch-to-switch connections, and server connections where the host or hypervisor tags multiple VLANs. Therefore, assigning one or more VLANs to a trunk port is correct.

An IRB interface is not required for every VLAN. IRB is only needed when the VLAN requires Layer 3 gateway functionality, such as inter-VLAN routing or default gateway services for that subnet. Pure Layer 2 VLANs do not need IRB. Also, an access mode interface is intended to belong to a single VLAN and typically carries untagged traffic, so assigning multiple VLANs to an access mode interface is not correct in standard Ethernet switching behavior.

A link aggregation group combines multiple physical Ethernet interfaces into one logical link layer interface, called an aggregated Ethernet interface on Junos. The primary purpose is to improve availability and increase usable bandwidth between two devices without changing the logical topology. If one member link fails, the aggregate can remain up and continue forwarding traffic over the remaining active members, providing redundancy at the link layer. This is especially valuable in data center designs where loss of a single optic or cable should not interrupt server connectivity, leaf to spine uplinks, or connections to service appliances.

LAG also enables load balancing. Instead of forcing all traffic over one physical link, the forwarding plane distributes flows across member links using a hashing algorithm. This allows the aggregate to use the sum of member bandwidth for multiple concurrent flows while keeping packets for a given flow in order. In leaf spine fabrics, this complements ECMP at Layer 3 by delivering parallelism both at the routed path level and within a single adjacency when multiple physical links exist.

LAG does not encrypt traffic. Encryption is provided by separate security features and protocols. It also does not increase the speed of a single physical interface; rather, it increases the total capacity of the logical bundle across multiple links. Finally, it does not assign IP addresses, which is the role of services like DHCP, not link aggregation.

On Junos Ethernet switching platforms, the Layer 2 forwarding decision is based on a MAC address lookup table. Juniper commonly refers to this as the Ethernet switching table, which contains learned source MAC addresses mapped to an ingress interface and a VLAN or bridge domain context. This table is built dynamically through normal Layer 2 learning, and it is what allows the switch to forward known unicast frames to the correct egress interface instead of flooding within the broadcast domain.

In Juniper terminology, the forwarding plane also maintains a forwarding database used to program hardware forwarding entries. While the term forwarding information base is most often associated with Layer 3 forwarding for IP prefixes, many training and operational contexts use FIB language when describing the programmed forwarding state in the data plane, including the entries that result from Ethernet switching learning. The key idea is that the control plane and switching processes populate forwarding state, and the forwarding plane uses that state to make fast, deterministic forwarding decisions at line rate.

Options inet.0 and RIB are Layer 3 constructs. inet.0 is the main IPv4 routing table, and the RIB is the routing information base that stores routes before they are programmed into forwarding. Neither represents the Layer 2 MAC learning table.

BGP prevents inter-domain routing loops primarily through the AS_PATH attribute. Each time a route advertisement crosses an autonomous system boundary, the advertising router prepends its own AS number to the AS_PATH before sending the route onward. When a router receives a BGP update, it can inspect the AS_PATH and reject routes that already contain its own AS number. This simple rule blocks the route from circulating back into the same AS, which is the fundamental loop prevention behavior in BGP.

In data center IP fabrics that use EBGP for the underlay, AS_PATH still plays an important role even though private AS numbers are used. The fabric can be designed so that leaf and spine devices are in distinct private ASs or use structured AS assignment, and AS_PATH tracking ensures clean propagation and helps operators understand where a route has traveled. It also supports policy decisions, such as preferring shorter paths or applying policy based on specific AS sequences.

The other attributes serve different purposes. MED influences inbound path selection into an AS, LOCAL_PREF is used within an AS to influence outbound selection, and NEXT_HOP indicates the forwarding next hop and is validated for reachability. None of those attributes provide the explicit “contains my AS” loop detection that AS_PATH does.

Traditional data center networks are often built using a layered three-tier design with access, aggregation, and core. These designs frequently rely on Layer 2 domains and spanning tree to prevent loops. One major drawback is inefficient resource usage. Spanning tree typically blocks redundant links, which means installed bandwidth and expensive uplinks can sit idle during normal operation. To compensate, organizations overbuild capacity or use complex workarounds, raising cost and operational burden. In addition, scaling tends to be vertical, adding bigger chassis or more complex aggregation, which can concentrate risk and reduce flexibility.

Another common challenge is increased latency. In a three-tier model, traffic between servers in different access blocks often traverses multiple tiers, adding hops and delay. Even when traffic stays within the same facility, the path is not consistently short, and application performance can suffer, especially for east-west workloads such as distributed databases and microservices where frequent server-to-server communication is normal. Modern leaf spine IP fabrics reduce these issues by using a routed underlay with predictable one-spine-hop paths between leaves and by keeping all links active with multipath routing.

While traditional architectures can also experience suboptimal path behavior, the most consistently cited challenges are idle capacity due to blocked links and additional hop count that increases latency.

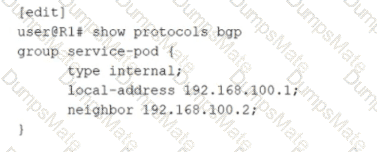

The configuration shown is under protocols bgp and defines a BGP group named service-pod with the statement type internal. In Junos, the BGP group type determines whether the sessions formed by neighbors in that group are treated as internal BGP or external BGP. When the group is set to type internal, the router establishes an iBGP session to the configured neighbor address. That means both peers are expected to be in the same autonomous system, and the session is used to exchange routes within that single AS.

The local-address statement sets the source address that the router will use when initiating the TCP connection for BGP. In data center designs, this is commonly a loopback address so the session can be resilient and independent of any single physical interface. The neighbor statement identifies the remote peer address. With type internal, the session is iBGP even if the neighbor is directly connected, because the relationship is defined by AS scope rather than topology.

OSPF and IS-IS are different routing protocols entirely and are not established through BGP configuration. EBGP would require type external and typically involves different AS numbers across the peering. Therefore, the only correct answer is IBGP.

Qualified next hop is the Junos mechanism that lets you configure more than one next hop for the same static route and control which one is preferred. This is most commonly used to build primary and backup forwarding behavior with deterministic selection. You configure a primary next hop and then add one or more qualified next hops with a different preference value. The route installs the best, lowest preference next hop as active, while keeping the alternate next hop available as standby. If the primary next hop becomes unusable, Junos can switch to the qualified next hop so traffic continues to flow.

This approach is widely used in data center edge and services routing, for example toward management networks, service appliances, or external gateways where you want a static default or summary route with predictable failover. It is not the same as resolving a non-directly-connected next hop. That scenario is handled by recursive resolution behavior, not by qualification. Qualified next hop also does not depend on any specific routing protocol, and it is not limited to link-state environments.

Finally, qualified next hop does not rely on sending pings to test reachability. Health tracking can be achieved through other mechanisms such as interface state, next hop resolution changes, or integration with failure detection features, but the qualified next hop feature itself is about preference-ranked redundancy for static routes.

On Junos-based Ethernet switching platforms used in data centers, Layer 2 forwarding is handled primarily in the forwarding plane. When a switch receives a frame, it first performs source MAC learning. If the source MAC address is not already present in the Ethernet switching table for that VLAN or bridge domain, the switch creates a new entry that maps the source MAC to the ingress interface and the associated VLAN context. This learning step is fundamental to building the MAC table dynamically and enables efficient forwarding for subsequent frames destined back to that source.

Next, the switch attempts to forward the frame based on the destination MAC lookup in the same VLAN or bridge domain. Because the destination MAC is also not in the Ethernet switching table, the frame is treated as an unknown unicast. The default behavior for unknown unicast in a Layer 2 broadcast domain is to flood the frame out all other interfaces that belong to that VLAN or bridge domain, excluding the ingress interface. Flooding ensures the frame has the best chance of reaching the correct destination host. When the destination responds, the switch then learns that MAC address as a source on the return traffic, allowing future traffic to be forwarded as known unicast instead of flooded.

The switch does not drop the frame by default, and it does not forward the frame to the Routing Engine because this is normal Layer 2 bridging behavior, not a control-plane routing decision.

EBGP is defined as BGP peering between different autonomous systems, which makes statement A correct. In data center IP fabrics, it is common to assign different private AS numbers to leaves and spines or to use a structured AS design so that every leaf forms EBGP sessions to each spine. This provides clear policy boundaries, straightforward troubleshooting, and predictable route propagation without needing an additional interior gateway protocol to carry underlay reachability.

Statement C is also correct because EBGP can be deployed without a supporting IGP. BGP itself can distribute the underlay routes needed for fabric reachability, such as loopback addresses and point to point link prefixes. This is a widely used approach for leaf spine fabrics because it reduces protocol complexity and avoids running multiple control planes for the underlay. Convergence can be improved using multipath, rapid failure detection mechanisms, and consistent routing policy.

Statement B is incorrect because BGP within a single AS is IBGP, not EBGP. Statement D is incorrect because while some designs may choose to run an IGP and use BGP only for certain functions, EBGP does not inherently require an IGP to operate or to provide underlay connectivity in a fabric design.

Spine and leaf architectures improve data center scalability by using a consistent, modular building block. When you need more server ports, you add leaf switches. When you need more fabric capacity, you add spine switches. This horizontal growth model avoids the limitations of traditional three-tier designs that often require larger aggregation devices or complex expansion. Because each leaf connects to every spine, the fabric naturally provides many parallel paths and can use equal-cost multipath forwarding across all uplinks. These properties deliver better scaling characteristics in both bandwidth and port count, which is why option B is correct.

Option C is also correct because spine and leaf fabrics provide low and predictable hop counts. Traffic between endpoints on different leaves typically crosses the fabric with a consistent number of hops, usually one spine hop in a two-tier fabric. This predictability reduces latency variance and improves application performance, especially for east-west traffic patterns common to distributed systems, storage, and microservices. Predictable paths also simplify troubleshooting and capacity planning.

Container and hypervisor management is primarily an orchestration and operations topic rather than a direct network architecture advantage. Finally, making all broadcast domains reachable is not an inherent benefit; modern data centers usually limit Layer 2 flooding domains and prefer routed underlays with overlays for segmentation, rather than expanding broadcast reachability everywhere.

In Junos Ethernet switching, a VLAN is a Layer 2 broadcast domain and can include any set of switch ports that you assign to it. There is no generic rule that limits a VLAN to only half of a switch’s physical ports. Practically, a single VLAN can include all physical ports on the switch if that is how the environment is designed, for example in a flat Layer 2 segment for a specific purpose or during a migration. This makes statement C correct.

For interface mode behavior, access mode is the default expectation for endpoint-facing Layer 2 ports where traffic is normally untagged. In Junos, when an interface is configured for Ethernet switching and no explicit trunk configuration is applied, the operational intent aligns with access behavior: the port is associated with a single VLAN and forwards frames as untagged on the wire. Trunk mode must be explicitly configured when the link needs to carry multiple VLANs using 802.1Q tagging, such as switch-to-switch uplinks or server connections that tag multiple VLANs. Therefore, statement D is correct and statement A is incorrect because trunk mode is not the default behavior.

This distinction is important in data center operations because misidentifying an access port as a trunk can lead to dropped traffic, VLAN mismatch, or unexpected flooding behavior.

Verification sources from Juniper documentation

https://www.juniper.net/documentation/us/en/software/junos/multicast-l2/topics/topic-map/bridging-and-vlans.html

https://www.juniper.net/documentation/us/en/software/junos/multicast-l2/topics/task/interfaces-configuring-ethernet-switching-access.html

EBGP is the BGP session type formed between different autonomous systems. In Juniper data center IP fabrics, EBGP is frequently used for the underlay because it can provide all required reachability without an additional interior gateway protocol. The fabric can advertise loopbacks and point-to-point link subnets directly in BGP, then use ECMP to install multiple equal-cost next hops. This is why EBGP sessions do not require an IGP as a fundamental dependency. Some designs still add an IGP for other reasons, but EBGP itself can carry the underlay routes needed for full fabric connectivity.

EBGP sessions are also typically established between directly connected peers. In a standard leaf-spine underlay, each leaf peers with each spine over the routed physical links between them, using the interface IP addresses on those point-to-point subnets. This matches EBGP default behavior, including a one-hop TTL expectation and straightforward operational troubleshooting.

Loopback peering is not required for EBGP. It is possible, but it usually needs additional configuration such as multihop and a routing method to ensure reachability to the remote loopback before the BGP session can form. EBGP also supports sessions with non-directly connected peers when multihop is configured, so it is incorrect to claim EBGP does not support that capability.

In Junos Ethernet switching, a trunk interface is intended to carry multiple VLANs using 802.1Q tags. The native VLAN ID feature defines how the trunk handles frames that arrive without an 802.1Q tag and how it can transmit untagged frames when required. When a native VLAN is configured on a trunk, untagged inbound frames are mapped into the native VLAN’s Layer 2 broadcast domain. Likewise, traffic belonging to the native VLAN can be sent untagged on that trunk, depending on how the receiving device expects to process untagged frames. This is commonly used in data center environments to interoperate with devices that require one VLAN to be carried untagged, or for specific control-plane or legacy connectivity requirements.

Option A is incorrect because native VLAN does not restrict the trunk to tagged-only traffic; it explicitly provides a mechanism to accept or emit untagged frames on a trunk. Option B is incorrect because access ports are designed for a single VLAN and normally treat traffic as untagged by default; they do not become “tagged access” by using native VLAN. Option C is incorrect because native VLAN does not change the VLAN ID range; VLAN ID ranges are determined by the 802.1Q standard and platform support, not by the native VLAN feature.

On Junos devices used in data centers, an aggregated Ethernet bundle can run either static bundling or dynamic bundling using LACP. When LACP is used, Junos supports two negotiation modes: active and passive. These modes control whether the device initiates LACP negotiation by transmitting LACP Data Units or whether it waits to respond to LACP Data Units sent by its peer. In active mode, the system periodically sends LACP control frames to begin and maintain the negotiation. In passive mode, the system does not initiate negotiation but will respond if it receives LACP control frames from the neighbor.

From an operational perspective, active is typically recommended on at least one side of the link so the bundle reliably forms even if the peer is configured to be passive. If both ends are passive, each side waits for the other to start, and the aggregated link might not come up as expected. This is a common cause of down or partially formed bundles in leaf spine uplinks and server dual-homing scenarios.

Options aggressive and mixed are not Junos LACP modes for aggregated Ethernet. In Junos, you configure LACP under the aggregated-ether-options hierarchy and select active or passive behavior, along with optional timing such as periodic fast for quicker detection.
