JN0-336 Security, Specialist (JNCIS-SEC) Questions and Answers

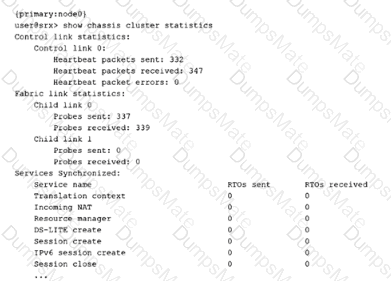

The correct answers are A and B. In SRX chassis clustering, the fab interface is the fabric data-plane link between cluster nodes. Juniper explains that data-plane software synchronizes session state using runtime objects, or RTOs, across the fabric data link, and this fabric link also supports forwarding traffic between nodes when ingress and egress processing occur on different chassis members.

swfab is also a chassis-cluster data-plane-related interface used for Layer 2 switching fabric functionality. Juniper’s Ethernet switching on chassis cluster documentation describes swfab0 and swfab1 as pseudointerfaces created for Layer 2 fabric functionality, enabling switching across the nodes. Option C, fxp1, is wrong because fxp1 is the control link interface used for cluster control-plane communication, heartbeats, and synchronization signaling, not a data-plane fabric interface. Option D, fxp0, is wrong because fxp0 is the out-of-band management interface. The clean separation is: fxp0 = management, fxp1 = control link, fab = routed/data fabric, and swfab = Layer 2 switching fabric. Reference topics: HA Clustering, fab interfaces, swfab interfaces, control link, management interface, data-plane synchronization.

The correct answer is C. device policy rules. In Junos Space Security Director, a firewall rule that must apply uniquely to one SRX Series device belongs in the device-specific policy layer, not in global or group-level policy. Juniper’s Security Director documentation states that a device can have a device-specific policy and can also be part of multiple group policies; the rule processing order places policies applied before device-specific policies first, then device-specific policies, then policies applied after device-specific policies. Juniper also explains that rules applied before device-specific policies take priority and cannot be overridden, while rules applied after device-specific policies can be overridden by adding a rule in the device-specific policy.

Option A is wrong because all-devices prerules are global mandatory rules applied before device-specific policy, not unique device exceptions. Option B is wrong because group policy prerules apply to a group of devices, not one specific SRX. Option D is wrong because all-devices postrules are still global policy rules, although they can be overridden. For a unique policy requirement on one SRX device, device policy rules are the precise Security Director construct. Reference topics: Security Director, firewall policies, device-specific policies, policy rule precedence, global/group/device rule hierarchy.

The correct answers are B, D, and E. Security Director device onboarding depends on management reachability and valid administrative access. Juniper’s device discovery documentation states that Junos Space discovers network devices using SSH, with optional ping and SNMP, and connects to the physical device to retrieve running configuration and status information. It also explains that device authentication uses administrator login credentials, SSH credentials, SNMP settings, or keys depending on the discovery method.

Option E is required because Security Director must target a reachable management IP address or hostname. Juniper’s discovery-profile workflow explicitly uses the target IP address, hostname, IP range, or subnet to locate devices. Option D is required because invalid username/password or insufficient privileges prevent discovery and management; Juniper’s device-management guidance identifies credentials as required input for discovering devices. Option B is required because onboarding uses SSH, so the correct SSH service and port must be reachable. Juniper’s device access procedure explicitly includes a Port field for the SSH connection.

Option A is wrong because chassis serial number is not the normal troubleshooting field for Security Director discovery. Option C is wrong because active security policies do not determine whether Security Director can initially discover and onboard the device. Reference topics: Security Director, device discovery, SSH access, management IP reachability, authentication credentials.

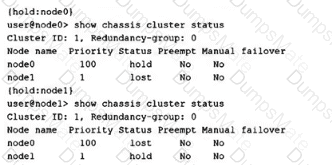

The correct answer is C. fxp0 or fxp1 on either device has an existing configuration. The exhibit shows each node reporting itself in hold state and the peer as lost under redundancy group 0. Juniper’s chassis cluster troubleshooting documentation shows this same hold/lost symptom and states that when a node is in hold, it is not ready to operate in a chassis cluster. For branch SRX devices, when cluster mode is enabled, specific physical interfaces are automatically converted into fxp0 for out-of-band management and fxp1 for the HA control link. These interfaces cannot retain normal transit or standalone interface configuration. If the ports that become fxp0 or fxp1 already have configuration, the cluster can enter the hold/lost condition shown in the exhibit.

Option A is wrong because the output does not indicate a Junos version mismatch. Option B is wrong because hardware mismatch is not the symptom being shown. Option D is too specific: a factory-default configuration can cause this problem because it may include configuration on interfaces that become fxp0/fxp1, but the exhibit does not prove specifically that node1 alone is running factory-default configuration. The tested issue is the existing configuration on the interfaces reserved for chassis-cluster management/control. Reference topics: HA Clustering, chassis cluster hold/lost state, fxp0, fxp1, branch SRX cluster initialization.

The correct answers are B and D. In Junos SSL proxy terminology, client protection maps to SSL forward proxy. In a forward-proxy deployment, the SRX sits between internal clients and external SSL/TLS servers. The firewall intercepts the server certificate, generates a substitute certificate, signs it with the configured root CA, decrypts the SSL session for inspection, and then re-encrypts traffic toward the destination server. Juniper’s SSL proxy configuration table shows that a forward-proxy profile uses root-ca configured = Yes and server-certificate configured = No. It also states that configuring neither certificate type fails commit validation, while configuring both root-ca and server-certificate in the same profile is unsupported.

Option A is wrong because a server certificate is required for reverse proxy/server protection, not for client-protection forward proxy. Option C is wrong because without a trusted root CA, client browsers would not trust the certificates generated by the SRX during interception. Juniper separately notes that the root CA certificate is required for client browsers to trust certificates signed by the firewall. Reference topics: SSL Proxy, client protection, SSL forward proxy, root CA, server protection, SSL reverse proxy.

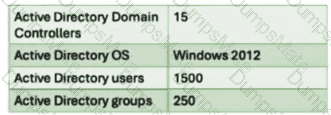

The correct answer is D. You have too many domain controllers. The exhibit shows 15 Active Directory domain controllers. Juniper’s integrated Active Directory identity-source configuration for SRX identity-aware firewall supports a limited number of domain controllers; Juniper documentation states that an SRX Series device can configure a maximum of 10 domain controllers for Active Directory identity-source integration. Because this environment has 15 domain controllers, the direct Active Directory identity-source method exceeds the supported scale and JIMS must be used instead.

Option A is wrong because SRX devices can use Active Directory directly as an identity source; JIMS is not the only possible method. Option B is wrong because 1,500 users does not exceed the relevant identity-source scale shown here; Juniper documentation also notes probe functionality support well above this number. Option C is wrong because the issue being tested is not the Windows Server version. JIMS is designed for larger identity-aware deployments and can centralize identity collection from Active Directory, domain controllers, Exchange servers, and syslog sources, then provide identity mappings to SRX firewalls. Juniper’s JIMS datasheet shows much higher scale, including up to 100 active directories, 25 domains, and 500,000 user entries. Reference topics: Identity-Aware Security Policies, Active Directory identity source limits, JIMS scalability, domain controller scale limitations.

The correct answers are B and D. On SRX Series Firewalls, SSL proxy is configured by creating an SSL proxy profile and then applying that profile to the relevant security policy as an application service. Juniper’s SSL proxy configuration overview lists the required workflow: configure certificates and CA profile material, configure the SSL proxy profile, create a security policy matching the traffic to be inspected, and apply the SSL proxy profile to that security policy. Juniper further states that SSL proxy is enabled as an application service within a security policy, where the policy match criteria identify the traffic and the SSL proxy profile is applied to that traffic.

Option A is wrong because enabling the SSL ALG is not the required control point for SSL proxy. SSL proxy is a decryption/inspection service applied through policy, not simply an ALG toggle. Option C is wrong because creating a separate SSL application object is not the mandatory SSL proxy configuration action. The policy can match the desired traffic and then invoke SSL proxy through then permit application-services ssl-proxy profile-name. Juniper’s example explicitly shows applying the SSL proxy profile under the security policy action.

Reference topics: SSL Proxy, SSL forward proxy, SSL proxy profiles, security policy application-services, encrypted traffic inspection.

The correct answers are A and D. For identity-aware security policies, Junos can obtain user identity information from supported identity sources such as Active Directory and Juniper Identity Management Service (JIMS). Active Directory is the direct identity-source option where the SRX integrates with Microsoft Windows Active Directory and uses directory information for user and group mapping. Juniper’s identity-aware firewall documentation states that the firewall obtains user information from identity sources including Active Directory and JIMS, and then uses that identity data in policy decisions.

JIMS is also correct because it centralizes identity collection and provides SRX enforcement points with user, device, IP address, and group-mapping information. Juniper describes JIMS as providing SRX firewalls with high-scale identity data so they can make user-firewall policy decisions. Option B, TACACS+, is wrong because TACACS+ is primarily an administrative authentication, authorization, and accounting protocol, not the LDAP identity-source service used for identity-aware firewall mappings. Option C, RADIUS, is also wrong in this context because RADIUS can authenticate users, but it is not the LDAP directory integration service being tested here. Reference topics: Identity-Aware Firewall, Active Directory identity source, JIMS, LDAP user/group mapping, SRX authentication table.

The correct answers are A and C. Juniper ATP Cloud uses a malware-analysis pipeline. When a file is submitted, the first step is a cache lookup based on the file hash. Juniper explains that if the file has already been analyzed, the stored verdict is returned to the SRX Series Firewall and there is no need to re-analyze the file. That directly supports C and eliminates B, because analysis does not continue when a cached verdict is found.

If the cache lookup does not return a verdict, the remaining ATP Cloud analysis techniques are used. Juniper describes the pipeline model in which each analysis technique creates a verdict number, and those verdicts are combined into a final verdict score from 0 to 10. That final threat score is what the SRX compares against ATP Cloud policy settings to permit or block the session.

Option D is wrong because ATP Cloud does not simply return the first score generated by any one feature. The expected behavior is cumulative/final scoring across the remaining analysis pipeline. Reference topics: Juniper ATP Cloud, malware analysis pipeline, cache lookup, verdict number, threat score, SRX enforcement.

The correct answer is D. maintaining a centralized authentication table. Juniper Identity Management Service, or JIMS, is used with SRX Series Firewalls to collect user-identity information from identity sources such as Microsoft Active Directory, domain controllers, and Exchange servers, then provide that identity data to SRX enforcement points. Juniper describes JIMS as storing IP address, username, and group-relationship information in its cache and generating authentication entries used for user-based or group-based access control on SRX firewalls. Juniper’s Identity-Aware Firewall documentation also states that the authentication table contains the IP address, username, and group mapping information used as the authentication source.

Option A is wrong because JIMS is not an email-encryption service. Option B is wrong because malicious-code logging belongs to security inspection features such as antivirus, IDP, or ATP workflows, not JIMS. Option C is wrong because network data encryption is handled by technologies such as IPsec VPN or SSL/TLS, not identity management. JIMS exists to centralize identity-to-IP mapping so identity-aware security policies can match users and groups instead of relying only on source IP addresses. Reference topics: Identity-Aware Security Policies, JIMS, authentication table, user-to-IP mapping, group-based policy enforcement.

The correct answer is B. count. In Junos security policy configuration, count is the policy parameter used for accounting and tabular operational visibility. Juniper’s security policy configuration rules state that accounting and auditing elements can be specified with count and log, while logging itself is enabled at either session-init or session-close.

The operational result is visible through commands such as show security policies hit-count, which displays a table of policy hit counters, including fields such as index, from-zone, to-zone, policy name, policy count, and action. Juniper defines this command as displaying the number of times a security policy rule matches traffic, and the sample output is explicitly tabular. Option A, permit, is an action, not a counter or logging/accounting parameter. Option C, session-init, logs at the beginning of a session, and option D, session-close, logs at session teardown. Those two parameters generate logs, but they do not provide the tabular policy-count view being asked about. Reference topics: security policy accounting, count parameter, hit-count, operational-mode policy monitoring, session-init/session-close logging.

The correct answers are B and C. Juniper ATP Cloud improves security by delivering cloud-based threat detection, malware analysis, and enforcement integration with SRX Series Firewalls. Juniper describes ATP Cloud as using shared cloud intelligence so customers benefit from new threat intelligence in near real time. It also provides zero-day threat protection, machine-learning-based malware detection, inline malware blocking, and policy actions that can stop malware, quarantine infected systems, prevent data exfiltration, and disrupt lateral movement.

Option C is also correct because Juniper ATP Cloud uses dynamic analysis, commonly called sandboxing. In this process, a suspicious file is executed in a secure environment while tools monitor its activity. Juniper further explains that ATP Cloud uses deception techniques to make the sandbox appear like a real user environment, including simulated mouse movement, keystrokes, common software packages, realistic network access, stored credentials, and vulnerable OS areas. This encourages evasive malware to execute and reveal malicious behavior.

Option A is weaker and not the best answer because logging alone is not the key ATP Cloud security-improvement mechanism being tested. Option D is wrong because ATP Cloud is a threat-prevention service, not a performance-acceleration technology. Reference topics: ATP Cloud, malware analysis, dynamic sandboxing, machine learning, threat intelligence, inline malware blocking.

The correct answers are A, C, and E. Junos Space Security Director supports policy hierarchy and policy management at device, group, and global/all-devices levels. A device policy is created for a specific device and is used when a unique firewall policy must be pushed to one SRX Series Firewall. A group policy is shared across multiple devices and is used when the same policy configuration must be applied consistently to a set of managed firewalls. Juniper’s Security Director documentation explicitly describes device policy and group policy behavior, including the fact that device-specific policies are evaluated within the broader policy-ordering model.

The third correct policy type is global, often represented in Security Director workflows as all-devices/global policy behavior. Juniper Security Director product material describes granular control over global, group, and device-level firewall policies, which maps directly to the options in this question. Option B, local, is not the Security Director policy type being tested; local configuration may exist on an SRX, but it is not one of the Security Director policy hierarchy types listed here. Option D, universal, is also not a Junos Space Security Director policy type. Reference topics: Security Director, global policy, group policy, device policy, firewall policy hierarchy, centralized SRX policy management.

The correct answers are B and D. IKE Phase 2 negotiates the IPsec security associations used to protect actual user data through the VPN tunnel. Juniper explains that after Phase 1 establishes a secure authenticated channel, Phase 2 negotiates SAs for the data transmitted through the IPsec tunnel. A Phase 2 proposal includes the IPsec security protocol, which is either ESP or AH, along with selected encryption and authentication algorithms. In the wording of this question, that maps to the tunnel/security protocol property.

Option D, Perfect Forward Secrecy, is also correct because Phase 2 proposals can specify a Diffie-Hellman group when PFS is desired. PFS forces a new DH key exchange for Phase 2 keys so that compromise of earlier keying material does not expose later IPsec encryption keys. Option A is wrong because routing protocols are not negotiated by IKE Phase 2; routing is handled separately over or toward the tunnel interface. Option C is wrong because aggressive mode is an IKEv1 Phase 1 exchange mode, not a Phase 2 property. Juniper specifically states that Phase 2 always uses quick mode in IKEv1. Reference topics: IKE Phase 2, IPsec SA negotiation, ESP/AH, Perfect Forward Secrecy, quick mode.

The correct answers are C and D. Static attack object groups are manually defined groups. Juniper states that custom attack groups are static in nature because the attacks are explicitly specified in the group; therefore, those attack groups do not change when the security database is updated. This is the key difference between static groups and dynamic groups. Dynamic groups use matching criteria and can automatically update membership when the signature database changes, but static groups do not behave that way.

Option C is correct because updating the IPS/IDP signature database does not automatically add or remove members from a static attack group. Option D is correct because the administrator must explicitly add the desired attack objects to the custom static group. Option A describes dynamic matching behavior, not static group behavior. Option B is also dynamic-group behavior; Juniper Security Director documentation says dynamic group membership is automatically updated during signature updates based on the group’s matching criteria. Static groups are intentionally deterministic: they include only the attacks manually selected by the administrator. Reference topics: IDP attack objects, static attack groups, custom attack groups, dynamic attack groups, IPS signature database updates.

The correct answers are C and D. The cSRX is Juniper’s containerized SRX firewall, intended for lightweight virtual and container environments where rapid deployment and high density matter. Juniper’s cSRX documentation lists supported security capabilities including basic firewall policy, NAT, Intrusion Detection and Prevention, content security/UTM functions, ATP Cloud, SSL Proxy, AppID, AppFW, and AppTrack. That supports option C, because cSRX provides SRX security services in a containerized footprint rather than requiring a full VM-based firewall appliance.

Option D is also correct because Juniper identifies the cSRX’s small footprint and minimum resource reservation requirements as key benefits; it is designed to scale more densely than VM-based firewall options. Juniper’s Day One cSRX guide specifically identifies faster deployment, a small footprint, and reduced resource consumption as major benefits. Option A is not the best answer for this exam item because the question asks for cSRX deployment benefits, not merely forwarding-mode support. Option B is wrong because the tested cSRX advantage is not a default three-zone configuration. Reference topics: cSRX container firewall, virtual SRX deployment, firewall/NAT/IPS/UTM services, lightweight resource footprint.

The correct answers are A and D. Preparing Active Directory for JIMS requires creating limited-permission service accounts and assigning those accounts to the required Active Directory groups. Juniper’s JIMS deployment guidance states that you must create service accounts so JIMS can read from the defined directory services and identity producers; if PC probing is used, a service account is also required for that function. The same JIMS documentation includes a section named Configure Limited-Permission User Accounts, followed by Add Limited Permission User Accounts to Active Directory Groups.

Option A is correct because the JIMS preparation workflow commonly uses limited-permission accounts for event log access and PC probe access. Juniper identifies accounts such as JIMS-EventLogRemoteAccess and JIMS-PC-Probe in the Active Directory group-membership procedure. Option D is correct because those limited accounts must be added to the proper AD groups, including Event Log Readers and the groups required for remote management or PC probe operation.

Option B is wrong because the tested preparation requirement is not three limited-access accounts. Option C is wrong because JIMS should not be prepared by adding a broad full-access account; the course objective is least-privilege identity collection. Reference topics: JIMS, Active Directory preparation, limited-permission service accounts, Event Log Readers, PC probe account.
