JN0-452 Mist AI Wireless - Specialist (JNCIS-MistAI-Wireless) Questions and Answers

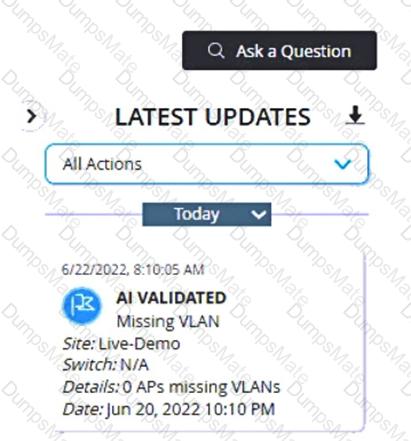

The AI VALIDATED status update means that the issue was opened and Marvis confirms it has been closed.

According to the Marvis Virtual Network Assistant Datasheet1, the AI-VALIDATED status update means that the issue was opened and Marvis confirms it has been closed. This status indicates that Marvis has verified that the issue is no longer present and the root cause has been resolved.

In a Juniper Mist AI deployment, achieving high-fidelity location accuracy is entirely dependent on the digital twin (the floor plan in the Mist UI) accurately reflecting the physical environment. While scaling the map is the foundation, AP orientation is the most critical variable for the vBLE (virtual Bluetooth Low Energy) engine to correctly calculate a client's position.

Mist Access Points, such as the AP43 or AP45, feature a patented 16-element directional vBLE antenna array. This array does not broadcast in a simple omnidirectional circle; instead, it uses eight distinct directional beams to blanket an area. The Mist Cloud uses "probability surfaces" to determine a user's location by examining the RF fingerprints from these specific beams. If an AP is physically mounted with its LED pointing toward a specific hallway, but is oriented in the Mist UI facing a different direction, the location engine will receive signal data that does not match its internal map of the beams. This results in "flipped" locations or "teleporting," where a user appears on the opposite side of the AP from where they actually are.

To ensure accuracy, administrators must use the small green dot on the outer ring of the AP icon in the Mist Live View. This green dot represents the physical LED on the AP hardware. The orientation in the UI must be rotated so that the green dot points in the exact same direction as the physical LED relative to the floor plan's perspective. It is a common misconception that APs must face true north (A) or geographical north (D); the map and APs can be oriented in any way that is convenient for the facility layout, provided the relative alignment between the virtual icon and the physical device is identical.

According to the Cisco Catalyst 9800 Series Wireless Controller Software Configuration Guide2, a device profile is a configuration object that allows you to group similar devices together and apply consistent WxLAN policies across multiple sites. A device profile defines parameters such as device type, OS, and MAC address.

In Juniper Networks Mist AI Wireless, the strength and quality of a client’s wireless connection are primarily evaluated using RSSI (Received Signal Strength Indicator) and SNR (Signal-to-Noise Ratio). These two metrics are core inputs into multiple Wireless Assurance SLEs, including Coverage and Throughput, and are reliable indicators when determining which client has the weakest WLAN connection.

From the exhibit, the key metrics for each client are:

Client 1: RSSI –81 dBm, SNR 11 dB

Client 2: RSSI –71 dBm, SNR 21 dB

Client 3: RSSI –67 dBm, SNR 25 dB

Client 4: RSSI –70 dBm, SNR 22 dB

In wireless design, lower (more negative) RSSI values indicate weaker signal strength, and lower SNR values indicate poorer signal quality due to higher relative noise. Among all listed clients, Client 1 clearly has the weakest connection, as it has both:

The lowest RSSI (–81 dBm), indicating it is farthest from the AP or experiencing significant attenuation.

The lowest SNR (11 dB), which suggests the signal is only marginally stronger than the background noise.

Mist best practices typically consider RSSI values below –70 dBm and SNR values below ~20 dB as suboptimal for reliable performance, especially for higher modulation schemes. Client 1 falls well below these thresholds, making it the most likely to experience low data rates, retransmissions, and degraded user experience.

Mist AI would flag this client as having poor coverage and may recommend actions such as:

Improving AP placement or density

Adjusting RF power or channel plans

Enforcing minimum RSSI thresholds

Therefore, based on both RSSI and SNR, Client 1 has the weakest WLAN connection, making Option D the correct answer.

According to the JNCIS-MistAI Certification page3, a Marvis Actions Missing VLAN notification indicates that an access point is missing a VLAN that is configured on other access points in the same site.

In a traditional wireless environment, verifying the functionality of network services like DHCP, DNS, or captive portals requires a physical presence at the site or an active client to report telemetry. However, the Marvis Minis feature within the Juniper Mist AI ecosystem is specifically designed to solve the problem of "empty site" verification. Marvis Minis act as Digital Twins—virtualized client agents that reside directly on the Mist Access Points (APs).

Because they are integrated into the AP firmware, Marvis Minis can simulate client behavior without requiring any actual user devices to be connected to the WLAN. When an administrator wants to verify that DHCP is working on a specific SSID, Marvis Minis perform automated "synthetic testing." The virtual client will attempt to associate with the WLAN, complete the 802.11 authentication/association process, and then request an IP address via DHCP. If the DHCP server is unreachable, the pool is exhausted, or the response is too slow, Marvis Minis will detect this failure and report it to the Mist Cloud.

This proactive validation is part of Mist’s "Always-On" network testing strategy. While Marvis Actions (D) would eventually report a DHCP failure once real clients started failing, and Marvis Query Language (C) could be used to search for historical failures, only Marvis Minis (B) can actively test and verify the service in a scenario where there are currently no clients. This allows engineers to identify and fix "sleeping" issues—such as a misconfigured VLAN on a switch port or a downed DHCP server—before the first user even walks into the building, ensuring a "validated" network state at all times.

Transmissions over Wi-Fi are shared medium and half-duplex.

According to the IEEE 802.11 - Wikipedia document2, two terms that correctly describe transmissions over Wi-Fi are:

Shared medium, which means that multiple devices use the same wireless channel and have to compete for access and avoid collisions.

Half-duplex, which means that devices can either transmit or receive data at a time, but not both simultaneously.

Two authentication methods that would be used with a guest portal are social login and external portal. So the correct answers are A. social login and B. external portal.

According to the Cisco Catalyst 9800 Series Wireless Controller Software Configuration Guide2, two authentication methods that can be used with a guest portal are:

Social login, which allows guests to log in using their social media accounts such as Facebook, Twitter, or Google.

External portal, which allows guests to log in using an external web server that hosts a custom portal page.

In Juniper Networks Mist AI Wireless, a rogue access point (AP) is precisely defined to avoid confusion with external or non-threatening wireless devices. Mist qualifies a rogue AP as an unauthorized access point that is physically connected to your wired network infrastructure.

This distinction is critical from a security perspective. A rogue AP represents a direct threat because it bypasses established security controls by providing wireless access into the enterprise wired network without authorization. Such APs are often installed by users without IT approval or, in more serious cases, by malicious actors attempting to gain internal network access.

Mist APs continuously scan the RF environment and correlate wireless observations with wired-side intelligence. If an AP is detected advertising SSIDs and Mist can confirm—through MAC address correlation and wired discovery—that the device is connected to the enterprise’s wired network but is not claimed or authorized in the Mist cloud, it is classified as a rogue AP. This allows administrators to take immediate remediation actions, such as physical removal or switch-port shutdown.

The other options are incorrect for the following reasons:

Neighbor APs are access points belonging to nearby organizations or environments and are not security threats by default. Mist classifies these separately for RF awareness.

APs close to your network as measured by RSSI may simply be physically nearby but not connected to your infrastructure; proximity alone does not make an AP rogue.

Honeypot APs are intentionally deployed decoy access points used in security research or attack detection and are not Mist’s definition of a rogue AP.

Therefore, Mist correctly defines a rogue AP as an unauthorized AP connected to your wired network, making option A the correct answer.

 According to the Cisco Catalyst 9800 Series Wireless Controller Software Configuration Guide1, RF templates are assigned to sites, which are logical groupings of devices based on physical location or other criteria. RF templates allow you to configure RF parameters such as channel width, transmit power, and data rates for multiple devices at once.

 The AP Offline Marvis Action will consider all APs assigned to sites that have connected to the cloud previously for inclusion. So the correct answer is A. all APs assigned to sites that have connected to the cloud previously.

According to the Cisco Catalyst 9800 Series Wireless Controller Software Configuration Guide2, a non-compliant AP is an AP that has a different hardware model than what is expected by the cloud configuration. This can happen when an AP is replaced with an incorrect model or when an AP is moved to a different site group that has a different hardware model requirement. The solution is to replace the AP with the correct hardware model.

In the context of Juniper Mist AI and high-performance wireless design, Co-Channel Contention (CCC)—often referred to as Co-Channel Interference (CCI)—occurs when two or more access points (APs) share the same frequency channel and are within "hearing" distance of one another.1 The key to understanding this specific range lies in the 802.11 CSMA/CA mechanism, specifically the Clear Channel Assessment (CCA) process.

When a Mist AP or a client device wants to transmit, it first performs a CCA. If it detects a Wi-Fi preamble from another device on the same channel at a signal strength above the Signal Detect (SD) threshold (typically around -82 to -85 dBm for many radios, though performance drops much sooner), it must defer its transmission. However, for "contention" to become a significant performance bottleneck that triggers Mist SLE alerts, the signal strength usually falls within the -45 dBm to -65 dBm range.

In this range, the signals are strong enough that the APs are effectively "in the same room" or nearby rooms, meaning they will constantly see the medium as "busy" whenever the other AP is transmitting. This effectively merges the two APs into a single contention domain, forcing them to share the total available airtime. For example, if two APs on the same channel both see each other at -60 dBm, they cannot transmit simultaneously; instead, they must take turns.

Mist's Radio Resource Management (RRM) and the Capacity SLE specifically monitor for these overlapping BSS (OBSS) conditions. If the AI detects that an AP is seeing a neighbor on the same channel at these high signal levels, it will attempt to change the channel or reduce transmit power to "shrink" the cell size, aiming to push the neighbor's signal strength below the point where it causes constant deferrals, thereby improving the overall capacity and user experience for the site.

In Juniper Networks Mist AI Wireless, Service Level Expectations (SLEs) are used to measure and assure real user experience across the wireless network. Each SLE is built on specific classifiers, which break down failures into root causes such as DHCP, DNS, authentication, RF conditions, or application issues. Understanding which SLEs rely on DHCP classification is essential for accurate troubleshooting.

The two Wireless Assurance SLEs that include a DHCP classifier are Successful Connects and Time to Connect.

The Successful Connects SLE measures whether client devices are able to complete the full connection process successfully. This process includes association, authentication, and critically, DHCP address assignment. If a client fails to obtain an IP address, the connection is considered unsuccessful, and the failure is explicitly classified as a DHCP issue within this SLE.

The Time to Connect SLE measures how long it takes for a client to connect from the moment it initiates association until it is fully usable on the network. One of the key components of this timeline is the DHCP transaction time. Slow DHCP responses, retransmissions, or server delays directly increase the overall connection time, and Mist classifies these delays under DHCP within the Time to Connect SLE.

The other options are incorrect for the following reasons:

Roaming SLE focuses on re-association, authentication, and mobility events, not DHCP, since IP addressing is typically retained during roaming.

Coverage SLE evaluates RF signal strength, SNR, and cell overlap, with no dependency on DHCP.

Throughput SLE measures data transfer performance after connectivity is established and does not analyze DHCP behavior.

Therefore, the correct answer is Successful Connects and Time to Connect, as both SLEs directly depend on and classify DHCP-related performance and failures within Mist Wireless Assurance.

In Juniper Networks Mist AI Wireless, understanding modulation schemes is essential for designing and operating high-performance Wi-Fi 6 (802.11ax) networks. Modulation directly affects how much data can be transmitted per symbol, and therefore determines the maximum achievable data rates under optimal RF conditions.

802.11ax introduces 1024-QAM (Quadrature Amplitude Modulation) as its highest supported modulation scheme. With 1024-QAM, each symbol encodes 10 bits of data, which represents a significant increase compared to earlier standards. For reference:

64-QAM (used in earlier standards) carries 6 bits per symbol

256-QAM (introduced in 802.11ac) carries 8 bits per symbol

1024-QAM increases this to 10 bits per symbol

This higher bit density allows Wi-Fi 6 devices to achieve higher peak throughput, especially in environments with excellent signal quality. However, 1024-QAM requires very high Signal-to-Noise Ratio (SNR) and low interference to function reliably. As a result, it is typically achieved only when clients are close to the access point and RF conditions are clean.

Mist AI Wireless continuously monitors client RSSI, SNR, retransmissions, and modulation rates through advanced telemetry. Using this data, Mist can determine whether clients are successfully operating at higher modulation levels like 1024-QAM or are falling back to lower schemes due to RF impairments. This insight directly feeds into SLEs and AI-driven recommendations for RF tuning, AP placement, and channel planning.

The incorrect options are explained as follows:

64-QAM and 256-QAM are valid modulation schemes but do not provide the highest data rates in 802.11ax.

4096-QAM is not supported by the 802.11ax standard and is therefore invalid.

Thus, 1024-QAM is the modulation scheme that provides the highest data rate level for 802.11ax devices.

The Wi-Fi Assurance SLE and classifier that would provide information about possible interference from a neighboring Wi-Fi network are Capacity and Wi-Fi Interference.

According to Wikipedia1, 802.1X is an IEEE Standard for port-based network access control (PNAC). It provides an authentication mechanism to devices wishing to attach to a LAN or WLAN using Extensible Authentication Protocol (EAP) over wired IEEE 802 networks and over 802.11 wireless networks, which is known as “EAP over LAN” or EAPOL.

The authentication process involves three parties: a supplicant (the client device), an authenticator (the network device such as an access point), and an authentication server (typically a RADIUS server). The supplicant must provide valid credentials to the authenticator before it can access the network resources.

The credentials are exchanged with a RADIUS server prior to the 4-way Handshake because the 4-way Handshake is used to establish encryption keys between the supplicant and authenticator after successful authentication2. The credentials are exchanged with a RADIUS server after the 802.11 Association because the 802.11 Association is used to establish a logical link between the supplicant and authenticator before authentication can take place3.

In Juniper Networks Mist AI Wireless, controlling client connection quality is a critical part of maintaining high Service Level Expectations (SLEs). One of the most effective ways to ensure good user experience is by enforcing a minimum acceptable RSSI (Received Signal Strength Indication) threshold for client devices. This functionality is implemented using wireless traffic filtering at the WLAN level.

Wireless traffic filtering allows administrators to define minimum and maximum RSSI thresholds that determine whether a client is permitted to associate or remain connected to an SSID. If a client’s RSSI falls below the configured minimum threshold, the AP can deny association requests or deauthenticate the client. This prevents low-signal or “sticky” clients from connecting at poor signal levels, which would otherwise result in excessive retries, low data rates, increased airtime consumption, and degraded performance for all users.

Mist applies these controls intelligently and surfaces their impact through AI-driven analytics. When low-RSSI clients are filtered, Mist can correlate improvements in throughput, latency, and roaming behavior directly to RF health and client quality metrics. This aligns with Mist best practices, which emphasize proactive client quality enforcement rather than reactive troubleshooting.

The incorrect options are explained as follows:

WLAN forwarding determines how traffic is bridged, tunneled, or NATed and has no impact on RSSI enforcement.

Geofencing is used for location-based services and RTLS use cases, not RF signal quality control.

WLAN rate limit restricts bandwidth usage per client or SSID but does not evaluate or enforce signal strength requirements.

Therefore, the correct feature required to set an acceptable minimum RSSI for client devices is wireless traffic filtering, which directly controls association behavior based on signal quality and helps maintain optimal wireless performance.

Once a client discovers an access point, the correct order of steps for successful 802.1X authentication is Open System Authentication -> Association -> 802.1X Authentication. So the correct answer is D.Open System Authentication -> Association -> 802.1X Authentication.

In the context of Juniper Mist WxLAN Security and Rogue AP detection, Mist AI categorizes surrounding access points into specific buckets based on their behavior and their connection to the local network infrastructure. Understanding the distinction between a Rogue AP and a Honeypot AP is essential for proper security posture.

A Honeypot AP (C) is specifically defined as an unauthorized access point that is broadcasting one of your organization's protected SSIDs (or a very similar one) but is not physically connected to your wired network. This is a classic "Evil Twin" attack where a malicious actor attempts to trick corporate users into connecting to a fake signal. Because the clients’ devices are often programmed to auto-associate with known SSIDs, they may unknowingly connect to the Honeypot AP, allowing the attacker to intercept traffic, perform man-in-the-middle attacks, or harvest credentials. Mist APs use their dedicated scanning radio (found in the AP43, AP45, and similar models) to constantly monitor the airwaves for these spoofed SSIDs.

In contrast, a Rogue AP (D) is an unauthorized AP that is physically connected to your corporate wired network (LAN). Mist identifies these by correlating the MAC addresses seen on the air with those seen on the wired switch ports. A Neighbor AP (B) is simply an AP from a nearby business that is broadcasting its own unique SSID and is not connected to your network; these are ignored by security alerts.

By classifying the threat as a Honeypot, Mist AI informs the administrator that the threat is external to the wired infrastructure but poses a direct risk to client data. Mist can even be configured to take automated action, such as sending de-authentication frames to prevent clients from successfully staying connected to the malicious Honeypot AP.

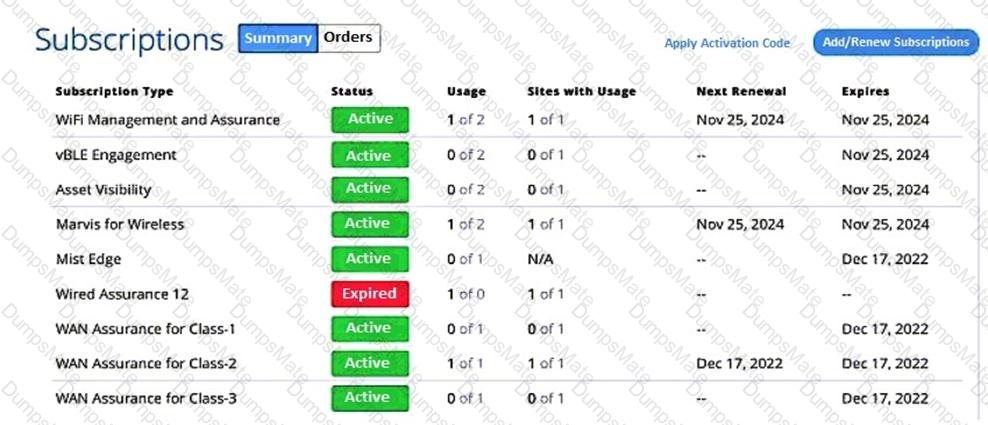

According to the exhibit, the organization has a total of two licenses for Marvis wireless, and one of them is in use. Therefore, the organization has one available license and one used license for Marvis wireless.

According to the Lecture 3 - Radio Frequency and Antenna Fundamentals - Part 2 document2, an extended service set (ESS) is a group of basic service sets (BSSs) that share a common SSID and are connected by a distribution system (DS). Each BSS within the ESS has its own unique BSSID, which is the MAC address of the AP.

According to the Virtual Network Assistant | Juniper Networks US document3, two SLEs that measure the amount of time that it takes for a process to complete are:

Roaming, which measures how long it takes for a client to switch from one AP to another without losing connectivity.

Time to Connect, which measures how long it takes for a client to complete all steps of network access such as authentication, DHCP, and DNS.

If a customer wants to broadcast a WLAN at a certain time and day of the week, SSID scheduling should be configured

According to the SSID Scheduling - Mist document1, SSID scheduling is a feature that allows you to customize your WLAN by choosing the exact days and times to broadcast the SSID. This feature can be useful for scenarios where you want to limit the availability of a WLAN to a certain time and day of the week.

The WLANs with SSIDs NETGEAR24 and Bob24WiFi will cause adjacent channel interference because they are using overlapping channels in the 2.4 GHz frequency band.

In Juniper Networks Mist AI Wireless, dynamic packet capture (dPCAP) is tightly integrated with events to enable rapid, context-aware troubleshooting. When Mist detects a systemic issue—such as a DHCP server becoming unresponsive—it automatically generates a site-level event because the problem impacts multiple devices within a site rather than a single client.

As shown in the exhibit, the event “DHCP is Unresponsive” lists multiple impacted devices and includes a timeline of contributing network events. This classification is critical: DHCP infrastructure failures are treated as site events, not client-specific or organization-wide events. When such a site event is triggered, Mist can automatically perform a dynamic packet capture on the relevant access points to capture DHCP Discover, Offer, Request, and Acknowledgment (DORA) traffic in real time.

To access this packet capture, an administrator must:

Navigate to the impacted site identified in the event.

Open the corresponding site event (in this case, the DHCP unresponsive event).

Download the automatically generated packet capture file, which can then be opened in Wireshark for detailed protocol-level analysis.

The incorrect options are explained as follows:

Organization events provide high-level visibility and auditing but do not host packet captures.

Client events are used when a single client experiences issues; they are not appropriate when multiple devices are impacted by a shared service failure.

Verifying an impacted client does not expose the dynamic packet capture tied to a site-wide DHCP issue.

Therefore, the correct method is to verify the impacted site and use the corresponding site event to fetch the automatically generated packet capture, making Option B the correct answer.

Referring to the exhibit and considering that it is in the USA, the WLAN with SSID Eero1234 is not configured to industry best practices while the WLAN with SSID NETGEAR24 is configured to industry best practices.

In the Juniper Mist AI ecosystem, Zone Analytics is the specific real-time location service component designed to provide deep business intelligence regarding how users and devices interact with a physical space. While the Mist platform offers various location services—such as Wayfinding for turn-by-turn navigation and Asset Tracking for locating specific tagged equipment—Zone Analytics focuses on the aggregate behavior of clients within defined boundaries on a floor plan.

Zone Analytics allows administrators to define virtual areas, known as zones, on their facility maps. The Mist Location Engine then uses its patented virtual Bluetooth Low Energy (vBLE) antenna array and machine learning algorithms to track the presence of mobile devices (via the Mist SDK) and Wi-Fi clients within these zones. This service calculates two primary metrics required by the scenario:

Dwell Time: This measures the duration a specific client remains within a defined zone. Administrators can set minimum and maximum dwell thresholds to categorize visitors (e.g., "passersby" vs. "engaged customers").

Movement Patterns: By analyzing transitions between different zones, the service generates "motion flows" or "visitor journey" maps. This helps organizations identify common paths taken through a building, popular entry/exit points, and areas of high congestion.

These insights are typically presented through the Engagement Analytics or Premium Analytics dashboards. For example, a retailer might use Zone Analytics to determine if a new product display is successfully increasing the "dwell time" of shoppers in a specific aisle, or an office manager might use it to optimize "workflow" by seeing how employees move between different departments. By leveraging these real-time data sets, businesses can make informed decisions about staffing, floor layouts, and resource allocation based on actual user behavior patterns.

According to Coverage SLE, Asymmetry Downlink classifier tracks a client that transmits at lower data rate than AP to which it is connected.So the correct answer is A.Asymmetry Downlink

According to the Cisco Catalyst 9800 Series Wireless Controller Software Configuration Guide2, Dynamic Packet Capture is a feature that enables capturing packets from a client device and downloading them as a pcap file. This file can be used for troubleshooting purposes or sent to a vendor for analysis.

In Juniper Networks Mist AI Wireless, Radio Resource Management (RRM) is designed to optimize RF performance automatically while minimizing client impact. With the introduction of Wi-Fi 6E and the 6 GHz band, Juniper Mist follows industry standards and client behavior to ensure efficient and reliable operation. By default, Mist RRM uses the Preferred Scanning Channels (PSCs) in the 6 GHz spectrum.

The 6 GHz band introduces a very large number of available channels, which creates challenges for client discovery, scanning efficiency, and roaming speed. To address this, the IEEE defined Preferred Scanning Channels (PSCs)—a specific subset of 6 GHz channels that access points advertise and clients prioritize during active and passive scanning. These PSCs allow clients to discover networks faster without having to scan the entire 6 GHz channel set.

Juniper Mist RRM automatically selects and operates on these PSCs by default to:

Improve client discovery and association times

Reduce unnecessary scanning overhead

Enhance roaming performance

Maintain compatibility across a wide range of Wi-Fi 6E client devices

Mist continuously evaluates RF conditions using telemetry and AI-driven analysis, but it intentionally limits default operation to PSCs to balance performance, efficiency, and client interoperability. Administrators can override defaults and customize channel plans if required, but PSCs remain the recommended baseline for most deployments.

The incorrect options are explained as follows:

Option B is incorrect because Mist RRM does not require manual primary channel selection by default.

Option C refers to 2.4 GHz non-overlapping channels, not 6 GHz.

Option D represents the full 6 GHz channel range, which is not practical for default scanning or operation due to client limitations.

Therefore, the correct answer is the preferred scanning channels (PSCs), which Juniper Mist RRM uses by default in the 6 GHz band to ensure optimal Wi-Fi 6E performance.
