Mule-Dev-301 Salesforce Certified MuleSoft Developer II Questions and Answers

Java keytool -importkeystore converts a keystore by explicitly defining both the source keystore and its format and the destination keystore and its required format. To convert JKS → PKCS12, the source must therefore be the JKS file with -srcstoretype JKS, while the destination must be the .p12 file with -deststoretype PKCS12.

MuleSoft provides the same conversion pattern in its TLS-related documentation. Its example for converting a JKS client keystore to P12 uses -srckeystore ...jks, -srcstoretype JKS, followed by -destkeystore ...p12 and -deststoretype PKCS12.

Mule supports JKS, PKCS12, and other keystore types for TLS configurations, but the configured file type must correspond correctly to the actual keystore encoding.

Option A reverses the declared store types even though the filenames suggest JKS-to-P12 conversion. Option C performs the opposite conversion, PKCS12 to JKS. Option D incorrectly identifies a .p12 source as JKS and does not correctly express the required source/destination relationship.

Thus, option B contains the correct source and destination formats.

Reference topics: TLS configuration; Java Keytool; JKS; PKCS12; keystore conversion.

Official documentation: https://docs.mulesoft.com/runtime-manager/rtm-agent-REST-connections

Official documentation: https://docs.mulesoft.com/mule-runtime/4.9/tls-configuration

===============================================================

Mule uses Log4j 2 for runtime and application logging, and connector-specific log levels are configured in the application's log4j2.xml file. To configure the VM Connector's logger, the logger category is org.mule.extensions.vm, and the logger declaration belongs under the < Loggers > element.

MuleSoft's VM Connector troubleshooting documentation provides the same configuration pattern for verbose logging:

< AsyncLogger name="org.mule.extensions.vm" level="DEBUG"/ >

inside < Loggers > . For this question, the objective is specifically to log connector events at the ERROR level, so the appropriate level is changed to ERROR while preserving the same logger category and structural location.

< Appenders > defines output destinations and formatting mechanisms such as files or consoles; it is not where logger categories and their levels are declared. Configuring the logging level directly inside the VM Connector configuration is also not supported because Mule connector logging is governed through Log4j configuration.

Therefore, adding the AsyncLogger for org.mule.extensions.vm under the < Loggers > section is the correct implementation.

Reference topics: log4j2.xml; connector-specific logging; VM Connector troubleshooting; AsyncLogger; Mule application observability.

Official documentation: https://docs.mulesoft.com/vm-connector/latest/vm-connector-troubleshooting

===============================================================

The requirement combines two architectural concerns: the downstream HTTP calls must execute concurrently, and completed remote operations must be reversible when another operation fails. Scatter-Gather is the appropriate Mule router for the concurrency requirement because it dispatches the event to multiple routes and executes those routes in parallel.

However, independent HTTP APIs cannot generally participate in a single ACID/XA transaction with Mule. Once a remote API successfully commits an operation, Mule cannot simply perform a conventional transaction rollback across that service boundary. The appropriate distributed-transaction pattern is therefore a Saga, where successful steps have defined compensating operations that semantically undo their effects when a subsequent step fails.

Scatter-Gather also provides a composite error model. If one or more routes fail, Mule collects successful route results and route failures into a MULE:COMPOSITE_ROUTING error. A centralized orchestration/error-handling flow can inspect those results and execute compensation logic in the required sequence.

Parallel For Each is designed for elements of a collection, not orchestration of several distinct API operations. VM queues and transactional-outbox patterns address different reliability concerns and do not directly implement distributed compensation.

Reference topics: Scatter-Gather Router; Composite Routing Errors; Distributed Transactions; Compensating/Saga Pattern.

Official documentation: https://docs.mulesoft.com/mule-runtime/4.3/scatter-gather-concept

===============================================================

VM Connector supports both intra-application and inter-application asynchronous communication. MuleSoft specifically documents that two different Mule applications can publish to and consume from the same VM queue when both applications are part of the same Mule domain and reference the shared VM configuration.

The fact that the applications are deployed to a two-node Mule cluster does not prevent use of VM Connector. In cluster mode, VM queues are cluster-wide resources. Mule's cluster synchronizes access, and messages placed on a VM queue can be processed by another node in the cluster. MuleSoft identifies this as a supported mechanism for distributing asynchronous work across clustered runtime instances.

Therefore, option B is incorrect: each node does not operate an entirely isolated VM queue namespace for a shared clustered configuration. Option D also contradicts VM Connector's documented inter-application use case.

The required architectural condition is that both applications use the same domain/shared VM configuration so they can reference the same queue. The publisher can then send asynchronously while the second API consumes from the shared VM queue.

Reference topics: VM Connector; Mule domains; inter-application communication; persistent/transient queues; Mule HA clustering.

Official documentation: https://docs.mulesoft.com/vm-connector/latest/vm-publish-across-apps

Official documentation: https://docs.mulesoft.com/vm-connector/latest/vm-reference

===============================================================

A production health endpoint should verify the same network path and HTTP infrastructure that clients depend on. Reusing the API's existing HTTP Listener configuration and port ensures that the health check validates whether the application's actual inbound listener is operational. Mule HTTP Listener configurations define the host, port, protocol, TLS configuration, and potentially a common base path; multiple listener sources can use the same configuration while exposing different paths.

A separate listener and port could report healthy even when the primary API listener is unavailable or incorrectly configured, producing a misleading health signal. Sending health information outward to another system is telemetry rather than an endpoint-level availability test. Likewise, exercising a payment API with genuine customer payment data is inappropriate because monitoring should be non-destructive and should not create business transactions.

Therefore, a lightweight endpoint such as /health using the same listener configuration provides a representative indication that the application can receive traffic through its normal production interface without invoking payment-processing behavior.

Reference topics: Mule HTTP Listener configuration; production health checks; API availability monitoring; non-invasive operational endpoints.

Official documentation: https://docs.mulesoft.com/http-connector/latest/http-listener-ref

===============================================================

Standard TLS authenticates the server to the client through the server's public certificate. The client validates that certificate against its configured trusted certificate authorities. Mutual TLS extends this process by requiring the client to present its own certificate so that the server can authenticate the client's identity as well.

MuleSoft describes a TLS-enabled server as exposing its public certificate while retaining its private key, and states that TLS clients validate the server certificate against their trusted certificates. For two-way TLS, both keystore and truststore material are configured so that the server can additionally validate certificates presented by clients.

Accordingly, server identity authentication is part of the TLS handshake before completion of the mutual client-authentication exchange. This makes option C the valid statement in the context of the question.

mTLS does not inherently increase the symmetric encryption strength; cipher-suite strength is independent of whether one-way or two-way authentication is used. A hardware security module can be useful for protecting keys but is not mandatory for mTLS. Finally, mTLS authenticates certificate-bearing client identities, not necessarily individual application end users or their business authorization.

Reference topics: TLS; mutual TLS; two-way authentication; keystore; truststore; client certificate authentication.

Official documentation: https://docs.mulesoft.com/mule-runtime/4.3/tls-configuration

===============================================================

The relevant property is the HTTP semantics of PUT. PUT is designed to be idempotent: repeating the same request against the same resource should establish the same intended resource state rather than repeatedly creating additional side effects. This characteristic makes PUT appropriate when an Until Successful scope might retransmit an operation following a transient failure.

For example, the downstream system might process the initial PUT successfully but the Mule application might experience a network error before receiving the response. Until Successful could therefore invoke the same PUT again. Provided the upstream APIs correctly implement standard PUT semantics, repeating the same modification produces the intended final state rather than duplicating the operation.

Changing PUT to POST would generally make the design less suitable because POST is not inherently idempotent. Executing the operations sequentially changes concurrency but does not itself establish idempotency. Compensating transactions address distributed rollback and consistency when independent operations partially succeed; they are a different reliability concern from idempotent retry behavior.

MuleSoft documents Until Successful as retrying the contained processors until they succeed or retries are exhausted.

Therefore, under the REST/HTTP semantics assumed by the question, no additional Mule processing is required.

Reference topics: Until Successful; idempotent operations; HTTP PUT semantics; reliable retries; Scatter-Gather.

Official documentation: https://docs.mulesoft.com/mule-runtime/latest/until-successful-scope

===============================================================

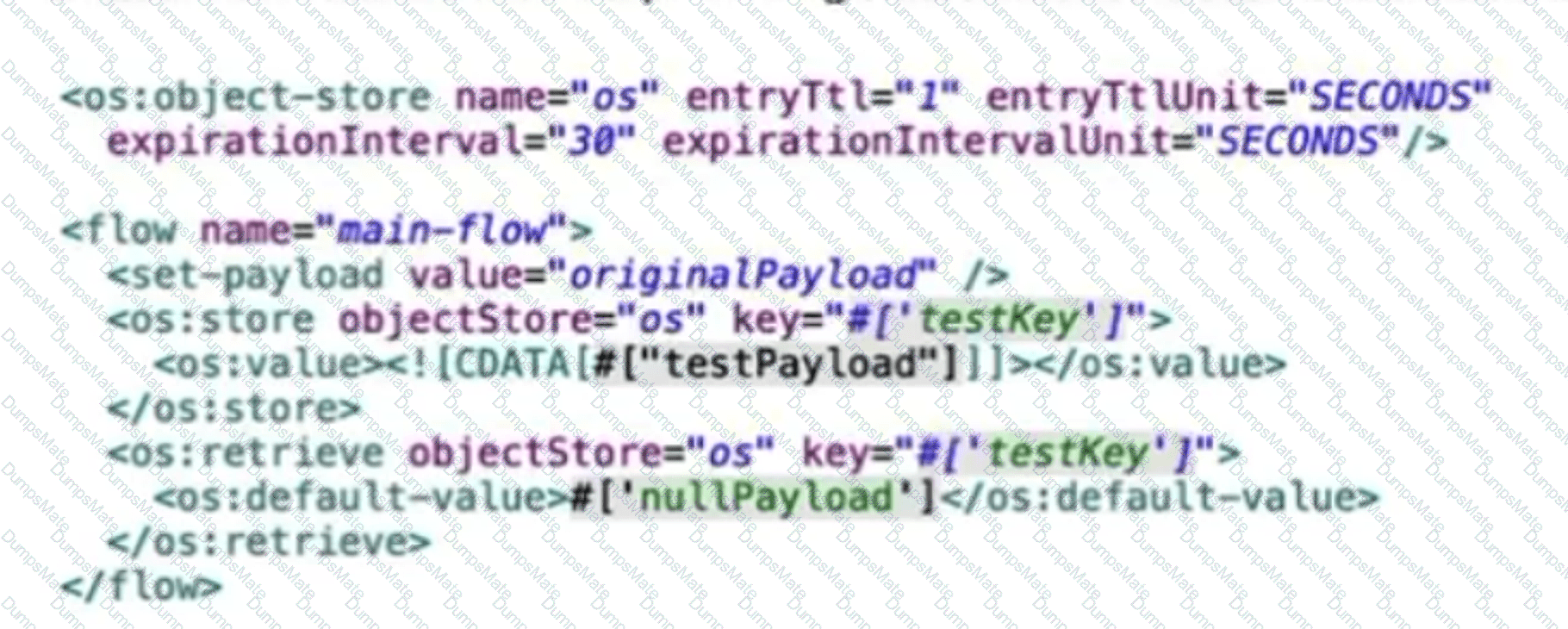

The distinction between entry TTL and expiration interval is the key to this question. entryTtl="1" specifies that an Object Store entry becomes eligible for expiration after one second. However, expirationInterval="30" determines how frequently Mule's expiration process checks the Object Store and removes expired entries.

MuleSoft describes the expiration interval as the frequency at which the expiration thread runs. Therefore, expiration is not equivalent to immediate physical removal at precisely the TTL boundary.

The flow first sets the payload to originalPayload, then stores "testPayload" under the key testKey. Ten seconds subsequently elapse before the Retrieve operation executes. Although this exceeds the configured one-second TTL, only 10 seconds have elapsed since storage, while the expiration process is configured to run at 30-second intervals. The entry has therefore not yet been evicted when retrieval occurs.

Because testKey remains available, os:retrieve returns the stored value, testPayload. The configured default value nullPayload would be used only if the key were unavailable according to the Retrieve operation's behavior.

Reference topics: Object Store Connector; entry TTL; expiration interval; expiration thread; Store and Retrieve operations.

Official documentation: https://docs.mulesoft.com/object-store-connector/latest/object-store-connector-reference

===============================================================

Until Successful is intended for failures that can reasonably succeed when retried, such as temporary connectivity issues or transient downstream unavailability. Mule executes the processors in the scope repeatedly until processing succeeds or the configured retry count is exhausted. If an error continues to propagate from the scope, Mule performs another attempt and ultimately raises MULE:RETRY_EXHAUSTED after all retries fail.

An HTTP:UNAUTHORIZED response represents a permanent application/security condition for the current request. Repeating the identical request does not normally repair invalid credentials or insufficient authorization and simply increases latency and downstream traffic.

The HTTP Request should therefore be placed inside a Try scope. An On Error Continue handler specifically catches the permanent error and handles it inside that Try scope. Because the error is consumed rather than propagated, the Until Successful scope does not interpret the attempt as a retryable failure.

Using On Error Propagate would have the opposite effect: the error would escape the Try scope and cause Until Successful to retry. Continuing until MULE:RETRY_EXHAUSTED unnecessarily delays the response.

Reference topics: Until Successful Scope; Try Scope; On Error Continue; permanent versus transient errors; MULE:RETRY_EXHAUSTED.

Official documentation: https://docs.mulesoft.com/mule-runtime/latest/until-successful-scope

===============================================================

Mutual TLS requires authentication in both directions. The Mule HTTP Listener acts as the TLS server, so it needs a keystore containing its private key and associated server certificate. This allows the listener to prove its identity to the connecting client.

For mTLS, the server must additionally authenticate the client certificate. Therefore, the TLS context also requires an appropriate truststore containing the certificate authorities or certificates that the application trusts when validating client certificates.

MuleSoft's TLS documentation provides a two-way authentication example for an HTTP Listener containing both < tls:trust-store > and < tls:key-store > inside the TLS context. MuleSoft's HTTP Listener documentation likewise states that HTTPS requires a keystore for the server and a truststore when two-way authentication is required.

Persistent connections affect HTTP connection reuse and performance, not certificate authentication. A reconnection strategy likewise does not provide the cryptographic identity material required for mTLS.

Therefore, an HTTP Listener configured for mutual TLS requires the correct keystore and truststore configuration.

Reference topics: Mule TLS Context; HTTP Listener HTTPS; keystores; truststores; mutual TLS/two-way authentication.

Official documentation: https://docs.mulesoft.com/mule-runtime/4.6/tls-configuration

Official documentation: https://docs.mulesoft.com/http-connector/latest/http-listener-ref

===============================================================

Resource filtering is designed primarily for textual resources in which Maven substitutes property expressions. Binary files such as PKCS#12 keystores and certificate files must not be passed through text filtering because filtering can corrupt their binary representation.

The Maven Resources Plugin provides the dedicated configuration element nonFilteredFileExtensions. Each additional extension is declared using a nested nonFilteredFileExtension. The plugin documentation specifically defines this parameter as the list of additional file extensions to which filtering must not be applied.

Option C correctly uses the documented structure:

< nonFilteredFileExtensions >

< nonFilteredFileExtension > p12 < /nonFilteredFileExtension >

< nonFilteredFileExtension > crt < /nonFilteredFileExtension >

< nonFilteredFileExtension > pem < /nonFilteredFileExtension >

< /nonFilteredFileExtensions >

This is important because the application's normal resource configuration can still use < filtering > true < /filtering > for textual files while Maven leaves the listed certificate/keystore formats untouched.

The alternative constructs visible in the other exhibits, such as excludeFileExtensions or excludeBinaryFiles, are not the Maven Resources Plugin parameter used for this purpose.

Reference topics: Maven Resources Plugin; resource filtering; binary resources; nonFilteredFileExtensions; Mule Maven builds.

Official documentation: https://maven.apache.org/plugins/maven-resources-plugin/resources-mojo.html

===============================================================

REST Connect converts a supported REST API specification published in Anypoint Exchange into a Mule 4 connector. MuleSoft states that REST Connect-generated Mule 4 connectors are produced as connector artifacts and can be used in Studio like other Mule connectors.

A Mule connector is consumed by an application through the project's Maven dependencies, not through the Maven build-plugin section. MuleSoft's standard connector Maven model requires the connector's Exchange groupId, artifactId, and version under < dependency > , together with:

< classifier > mule-plugin < /classifier >

The classifier is essential because it identifies the artifact as a Mule extension/plugin that the Mule runtime must load. MuleSoft's connector Maven documentation provides this exact dependency structure and directs developers to Exchange's Dependency Snippets for the current coordinates.

A < plugin > declaration is for Maven build plugins rather than runtime Mule connectors. < repository > merely defines where Maven can resolve artifacts and does not itself add the connector to the application. < rest-connect > is not the POM dependency element used to consume a generated connector.

Reference topics: REST Connect; Anypoint Exchange generated connectors; Maven dependencies; mule-plugin classifier.

Official documentation: https://docs.mulesoft.com/exchange/to-deploy-using-rest-connect

Official documentation: https://docs.mulesoft.com/connectors/introduction/intro-config-xml-maven

===============================================================

Option C is directly supported by the MuleSoft XML SDK documentation. MuleSoft defines an XML SDK property as a field supplied by an end user of the component that operates at the module configuration level. Unlike an operation parameter, which applies to one operation invocation, properties configure the XML SDK component across the Mule project in which that configuration is used.

The other choices conflict with documented XML SDK behavior. XML SDK operations do not support recursive calls, so A is false. XML SDK provides outbound operations but does not provide inbound message sources such as schedulers, making B false.

Option D also requires correction. Current XML SDK versions support a visibility setting with values including PUBLIC and PRIVATE; the default is public, but operations are not universally required to remain public. MuleSoft's current XML SDK reference explicitly documents private operation visibility.

Therefore, C is the technically correct and directly documented statement. This is one question where the option selected in the supplied source should not be accepted without verification.

Reference topics: XML SDK Properties; Operations; module configuration; operation visibility; XML SDK limitations.

Official documentation: https://docs.mulesoft.com/mule-sdk/latest/xml-sdk

Official documentation: https://docs.mulesoft.com/mule-sdk/latest/

===============================================================

In Mule Gateway custom policies, inbound and outbound interception are represented by different policy blocks. The http-policy:source block surrounds processing that begins at an HTTP Listener and is therefore associated with incoming requests. To intercept HTTP requests generated by an application through an HTTP Request connector, the policy must instead define an http-policy:operation block.

MuleSoft explicitly documents outbound policies as policies that operate on outgoing HTTP requests. Within a custom policy, http-policy:operation allows policy logic to execute immediately before Mule reaches an HTTP Requester and again after that requester returns. An http-policy:execute-next element can be placed within the operation block to delimit pre-request and post-response processing.

This mechanism is appropriate for functionality such as adding outbound headers, enforcing outbound security rules, modifying requests, collecting telemetry, or inspecting downstream responses. http-policy:source cannot provide equivalent outbound interception because it applies around the inbound source and application flow. http-policy:processor is not the Mule Gateway construct used for this purpose.

Therefore, the required element is http-policy:operation.

Reference topics: Mule Gateway Custom Policies; Outbound Policies; http-policy:operation; http-policy:execute-next; HTTP Request interception.

Official documentation: https://docs.mulesoft.com/mule-gateway/policies-custom-mule-4-reference

===============================================================

MuleSoft provides the JSON Module specifically for operations such as JSON validation. The application should include the JSON Module as a Mule dependency and place its Validate schema operation before the connector or operation that posts the data to the target system.

The Validate schema operation receives the JSON document and evaluates it against the configured JSON Schema. When validation succeeds, processing continues to the next processor. If the payload does not conform, Mule raises JSON:SCHEMA_NOT_HONOURED, allowing the flow's error-handling strategy to reject or transform the invalid request before the target system is modified.

MuleSoft also documents that modules/connectors added manually to an application are declared in pom.xml as dependencies with the mule-plugin classifier; the JSON Module follows this standard pattern.

DataWeave conditional validation would unnecessarily reimplement schema semantics and would not automatically interpret a JSON Schema. API Manager does not provide the application-level JSON Module operation described by this requirement, and import json-module is not a valid mechanism for invoking the Mule JSON Module from DataWeave.

Reference topics: JSON Module; Validate Schema; JSON Schema; JSON:SCHEMA_NOT_HONOURED; Maven module dependency.

Official documentation: https://docs.mulesoft.com/json-module/latest/json-schema-validation

Official documentation: https://docs.mulesoft.com/json-module/latest/json-xml-maven

===============================================================
