NS0-194 NetApp Certified Support Engineer (NCSE) Questions and Answers

NDMP is the correct technology when a customer must create physical hard copies of transaction data for off-site regulatory storage. NDMP enables ONTAP data to be backed up directly to tape through a supported backup application, and tape is the typical medium for physical removable copies. SnapVault is disk-to-disk backup and retention; it is excellent for secondary ONTAP protection but does not inherently create physical hard copies. SVM DR replicates an SVM for disaster recovery and is not a physical-copy mechanism. FlexCache accelerates access to remote data and is not a regulatory backup technology. The phrase 'physical hard copies off site' is the key discriminator. A support engineer should map this to tape backup workflows, NDMP configuration, qualified tape devices, and backup software integration. For regulatory retention that requires removable media, NDMP is the NetApp-supported data transfer framework. References/topics: ONTAP NDMP, tape backup, off-site physical media retention, backup application integration, and regulatory data protection.

The Interoperability Matrix Tool and Active IQ Interop Advisor are the correct resources for verifying SAN component and host-environment compatibility. The IMT is the authoritative NetApp matrix for supported combinations of ONTAP, host OS, HBA/CNA, firmware, multipathing software, protocol, switch, and related SAN components. Active IQ Interop Advisor uses customer configuration data to help identify interoperability risks and recommend supported combinations. Uploading AutoSupports to Active IQ is useful because it feeds the analytics platform, but by itself it is not the action that verifies compatibility. Config Advisor validates configuration and cabling best practices, but it is not the primary host/SAN supportability matrix. The support engineer must validate both published interoperability rules and customer-specific risk analysis before a storage update. That is why the correct paired actions are IMT and Active IQ Interop Advisor. References/topics: NetApp Interoperability Matrix Tool, Active IQ Interop Advisor, SAN host compatibility, firmware/software supportability, and upgrade planning.

The volume recovery queue is the correct recovery mechanism when a volume was accidentally deleted recently and no backups exist. ONTAP protects against accidental deletion by retaining deleted volumes in a recovery queue for a configured retention period, allowing administrators to recover them before they are permanently purged. A volume Snapshot cannot be used if the volume itself has been deleted and no accessible backup copy exists. An aggregate Snapshot revert is not a valid or normal ONTAP recovery method for restoring an individual deleted volume and would be far too disruptive. ONTAP System Manager may provide a graphical way to recover deleted volumes in later versions, but the feature being tested is the volume recovery queue itself. The support engineer should immediately check retention time, locate the deleted volume in the recovery queue, recover it, and then restore required junction or mapping details. References/topics: ONTAP volume recovery queue, accidental volume deletion protection, FlexVol recovery, retention period, and data recovery workflow.

A single node in a four-node MetroCluster can be taken down for maintenance by performing an HA takeover of that node. MetroCluster provides site-level disaster recovery, but routine maintenance of one controller is handled through the local HA pair so that the partner continues serving the node's storage and data remains online. A MetroCluster switchover is a site-level operation and would be excessive for planned maintenance of one node. Disabling HA would remove the very protection required to keep data online. Aggregate relocation of CFO aggregates alone is not the correct maintenance workflow because the HA takeover process handles controller ownership and service continuity for the node. The support engineer must choose the least disruptive protection mechanism that matches the failure or maintenance domain. For a single controller event inside a four-node MetroCluster, local HA takeover is the correct action. References/topics: MetroCluster maintenance, HA takeover and giveback, controller service operations, site-level switchover, and nondisruptive availability design.

Cloud Volumes ONTAP running ONTAP 9.5 supports one data-serving SVM. This is a cloud platform limitation that differs from many on-premises ONTAP clusters, where multiple data SVMs are common for multi-tenancy and protocol separation. The large values 128 and 1024 reflect broader ONTAP scaling concepts and are not applicable to Cloud Volumes ONTAP 9.5. Ten is also not the supported limit for the specified release. In support work, CVO limits must be checked against the specific ONTAP version and cloud deployment model because cloud instances have constraints based on licensing, architecture, and supported configurations. The question's wording is precise: it asks for data-serving SVMs, not management SVMs or cluster-level objects. Therefore, for ONTAP 9.5 on Cloud Volumes ONTAP, the correct limit is one. References/topics: Cloud Volumes ONTAP 9.5 limitations, data-serving SVM support, cloud deployment constraints, and CVO architecture.

NetApp Volume Encryption uses a KMIP server when encryption keys must be stored separately from encrypted data. KMIP is the Key Management Interoperability Protocol and is the standard method ONTAP uses to communicate with external key managers. RADIUS is an authentication protocol and does not store encryption keys for NVE. TLS secures communications but is not itself a key management server. TKIP is an older wireless encryption mechanism and is unrelated to ONTAP volume encryption. Separating keys from encrypted data is a core security control because compromise of storage media or data blocks should not also expose the keys required to decrypt them. In ONTAP environments, external key management provides centralized lifecycle control, auditing, and recovery considerations for encrypted volumes. Support engineers must also verify key-manager reachability before enabling encryption because inaccessible keys can prevent encrypted volumes from being brought online. References/topics: NetApp Volume Encryption, external key management, KMIP server configuration, encryption key separation, and ONTAP security architecture.

In ONTAP 9.6, command-line activity is recorded in audit.log. The audit log captures administrative activity such as commands issued through the CLI and other management interfaces, which is essential for security review, accountability, and troubleshooting administrative changes. messages.log and ems.log are used for system and event messages, not specifically for recording administrator command history. command-history.log may sound plausible, but ONTAP 9.6 centralizes management audit activity in audit.log. mgwd.log records management gateway daemon behavior and can be useful for deeper support investigation, but it is not the primary file used to review CLI activity. A support engineer investigating who changed a configuration should know the difference between event logs, daemon logs, and audit logs. This distinction prevents wasted time during escalations because the correct log source depends on whether the issue is an administrator action, an EMS event, or daemon behavior. References/topics: ONTAP log architecture, audit.log, CLI activity auditing, administrative traceability, and management-plane troubleshooting.

The UNIX user prof1 is looked up in files first because the name-service switch output shows the passwd database source order as files, then ldap. ONTAP follows the configured source order for the relevant database. Since a UNIX user lookup uses the passwd database, ONTAP checks the local files source before contacting LDAP. DNS is associated with host name resolution, not UNIX user identity lookup. NIS is not listed in the passwd source order shown in the exhibit, so it cannot be the first lookup source. LDAP is listed, but it is second after files. This question tests the engineer's ability to read ns-switch output and apply it to the correct identity database. For NAS access issues, source order directly affects user mapping, UID/GID resolution, group membership, and permission decisions. References/topics: ONTAP name service switch, passwd database lookup, UNIX identity resolution, files versus LDAP source order, and NAS authentication troubleshooting.

vserver security trace filter create is the appropriate command to troubleshoot why a user can read and write some files on an NFS volume but cannot read all files. The symptom points to file-level access evaluation rather than a simple export-policy failure. Export-policy check-access is useful to test whether a client can access an export path based on export rules, but it does not fully explain per-file permission differences inside the volume. security login create is for administrator login configuration and is unrelated to client file access. security audit show does not perform targeted access-decision tracing. ONTAP security trace can be used to trace NAS access decisions and identify whether permissions, user mapping, security style, ACLs, or UNIX mode bits are causing the denial. A support engineer should use it when access is inconsistent across files in the same volume. References/topics: ONTAP security trace, NFS file access troubleshooting, UNIX permissions, mixed security styles, and NAS authorization diagnostics.

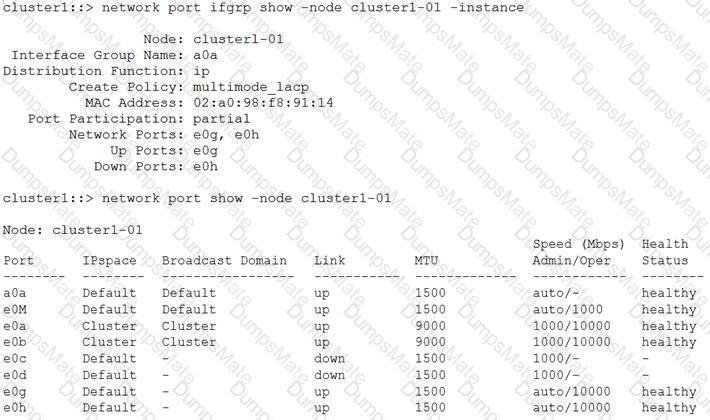

One physical interface is mis-cabled. The interface group output shows that the ifgrp expects specific member ports and that one member is not participating as expected after the network card replacement. The physical port listing shows link state information, but the ifgrp/LACP state indicates the port is not correctly associated with the intended switch-side aggregation. If a port were simply uncabled, the physical link would be down. If the interface were broken, the issue would follow the port regardless of switch-side configuration and would not primarily appear as a membership mismatch. The ifgrp is not configured in single mode; it uses multimode LACP, so switch cabling and LACP membership must match exactly. In support practice, a replacement NIC can lead to cables being swapped into the wrong switch ports or LAG groups. The engineer should verify cabling against the switch LACP configuration and NetApp port membership. References/topics: ONTAP ifgrp troubleshooting, LACP port membership, NIC replacement validation, physical cabling checks, and network port show interpretation.

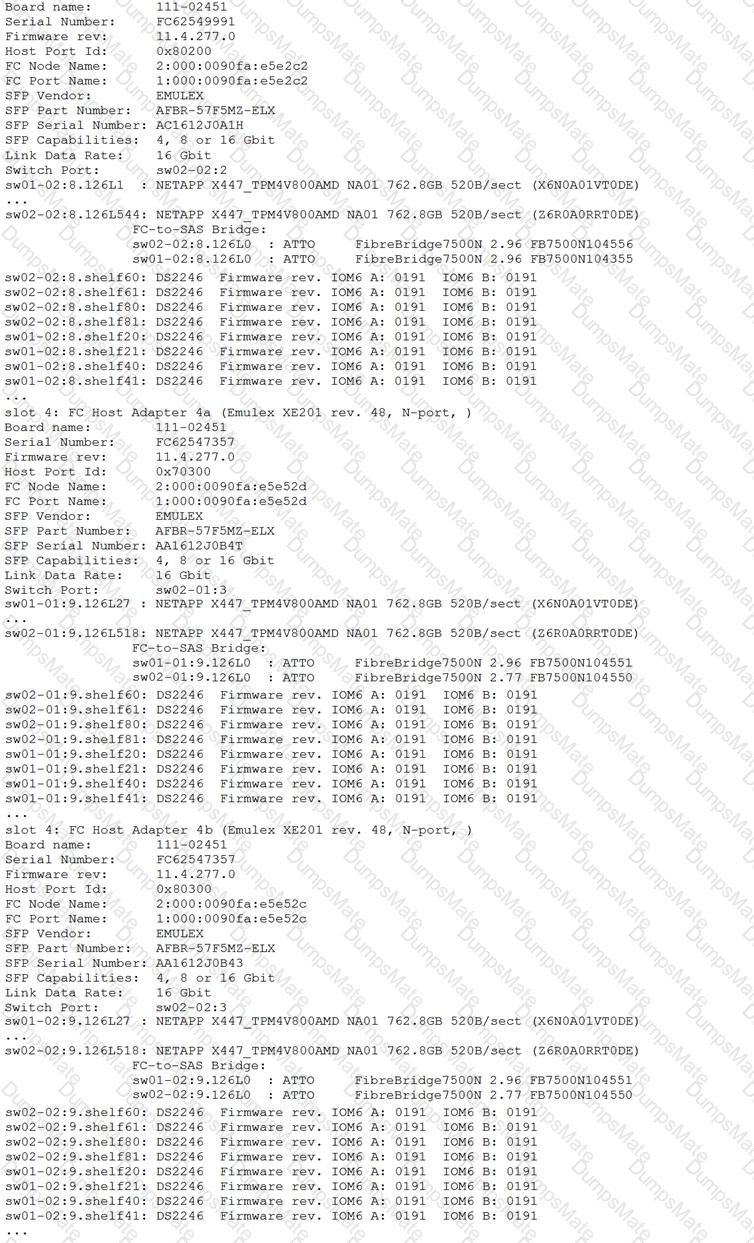

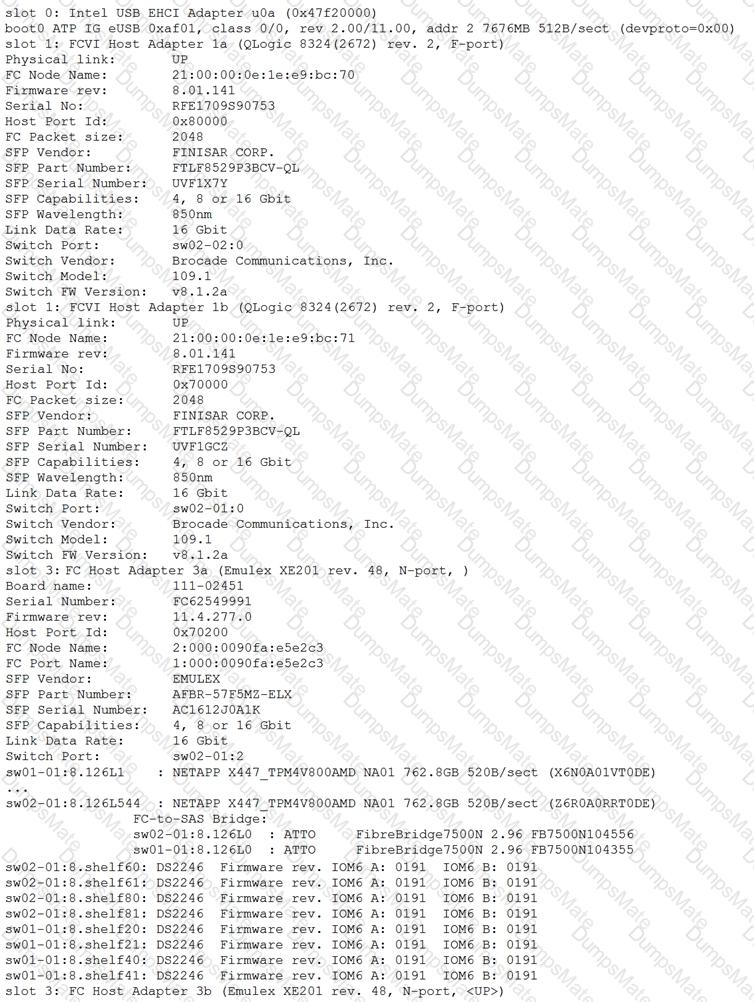

The exhibit shows a fabric-attached MetroCluster design rather than an IP or stretch design. The output includes FC-VI host adapters, Brocade switch information, FibreBridge devices, and disk shelves connected through FC-to-SAS bridges. Those components are characteristic of a fabric MetroCluster where Fibre Channel switches provide the intersite storage fabric and bridges connect SAS shelves into the FC environment. A two-node stretch MetroCluster would not show the same four-node fabric topology, and MetroCluster IP would use Ethernet-based back-end connectivity rather than FC switches and FC-to-SAS bridges. A four-node stretch MetroCluster would also not use the fabric-switch/bridge arrangement shown in the exhibit. The support engineer must identify topology from the hardware path indicators, not from the node count alone. The presence of FC switches, FC-VI, and ATTO FibreBridge devices makes the topology a four-node fabric-attached MetroCluster. References/topics: MetroCluster fabric architecture, FC-VI adapters, FC-to-SAS bridges, Brocade switch paths, and MetroCluster hardware topology identification.

The output shows Storage Virtual Machine DR relationships because the source and destination paths are SVM names followed by a colon, not SVM:volume paths. In ONTAP SnapMirror syntax, a volume relationship uses a path such as svm1:vol1, while an SVM relationship uses the SVM name followed by a trailing colon, such as svm1:. The relationship type XDP is compatible with modern SnapMirror policy-based replication, including SVM DR. A single-volume asynchronous SnapMirror relationship would identify individual volumes. SnapMirror Synchronous would use synchronous relationship behavior, and SnapVault is a vaulting policy relationship rather than an SVM configuration replication relationship. The support engineer must read the path syntax rather than only the relationship type. Because each listed source and destination path represents an SVM object, the relationship is SVM DR. References/topics: SnapMirror show output, SVM DR syntax, source-path and destination-path trailing colon, XDP relationships, and SVM configuration replication.

Compression, compaction, and thin provisioning are ONTAP storage efficiency techniques. Compression reduces the physical space consumed by compressible data blocks. Compaction packs small I/O writes more efficiently into storage blocks to reduce wasted space, especially on AFF systems. Thin provisioning presents logical capacity to clients without reserving all physical capacity up front, allowing storage to be consumed as data is actually written. Encryption protects data confidentiality but is not a capacity-saving technology. Advanced Drive Partitioning improves disk utilization by partitioning drives for root and data usage, but it is a platform layout mechanism rather than the standard ONTAP data-reduction efficiency listed with compression and compaction. The NCSE interpretation must distinguish capacity efficiency from security and hardware layout features. The three selected options are the technologies that reduce or optimize consumed capacity at the volume or aggregate layer. References/topics: ONTAP storage efficiencies, inline compression, data compaction, thin provisioning, AFF efficiency defaults, and capacity management.

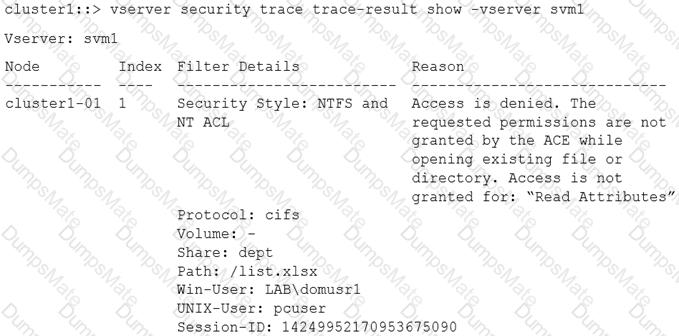

The user must be granted Read Attributes access to the path. The security trace result states that access is denied because the requested permissions are not granted by the ACE while opening the existing file or directory, and it specifically identifies Read Attributes as the missing permission. Adding the user to BUILTIN groups would be a broad and imprecise change that may not match the file's intended NTFS ACL model. Granting Execute access does not solve the reported missing permission unless the access mask also includes the required attribute-read right, and the trace does not identify Execute as the failed permission. ONTAP security trace is designed to point directly to the permission, user mapping, security style, and access decision involved in a failed NAS request. The support engineer should remediate the exact ACL deficiency shown by the trace rather than guess at group membership. References/topics: ONTAP security trace results, NTFS ACE evaluation, Read Attributes permission, CIFS access denial troubleshooting, and NAS ACL remediation.

The ISL between siteA and siteB is the component causing the problem. The EMS messages show both nodes reporting HA interconnect connection failures and then bridges being removed from opposite sites at essentially the same timestamp. If a single ATTO bridge were the root cause, the failure would localize to that bridge or path. If one SAN switch at siteA_2 or siteB_2 failed, the messages would more narrowly implicate paths through that switch. Instead, both sides simultaneously lose visibility across the fabric to remote bridges, which indicates an intersite link failure between the sites. In a fabric MetroCluster, ISLs carry the cross-site connectivity required for mirrored storage and FC fabric communication. A support engineer should interpret symmetry: simultaneous bridge removals from both perspectives generally point to the shared intersite path, not independent bridge failures at both locations. References/topics: MetroCluster fabric ISLs, FC-to-SAS bridge visibility, DISK REDUNDANCY FAILED messages, cross-site pathing, and MetroCluster fabric troubleshooting.
