NS0-593 NetApp Certified Support Engineer ONTAP Specialist Questions and Answers

= A user quota is a limit on the amount of disk space or the number of files that a user can consume on a volume. A user can be represented by multiple IDs, such as UNIX user ID (UID), Windows user ID (SID), or name mapping ID. A file owned by any of these IDs is subject to the restriction of the user quota. If a user has files in different directories or qtrees within the same volume, all of those files count towards the user’s quota limit. Therefore, if other files within the volume are also owned by the user, they could exceed the user quota and prevent the user from saving more files to their home drive, even if the home drive itself shows minimal data usage. References = How quotas work with users and groups overview, ONTAP - How quotas work with users and groups

 The wafl.dir.size.max event occurs when a directory has reached its maximum directory size (maxdirsize) limit, which prevents new file creation in that directory. The maxdirsize is a volume-level option that can be modified using the volume modify command. To solve this issue, you should increase the maximum directory size for the volume that contains the CIFS share, as long as it does not exceed 3% of the physical memory. Alternatively, you can reorganize the directory structure to avoid having too many files in one directory. References =

• Max Directory size error - NetApp Knowledge Base
• How to identify the target directory of wafl.dir.size.warning - NetApp Knowledge Base
• Post about wafl.dir.size.max | Source.kohlerville.com
• WAFL Max dirsize | uadmin

 According to the NetApp Knowledge Base, packet traces are stored in the /etc/log/packet_traces directory of the node hosting the LIF. This applies to ONTAP 9.10 and above systems. For ONTAP 9.2 to 9.9 systems, the procedure to capture packet traces is similar, but the command syntax is slightly different. For ONTAP pre-9.2 systems, the procedure is different and requires the use of the tcpdump command. References = How to capture packet traces on ONTAP 9.10+ systems, How to capture packet traces (tcpdump) on ONTAP 9.2 to 9.9 systems, How to capture packet traces in ONTAP pre-9.2

• IQN stands for iSCSI Qualified Name, which is a unique identifier for an iSCSI initiator or target1.
• ONTAP uses IQN to authenticate and authorize iSCSI sessions2.
• If two hosts have the same IQN, they will cause a conflict and ONTAP will reject the new session request from the second host3.

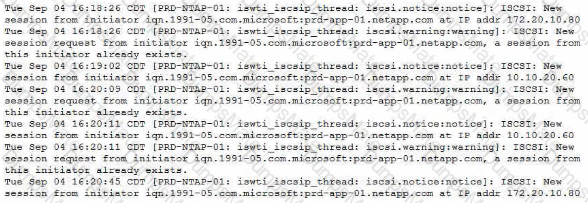

• This will result in the host losing the connection to the iSCSI target and then reporting that the session was reestablished, as shown in the exhibit.
• To avoid this problem, each host should have a unique IQN. References:
• iSCSI Qualified Name (IQN) - NetApp
• iSCSI authentication and authorization - NetApp
• Troubleshooting iSCSI issues - NetApp
• [Configuring iSCSI initiators - NetApp]

 = The correct action to bring the cluster online and allow Node02 to serve data is to perform a takeover with the storage failover takeover -ofnode Node01 -option force command. This command will force Node02 to take over the resources of Node01 and serve the data from both nodes. This is necessary because Node01 is not responding and cannot initiate a graceful takeover. The other options are not correct because they will either destroy the existing cluster configuration (A and D) or reboot the node without taking over the resources of the other node(B). References = 1 Halt or reboot a node without initiating takeover in a two-node cluster - NetApp Documentation 2 Solved: Graceful shut down - NetApp Community

= The NetApp Cloud Volumes ONTAP Release Notes provide the most up-to-date and accurate information about the storage limits for different cloud platforms, licenses, and configurations. The release notes also include details about supported features, known issues, and limitations for each version of Cloud Volumes ONTAP. References = Storage limits - NetApp, Storage limits | NetApp Documentation, Storage limits in AWS | NetApp Documentation, Storage limits in Azure | NetApp Documentation

 = The Connector is a software component that enables Cloud Manager to manage resources and processes within your AWS environment. To deploy a Connector in AWS, you need to have the correct IAM policies attached to your user account or role. These policies grant the Connector the permissions to perform various actions on your behalf, such as creating and deleting EC2 instances, VPCs, security groups, and so on. If you do not have the required IAM policies, the deployment will fail with the message ‘Insufficient permissions to deploy Cloud Connector’. You can find the list of required IAM policies in the Connector deployment policy for AWS. References = Creating a Connector in AWS from Cloud Manager, page 3-4.

 The iSCSI service must be enabled on the network interfaces that are used for iSCSI communication. If the iSCSI service is disabled on an interface, the incoming connection requests from the iSCSI initiator will be discarded and the event log will show the message “ISCSI: network interface identifier disabled for use; incoming connection discarded”. To enable the iSCSI service on an interface, you can use the System Manager or the CLI command network interface modify -vserver vserver_name -lif lif_name -data-protocol iscsi. References = Configure the iSCSI protocol with System Manager, [ONTAP 9 Network Management Guide]

The maxdirsize is the maximum size of a directory in a FlexVol or FlexGroup volume. It is determined by the number of inodes allocated to the directory. If the directory contains more files than the maxdirsize can accommodate, then the ONTAP software will return an out of space error message to the host, even if the volume has enough free space. This can happen when a FlexGroup volume has a flat directory structure with millions of files, as the maxdirsize is not automatically adjusted for FlexGroup volumes12. References: 1: FlexGroup volumes: Frequentlyasked questions | NetApp Documentation 2: How to increase the maxdirsize of a FlexVol volume - NetApp Knowledge Base

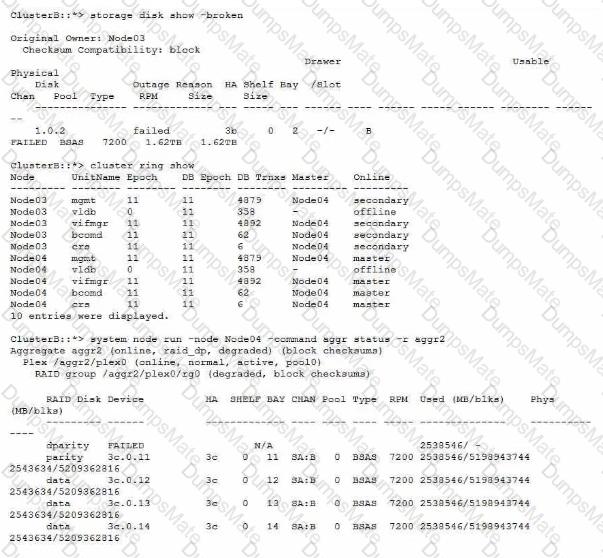

The broken disk in Node03 is causing the cluster ring to be offline, which prevents the CIFS SVM from being accessible. The cluster ring is a distributed database that stores cluster configuration information and enables communication between cluster nodes. If the cluster ring is offline, the cluster cannot function properly and the CIFS SVM cannot serve data to clients. The other options are not relevant to the CIFS SVM connectivityissue. References = https://www.netapp.com/support-and-training/netapp-learning-services/certifications/support-engineer/

https://mysupport.netapp.com/site/docs-and-kb

 = The multiprotocol volume allows clients to access files using both NFS and SMB protocols. The NFS protocol is case-sensitive, meaning that Test.txt and TEST~1.TXT are two different files. The SMB protocol is case-insensitive, meaning that it treats uppercase and lowercase letters as the same when searching for a file. Therefore, when the user opened the file from a Windows system using SMB, the system could not distinguish between Test.txt and TEST~1.TXT and displayed one of them arbitrarily. This could lead to confusion and data loss if the user modified or deleted the wrong file. References = Client protocols; Multiprotocol NAS in NetApp ONTAP Overview and Best Practices, page 30-31.

= The “Urge” column in the flexgroup show command indicates the urgency of data rebalancing for each constituent volume. A non-zero value means that the data placement is uneven across the volumes, which can affect the performance of the FlexGroup. The target value is the desired percentage of data for each volume, and the difference value is the deviation from the target. The FlexGroup tries to balance the data placement by moving data between the volumes, but this process can be slow or interrupted by other factors. Therefore, it is recommended to monitor the “Urge” column and take corrective actions if the values are high orpersistent. References = What do “flexgroup show” target and urgency and other columns mean?, NetApp ONTAP FlexGroup volumes — Best practices and implementation guide

 The two throughput elements that are controlled by host applications are operation size and concurrency. Operation size refers to the amount of data that is transferred in a single I/O request, and concurrency refers to the number of I/O requests that are issued simultaneously. Both of these factors affect the throughput of a host application, as they determine how much data can be sent or received within a given time period. Larger operation sizes and higher concurrency can increase the throughput, but they may also increase the latency and resource consumption12. References: 1: NetApp Performance Analysis on Data ONTAP - Chapter 3: Host-Side Performance 2: NetApp Performance Analysis on Data ONTAP - Chapter 4: Storage System Performance

= The FIFO message before NMI is useful for investigating the issue because it shows the state of the system before the non-maskable interrupt (NMI) was triggered by the L2 watchdog timeout. The FIFO message contains information about the CPU registers, the stack pointer, the instruction pointer, and the last executed instructions. This can help identify the cause of the system hang or deadlock that led to the watchdog reset. The other FIFO messages are not useful because they show the state of the system after the reset or shutdown, which may not reflect the original problem. References = https://kb.netapp.com/onprem/ontap/hardware/Handling_L2_Watchdog_Resets_on_the_FAS8200_and_AFF_A300_platforms

https://docs.netapp.com/us-en/ontap-metrocluster/install-ip/task_sw_config_restore_defaults.html

 = The panic message indicates that the node encountered a fatal error while accessing the PCI card in slot 31. This could be due to a hardware failure, a firmware issue, or a driver problem. The first component to troubleshoot is the PCI card in slot 3, as it is the most likely source of the error. You can use the system node hardware pci show command to check the status of the PCI card and the system node hardware firmware update command to update the firmware if needed2. You can also use the Panic Message Analyzer tool from the NetApp Support Site to determine whether your panic was caused by a known software issue3. References = 1: REBOOT (panic) ALERT - AutoSupport message 2: [system node hardware pci show] 3: [Panic Message Analyzer tool]
