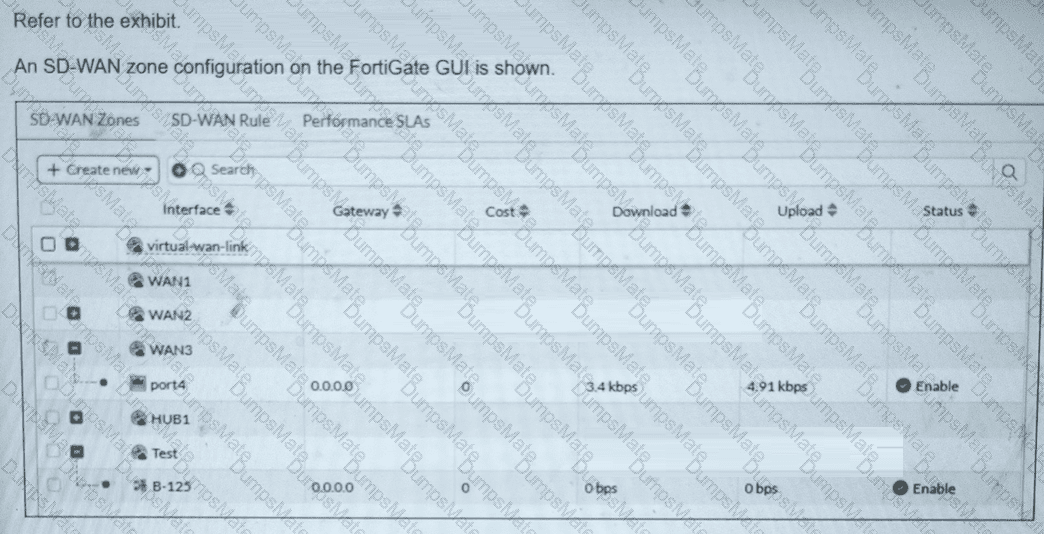

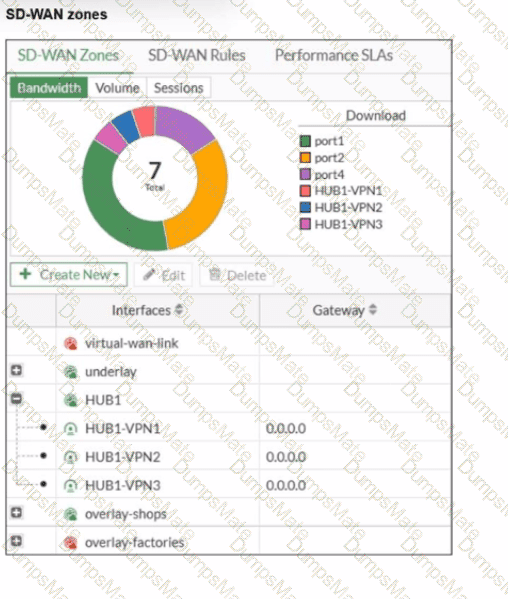

From the SD-WAN Zones view in the FortiGate GUI:

virtual-wan-link is the default SD-WAN zone. This zone is system-defined and cannot be deleted , which makes option A incorrect.

The WAN2 zone is displayed without any expandable members beneath it, indicating that no SD-WAN members are currently assigned to the WAN2 zone . This directly supports option B.

A zone can be deleted only if it has no members and is not system-defined , but the exhibit does not indicate that WAN1 is eligible for deletion. Therefore, option C cannot be concluded from the information shown.

In FortiOS SD-WAN, an SD-WAN member can belong to only one SD-WAN zone at a time . A member such as B-125 cannot be assigned to both the WAN3 zone and the Test zone simultaneously, which makes option D incorrect.

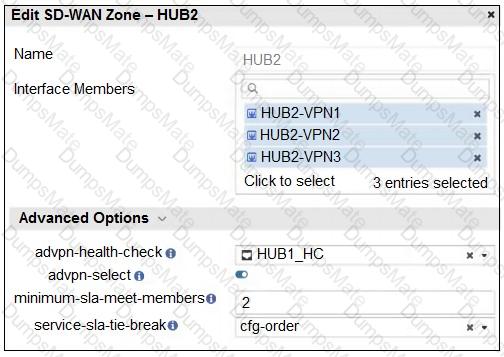

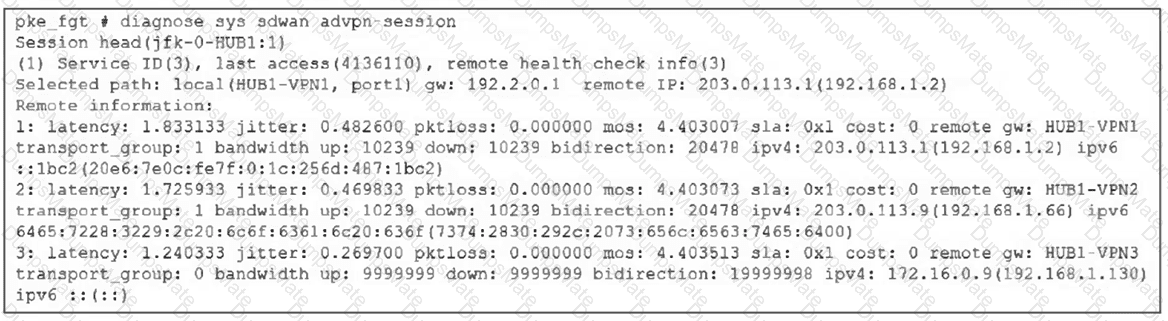

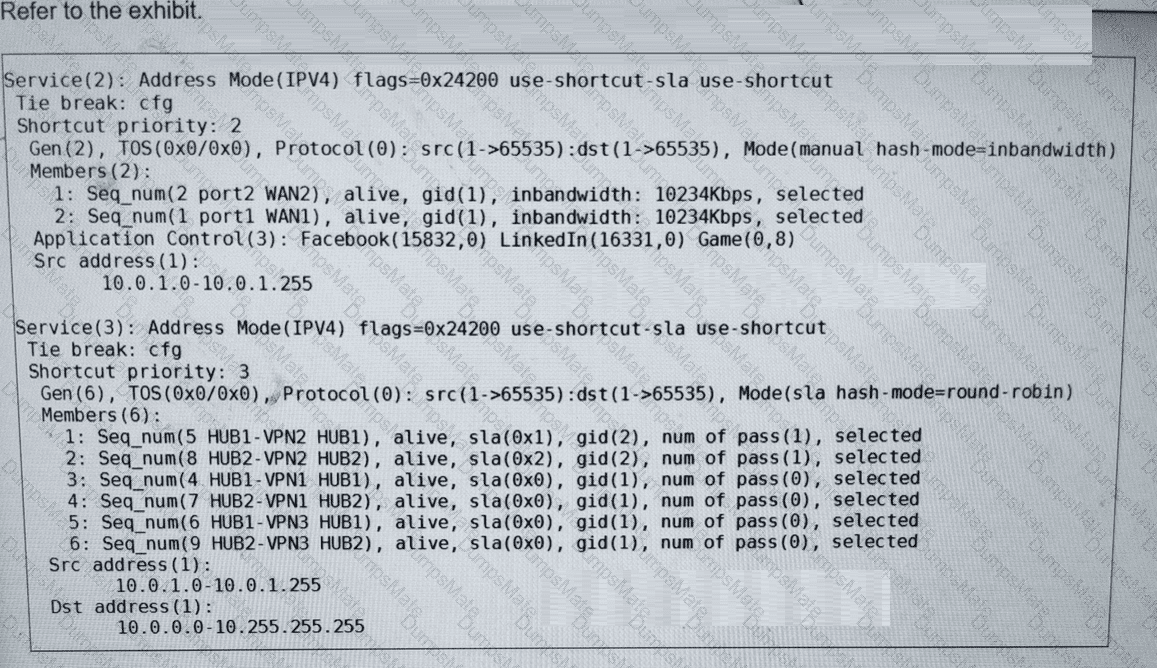

This is because the setting minimum-sla-meet-members = 2 requires at least two SD-WAN zone members (in this case, HUB2-VPN1, HUB2-VPN2, and HUB2-VPN3) to pass the defined SLA health check (HUB1_HC) before the FortiGate will establish ADVPN shortcuts. If fewer than two members meet the SLA, shortcuts will not be created.

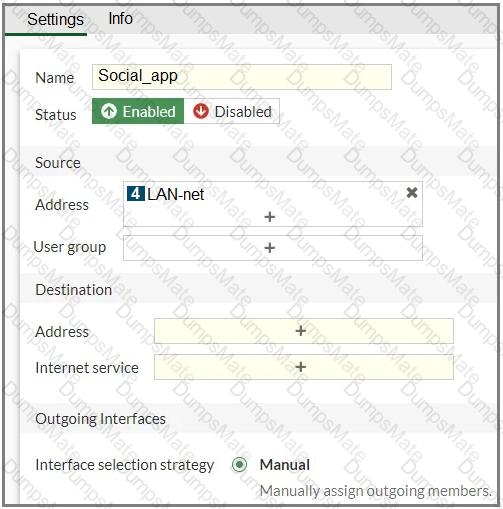

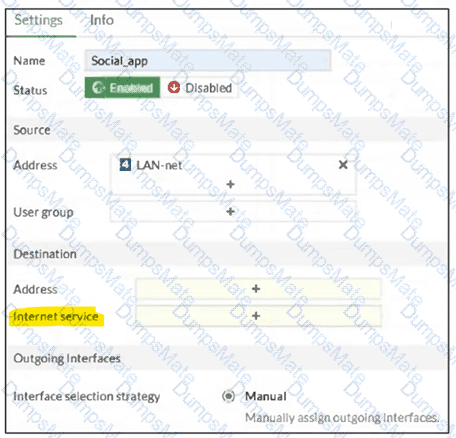

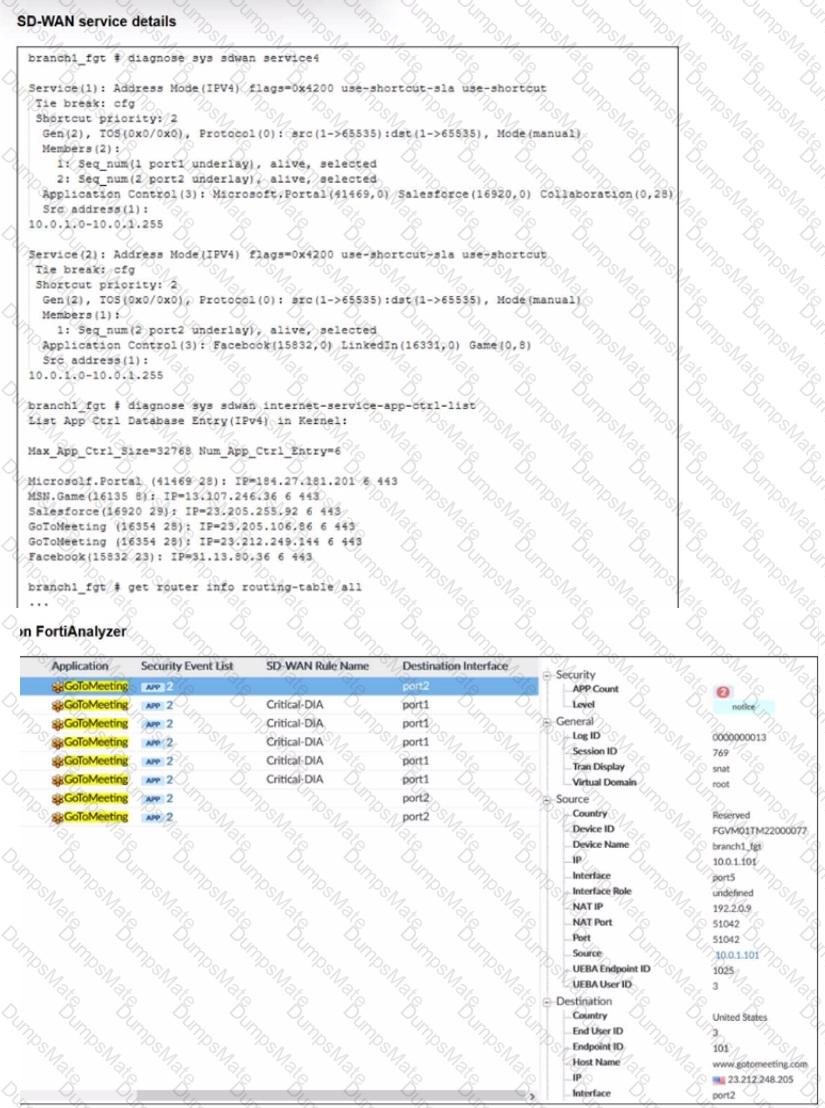

In an SD-WAN rule, you can steer application traffic by using Internet Service Database (ISDB) entries. Facebook and LinkedIn are predefined ISDB objects in FortiGate, so the correct way is to select them in the Internet service field under Destination. This ensures that all traffic to these applications is matched and routed through the chosen (less costly) link.

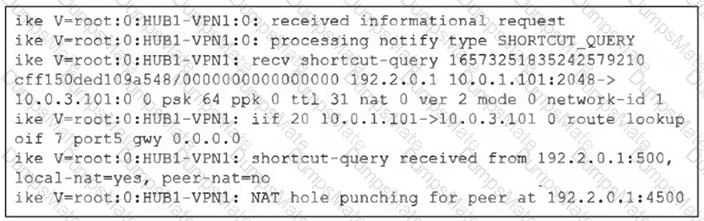

The log messages shown in the exhibit include the following key indicators:

processing notify type SHORTCUT_QUERY

shortcut-query received from 192.2.0.1

local-nat=yes, peer-nat=no

NAT hole punching for peer at 192.2.0.1:4500

In the FCSS SD-WAN 7.6 ADVPN workflow, shortcut queries are always initiated by spokes, not hubs. A spoke sends a shortcut query to its hub when it detects traffic destined for another spoke. The hub’s role is to receive this shortcut query and forward the discovery information toward the destination spoke, enabling the two spokes to build a direct shortcut tunnel.

The device name in the log (HUB1-VPN1) and the presence of NAT hole punching coordination clearly indicate that this device is acting as a hub, not a spoke. Hubs do not form shortcuts themselves; instead, they facilitate shortcut establishment between spokes by relaying discovery and negotiation information.

Option A is incorrect because a spoke does not receive shortcut queries from other spokes directly.

Option B is incorrect because the log does not indicate that the shortcut has already been established; it shows the query and coordination phase, not completion.

Option D is incorrect because hubs do not initiate shortcut queries toward spokes.

Therefore, the correct description is that this device is a hub that has received a shortcut query from a spoke and has forwarded it to another spoke, which corresponds to option C.

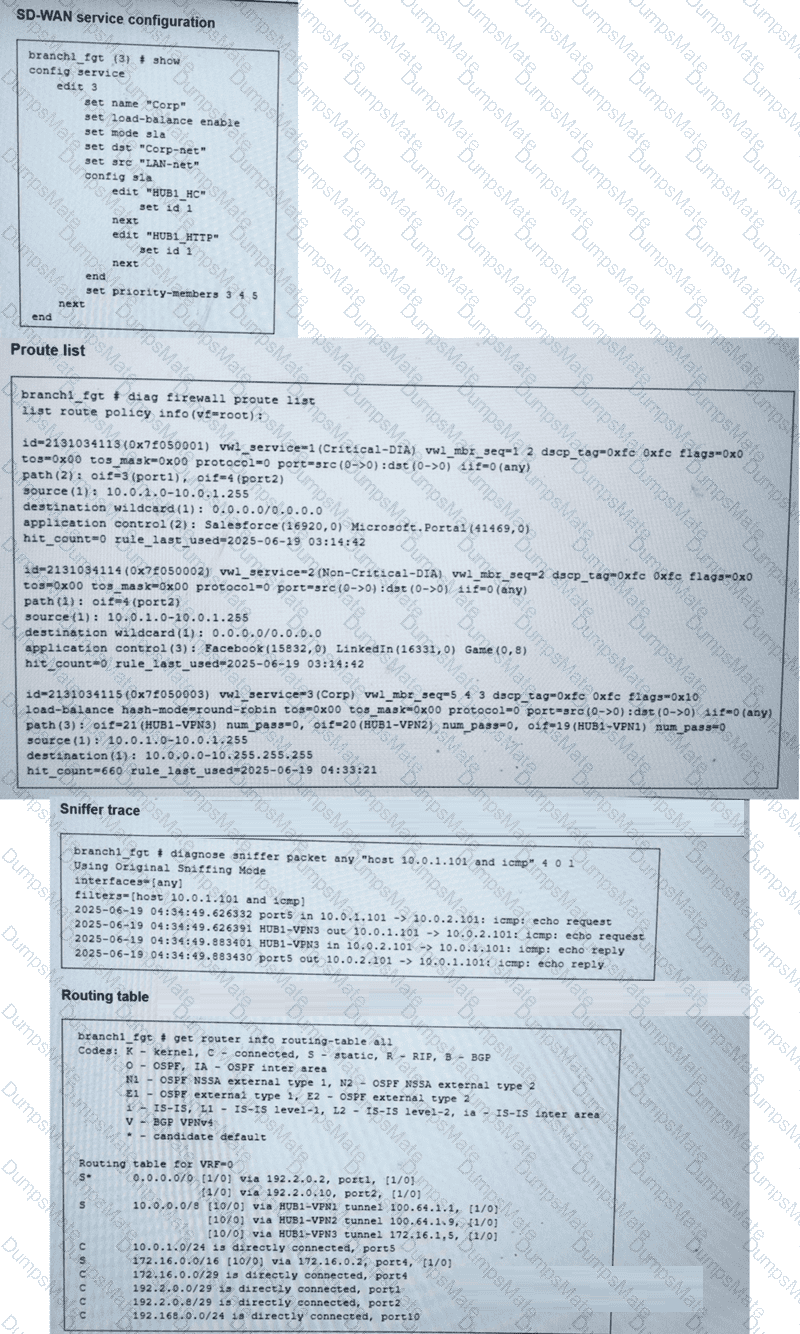

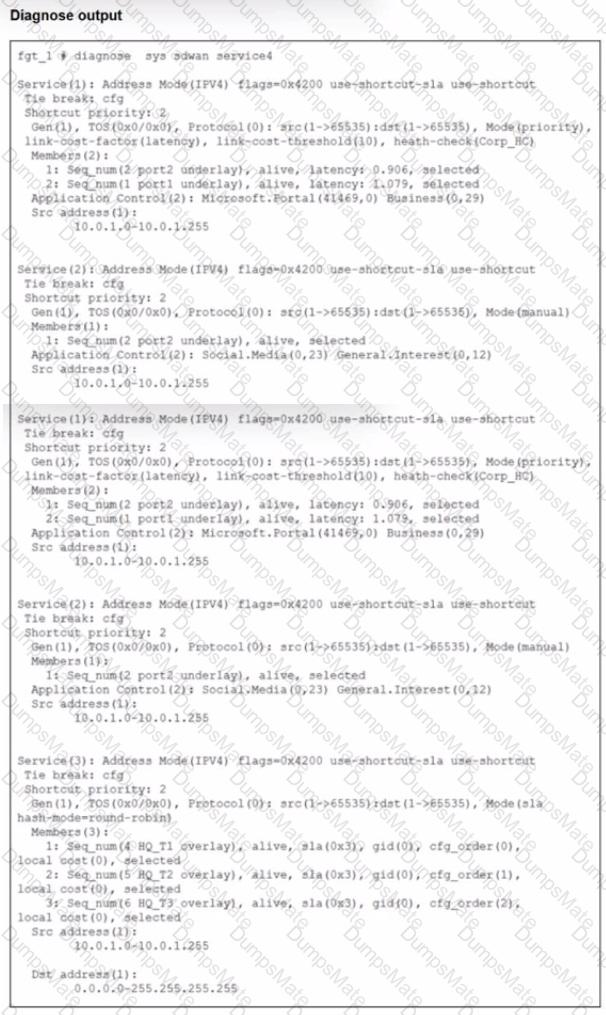

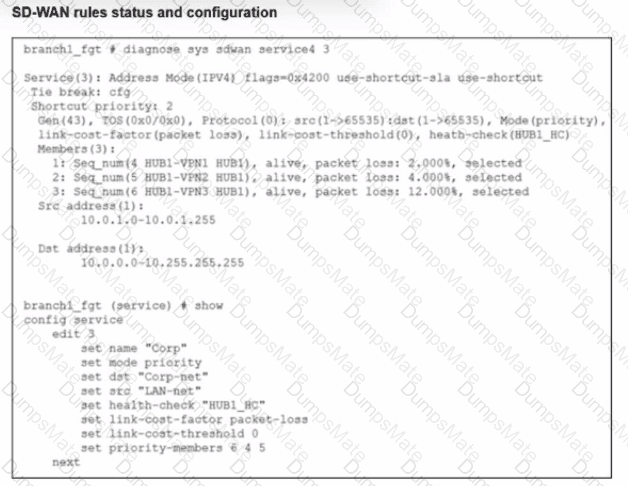

From the SD-WAN service configuration , rule edit 3 (name " Corp " ) is configured with:

set mode sla

set load-balance enable

set dst " Corp-net "

set src " LAN-net "

SLA checks referenced under config sla

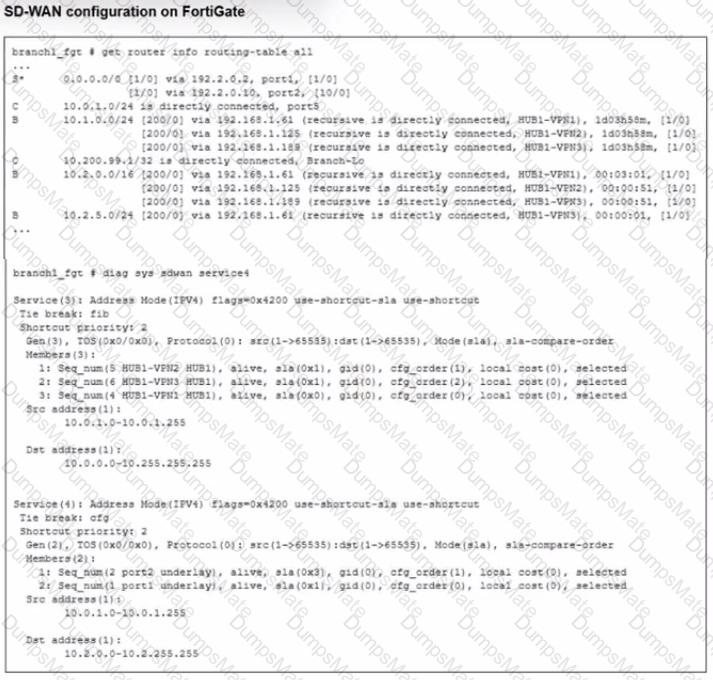

Traffic from 10.0.1.101 to 10.0.0.126 matches this rule because the destination is within the corporate network range (shown in the policy-route/proute output as destination 10.0.0.0–10.255.255.255 for the Corp service).

In the diagnose firewall proute list output for vwl_service=3 (Corp) , FortiGate shows which SD-WAN members are eligible based on SLA pass results:

oif=21 (HUB1-VPN3) num_pass=2

oif=20 (HUB1-VPN2) num_pass=0

oif=19 (HUB1-VPN1) num_pass=0

This indicates that, for the SLA-based rule, only HUB1-VPN3 is meeting the SLA requirements (it is the only member with num_pass=2). The other members have num_pass=0, so they are not eligible for forwarding under this SLA rule even though links are up.

The sniffer trace further corroborates the forwarding decision by showing the traffic egressing through HUB1-VPN3 .

Therefore, FortiGate will steer the HTTP traffic through only HUB1-VPN3 , which corresponds to Option A .

By default, local-out traffic does not use SD-WAN → FortiGate normally sends local-out traffic (e.g., DNS, NTP, FortiGuard updates) directly through its interfaces without applying SD-WAN rules.

You must configure each local-out feature individually to use SD-WAN → To steer local-out traffic via SD-WAN, you must explicitly configure the desired local-out features (e.g., DNS, FortiGuard, CAPWAP) to use SD-WAN rules.

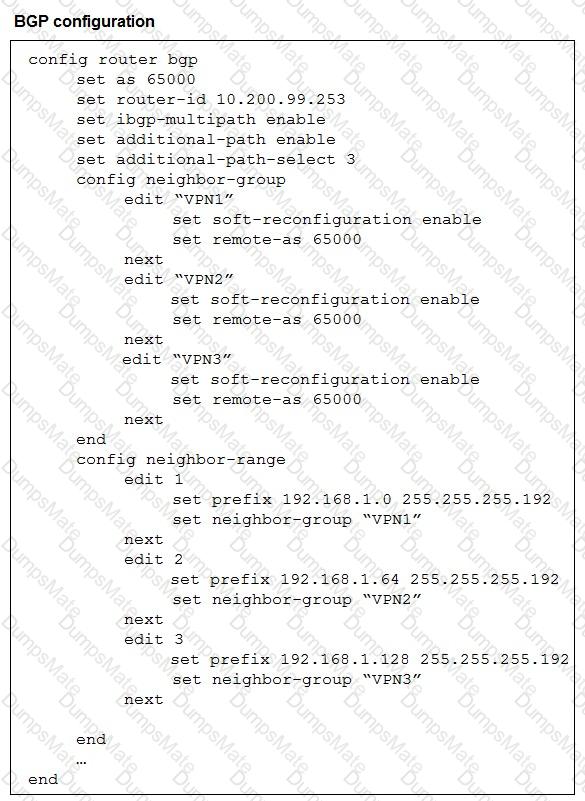

The hub must send additional paths to spokes (set additional-path send).

The hub must treat each spoke as a route-reflector client so spoke routes are reflected to other spokes.

The hub must specify how many additional paths to advertise (set adv-additional-path < n > ).

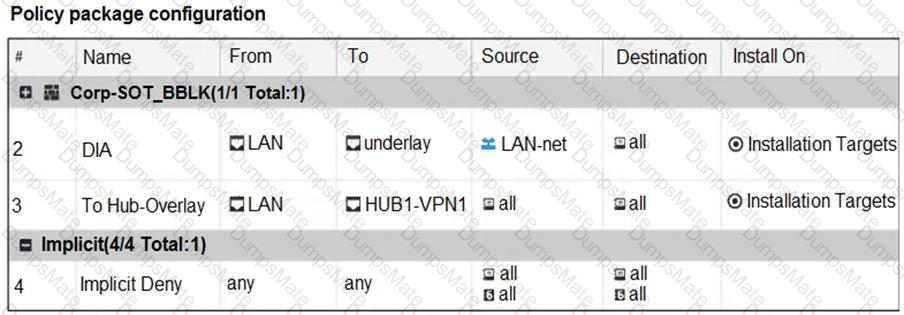

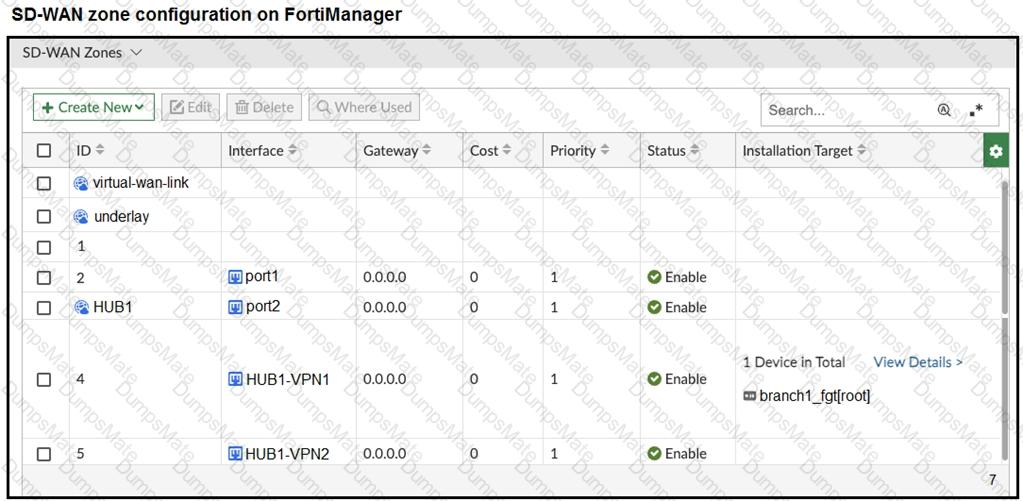

Policy 3 points traffic To = HUB1-VPN1, which is an SD-WAN member interface. In SD-WAN you must reference the SD-WAN zone (the logical interface) in policies, not its member tunnels. Change the policy’s To interface to the zone HUB1, and the install will succeed.

Your requirements map to two key MSSP goals described in the FCSS SD-WAN 7.6 blueprint patterns:

Delegate as much administration and management as possible to the MSSP This is best achieved when the hub security and SD-WAN control point is located on the MSSP premises , because the MSSP can centrally operate the core enforcement and overlay control. Both option B (dedicated hub at MSSP) and option D (shared hub at MSSP with customer isolation) meet this requirement.

Each site must maintain direct internet access (DIA) and be secure, with significant site-to-site traffic In Fortinet SD-WAN MSSP designs, spokes can still use local breakout for DIA while also building secure overlays for inter-site traffic. Placing the hub at the MSSP enables centralized security services and scalable inter-site connectivity management while preserving DIA where required. Options B and D support this operating model.

Why the other options do not best match:

A includes a dedicated hub on the customer premises , which reduces how much the MSSP can centralize and operate from its own environment, so it does not maximize delegation.

C places both hub and spokes on the customer premises . While the MSSP can manage using a dedicated ADOM, this blueprint does not align as strongly with “delegate installation and management” to the MSSP as the designs where the hub is hosted and operated from the MSSP premises.

Therefore, the two MSSP deployment blueprints that address your requirements are B and D .

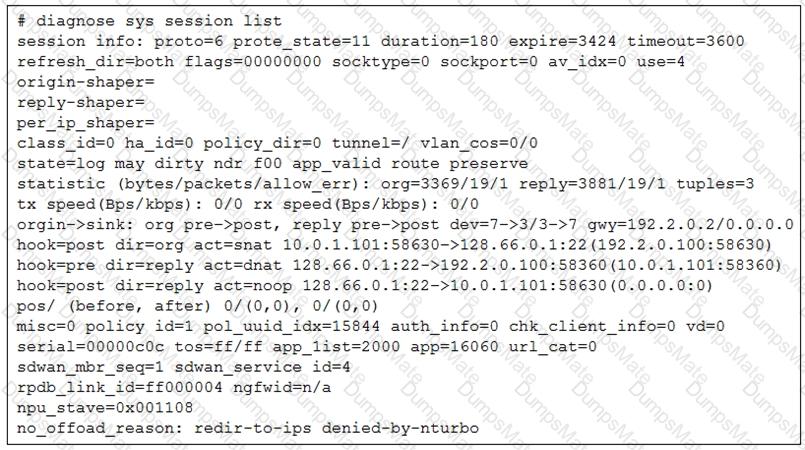

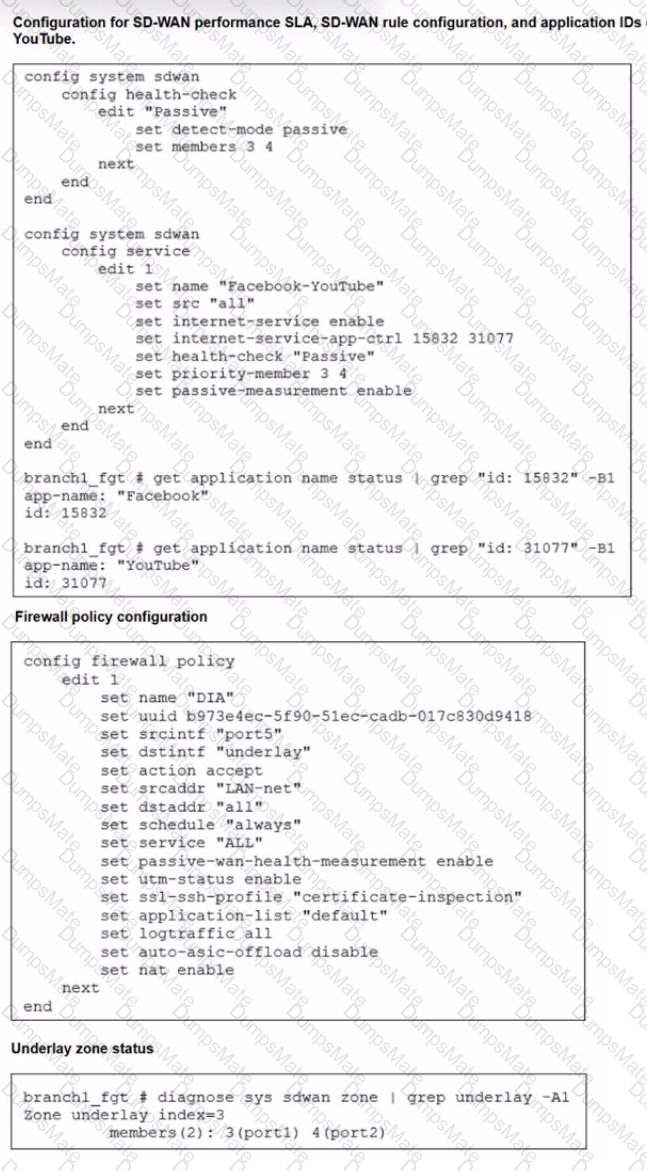

The line sdwan_mbr_seq=1 sdwan_service_id=4 indicates that this session is part of an SD-WAN rule. sdwan_service_id=4 confirms that the session is being handled by SD-WAN rule ID 4. This directly links the flow to the SD-WAN configuration.

The line no_offload_reason: redir-to-ips denied-by-nturbo shows that the session is not offloaded to the NPU (Network Processing Unit) and is being processed by the main CPU. A session that is not offloaded can be re-evaluated. If the outgoing interface (the one currently being used) goes down, the FortiGate will re-evaluate the session against the SD-WAN rules to find a new active member to steer the traffic through. This is a fundamental behavior of SD-WAN, which ensures network resilience.

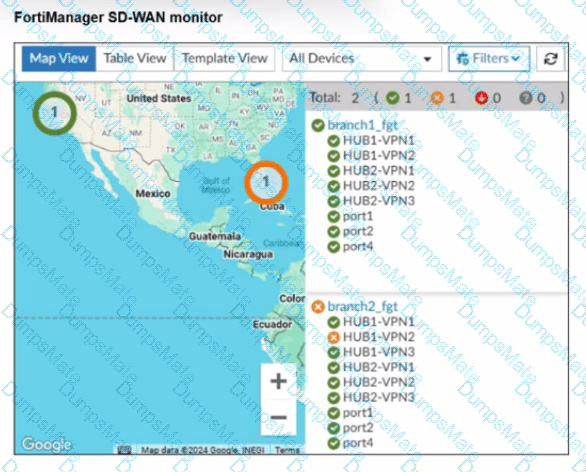

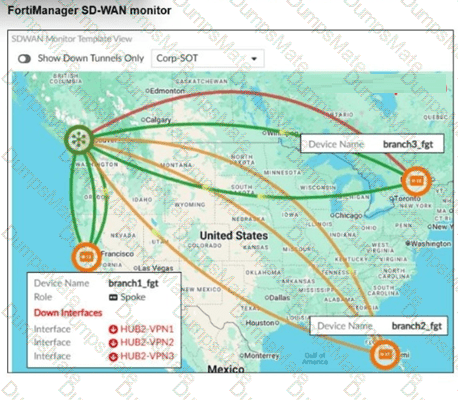

From the SD-WAN monitor in FortiManager:

" The SD-WAN monitor provides a summary view of the branch devices and their members. In the scenario shown, it is clear that branch2_fgt is missing SLA configuration for one member, as evidenced by the lack of performance metrics. The monitor also shows only two branches in the current topology, allowing quick assessment of branch health and configuration completeness. "

This kind of visibility is vital for proactive monitoring and rapid troubleshooting in SD-WAN environments.

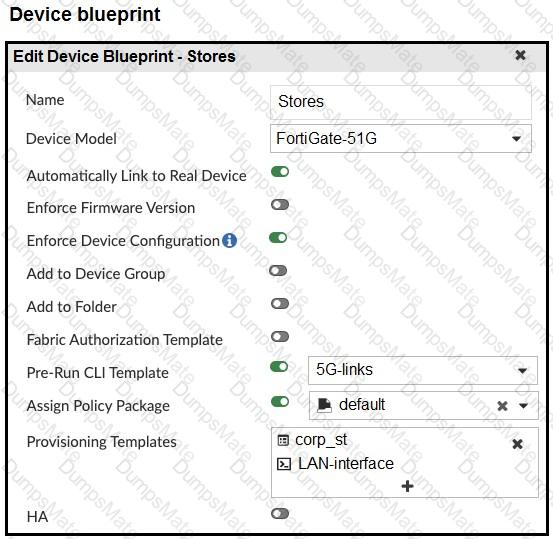

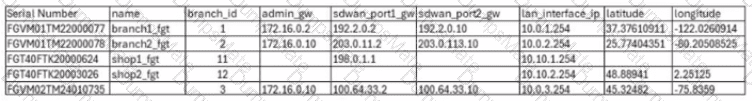

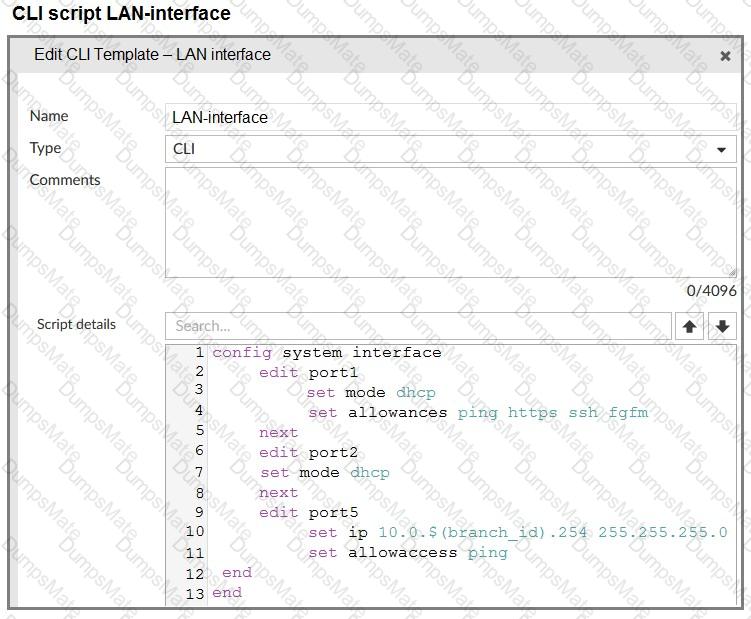

Enforce Device Configuration is enabled and the blueprint applies the provisioning CLI templates. The LAN-interface script sets port1 and port2 to DHCP and assigns a static IP to port5 (using the branch_id variable). Therefore, when FortiManager pushes the blueprint, it updates the configurations of port1, port2, and port5 - and their IP addresses may change accordingly.

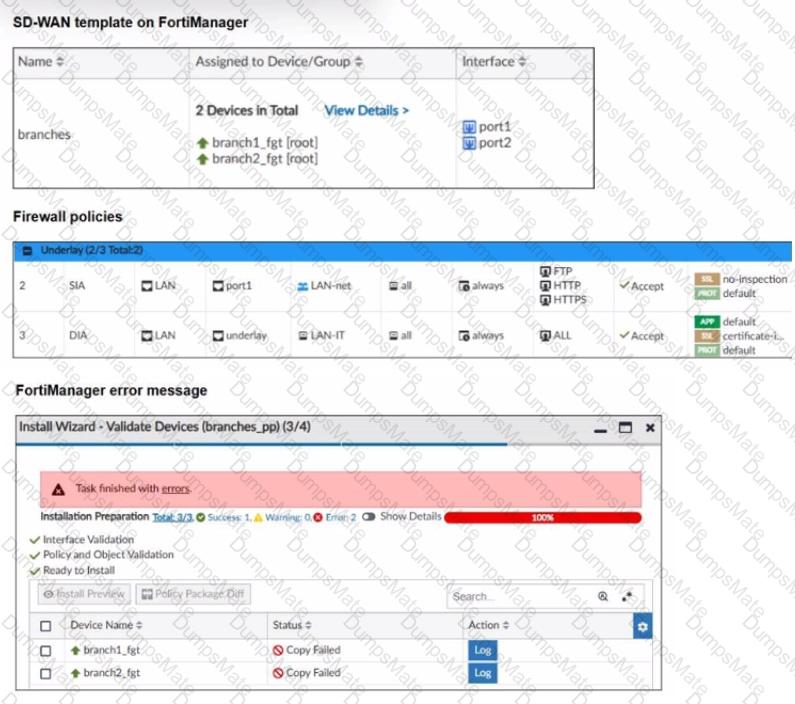

In FortiOS 7.6, when SD-WAN is enabled, physical and logical WAN interfaces are added as SD-WAN members and are abstracted behind the SD-WAN interface (virtual-wan-link or SD-WAN zone) . Traffic forwarding decisions are then made by SD-WAN rules instead of individual interfaces.

As documented in the FCSS SD-WAN 7.6 curriculum and Fortinet SD-WAN architecture guides, firewall policies must reference the SD-WAN interface or SD-WAN zone , not the individual WAN interfaces that are members of SD-WAN. Therefore, during the configuration update process, existing firewall policies that reference physical WAN interfaces must be updated to reference the SD-WAN interface .

Option A is incorrect because routing configuration does not require replacing interface references when SD-WAN is enabled. Static and dynamic routes typically point to the SD-WAN interface automatically, and SD-WAN rules handle path selection.

Option B is incorrect because SD-WAN is a built-in FortiOS feature . It does not require a separate license and does not require a reboot when enabled.

Option D is incorrect because interfaces must remain enabled to function as SD-WAN members. Disabling an interface would prevent SD-WAN from using it for traffic forwarding.

Therefore, the required action during the SD-WAN configuration update process is to replace references to interfaces used as SD-WAN members in the firewall policies , which corresponds to option C.

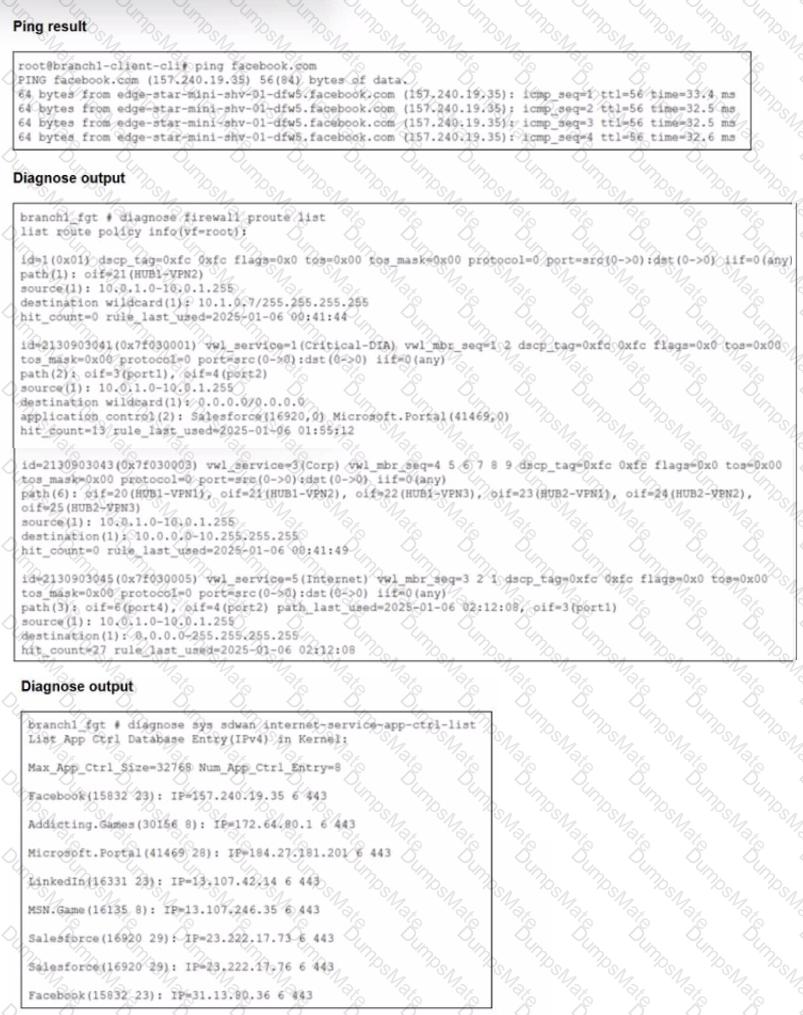

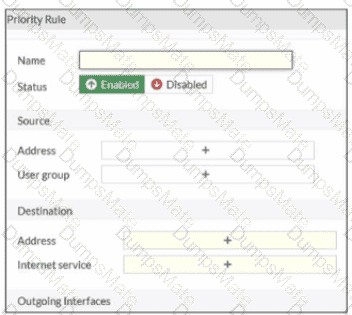

In FortiOS 7.6, SD-WAN rules can steer traffic based on Internet Services , which represent predefined application and service signatures maintained by FortiGuard. Common applications such as Facebook and LinkedIn are included in the Internet Service database.

According to the FCSS SD-WAN 7.6 curriculum, when configuring an SD-WAN rule from the GUI on a standalone FortiGate device, applications are selected as destinations using the Internet service field , not by enabling a separate application destination field. The exhibit highlights the Internet service option under the Destination section, which is the correct method to match traffic for specific applications.

Option A is incorrect because there is no GUI option to enable application visibility as destinations for SD-WAN rules. Application matching is already abstracted through Internet Services.

Option C is incorrect because standalone FortiGate devices fully support application-based steering using Internet Services in SD-WAN rules.

Option D is incorrect because no additional license is required to use Internet Services in SD-WAN rules. This functionality is included in FortiOS and relies on the built-in FortiGuard Internet Service database.

Therefore, to steer Facebook and LinkedIn traffic through a specific WAN link, you must select Facebook and LinkedIn in the Internet service field , which corresponds to option B.

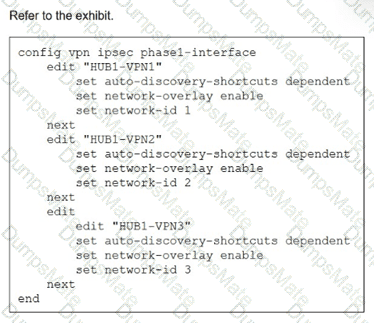

The exhibit shows the following IPsec phase1-interface configuration applied on spoke tunnels :

set auto-discovery-shortcuts dependent

set network-overlay enable

set network-id < value >

In the FCSS SD-WAN 7.6 ADVPN architecture, the network-overlay and network-id parameters are used to logically group IPsec tunnels into separate overlays. When network-overlay is enabled , FortiGate treats the tunnel as part of an overlay network rather than a simple transport tunnel.

The network-id parameter is critical in multi-overlay ADVPN designs. Fortinet documentation specifies that ADVPN shortcuts are only allowed between tunnels that share the same network-id . This mechanism explicitly prevents cross-overlay shortcuts , ensuring that shortcuts are formed only within the same logical overlay and not across different overlays that may serve different purposes (for example, different hubs, regions, or transport groups).

The use of auto-discovery-shortcuts dependent further enforces correct shortcut behavior by ensuring that shortcut tunnels depend on the state of the parent overlay tunnel, but it does not by itself prevent multiple shortcuts or convert ADVPN versions.

Why the other options are incorrect:

Option A is incorrect because simply enabling network-overlay does not exist to “enable overlay links” in general; its purpose is to define overlay membership and control shortcut behavior.

Option B is incorrect because there is no concept of “ADVPN 2.0” conversion using these parameters in FortiOS 7.6.

Option D is incorrect because preventing multiple shortcuts over the same overlay is not controlled by network-id; multiple shortcuts within the same overlay are allowed when required.

Therefore, the valid objective of these settings is to prevent cross-overlay shortcuts , which corresponds to Option C .

The implicit SD-WAN rule serves as the final catch-all. Per Fortinet:

" Sessions matching the implicit SD-WAN rule do not have an SD-WAN service id, as they are not associated with any specific user-defined SD-WAN rule. Additionally, this occurs only when traffic fails to match any entry in the policy route table. This default handling guarantees connectivity while minimizing the risk of blackholed traffic. "

Administrators can observe this in diagnostic outputs for troubleshooting.
