NSE7_CDS_AR-7.6 Fortinet NSE 7 - Public Cloud Security 7.6.4 Architect Questions and Answers

According to the FortiOS 7.6 Azure Administration Guide and the Fortinet 7.4 Public Cloud Security documentation regarding monitoring and troubleshooting in Microsoft Azure, administrators must utilize native diagnostic tools to gain visibility into network traffic patterns:

NSG Flow Logs (Option D): Network Security Group (NSG) flow logs are a feature of Azure Network Watcher that allows you to record information about IP traffic flowing through an NSG. These logs capture critical 5-tuple information (source/destination IP, port, and protocol) and whether the traffic was allowed or denied by specific security rules.

Traffic Pattern Analysis with Azure Monitor: To effectively analyze the " pattern " of a traffic spike, these logs are typically sent to a Log Analytics workspace within Azure Monitor . By using Traffic Analytics , the raw flow data is processed into rich visualizations and searchable datasets. This allows administrators to run Kusto Query Language (KQL) queries to identify " top talkers, " visualize traffic spikes over time, and correlate the timing of these spikes with application performance degradation.

Identifying Bottlenecks: This method is preferred for identifying bottlenecks because it provides a granular view of every packet entering or leaving the subnets where the FortiGate-VM or application servers are hosted, revealing the exact nature of the inbound volume.

Why other options are incorrect:

Option A: While Azure Firewall provides logging, it is an additional security layer that may not be deployed in all environments. NSG Flow Logs are the primary and more ubiquitous method for monitoring all subnet-level traffic regardless of firewall placement.

Option B: DDoS Protection is a preventative measure; it does not provide the historical " identification and analysis " of traffic patterns required to diagnose a past performance bottleneck.

Option C: Azure Traffic Manager is a DNS-based load balancer. While it provides high-level metrics, it does not have visibility into the actual flow-level traffic data needed for a detailed pattern analysis of application bottlenecks.

Based on the Fortinet NSE 7 - Public Cloud Security 7.4/7.6 curriculum and Azure Resource Manager (ARM) deployment logic, the what-if tool provides a predictive analysis of infrastructure changes.

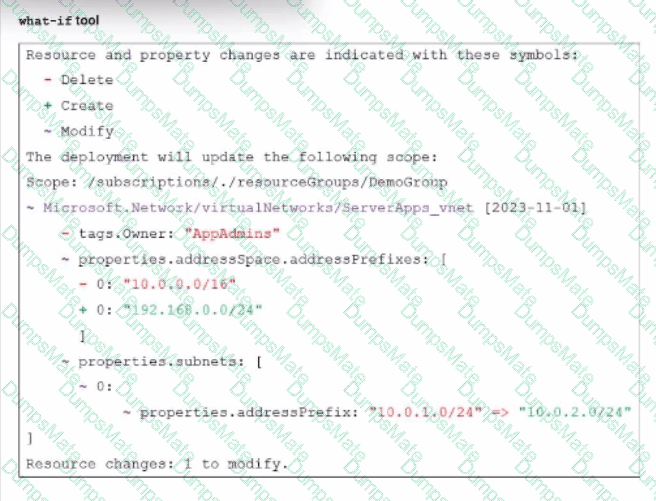

Analyzing the Modification Symbols (Option B): The exhibit shows several critical changes being attempted simultaneously on the ServerApps_vnet.

VNet Address Space Change: The symbol - (Delete) is next to the address space 10.0.0.0/16, and + (Create) is next to 192.168.0.0/24.

Subnet Modification: Further down, the symbol ~ (Modify) indicates an attempt to change the prefix of an existing subnet from 10.0.1.0/24 to 10.0.2.0/24.

Azure Deployment Constraints: According to the FortiOS 7.6 Azure Administration Guide , Azure networking has strict dependencies. You cannot delete or modify an address space that contains active subnets or resources.

Why the deployment fails: The what-if output shows the administrator is trying to remove the 10.0.0.0/16 address range. However, the existing subnet 10.0.1.0/24 is still " resident " within that range during the transaction. Because the subnet is currently attached to the address space being deleted, Azure Resource Manager will reject the deployment as an invalid operation. The attempt to add a new 192.168.0.0/24 range does not resolve the conflict of removing the active range.

Why other options are incorrect:

Option A: The tool shows that 10.0.1.0/24 is being changed to 10.0.2.0/24, not that one is replacing the other as a new entity.

Option C: The symbols show a modification (~) of an existing subnet (index 0:), not the creation (+) of an entirely new subnet.

Option D: The VNet name ServerApps_vnet is not being changed; only its internal properties (tags, address space, and subnets) are being modified.

According to the FortiOS 7.6 Azure Administration Guide and the Cloud Security 7.4 Public Cloud Study Guide , the integration of FortiGate-VMs with an Azure Gateway Load Balancer (GWLB) requires specific network configurations to ensure packet transit:

IP Forwarding Requirement (Option A): By default, Azure Network Interfaces (NICs) drop any traffic that does not originate from or is not destined for the IP address assigned to that NIC. For a FortiGate to act as a " bump-in-the-wire " or transparent inspector, it must receive traffic destined for other IPs and forward it. This requires the IP Forwarding setting to be explicitly enabled on the FortiGate ' s network interfaces within the Azure portal. If this is disabled, the Azure fabric will discard the traffic being steered through the FortiGate HA cluster by the GWLB.

VXLAN Encapsulation: The Azure GWLB uses VXLAN to encapsulate traffic (adding a VXLAN header with a specific VNI) before sending it to the FortiGate. The FortiGate must terminate this VXLAN tunnel. While the VXLAN configuration is crucial, the underlying infrastructure check for IP Forwarding is the most common cause of traffic being blocked at the NIC level before the FortiOS stack can process the packet.

Why other options are incorrect:

Option B: If health probes fail, the GWLB will typically stop sending traffic to that specific instance. While this affects the HA cluster ' s availability, the question states traffic is not being routed correctly through the firewalls (implying an active flow issue), and the primary mechanism for allowing a VM to process third-party traffic in Azure is IP Forwarding.

Option C: NSGs are typically applied to the NIC or Subnet. While incorrect NSG rules can block traffic, " IP Forwarding " is a specific requirement for the FortiGate to function as a network appliance (NVA) regardless of the NSG state.

Option D: Azure GWLB supports cross-subscription and cross-tenant chaining. The consumer (protected VMs) and the provider (FortiGate HA cluster) do not need to be in the same subscription, provided the GWLB endpoint is correctly mapped.

According to the FortiOS 7.6 AWS Administration Guide and the Fortinet 7.4 Public Cloud Security study materials regarding infrastructure as code (IaC) for cloud deployments:

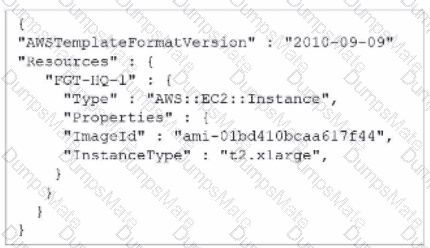

JSON Format Limitations (Option B): The exhibit shows an AWS CloudFormation template in JSON (JavaScript Object Notation) format. JSON, by its official specification, does not support comments . There is no native syntax (like // or /* */) to include remarks that are ignored by the CloudFormation parser.

YAML Support: To add descriptive comments—such as instructing other regional administrators to update the AMI ID—the administrator must convert the template into YAML format. YAML is a superset of JSON and specifically supports comments using the # character.

Best Practice for Multinational Deployments: For organizations operating across multiple AWS regions, using YAML is the recommended standard because it allows for inline documentation, making templates more maintainable and easier for different teams to understand regional requirements.

Why other options are incorrect:

Option A: Comments are part of the template file itself, not a parameter or flag within the aws cloudformation update-stack CLI command.

Option C: While # is the correct character for comments in YAML, it is invalid syntax in JSON and would cause the CloudFormation stack creation to fail with a parsing error.

Option D: The AWSTemplateFormatVersion " 2010-09-09 " is currently the only valid version for CloudFormation templates; updating it does not add JSON comment support.

Comprehensive and Detailed Explanation From FortiOS 7.6, FortiWeb 7.4 Exact Extract study guide:

Based on the Fortinet NSE 7 - Public Cloud Security 7.4/7.6 study materials and the FortiOS 7.6 AWS Administration Guide , understanding the underlying mechanisms of AWS deployment tools is essential for permission management.

Infrastructure as Code and eksctl (Option C): In the context of Amazon EKS, the eksctl command-line tool is the official CLI for creating and managing clusters on EKS. When an administrator executes the eksctl create cluster command, eksctl does not interact with the EKS API directly to provision infrastructure; instead, it generates and executes AWS CloudFormation stacks to provision the necessary VPC, IAM roles, and the EKS control plane. Therefore, users running this command must have explicit permissions to create and manage CloudFormation stacks.

Resource Provisioning via Stacks: CloudFormation is AWS ' s native service for Infrastructure as Code (IaC), allowing users to define resources in JSON or YAML templates. Commands like eksctl leverage these templates to ensure repeatable and organized deployments of complex architectures, such as those required for a FortiGate or FortiWeb cloud integration.

Why other options are incorrect:

Option A: The kubectl command interacts directly with the Kubernetes API server inside the cluster to manage pods and services; it does not trigger AWS CloudFormation processes.

Option B: Helm is a package manager for Kubernetes. While it manages " releases " within the EKS cluster, the installation of a Helm chart for a FortiWeb ingress controller happens at the Kubernetes software layer and does not utilize AWS CloudFormation stacks.

Option D: Changing the node count via CloudShell using the AWS CLI or kubectl typically modifies an Auto Scaling Group or a Kubernetes Deployment/DaemonSet directly, rather than initiating a new CloudFormation stack execution.

FortiCNAPP SmartFix is part of Software Composition Analysis (SCA) and provides intelligent remediation recommendations for vulnerable software packages. When SCA identifies vulnerabilities, SmartFix evaluates subsequent package versions and determines an appropriate upgrade. Its highest-priority recommendation is the minimal package version with no known vulnerabilities , effectively selecting the closest safe upgrade while minimizing changes to the application. If that is unavailable, SmartFix can recommend the minimum version without critical vulnerabilities or the latest version without vulnerabilities. It can also consolidate fixes so one recommended upgrade addresses several CVEs simultaneously. SmartFix does not automatically modify repositories , is not primarily a cloud-misconfiguration remediation feature, and does not aggregate security alerts. Therefore, D most accurately describes its vulnerability and code-security function.

Comprehensive and Detailed Explanation From FortiOS 7.6, FortiWeb 7.4 Exact Extract study guide:

Based on the FortiOS 7.6 Azure Administration Guide and standard Azure Resource Manager (ARM) deployment practices, the what-if operation allows administrators to preview how a deployment will affect the current state of resources.

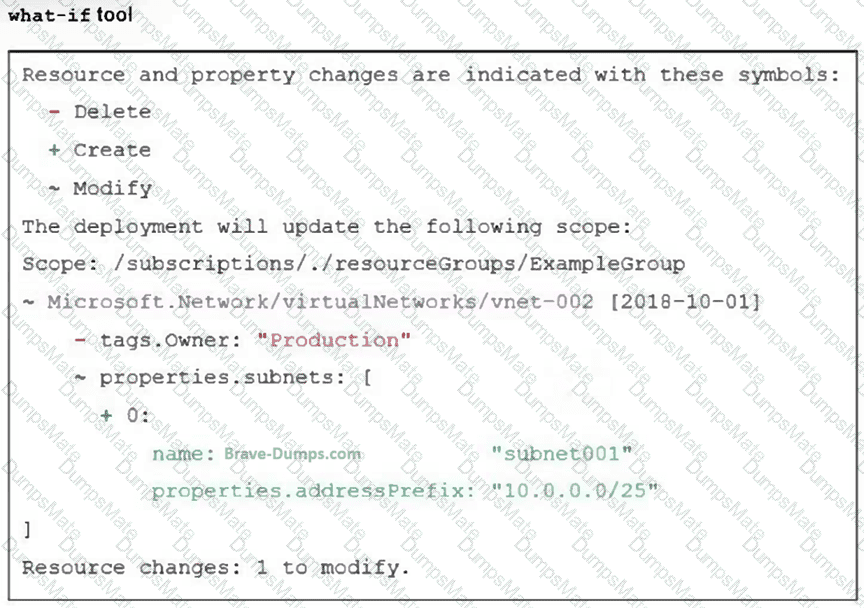

Interpreting the What-If Output (Option A): The exhibit shows the results of a change preview for a Virtual Network (vnet-002).

The symbol ~ (Modify) next to the VNet indicates that an existing resource is being updated rather than created or deleted.

The symbol - (Delete) next to tags.Owner: " Production " indicates that this specific tag will be removed from the VNet.

Crucially, the symbol + (Create) appearing inside the properties.subnets array next to index 0: indicates the addition of a new element. This confirms that a new subnet named subnet001 with the address prefix 10.0.0.0/25 will be added to the existing Virtual Network vnet-002.

Why other options are incorrect:

Option B: The text shows that the tag " Production " is being deleted (-), not that the VNet is being renamed to " Production. "

Option C: The what-if tool only displays the changes . While one subnet is being added (+), the tool does not show the deletion of other existing subnets. Therefore, we cannot conclude the resulting VNet will have only a single subnet; it will have its existing subnets plus the new one.

Option D: There is no mention of addressSpace or addressPrefixes for the VNet itself being modified (~) or added (+) in the exhibit; only a subnet-level address prefix is shown.

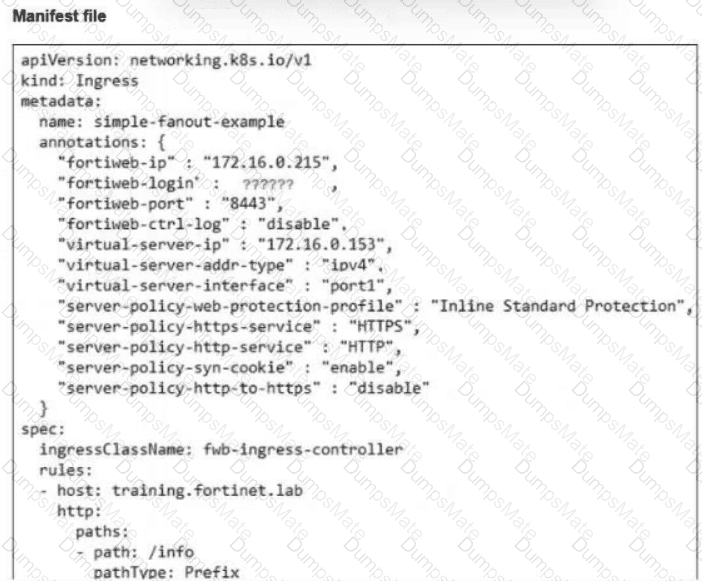

The FortiWeb ingress controller requires credentials so it can authenticate to and manage FortiWeb. The study guide defines creation of a cluster secret as an explicit installation step. After installing the Fortinet Helm chart, administrators use the kubectl create secret command to create the Kubernetes secret containing the required FortiWeb authentication information. The ingress configuration then references that secret through the fortiweb-login annotation rather than embedding the FortiWeb administrator password directly in the manifest. The value is therefore not obtained from the pod deployment manifest or from EKS cluster deployment output. Using a Kubernetes secret also follows the intended security model by separating sensitive authentication information from ordinary application configuration. Therefore, the administrators must create the required Kubernetes secret and reference it in the ingress manifest.

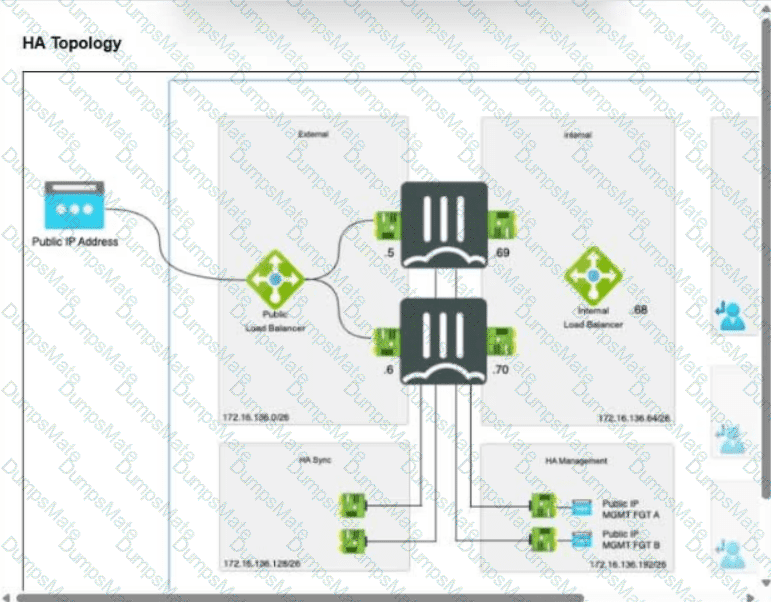

Asymmetric routing is an important consideration in an Azure active-active load balance sandwich because request and response packets can traverse different FortiGate VMs. The study guide identifies NAT as one method to prevent this condition. Enabling NAT on north-south FortiGate policies SNATs packets to the FortiGate internal-interface address, forcing return traffic through the same FortiGate. Where preserving the original source address is required, FGSP can instead synchronize sessions among the FortiGate members and permit asymmetric return traffic. FGCP does not provide the default session-synchronization model for these independent FortiGate VMs in the load balance sandwich. The vdom-exception command is also not the mechanism described for this deployment. Consequently, enabling NAT and supporting synchronized sessions for asymmetric traffic are the two correct characteristics.

Comprehensive and Detailed Explanation From FortiOS 7.6, FortiWeb 7.4 Exact Extract study guide:

Based on the FortiCNP 22.4/24.4 Administration Guide and the Fortinet Cloud Security Study Guide , findings in FortiCNP are categorized by the specific policy type that triggered the alert.

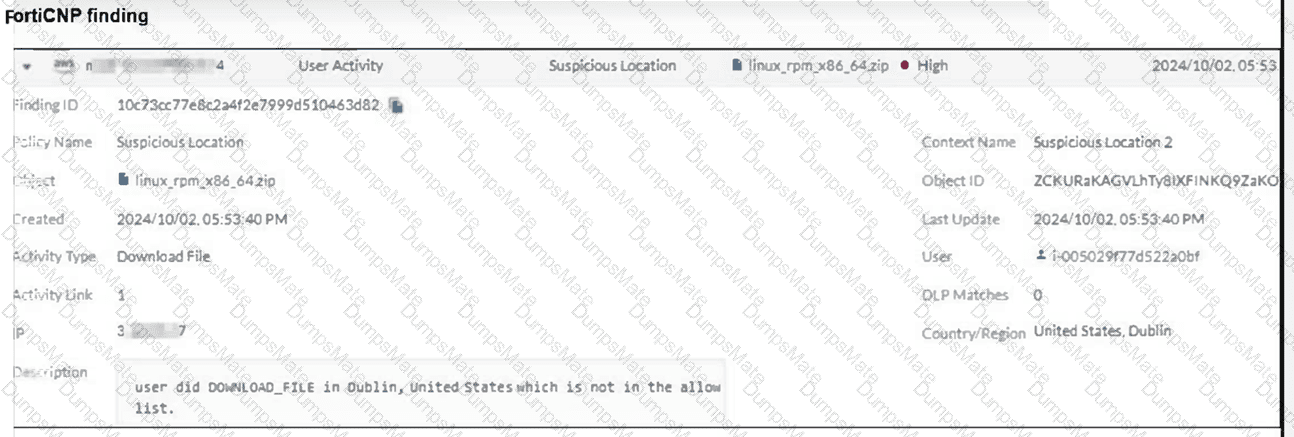

Threat Detection Policy (Option B): This policy category is designed to monitor and alert on anomalous User Activity and Network threats. Specifically, " Suspicious Location " is a predefined threat detection rule that triggers when a user performs an action (such as a Download File as seen in the exhibit) from a geographic location or IP address that is not on the organization ' s allow list or deviates from established behavioral baselines. The exhibit explicitly shows the " Activity Type " as " Download File " and the " Policy Name " as " Suspicious Location, " both of which fall under the Threat Detection > User Activity policy tab.

Policy Hierarchy and Finding Types:

Threat Detection: Includes User Activity (Suspicious Location, Suspicious Time, Suspicious Movement) and Network findings.

Data Scan Policy (Option A): These policies are used for content-level inspection, such as searching for Malware or Data Loss Prevention (DLP) patterns like credit card numbers within files.

Risk Management Policy (Option C): These policies focus on Cloud Security Posture Management (CSPM), alerting on misconfigurations such as unencrypted buckets or disabled logging (e.g., CloudTrail).

File Collection (Option D): While " File Collection " is a configuration object used to define a group of files for monitoring, it is not the policy type that generates a behavioral alert like " Suspicious Location " .
