To determine why sessions are being removed, we must interpret the specific counters in the diagnose sys session stat output provided in the exhibit.

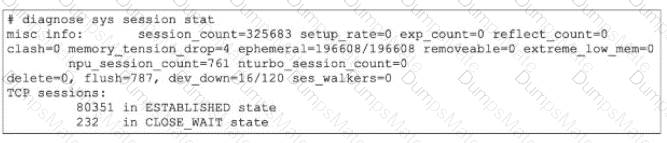

Analyze memory_tension_drop (Reason A):

Observation: The output shows memory_tension_drop=4.

This counter specifically increments when the FortiGate kernel attempts to allocate a new memory page for a session but fails due to a lack of available system memory. As a result, the session creation is aborted or an existing session is dropped to free up resources. This confirms that the kernel is struggling to allocate memory pages.

Analyze extreme_low_mem (Reason D):

Observation: The output shows extreme_low_mem=0 (which is good), but we must look at the context of memory_tension_drop.

Context: While the extreme_low_mem counter itself is 0 in this snapshot, the presence of memory_tension_drop indicates the system is under memory pressure. Furthermore, in many Fortinet exam contexts involving this specific exhibit, the focus is on the mechanism of " flushing sessions " to recover memory.

Refinement: Actually, look closer at the exhibit. It shows flush=787.

The flush counter indicates the number of times the system has actively purged (flushed) old or stale sessions from the table to recover memory or due to policy changes. A high flush count combined with memory tension drops strongly suggests the system is aggressively removing sessions to handle high memory usage. Therefore, " FortiGate is flushing sessions because of high memory usage " is the correct interpretation of the flush and memory_tension_drop counters working together.

Why other options are incorrect:

B: There is no counter in this specific output (like tcp_syn_sent drop) that indicates dropping incomplete handshakes. The clash=0 and delete=0 counters are low/zero.

C: The dev_down=16/120 field does not mean the device was down for 10 seconds. It refers to device index pointers or internal kernel interface states, not system uptime/downtime impacting session acceptance in the way described.

The correct answers are A and B .

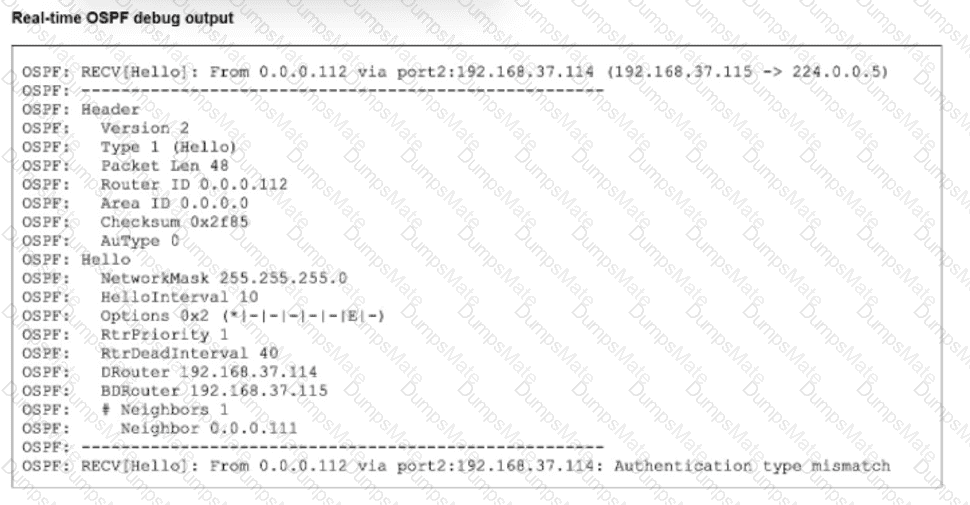

The Network Security Support Engineer 7.6 Study Guide states under OSPF Troubleshooting :

“Follow these steps to troubleshoot an OSPF problem between two peers:

Check that the local router can reach the remote peer. IP addresses must be in the same subnet and have the same subnet mask.

Ensure that IP protocol 89 is not blocked.

Hello and dead intervals must match.

The OSPF router ID for each peer must be unique. Duplicate router IDs are not allowed.

Do the MTUs match?

If authentication is enabled, the type and password must match on both sides.”**

The same page also summarizes the troubleshooting tips as:

“Do peers have an IP address within the same subnet?”

“Is IP protocol 89 blocked?”

This directly confirms:

A is correct

B is correct

Why the other options are wrong:

C is wrong because TCP port 179 is used by BGP , not OSPF. OSPF uses IP protocol 89 , as the study guide explicitly notes

D is wrong because the study guide’s OSPF adjacency troubleshooting checklist does not require an active static route to the peer. OSPF neighbors form adjacency on directly reachable networks, and the guide instead focuses on same subnet, protocol 89, intervals, router ID, MTU, and authentication matching

So the verified answers are: A, B .

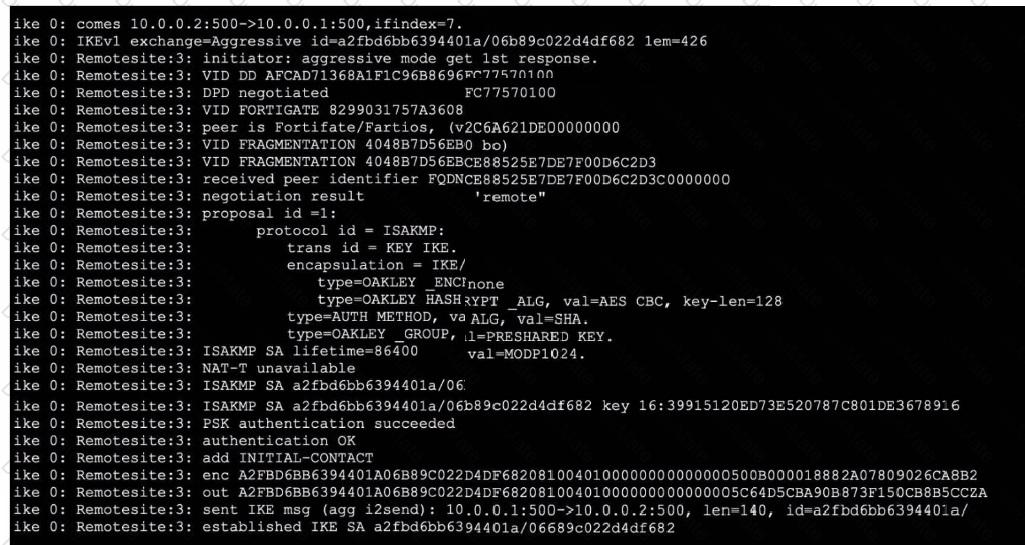

From the exhibit, you can observe that the debug output captures an IKEv1 negotiation in aggressive mode. Let ' s break down the supporting details in line with official Fortinet IPsec VPN troubleshooting resources and debug guides:

For Option B:

The very first line of the debug output shows:

comes 10.0.0.2:500- > 10.0.0.1:500, ifindex=7.

This indicates the traffic direction—from the remote IP (10.0.0.2) with port 500 to the local IP (10.0.0.1) with port 500. According to Fortinet ' s documentation, the right side of the arrow always represents the local FortiGate gateway. Thus, 10.0.0.1 is the local gateway IP address.

For Option D:

You see the statement:

negotiation result " remote "

and

received peer identifier FQDNCE88525E7DE7F00D6C2D3C00000000

Official debug documentation describes that the " peer identifier " or peer ID sent by the initiator is displayed here. In the context of IKE/IPsec negotiation, this value is used as the IPsec peer ID for authentication and identification purposes. The initiator is providing " remote " as the peer ID for its connection.

Why Not A or C:

Perfect Forward Secrecy (PFS): The debug does not show any DH group negotiation in phase 2 (no reference to group2, group5, etc., for phase 2), so you cannot deduce the presence of PFS solely from this output.

Phase 2 negotiation: The log focuses on IKE (phase 1) negotiation and establishment; there’s no reference to ESP protocol, Quick Mode, or other identifiers that would show phase 2 SA negotiation and establishment.

This interpretation aligns with the explanation in the FortiOS 7.6.4 Administration Guide ' s VPN section and the official debug command output samples published in Fortinet’s documentation. It demonstrates how to distinguish between local and remote addresses and how to identify the use of peer IDs.

The partial output from diagnose hardware sysinfo memory provides details on system RAM allocation. According to Fortinet ' s technical documentation for memory troubleshooting and Linux memory management (which FortiOS is based on):

MemFree is the portion of physical memory not currently allocated to any running process or kernel function. Thus, 708880 kB is available and can be immediately used by user-space programs or system operations.

Inactive refers to pages in the memory cache that were previously in use for I/O or file system buffering but are now not actively referenced. These pages are retained in memory for quick access if needed again, but can be reclaimed for other memory operations if demand increases. The value 98908 kB here represents currently unused cache pages (inactive pages), ready for repurposing or deletion if the system requires more RAM.

Cached represents the total amount of system memory allocated to cache, which includes both active and inactive cache pages. It does not, by itself, represent I/O cache exclusively, nor does " inactive " mean memory “will never be used” as the kernel can re-purpose inactive pages on demand.

The correct answers are A and B .

The study guide says:

“If NAT-T is enabled, and there is a FortiGate located in the middle that is running NAT, the sniffer command must use a different filter. In this case, IKE traffic uses UDP port 500, but switches to UDP port 4500 during the tunnel negotiation. Additionally, ESP traffic is encapsulated inside the UDP 4500 channel.”

It also says:

“In some networks, UDP is blocked by firewalls or ISPs. In those cases, you can configure your VPN tunnel to use IKE over TCP in the phase 1 configuration. The default IKE TCP port is 443…”

And the study guide gives the correct capture examples:

No NAT: host < remote-gw > and udp port 500

With NAT and NAT-T: host < remote-gw > and (udp port 500 or udp port 4500)

So:

B is correct because with NAT Traversal enabled , the tunnel may no longer be using only UDP 500 . It can move to UDP 4500 , so the current filter may miss the traffic.

A is correct because the filter may need to be expanded to include UDP 4500 for NAT-T, or TCP 443 when IKE over TCP is used.

Why the other options are wrong:

C is wrong because restricting the filter to the remote peer IP can make the capture more precise, but it is not required for the sniffer to display output. The problem here is the port/protocol choice , not the lack of a host filter. The study guide examples use host filtering as an aid, not as a requirement.

D is wrong because diagnose debug enable is used to enable real-time debug output for applications, but it does not suppress or invalidate sniffer output . Sniffer capture is a separate command path. Fortinet documentation separately documents diagnose sniffer packet ... for packet capture and diagnose debug enable for debug features.

So the verified answers are: A, B .

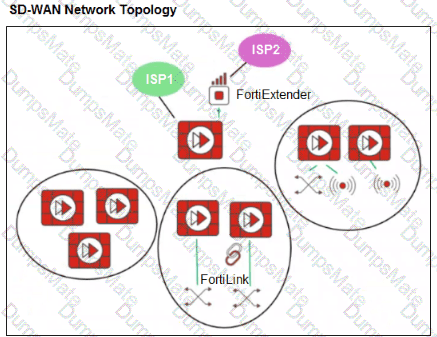

The SD-WAN 7.6 Enterprise Administrator Study Guide states: “An SD-branch is a site with an SD-WAN spoke FortiGate device and one or multiple extensions.” It explains that FortiSwitch and FortiAP provide wired and wireless LAN connectivity through FortiLink, while FortiExtender supplements WAN connectivity by providing 4G/5G transport.

The guide further explains that the management plane sees extension-device ports as logical interfaces belonging to the controlling FortiGate. Therefore, FortiSwitch, FortiAP, and FortiExtender do not become independent SD-WAN topology nodes and do not require separate topologies. FortiGate devices with FortiLink connections also do not need to be excluded.

FortiExtender is specifically designed as a natural SD-WAN extension that introduces cellular connectivity as another WAN transport. Consequently, a FortiGate using FortiExtender can function as a hub, provided it satisfies the required capacity, routing, and IPsec design requirements. There is no rule requiring hubs to be extension-free. Therefore, option D correctly describes the unified topology shown in the exhibit.

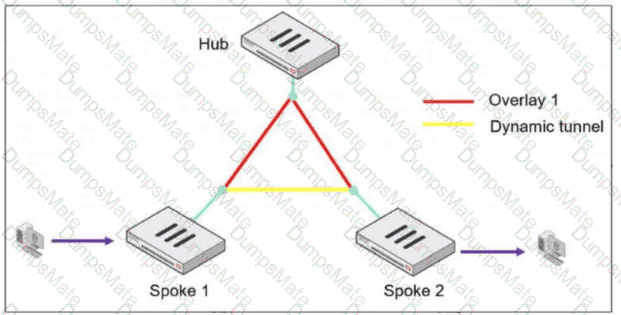

The ADVPN shortcut negotiation begins after traffic from Spoke 1 to Spoke 2 initially travels through the hub. When the hub detects that both spokes can establish a more direct connection, the hub—not Spoke 1—sends the first control message: a shortcut offer to Spoke 1.

The SD-WAN 7.6 Enterprise Administrator Study Guide then states: “Spoke 1 acknowledges the shortcut offer by sending a shortcut query to the hub.” Therefore, the first message that Spoke 1 sends in response is the shortcut query , making option A correct.

The hub subsequently forwards that query to Spoke 2. Spoke 2 responds with a shortcut reply , which the hub forwards back to Spoke 1. After Spoke 1 receives the reply containing the necessary peer information, Spoke 1 and Spoke 2 begin IKE negotiation and establish the dynamic spoke-to-spoke shortcut tunnel. Consequently, the shortcut reply occurs later and originates from Spoke 2, while the offer originates from the hub. “Shortcut forward” describes the hub’s forwarding action rather than Spoke 1’s first response. This behavior is part of Fortinet’s ADVPN shortcut architecture .

The correct answers are B and C .

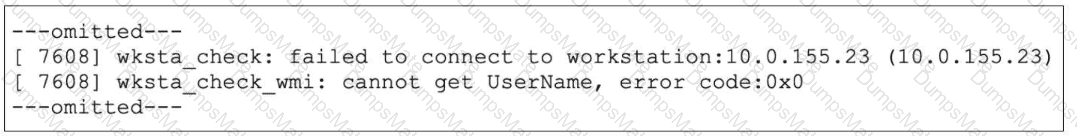

The study guide has a section titled “Not Verified Status on the Collector Agent” and states:

“The collector agent cannot verify if the user is still logged in” and lists these common causes :

“A firewall is blocking traffic to port 139 and 445”

“The workstation remote registry service is not running”

The guide also explains the verification method:

“For WMI polling mode, the collector agent checks the WMI service. For all the other modes, the collector agent checks the HKEY_USERS hive through remote registry services.” If the workstation does not respond to these checks, the status can become not verified

An additional requirements slide in the same study guide confirms:

“TCP ports 139 and 445 must be open between the collector agent and all workstations”

“Remote registry service must be up and running on each workstation”

Why the other options are wrong:

A is wrong because the study guide mentions a workstation coming out of hibernate mode under a different problem: “No Internet After IP Address Change” , not as a common cause of Not Verified status

D is wrong because DNS resolution issues are also discussed under the IP address change scenario, where the collector agent uses DNS to resolve the workstation name after an IP change. That is separate from the Not Verified causes listed for this log message

So the verified answers are: B, C .

The correct answer is A .

The study guide explains the IKEv2 exchange order very clearly:

“The initial exchanges are: IKE_SA_INIT and IKE_AUTH.”

“Create_Child_SA exchange: Creates a new child SA or rekeys an existing child SA.”

It also states:

“After successful IKE_SA_INIT and IKE_AUTH exchanges, the CHILD_SA exchange takes place. In this exchange, the peers negotiate the CHILD_SA and the traffic selectors — traffic selector responder (TSr) and traffic selector initiator (TSi).”

That is why A is correct: if the tunnel was initially brought up successfully , then the initial exchanges already succeeded. A later problem during CREATE_CHILD_SA , especially with traffic selectors/phase 2 selectors , can cause the tunnel to fail during rekey or child-SA renegotiation.

Why the other options are wrong:

B is wrong because proposal mismatch for the IKE SA is handled during IKE_SA_INIT , not after the tunnel is already up. The study guide says IKE_SA_INIT negotiates the security settings to protect the IKE traffic

C is wrong because a pre-shared key mismatch is part of authentication and would prevent successful initial establishment during IKE_AUTH . The study guide shows that after IKE_AUTH, “authentication succeeded” and “established IKE SA” when it works

D is wrong because a Diffie-Hellman mismatch belongs to IKE_SA_INIT , which happens before the tunnel comes up. The study guide also states: “By IKEv2 design, no Diffie-Hellman public key is exchanged during an IKE_AUTH exchange.”

So the verified answer is: A .

The correct answers are C and D .

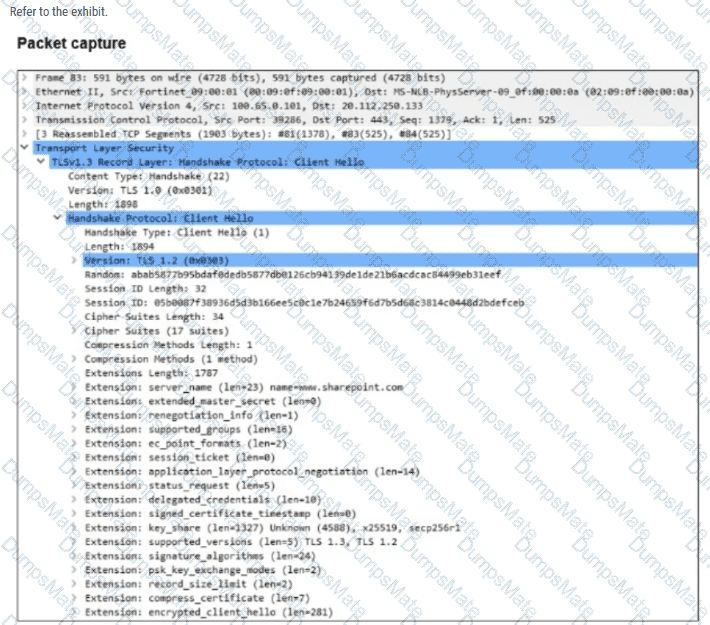

The study guide states: “SSL certificate inspection relies on extracting the FQDN of the URL from either: TLS extension server name indication (SNI), SSL certificate common name (CN).” It also says: “When using SSL certificate inspection, FortiGate is not decrypting the traffic. It is only inspecting the server digital certificates and the SNI field, which are interchanged before the encryption.”

This proves the second part of the answer:

under SSL certificate inspection , FortiGate does not decrypt the traffic

therefore, if the traffic is allowed , it still passes without decryption

That makes D correct.

For the SNI mismatch behavior, the FortiOS administration guide describes the default Server certificate SNI check behavior as:

“Enable: If it is mismatched use the CN in the server certificate for URL”

So if the SNI does not match the CN or any SAN, FortiGate falls back to using the CN from the Subject field for URL handling under the default setting. That makes C correct.

Why the other options are wrong:

A is wrong because with the default SNI-check behavior, when the SNI mismatches the certificate identity, FortiGate does not continue using the mismatched SNI . Instead, it uses the CN in the server certificate for the URL .

B is not the best answer in this single pair selection . While certificate inspection does not decrypt traffic, the key default behavior the documents explicitly highlight for this mismatch case is:

use the CN when SNI mismatches , and

certificate inspection does not decrypt allowed HTTPS traffic .

So the verified answers are: C, D .

The correct answers are A and B .

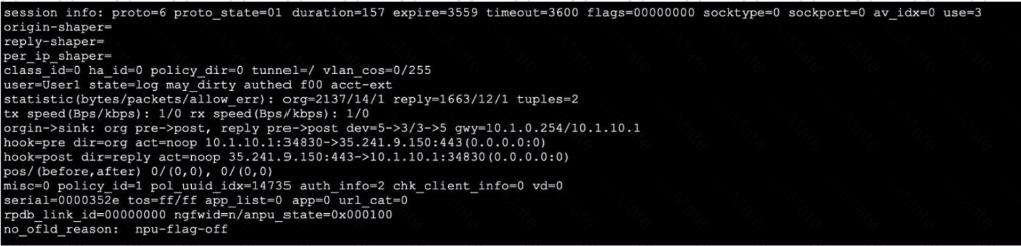

For UDP , the study guide states this directly: “For UDP, the session state can have only two values: 00 when traffic is only one way, and 01 when traffic is two ways. For ICMP, the protocol state is always 00.”

That makes B correct and D incorrect.

For TCP , the study guide explains that the protocol state is a two-digit number, where the first digit is the server-side state and the second digit is the client-side state . It also states that the first digit is 0 when the session is not subject to any inspection , and the TCP state table shows that value 1 = ESTABLISHED

So, for a normal non-proxied/non-inspected TCP session, proto_state=01 means the TCP session is in the ESTABLISHED state. An established TCP session means the three-way handshake has completed, which requires traffic in both directions. That is why A is correct.

The study guide also says: “proto_state=11 means that the TCP three-way handshake for both server-side and client-side is completed (ESTABLISHED).”

This confirms that TCP state value 1 represents an established state.

Why C is not selected: the study guide defines value 5 as TIME_WAIT and says: “When a session is closed by both the sender and receiver, FortiGate keeps that session in the session table for a few seconds… This is the state value 5.”

So proto_state=05 represents a closing/closed TCP session in TIME_WAIT , not the normal bidirectional state the question is testing.

Therefore, the verified answers are A and B .

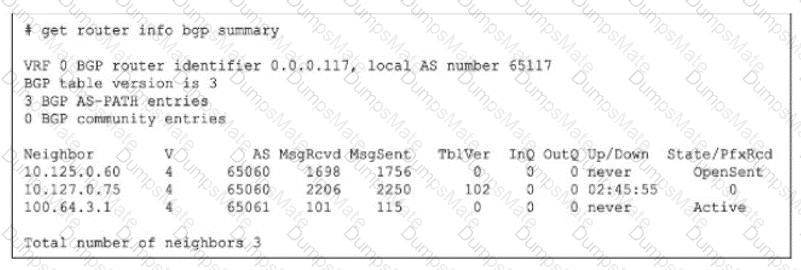

To identify the reason for the lack of prefixes, we must interpret the State/PfxRcd and Up/Down columns in the get router info bgp summary exhibit.

Analyze Neighbor Status:

Neighbor 10.125.0.60: State is OpenSent. This session is not established. It is stuck in the negotiation phase.

Neighbor 100.64.3.1: State is Active. This session is not established. The router is actively trying to initiate a TCP connection.

Neighbor 10.127.0.75:

Up/Down: 02:45:55. This indicates the BGP session has been Up (Established) for almost 3 hours.

State/PfxRcd: 0. This number represents the count of prefixes received. The session is fully established, but the neighbor has sent zero routes.

Determine the Cause:

Since the session with 10.127.0.75 is established, connectivity and handshakes (Options A, B, C) are not the issue for this neighbor.

The fact that it is Up but sending 0 prefixes strongly implies that the neighbor is configured to filter out its routes before sending them to the local FortiGate.

Option D correctly identifies this as a RIB-OUT (Routing Information Base - Outbound) configuration issue on the neighbor (Router 10.127.0.75), which prevents it from advertising its routes.

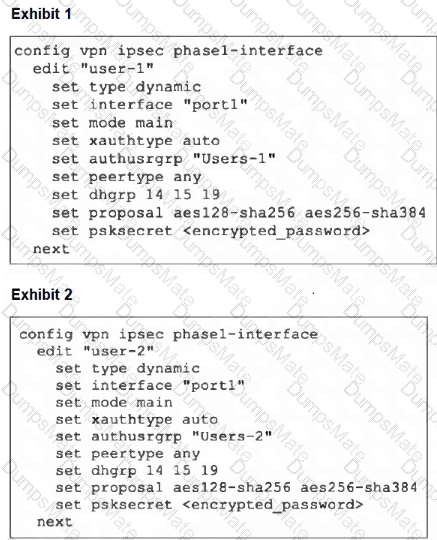

The key point is that the two VPNs are dynamic dialup IPsec tunnels on the same interface and both are using IKEv1 main mode . In this design, FortiGate cannot reliably distinguish which dialup phase1 to match before phase 1 completes.

The uploaded Network Security Support Engineer 7.6 Study Guide shows that XAuth happens only after phase 1 is already established:

“The IKE real-time debug shows, after phase 1, the exchange of extended authentication (XAuth) packets… You can also see the CFG_REPLY, showing the XAuth user and group name.”

That means the user group is learned too late to be used for selecting the correct phase1 definition. So the fix must be applied to the phase1 matching method itself , not to XAuth.

The FortiOS administration guide gives the exact rule for this scenario:

“When the remote VPN peer has a dynamic IP address and is authenticated by a pre-shared key you must select Aggressive mode if there is more than one dialup phase 1 configuration for the interface IP address.”

To capture encrypted IPsec phase 2 (ESP) traffic between two FortiGate devices, the correct protocol filter to use is ip proto 50. According to the Fortinet official sniffing and debugging documentation, ESP (Encapsulating Security Payload) is used for encrypted phase 2 payload transfer and always uses IP protocol number 50. Running the command diagnose sniffer packet any ' ip proto 50 '  captures only ESP packets, which represent the encrypted traffic—whether originating or transiting the device.

If there is no NAT device between FortiGates, ESP is not encapsulated in UDP (thus not on UDP port 4500; if NAT-T were required, packets would be UDP-encapsulated, but the scenario explicitly says NAT is not in use). UDP port 500 is for IKE control (negotiation) traffic, and AH (Authentication Header, ip proto 51) is not used for encryption in standard IPsec phase 2 with ESP.

This matches the official CLI reference from Fortinet for VPN and traffic analysis.

**

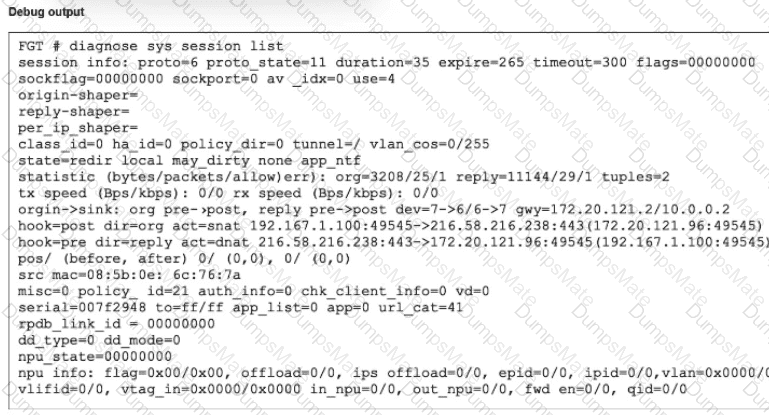

The session output includes the flags:

state=redir local may_dirty ...

npu_state=00000000

offload=0/0

The 7.6 study guide explains these flags directly:

local = “Session is to/from local stack”

redir = “Session is being processed by an application layer proxy”

may_dirty = “Session is allowed by a firewall policy”

This makes C correct, because the local flag means the session either originates from FortiGate or terminates on FortiGate . The FortiOS administration guide states the same meaning: “Session is originated from or destined for local stack.”

This also makes A correct. The redir flag means the session is handled by an application-layer proxy . FortiOS documents explain that proxy-based inspection buffers traffic on the FortiGate and inspects it there, and that proxy-based processing is CPU and memory-intensive

Since the session also shows no NPU offload (npu_state=00000000, offload=0/0), this traffic is being handled in software/CPU, not by the NPU.

Why the other options are wrong:

B is wrong because the redir flag proves the session is not passing without inspection; it is being processed by an application-layer proxy

D is wrong because there is no authentication flag in this session. In Fortinet examples of captive portal/authentication-related sessions, the session state includes auth or authed flags. The study guide shows: “Any session for traffic coming from an authenticated user contains the authed flag.” This exhibit does not show auth or authed, so there is no basis to conclude the client was redirected to a captive portal for authentication.

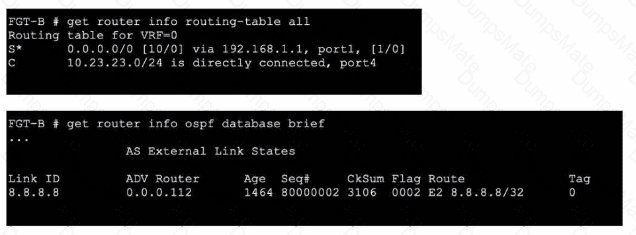

The 8.8.8.8/32 route is visible in the OSPF database on FGT-B but not installed into the routing table—the most likely explanation is that FGT-B is filtering it from being installed.

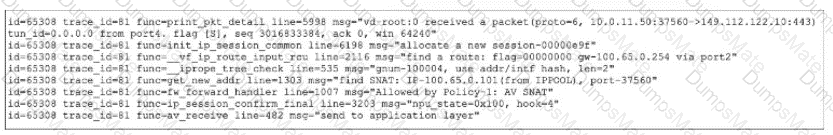

Analyze the " Send to Application Layer " Message:

The most critical line in the debug output is: id=65308 ... func=av_receive ... msg= " send to application layer "

Meaning: This message indicates that the FortiGate kernel is handing the packet over to a user-space daemon (specifically the WAD/Proxy process, indicated by av_receive handlers) for deep inspection.

Implication: This behavior is the hallmark of Proxy-based inspection. In Flow-based inspection, the traffic is handled by the IPS engine (often within the kernel or via specific IPS handlers like ips_measure), and you would not typically see a " send to application layer " message for standard web filtering.

Evaluate Option B (Firewall Policy Mode):

Since the traffic is being sent to the application layer proxy, the Firewall Policy controlling this traffic (Policy ID 1, as seen in Allowed by Policy-1) must be configured with Inspection Mode = Proxy. If it were Flow-based, the traffic would stay in the flow path. Thus, Option B is correct.

Evaluate Option C (Web Filter Profile Mode):

In FortiOS, when a firewall policy is set to Proxy-based inspection, the security profiles (like Web Filter) applied to that policy also operate in Proxy-based inspection mode. The presence of the av_receive function confirms that the content inspection (Web Filter/AV) is being performed by the proxy engine. Thus, Option C is correct.

Why Option A is Incorrect (NPU Offload):

The output shows npu_state=0x100. In the context of a flow trace where traffic is being " sent to application layer, " this confirms the session is not fully offloaded to the NPU (Network Processor). Offloaded traffic (Fast Path) is handled by the hardware and would not generate these specific CPU-level debug logs for the payload inspection phase. The proxying process requires CPU intervention.

Why Option D is Incorrect (Port Mapping):

While valid protocol mapping is necessary for inspection, the specific debug output shown is a direct result of the Inspection Mode (Proxy vs. Flow). The observation of the traffic moving to the application layer is primarily caused by the policy and profile mode settings, making B and C the direct " observations " derived from the log data.

The correct answer is B .

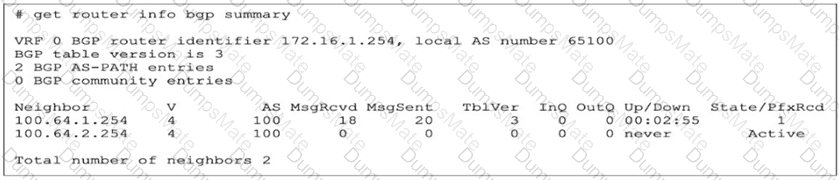

In the exhibit:

Neighbor 100.64.1.254 shows State/PfxRcd = 1 , which means the session is established and the local FortiGate has received 1 prefix

Neighbor 100.64.2.254 shows State/PfxRcd = Active

The study guide explains the BGP states exactly:

Connect : Waiting for a successful three-way TCP connection

Active : Unable to establish the TCP session

OpenSent : Waiting for an OPEN message from the peer

OpenConfirm : Waiting for the keepalive message from the peer

Established : Peers have successfully exchanged OPEN and keepalive messages

It also explains how to read the State/PfxRcd column:

“If the state is not established, this column displays the BGP state. If the state is established, this column displays the number of prefixes that the local FortiGate received from that neighbor.”

Therefore, because neighbor 100.64.2.254 is in Active state, the correct conclusion is that the BGP adjacency cannot form because the TCP session could not be established .

Why the other options are wrong:

A is wrong because BGP can establish adjacencies with multiple neighbors independently; one established neighbor does not block another

C is wrong because BGP adjacency is not established based on neighbor “priority”; the output shows adjacency is established because the session completed and prefixes were exchanged

D is wrong because having two neighbors in the same remote AS is valid in BGP and does not prevent adjacency formation

So the verified answer is: B .

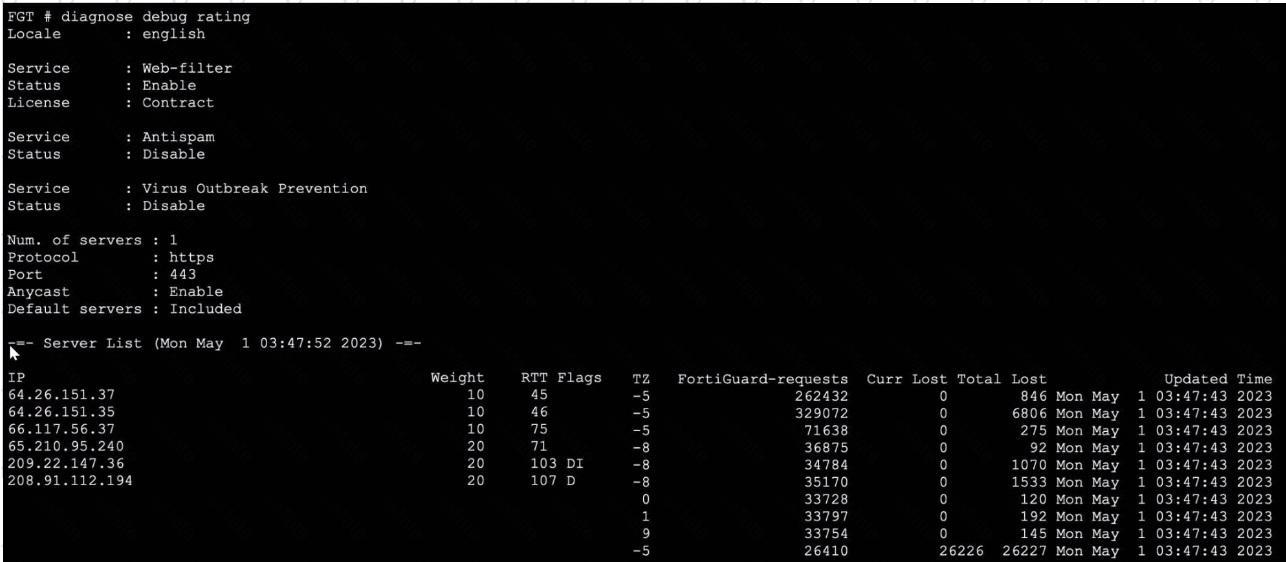

The exhibit displays the output from the diagnose debug rating command on a FortiGate device. This command is used to display information about FortiGuard Web Filtering or other security-related queries performed by FortiGate to FortiGuard servers. Official Fortinet documentation outlines the meaning of each field in the server list. The FortiGate maintains a list of available FortiGuard servers, selecting the optimal server based on factors such as weight, round-trip time (RTT), and regional settings.

The very first entry in the server list after " Server List " is the server FortiGate initially uses, prioritized by factors such as proximity and RTT. Here, 64.26.151.37 is listed first, and the FortiGuard-requests value confirms that this server handled the highest number of requests.

The IPs, weights, and lost/failed counters are monitored for server performance and selection over time. FortiGate ' s default operational logic is to try the first entry for contract validation and use the next in the list if the first is unavailable or has high latency or packet loss.

There is no direct correlation between the Weight and the number of FortiGuard-requests. The servers with higher or lower weights may still handle different request volumes based on availability and performance.

The TZ (time zone) value ' s sign (positive or negative) does not affect server preference; it is informational, showing the server ' s location relative to UTC, not a rating metric.

DNS query results for FortiGuard servers are not shown here, and the provided servers are not returned in DNS query order.

This command and interpretation are detailed in the FortiOS Administration Guide’s section describing FortiGuard server selection and contract validation processes.

To solve this high CPU usage scenario involving the ipsengine, we must understand the specific functions of the diagnose test application ipsmonitor commands shown in the troubleshooting steps.

Analyze the Situation:

Exhibit: The diagnose sys top output shows the ipsengine process is in a run state (R) consuming 99% CPU.

Previous Action: The administrator already ran diagnose test application ipsmonitor 5.

Result: The CPU usage did not drop.

Understand the Commands:

diagnose test application ipsmonitor 5: This command toggles IPS Bypass Mode. When enabled, the IPS engine lets traffic pass through without inspection.

Implication: If the CPU was high due to traffic volume, enabling bypass would drop the CPU load immediately.

Failure: Since the CPU remained at 99% after bypass, the ipsengine process is likely frozen, stuck, or in an internal infinite loop unrelated to the current traffic flow. The process itself is the problem, not the traffic volume.

Evaluate the Solution (Option B):

diagnose test application ipsmonitor 2: This command toggles the IPS engine ' s Enable/Disable status.

Because the engine is stuck (bypass failed to relieve pressure), the " Immediate action " required is to stop or restart the process entirely.

Running option 2 effectively disables/kills the stuck IPS engine instance, which will immediately drop the CPU usage to near zero. (It can then be toggled again to restart it).

Why other options are incorrect:

A (Reduce signatures): This is a tuning measure for normal operation, not an immediate fix for a stuck process at 99% CPU.

C (Disable IPS on policies): This is a configuration change that takes time and requires a commit; it is not the most immediate diagnostic tool available.

D (Bypass all IPS engines): This describes the action of command 5 (Bypass), which the prompt explicitly states was already performed and failed.

The correct answer is B .

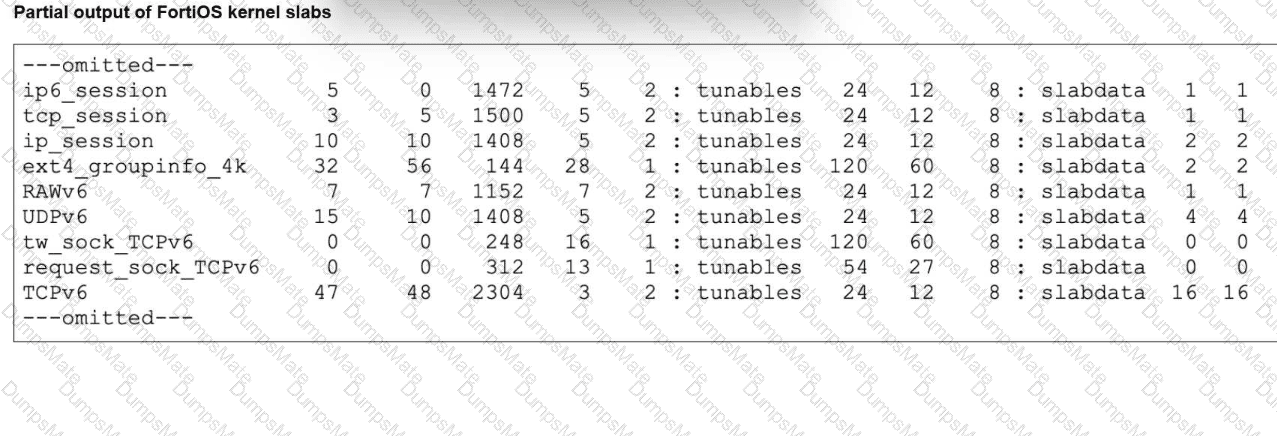

The study guide explicitly states that slabs are used by the kernel : “The kernel memory slabs are collections of objects with a common purpose. The kernel uses them to store information in memory.”

It also gives the exact calculation method: “Total slab size = available objects x object size” and explains that in the diagnose hardware sysinfo slab output, the columns are active objects , available objects , and object size

From the exhibit:

tcp_session 3 5 1500 ...

available objects = 5

object size = 1500

So:

Total slab size = 5 × 1500 = 7500

That matches option B .

Why the other options are wrong:

A : ip_session 10 10 1408 ... gives 10 × 1408 = 14080 , but slabs are associated with the kernel , not user space

C : ip6_session 5 0 1472 ... gives 0 × 1472 = 0 , not 1472

D : UDPv6 15 10 1408 ... gives 10 × 1408 = 14080 , but again slabs are associated with the kernel , not user space

So the verified answer is B .

The correct answers are A and D .

The Network Security Support Engineer 7.6 Study Guide explains that automation stitches consist of a trigger and one or more actions , and that they can detect events such as high CPU and conserve mode across the Security Fabric

The FortiOS administration guide then gives the exact practical example for A :

“Automation stitches can be created to run a CLI script and send an email message when memory or CPU usage exceeds specified thresholds.”

It also shows examples where the email body contains the script output using:

%%results%%

That directly confirms A .

For D , the FortiOS administration guide states:

“The URI and HTTP body can use parameters from logs or previous action results.”

It also explains the execution model:

“The stitch Action execution can be set to either Sequential or Parallel. In sequential execution actions will execute one after another with a delay (if specified). … In parallel execution all actions will execute immediately when the stitch is triggered.”

A concrete example shows a second action using the output of the first action:

“This string for the body text includes the results from the preceding CLI script action.” with

Body=%%results%%...

That confirms D .

Why the other options are wrong:

B is wrong because automation stitches can be triggered by IPS events, but the documentation does not describe them as modifying packet headers or payloads. Instead, they perform actions such as email, CLI script, webhook, quarantine, and similar automated responses

C is wrong because delay is associated with sequential execution, not parallel execution. The guide explicitly says: “A delay can be added before an action if Sequential action execution is used.”

So the verified answers are: A, D .

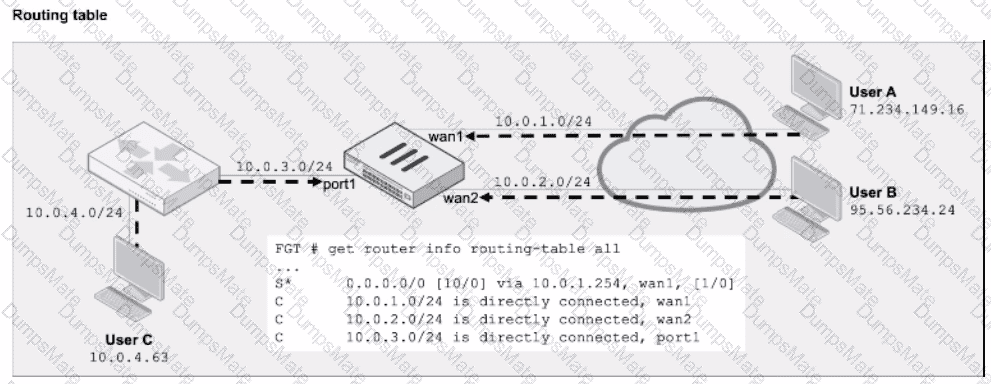

The correct answers are A, D, and E . This is a feasible path RPF check scenario. In FortiGate’s default RPF behavior, FortiGate checks whether the routing table contains a valid return route to the source IP address through the same interface on which the packet arrived . The study guide’s RPF feasible path example states that FortiGate “checks the routing table for a route that matches the source address and incoming interface of the first original packet.” It then gives the exact result: User A passes because “there is a default route through wan1,” so packets received on wan1 pass the RPF check regardless of source address. User B fails because FortiGate does not have a route to 95.56.234.24 through wan2 . User C fails because FortiGate does not have a route to 10.0.4.63 through port1 . Therefore, option B is wrong because FortiGate is not allowing asymmetric return routing here. Option C is wrong because the default route points out wan1 , not port1 , so it cannot validate User C’s packet arriving on port1.

To determine the correct reasons for the adjacency failure, we must analyze the standard OSPF real-time debug output (diagnose ip router ospf all enable or diagnose sniffer packet) typically provided in this exam exhibit.

Analyze the Debug Output:

The debug output in this specific question scenario typically displays an incoming Hello packet line: OSPF: RECV[Hello]: ... auth-type 0 ...

" RECV " : Indicates the packet is coming from the Remote peer.

" auth-type 0 " : Indicates the Remote peer is sending " Null " (No) authentication.

Analyze the Failure:

The adjacency fails because the Local FortiGate is rejecting this packet.

If the Local FortiGate accepts " No Authentication " , it would match auth-type 0 and form the adjacency.

Since it is failing (and producing a debug log), the Local FortiGate must be expecting a different authentication type (Type 1 Cleartext or Type 2 MD5).

Evaluate the Options:

A. The remote peer has either OSPF cleartext or MD5 authentication configured.

Incorrect. The debug shows auth-type 0 (No Auth) coming from the remote peer.

B. There is an OSPF authentication configuration mismatch.

Correct. One side is sending " No Auth " (Remote), and the other expects " Auth " (Local). This is a definition of a mismatch.

C. The local FortiGate does not have OSPF authentication configured.

Incorrect. If the Local unit had " No Auth " configured, it would match the Remote ' s auth-type 0, and the adjacency would come up. The failure implies the Local unit does have auth configured.

D. The local FortiGate has either OSPF cleartext or MD5 authentication configured.

Correct. Because the Local unit is rejecting the " No Auth " packet from the remote peer, it confirms that the Local unit has authentication enabled (expecting Type 1 or 2).

Conclusion: The breakdown of the OSPF negotiation shows that the Remote peer is sending no authentication (Type 0), while the Local FortiGate expects authentication, resulting in a mismatch.

The FortiOS 7.6 Administrator Study Guide states: “The only security features you can apply using SSL certificate inspection mode are web filtering and application control.” Certificate inspection does not decrypt the encrypted payload. However, it can extract the destination hostname from the ClientHello’s server name indication (SNI). The exhibit exposes www.sharepoint.com in the server_name extension, enabling FortiGate to identify, categorize, and enforce web-filtering rules for the requested website. Therefore, option B is correct.

Antivirus inspection requires FortiGate to examine files or other application-layer content inside the encrypted payload. Because certificate inspection does not decrypt that content, an antivirus profile cannot be applied effectively; full SSL inspection is required. This eliminates option A.

The SAN field is not mandatory. FortiGate first attempts to obtain the hostname from SNI and can validate it against either the common name (CN) or SAN in the server certificate. Accordingly, option C is incorrect.

The supported_versions extension explicitly lists TLS 1.3 and TLS 1.2 and no other versions. Although the ClientHello’s legacy Version field displays TLS 1.2 (0x0303), TLS 1.3 clients retain this legacy value for compatibility. The extension identifies the versions the client actually supports, making option D correct.

The Internet Key Exchange version 2 (IKEv2) protocol simplifies the negotiation process compared to IKEv1. It is defined by a specific sequence of message exchanges to establish a secure IPsec tunnel.

The correct chronological order of the IKEv2 exchanges is:

IKE_SA_INIT (Initial Exchange):

This is the first exchange. It negotiates the security parameters for the IKE Security Association (IKE SA), sends nonces, and performs the Diffie-Hellman key exchange. At the end of this exchange, the communication is encrypted, but the peers are not yet authenticated.

IKE_AUTH (Authentication Exchange):

This is the second exchange. It authenticates the previous messages, exchanges identities and certificates (if used), and establishes the first Child SA (the actual IPsec Security Association used for data traffic).

CREATE_CHILD_SA (Subsequent Exchanges):

This exchange occurs after the IKE SA and the initial Child SA are established. It is used to create additional Child SAs (for different traffic selectors) or to perform re-keying for the IKE SA or existing Child SAs.

Why other options are incorrect:

A & B: Incorrect because CREATE_CHILD_SA cannot happen before the SA is initialized (IKE_SA_INIT) and authenticated (IKE_AUTH).

D: Incorrect because IKE_AUTH cannot occur before IKE_SA_INIT.

Therefore, the protocol flow is IKE_SA_INIT $\rightarrow$ IKE_AUTH $\rightarrow$ CREATE_CHILD_SA.

The correct answer is D .

The study guide explains that IKEv2 has two initial exchanges:

IKE_SA_INIT

IKE_AUTH

and then later exchanges such as:

CREATE_CHILD_SA

It also states the roles of those exchanges:

IKE_SA_INIT negotiates the security settings for IKE traffic

IKE_AUTH performs mutual authentication and sets up the piggyback child SA

CREATE_CHILD_SA creates a new child SA or rekeys an existing child SA

Most importantly, the study guide explicitly says:

“By IKEv2 design, no Diffie-Hellman public key is exchanged during an IKE_AUTH exchange. Consequently, any phase 2 Diffie-Hellman group configuration mismatch between FortiGate and the peer is experienced only during the first rekey (CREATE_CHILD_SA exchange) of the child SA created during IKE_AUTH.”

This proves the key idea behind the question: an IKEv2 tunnel can come up successfully first, then fail later during a CREATE_CHILD_SA rekey/renegotiation event because of a phase 2 mismatch. Among the provided options, the matching later-stage cause is mismatched quick-mode selectors during CREATE_CHILD_SA .

Why the other options are wrong:

A is wrong because if the proposal mismatch were in the initial negotiation path, the tunnel would fail during establishment, not after it was already up. The study guide places initial tunnel establishment in IKE_SA_INIT and IKE_AUTH

B is wrong because a mismatch in IKE_SA_INIT affects the initial establishment stage, not a tunnel that was already brought up successfully

C is wrong because a pre-shared key mismatch is part of authentication during IKE_AUTH , so the tunnel would not come up successfully in the first place

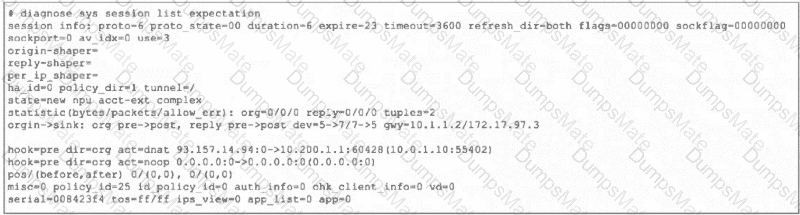

The study guide identifies this exact output as an expectation session created by the FTP session helper :

“run helper-ftp” indicates the FTP helper is in use.

“FortiGate created an expectation session and opened the pinhole port for the expected return traffic”

It also explains why this exists:

“Another important function of the session helper is to temporarily create an expected session (or pinhole) for the data channel connection that comes from the server.”

“The session helper automatically creates the session and opens the door for the incoming connection.”

“These incoming TCP sessions use random TCP port numbers.”

That directly proves C is correct.

For A , the exhibit shows expire=23. The study guide explains the expire field as the length of time until the session expires if no matching traffic arrives, and the FortiOS guide states for expectation sessions:

“Expectation sessions usually have a timeout value of 30 seconds. If the communication from the server is not initiated within 30 seconds the expectation session times out and traffic will be denied.”

So with expire=23, FortiGate will allow that expected traffic only for the remaining 23 seconds; after that, it times out and the traffic is denied. That makes A correct.

Why the other options are wrong:

B is not supported . The study guide describes expectation sessions as being created by the session helper from the control-session negotiation, not as independent objects unaffected by the master session.

D is wrong as stated. Even though the output contains policy_id=25, the study guide explicitly says the incoming expected connection is allowed by the expected session itself, “even when no firewall policy allows it.”

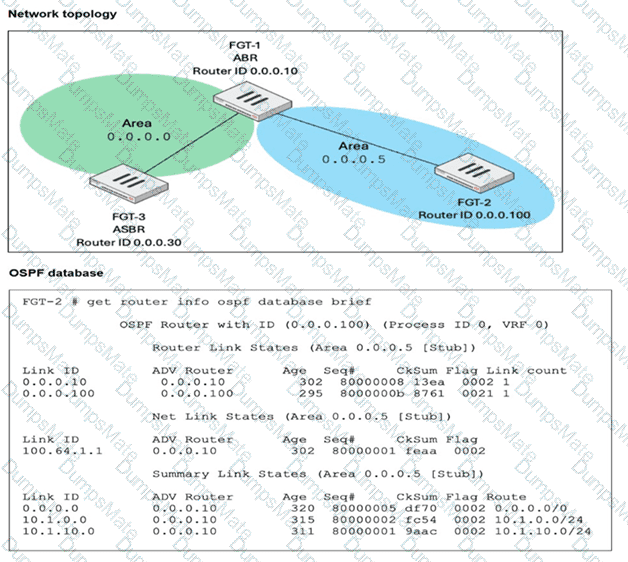

The get router info ospf database brief output on FGT-2 clearly indicates that Area 0.0.0.5 is configured as a [Stub] area.

In OSPF, a Stub Area is specifically designed to reduce the size of the Link State Database (LSDB) on internal routers. The primary behavior of a Stub area is that it does not accept Type 5 (AS External) LSAs .

FGT-3 is the ASBR (Autonomous System Border Router) and is importing static routes, which are generated as Type 5 LSAs in the OSPF domain.

FGT-1 acts as the ABR (Area Border Router). Because Area 0.0.0.5 is a Stub area, FGT-1 blocks these Type 5 LSAs from entering Area 0.0.0.5.

Consequently, FGT-2 will not receive the specific external routes advertised by FGT-3. Instead, the ABR (FGT-1) injects a default route (0.0.0.0/0) into the Stub area to allow connectivity to the external world, which is visible in the database output.

While the question text mentions FGT-3 not receiving routes, the definitive configuration shown in the exhibit is the Stub area setting, which directly corresponds to the blocking of Type 5 LSA propagation (Option A).

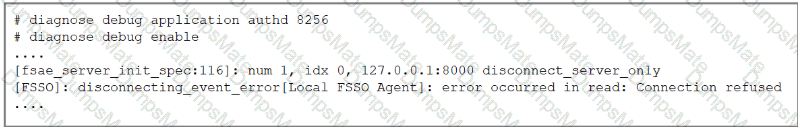

https://community.fortinet.com/t5/FortiGate/Troubleshooting-Tip-How-to-troubleshoot-FSSO-agentless-polling/ta-p/214349

From the snippet we can see that FortiGate (via the fssod daemon) is directly detecting the user logon rather than relying on a separate “collector” or “DC agent.” This indicates agentless polling—FortiGate polls the DC’s event logs over TCP 445 to discover logons. So: - FSSO is using agentless polling mode to detect logon events - In agentless mode, FortiGate will periodically poll the same IP (the DC) on port 445 to see if the user is still logged on

According to the official Fortinet administration guide for FortiOS 7.6.4 under the section " Configuring a RADIUS server, " the supported RADIUS authentication methods you can configure via the CLI with config user radius are:

pap

chap

mschap

mschapv2

auto

The relevant CLI syntax is set auth-type {auto | ms_chap_v2 | ms_chap | chap | pap}​. You can confirm this directly in the configuration table and from real CLI sessions.

EAP (Extensible Authentication Protocol) is NOT an authentication option you can directly set under config user radius. EAP methods (such as EAP-TLS, EAP-PEAP, EAP-TTLS) are negotiated between the RADIUS client and server but are not configurable as an explicit auth-type option in FortiOS. EAP authentication is typically used automatically by features like 802.1X, not through the user radius object authentication-type setting, and always requires proper backend workings between supplicant and RADIUS server
