NSEI_OTS_AR-7.6 Fortinet NSE I - OT Security 7.6 Architect Questions and Answers

According to the OT Security 7.6 Architect study guide section on Asset Management , specifically regarding FortiNAC Visibility :

Layer 2 Polling Data : Because each physical address is unique, FortiNAC identifies hosts as they connect to the network. The information gathered during this process fills in the physical address and location information in the database.

Visibility Components : The guide states that the physical address learned , the time it was learned , and where it was learned from provide the foundation of endpoint visibility in the form of " what, where, and when " information. This confirms that Where it was learned (Option A) and The time it was learned (Option D) are correct.

Exclusions :

Layer 3 Polling : The MAC-to-IP correlation (Option B) is explicitly defined as a function of Layer 3 polling , where the correlated IP address is added to the database record for the corresponding MAC address.

DHCP Fingerprinting : The host name or system name (Option C) and the operating system are gathered via DHCP fingerprinting , not layer 2 polling.

According to the OT Security 7.6 Architect study guide regarding FortiAnalyzer Event Management :

Notification Options : When configuring a new event handler, FortiAnalyzer provides several built-in notification methods to alert administrators when specific log criteria are met. The most common and direct method is Send alert email (Option A).

Incident Management : To streamline the SOC workflow, an event handler can be configured to Automatically create an incident (Option D) based on the triggered event. This moves the event into the Incident Manager for further analysis.

Security Fabric Integration : In the 7.6 architecture, event handlers can directly trigger an Automation stitch (Option E). This allows the FortiAnalyzer to notify the root FortiGate to take action (like running a CLI script or changing a policy) across the Security Fabric.

Exclusions : Create a report (Option B) is typically a task performed by a Playbook or a scheduled report job, not a direct setting inside the basic event handler configuration. Quarantine an attacker (Option C) is an action that results from an automation stitch or playbook, but it is not a direct configuration toggle within the event handler itself.

 The study guide says playbooks are used to automate tasks such as running reports and creating/updating incidents . It also says that after a playbook is triggered, it flows through its configured tasks.

 It further shows a sample playbook sequence where an event is detected, an incident is created , a report runs , and details are attached to the incident . That is exactly the kind of workflow shown in the incident analysis view.

 By contrast, the study guide says event handlers generate events when logs match configured rules. Event handlers are for detection, not for attaching reports to incidents.

The correct answers are A and C . The study guide explains that “You can use application control signatures to detect OT protocols” and that application control provides “granular message type identification.” In the exhibit, the Operational Technology application category is included in the Application Sensor profile, so OT application signatures are enabled in this profile.

Option C is also correct because the override table shows Modbus_Read.Holding.Registers = Allow and Modbus = Block . The study guide states that you can use specific granular application control signatures to allow a specific Modbus command and block all others , and it also shows that application control can identify read and write commands separately at message level. Therefore, Modbus write commands are blocked by this profile.

Option B is incorrect because the profile is not simply monitoring all OT protocols; it contains a Block action for Modbus. Option D is incorrect because the study guide links OT protocol visibility specifically to the monitor status , while in the exhibit Modbus_Read.Holding.Registers is set to Allow , not Monitor .

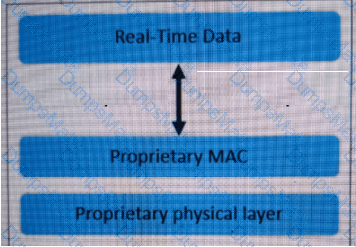

The correct answer is D. EtherCAT . The study guide explicitly states under the Ethernet/IP and EtherCAT section that “EtherCAT is a protocol that offers real-time communication in a primary-secondary configuration” and “EtherCAT skips layers 3 to 6 to deliver real-time communication.” It also adds that “the most important feature of this protocol is that secondary devices collect only the information they need from the data packets.” This matches the exhibit exactly, where the diagram shows Real-Time Data above a Proprietary MAC and Proprietary physical layer , reflecting the protocol structure that bypasses the intermediate OSI layers.

The other options do not match this behavior. The guide says POWERLINK uses layer 2 and layer 7 of the OSI model, not that it skips layers 3 to 6. It also explains that Ethernet/IP is the industrial protocol based entirely on Ethernet standards and adapts to the OSI model. Modbus is described as an open client/server protocol and is not suitable for transmitting data in real time . Therefore, the protocol in the exhibit is clearly EtherCAT .

The correct answers are A and B .

Option B is correct because the study guide states that “When a handler generates an event with the automation stitch option enabled, FortiAnalyzer sends a notification” to FortiGate. If Automation Stitch is not enabled in the FortiAnalyzer event handler, that handler will not be usable for the FortiGate automation-stitch workflow. The guide also explains that the configuration of each event handler can include “Automation stitches” and “Rules,” showing that this is a required part of the FortiAnalyzer-to-FortiGate automation path.

Option A is also correct. The study guide explains the automation flow in the Security Fabric: “FortiAnalyzer parses the logs and notifies the root FortiGate” and then “The root FortiGate triggers the action.” That means FortiGate must have the FortiAnalyzer connection configured through the Security Fabric side before it can consume FortiAnalyzer event handlers. The warning in the exhibit about configuring a FortiAnalyzer connection also points directly to that requirement.

Option C is incorrect because + Create is not the reason the existing event handler is missing; it is only an interface control. Option D is not the best answer for this item because the question is about why the event handler name list on FortiGate is empty for FortiAnalyzer-triggered automation. The study guide’s verified requirements for that workflow are the FortiAnalyzer-to-FortiGate Fabric connection and enabling Automation Stitch on the FortiAnalyzer event handler.

The correct answers are A and C .

Option A is correct because the study guide explains that with active authentication , FortiGate prompts the user only when they use “an acceptable login protocol.” It states: “When you use only active authentication, if all possible policies that could match the source IP address have authentication enabled, then the user will receive a login prompt (assuming they use an acceptable login protocol).” A direct ping to PLC-1 uses ICMP , which is not the kind of login protocol used to trigger user authentication. So the supervisor must first authenticate through a protocol such as HTTPS or Telnet , then the ICMP traffic can match the authenticated policy.

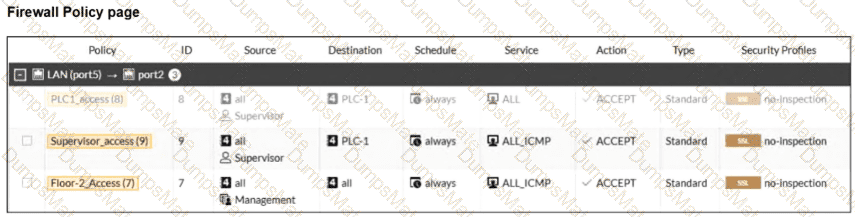

Option C is also correct because the exhibit shows policy ID 8 greyed out, meaning it is not enabled. That policy appears above the Supervisor_access (9) policy and allows broader access to PLC-1 , whereas policy 9 is limited to ALL_ICMP . The study guide explains that “Because the user has not yet authenticated, the user group aspect of the traffic does not match” and FortiGate continues searching for another complete match. In this case, with policy 8 disabled, the supervisor is left with only the ICMP rule, which cannot be used to perform the initial login step needed for active authentication.

Option B is not supported by the exhibit. Option D is incorrect because auth-on-demand always would force authentication prompts more aggressively, but the core problem here is that the user is trying to start with ICMP and the broader policy that could permit the initial authenticated access is disabled.

The correct answer is A. Device Detection is enabled on the other identified device .

The study guide explains that device identification is a “useful feature for the Security Fabric topology view” and that “FortiGate detects most third-party devices in your network and adds them to the topology view of the Security Fabric.” It also states that in the interfaces section, you can enable device detection , and this detection is what allows FortiGate to identify devices based on observed traffic.

In the exhibit, the tooltip distinguishes between “1 device requires authorization” and “1 other identified device.” That means the unauthorized device is a separate FortiGate/Fabric member issue, while the other identified device is simply a detected third-party device shown in the topology because device detection is working. Therefore, the correct interpretation is that device detection is enabled for that identified device. Option B is incorrect because the exhibit does not say the other identified device requires authorization. Option C is not supported by the study guide, and option D is too specific because no evidence in the exhibit confirms that the detection was enabled specifically on port3 .

The correct answer is B. A firewall policy has a Virtual Patching security profile applied to it .

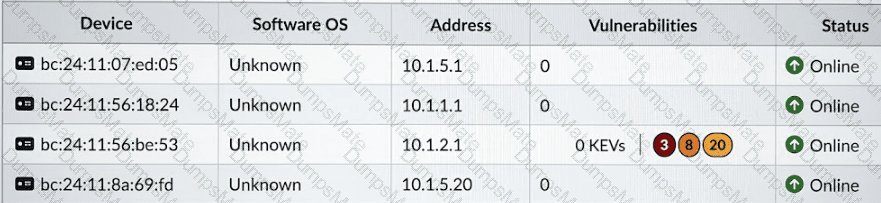

The decisive clue in the exhibit is the Vulnerabilities column showing KEVs and device-specific vulnerability counts. The study guide explains the virtual patching workflow in this exact way: “FortiGate performs a lookup for device-specific vulnerabilities and mitigation rules in FortiGuard,” then “FortiGuard returns specific OT virtual patching signatures,” and “FortiGate caches the signatures and mitigation rules that apply to each device.” That is the same behavior reflected by the Asset Identity List showing vulnerability information per detected device.

The guide then states that “When traffic related to the vulnerable device reaches FortiGate, the firewall policy with the virtual patching profile applies.” It also says “A virtual patching profile can be applied to firewall policies in any direction, protecting traffic from or to the vulnerable OT device.” This directly links the per-device vulnerability visibility to a Virtual Patching profile enforced through firewall policy.

The other options do not match the exhibit. Antivirus is not described in the study guide as building a device-by-device vulnerability list, Application Control is used for OT protocol and message visibility, and IPS focuses on exploit detection and prevention. The Vulnerabilities/KEVs display is the indicator that FortiGate is using Virtual Patching logic for those OT devices.

The correct answer is A . The study guide states that “The OT view is not available by default. You must enable it in the Feature Visibility section of the GUI or using the CLI command shown on this slide” and shows config system settings → set gui-ot enable . It also says that “After you enable the feature, the Asset Identity Center contains an Asset Identity List tab and an OT View tab.” This directly explains why the OT View tab is missing: the feature that enables the Purdue-style OT display has not been enabled yet.

The OT View is the view that displays devices in a Purdue diagram , and the Asset Identity List also shows the current Purdue level for each device. Because the answer options do not explicitly say enable OT View in Feature Visibility , option A is the intended match, since it refers to enabling the Purdue-related OT display feature. Option B is incorrect because device detection affects visibility of devices, not whether the OT View tab exists. Option C is not supported by the study guide, and option D is also not given as the requirement for showing the OT View tab.

Comprehensive and Detailed Explanation From Exact Extract of OT Security 7.6 Study guides:

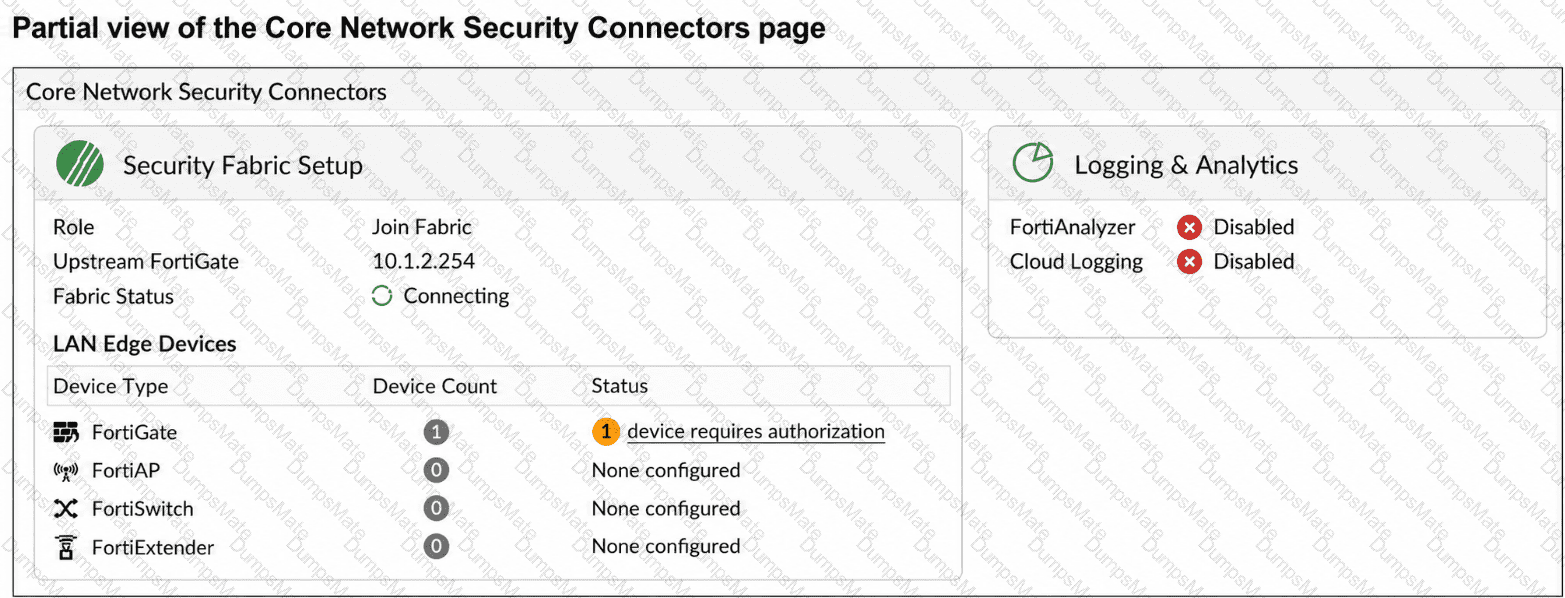

The correct answers are A and C .

A is correct because the exhibit explicitly shows Logging & Analytics → FortiAnalyzer: Disabled on this FortiGate. The FortiGate must therefore have its FortiAnalyzer logging destination enabled and configured. The study guide explains that the FortiAnalyzer Fabric connector consolidates traffic logs and, importantly, that “each FortiGate in the Security Fabric logs traffic to FortiAnalyzer independent of the root or other leaf devices.” This means each FortiGate requires its own functioning logging connection to FortiAnalyzer; being a Security Fabric member alone does not cause its logs to pass through the root FortiGate.

C is correct because FortiAnalyzer must accept and authorize the FortiGate as a managed/logging device before the FortiGate can establish the normal logging relationship. This complements the FortiGate-side Logging & Analytics configuration. The study guide ' s Security Fabric logging architecture shows individual FortiGate devices maintaining FortiAnalyzer log connections , with FortiAnalyzer receiving and correlating their traffic and UTM logs. It specifically states that if the root FortiGate is unavailable, logging from leaf FortiGate devices to FortiAnalyzer continues to function , confirming that the FortiGate-to-FortiAnalyzer logging relationship is direct.

B is incorrect because configuring Fabric settings on FortiAnalyzer is not the missing step indicated by the exhibit. The problem shown is that FortiAnalyzer logging is Disabled on the FortiGate .

D is incorrect because authorization on the root FortiGate concerns joining and trusting a FortiGate as a Security Fabric member. It does not authorize that FortiGate as a logging device on FortiAnalyzer. The study guide explicitly distinguishes the architecture by stating that every FortiGate logs to FortiAnalyzer independently of the root .

According to the OT Security 7.6 Architect study guide regarding IEC 62443 Security Levels :

Security Level 4 (SL 4) Definition : This level provides " Protection against intentional violation using sophisticated means with extended resources, specific skills, and high motivation " .

Real-World Application : The study guide specifically notes: " If you are facing a syndicate of cyber extortionists with extensive resources and capabilities, then you should strive for security level 4 " .

Comparison to other levels :

SL 1 : Protection against " casual or unintentional system violation " .

SL 2 : Protection against " intentional violation using simple means with low resources " .

SL 3 : Protection against " intentional violation using sophisticated means with moderate resources " .

The correct answer is A . Policy ID 8 contains the Supervisors user group, so authentication is required for traffic matching that policy. However, policy ID 9 permits traffic to PLC-1 without a user or user-group authentication requirement. Fortinet explains that when an authentication policy is followed by a fall-through policy that does not require authentication , traffic can match the fall-through policy and proceed without generating a login prompt. This is particularly relevant because the default CLI setting is auth-on-demand implicitly. Under the default implicitly behavior, FortiGate does not trigger active authentication when a matching unauthenticated fall-through policy exists. Setting auth-on-demand always, or requiring authentication on all potentially matching policies, changes that behavior. Therefore, HTTPS succeeds without prompting because authentication was not configured on firewall policy ID 9 .
