RCWA RUCKUS Certified Wi-Fi Associate Exam Questions and Answers

In RUCKUS Wi-Fi Planner , defining attenuation values for wall materials enables the simulation of RF signal loss across physical barriers such as drywall, concrete, or glass.

According to RUCKUS One Online Help – Wi-Fi Planner RF Modeling , accurate wall attenuation data allows the planner to predict signal propagation and coverage maps with greater accuracy. This ensures optimal AP placement and reduces coverage overlap or dead zones.

The RUCKUS Analytics 3.5 User Guide – RF Validation Reports confirms that modeling real-world materials provides reliable pre-deployment visibility of expected SNR and throughput performance.

Other options—like RSSI thresholds or DHCP zoning—are not part of RF prediction modeling.

For the RCW/RCWA-era material represented by this question, the supported answer is 128 APs. RUCKUS ' s official Unleashed deployment guidance documented support for up to 128 APs and 2,048 Wi-Fi clients in a single Unleashed network, with traffic locally bridged rather than tunneled through a centralized controller. This makes option B the intended answer for the supplied question. There is an important version consideration: later RUCKUS product documentation increased the stated Unleashed platform limit to as many as 150 APs. Because 150 is not one of the supplied answer choices, this question reflects the earlier RCW platform specification rather than the newest platform maximum. For the certification question exactly as supplied and its available options, 128 APs remains the correct answer selection

The RUCKUS H Series access points are specifically designed for environments such as hospitality, student housing, and multi-dwelling units, where compact, in-room installation is ideal. A distinctive feature of the H Series—such as the RUCKUS H550 and H510 models—is their PoE output port , allowing the AP to power downstream devices like IP phones, set-top boxes, or security cameras directly through Ethernet.

This design minimizes cabling and infrastructure costs while maintaining enterprise-grade Wi-Fi performance. According to the RUCKUS One Online Help and the official RUCKUS AI documentation , the H550 supports 802.3af/at PoE input and provides 802.3af PoE output on one of its Ethernet ports. The feature is highlighted as part of RUCKUS’s integrated wired and wireless connectivity solution, combining dual-band Wi-Fi 6 access with switch-like wired connectivity for room-based deployments.

The R Series and E Series are ceiling-mounted APs primarily used for large-area coverage and typically do not include PoE passthrough functionality. The M Series (outdoor mesh APs) are designed for outdoor coverage extension, also lacking this downstream PoE capability.

A Venue is the primary physical-location construct used by RUCKUS One. A venue can represent anything from a small room to a large multi-floor building, and RUCKUS One provides venue-level Wi-Fi configuration, including default radio settings. A Wi-Fi network is not restricted to one venue: when creating or managing a network, administrators can select multiple venues in which that SSID will be activated. RUCKUS documentation also describes venue configuration as taking precedence over relevant AP-group and individual-AP settings within the management hierarchy. Each networking device itself belongs to only one venue, but a WLAN can be advertised across multiple venues. There is no twelve-venue limitation of the kind stated in option A. Thus, the valid statements are C, D, and E. Ruckus Training

================

The Noise Floor Level represents the background RF interference in dBm, which directly affects the Signal-to-Noise Ratio (SNR) and overall connection stability.

As stated in RUCKUS One Online Help – RF Diagnostics , an elevated noise floor (e.g., higher than -85 dBm) can indicate interference from devices such as wireless cameras or radar systems.

RUCKUS Analytics 3.5 User Guide – RF Metrics Dashboard highlights that tracking the noise floor is essential for differentiating between weak coverage and interference-based issues.

Retransmissions and retries are symptoms, while the noise floor identifies the root cause.

Client Load Balancing in RUCKUS WLANs is designed to optimize client distribution among nearby access points, preventing over-association to a single AP and improving overall airtime efficiency.

According to the RUCKUS One Online Help – Load Balancing and Band Steering and RUCKUS Analytics 3.5 User Guide – Client Distribution Analysis , SmartZone load balancing can be configured using two key parameters:

Client RSSI (B): The system evaluates the signal strength of a client device relative to multiple APs to ensure that it connects to the most suitable AP, not necessarily the strongest or first one detected.

Client Count (C): Balances client connections by redistributing associations when one AP exceeds a configured threshold compared to its neighbors.

AP capacity and device type are not direct load-balancing criteria, and proximity is implicitly derived from RSSI measurements rather than configured explicitly.

Therefore, the correct answers are B (Client RSSI) and C (Client count) .

Indoor WLAN coverage is influenced by multiple RF and physical parameters that determine how effectively a signal propagates and maintains connectivity quality.

According to RUCKUS One Online Help – RF Design Fundamentals and RUCKUS AI Documentation – Coverage Optimization , the three most impactful factors are:

AP Transmit Power (A): Directly affects signal reach; excessive power can cause co-channel interference, while low power results in coverage holes.

AP Orientation (C): Affects signal radiation direction—wall-mounted, ceiling-mounted, or tilted deployments impact pattern uniformity and coverage overlap.

Antenna Pattern (D): Defines gain and directional behavior; omnidirectional antennas provide uniform coverage, while directional models concentrate energy for targeted areas.

Antenna diversity and spatial multiplexing improve throughput and reliability, but do not primarily determine raw coverage boundaries. “Earth bulge” is irrelevant for indoor deployments.

Admin Domains in SmartZone provide role-based access control (RBAC) by dividing system management into separate administrative scopes. Each Admin Domain can contain specific zones, WLANs, and devices, with access limited to assigned administrators.

As outlined in RUCKUS One Online Help – Administrative Domains and Roles , this feature enables organizations or MSPs to securely delegate management tasks to different teams or customers while maintaining full isolation between configurations.

Partner Domains exist only in vSZ-H (multi-tenant environments), while Cluster Roles manage global system functions. AP Groups are configuration containers but not access control boundaries.

A RUCKUS Application Policy allows administrators to control network performance and user experience by classifying, prioritizing, and managing traffic based on the type of application detected on the network.

According to RUCKUS One Online Help – Application Control and Policy Management , and RUCKUS AI documentation , Application Policies can:

Apply rate limiting (A): Control the bandwidth allocated to specific applications or application groups (e.g., limit video streaming or social media traffic).

Apply Quality of Service (E): Mark or prioritize application traffic using DSCP or internal QoS levels to ensure latency-sensitive applications such as voice or conferencing receive higher priority.

RUCKUS leverages Deep Packet Inspection (DPI) for identifying over 2,500+ applications, enabling precise enforcement per SSID or per user.

Other options— URL filtering , VLAN assignment , and packet capture —are handled through separate mechanisms (Web filtering, Device Policy, and diagnostic tools, respectively), not via Application Policies.

Therefore, the correct answers are A (Rate limiting) and E (Quality of Service) .

RUCKUS indoor Access Points use status LEDs to communicate key operational states during deployment and runtime. The LEDs provide immediate visual feedback about the AP’s connectivity, power condition, and client activity.

According to the RUCKUS One Online Help – Access Point LED Indicators , and verified in the RUCKUS AI documentation , the LEDs typically display the following primary states:

Controller Connected (A): Confirms that the AP has successfully registered and established a control session with the RUCKUS controller or RUCKUS Cloud instance.

Insufficient PoE Power (C): Indicates that the AP is receiving inadequate power, such as being powered through 802.3af instead of 802.3at, which may disable high-power features or additional radios.

Clients Connected to a Radio (D): Lights up when one or more clients are associated with the AP’s wireless radios, signifying active WLAN operation.

Other listed options— USB dongle inserted , data plane tunnel connected , and routable IP assigned —are not standard LED indications across RUCKUS indoor AP models. They may represent system events but not physical LED states.

MIMO (Multiple Input, Multiple Output) is a fundamental wireless technology that enhances Wi-Fi throughput and reliability by transmitting multiple data streams simultaneously using multiple antennas on both the transmitter and receiver. It was introduced in the IEEE 802.11n standard , which marked the beginning of high-throughput (HT) Wi-Fi.

According to RUCKUS One Online Help and the RUCKUS Analytics 3.5 User Guide , MIMO enables spatial multiplexing , diversity gain , and beamforming , allowing higher data rates and improved signal quality in multipath environments. Subsequent standards (802.11ac and 802.11ax) expanded this concept to MU-MIMO (Multi-User MIMO) , allowing simultaneous communication with multiple clients.

MIMO requires support on both the AP and client for full functionality; otherwise, the connection falls back to single-stream operation. It is used in both uplink and downlink directions (especially in Wi-Fi 6 and later). Thus, option B —introduced in 802.11n—is correct, while options A, C, and D are incorrect.

RSSI (Received Signal Strength Indicator) is a key measurement representing the power level of a received RF signal. It is typically displayed in dBm (decibel-milliwatts) , a logarithmic unit that expresses the power relative to 1 milliwatt. In Wi-Fi systems, RSSI values usually range between –30 dBm (excellent) and –90 dBm (very weak) .

According to the RUCKUS One Online Help and the RUCKUS Analytics 3.5 User Guide , signal strength metrics shown in dashboards, client views, and RF reports are represented in dBm for consistency across platforms. This allows network engineers to correlate signal levels with client connectivity performance and thresholds used for roaming or troubleshooting.

Other units such as dBi refer to antenna gain, Watts measure absolute power (not typically used in client reporting), and Ohms measure resistance. Thus, dBm is the correct and standard unit used for RSSI measurement in RUCKUS and all IEEE 802.11-based systems.

RUCKUS Directed Multicast improves wireless multicast delivery by converting qualifying multicast frames into individual unicast transmissions for associated wireless clients. The primary advantage is that unicast frames can use higher negotiated PHY rates and receive normal IEEE 802.11 acknowledgements, improving reliability and often reducing airtime consumption compared with multicast transmission at conservative basic rates. RUCKUS documentation specifically describes the qos directed-multicast behavior as converting IGMP multicast traffic to unicast. Directed Multicast should therefore not be confused with routing multicast between VLANs, simply permitting multicast across WLANs, or multicast pruning. RUCKUS also combines multicast optimization with SmartCast QoS functionality in its AP portfolio. These techniques are particularly useful for applications such as streaming media and other multicast-dependent services operating over enterprise wireless networks. Ruckus Wireless Support

================

The Client Connectivity Troubleshooting Tool is specifically designed to analyze why a wireless client cannot successfully join a RUCKUS-managed network. SmartZone allows an administrator to enter the affected client ' s MAC address and run a connectivity trace through selected APs. The resulting connection flow exposes the individual stages of association, authentication, key exchange, DHCP, and other network-access processes, allowing the administrator to identify where the connection fails. Wireshark can provide detailed packet analysis but is not normally the first integrated RUCKUS tool for this task. A spectrum analyzer identifies RF interference, while ping tests IP reachability only after basic network connectivity exists. Therefore, the Client Connectivity Troubleshooting Tool is the appropriate choice for diagnosing a client that cannot join. rcw 3 Ruckus Wireless Documentation

================

When two access points operate on overlapping channels in the same frequency band—such as channel 7 and channel 8 in the 2.4 GHz range—they create Adjacent Channel Interference (ACI) . Unlike co-channel interference (CCI) , which occurs when APs share the exact same channel, ACI results from partial channel overlap that causes energy spillover between adjacent frequencies.

According to RUCKUS One Online Help – Radio Configuration and Channel Planning , adjacent channels in 2.4 GHz are only 5 MHz apart, while each Wi-Fi channel occupies 20–22 MHz of bandwidth. As a result, channels like 7 and 8 significantly overlap, creating degraded performance, retransmissions, and reduced throughput.

RUCKUS’s ChannelFly technology in both RUCKUS AI and RUCKUS Analytics helps automatically select non-overlapping channels (such as 1, 6, and 11) to minimize ACI and optimize network capacity.

Therefore, the correct answer is A – Adjacent interference , which directly applies to overlapping channel configurations.

RUCKUS One is the cloud-managed, AI-enabled converged network-management platform in the RUCKUS portfolio. It provides centralized deployment, monitoring, troubleshooting, and management of geographically distributed wired and wireless networks from a cloud interface. RUCKUS specifically describes RUCKUS One as an AI-enabled network-management-as-a-service platform capable of managing both single-site and distributed multi-site environments. Its AI-driven capabilities include incident analytics, service assurance, anomaly detection, and operational insights that help administrators identify and remediate network problems. ZoneDirector is a traditional controller platform and does not provide the RUCKUS One cloud architecture. Unleashed is intended primarily for controller-less deployments, while Network Director does not represent the current RUCKUS cloud-management and AI platform described in the question. Therefore, RUCKUS One satisfies all three requirements. RUCKUS Networks

================

Using the Rule of 10s and 3s, begin with the known reference that 30 dBm equals 1,000 mW, or 1 watt. A reduction of 3 dB approximately halves the absolute power. Therefore, subtracting 3 dB from 30 dBm gives 27 dBm, while halving 1,000 mW gives 500 mW. Consequently, 500 mW corresponds to approximately 27 dBm, making option A correct. The exact logarithmic calculation, \(10 \log_{10}(500)\), produces approximately 26.99 dBm, which rounds to 27 dBm. RUCKUS access-point specifications use dBm extensively for transmitter power and receiver sensitivity, while RF design calculations use these logarithmic relationships to evaluate link budgets, coverage, EIRP, attenuation, and acceptable operating power levels. RUCKUS Networks

================

To maintain seamless client roaming in enterprise-grade Wi-Fi environments, RUCKUS recommends 20–25% signal overlap between adjacent AP coverage cells.

According to RUCKUS One Online Help – Roaming and Coverage Design Guidelines , this overlap ensures clients maintain an adequate RSSI and SNR threshold during roaming events without coverage gaps.

RUCKUS Analytics 3.5 User Guide – Client Mobility Analysis confirms that insufficient overlap often leads to disconnects or sticky-client behavior, while excessive overlap increases co-channel interference.

This guideline applies across 2.4 GHz and 5 GHz deployments, ensuring smooth transitions for 802.11r/k/v-enabled clients.

Maintaining low airtime utilization is key to achieving high efficiency and performance in Wi-Fi networks. RUCKUS recommends minimizing factors that increase channel contention and protocol overhead.

Per RUCKUS One Online Help – Airtime Management and Optimization and RUCKUS AI Documentation – Channel Utilization Insights , the following actions are most effective:

(A) Limiting older/legacy clients: 802.11a/b/g clients transmit at lower rates and occupy more airtime per packet.

(D) Ensuring sufficient AP capacity for clients: Proper AP density ensures users are distributed evenly, reducing per-AP contention.

(F) Mitigating non-802.11 interference: Removing microwave ovens, Bluetooth devices, and other RF noise sources prevents wasted airtime from retries.

Adding more SSIDs (WLANs) increases management frame overhead, and full transmit power causes excessive cell overlap—both raise airtime use.

RUCKUS Edge and the SmartZone Data Plane are the two options designed to provide tunneled data-plane functionality. SmartZone supports centralized data forwarding by tunneling WLAN traffic from managed APs to a SmartZone Data Plane, where user traffic can be aggregated and forwarded centrally. RUCKUS Edge extends RUCKUS One services to an edge appliance and supports secure tunneled WLANs, traffic redirection, segmentation, and centralized service control. RUCKUS One itself is primarily the cloud management and orchestration platform; its standard AP data-plane model uses local breakout rather than sending all user traffic through the cloud. Network Director provides management functionality, while Cloudpath focuses on secure onboarding and identity-based network access rather than acting as the Wi-Fi user-traffic data plane. RUCKUS Networks

================

SmartZone uses an Account Name@Domain username convention when an administrator logs in to a Partner Domain. The account name identifies the administrator account, while the portion following the @ symbol identifies the Partner Domain to which the account belongs. For example, RUCKUS documentation shows that if an administrator account named User belongs to the Partner Domain TestDomain, the login username is User@TestDomain. Applying the same rule here, an administrator account named Team01 Admin in the Team01 Partner domain must log in as Team01 Admin@Team01 Partner. Reversing the administrator and domain names, combining them without the domain delimiter, or adding a hyphen does not follow the required SmartZone Partner Domain authentication format. Therefore, option A is correct. rcw 3 Ruckus Wireless Documentation

================

Signal-to-Noise Ratio (SNR) directly influences the modulation and coding scheme (MCS) that can be used between a Wi-Fi client and AP. A higher SNR allows the AP to select higher-order modulations (e.g., 256-QAM or 1024-QAM), which increases throughput efficiency.

According to RUCKUS One Online Help – RF Signal and SNR Concepts , an SNR of around 25 dB or greater is typically required for high-rate modulation such as MCS 9 or above.

RUCKUS Analytics 3.5 User Guide – PHY Metrics confirms that RUCKUS APs continuously adapt MCS levels based on SNR, optimizing link performance dynamically.

Lower SNR conditions force modulation downshifts (e.g., QPSK or BPSK), reducing data rates for reliability.

RUCKUS design guidance identifies AP placement, channel planning, and cell sizing as fundamental controls for co-channel interference. Channel planning limits unnecessary reuse of the same channel among APs that can hear one another. Appropriate AP placement creates the physical separation required for effective channel reuse, while cell sizing controls how far each AP ' s contention domain extends. RUCKUS Auto Cell Sizing can dynamically modify radio Tx and Rx parameters to reduce overlapping same-channel cells and mitigate AP-to-AP interference. Simply increasing AP transmit power usually enlarges cells and can make co-channel interference worse. BSS minimum rate settings can affect airtime efficiency and cell-edge behavior, but they are not one of the three fundamental design factors identified by the RUCKUS RCWA material for CCI management. Thus, B, C, and E are correct. Ruckus Training

================

SmartCast is RUCKUS’s patented traffic classification and Quality of Service (QoS) technology. It dynamically prioritizes network packets based on type, marking delay-sensitive applications such as voice or video for prioritized transmission.

Per RUCKUS One Online Help – SmartCast Traffic Prioritization , SmartCast identifies traffic categories using Deep Packet Inspection (DPI) and applies corresponding 802.1p/DSCP markings across wired and wireless segments.

This ensures consistent service quality for time-sensitive applications even during network congestion. BeamFlex+ , PD-MRC , and ChannelFly operate at the RF level and do not manage traffic prioritization or QoS policies.

A hidden node problem occurs when two or more client devices are within range of the AP but cannot hear each other , causing frame collisions that lead to degraded performance.

According to RUCKUS One Online Help – RF Interference and Hidden Node Detection and RUCKUS AI Documentation – Airtime Efficiency Analysis , the symptoms include:

(A) Retransmissions: Frequent retries due to undetected collisions.

(D) Reduced throughput: Effective throughput decreases as airtime is wasted on retransmissions and ACK delays.

The issue is common in high-density or obstructed environments. Enabling RTS/CTS or BeamFlex+ can mitigate it by improving communication coordination.

“Channel changes” occur in interference mitigation, not hidden-node detection; “Excessive roaming” and “Increased Tx power” are unrelated effects.

ChannelFly is RUCKUS’s machine learning–based dynamic channel selection technology. It evaluates real-time throughput on each channel rather than relying only on noise or interference metrics to determine the best operating channel.

As outlined in RUCKUS One Online Help – ChannelFly Operation and RUCKUS AI Documentation – Channel Optimization , ChannelFly continuously monitors channel conditions and switches to those offering higher capacity.

This ensures maximum real-world performance, especially in dense environments with unpredictable interference.

BeamFlex+ adjusts antenna patterns, SmartCast prioritizes traffic, and PD-MRC enhances signal reception but do not handle channel learning or selection.

To minimize co-channel interference (CCI) in multi-floor Wi-Fi environments, planners should assign different non-overlapping 2.4 GHz channels per floor —typically channels 1, 6, and 11.

According to RUCKUS One Online Help – RF Planning Best Practices , overlapping floors can cause vertical signal leakage, leading to channel contention and performance degradation. The RUCKUS Wi-Fi Planner allows layer-based channel mapping to simulate floor separation and interference.

While reducing transmit power can complement this strategy, channel segregation remains the primary CCI mitigation method. Increasing AP density or enabling SmartMesh does not resolve channel reuse conflicts in vertical topologies.

When a valid SSL certificate is installed on SmartZone , it is not automatically applied to all services. The WISPr (Wireless Internet Service Provider roaming) portal must have the certificate explicitly mapped to it in the Web Authentication settings .

According to RUCKUS One Online Help – Certificate Management and Portal Configuration , SSL certificates must be bound to individual services such as WISPr , SmartZone GUI , or AP web services . If a certificate is uploaded but not mapped, the portal continues using the default system certificate, leading to trust or validation errors for guest users.

The certificate does not need to be a wildcard, and WISPr can share a certificate with other services as long as it’s properly assigned.

The 802.11n amendment introduced frame aggregation to enhance throughput efficiency by reducing MAC-layer overhead. It combines multiple data frames into a single transmission unit, improving performance under high traffic loads.

According to RUCKUS One Online Help – 802.11 Standards Overview and RUCKUS Analytics 3.5 User Guide – PHY Efficiency Metrics , 802.11n added A-MSDU (Aggregate MAC Service Data Unit) and A-MPDU (Aggregate MAC Protocol Data Unit) mechanisms to optimize data transfer. This significantly increased throughput compared to earlier 802.11a/b/g implementations.

Subsequent standards like 802.11ac and 802.11ax further refined aggregation efficiency but built upon the original concept from 802.11n.

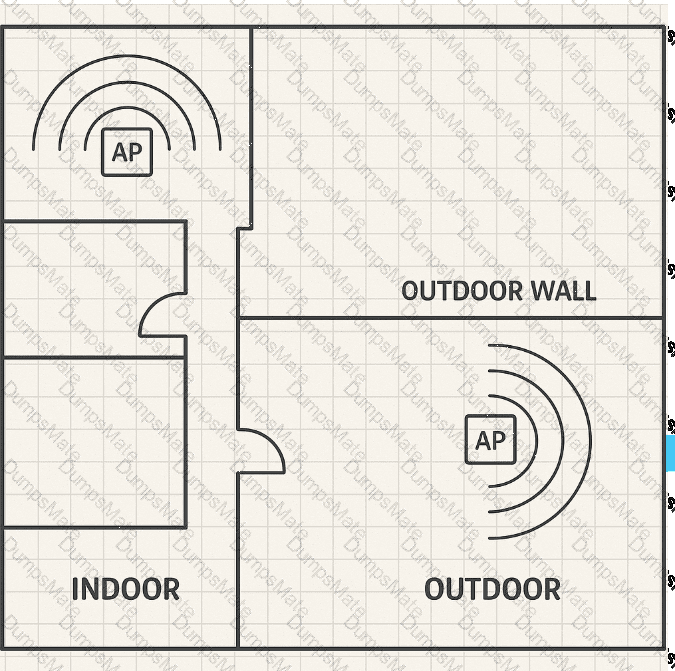

In this layout, the indoor APs are centrally mounted to provide even signal distribution in all directions, while outdoor APs are wall-mounted facing the exterior coverage zone.

According to RUCKUS One Online Help – Antenna Selection and Deployment and RUCKUS AI Documentation – RF Design Guidelines , the best configuration for complete coverage is:

Indoor space: Use Omni-Directional antennas , which radiate uniformly in 360° for even indoor coverage and minimal dead zones.

Outdoor space: Use Patch antennas , which are semi-directional with a 60°–90° beamwidth ideal for covering patios, courtyards, or building perimeters without wasting signal behind the AP.

Yagi antennas are highly directional and suited for long-distance point-to-point links, not area coverage. Semi-directional indoor antennas are unnecessary unless indoor partitioning or wall density requires focused energy.

This combination— Omni indoors and Patch outdoors —provides optimal performance for mixed indoor-outdoor designs and aligns with RUCKUS high-density deployment best practices .
