In the Juniper Networks Junos operating system,aggregate routesare used to represent a group of more specific routes with a single, shorter prefix. This technique is essential for reducing the size of routing tables and minimizing the volume of routing updates sent to neighbors. According to Juniper technical documentation, for a destination IP address to "match" a specific route, it must fall within the range defined by the network address and its associated CIDR mask.

The provided exhibit shows a detailed lookup for the aggregate route$10.16.2.0/23$. To determine the range of IP addresses covered by a $/23$ mask, we examine the binary representation of the third octet. A $/23$ mask means the first 23 bits are fixed. For the address $10.16.2.0$:

The first two octets ($10.16$) are fixed.

The third octet ($2$) is $00000010$ in binary.

The 23rd bit is the second-to-last bit of this octet.

The $/23$ range allows the 24th bit (the last bit of the third octet) and all 8 bits of the fourth octet to vary.

This results in a range where the third octet can be either $2$ ($00000010$) or $3$ ($00000011$). Therefore, the aggregate route $10.16.2.0/23$ covers all IP addresses from$10.16.2.0$ to $10.16.3.255$. The exhibit further confirms this by listing the "Contributing Routes": $10.16.2.0/24$ and $10.16.3.0/24$.

Analyzing the provided options against this range:

10.16.3.79 (Option A):This address falls squarely within the $10.16.2.0$ to $10.16.3.255$ range.

10.16.0.4 (Option B):This address falls in the $10.16.0.0/23$ range ($0.0$ to $1.255$).

10.16.4.183 (Option C):This address falls in the $10.16.4.0/23$ range ($4.0$ to $5.255$).

10.16.1.214 (Option D):This address also falls in the $10.16.0.0/23$ range.

Consequently,10.16.3.79is the only destination listed that matches the aggregate route shown. It is also important to note theNext hop type: Rejectin the exhibit; this means that if a packet matches the aggregate but does not match any of the more specific contributing routes, the router will drop the packet and send an ICMP unreachable message to the source.

Graceful Restart (GR)is a high-availability mechanism designed to minimize the impact of a routing protocol process (rpd) restart or a Routing Engine (RE) switchover. It allows a router to continue forwarding traffic while the control plane is recovering, provided that the data plane (Packet Forwarding Engine) remains intact.

According to Juniper Networks documentation, Graceful Restart operates in two distinct roles:

Restarting Mode:This is the role of the router that is actually undergoing the restart. In Junos OS, this mode isnot enabled by default (Option A). An administrator must explicitly configure graceful-restart under the [edit routing-options] hierarchy to allow the router to signal its neighbors that it is attempting a graceful recovery.

Helper Mode:This is the role of the neighboring routers. When a neighbor sees a router restart, if it is in "helper mode," it will continue to forward traffic toward the restarting router and will not flush the associated routes from its forwarding table for a specified period. In Junos,helper mode is enabled by default (Option B)for most protocols (OSPF, BGP, IS-IS). This means that even if you haven't configured GR on your own router, it will automatically assist its neighbors if they perform a graceful restart.

Why other options are incorrect:

Option C:WhileGRES (Graceful Routing Engine Switchover)is often usedwithGraceful Restart to handle hardware-level RE failures, they are independent features. GR can function during a simple software process restart without dual REs or GRES.

Option D:Nonstop Bridging (NSB)is a separate high-availability feature for Layer 2 protocols (like STP). While it shares a similar goal, Graceful Restart is specifically a Layer 3 protocol mechanism (Layer 2 does not use "helper" routers in the same way).

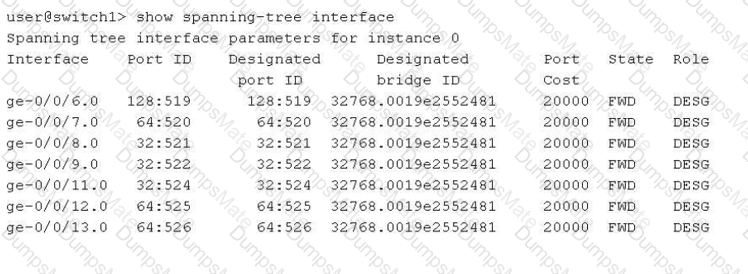

In the provided exhibit, the output of the command show spanning-tree interface for switch1 reveals critical details about the Spanning Tree Protocol (STP) operational state.

The first correct statement is thatthe switch1 device is the root bridge(Option B). This is determined by comparing the "Port ID" column with the "Designated port ID" column, as well as checking the "Designated bridge ID". In the exhibit, for every interface listed (from ge-0/0/6.0 to ge-0/0/13.0), the Port ID and the Designated port ID are identical. Furthermore, every port is in the "FWD" (Forwarding) state with the "DESG" (Designated) role. In a Spanning Tree topology, the root bridge is the only device where all active participating interfaces serve as designated ports, as it has no need for a "Root" port role (which points toward a root bridge).

The second correct statement is thatthe bridge priority for switch1 is 32k(Option D). Looking at the "Designated bridge ID" column, we see the value 32768.0019e2552481. In Junos and general networking standards, the Bridge ID is composed of a bridge priority and the device's MAC address. The default priority for most Spanning Tree variants (STP, RSTP, MSTP) is 32,768, which is commonly referred to in shorthand as "32k".

Regarding the incorrect options:

Option A:There is no evidence of VSTP (VLAN Spanning Tree Protocol); the output shows "instance 0," which is typical for IEEE standard RSTP or STP.

Option C:The Port IDs for ge-0/0/8, ge-0/0/9, and ge-0/0/11 all start with "32" (e.g., 32:521), whereas the default port priority is typically 128 (as seen in ge-0/0/6.0 with 128:519). This indicates that the interface priorities for these specific ports have been manually tuned to a non-default value.
