Understanding the Configuration:

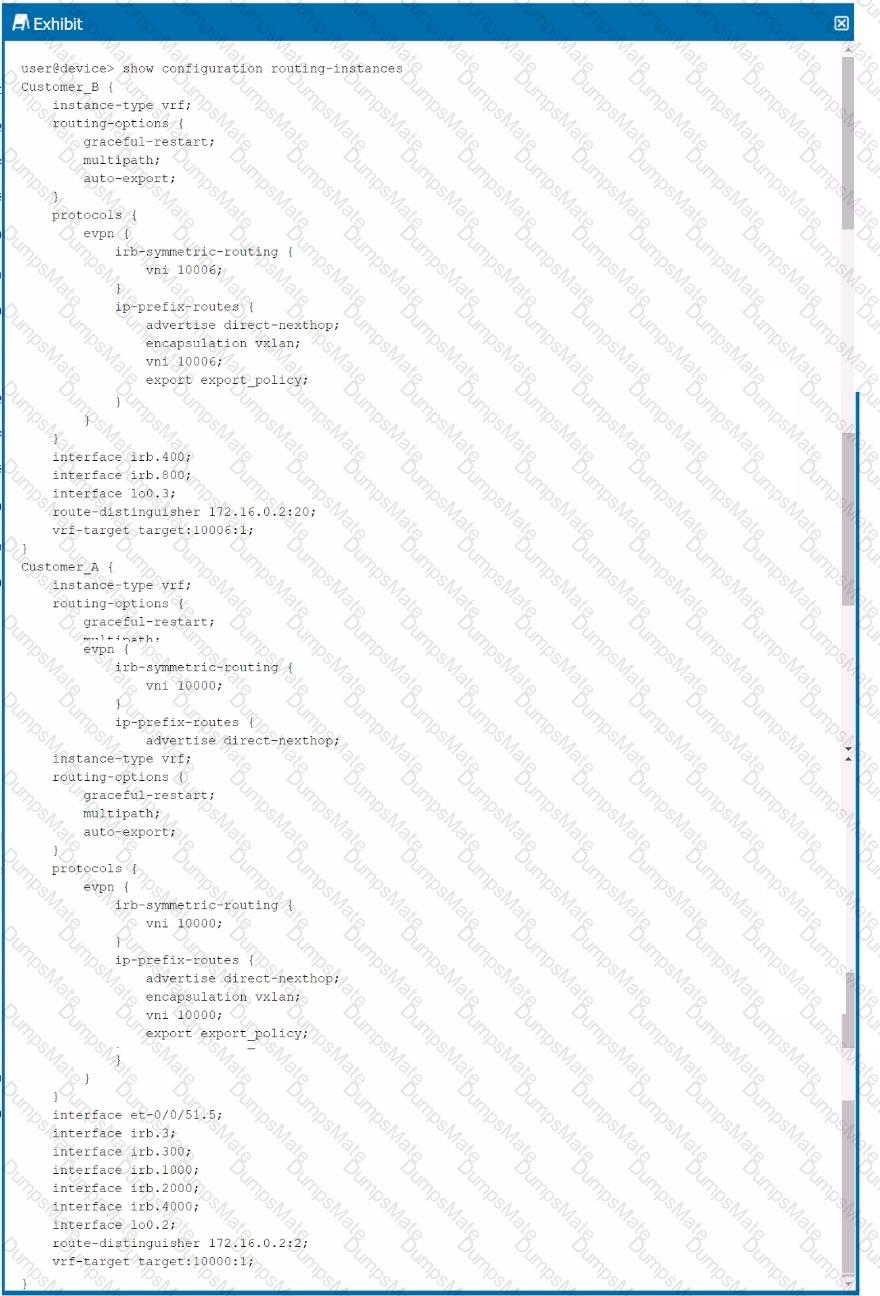

The exhibit shows configurations for two VRFs (Customer_A and Customer_B) with specific VLANs and VNIs assigned. Each VRF has interfaces (IRBs) associated with particular VLANs.

Communication Between VLANs and Routing Instances:

Option B:VLAN 400 (irb.400) is part of Customer_B, and there is no direct connection or routing between Customer_A and Customer_B in the configuration provided. Therefore, devices in irb.400 cannot communicate directly with devices in the Customer_A routing instance.

Option D:Since irb.400 (VLAN 400) and irb.800 (VLAN 800) are part of the same routing instance (Customer_B), they can communicate over the fabric using VXLAN encapsulation.

Conclusion:

Option B:Correct—There is no direct communication between devices in irb.400 (Customer_B) and routing instance Customer_A.

Option D:Correct—Devices in VLAN 400 and VLAN 800 can communicate within the Customer_B routing instance over the fabric.

Understanding Oversubscription in a Clos Fabric:

The oversubscription ratio in a Clos IP fabric measures the ratio of the amount of edge (leaf) bandwidth to the core (spine) bandwidth. An oversubscription ratio of 3:1 means that there is three times more edge bandwidth compared to core bandwidth.

Impact of Adding/Removing Spine Devices:

Option C:If youremove spine devices, the total available core bandwidth decreases, while the edge bandwidth remains the same. This results in anincrease in the oversubscription ratiobecause there is now less core bandwidth to handle the same amount of edge traffic.

Option B:Conversely, if youadd spine devices, the total core bandwidth increases. This decreases the oversubscription ratio because more core bandwidth is available to handle the edge traffic.

Conclusion:

Option C:Correct—Removing spine devices increases the oversubscription ratio.

Option B:Correct—Adding spine devices decreases the oversubscription ratio.

MAC Move Limiting:

MAC move limiting is a security feature used in network switches to detect and mitigate rapid changes in MAC address locations, which could indicate a network issue or an attack such as MAC flapping or spoofing.

When a MAC address is learned on a different interface than it was previously learned, the switch can take various actions to prevent potential issues.

Available Actions:

A. drop:This action drops packets from the MAC address if it violates the move limit, effectively blocking communication from the offending MAC address.

D. log:This action logs the MAC move event without disrupting traffic, allowing network administrators to monitor and investigate the event.

E. shutdown:This action shuts down the interface on which the MAC address violation occurred, effectively stopping all traffic on that interface to prevent further issues.

Other Actions (Not Correct):

B. filter:Filtering is not typically associated with MAC move limiting; it generally refers to applying ACLs or other mechanisms to filter traffic.

C. enable:This is not an action related to MAC move limiting, as it does not represent a specific reaction to a MAC move event.

Data Center References:

MAC move limiting is crucial for maintaining network stability and security, particularly in environments with dynamic or large-scale Layer 2 networks where MAC addresses might frequently change locations.
