 Understanding the Problem:

Host1 (10.1.1.1) is failing to communicate with Host2 (10.1.2.1) within an EVPN-VXLAN environment using ERB architecture.

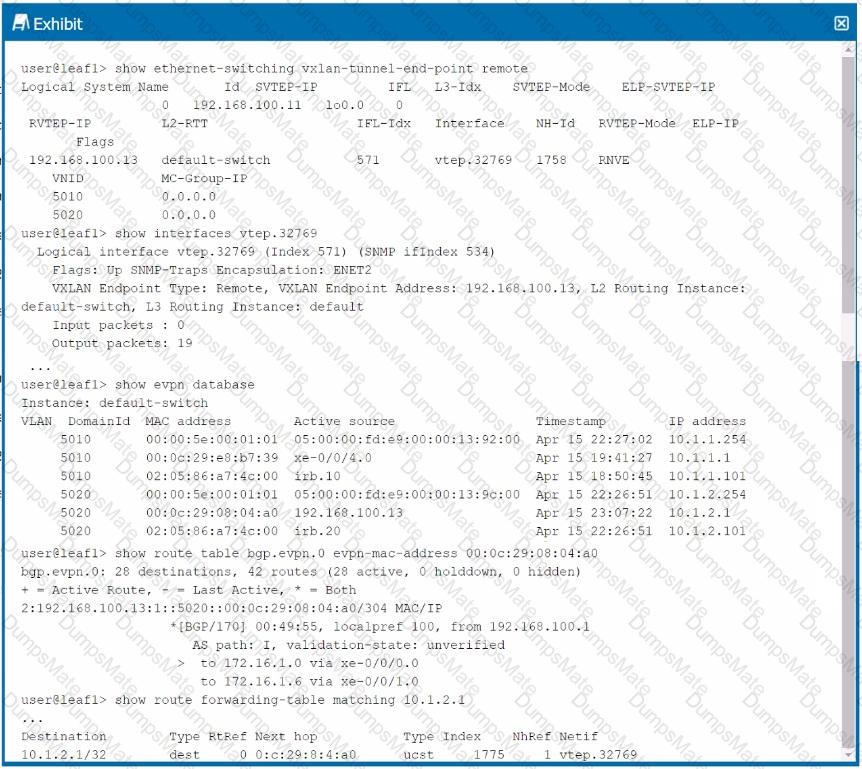

 Analysis of the Exhibit:

The provided output includes information from the show route forwarding-table matching command for IP 10.1.2.1. The next hop is shown as vtep.32769, which indicates that the traffic destined for 10.1.2.1 is being forwarded into the VXLAN tunnel with the correct VTEP (VXLAN Tunnel Endpoint).

 Conclusion:

Option B:Correct—The traffic from Host1 is entering the VXLAN tunnel, as evidenced by the next hop pointing to a VTEP. However, the issue could lie elsewhere, possibly with the remote VTEP, routing configurations, or the receiving leaf/spine devices.

Understanding Seamless Stitching:

Seamless stitching is used in EVPN to interconnect two data centers, allowing for consistent Layer 2 and Layer 3 connectivity across them. This is often achieved by translating VNIs (Virtual Network Identifiers) between the data centers.

Translation-VNI:

Option B:The translation VNI must be different in each data center to ensure that traffic can be correctly routed and distinguished as it crosses between the data centers. This differentiation helps to maintain the integrity of the traffic flows and prevents any potential overlap or conflict in VNIs.

Ethernet Segment Identifier (ESI):

Option D:The ESI must match in both data centers to ensure that the same Ethernet segment (which could be multihomed) is recognized consistently across the datacenters. Matching ESIs are crucial for maintaining a unified view of the Ethernet segment across the interconnected fabric.

Conclusion:

Option B:Correct—Translation VNIs must be unique to each data center for proper traffic distinction.

Option D:Correct—Matching ESIs are necessary to maintain consistent Ethernet segment identification across both data centers.

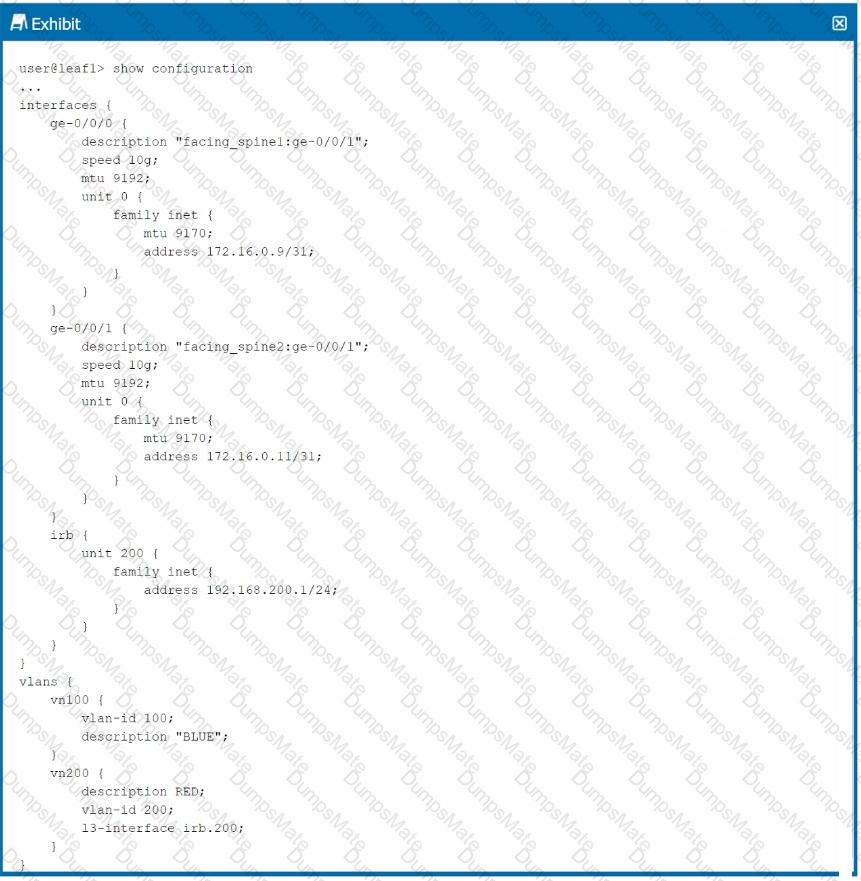

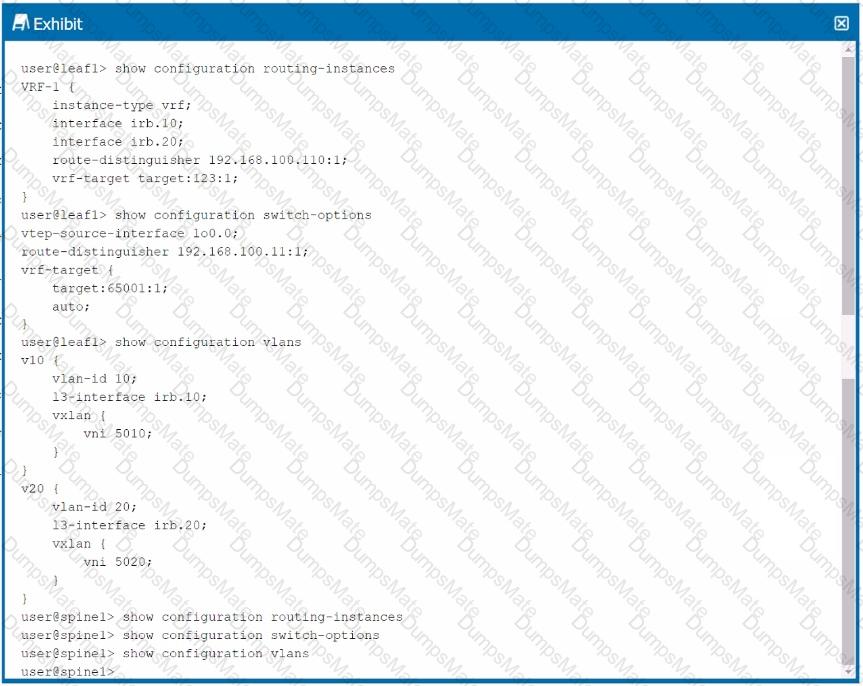

In the provided network configuration, Host A is in VLAN 100 and Host B is in VLAN 200. The issue arises because these two hosts are unable to communicate, which indicates that either the interfaces are not properly linked to their respective VLANs, or there is a missing static route required for inter-VLAN routing.

Step-by-Step Analysis:

VLAN Assignment:

The exhibit shows that irb.200 is correctly associated with VLAN 200 in the configuration. However, there is no corresponding irb.100 for VLAN 100. Without irb.100, the network lacks the logical interface to handle routing for VLAN 100. Thus, adding irb.100 to VLAN 100 is necessary.

Command to solve this:

set vlans vn100 13-interface irb.100

Static Route Configuration:

For inter-VLAN routing to occur, a static route needs to be configured that allows traffic to pass between different subnets (in this case, between VLAN 100 and VLAN 200). The command set routing-options static route 0.0.0.0/0 next-hop 192.168.200.10 would add a static route that directs all traffic from VLAN 100 to the correct gateway (192.168.200.10), which is necessary to route traffic between the two VLANs.

Command to solve this:

set routing-options static route 0.0.0.0/0 next-hop 192.168.200.10

Explanation of Incorrect Options:

Option A (delete vlans vn200 13-interface irb.200): This would remove the logical interface associated with VLAN 200, which is not desired because we need VLAN 200 to remain active and properly routed.

Option B (set interfaces irb unit 100 family inet address 192-168.100.1): This command would incorrectly assign an IP address that does not correspond with the subnet of VLAN 100 (192.168.200.1/24). This could create a misconfiguration, leading to routing issues.

Data Center References:

For a Data Center, proper VLAN management and static routing are crucial for ensuring that different network segments can communicate effectively, especially when dealing with separated subnets or zones like in different VLANs. This aligns with best practices in DCIM (Data Center Infrastructure Management) which stress the importance of proper network configuration to avoid downtime and ensure seamless communication between all critical IT infrastructure components.

Ensuring that the correct interfaces are associated with the correct VLANs and having the proper static routes in place are both essential steps in maintaining a robust and reliable data center network.

This detailed analysis reflects best practices as noted in standard data center design and network configuration guides​.

Zero Touch Provisioning (ZTP):

ZTP allows for the automated configuration of network devices, like QFX Series switches, without manual intervention. During ZTP, a switch will obtain its configuration from a DHCP server and then download the required software and configuration files from a specified server (e.g., FTP, HTTP).

DHCP Server Configuration:

Option B:The DHCP server needs to know theMAC address for each QFX5120to provide a specific configuration based on the device identity. By mapping the MAC address to a particular configuration, the DHCP server can ensure that each switch gets the correct configuration.

Option D:Themanagement IP address for each QFX5120must also be assigned by the DHCP server. This IP address allows the device to communicate on the network and access the configuration files and other required resources during the ZTP process.

Conclusion:

Option B:Correct—MAC addresses allow the DHCP server to identify each QFX5120 and assign the appropriate configuration.

Option D:Correct—Management IP addresses are essential for network communication during ZTP.

Understanding sFlow Monitoring:

sFlow is a packet sampling technology used to monitor traffic in a network. It sends sampled packet data and interface counters to an sFlow collector, which analyzes the traffic patterns.

Information Included in sFlow Datagram:

Option A:The datagram sent to the sFlow collector includes information about the interface through which the packets entered the agent (the switch or router). This is crucial for understanding where in the network the traffic was captured.

Option D:sFlow datagrams also include the source and destination VLAN for the sampled packets. This allows for detailed analysis of the traffic flow within different VLANs.

Conclusion:

Option A:Correct—The ingress interface is included in the sFlow datagram.

Option D:Correct—The source and destination VLANs are also included, providing context for the sampled traffic.

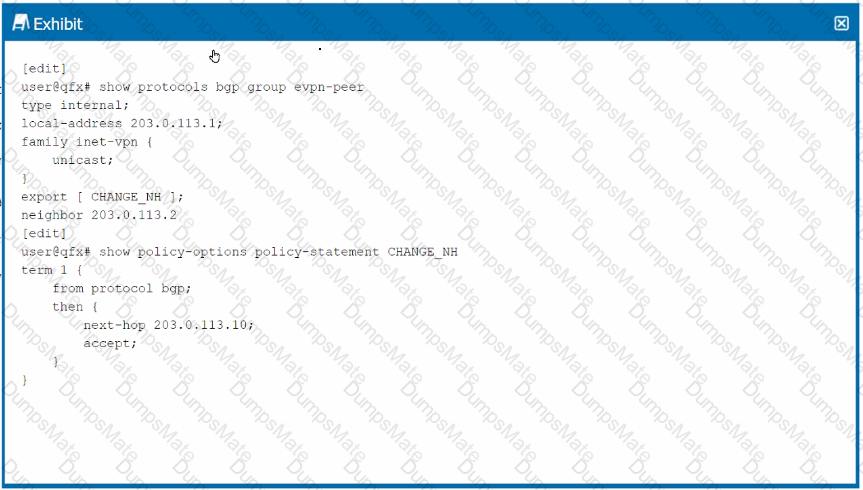

Understanding VPN Route Table Association:

In MPLS/VPN and EVPN networks, theroute-target communityis a BGP extended community attribute used to control the import and export of VPN routes. It associates received routes with the appropriate VPN route tables on the PE (Provider Edge) routers.

Function of Route-Target Community:

The route-target community tag ensures that routes are imported into the correct VRF (Virtual Routing and Forwarding) instance, allowing them to be correctly routed within the VPN.

Conclusion:

Option A:Correct—The route-target community is used to associate received routes with a local VPN route table.

Controlling Traffic Within a Tenant's Network:

The requirement is to limit access to specific traffic types within a tenant’s network without routing all tenant traffic through a firewall. This requires a selective method that can direct specific types of traffic to different paths based on the nature of the traffic.

Filter-Based Forwarding (FBF):

FBF is a technique that allows for routing decisions based on filters applied to the traffic, such as matching on source IP addresses, destination IP addresses, or even specific application types (like HTTP or FTP). This allows specific types of traffic to be forwarded to a specific next hop (e.g., a firewall) without affecting the entire traffic flow within the tenant's network.

Conclusion:

Option B:Correct—Filter-based forwarding allows for granular control of traffic, ensuring that only specific types of traffic within the tenant's network are redirected through a firewall, satisfying the requirement.

DHCP Behavior in Factory-Default Configuration:

Option B:In the factory-default configuration, Juniper switches are designed to send DHCP requests on all operational interfaces. This behavior ensures that the switch can obtain an IP address for management and further configuration from any available DHCP server.

Option D:The DHCP server can provide additional configuration parameters, including the required Junos version. This allows for automated provisioning and ensures that the switch is running the correct software version.

Conclusion:

Option B:Correct—The switch will use any operational interface to request an IP address via DHCP.

Option D:Correct—The DHCP server can specify Junos version requirements, enabling automated software management.

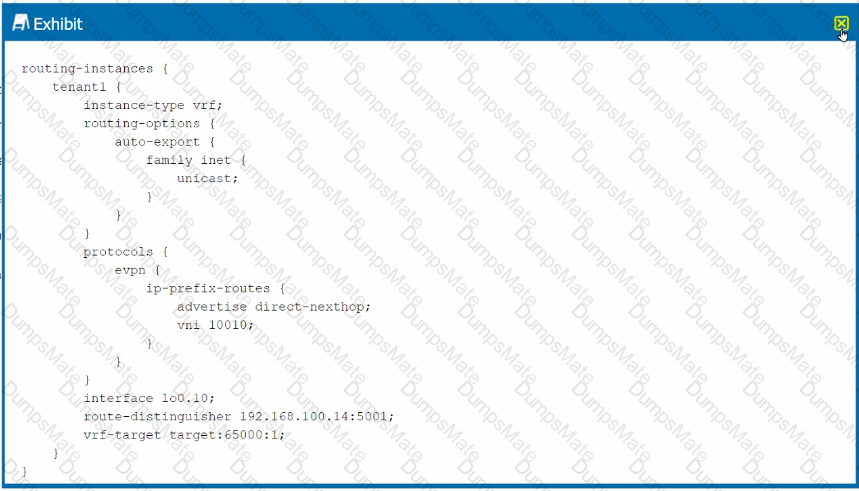

Layer 2 and Layer 3 Connectivity Requirements:

To interconnect two data centers across an IP backbone with both Layer 2 (L2) and Layer 3 (L3) connectivity, EVPN-VXLAN (Ethernet VPN with Virtual Extensible LAN) is the idealsolution. EVPN supports L2 VPNs while also enabling L3 connectivity across multiple locations.

Necessary EVPN Route Types:

Type 2 EVPN Routes:These routes are used to advertise MAC addresses for Layer 2 connectivity. They are essential for enabling seamless L2 communication across data centers.

Type 5 EVPN Routes:These routes are necessary for advertising IP prefixes for Layer 3 connectivity between data centers. They enable the exchange of L3 information across the IP backbone, ensuring routed traffic can reach its destination.

Border Leaf Nodes:

Border Leaf Nodes:Ensuring that the border leaf nodes (the entry and exit points for traffic between data centers) can exchange EVPN routes is critical for the correct dissemination of both L2 and L3 information across the data centers.

Conclusion:

Option A:Correct—Type 2 EVPN routes are required for Layer 2 MAC address learning and communication across the DCI (Data Center Interconnect).

Option B:Correct—Border leaf nodes need to exchange EVPN routes to maintain connectivity between data centers.

Option D:Correct—Type 5 EVPN routes are essential for Layer 3 connectivity across the DCI.

OptionsCandEare incorrect because they refer to establishing full mesh VTEPs (VXLAN Tunnel Endpoints) across all spine or leaf nodes, which is unnecessary for the scenario provided. The focus should be on border leaf nodes and appropriate route advertisements for L2 and L3 connectivity.

Understanding the Scenario:

In an EVPN-VXLAN environment, when using multi-homing in active/active scenarios, there's a risk that a multihomed server might receive duplicate copies of Broadcast, Unknown unicast, and Multicast (BUM) traffic. This is because multiple VTEPs might forward the same BUM traffic to the server.

EVPN Route Types:

Type 4 Route (Ethernet Segment Route):This route type is used to advertise the Ethernet Segment (ES) to which the device is connected. It is specifically used in multi-homing scenarios to signal the ES and its associated Ethernet Tag to all the remote VTEPs. The Type 4 route includes information that helps prevent BUM traffic duplication in active/active multi-homing by using a split-horizon mechanism, which ensures that traffic sent to a multihomed device does not get looped back.

Explanation:

The Type 4 route is crucial for ensuring that in a multi-homed setup, particularly in an active/active configuration, BUM traffic does not result in duplication at the server. The route helps coordinate which VTEP is responsible for forwarding the BUM traffic to the server, thereby preventing duplicate traffic.

Data Center References:

Type 4 routes are essential for managing multi-homing in EVPN to avoid the issues of BUM traffic duplication, which could otherwise lead to inefficiencies and potential network issues.

Scenario Overview:

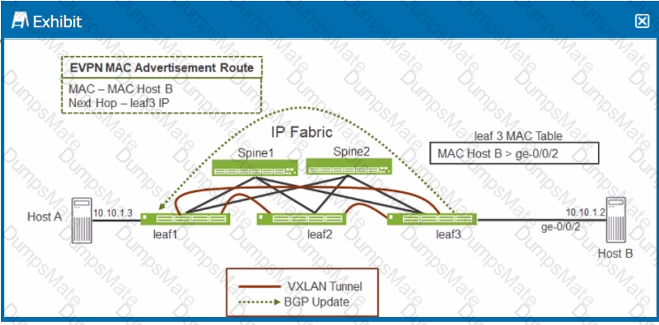

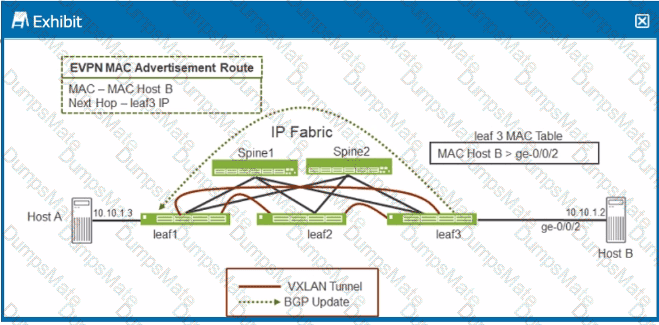

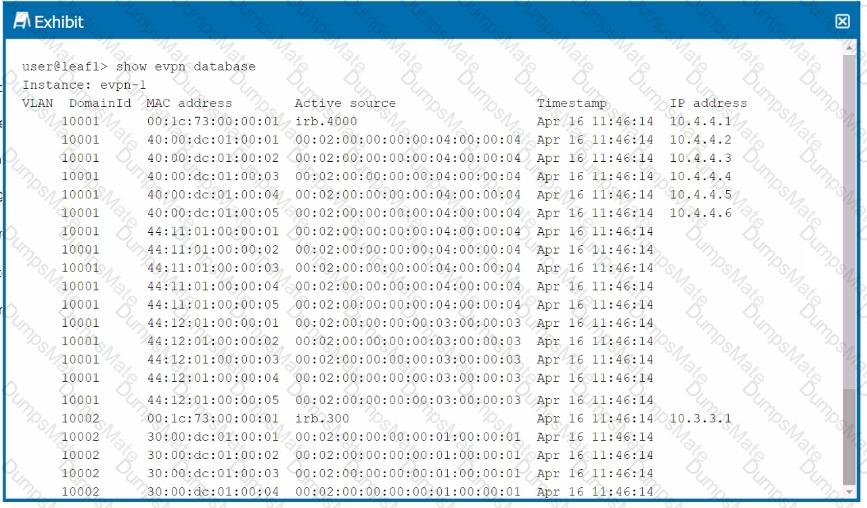

In the exhibit, Host A is trying to resolve Host B's IP address (10.10.1.2) through ARP (Address Resolution Protocol). Normally, an ARP request would be broadcasted over the network, and the host owning the IP address (Host B) would respond.

Role of Proxy ARP:

Option A:Proxy ARPallows a router or switch (in this case, leaf1) to respond to ARP requests on behalf of another host. Leaf1, knowing the MAC address of Host B through the EVPN MAC advertisement, can reply to Host A's ARP request directly without broadcasting the request across the entire network fabric. This feature reduces unnecessary traffic and increases network efficiency.

Conclusion:

Option A:Correct—Proxy ARP enables leaf1 to respond to Host A's ARP request for Host B's IP without broadcasting over the IP fabric, thus providing the ARP response locally.

Collapsed Fabric Architecture:

A collapsed fabric refers to a simplified architecture where the spine and leaf roles are combined, often reducing the number of devices and links required.

In this architecture, the spine typically handles core switching, while leaf switches handle both access and distribution roles.

Understanding Border Gateway Functionality:

Border gateway functions include connecting the data center to external networks or other data centers.

In a collapsed fabric, these functions are usually handled at the leaf level, particularly on border leaf devices that manage the ingress and egress of traffic to and from the data center fabric.

Correct Statement:

D. Border gateway functions occur on border leaf devices:This is accurate in collapsed fabric architectures, where the border leaf devices take on the role of managing external connections and handling routes to other data centers or the internet.

Data Center References:

The collapsed fabric model is advantageous in smaller deployments or scenarios where simplicity and cost-effectiveness are prioritized. It reduces complexity by consolidating functions into fewer devices, and the border leaf handles the critical task of interfacing with external networks.

In conclusion, border gateway functions are effectively managed at the leaf layer in collapsed fabric architectures, ensuring that the data center can communicate with external networks seamlessly.

Telemetry Methods in Junos:

Telemetry is used to collect and report data from network devices. For high-frequency statistics reporting, such as every five seconds, you need a telemetry method that supports this level of granularity and real-time monitoring.

Junos Native Sensors:

Option C:Native Sensors in Junos provide detailed, high-frequency telemetry data, including TX and RX traffic statistics for interfaces. They are designed to offer real-time monitoring with customizable sampling intervals, making them ideal for the five-second reporting requirement.

Conclusion:

Option C:Correct—Native Sensors in Junos are capable of providing the required high-frequency telemetry data every five seconds.

MAC Move Limiting:

MAC move limiting is a security feature used in network switches to detect and mitigate rapid changes in MAC address locations, which could indicate a network issue or an attack such as MAC flapping or spoofing.

When a MAC address is learned on a different interface than it was previously learned, the switch can take various actions to prevent potential issues.

Available Actions:

A. drop:This action drops packets from the MAC address if it violates the move limit, effectively blocking communication from the offending MAC address.

D. log:This action logs the MAC move event without disrupting traffic, allowing network administrators to monitor and investigate the event.

E. shutdown:This action shuts down the interface on which the MAC address violation occurred, effectively stopping all traffic on that interface to prevent further issues.

Other Actions (Not Correct):

B. filter:Filtering is not typically associated with MAC move limiting; it generally refers to applying ACLs or other mechanisms to filter traffic.

C. enable:This is not an action related to MAC move limiting, as it does not represent a specific reaction to a MAC move event.

Data Center References:

MAC move limiting is crucial for maintaining network stability and security, particularly in environments with dynamic or large-scale Layer 2 networks where MAC addresses might frequently change locations.

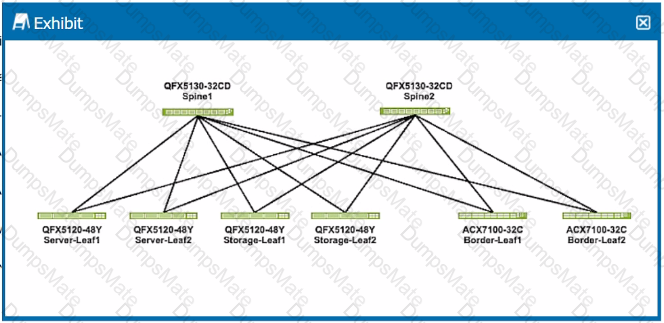

Understanding Oversubscription in a Clos Fabric:

The oversubscription ratio in a Clos IP fabric measures the ratio of the amount of edge (leaf) bandwidth to the core (spine) bandwidth. An oversubscription ratio of 3:1 means that there is three times more edge bandwidth compared to core bandwidth.

Impact of Adding/Removing Spine Devices:

Option C:If youremove spine devices, the total available core bandwidth decreases, while the edge bandwidth remains the same. This results in anincrease in the oversubscription ratiobecause there is now less core bandwidth to handle the same amount of edge traffic.

Option B:Conversely, if youadd spine devices, the total core bandwidth increases. This decreases the oversubscription ratio because more core bandwidth is available to handle the edge traffic.

Conclusion:

Option C:Correct—Removing spine devices increases the oversubscription ratio.

Option B:Correct—Adding spine devices decreases the oversubscription ratio.

Understanding the Configuration:

The exhibit shows configurations for two VRFs (Customer_A and Customer_B) with specific VLANs and VNIs assigned. Each VRF has interfaces (IRBs) associated with particular VLANs.

Communication Between VLANs and Routing Instances:

Option B:VLAN 400 (irb.400) is part of Customer_B, and there is no direct connection or routing between Customer_A and Customer_B in the configuration provided. Therefore, devices in irb.400 cannot communicate directly with devices in the Customer_A routing instance.

Option D:Since irb.400 (VLAN 400) and irb.800 (VLAN 800) are part of the same routing instance (Customer_B), they can communicate over the fabric using VXLAN encapsulation.

Conclusion:

Option B:Correct—There is no direct communication between devices in irb.400 (Customer_B) and routing instance Customer_A.

Option D:Correct—Devices in VLAN 400 and VLAN 800 can communicate within the Customer_B routing instance over the fabric.
