When sizing a migration from a highly efficient array like the HPE Alletra 9000 (or Primera) to the next-generation HPE Alletra MP B10000, storage architects must account for the difference between the "Written Capacity" (what the host thinks it has stored) and the "Consumed Capacity" (the physical space used after data reduction).

The standard best practice for an HPE Master ASE when performing these migrations is to Size to consumption multiplied by 1.25. This "1.25 factor" (representing a 25% overhead) is the recommended safety margin used in sizing tools like HPE NinjaStars and the HPE Cloud Physics assessment reports.

This 25% buffer is designed to cover several critical architectural requirements:

System Metadata and Overhead: Both the Alletra 9000 and Alletra MP require physical capacity to store internal metadata, map tables, and the structures required for their respective data reduction engines.

Snapshot Reserve: While snapshots are thin and pointer-based, they still consume physical space as data changes over time. The 1.25 multiplier ensures there is enough "headroom" for typical snapshot retention policies.

Data Reduction Parity: Data reduction ratios (deduplication and compression) can fluctuate based on the specific workload. Sizing exactly to current consumption without a buffer risks an out-of-space condition if the new array's reduction engine handles a specific block pattern slightly differently during the initial ingest.

Operational Performance: SSD-based arrays perform best when they are not "packed" to 100% capacity, as the garbage collection and wear-leveling processes require free blocks to operate efficiently.

Sizing to "original capacity" (Option D) would lead to a massive over-provisioning and wasted cost, as it ignores the benefits of modern data reduction. Option C (1.5) is generally considered overly conservative for modern flash environments, while 1.25 provides the optimal balance of cost-efficiency and technical risk mitigation.

When designing an HPE Morpheus environment for an enterprise-scale workload (such as 1,000+ VMs), a standalone "all-in-one" installation is insufficient for high availability (HA) and performance requirements. Instead, a 3-node Distributed Architecture must be implemented to ensure redundancy across all critical service layers.

In a distributed, redundant Morpheus setup, the architecture is broken down into three primary tiers: the Application tier, the Database tier (MySQL/Percona), and the Messaging/Search tier (Elasticsearch and RabbitMQ). To achieve a basic redundant footprint, you require at least two Morpheus application nodes, three database nodes (for quorum), and a messaging cluster. According to the HPE Morpheus Architecture and Sizing Guide, a standard HA deployment starts with a minimum of six VMs to separate these functions. However, for a production environment of this size, it is recommended to have a minimum of 10 VMs. This expanded footprint typically includes 3 App nodes, 3 Database nodes, and a 3-node cluster for Elasticsearch/RabbitMQ, plus a dedicated load balancer or management node, ensuring that the loss of any single host does not impact the management plane's availability.

Option C is incorrect because a distributed installation is significantly more complex than the "all-in-one" appliance approach and requires manual configuration of externalized services. Option B is slightly inaccurate because while RabbitMQ itself is required, a dedicated "RabbitMQ load balancer" is often handled by the primary application load balancer (like an F5 or NetScaler) rather than being a specific required installation component. Option D is incorrect as upgrades in a distributed environment involve a coordinated, multi-step process across all nodes, which typically requires a scheduled maintenance window rather than "minimal" downtime.

The HPE Quorum Witness (QW) is a critical component for facilitating Automatic Transparent Failover (ATF) in Peer Persistence, Active Peer Persistence, and Active Sync Replication configurations. Its primary architectural purpose is to act as an independent "tie-breaker" during a split-brain scenario—a situation where the storage arrays lose their heartbeat/replication links and both attempt to claim primary ownership of the volumes.

According to HPE documentation, the Quorum Witness must be installed at a third, neutral site that is geographically separate and failure-independent from the sites hosting the primary and secondary arrays. This "Third Site" placement ensures that if either site hosting an array experiences a total power or network failure, the remaining array can still reach the Quorum Witness via the network to obtain a "quorum vote" and safely assume the primary role without manual intervention. If the QW were placed at the same site as one of the arrays, a failure at that site would take down both the storage and the witness, preventing the surviving array at the other site from achieving quorum for an automatic failover.

Connectivity to the Quorum Witness is strictly over IP (Ethernet); it does not require Fibre Channel (FC) connectivity. While Option B suggests a limitation to specific Linux VMs, the QW is a self-contained application that can be installed on either physical or virtual machines running a variety of supported Linux host OS versions listed in the HPE SPOCK matrix (including RHEL, SUSE, and CentOS). Option A is slightly imprecise because the arrays themselves initiate the failover logic after querying the QW, rather than the QW "initiating" it autonomously. Therefore, the recommendation for third-site placement remains the most essential architectural requirement.

Performance Estimation

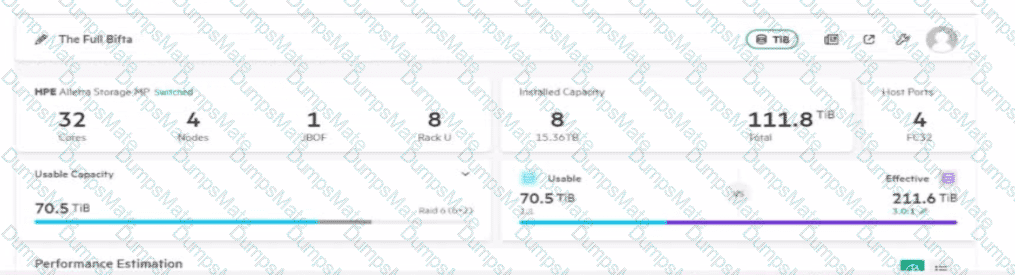

The HPE Ninja Sizer is a vital tool for storage architects to model the "Performance vs. Capacity" trade-offs of the HPE Alletra MP B10000 disaggregated architecture. In this scenario, the current configuration (as shown in the exhibit) consists of 4 nodes and 1 JBOF (with 8 drives of 15.36TB each).

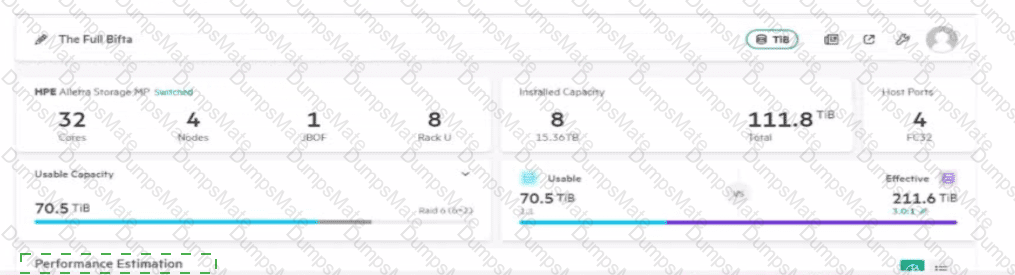

To address poor read/write performance in Ninja Sizer, the partner must analyze the Performance Estimation pane. By clicking the chart/graph icon in the bottom right of the summary dashboard, the tool opens a detailed breakdown of the IOPS, throughput, and latency limits for the selected hardware. In a disaggregated shared-everything (DASE) architecture like the Alletra MP, performance is a direct function of the "node-to-drive" ratio. A configuration with only 8 drives (as seen in image_6491d0.png) may be "disk-bound," meaning the controllers have more compute power than the backend drive count can support in parallel.

By accessing the performance details, the partner can see if the bottleneck is at the node level (CPU/Cores) or the drive level (Flash bandwidth). To "correct this issue" and optimize the sizing, the partner would typically need to increase the drive count within the JBOF to allow for more parallel I/O streams or add additional JBOFs to scale the backend bandwidth. The Ninja Sizer provides real-time feedback; as the partner adds more 15.36TB drives, they will see the Performance Estimation bars move from yellow/red toward green, indicating an appropriately balanced solution that meets the customer's latency and throughput SLAs.

In modern versions of Zerto (specifically starting with Zerto 9.0 and 9.5), the security model for site pairing was significantly enhanced to move away from legacy credential sharing. To establish a secure relationship between two Zerto Virtual Managers (ZVMs), the administrator must utilize a Pairing Token.

Architecturally, the pairing process works as a "push-pull" handshake. The administrator first logs into the Target (Remote) ZVM—the site that will receive the replication—and navigates to the "Sites" tab. There, they select the option to "Generate Pairing Token." This token is a unique, time-sensitive alphanumeric string that acts as a one-time password for the pairing attempt. Once generated, the administrator copies this token and logs into the Source (Local) ZVM. During the "Pair" wizard, they specify the IP address or FQDN of the remote ZVM and paste the pairing token.

According to the HPE Advanced Storage Solutions implementation guides, this token replaces the need for the source site to know the administrative credentials of the remote vCenter or ZVM, thereby adhering to the principle of least privilege. The token typically has a default expiration (e.g., 48 hours) or expires immediately after a successful pairing session. This ensures that even if a token is intercepted, its window of utility is minimal. Options A and B are incorrect as they represent legacy or non-standard methods; while vCenter credentials are required for the initial installation and registration of the ZVM, they are not the mechanism used for the pairing handshake itself. Option D is incorrect as Zerto manages the underlying encryption keys automatically once the pairing is authenticated via the Pairing Token.

HPE Morpheus Enterprise provides extensive native monitoring for provisioned resources, but for deep, full-stack observability into applications, databases, and third-party services via a specialized SaaS-based analytics platform, it integrates with external providers through plugins.

The Datadog Integration Plugin is a primary example of this capability. Datadog is an industry-leading SaaS data analytics platform that monitors performance across every layer of the stack—from infrastructure metrics to application traces and logs. By installing the Datadog plugin in Morpheus, the administrator bridges the gap between the orchestration engine (Morpheus) and the observability platform (Datadog). This plugin adds a contextual "Datadog" tab to instances within the Morpheus UI, pulling real-time performance telemetry directly from the SaaS backend into the Morpheus management pane. This allows the administrator to view workload health and deep-dive analytics without switching consoles.

While HPE OpsRamp (Option C) is part of the broader HPE CloudOps Software suite and provides similar observability features, it is often treated as a separate, complementary software component rather than a specific "SaaS plugin" used within the core Morpheus instance-level analytics in the same context as Datadog's marketplace integration. The Morpheus Agent (Option A) is a local software component used for guest-level automation and basic health checks, not a SaaS analytics platform. By choosing Datadog, the administrator leverages a purpose-built SaaS solution to gain the "monitoring of applications, servers, and databases" required by the prompt through a pre-validated community or enterprise plugin.

HPE CloudPhysics is a SaaS-based analytics platform integrated into the HPE GreenLake Data Services Cloud Console (DSCC) that provides deep insights into virtualized infrastructure. It uses a visual metaphor called "cards" to present focused analytics for specific use cases.

When a customer is concerned about storage efficiency and the overall impact of VM workloads, the Simulator for VM Rightsizing (also known as the VM Rightsizing Simulator) is the primary tool for analysis. This card specifically identifies inefficiencies such as over-provisioned or "oversized" virtual machines. By analyzing the actual resource utilization (CPU, memory, and I/O) versus the allocated capacity, the rightsizing simulator can highlight which VMs are consuming excessive resources without operational need.

Reviewing this card first is critical because storage efficiency is often compromised by "virtual sprawl" and bloated VM templates that waste disk space and IOPS on the backend HPE Alletra arrays. While the Shared Storage Analysis card (Option C) provides visibility into datastore contention and performance, the Simulator for VM Rightsizing provides the most direct answer to "efficiency" concerns by identifying the exact VMs that can be trimmed down to reclaim stranded capacity. Correcting VM sizing at the hypervisor level is often the most effective first step in optimizing the performance and capacity return on investment of the underlying storage hardware.

Catalyst Stores

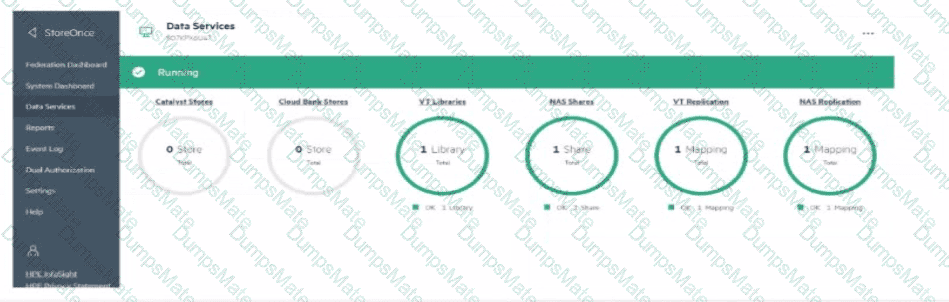

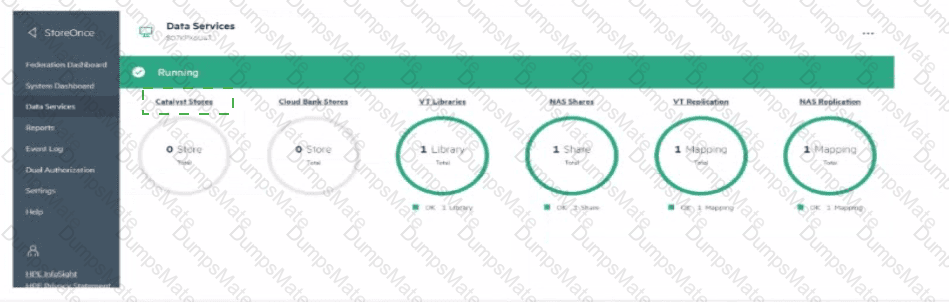

To integrate Oracle RMAN with an HPE StoreOnce appliance, the primary requirement is the creation of a StoreOnce Catalyst Store. Unlike traditional NAS shares or Virtual Tape Libraries (VTL), Catalyst is a proprietary, high-performance protocol designed specifically for deduplication-aware backup workloads.

According to the HPE StoreOnce Catalyst for Oracle RMAN User Guide, the first step in the configuration workflow is to establish a target repository on the appliance. As shown in the exhibit (image_64a41b.png), the administrator has navigated to the Data Services section. To begin the Oracle RMAN integration, they must click on the Catalyst Stores tile (currently showing "0 Store"). Within this menu, they will create a new store and configure the necessary client access permissions, allowing the Oracle database server to communicate with the appliance using the Catalyst protocol.

Once the store is created in the UI, the second phase of the implementation occurs on the Oracle host, where the HPE StoreOnce Catalyst Plug-in for Oracle RMAN must be installed. This plug-in provides the "SBT" (System Backup to Tape) interface that RMAN uses to direct backup streams to the Catalyst Store. By using Catalyst instead of traditional NAS (CIFS/NFS), the customer benefits from source-side deduplication, which significantly reduces network traffic and backup windows by only sending unique data blocks from the database server to the StoreOnce system. Selecting the "NAS Shares" or "VT Libraries" options in the UI would not provide the necessary Catalyst interface required for this optimized Oracle RMAN integration.

In a Zerto environment, a Virtual Protection Group (VPG) is the fundamental unit of management used to group virtual machines that must be replicated together to maintain write-order fidelity and application consistency. This is particularly vital for multi-tier applications, such as a database server and a web server, that need to be recovered to the exact same point in time.

According to the HPE Advanced Storage Solutions technical guides and Zerto's architectural specifications, a single Virtual Machine (VM) can be associated with a maximum of three VPGs simultaneously. This capability is often referred to as "one-to-many" replication. This architectural flexibility allows a storage administrator to design complex data protection strategies that go beyond simple site-to-site disaster recovery. For example, a VM could be part of:

A Local VPG for high-speed recovery from the local journal (Short-term retention).

A Remote VPG for disaster recovery to a secondary data center or public cloud.

A Tertiary VPG for long-term retention or to a third site for regional disaster protection.

When a VM is protected in multiple VPGs, each VPG maintains its own independent journal, settings, and Recovery Point Objective (RPO) targets. However, the Virtual Replication Appliance (VRA) on the host only needs to read the data changes (IOs) from the hypervisor once; it then distributes those changes to all the target VRAs associated with the various VPGs. This ensures that while the VM is highly protected across multiple locations, the overhead on the production host and the hypervisor remains minimal. It is important to note that while three is the maximum, the storage architect must ensure that the available network bandwidth and the IOPS of the target storage systems can handle the aggregate replication load of all associated VPGs.

To protect Oracle databases using HPE StoreOnce, the preferred architectural method is using HPE StoreOnce Catalyst for Oracle RMAN. This integration allows Oracle Database Administrators (DBAs) to manage backups directly from their native RMAN (Recovery Manager) tools while leveraging the deduplication and performance benefits of the StoreOnce appliance.

According to the HPE StoreOnce Catalyst for Oracle RMAN User Guide, the implementation involves two distinct stages: configuration on the StoreOnce appliance and configuration on the database server. First, the storage administrator must log into the StoreOnce UI and, under the Data Services section, navigate to Catalyst. Here, they must create a Catalyst Store. This store acts as the target repository for the backup data. During creation, the administrator sets permissions (client access) to allow the Oracle server to communicate with this specific store.

The second, and crucial, part of the implementation (as noted in Option D) is the installation of the HPE StoreOnce Catalyst Plug-in for Oracle RMAN on the actual Oracle database server. This plug-in provides the "SBT" (System Backup to Tape) interface that RMAN requires to talk to a non-disk/non-tape target. Without this plug-in installed on the host, RMAN has no way of translating its commands into the Catalyst protocol. Once the plug-in is installed and configured with the StoreOnce details, the DBA can allocate channels to the "SBT_TAPE" device and run backup jobs directly to the Catalyst Store created in the UI. Options A, B, and C are incorrect because the StoreOnce UI does not have an "Oracle RMAN option" toggle or "Database Library" creator; the intelligence resides in the combination of the Catalyst Store and the host-side plug-in.

In Brocade Fibre Channel fabrics, ISL Trunking allows multiple physical links to behave as a single logical entity. For this to work efficiently, the switch must synchronize the delivery of frames across all physical links to ensure they arrive in the correct order. This process is managed by the Deskew mechanism.

"Skew" refers to the difference in time it takes for a signal to travel across the different physical cables within a trunk, often caused by slight variations in cable lengths. According to the Brocade Fabric OS Administration Guide, the switch hardware automatically measures these differences and applies "deskew units" to the faster (shorter) links to delay them, effectively matching the speed of the slowest (longest) link in the trunk.

A critical rule in SAN design is the distance limitation between cables in a trunk. While Brocade switches are highly capable of compensating for skew, the maximum supported difference in cable length within a single trunk is usually around 30 meters. For calculation purposes, one deskew unit is approximately equal to 20 meters of cable length. If the physical length difference between the shortest and longest cable exceeds the hardware's deskew buffer capacity (which varies by ASIC generation but is measured against this 20m/unit metric), the trunk will fail to initialize or will experience significant performance degradation. Option A is incorrect because the shortest ISL is usually the baseline, not a variable deskew value. Option B is partially true but misses the physical length constraint which is the "dependency" asked for. Option C is incorrect as the deskew unit represents the difference in time (offset), not the total travel time.

In Brocade B-series Fibre Channel fabrics, ISL (Inter-Switch Link) Trunking is an optional licensed feature that allows multiple physical links between two switches to be aggregated into a single logical high-bandwidth pipe. While two switches can connect via a standard ISL without a specific license, the "Trunking" capability—which enables frame-level load balancing across those links—requires the ISL Trunking license to be installed and active on both participating switches.

According to the Brocade Fabric OS Administration Guide, if the license is missing or expired, the ports will function as individual ISLs rather than a unified trunk. This leads to the "failure to initialize" as a trunk, where the ports might stay in a "Master" or "Active" state individually but never form a "Trunk port" relationship. A common troubleshooting step after installing the license is to portdisable and then portenable the affected ports to force the fabric to re-negotiate the trunking capability.

Options B and D are technically incorrect because trunking specifically requires E_ports (Expansion Ports) used for switch-to-switch connectivity; converting them to F_ports (Fabric ports) would make them intended for end-device (host/storage) connectivity, which does not support ISL trunking. Furthermore, for a trunk to form, the ports must be within the same physical port group on the ASIC (e.g., ports 0-7 or 8-15 on many fixed-port switches), making Option D the opposite of what is required for success. By ensuring the Trunking license is present, the administrator enables the hardware and software to utilize the Exchange-Based Routing (EBR) or frame-based trunking protocols necessary for the solution.

The HPE Alletra MP B10000 (Block) utilizes a disaggregated shared-everything architecture where capacity is distributed across multiple NVMe drives and enclosures. To ensure 100% data availability, the system allows administrators to define the level of resilience required via the High Availability (HA) settings.

Architecturally, there is a direct trade-off between the level of hardware resilience and the achievable space efficiency (usable capacity).

Enclosure Level HA (Option D): This is the most resilient setting. It ensures the system can survive the total failure of an entire drive enclosure (JBOF) without losing data. To achieve this, the system must distribute parity and data stripes across different enclosures. This "vertical" redundancy requires a larger percentage of raw capacity to be reserved for parity, thereby reducing the net space efficiency.

Drive Level HA (Option A): This setting protects against individual drive failures (similar to traditional RAID 6 or RAID-TP) but assumes the enclosure itself remains operational. Because the stripes can be optimized more densely within fewer hardware boundaries, the system requires less "overhead" capacity to maintain the protection state.

By changing the High Availability option to Drive Level, the administrator instructs the Alletra MP software to prioritize usable capacity over enclosure-level fault tolerance. This is a common optimization for customers who have multi-enclosure systems but prefer to maximize their ROI on raw NVMe flash. It is important to note that changing this setting may require a re-striping of existing data and should be done in accordance with the customer’s risk profile and SLA requirements. The sparing algorithms (Options B and C) manage how much space is set aside for automatic rebuilds, but the primary driver of bulk space efficiency in a multi-enclosure MP cluster is the HA policy selection.

In a Brocade FCIP (Fibre Channel over IP) environment, an extension trunk (or tunnel) can be composed of multiple circuits to provide both increased bandwidth and high availability. The operational state of these circuits—whether they are active or standby—is determined by the Metric assigned to each individual circuit.

According to the Brocade Fabric OS Extension Configuration Guide, all circuits within a tunnel or trunk have a metric of either 0 or 1.

Metric 0: This is the default value and indicates an active circuit. If multiple circuits are configured with Metric 0, they will operate in an active-active mode, and the load will be balanced across them.

Metric 1: This indicates a standby (or passive) circuit. Standby circuits with Metric 1 are not used for data transmission unless all Metric 0 circuits within that tunnel/failover group fail.

In the provided exhibit, there is a single VE_Port (Virtual E_Port) trunking three individual IP circuits:

ge0 is configured with Metric 0 (Active).

ge1 is configured with Metric 0 (Active).

ge2 is configured with Metric 1 (Standby).

Therefore, this is a valid configuration where the system will utilize the two Metric 0 circuits (ge0 and ge1) simultaneously for data traffic, providing an active-active load-balanced connection. The third circuit (ge2) will remain in a standby state, only becoming active to maintain the link if both primary circuits go offline. Options A and B are incorrect because trunks do not require an even number of circuits, and FCIP trunks are specifically established over Ethernet (ge) ports, not native Fibre Channel ports.

The HPE Solutions for Qumulo utilize a modern, distributed file system designed specifically for the era of multi-petabyte unstructured data management. Unlike traditional block storage systems that organize data into LUNs or volumes, Qumulo uses a single, unified namespace where all data is organized into a hierarchical structure of Directories.

According to the HPE Qumulo Administration Guide, all advanced data services—including snapshots, quotas, and replication—are applied at the Directory level. When a storage administrator wants to protect a dataset, they create a snapshot of a specific directory (and all its subdirectories). The Snapshot Locking feature is an extension of this capability, designed to provide "immutable" data protection against ransomware or accidental deletion.

When snapshot locking is implemented, it is associated with a snapshot policy that targets a specific Directory path. Once a snapshot is locked, the metadata associated with that directory at that specific point in time becomes immutable; it cannot be deleted, modified, or shortened in its expiration period until the lock period has expired. This is fundamentally different from legacy architectures where you might lock a whole "Volume" (Option B), which can be inefficient for large datasets. Because Qumulo is a scale-out file system without the concept of traditional volumes or LUNs, "Directory" is the most granular and correct object for implementing these protection policies. This allows for massive flexibility, enabling administrators to set different retention and locking policies for different departments or projects (e.g., /marketing vs /research) all within the same physical cluster without needing to pre-allocate storage pools (Option D).
