HPE7-V01 Advanced HPE Edge-to-Cloud Solutions Questions and Answers

The correct answer is B. In HPE Synergy, network connectivity for compute modules is defined through HPE OneView server profiles. When RoCE is required, the server profile must explicitly include RoCE connections mapped to the appropriate RoCE network. HPE OneView guidance for adding a RoCE network states that server profiles should be created or edited with at least two RoCE connections mapped to the network. That directly supports the customer’s requirement for resilient, lossless RDMA connectivity between Synergy frames and the Aruba data-center fabric. Option A is incorrect because RoCEv1 is Layer 2 only and is not appropriate for a design traversing multiple switches and VLAN/routed boundaries. Option C is incomplete because operating-system queue creation alone does not establish Synergy Virtual Connect fabric policy or redundant RoCE connectivity. Option D is technically wrong because RoCE traffic should be consistently classified and lossless behavior must be enforced end to end, not split across two different priority values. Reference/topics: HPE Synergy networking, HPE OneView server profiles, RoCE networks, DCB/lossless Ethernet, Aruba CX data-center fabric.

The correct answer is A. HPE Zerto is the appropriate solution because the requirements describe application and VM-level cyber resilience/disaster recovery, not array management or backup-target hardware. Zerto protects virtualized workloads using near-synchronous, block-level replication and journal-based recovery, which supports very low RPOs and granular recovery points. HPE’s Zerto product material describes near-synchronous replication with recovery points measured in seconds, and HPE GreenLake for Disaster Recovery uses Zerto continuous data protection in a cloud-service model. Option B is incorrect because HPE Data Ops Manager manages HPE block storage operations and data services; it is not the DR engine for cross-hypervisor workload replication. Option C is a storage-server platform and does not provide the requested VM-level replication service. Option D, HPE StoreOnce, is a backup appliance target; it is valuable for backup retention and deduplication but does not provide near-synchronous, block-level VM replication across hypervisors. Reference/topics: HPE Zerto, HPE GreenLake for Disaster Recovery, VMware workload protection, pay-per-use data protection, block-level replication.

The correct answer is D. HPE Alletra Storage MP B10000 supports mission-critical Peer Persistence designs using synchronous Remote Copy, and FC can be used as an underlying Remote Copy transport. HPE material for Active Peer Persistence states that the solution uses Remote Copy synchronous mode, while HPE B10000 training material describes the requirement for synchronous RC links using RCFC or RCIP and cross-site Fibre Channel or iSCSI host SAN connectivity. Options A and B are wrong because Alletra 6000 is associated with Nimble/Alletra 6000 Peer Persistence, not the same Active Peer Persistence model used with Alletra Storage MP B10000, Primera, and Alletra 9000-class arrays. Option C is not the best answer because Active Peer Persistence is a two-array high-availability model; one-to-many Remote Copy is a replication topology and should not be confused with the active-active peer-persistence protection model. The key validated design differentiator here is that B10000 supports FC-based synchronous replication for high-availability block-storage use cases. Reference/topics: HPE Alletra Storage MP B10000, Active Peer Persistence, Remote Copy, mission-critical storage design.

The correct answer is B. The HPE ProLiant Compute DL384 Gen12 is an AI-optimized server platform built around NVIDIA Grace Hopper Superchip architecture. In this class of design, the CPU/GPU complex and high-bandwidth memory are integrated as part of the Superchip module rather than being expanded like conventional DIMM-based system memory. The HPE DL384 Gen12 data sheet describes the platform as using NVIDIA GH200 NVL2 Superchips and highlights coherent memory and memory bandwidth characteristics, which is exactly why the memory configuration is treated as tied to the Superchip selection. Option A is incorrect because the DL384 Gen12 architecture is not upgraded by freely adding more GB200 accelerators; it is based on a defined Grace Hopper Superchip platform. Option C is incorrect because EDSFF drive support is a platform/backplane architecture consideration, not simply a RAID-controller dependency. Option D is also not the governing rule for 400Gb NIC support. Reference/topics: AI server architecture, DL384 Gen12, NVIDIA GH200/NVL2, Superchip memory architecture, hardware validation.

The correct answer is A because HPE OneView for VMware vCenter provides VMware administrators with integrated HPE infrastructure management from within vCenter and supports deployment workflows for ESXi hosts on supported HPE platforms such as HPE Synergy and HPE ProLiant. In this scenario, the customer already has a Synergy, 3PAR, and VMware environment and wants to extend it for additional virtual machines running database workloads. Adding ESXi hosts through the HPE OneView for VMware vCenter integration is a valid upgrade path because it aligns server provisioning and VMware lifecycle operations with the existing management model. Option B is incorrect because it confuses infrastructure automation with the specific HPE OneView for VMware vCenter ESXi deployment function. Option C is false because HPE 3PAR has long been supported in VMware environments and can be part of Synergy-based infrastructure. Option D is imprecise: HPE OneView composes and manages infrastructure; it is not primarily a rapid VM deployment tool. The course covers database workload architectures, Synergy, HPE storage, VMware integration, and the use of HPE tools for validated traditional solution design.

The correct answer is D because existing HPE SimpliVity systems can be brought under HPE GreenLake / Data Services Cloud Console management by using the Data Services Connector. The connector is deployed as a virtual machine, registered with HPE GreenLake, and used to enable or import supported HPE SimpliVity systems into the cloud-managed PCBE operating model. This fits the customer’s transition scenario exactly: production is moving to the new Gen11 PCBE environment, but the older Gen10 SimpliVity cluster remains useful for test and development. Option A is incorrect because the new PCBE platform should not be downgraded to preserve legacy-style management. Option B is also wrong because the existing cluster does not need to be redeployed as a brand-new PCBE installation. Option C is directionally close but imprecise: the management plane is HPE GreenLake / DSCC using Data Services Connector, not the new PCBE system “managing” the old platform directly. Reference/topics: HPE GreenLake, Private Cloud Business Edition, Data Services Connector, SimpliVity onboarding and lifecycle management.

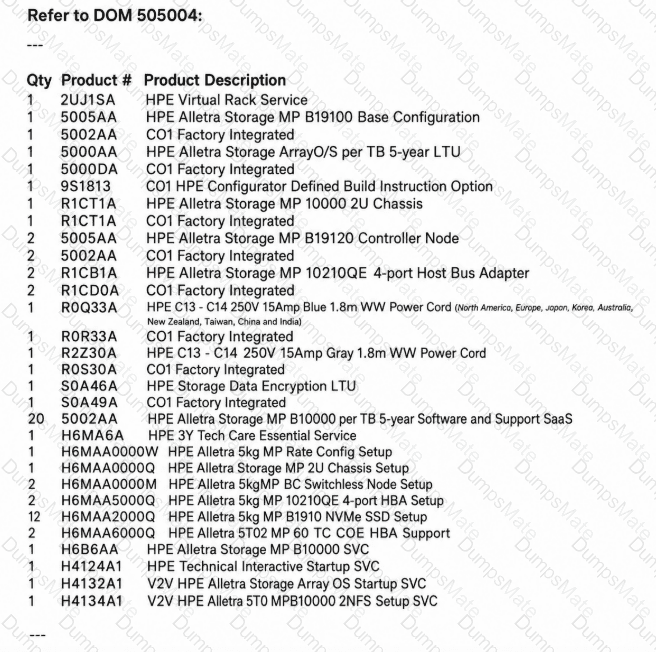

The correct answer is C. The customer requirement is explicit: four SFP28 iSCSI ports per controller node. An HPE Alletra Storage MP B10000 controller pair has two nodes, so the design requires eight usable SFP28 optical connections in total when all four 25GbE ports on each node are to be populated. The BOM already includes the Ethernet host bus adapters required for the iSCSI personality; the gap is the number of optical transceivers. HPE Alletra Storage MP B10000 supports host-port configuration by node, and HPE QuickSpecs list host port limits by controller model. HPE also identifies the 10/25GbE 4-port Host Bus Adapter as the correct Ethernet HBA class for Alletra Storage MP connectivity, while the Q2P64B item is the 25Gb SFP28 short-wave extended-temperature optical transceiver. Option A incorrectly removes the HBAs. Option B adds unnecessary HBAs instead of completing the optics population. Option D replaces adapters unnecessarily when the correct Ethernet HBA capacity is already present. The required correction is to add the missing four SFP28 transceivers so that all eight 25GbE ports can be used for iSCSI. Reference/topics: B10000 host-port sizing, iSCSI connectivity, SFP28 transceiver validation, BOM review.

The correct answer is D. HPE Alletra 6000 Peer Persistence is built on synchronous replication between two arrays and is designed for zero or near-zero RPO and fast recovery. HPE’s Peer Persistence technical white paper explains that synchronous replication uses LAN or WAN technologies to mirror data between sites and that data is copied across an IP address interface to the second array before the write is acknowledged. That makes high-speed IP connectivity the relevant design foundation for the replication path. Option A is incorrect because Peer Persistence does not require both arrays to operate as upstream for the same volume; source and destination roles are assigned per synchronously replicated volume collection, and different volume collections can reverse the source/destination role. Option B is imprecise because the replication mechanism is not “always iSCSI”; host access may involve iSCSI or FC, but synchronous replication traffic is array-to-array IP-based. Option C is wrong for the same reason: FC is not the mandatory transport for Alletra 6000 synchronous replication. Reference/topics: HPE Alletra 6000, NimbleOS Peer Persistence, synchronous replication, IP replication links, ASO design.

The correct answer is A because a traditional VMware design built on HPE Synergy and external HPE Alletra Storage MP B10000 has a much larger VMware cluster scale ceiling than an HPE SimpliVity cluster. HPE SimpliVity is a hyperconverged platform with strict federation and cluster sizing limits; HPE’s SimpliVity FAQ states that the maximum recommended cluster size is 16 nodes, while a federation can scale further across clusters. A traditional VMware architecture can scale larger at the vSphere cluster level, so the statement correctly differentiates the two approaches. Option B is incorrect because HPE Synergy does not include all VMware subscriptions automatically; VMware licensing must be sized and purchased according to the deployment model. Option C is wrong because Alletra Storage MP B10000 is not limited to VMFS-only use; it supports VMware integration patterns beyond simple VMFS datastore creation. Option D incorrectly treats Synergy as a storage system managed through the HPE Storage Integration Pack. Reference/topics: HPE SimpliVity positioning, HPE Synergy with external storage, VMware cluster sizing, traditional versus HCI design.

The correct answer is A. Existing HPE SimpliVity environments can be brought into the HPE GreenLake / Private Cloud Business Edition management experience by deploying the Data Services Connector virtual machine and importing the system into Data Services Cloud Console. HPE documentation states that Data Services Connectors are VMs that enable management of Private Cloud Business Edition with HPE Alletra Storage MP B10000 and HPE SimpliVity, and HPE guidance for existing SimpliVity customers describes downloading the connector VM, registering it, and importing SimpliVity systems. Option B is too vague and does not identify the required technical onboarding component. Option C confuses compute fleet lifecycle onboarding with PCBE/SimpliVity service integration; iLO activation through Compute Ops Management does not import a SimpliVity cluster into DSCC as a PCBE resource. Option D is legacy/analytics-oriented and does not provide the PCBE feature integration requested. Reference/topics: HPE GreenLake, DSCC, Data Services Connector, HPE SimpliVity onboarding, Private Cloud Business Edition integration.

The correct answer is A because the customer is asking for a network refresh without traditional capital purchase and also wants externalized operational management. HPE GreenLake for Networking is positioned as a Network-as-a-Service model that allows customers to consume HPE Aruba Networking capabilities in a cloud-like operating model rather than buying every component upfront. HPE’s GreenLake for Networking QuickSpecs describe it as a comprehensive NaaS offering for consuming HPE Aruba Networking Edge Services Platform capabilities in a cloud-like way. HPE Managed Services can also provide remote monitoring, management, and optimization of supported infrastructure, which aligns with the customer’s desire to move LAN management to an external provider. Option B is too narrow because the offer is not merely a software-license subscription. Option C confuses HPE GreenLake for Networking with Aruba Central-style cloud management. Option D is incorrect because the service is built around HPE Aruba Networking solutions, not generic expert support for arbitrary third-party wireless platforms. Reference/topics: HPE GreenLake for Networking, NaaS positioning, HPE Managed Services, business-outcome mapping.

The correct answer is C. RPO 0 is the decisive requirement. A zero recovery point objective means the customer cannot lose acknowledged writes if a site fails. That requirement cannot be satisfied by asynchronous replication because asynchronous copy always introduces replication lag. The storage volumes backing the VMware datastores must be synchronously replicated between the two sites so that committed data exists at both locations before the write is considered protected. HPE Alletra Storage MP B10000 is designed for mission-critical block workloads and supports high-availability replication models, including synchronous Remote Copy / Peer Persistence designs for VMware environments. HPE documentation for Active Peer Persistence describes synchronous Remote Copy as the mechanism used for high-availability protection across arrays. Option A is incorrect because stretching or joining HPE Synergy frames across sites is not the mechanism that provides RPO 0. Option B can help with VMware policy-driven placement, but SPBM alone does not replicate data. Option D fails the RPO requirement. Reference/topics: DR architecture, RPO 0, synchronous replication, B10000 Remote Copy, VMware datastore protection.
