JN0-650 Enterprise Routing and Switching - Professional (JNCIP-ENT) Questions and Answers

In a three-stage EVPN-VXLAN fabric (Spine-Leaf architecture) where leaf devices perform the gateway services (Edge-Routed Bridging or ERB):

VTEP Functionality (Option B): Leaf devices act as VXLAN Tunnel End Points (VTEPs). They are responsible for encapsulating Ethernet frames from locally connected hosts into VXLAN packets for transport across the IP fabric and de-encapsulating incoming VXLAN packets.

Fabric Support (Option C): In a standard Juniper IP fabric design, both the leaf and spine devices are typically expected to support VXLAN and EVPN capabilities. While spines in an ERB design might only perform IP forwarding in the underlay, they often participate in the BGP control plane (as Route Reflectors) or provide the ability to transition to Centrally-Routed Bridging (CRB) where spines would act as gateways.

Incorrect Options: Option A is incorrect because the entire fabric infrastructure must be " VXLAN aware " in terms of MTU settings and routing capability to support the overlay. Option D is incorrect because in an ERB design, the spine devices are high-speed transit nodes and do not terminate VXLAN tunnels; only the edge (leaf) devices act as VTEPs.

Junos OS 24.4 provides several server-failover options for 802.1X authentication to maintain network availability when the RADIUS server is unreachable.

Fallback Behavior (Option D): The use-cache fallback action allows the switch to consult its local cache of previously authenticated MAC addresses.

If a device was already authorized and its information is in the cache, the switch will continue to permit access based on those cached credentials.

However, if a new device (not in the cache) attempts to connect while the server is down, the switch cannot verify its credentials and will deny the access attempt. This matches the specific requirement to permit authorized devices while denying new ones.

Other Fallback Options:

permit (Option C): This would allow all devices (even new ones) to access the network, typically in a restricted " guest " or " bypass " VLAN.

deny (Option A): This would drop all traffic from all devices on the port if the server is unreachable.

vlan-name (Option B): This moves authenticated or unauthenticated users into a specific fallback VLAN.

In Junos OS routing policies, the order of evaluation and the impact of terminal actions are critical for predictable control.

Immediate Execution (Option D): When a route-filter contains an explicit action like accept or reject within its block, that action is considered terminal if a match is found.

Evaluation Flow: The policy engine processes terms and conditions from top to bottom. If a prefix matches a route-filter that has an embedded accept action, the policy executes that action immediately and stops further evaluation of that specific term. Consequently, any subsequent then clause in the same term is completely ignored.

Best Practice: To ensure a then clause (which might include modifications like changing a preference or community) is executed, the route-filter should be defined without an internal action, allowing the match to fall through to the term ' s common then statement.

This scenario describes a specific use case where a switch port is shared by multiple devices (e.g., via a downstream unmanaged switch), and you want to simplify the authentication process.

Single Supplicant Mode (Option A): In this mode, the switch requires only the first device that connects to the port to successfully authenticate via 802.1X. Once that first device is authorized, the switch " opens " the port for all traffic. This means all subsequent devices attached to that same downstream switch are permitted to access the network without undergoing their own authentication.

Other Modes:

Single-secure supplicant (C): Only allows the first authenticated device; all others are blocked.

Multiple supplicant (D): Requires every device to authenticate individually.

MAC RADIUS (B): This is an authentication method, not a port-control mode.

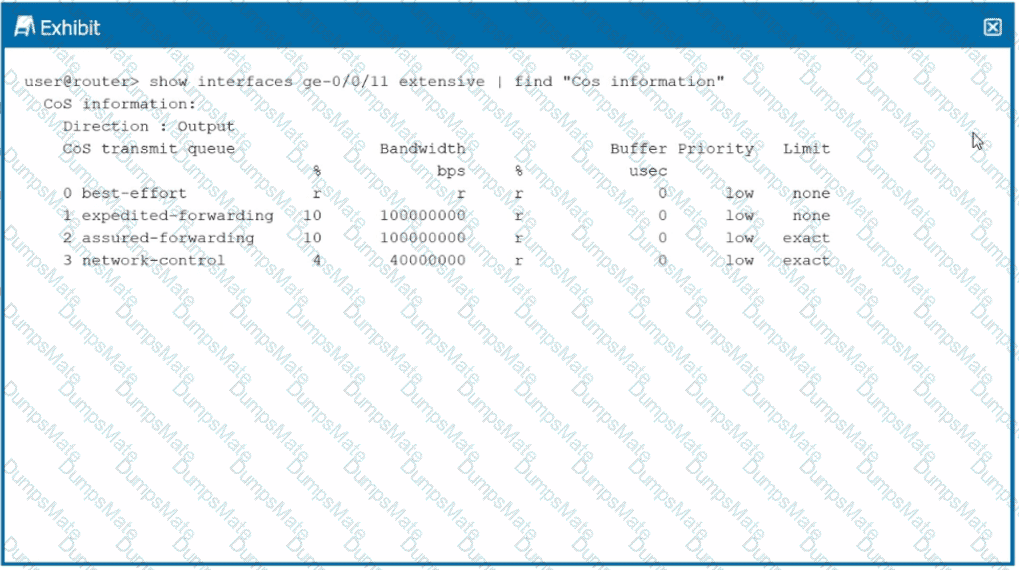

In Junos OS Class of Service (CoS), a scheduler is the mechanism used to assign resources to the various egress queues on an interface. Specifically, when utilizing a modified deficit round-robin (MDRR) or weighted round-robin algorithm to service these queues, the scheduler ' s behavior is defined by two primary variables:

Transmit Rate (Option A): This variable defines the minimum guaranteed bandwidth for a queue. In the context of a deficit round-robin algorithm, the transmit rate serves as the weight for the queue. Queues with higher transmit rates receive a larger " quantum " of data they can send during each round-robin cycle compared to queues with lower rates.

Buffer Size (Option C): This variable defines the amount of memory (buffer space) allocated to the queue. It ensures that the queue can hold a certain amount of delayed traffic during periods of congestion to prevent immediate packet drops. The buffer size can be configured as a percentage of the total interface buffer or as a temporal value.

Why other options are incorrect:

Layer 2 and Layer 3 fields (Options B & D): These fields are utilized by classifiers (Behavior Aggregate or Multifield) to identify and group traffic into forwarding classes. They are used before the scheduling process begins and do not define the resource allocation of the scheduler itself.

Private VLANs (PVLANs) allow for granular port isolation within a single broadcast domain. When extending a PVLAN across multiple switches (S1 to S2), the secondary VLANs (Community or Isolated) must be preserved across the trunk links.

802.1Q Tagging (Option B): For traffic from a Community VLAN (RND) to reach members on a different switch, the Community VLAN must have its own 802.1Q VLAN tag (VLAN ID) associated with it. When a frame from a community port on S1 traverses the trunk to S2, it is tagged with this specific secondary VLAN ID. S2 receives the tagged frame, identifies it as belonging to the RND community, and forwards it to the appropriate community or promiscuous ports.

Why it fails without a tag: If the RND community is only defined locally on S1 without a global VLAN ID, the trunk port will not know how to distinguish that traffic from the Primary VLAN or other communities.

Incorrect Options: Option A is incorrect because the community VLAN must have a different tag than the parent (Primary) VLAN to maintain the internal PVLAN logic. Option C is incorrect because stripping tags would lead to the traffic being merged into the native VLAN or dropped. Option D is incorrect because RND is a community VLAN; changing it to an isolated VLAN would change its behavior (preventing communication between members of that same group).

In a standard campus deployment on Juniper EX Series switches involving VoIP phones and 802.1X authentication, understanding the default behavior of Junos OS 24.4 is critical:

Voice VLAN (Option A): By default, an access port belongs to a single VLAN (the native or data VLAN). For an IP phone to operate correctly on the same physical port as a PC, a Voice VLAN must be explicitly configured and associated with the interface. This allows the switch to segregate voice traffic (usually tagged) from data traffic (untagged).

802.1X Configuration (Option D): Access ports do not have 802.1X authentication enabled by default. To enforce network access control for the client PCs, you must manually enable and configure the dot1x protocol on all relevant interfaces.

PoE Default (Option B): On EX Series switches that support PoE (like P or MP models), PoE is enabled by default on all PoE-capable ports. Therefore, additional configuration is generally not required unless you need to change power priorities or management modes.

LLDP Default (Option C): Standard LLDP is typically enabled by default in the factory configuration of most EX Series switches to facilitate neighbor discovery. While LLDP-MED is used for VoIP, the core requirement for " deploying " the described environment highlights the manual steps of VLAN and security setup rather than protocol discovery which often runs out-of-the-box.

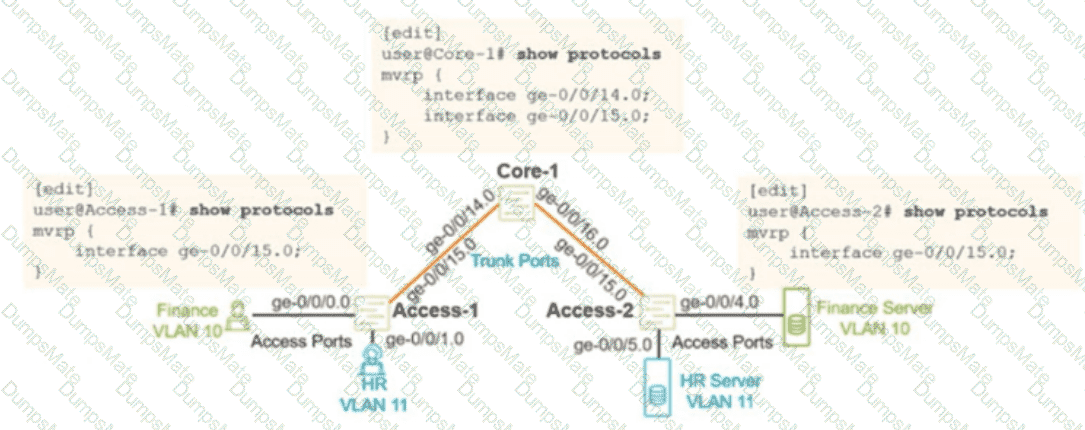

The exhibit shows a network topology where Multiple VLAN Registration Protocol (MVRP) is used to dynamically manage VLANs across switches Core-1, Access-1, and Access-2.

Identifying the Missing Configuration: According to the diagram, the trunk link between Core-1 and Access-2 uses interface ge-0/0/16.0 on the Core-1 side.

Output Analysis: However, the show protocols mvrp output for Core-1 only lists interfaces ge-0/0/14.0 and ge-0/0/15.0.

MVRP Requirements: For MVRP to successfully propagate VLAN information between Access-2 and the rest of the network, the protocol must be enabled on every trunk interface in the path.

Solution: Because ge-0/0/16.0 is missing from the Core-1 MVRP configuration, VLAN registration messages from Access-2 are not being processed by Core-1. Configuring this interface under MVRP on Core-1 will solve the communication problem.

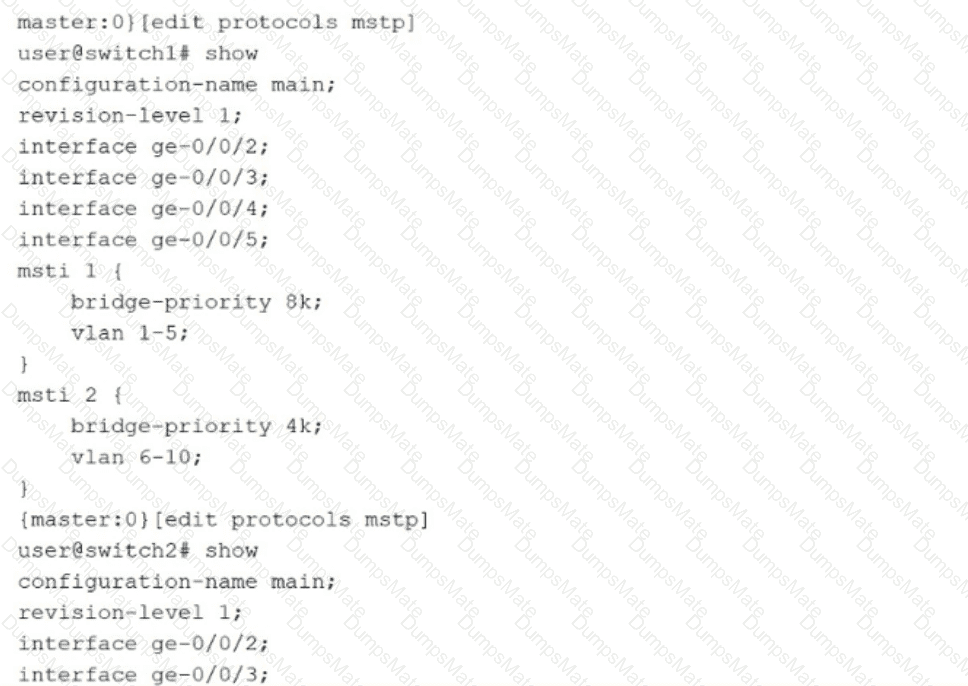

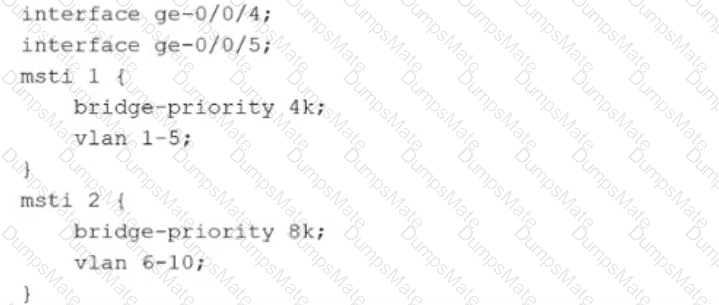

The exhibit shows the MSTP configuration for two switches, switch1 and switch2. MSTP allows you to group multiple VLANs into a single Multiple Spanning Tree Instance (MSTI), enabling different root bridges and topologies for different sets of VLANs.

Root Bridge Election (Option B): For any Spanning Tree instance, the switch with the lowest bridge priority is elected as the root bridge.

For msti 2, switch1 has a priority of 4k (4096), while switch2 has a priority of 8k (8192).

Since 4096 < 8192, switch1 is elected the root bridge for msti 2.

Failover Behavior (Option D): Spanning Tree is designed for redundancy. If a primary root bridge fails, the remaining switches in the network re-elect a new root based on the next lowest priority.

If switch2 goes down, switch1 becomes the only switch in the region.

Regardless of its original priority (4k or 8k), switch1 will take over as the root bridge for both msti 1 and msti 2 because there are no other contenders with a better (lower) priority.

Incorrect Statements: Option A is incorrect because for msti 1, switch2 has the lower priority (4k vs. 8k), making switch2 the root bridge. Option C is incorrect because it contradicts the fundamental high-availability nature of Spanning Tree.

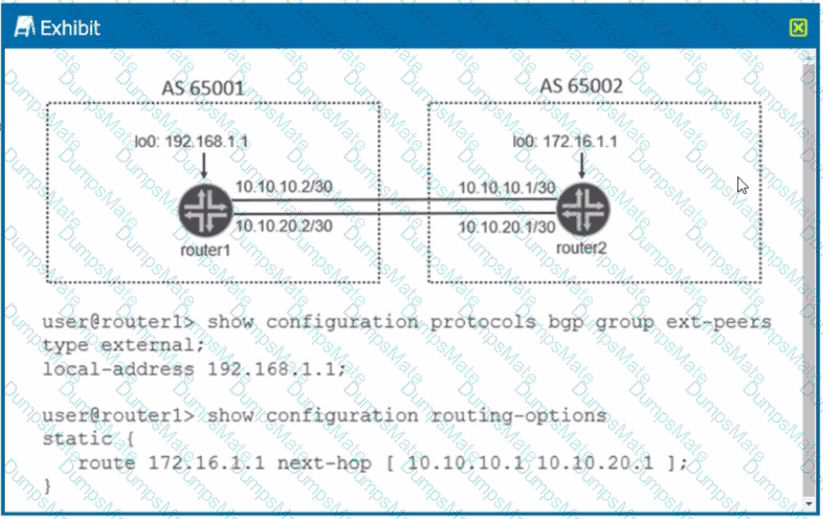

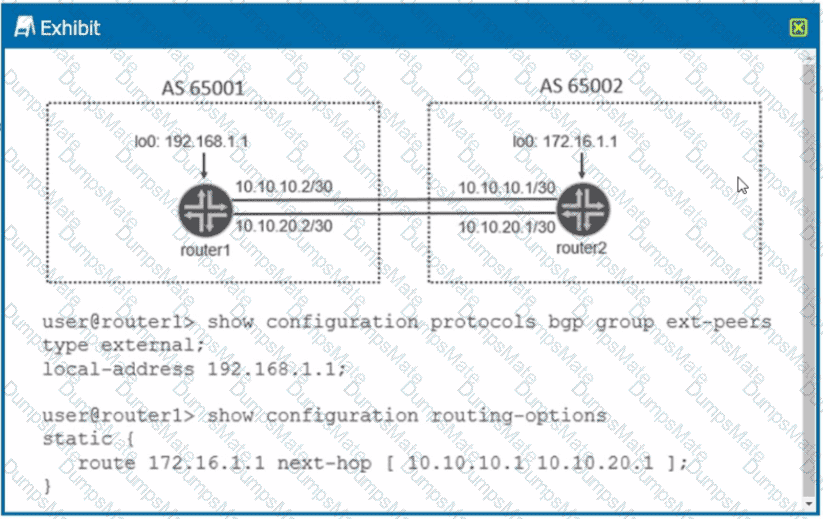

In this scenario, router1 (AS 65001) is attempting to establish an External BGP (EBGP) peering with router2 (AS 65002) using their loopback (lo0) interface addresses (192.168.1.1 and 172.16.1.1).

According to the Junos OS 24.4 documentation on BGP peering sessions:

EBGP TTL Default: By default, EBGP packets are sent with a Time-to-Live (TTL) value of 1. This assumes the peer is directly connected on a shared physical subnet.

Loopback Peering Challenge: When peering between loopback addresses, the destination IP is not on the same subnet as the physical ingress interface. Even if the routers are directly connected physically, the router treats the loopback interface as an additional " hop " . With a TTL of 1, the BGP packet expires before it can be processed by the peer ' s routing engine.

The Multihop Solution (Option D): To allow this session to form, you must configure the multihop statement under the BGP neighbor hierarchy. This tells Junos to increase the TTL (the default becomes 64 when multihop is enabled) and allows the session to establish even though the peer ' s address is not directly connected.

Target Neighbor: The neighbor address specified in the configuration on router1 must be the remote loopback address of router2 (172.16.1.1).

Option A (Multipath) is incorrect because it is used for load balancing across multiple active BGP paths, not for initial session establishment.

Options B and C are incorrect because they reference physical interface addresses (10.10.20.1 or 10.10.10.1) which are not the addresses being used for the loopback-based BGP session.

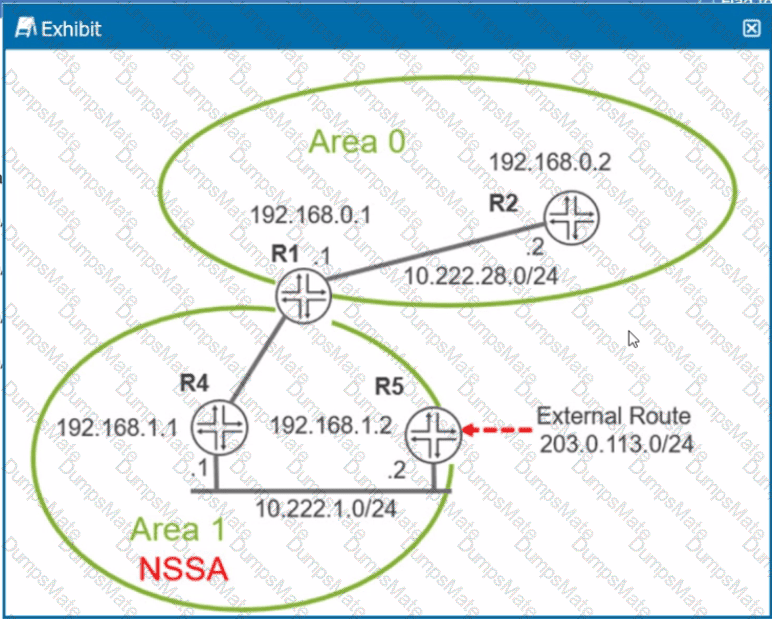

The exhibit shows an OSPF network where Area 1 is configured as a Not-So-Stubby Area (NSSA). R5 is an Autonomous System Boundary Router (ASBR) injecting an External Route (203.0.113.0/24) into this area.

NSSA ASBR Behavior (Option D): Within an OSPF NSSA, external routes cannot be advertised as standard Type 5 LSAs because stubby areas do not support them. Instead, the ASBR (R5) advertises the external prefix using a Type 7 LSA (NSSA External LSA). This LSA is flooded throughout Area 1.

ABR Translation Behavior (Option C): When the Type 7 LSA reaches the Area Border Router (R1), the ABR is responsible for translating it into a Type 5 LSA (AS External LSA). This allows the external route to be propagated into the backbone (Area 0) and subsequently to the rest of the OSPF domain.

Incorrect Statements (A & B): Option A is incorrect because Type 7 LSAs are local to the NSSA and are never advertised into Area 0. Option B is incorrect because Type 5 LSAs are strictly prohibited within an NSSA.

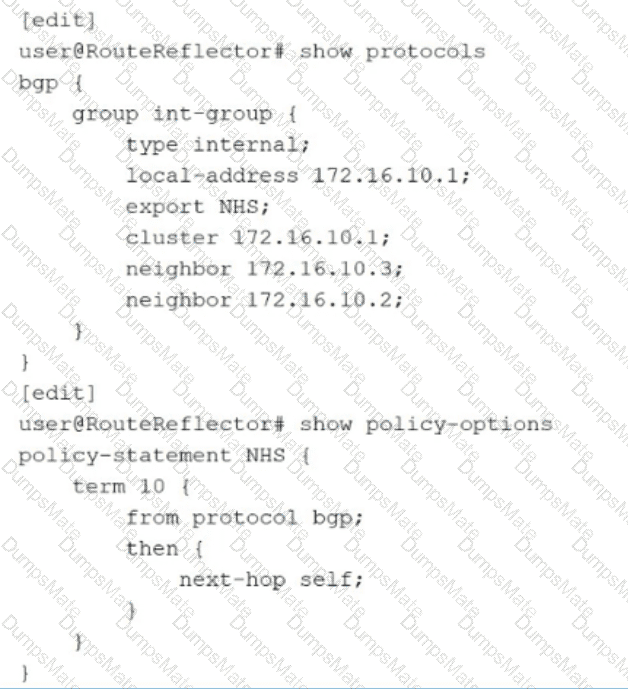

The exhibit shows a BGP Route Reflector (RR) configuration where an export policy named NHS (Next-Hop Self) is applied to the internal BGP group int-group. The policy NHS sets the next-hop self attribute for BGP routes.

The Problem (Traffic Tromboning): In a standard BGP Route Reflector design, the RR should reflect routes without modifying the BGP next-hop attribute. By applying a next-hop self policy on the export to clients, the RR tells all its clients that it is the exit point for those routes. Consequently, all data plane traffic is sent to the RR first before being forwarded to the actual destination, rather than following the optimal direct path between clients. This is known as " traffic tromboning " or suboptimal routing.

The Solution (Option C): The most direct way to fix this is to delete the export policy that is forcing the next-hop to be the RR. By deleting protocols bgp group int-group export NHS, the RR will resume standard behavior and reflect the original next-hop received from the route source, allowing clients to route traffic directly to the correct destination.

The Refined Solution (Option D): If you must keep the NHS policy (perhaps for routes learned from external peers), you should ensure it only applies to those specific routes. By adding from route-type internal to the policy term and then potentially changing the logic (or simply narrowing the scope), you can prevent the RR from incorrectly applying next-hop self to internal routes that it is merely reflecting. In the context of this specific problem, Option D combined with a change in the policy ' s action or scope helps ensure reflected internal routes maintain their original, optimal next-hops.

Option A is incorrect because setting next-hop self for external routes is common practice, but it doesn ' t solve the problem of internal reflected routes being diverted to the RR.

Option B is incorrect because applying this as an import policy would change how the RR itself sees the routes, but it wouldn ' t fix the attributes being sent out to the clients in the reflection process.

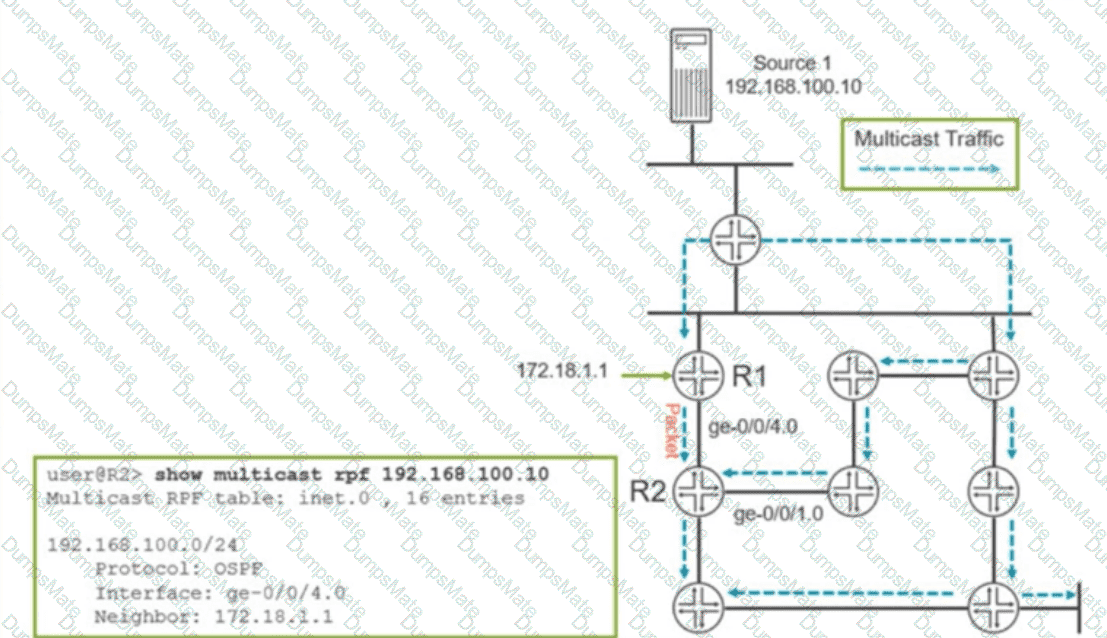

The exhibit illustrates a PIM multicast environment where router R2 has received a multicast packet from Source 1 (192.168.100.10) on its ge-0/0/4.0 interface. To prevent loops, PIM-SM uses a mechanism called Reverse Path Forwarding (RPF).

RPF Check Process (Option A): When a multicast packet arrives, the router performs an RPF check by looking up the source ' s IP address in its unicast routing table (typically inet.0).

The exhibit ' s command output, show multicast rpf 192.168.100.10, explicitly shows that for the source network $192.168.100.0/24$, the RPF interface is ge-0/0/1.0.

Because the packet actually arrived on ge-0/0/4.0 instead of the expected ge-0/0/1.0 interface, the RPF check fails.

Packet Discard (Option C): According to standard PIM-SM operation in Junos OS 24.4, if a multicast packet fails the RPF check—meaning it arrived on an interface that the router does not use to reach the source via unicast—the packet is discarded. This is a fundamental loop-prevention mechanism that ensures multicast traffic is only accepted from the shortest path toward the source.

Option B is incorrect because the router will not add any interfaces to the Outgoing Interface List (OIL) for a packet that fails the initial RPF check.

Option D is incorrect because the exhibit clearly shows the interface in the RPF table (ge-0/0/1.0) is different from the interface where the packet was received (ge-0/0/4.0).

In this scenario, the requirement is to authenticate devices based on their MAC addresses using a centralized database.

MAC RADIUS (Option A): This is the standard Juniper method for authenticating " headless " or non-802.1X capable devices based on their hardware (MAC) address. The switch acts as a proxy, sending the device ' s MAC address as the username and password to a centralized RADIUS server (the centralized database). If the MAC address is found in the server ' s database, the device is granted access to the network. This perfectly matches the user ' s requirement for MAC-based authentication and a centralized database.

Captive Portal (Option B): This is a web-based authentication method requiring user interaction (login via a browser), which is not based on MAC address identification for the initial authentication phase.

Supplicant Modes (Options C & D): These define how multiple devices are handled on an 802.1X-enabled port, but they are not authentication methods themselves; they rely on 802.1X (EAP-based) or MAC-RADIUS being already configured.

For maintenance scenarios where a router must remain operational but should not be used as a transit path for OSPF traffic, Junos OS uses the overload functionality.

OSPF Overload (Option B): When you enable overload under protocols ospf, the router advertises its own Link-State Advertisements (LSAs) with a maximum metric (65535) for all of its transit links.

Traffic Diversion: Because OSPF uses the Shortest Path First (SPF) algorithm to find the lowest-cost path, other routers in the network will see the overloaded router as an extremely high-cost path. They will calculate alternate routes, effectively moving transit traffic off the router while still allowing management traffic directed to the router ' s own interfaces.

Timeout Options: You can configure this to be permanent or set a timeout so that the router automatically resumes normal metric advertisements after a set period.

OSPF stub areas are used to reduce the size of the Link-State Database (LSDB) in routers with limited resources by restricting the flooding of external routes.

Virtual Links (Option C): According to OSPF standards (both v2 and v3), virtual links cannot pass through stub areas. A virtual link must transit a " transit area, " which must be a standard (non-stub) area with a full routing table.

Totally Stubby Areas (Option D): A stub area (which blocks Type 5 External LSAs) can be further restricted into a totally stubby area. In Junos OS, this is done by adding the no-summaries statement to the stub configuration. This blocks both Type 5 and Type 3 (Inter-area) LSAs, replacing them with a single default route.

Incorrect Statements: Option A is incorrect because standard stub areas cannot contain an ASBR; only Not-So-Stubby Areas (NSSA) allow for an ASBR. Option B is incorrect because an area is either a Stub or an NSSA; they are mutually exclusive configurations for the same area.

In an EVPN-VXLAN architecture, the network is divided into two distinct planes: the Underlay and the Overlay.

Underlay (IP Fabric): The underlay ' s only job is to provide IP reachability between the loopback addresses of all VTEPs (Virtual Tunnel Endpoints). This is typically achieved using OSPF, IS-IS, or EBGP.

Overlay (EVPN Control Plane): The overlay is responsible for carrying Layer 2 MAC and Layer 3 IP reachability information between switches. EVPN signaling is the standard mechanism for this task.

Protocol Choice (Option D): EVPN uses MP-BGP (Multiprotocol BGP) as its control plane protocol. On Juniper EX Series and QFX Series switches, the most scalable and recommended design for the overlay is EBGP (External BGP).

In a 3-stage or 5-stage Clos architecture, EBGP is used in the overlay to exchange EVPN routes (Route Types 1-5) between Leaf and Spine switches.

EBGP simplifies configuration by avoiding the need for Route Reflectors (required for IBGP) and provides better control over route propagation through BGP community and policy management.

Incorrect Options:

Options A and B refer to the underlay protocols. While they provide the path for the VXLAN tunnels, they do not handle the EVPN signaling itself.

Option C (MPLS) is a different transport technology. While EVPN can run over MPLS (EVPN-MPLS), campus designs on EX series devices specifically use VXLAN as the data plane, making EBGP the standard signaling protocol for the EVPN-VXLAN overlay.

OSPFv2 (IPv4) and OSPFv3 (IPv6) share many fundamental concepts, such as the SPF algorithm and the use of areas, but they have distinct differences in how they handle prefix information and LSA headers in Junos OS.

Backbone Requirement (Option C): Both OSPFv2 and OSPFv3 utilize a hierarchical structure. In both versions, all areas must connect to a central Area 0 (the backbone) to allow for inter-area routing. If an area is not physically connected to Area 0, a virtual link must be established.

Flooding Scope (Option D): One of the significant architectural changes in OSPFv3 is the inclusion of the flooding scope directly into the LSA header. In OSPFv3, the LS Type field is expanded to 16 bits, where the top three bits define the flooding scope (e.g., Link-local, Area, or AS scope). This allows routers to understand how far an LSA should be propagated without needing to understand the specific LSA type itself.

LSA Prefix Information (Option A): This statement is misleading. In OSPFv2, Router and Network LSAs (Type 1 and 2) carry both topology and prefix information. However, a key design goal of OSPFv3 was to separate topology from prefix information. In OSPFv3, Type 1 and 2 LSAs only describe the topology, while prefixes are carried in new LSA types: Intra-Area-Prefix-LSAs (Type 9) and Link-LSAs (Type 8).

Processing (Option B): OSPFv2 is processed " per-subnet " because it forms adjacencies based on IPv4 subnets. OSPFv3 is processed " per-link " , meaning it forms adjacencies between interfaces on the same physical link regardless of whether they share a common IPv6 prefix.
